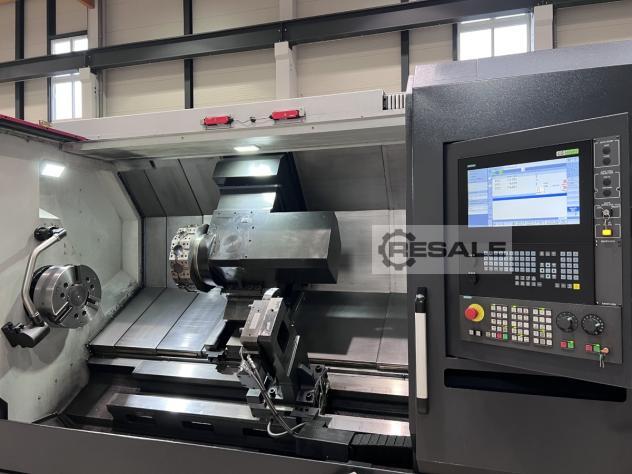

Control Siemens 828D - ShopTurn
Rotary diameter. [mm] 430
Turning length [mm] 2125
Main spindle:
Technology Belt spindle with 2 gear stages
Speed 2,000 rpm
Power (max.) 42 kW
Torque (max.) 2,315 Nm
Bar Passage 117.5 mm

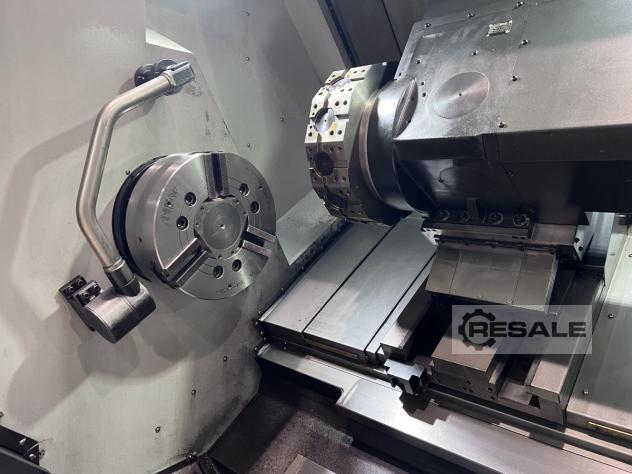

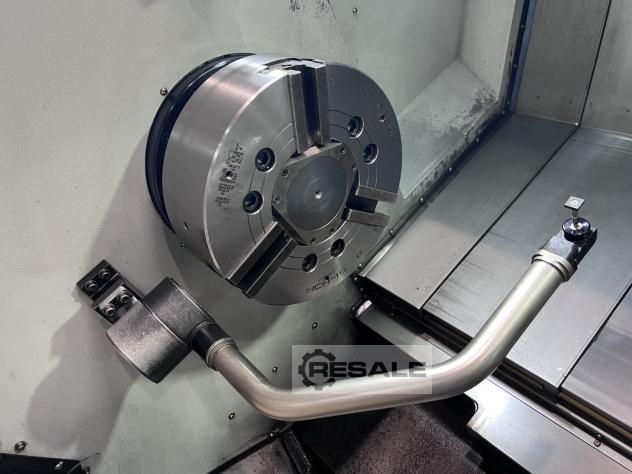

Workpiece Clamping 3-Jaw Chuck, Samchully HCH-15

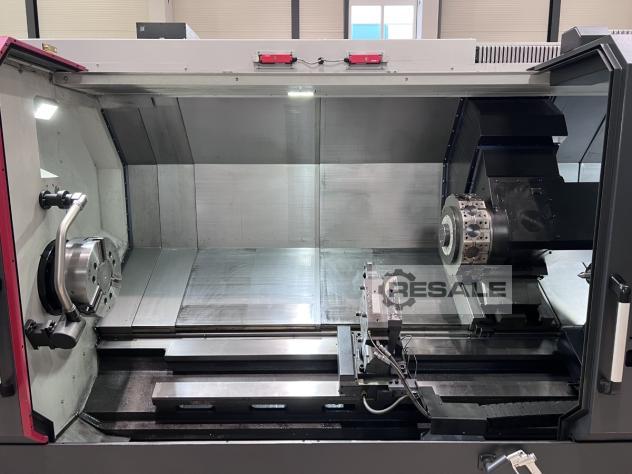

Tool carrier I ( X/Y/Z):
Technology Turret with 12 stations
Tool holder BMT65
Tool drive 4,500 rpm, 8.3 kW, 57.3 Nm
Travel in X/Y/Z 280/130/2,200 mm
Rapid traverse in X/Y/Z 30/10/30 m/min

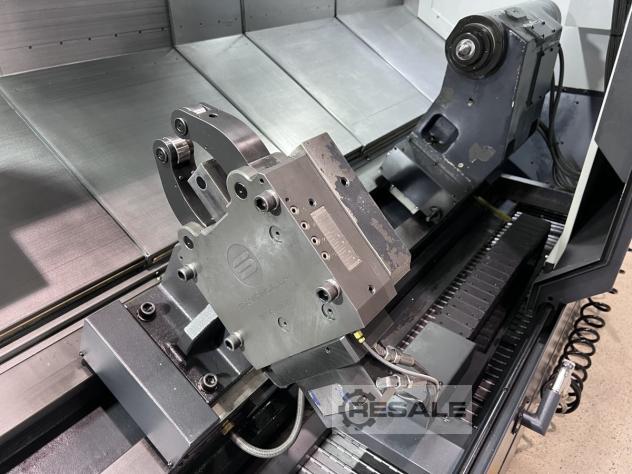

Lunette:
Technology Self-centering, towed
Type Samchully STA-3.2
Capacity ø50-200 mm
Tailstock:
Technology Trailed with hydraulic quill
Cone MT4
Pinoles-ø 110 mm
Stroke 100 mm
Equipment/accessories:
Chip G51229481 Management Chip Conveyor
Coolant management IKZ pump with oil skimmer and high pressure, 10
bar
Tool Measurement Manual Measuring Arm
Raw material feed interface bar feeder prepared
Oil mist extraction interface mechanically prepared
Setup operation Electronic handwheel
Further equipment transformer
Germany
82140 Olching
