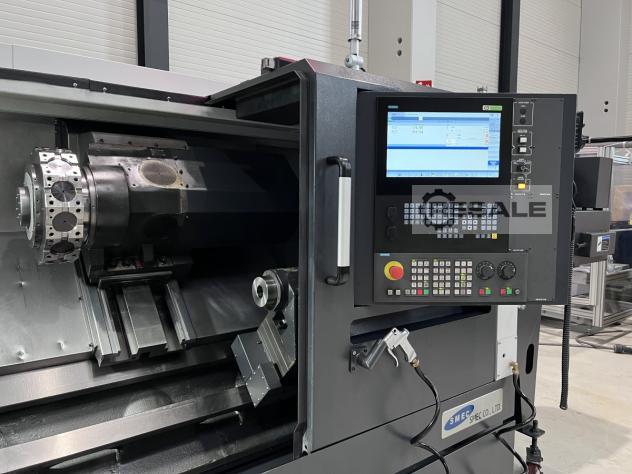

Control: Siemens 828D - ShopTurn
Rotary diameter. [mm] 405
Turning length [mm] 956
Main spindle:
Belt spindle technology
Speed 3,000 rpm
Power (max.) 42 kW
Torque (max.) 858 Nm
Bar passage 91 mm

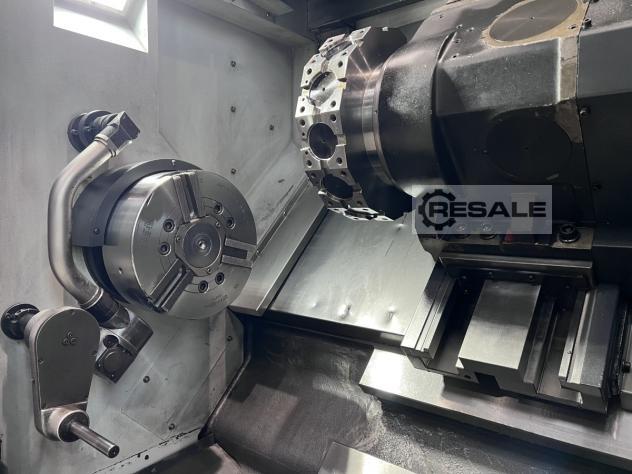

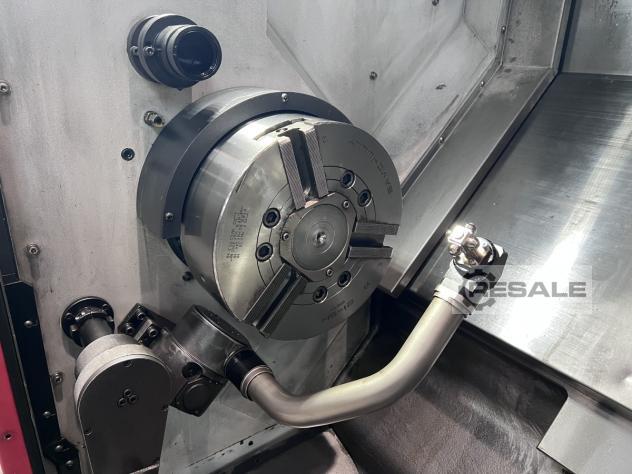

Workpiece Clamping 3-Jaw Chuck, Samchully HS-12
Tool carrier (X/Z):

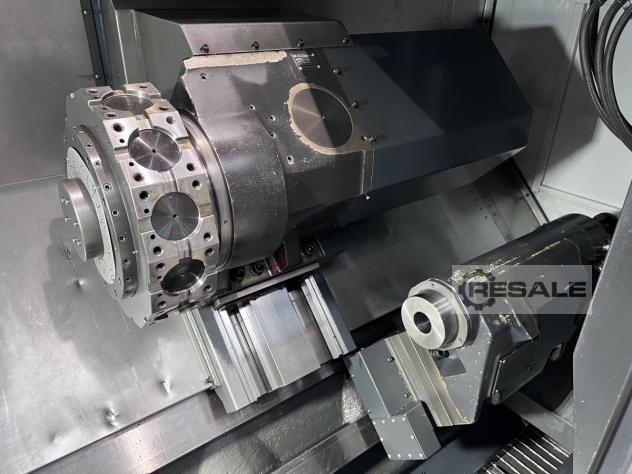

Technology Turret with 12 stations
Tool holder BMT65
Tool drive 5,000 rpm, 5.6 kW, 40 Nm
Travel in X/Y/Z 245/1,040 mm
Rapid traverse in X/Y/Z 24/30 m/min

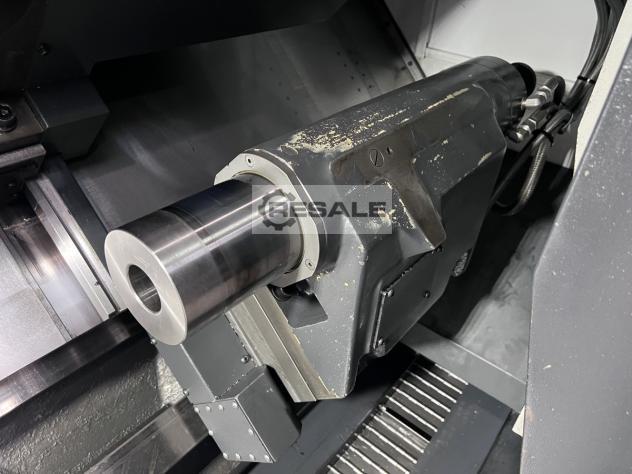

Reistock:
Technology Trailed with hydraulic quill
Cone MT5
Quill -ø 110 mm
Stroke 100 mm
Equipment/accessories:
Chip Management Chip Conveyor
Coolant management IKZ pump with oil skimmer and high G51229481
pressure, 10 bar
Tool Measurement Automatic Measuring Arm, Marposs
Raw material feed interface bar feeder prepared
Precast Removal Parts Catcher with Collection Box
Oil mist extraction interface mechanically prepared

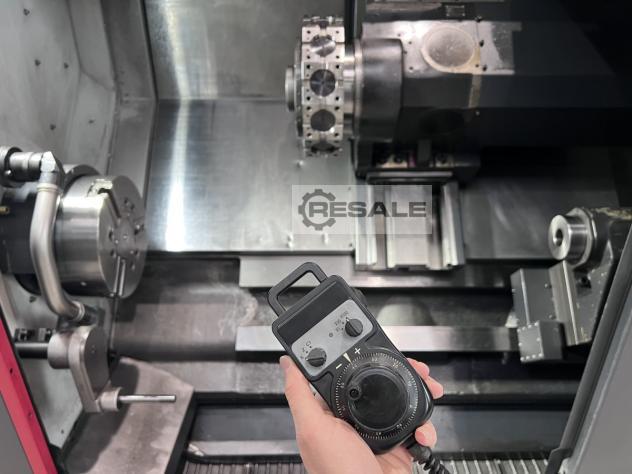

Setup operation Electronic handwheel
Other equipment Rinsing gun
Germany
82140 Olching
