Control Siemens 828D - ShopTurn
Rotary diameter. [mm] 360
Turning length [mm] 520
Main spindle:
Belt spindle technology
Speed 3,500 rpm
Power (max.) 33.6 kW
Torque (max.) 515 Nm
Bar passage 67 mm

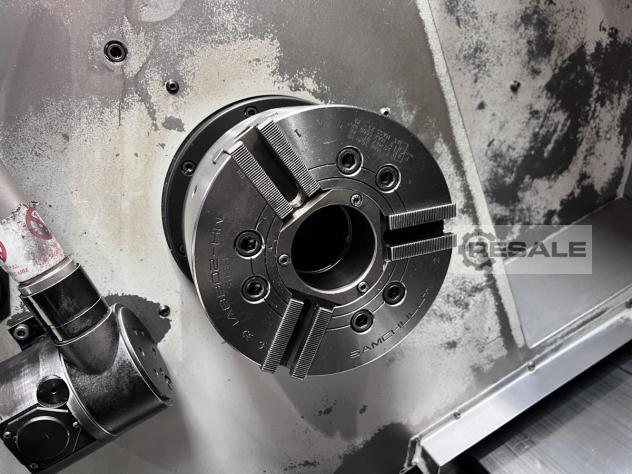

Workpiece Clamping 3-Jaw Chuck, Samchully MH-208 BVI
Sub-spindle:
Motor spindle technology
Speed 6,000 rpm
Power (max.) 8.1 kW
Torque (max.) 68 Nm
Workpiece Clamping 3-Jaw Chuck, Samchully HS-06VI
Travel in W 565 mm
Rapid traverse in B 24 m/min

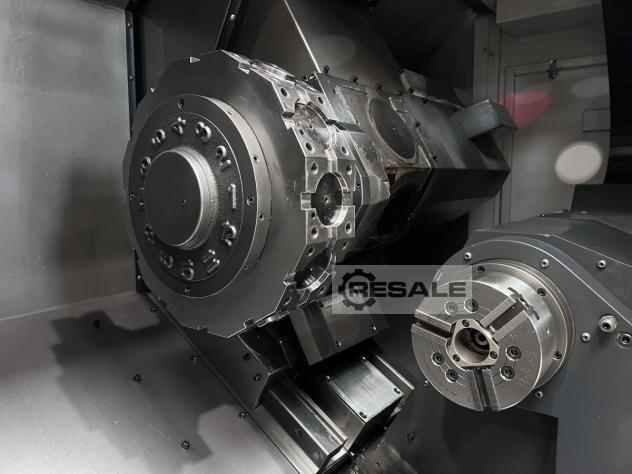

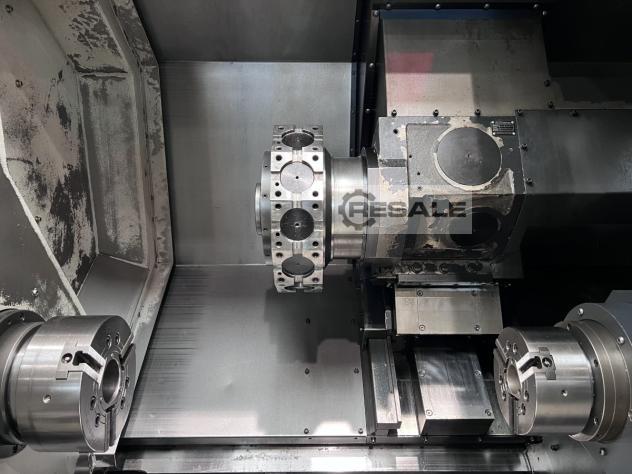

Tool carrier (X/Y/Z):
Technology Turret with 12 stations
Tool holder BMT65
Tool drive 5,000 rpm, 9.3 kW, 44 Nm
Travel in X/Y/Z 235/100/580 mm
Rapid traverse in X/Y/Z 18/12/24 m/min
Equipment/accessories:
Chip Management Chip Conveyor
Coolant management IKZ pump G51229481 with oil skimmer and high
pressure, 10 bar

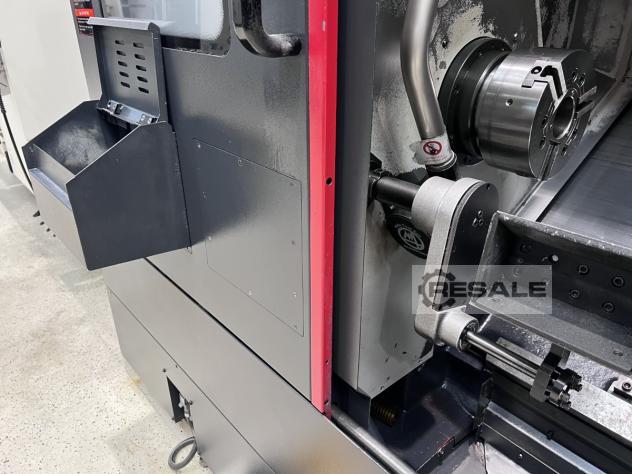

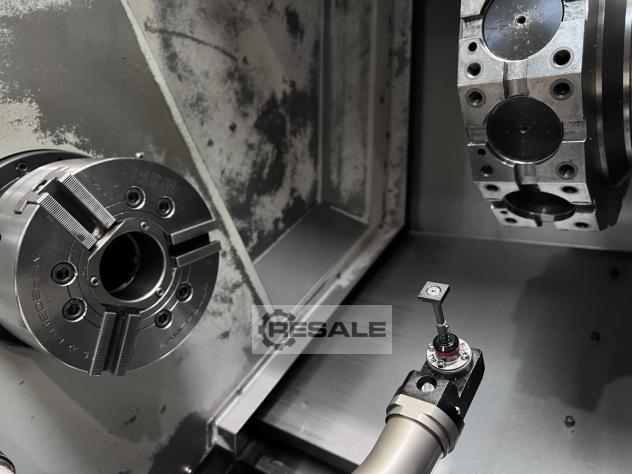

Tool Measurement Automatic Measuring Arm, Marposs T18
Raw material feed interface bar feeder prepared
Precast Removal Parts Catcher with Collection Box
Oil mist extraction interface mechanically prepared
Setup operation Electronic handwheel
Other equipment Rinsing gun
Germany
82140 Olching
