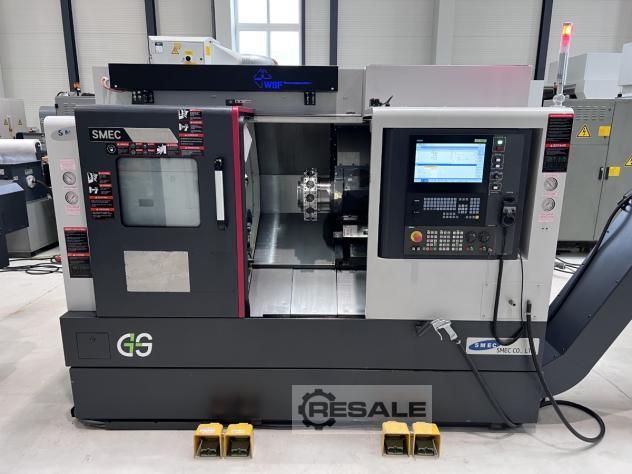

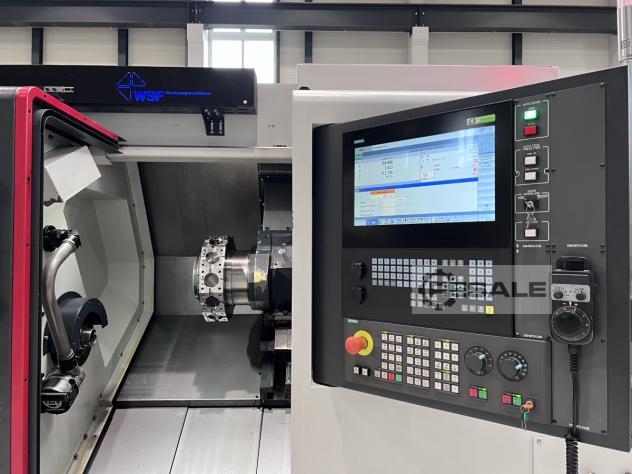

Control Siemens 828D - ShopTurn
Rotary diameter. [mm] 395
Turning length [mm] 490
Main spindle:
Belt spindle technology
Speed 6,000 rpm
Power (max.) 20 kW
Torque (max.) 127 Nm
Bar Passage 52 mm

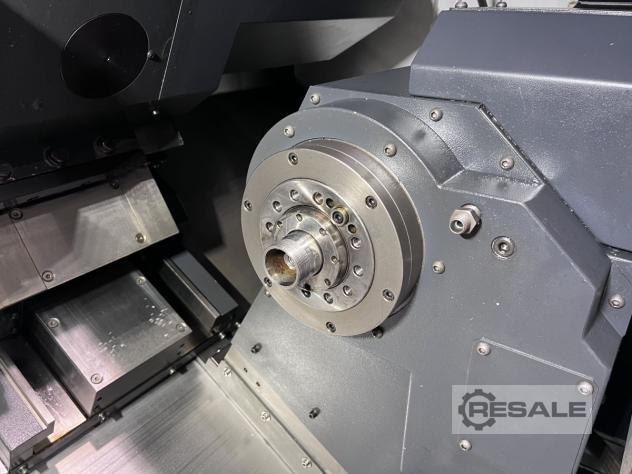

Sub-spindle:
Motor spindle technology
Speed 6,000 rpm
Power (max.) 7.8 kW
Torque (max.) 45 Nm
Travel in W 580 mm
Rapid traverse in B 24 m/min

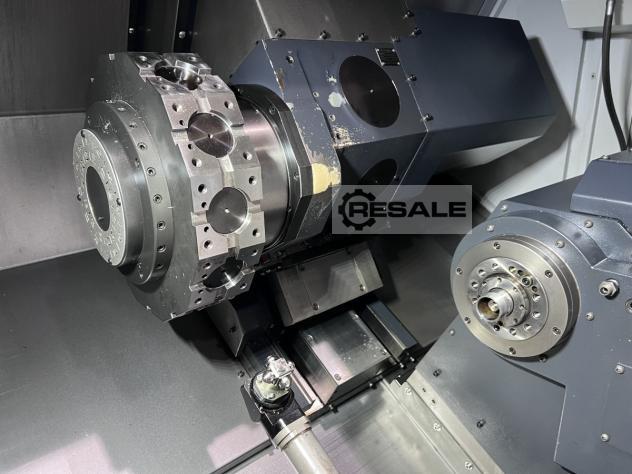

Tool carrier I (X/Y/Z):
Technology Turret with 12 stations
Tool holder BMT55
Tool drive 5,000 rpm, 9.3 kW, 44 Nm
Travel in X/Y/Z 235/105/580 mm
Rapid traverse in X/Y/Z 24/10/30 m/min
Equipment/accessories:
Chip Management Chip Conveyor
Coolant management IKZ pump with oil skimmer and high pressure, 10
bar
Tool G51229481 Measurement Automatic Measuring Arm, Marposs
Raw material feed I Interface bar feeder prepared
Raw Material Feed II Automatic Workspace Door and Interface Robot
prepared
Preparation of part catcher with collection box
Setup operation Electronic handwheel
Other equipment Rinsing gun
Germany
82140 Olching
