slotting machine vertical used for sale

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation

max. wheel diameter:130 mm gear width:170 mm max. module:3 min. module:0,5 total power requirement:48 kVA weight of the machine ca.:9 t dimensions of the machine ca.:7,64 x 3,14 x 3,25 m For technical data, see PDF-File enclosed

turning diameter:250 mm swing diameter:250 mm turning height:200 mm total power requirement:37,7 kW chuck diameter:315 mm spindle speed max.:5500 1/min travel -x axis:625 mm travel -y axis:+100/-80 mm travel -z axis:250 mm worktool system:VDI 30+40 weight of the machine ca.:8 t The synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm. Typical components are ball cages, ball hubs, gear wheels, sliding sleeves, pump wheels, flanges, synchronizer rings, bearing rings and pivot pins. The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.

max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024

max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

turning diameter:1000 mm swing diameter:1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed range I: 5 - 350 rpm. Speed range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urh ...

max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:300 cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil

max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

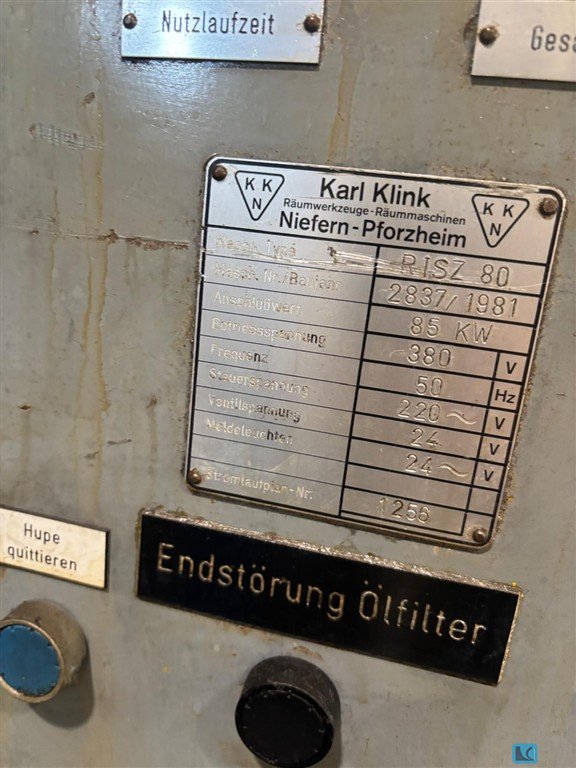

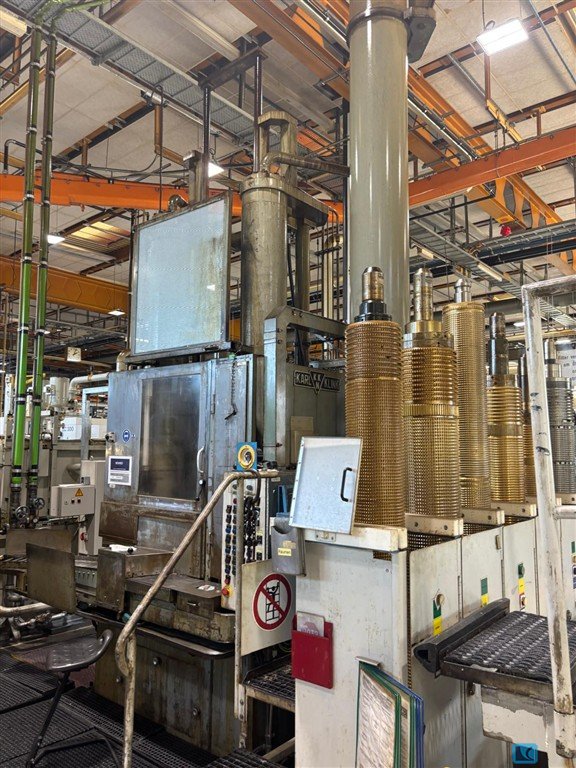

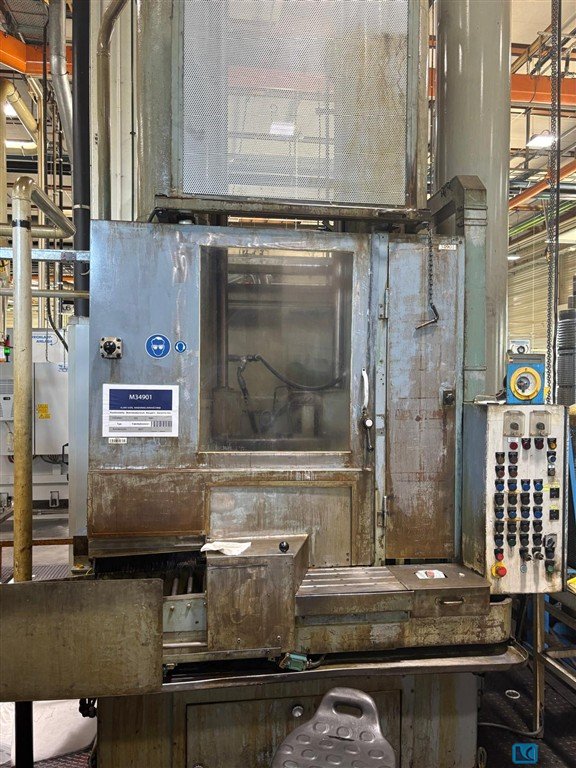

pulling force - max.:2,5 t max. ram stroke:1000 mm max. workpiece diameter:40 mm Broaching speed:60 m/min. return speed:20 m/min. total power requirement:24 kW weight of the machine ca.:6 t dimensions of the machine ca.:1,7 x 2,4 x 4,77 m clamping plate:320 mm It is a hydraulic machine.

x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown

groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled

groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden

turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories

Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Technical data: Machine stand, Type 539 Band saw roll diameter 1400 mm Band saw roll width 180 mm Saw blade width max. 200 mm Saw blade length max. 9300 mm Saw blade thickness 1.3 mm Saw blade speed approx. 42 m/sec. Drive power 45 kW, (1500rpm) Cutting feed requires. 22.5 m/min -Incl. electrical equipment, consisting of limit switches for saw blade voltage, path limitation for transverse movement -2 electromechanical width adjustment devices with precision spindle and two-stage special drive - designed for connecting a Fraba digitizer 2800 -2 hydro-pneumatic band saw roller brakes

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

Pressing force: approx. 8 tons Connection value: 230 V 1.5 kW Filling shaft: 630x460x750 mm Bale size: 630x460x700 mm Bale weight: approx. 30 - 80 kg Machine size 830x970x1870 mm WxDxH Machine weight: 360 kg Warranty: 12 months Condition: technically and optically revised Completely overhauled with new paint!

Technical data: -2.77 l/s, 14.7 m -Rated speed: 1440 1/min -Inlet: DN 50 -Print: DN 40 -Motor: 11 kW -2-pole New price: 16,500

Table clamping surface: 2 x 350 x 300 mm traverse path x/y/z: 700/300/250 mm spindle retainer: BT 30 ISA kl. / gr. Table/spindle distance: 450 mm spindle speeds: 6-6000 rpm number of tool stations: 10 pieces feeds: 5-10000 mm / min rapid traverse: x & y/z 25/20 m / min spindle drive: 3,1/4,1 kW Electr. Supply: 400 V kW weight: 2600 kg

Campagnolo Packaging Systems Vertical form and seal machine Model: C25 Serial:A02-02

Type TP4 Spindle rotation speeds 20 000 U/Min/rpm Table dimensions 900x770 mm Weight 800 kg Transport dimensions 1800 x1000x1000mm

I am offering them a complete vertical packaging plant. Multihead weigher by Ishida Vertical flow of Hassia Redatron and Bosch Bosch cartoning machine If you are interested, please contact me.

The milling center DUGARD EAGLE 660 was produced in 2005. The vertical machining center has a reconditioned spindle with a tool haul change - a rod, springs and a gripper. Technical parameters of the CNC milling machine: - CNC controller: SIEMENS SINUMERIK 810D ShopMill - workpiece probe - tool probe Worktable : - table dimensions: 810 x 510 mm - maximum table load: 500 kg - T-slot, quantity: 5 mm - T-slot, size: 18 mm - T-slot, spacing: 100 mm Processing field: - X axis travels: 660 mm - Y axis travels: 530 mm - Z axis travel: 510 mm - distance of the spindle tip to the axis of the table: 150 ~ 660 mm - distance of the spindle axis to the column: 585 mm Spindle: - spindle taper: ISO 40 - constant spindle power: 11 kW - spindle power 30 min. : 15 kW - spindle speed range: 80 ~ 8000 rpm. Rapid feeds: - X axis travel: 30 m / min. - Y axis travel: 30 m / mi ...

Vertical pallet transport

Chiron FZ18W rotopallet 1999 CNC Siemens 840D X 630 Y 400 Z 425 tables (2) 850x450mm 20 tools ISO 40 / 7100 RPM / 18kW / 140 Nm 40m/min HAWE hydraulics automatic doors swarf conveyor machine can be inspected under power in our warhouse 6 ton 3,6 x 2,25 x 2,85

Grenzebach HGB new device, 1a State ca 300 BH Uea dimensions: 590h x 170 x 190 d cm Weight ca. 1.8 t 78 cm with toothed belt conveyor Rail length 500 cm from the ground 26 cm

Table size: 700 x 1200 mm traverse path x/y/z: 600/300/350 mm spindle retainer: SK 40 ISA kl. / gr. Table/spindle distance: 150/540 mm spindle speeds: 45-6000 rpm number of tool stations: 12 pieces feeds: 5000-20000 mm / min rapid traverse rate: 5000-20000 m / min spindle drive: 5.5 kW Electr. Supply: 380 V, 12 kVA kW space: 2350 x 2100 x 2500 mm weight: 3800 kg

The vertical milling center FADAL VMC 2216 FX was manufactured in 2007 by the FADAL concern in the USA. The machine is equipped with FANUC Oi-MC numerical control. The milling machine can process workpieces weighing up to 450 kilograms. Machine travels in the X, Y, Z axes are 550 mm, 400 mm and 500 mm, respectively. The spindle revolutions of the CNC milling machine reach 8000 rpm. The center has a warehouse for 21 tools. Perfect for working with single details as well as for larger-scale processing. Technical data of the FADAL VMC 2216 FX machining center - CNC control: FANUC Oi-MC - table length: 406 mm - table width: 990 mm - maximum weight of the workpiece: 450 kg - X axis travel: 550 mm - Y axis travel: 400 mm - Z axis travel: 500 mm - maximum spindle speed: 8000 rpm - tool magazine: 21 - handle: SK 40 - spindle motor power: 11.2 kW - power demand: 35 kVA - power o ...

Table size: 550 x 950 mm traverse path x/y/z: 850/550/550 mm spindle retainer: BT 40 ISA kl. / gr. Table/spindle distance: 100/650 mm spindle speed: 8000 rpm number of tool stations: 24 pièces feeds: x/y 5-10000 / z 5-12000 mm / min rapid traverse: x/y 24 / z 20 m / min spindle drive: 11/15 kW Electr. Supply: 400 V, approx. 20 kVA kW space requirement: 2600 x 2220 x 2700 mm weight: 5200 kg

The vertical milling center FADAL VMC 15XTL was manufactured in 2007 in the United States by the FADAL brand. The machining center is digitally controlled by Fadal. It has a table size of 870 x 400 mm. The milling machine is designed for processing materials weighing up to 340 kg. It is equipped with a magazine for 21 tools. The spindle speed of the machining center, on the other hand, reaches 7500 rpm. Technical parameters of the FADAL VMC 15XTL CNC milling machine - CNC control: Fadal - working table length: 400 mm - working table width: 870 mm - maximum table load (evenly distributed): 340 kg - number of tools in the magazine: 21 pcs. - spindle drive power: 5.6 kW - maximum rotary speed of the vertical spindle: 7500 1 / min. - minimum distance between the spindle and the table: 101.6 mm - maximum distance between the spindle and the table: 609.6 mm - travel length in th ...

CHIRON MODEL FZ18W MAGNUM 4 axisVertical machining center with rotopallet and double 4th axis20 TOOLSISO 40Toolchange: 2.1 sec Spindle: 20 - 8000 RPM, 18,5k kWX = 625Y = 400Z = 400Rapids 40m/minTable area: 2 x 900 x 470- TSUDAKOMA heavy duty double 4th axis (Japan) 360.000 pos.- original HAWE hydraulic unit - FANUC 0m be inspected under power in our warehouse.Mimu Machine tools Italy

P57 - used appr. 3 m³ / 3,000 litres polyester tank / GRP tank, Staffelstein tank, aboveground, vertically standing, good condition. capacity: appr. 3 m³ / 3,000 litres material: polyester / GRP height: 2.40 m width: 1.04 m length: approximately 1.60 m (with lid 1.80 m) Aboveground, vertically standing tank, dome on the front side, several in- and outlets. The container can be used as a storage tank for water, liquid feed, whey, potato steam skins, molasses, liquid manure, seeping juice, rapeseed oil, or as rain collection tank etc. Price upon request. Transport can be arranged at low cost. Also we can modify the tank to suit your demands, just ask us. It is not possible to update all our advertisements daily. Since our inventory is changing continuously, it may be that this tank has already been sold but a similar one is in stock. Please give us a call or write ...

Table size: 410 x 900 Traverse path x/y/z: 560/410/380 mm spindle retainer: SK 40 spindle speeds: 22-6000 rpm feeds: x & z to 10000, y up to 240 mm / min space: 2600 x 2000 x 2300 mm weight: 3500 kg

P63 - used appr.4 m³ / 4,000 litres polyester tank / GRP tank, aboveground, standing vertically, in good condition. volume: appr. 4 m³ / 4,000 litres material: polyester / GRP height: appr. 2, 30 m (tank) / 2, 60 m (total) width: appr. 1, 35 m length: appr. 1, 86 m Aboveground, vertically standing tank on a steel frame. Dome on the front, several in - and outlets. The container can be used as a storage tank for water, liquid feed, whey, potato steam skins, molasses, liquid manure, AHL / ASL, seeping juice, rapeseed oil, or as a rainwater tank, etc.. Price upon request. Transport can be arranged at low cost. Also we can modify the tank to suit your demands, just ask us. It is not possible to update all our advertisements daily. Since our inventory is changing continuously, it may be that this tank has already been sold but a similar one is in stock. Please give  ...

CNC Vertical Lathe VTL with Tool Changer.You Ji GTH-35/45 ATC-I.Year of manufacture 2012.Fanuc 0i-TD CNC Control.Face plate diameter 3500 mm.Hydrostatic table - Load max. 50 t.Swing diameter max. 4500 mm.Turning diameter max. 4000 mm.Turning height max. 2200 mm.Ram cross travel X -1750/+2160 mm.Ram vertical travel Z 1500 mm.Table drive 60/75 KW.Table turning speeds 2 ~ 75 mm.Torque at the table 67330 Nm.Tool magazine with 16 positions.Tool taper 7/24 BT 60.Floor space required 12375 x 8210 mm.Machine height 7920 mm.Full guarding.3-colour signal lamp (tower).AS NEW - 200 run hours !Available immediately.; As new

see side sheet below, with 2-spindle drill head Franz X. LINDNER SBS-2/2, spindle distance 300 mm, (translation 1:1)

Vertical band aege KOeLLE ST105, table 950/900 mm, v= 15 - 2300 m/min - table must be overhauled - see pictures

Qty. 1 Second-hand vertical profile painting cabine The equipment is designed for automatic electrostatic spraying of powder paints and varnishes onto long metal products and must be built into a production line equipped with an overhead single-rail closed ring conveyor. Mfc.: TRASMETAL Built: Main technical characteristics Maximum profile size: Width: 120 mm Height: 8,000 mm Length (axial along the conveyor): 350 mm Equipment exhaust ventilation: 24,000 m3/hour Compressed, dried and purified air (water - maximum 1 g / m3, oil - maximum 0.01 ppm / m3) Total flow: 530 m3/hour Pressure: 7 bar Electricity: 380 V, 50 Hz, 3 ph. Power: 235 kW

FZ15KS HIGH SPEED 4 axis vertical machining center X: 550mm Y: 400mm Z: 360mm 4th axis original Peiseler CNC Siemens 840D Table surface 1050 x 450mm Toolchanger 48 posts ISO 40 Spindle speeds up to 12000 1/min with 4th axis Renishaw broken tool detector Coolant through spindle swarf conveyor Can be inspected under power in our warehouse. Mimu machine tools (Italy)

Felder Vertical Clamp (with mounted drill chuck) Technical details: - Table support dimensions: 400 x 160 mm - Table support can be rotated on both sides up to 45° (with degree scale) - Table height: can be changed from 960 to 1,010 mm (screw connection) - Horizontal right-left adjustment range: 230 mm (115 mm in one direction) - Adjustment range of the unit horizontally forward-backward: 110 mm - Max. drilling depth: 100 mm - Supplied with mounted drill chuck 1/8 - 5/8 F3 - 16 LB 16 S3 - Max. chuck mount: 16 mm - Max. spindle diameter (tool holder): 19 mm - 2 x quick-release device on the machine body Engine data: - Voltage: 380 V - Current: 4.5 A - Frequency: 50 Hz - Power: 1.1 kW - Speed: 2,850 rpm Dimensions (DxWxH): 700 x 1,250 x 1,900 mm Transport dimensions (DxWxH): 700 x 1,250 x 2,100 mm The machine has been completely cleaned, overhauled and checked ...

Dematic EPRE Vertical Lift Used goods built in 2019, very good condition, see pictures Transport height: 11 m Maximum speed 4 m/s Suitable for Multishuttle Dematic DMS2STATIC 34 pieces available. Negotiation price: from € 3.500,-/ piece net ex location Depending on the design and purchase quantity Dismantling will take place from April to June 2024. Location: Northern Italy. Viewing possible by appointment. Further information on request. Partial sale possible. Systems are professionally dismantled and loaded. Transport and customs clearance can be carried out by us. Assembly and programming can be carried out by partner companies. EVERYTHING HAS to go! - from location to max. End of June 2024 The following products of the plant are also available for sale: 300 x Dematic Multishuttle Strain Gauge 2 - 31.5 kg 350 m Dematic Sorter Flex Sort Crossbelt  ...

Table size: 1000 x 490 mm traverse path x/y/z: 800/510/500 mm spindle retainer: ISO 40 ISA kl. / gr. Table/spindle distance: 120/620 mm spindle speeds: 40-6000 rpm number of tool stations: 22 pieces feeds: x/y 1-3200 / z 1-2000 mm / min rapid traverse: x/y 1-3.2, z 1-2 m / min. Supply: 380 V, 19 kW space: 2850 x 2150 x 2600 mm weight: 3800 kg

VERTICAL PANEL SAW type HOLZHER 1255 second hand machine volt. 380/50 max. working length mm.5300 max. working heigth mm.2200 CE mark : Yes
