turning diameter over bed: 500 mm turning diameter over slide rest: 330 mm turning diameter in the gap: 600 mm turning length: 3000 mm bed width: 505 mm spindle bore: 72 mm spindle head: DIN 55022 Gr. 8 taper in tailstock: MK 5 turning speed range: 22,4- 1120 U/min power requirement: 18,5 kW dimensions: 5,3 x 1,75 x 1,53 m weight of the machine ca.: 5,2 t used lathe in nice condition with digital scale - 2 axis digital scale - 4 jaw chuck Ø 250 mm - 3 jaw chuck Ø 260 mm - Multifix C toolholder system - some toolholders - steady The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.
centre height: 400 mm centre distance: 3.000 mm max. swing over bed: 810 mm max. swing over facing slide: 510 mm max. swing-dia. in gap: 850 mm control: WEILER max. workpiece weight: 3.800 kg spindle diameter in front bearing: 150 mm spindle bore: 106 mm faceplate diameter: 630 mm worktool system: Parat tailstock quill taper MT: 6 dia. of quill: 115 mm spindle turning speed - stepless: 1 - 1.800 U/min Lathe - cycle-controlled | WEILER - E80 x 3000 equipped with 630mm faceplate, 400mm SCHUNK ROTA-S plus chuck, boring bar attachment, PARAT tool system as well as a chip conveyor. A comprehensive tool package is included in the scope of delivery. The machine video from the production plant will be shared on request. The machine is in good condition and can be inspected under power at any time. Please refer to further technical details in the attachement of the offer. - - - - - - - - - - - - ...
Electric deck oven 4 shelves, 80 cm wide, 60 cm deep with proofing chamber, on castors Shelf height 15 cm, with stone slabs Top and bottom heat, with steaming Digital control DMS 3 with extractor hood
WEILER Praktikant 140 B lathe YOM 1991, Serial No. 91-2735 With 3-axis digital readout Heidenhain Centre height 140 mm Swing over bed 280 mm Swing over support 158 mm Centre distance 650 mm Spindle hole 40 mm Spindle speeds 24 to 2500 rpm Tailstock Pinole Ø 40 mm Taper MK 3 Stroke Pinole 85 mm Feeds from 0.02 to 0.63 mm/rev Thread cutting: Metric, Imperial (inch), Module and Diametral Pitch threads possible Metric thread pitches from 0.25 to 8 mm Weight approx. 680 kg Accessories: -set of collets -knife holders -x2 jaw-chucks -others The machine has only been used in Germany. Very quiet drives, excellent condition
x-travel:800 mm y-travel:410 mm z-travel:510 mm control:Fanuc 10 MA rapid travel x/y/z:20/20/15 mm/min table surface area:1100 x 450 mm tool taper:BT 40 tool magazin::30 BT 40 max. tool length:250 mm max. tool weight:8 kg power requirement:7,5/5,5 kW turning speed range:6000 1/min weight of the machine ca.:6,3 t Under offer is a complete CNC tool shop, which will be given up due to old age of owner. The Mori Seiki is still highly accurate. All existing tool holders, tools, drills, vices etc. come with the machine. All measuring devices also come with the machine. Upon request orders for parts to be made can be passed on to new owner. This is a low cost all inclusive opportunity for a "Startup"
Tool holder shaft type:HSK-A 100 Tool holder shaft type:Wohlhaupter Tool holder shaft type:Feindrehwerkzeuge Ausdrehkopf / Precision Turning Big selection of Wohlhaupter HSK-A 100 Tool holders / precision turning tools / adapters /extenders etc. for sale Sales list with prices upon request.
bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t
turning diameter:1600 mm turning length:12000 mm control:FAGOR 8050 Used CNC Lathe with FAGOR 8050 and extensive accessories. For further technical data and accessories, pls browse the Appendix. Parallellathe WMW mod. 4 GUIDE-WAYS ¦ CNC: FAGOR 8050 ¦ bed: monolithic ¦ centres height: 800 mm ¦ centres distance: 12000 mm ¦ swing over cross-slide: 1250 mm ¦ turret: automatic 4 positions ¦ tailstock: motorized ¦ tailstock connection: hydraulic ¦ platform: diam. 1000 mm ¦ steady rests: nr.02 ¦ chip conveyor Warranty: none Take advantage of the favorable leasing and hire-purchase terms from IKB Leasing. Ask us about it.
pressure:800 t distance between columns:2900 mm stroke:350 mm Controls:SIEMENS PRESS DESIGN:. - frame design : H-frame :. - Drive type : mechnical :. - openings in uprights : yes :. - number of cushions:0 - opening in table : yes :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):800 to PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - rectangular breakthrough (width):2000 mm - rectangular breakthrough (front-back):1800 mm - height above floor level:850 mm RAM:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):2900 mm - Free passage between side columns (width):2560 mm ...
sheet width:2000 mm plate thickness:1.8 mm Controls:SIEMENS S7 PRESS DESIGN:. - frame design : H-frame :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. PRESS TABLE:. - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - height above floor level:375 mm RAM:. - ram force:800 to - clamping surface (left-right):2800 mm - clamping surface (front-back):2800 mm - stroke:350 mm - number of strokes max:55 /min RAM (MECHAN. PRESS):. - ram adjustment:350 mm TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):1100 mm - distance between columns (H-frame):3100 mm - Free passage between side columns (width):2560 mm - Free passage between side columns (height):1500 mm DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diamet ...
band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm
working area:10700 mm Tube length:300-11000 mm min. workpiece diameter:80 mm max. workpiece diameter:260 mm Power:120 KW dimensions:21,5 x 5 x 3,8 m mm weight:90.000 kg pre-turn capacity:200 cdm/min HS Code: 8461 90 00 Description of the system Manufacturer / Type Vario 1200-11000 Year of manufacture 1999 Intended use peeling machine for pipes and solid material with ultrasonic measuring system for detection of wall thickness deviations and correction of the same. Machine control SIEMENS 840 D - 6 axes Max. speed on the scraper/peeling device: n = 200 min-1
weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine
max. wheel diameter:780 mm gear width:130 mm max. module:10 weight of the machine ca.:8,5 t no. of strokes:30 Hub/min Hier fully functional machine, Little used There are some Tools and Change gears Liebherr WSC501 CNC gear shaping machine, used, ready for use Manufacturer: Liebherr Type: WSC 501 Mach.- No.: 4407/05 Year of manufacture: 1985 Details: Max. gear shaping module: 8mm (30°gears possible up to module 10°) Max. gear width: 130mm Diameter of the machine table: 500mm Maximum wheel diameter: 780mm Shut height ? table: 650mm Stroke rate min. 30DH/min Continuously adjustable max. 1500 DH/min. Operating voltage: 380V Frequency: 50Hz Control voltage: 110V Connected load: 36 kVA Rated current: 55A Weight: 8500kg Dimensions: approx. 4,85 x 3,655 x 3,78 (width x depth x height in m) The machine has seen only very limited use in our company. It remains fully operational and can be dem ...
Total force (nominal):800 to Clamping surface (left-right):x mm Clamping surface (front-back):x mm table surface area:3200 X 2200 mm Total force (nominal):2-3-4-5- Presse - 600 to. to table surface area:2-3-4-5- Presse 3100 X1900 mm Last overhaul 2010/2020, consisting of: Circuit board washing system, manufacturer Neuhäuser, with 6 cleaning rollers, system no. 0905200, control unit by Siemens Blank automation, manufacturer Neuhäuser, type 19711594-00-0, year 2002, SN 369507/002, system no. FK42282, consisting of: destacking device, oiler, pallet changer, empty pallet discharge Gripper automation, manufacturer Olofström, type Doppin Loader 2000, SN 37719974886, system no. 0602300 Double-column press, manufacturer Weingarten, type ZS 1200.34 Year 1972, order no. 113 021, pressing force approx. 800 t, double action, stroke 850 mm, stroke adjustment 350 mm, height between table surface an ...
max. wheel diameter:300 mm max. number of teeth:999 max. module:5 total power requirement:10 kW weight of the machine ca.:1.800 Kos. dimensions of the machine ca.:1300 x 1450 x 2250 mm The Gear Tooth Deburring machine ? ZEM 300 for deburring of splines gear wheels and shafts The advantages at a glance - Vertical workpiece spindle - Chamferring, debburing and smoothing - Simultaneous Processing of 2 Gears - Dry Processing - Repeat accuracy when adjusting the tools - Simple integrated Pick up swing arm or linear loader - Crane hook machine Workspace Swing Diameter: 300 mm Process Diameter: 300 mm Workpiece Length: 450 mm Main Spindle Spindle Flange: Zylindrisch D=120 mm Front bearing spindle: 100 mm RPM max: 1500 U/min AC-Synchronmotor: 50 Nm Clamping cylinder : pneumatic Clamping force (5 bar): 10 kN Working axis swing arm for chamferring tool Feed force: 3 kN Ball screw drive: 25x5 P ...
max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.
max. wheel diameter:300 mm gear width:100 mm max. module:5 workpiece turning speeds:0 - 1000 1/min work piece - max.:1100 mm workpiece clamping:auto. tension device number of spindle speeds:1000 1/min. spindle bearing diameter:100 mm diameter of spindle flange:120 mm tailstock travel:80 mm weight of the machine ca.:3500 KG dimensions:1200 x 1450 x 2250 mm total power requirement:10 kVA The Gear Tooth Deburring machine WERA, ZEM 300 for deburring of splines gear wheels and shafts, with Pointing Facility.
Basket size LxWxH: 900 x 500 x 450 mm Max. basket weight:300 kg No. of washing chambers:2 No. Of tanks for washing:2 Electrical heating power:24 kW Rated power supply:30 KW tank capacity:250 / 180 l Capacity:140/120 L Machine size LxWxH:1,9 x 1,5 x 2,7 m Cleaning device with 3 steps and basket dia. of 900 mm PLC control, tank exhauster pump
turning diameter over bed:500 mm turning diameter over slide rest:310 mm turning length:1500 mm spindle turning speed range:7 - 710 U/min feed range:5,6 - 224 mm/min total power requirement:15 kW weight of the machine ca.:3,7 t dimensions of the machine ca.:2,9 x 1,4 x 1,6 m Machine with 2-axis digital readout - MULTIFIX quick tool change device - 3-jaw chuck
turning diameter over bed:1000 mm turning diameter over slide rest:750 mm turning length:3000 mm weight of the machine ca.:12 t dimensions of the machine ca.:6x2,5x1,8 m spindle bore:110 mm turning speed range:900 U/min Year:1986 Equipment: - Coolant device - 1 static steady rest - 1 rotating steady rest - Faceplate 1.000 mm - Digital display - Rapid traverse
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides
grinding length:4000 mm grinding width:1450 mm workpiece height:1250 mm total power requirement:40 kW dimensions of the machine ca.:12,3 x 6 x 4,8 m distance between columns:1460 mm table surface area:4000 x 1250 mm max. workpiece weight:11.000 kg cross rail adjustment:1250 mm Machine is in very good condition for highest precision! With CNC control SIEMENS 840 D 1 universal grinding support, 7.5 kW, swivelling grinding spindle ±110° Peripheral grinding wheel dimensions Ø 500 x 60 mm Vertical adjustment 350 mm, with dressing device 1 peripheral grinding support, 22.5 kW Grinding wheel dimensions Ø 600 x 100 mm Vertical adjustment 150 mm, with dressing device With 6 magnetic plates arranged on the table Various grinding wheel holders
x-travel:1.100 mm y-travel:900 mm z-travel:1.250 mm tool length:750 mm rapid traverse in x-y-z axis:60 feeding capacity X Axis:17.000 daN feed capacity Z - max.:17.000 N spindle taper:SK50 max. workpiece weight:1500 kg revolutions per minute:10.000 U/min pallet table size:630 x 630 mm tool magazin::165x (bis D=125mm), 21x (bis D=225mm), 8x (bis D=350mm total power requirement:37 kW
bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel
x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 Lifting operator platform External tool cooling Spindle clamping support
spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ
turning diameter:1070 mm turning length:8500 mm total power requirement:62 kW turning diameter over slide rest:800 mm spindle bore:128 mm max. workpiece weight between centers:8000 kg max. workpiece weight:12000 kg bore spindle turning speed range:1,120-01120 U/min tailstock quill diameter:200 mm dimensions of the machine ca.:12 x 2,8 x 2,4 m Machine equiped with Alan Bradley 9 series CNC control - SAUTER 6-postiion revolving head - 360 mm seld centering steady rest - 385 mm rotary work rest (used for gun barrels) - faceplate 800 mm - chip conveyor
bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975

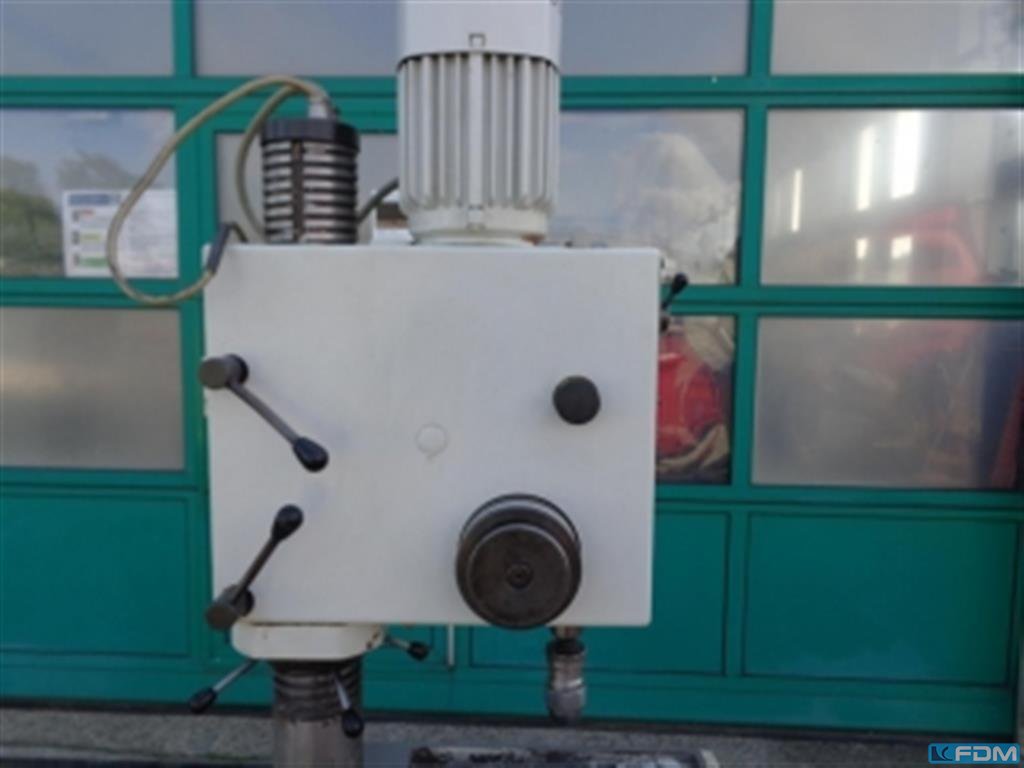

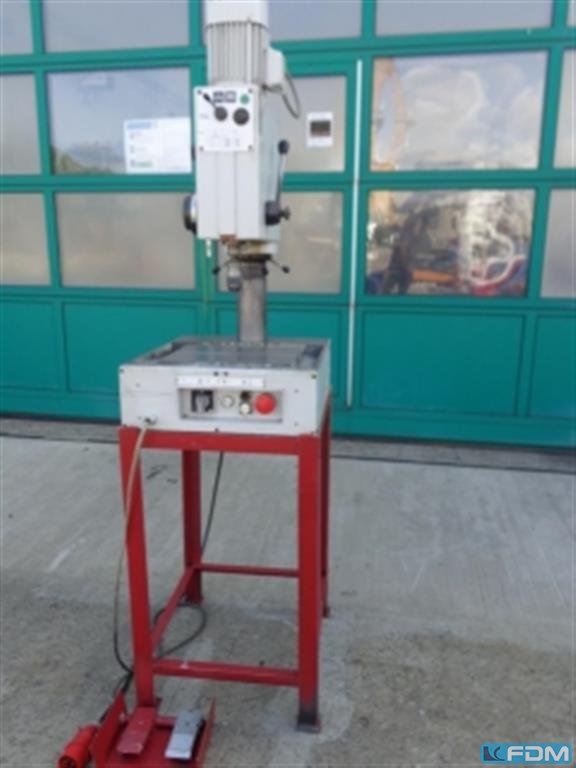

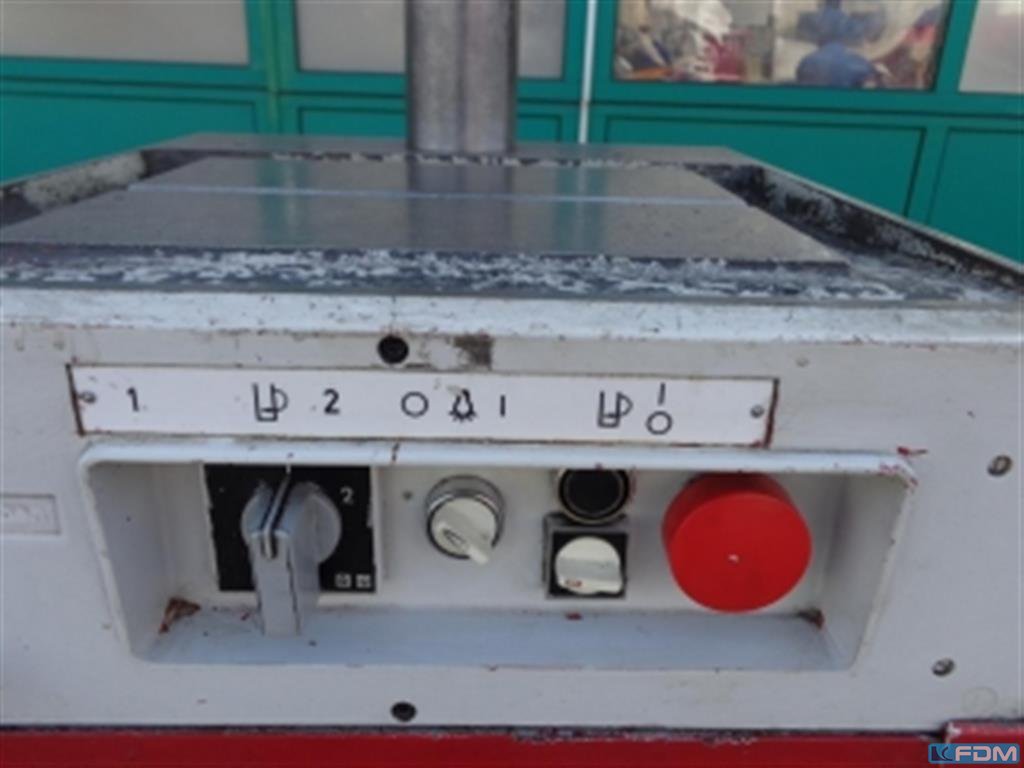

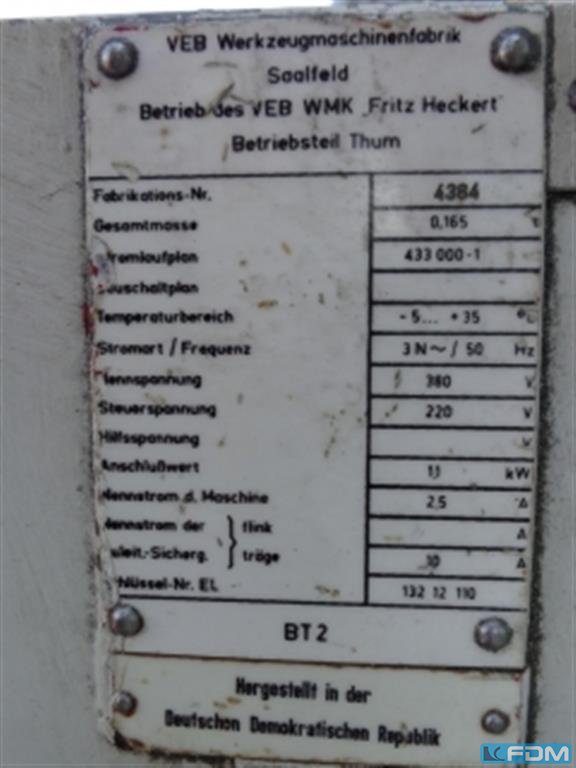

bore capacity in steel (diameter):10 mm throat:210 mm bore stroke:80 mm total power requirement:1,1 kW weight of the machine ca.:195 kg dimensions of the machine ca.:530 x 650 x 1850 mm spindle speeds::355, 710, 1400, 2800 U/min Table dimensions:340 x 280 mm
turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW
turning length:630 mm total power requirement:16 kW weight of the machine ca.:5 t dimensions of the machine ca.:3400 x 1500 x 1600 mm swing diameter over slide rest:Hinterdrehschlitten 250 mm centre height:über Hinterdrehschlitten 150 mm center height over bed:300 mm turning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mm accessories::2 Schränke Wechselräder
x-travel:700 mm y-travel:450 mm z-travel:500 mm total power requirement:23,4 kW weight of the machine ca.:3100 kg dimensions of the machine ca.:3200 x 4000 x 2500 mm tool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/U spindle speeds::20 - 3150 , direkt programmierbar /min feed range:1 - 3000, in B=0,01 - 3 U/min rapid traverse in x-y-z axis:6m/ min, B = 7,6 U/min work table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432
x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50
x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm
pressure:250 t passage width:1280 mm stroke:bis 500 mm total power requirement:47 kW weight of the machine ca.:23 t dimensions of the machine ca.:2200 x 1850 x 4600 mm table surface area:1250 x 1000 mm dayligth:800 mm daylight between the side columns:520 x 750 mm table height above floor:1000 mm Documents: vorhanden
saw blade diameter:400 mm cutting diameter:400 mm material:Vollmaterial 20 - 130 mm material:Walzprofile 40 - 120 mm material diameter from - to::Rohr u. Profilfrohr bis 100 x 14 mm sawblade width:4 mm total power requirement:5,1 kW weight of the machine ca.:1850 kg dimensions of the machine ca.:3300 x 1630 x 1960 mm Documents:vorhanden
sanding belt length:max. 470 mm workpiece dia.:600 mm table - swivable:0 - 6 Grad taper:Reitstock Morse 2 turning speed range::1260 - 3100 U/min table movement:längs 470 mm tool taper:schwenkbar 0-6 °, 90° dre total power requirement:0,4 kW weight of the machine ca.:950 kg dimensions of the machine ca.:1100 x 1100 x 1500 mm Documents:vorhanden
internal diameter:315 mm grinding depth:315 mm swing diameter:420 mm number of spindle speeds:32 - 360 U-min wheel box:-drehzahl 100 - 8000 U/min face diameter:500 mm total power requirement:12 kW weight of the machine ca.:5900 kg dimensions of the machine ca.:3400 x 1750 x 2000 mm
grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm
turning diameter:1600 mm turning length:3000 mm centre height:800 mm turning diameter over bed:1600 mm turning diameter over bed slide:1400 mm turning dia. over face-slide:1200 mm max. workpiece weight between centers:20 to speeds:5,6 -800 1/min transmission ratio:3 spindle bore:112 mm turret (x-stations):8 / VDI 60 travel -x axis:850 mm travel -z axis:3020 mm rapid power traverse in X-and Z direction:6 / 10 m/min power maindrive:46 kW weight of the machine ca.:22 to. dimensions of the machine ca.:7,2 x 4 (3,11) x 2,7 m tech-in lathe, flatbed, tailstock, 8-pos. BARUFFALDI turret with 4 live tools, power 9kW, 4-pos. BARUFFALDI square-headed turret horizontal, C-axis, 3-jaw hydr. chuck SMW Autoblock KNCS 800/165, dia. 800mm, quick adjustment, power cylinder with 2 pressure clamping system, chipconveyor, coolant device, accessories
turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways
spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply
spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment
x-travel:1100 mm y-travel:900 mm z-travel:1250 mm b-axis:360 000 x 0,001 ° milling head speed:1 - 10000 U/min spindle taper: ISO:50 rapid traverse:60 m/min pallet size::630 x 630 total power requirement:37 kW weight of the machine ca.:25 t with CNC control SIEMENS 840 D autom. toolchanger 165 pockets twin pallets 630 x 630 mm max. pallet load 1500 kg through spindle coolant chip conveyor and coolant attachment make KNOLL

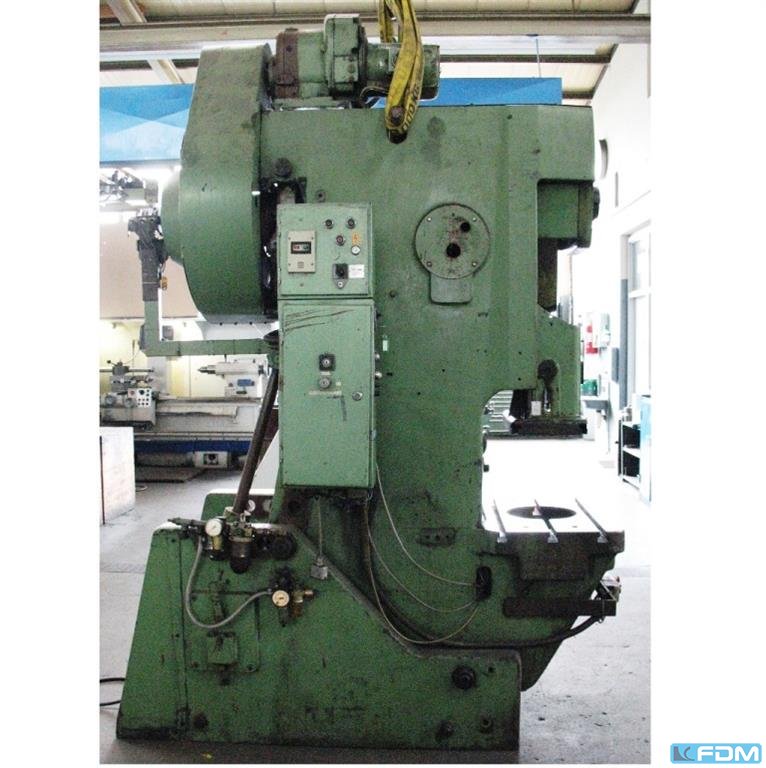

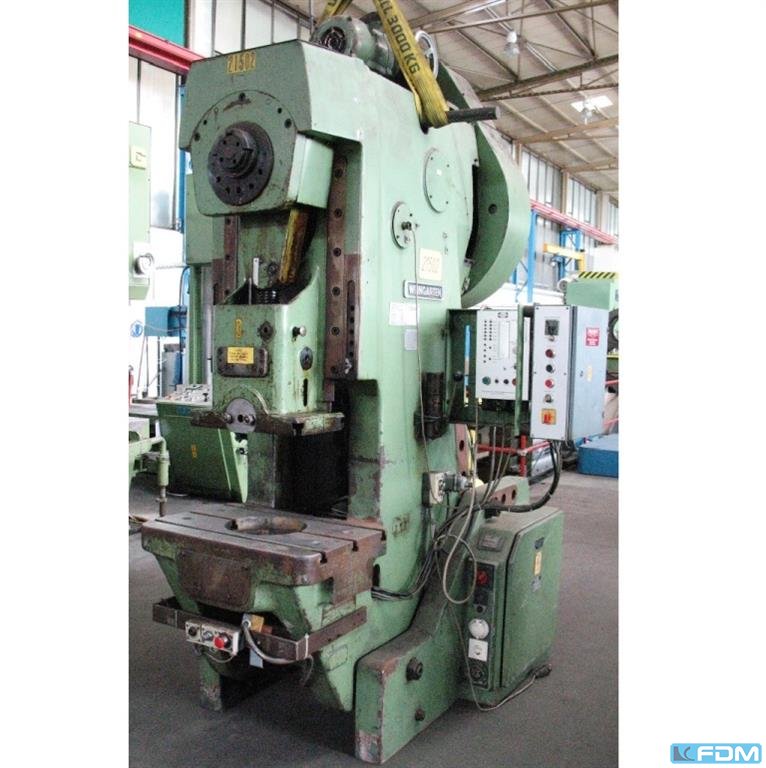

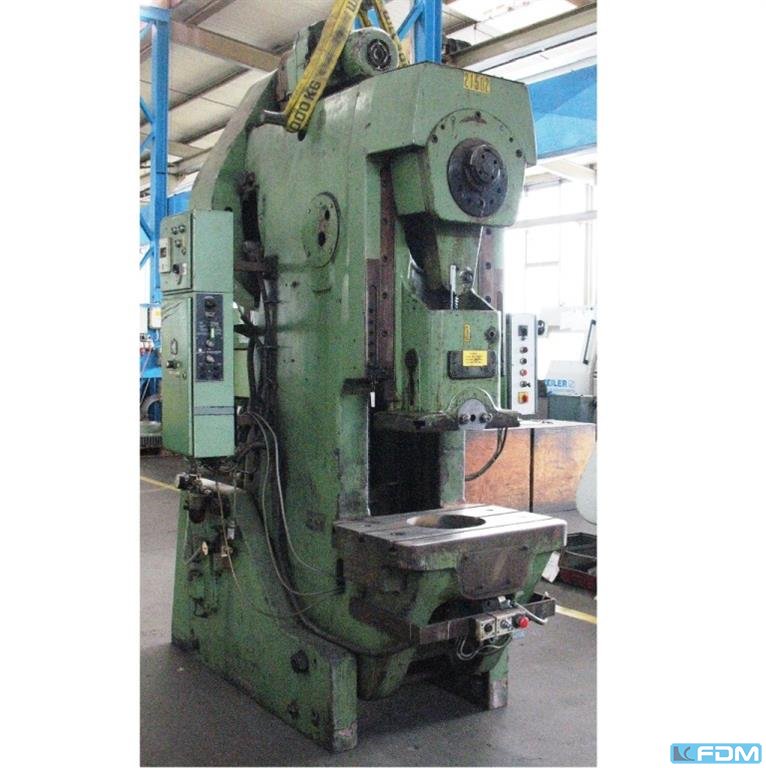

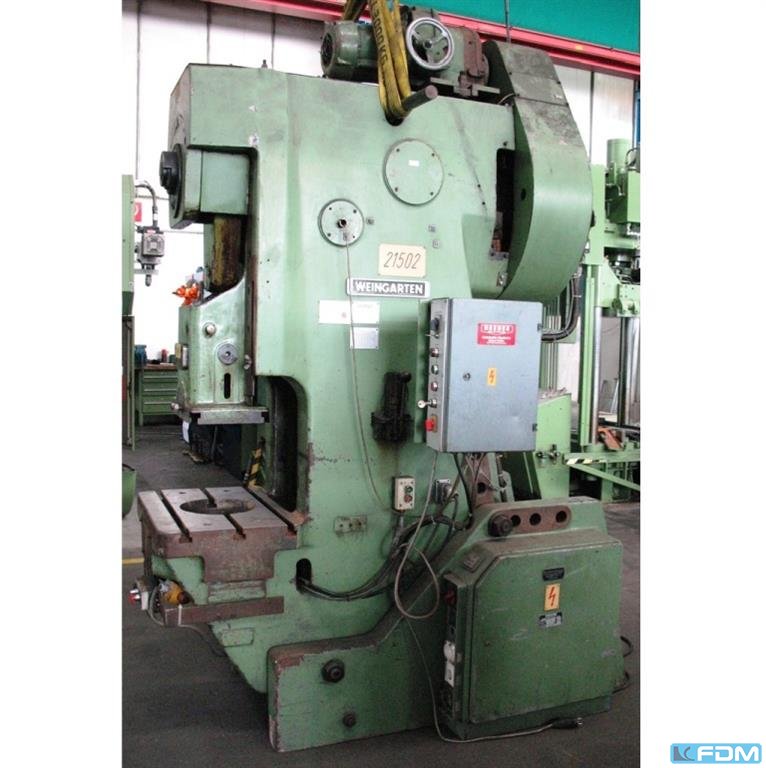

pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:56 / 84 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:710 x 500 mm hole in the table:320 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,1 t dimensions (W x D x H):1,35 x 2,0 x 2,6 m overload protection in ram:mechanical
Pressure:080 t throat:380 mm stroke:8 - 112 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:472 mm table surface area:840 x 610 mm table height over floor:800 mm passage to the back:520 mm ram surface:650 x 400 mm ram adjustment:70 mm power capacity:7,5 kW weight:6,9 t Dimensions (WxDxH):1,1 x 2,15 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 overload protection in ram:mechanical ram counterbalance:pneumatic clutch-/ brake combination:pneumatic
Pressure:063 t throat:250 mm stroke:8 - 100 mm no. of strokes:120 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:700 x 500 mm hole in the table:250 mm table height over floor:800 mm passage to the back:320 mm ram surface:450 x 280 mm ram adjustment:63 mm weight:4,5 t Dimensions (WxDxH):1,6 x 2,0 x 2,8 m overload protection in ram:mechanical
material width:400 mm coil weight:3,0 t material thickness:0,5 - 4,0 mm coil internal diameter:460 - 530 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:50 mm no. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mm material cross-cut:1600 mm² speed of coil line:0 - 20 m/min power requirement:35,0 kW weight:10,5 t dimensions (WxDxH):10,0 x 2,5 x 2,9 m straightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic
