skoda lathe used for sale

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter over bed:570 mm turning diameter over slide rest:365 mm turning length:2000 mm feed per revolution:0,06 - 58 / 0,03 - 28 mm spindle turning speed range:11,2 - 2240 U/min spindle bore:62 mm spindle head:8 nach DIN 55022 total power requirement:15 kW weight of the machine ca.:4,8 t dimensions of the machine ca.:4,5 x 1,5 x 1,4 m with digital readout HEIDENHAIN rapid feed, MULTIFIX toolholder system fixed steady dia. 160 mm 3 jaw chuck RÖHM TR 250 coolant attachment diverse toolholders, diverse jaws

turning diameter:1250 mm turning length:6000 mm spindle bore:130 mm Turning rate:5 - 710 U/min. turning diameter over bed slide:850 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m Teach In Controll HEIDENHAIN 1 fixed steady

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

turning diameter over bed:1450 mm turning diameter over slide rest:1000 mm turning length:8000 mm spindle bore:160 mm turning speed range:2,8 - 560 U/min bed width:850 mm faceplate diameter max.:1400 mm turning diameter in the gap:1800 mm length of gap:600 mm dimensions of the machine ca.:12 x 2 x 2,5 m with Digital Readout 2 fixed steadies dia 1070 mm chip conveyor

turning diameter over bed:400 mm turning diameter over slide rest:250 mm turning length:1000 mm max swing over gap:520 mm Height of centres:200 mm crossed path:230 mm bed width:218 mm main spindle bore:52 mm spindle size:MK 6 speeds::55-2000 U/min turning angle of tool post:90 grad tail stock:50 mm taper in tailstock:MK 4 threading metric:0,4-7 mm threading WHITWORTH:4-60 TPI total power requirement:2,2 kW dimensions of the machine ca.:1940 x 820 x 1545 mm weight of the machine ca.:750 kg tailstock quill:110 mm tapping modul:0,4-3 mm tapping diametral:8-84 Gang/Zoll

number of spindles:8 spindle passage:67 mm Cam controlled multi spindle automatic lathe, used 8 main spindles pick up in pos. 8 threading attachment CNC compound slide in pos. 5, also 2. speed in pos. 2 Hydraulic spindle brake in pos. 4 Incl. length measurement, incl. Brankamp cutting force monitoring tooling: could be different like pictures Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:51 mm Article: multi spindle automatic lathe Manufacturer: Schütte Type: AF51 Yob: 1987 eight main spindles max. bar diameter D=51mm control SIEMENS SIMATIC S5 pick up in pos. 7, for rear machining thread cutting drive independent feed in positions 2/3 electronical trip dog control ?Balluff? clear text display Wöhrle coolant pump magnetic cartridge filter oil running incl. bar loader IEMCA PRA 40/37/F, yob 1987, (bundle type) Painting in light blue and light grey The configuration of tooling will be different like pictures. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2016 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 3 x Y-axis, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot, manufacturer HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Tornos Type: MultiSwiss 8x26 Yob: 2019 full cross slide configuration, counter spindle, part-pre-drawing device, 2 x driven tools, 1 rigid backworking, 1 x driven backworking, 2x 80 bar high pressure pumps optional: setting robot make HandlingTech. The scope of delivery regarding the tooling equipment could be different like pictures. Please, contact us for getting more informations and pictures on mail@tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:51 mm Schutte SF51 DNT, yob. 1987, our ID #61868 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF51 DNT Yob: 1987 Six-spindle automatic lathe with 6 main spindles max. nominal diameter D=51mm electronic cam control Balluff gripper in position 6 for backworking, sorting chute independent longitudinal feed layer 5 screw chip conveyor Tapping couplings Interface for: Bar feeder IEMCA PRA Bar feeder IEMCA PRA40/33/F Scope of delivery without the blue chip conveyor The tooling will differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 S DNT Yob: 1994 Eight-spindle automatic lathe with 8 main spindles max. nominal diameter D=32mm control: Siemens SIMATIC S7 electronic cam control Balluff gripper in position 8 for backworking CNC cross slide position 6 CNC cross slide position 7 Workpiece belt Coolant cooling Schimpke Chip conveyor with magnetic separator Tapping couplings The tooling shown may differ from the scope of delivery! Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:8 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AF32 Dnt Yob: 1993 eight-spindle automatic lathe eight main spindles for bars up to D=32mm Modernized control: Siemens Sinumerik Motors: renewed modern motors suitable for modernized control system Electronic trip dog control: Balluff CNC cross slide position 5 cross CNC cross slide position 6 cross Preparation for gripper in position 8 (gripper optional) Independent feeds Thread cutting couplings integrated bar loader: Pietro CUCCHI; type: rack type magazine The scope of delivery regarding the tooling equipment could be different like pictures.

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:25 mm Article: CNC sliding headstock automatic lathe Manufacturer: Tornos Type: Deco 2000/20 Year of construction: 2001 Control: Fanuc spindle diameter: D25 mm max. speed: 7000 rpm comb: 2 (X,Z,Y-axis) Front attachment: 1 (X,Z,S-axis) Loading magazine: Tornos Robobar SSF Chip conveyor: Hinged belt conveyor other: various accessories such as polygonal impact device, HF spindle Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:9 spindle passage:46 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SC9-46 Yob: 2016 Six-spindle automatic lathe with 6 main spindles with max. nominal throughput D=46mm and 3 counter spindles Main spindles: 6 motor spindles D46mm, 5. 000 rpm, 35 Nm to 80 Nm Cross slide units, transverse: 6 units, in positions I to VI, Slide units, longitudinal: 5 units, in positions I to V, Slide units, longitudinal: 5 units, in positions I to V, Counter spindles: 3 units, one each in positions VI, VIII and IX, 7. 500 rpm Cross slide units, transverse: 2 units, in positions VIII and IX, Control: Siemens SINUMERIK 840SL with double NCU Software: Schütte SICS, Sinomerik Operate 4.5, Safety Integreted, Spindle coupling package ?CP-Expert?, for up to 8 spindle couplings (maximum expansion) Synchronous action package ?Level? 2, incl. cross-mode actio ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

number of spindles:8 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: AG20 Yob: 2002 eight-spindle automatic lathe 8 main spindles for bars up to D=20mm control: Siemens 840D 1x polygonal turning/thread milling device (new 2011) 1x polygonal turning/thread milling device for long turning (new 2011) 1x thread cutting/quick drilling spindle (new 2011) 1x pick-up device incl. various pick-up collets 4 cnc-cross slides Double cross slide in position 7 Loading magazine PRA 52/P type 33 (bar length 3m), year 2004 High-pressure system Knoll SF 2000/Turbo-3 up to 100 bar, year 2004 Tool monitoring Brankamp Air conditioning unit Rittal in the front switch cabinet incl. spare parts package with various collets, cams and various tool holders for longitudinal and cross slides The machine has been run with oil and has processed brass Please, con ...

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SFH130 Yob: 1995 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC Dnt drive loading and disloading in position 6 additional cooling pump with magnetic spark plug filter Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SG18 Yob: 1999 six-spindle automatic lathe 6 main spindles as a chucker automatic lathe control Siemens S7-200 PLC loading and disloading in position 6 spindle brake Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:20 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: SF20 S Dnt Yob: 1999 Six-spindle automatic lathe with 6 main spindles max. nominal diameter: D=20mm Spindle drum hirth coupled, CNC cross slide in positions 4, CNC cross slide in positions 5, pick up in position 6, sorting chute, 1x independent feed, thread cutting couplings, workpiece belt, Coolant tank with hinged belt chip conveyor Ruez, Oil/steel operation, PLC Siemens S7, Siemens CNC control, Siemens Simodrive 611, The scope of delivery regarding the tooling equipment could be different like pictures. Interface for: IEMCA PRA bar loading magazine (optional: IEMCA PRA40/31/ built in 1997 rear loader)

number of spindles:6 spindle passage:36 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2003 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=36mm! Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images; various collets are included in delivery up to D36mm Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

number of spindles:6 spindle passage:32 mm Article: cam-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: SF32 S Dnt Yob: 2001 Eight-spindle automatic lathe with 6 main spindles max. nominal diameter: D=32mm Spindle drum with hirth coupling, Elbaron oil mist filter, sorting chute, Interface for: IEMCA PRA bar loading magazine (optional I: IEMCA PRA52/42/F); coolant tank with hinged chip conveyor; Schimpke KSS active cooler, control: Siemens S7-300 PLC; tooling included in delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Package of 3 Schütte S32PC Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schutte Type: S32PC Yob: 1998 One machine is operational; the other two can be used for spare parts Includes IEMCA PRA40/33/P loading magazine, built in 1997 (rack type loader) Includes IEMCA PRA40/42/F loading magazine, built in 1999 (bundle loader) Includes IEMCA SIR325 loading magazine (integral loader with bundle magazine) tooling included in delivery may differ from the pictures Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:36 mm Article: CNC-controlled multi-spindle automatic lathe Manufacturer: Schütte Type: A36PC Yob: 2005 Loading magazine by Pietro Cucchi Knoll unit 7 radial cross-type carriages 2 additional speed motors in 4th and 5th positions 2 additional speed motors for front spindles in position D (pick-up) and B (for front motorized spindle) 1 polygon cutter 1 motorized front spindle 1 radial motorized in position IV for cross-type carriage 1 radial motorized in position V to be mounted on X-type carriage only (no cross-type carriage) 1 straight head for motorized position IV 1 90-degree tilted head for motorized position IV 1 tilt-adjustable head for motorized position IV Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

Professional Metal Lathe,Gear Cutting Machine - 3-jaw chuck - 4-jaw chuck - Hardened bed sheets - Clamping plate - 4-way chisel holder - Feed protection - Standing and moving bezel - Splash protection wall - Machine light Turning diameter over bed 280 mm Turning diameter over support 158 mm Turning length 600 mm Speed 45 - 2000 rpm Center height 140 mm Spindle bore 26 mm Tailstock quill holder MK 2 Tailstock quill stroke 60 mm Metric threads 0.25 - 2.5 mm Thread - Inch 6 - 96 TPI Connection voltage 230 V Total power requirement 0.75 kW Machine weight approx. 0.16 t Space requirement approx. 1.26 x 0.58 x 0.60 m Condition: never used / new (5)

Longitudinal and transverse feed. 3-jaw chuck 160 mm. 4-jaw chuck 160 mm. Face Plate 4-way steel holder with 4 pcs tool holder 2 pcs steady rests Machine Light Drip tray Hardened bed sheets. Emergency stop. Feed protection Set of wheels. Machine Tools. Turning diameter over bed 290 mm Turning diameter over support 170 mm Turning length 750 mm Speed 75 - 2000 rpm Center height 145 mm Spindle bore 38 mm Tailstock quill holder MK 3 MK Tailstock quill stroke 80 mm Connection voltage 230 V Total power requirement 1.5 kW Machine weight approx. 0.34 t Space requirements approx. 1.3 x 0.75 x 0.7 m Condition: never used / new (5)

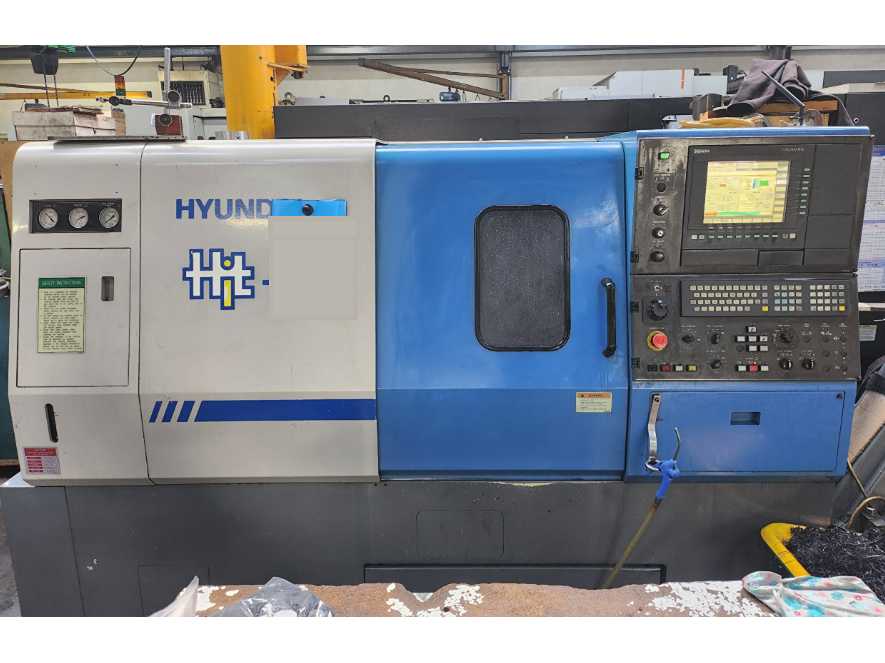

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor.

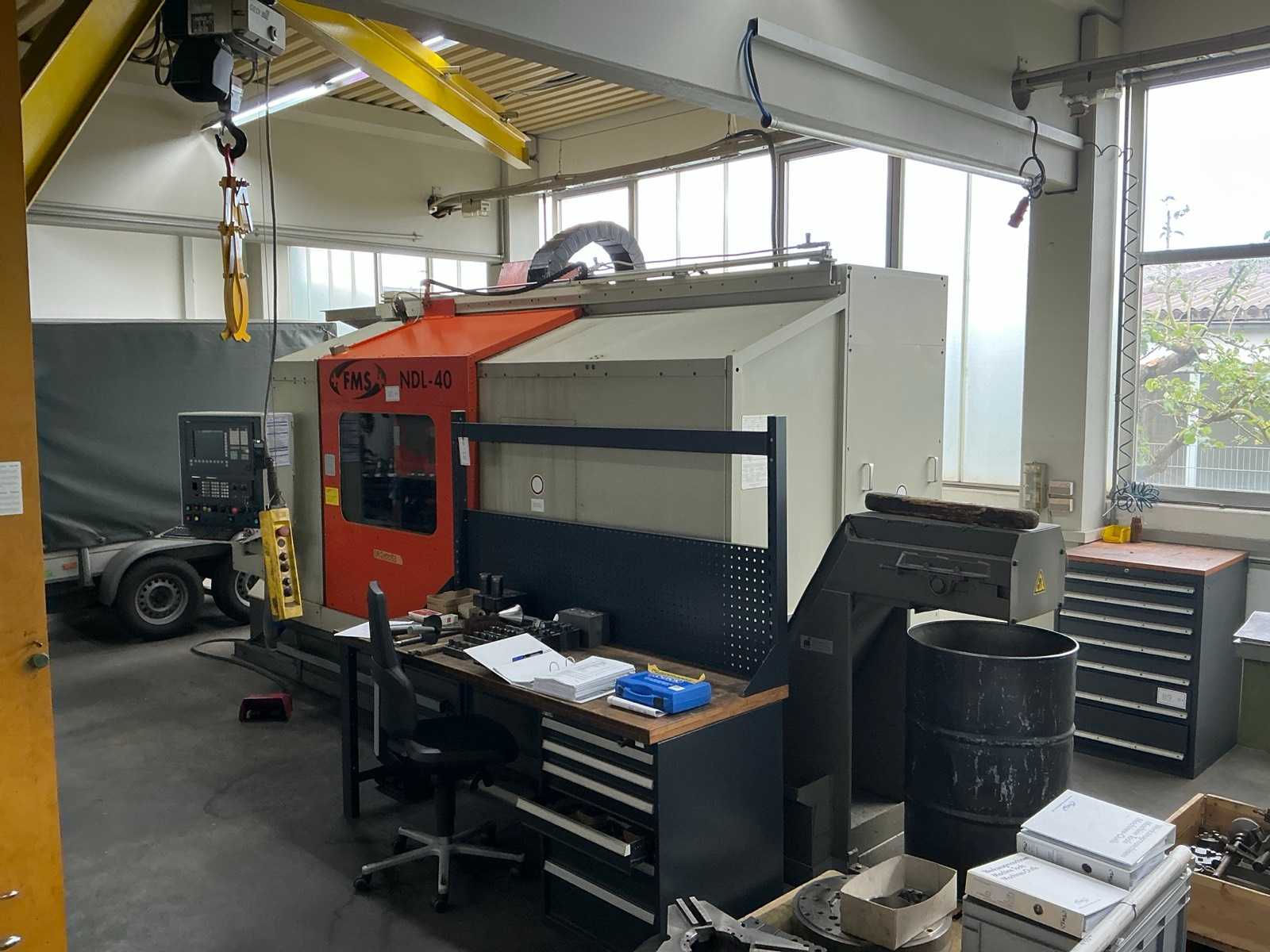

Technical data Manufacturer: FMS Drehtechnik Schaffhausen AG, Switzerland Type: NDL-40/130 Machine Type: CNC Lathe Year of Make: 2003 Control: Siemens SINUMERIK Machine No.: 16212-51 Turning length: 1500 mm Turning diameter: 400 mm Swing diameter over bed: 630 mm Swing diameter over face slide: 410 mm Speed range: 40 – 3200 rpm Main drive: 68 kW Spindle bore: 90 mm Hydr. Clamping Cylinder Passage: 86 mm Tailstock: MK5, quill stroke 120 mm Rapid traverse: 16,000 mm/min Coolant tank: 400 l Dimensions (L x W x H): approx. 5350 x 2270 x 2670 mm Machine weight: approx. 14,000 kg Configuration Siemens SINUMERIK CNC control Heidenhain Digital Display Hydraulic clamping system Tool turret Coolant system Chip conveyor Hydraulic power unit Various clamping devices and tool holders Extensive technical documentation available Machine di ...

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe.

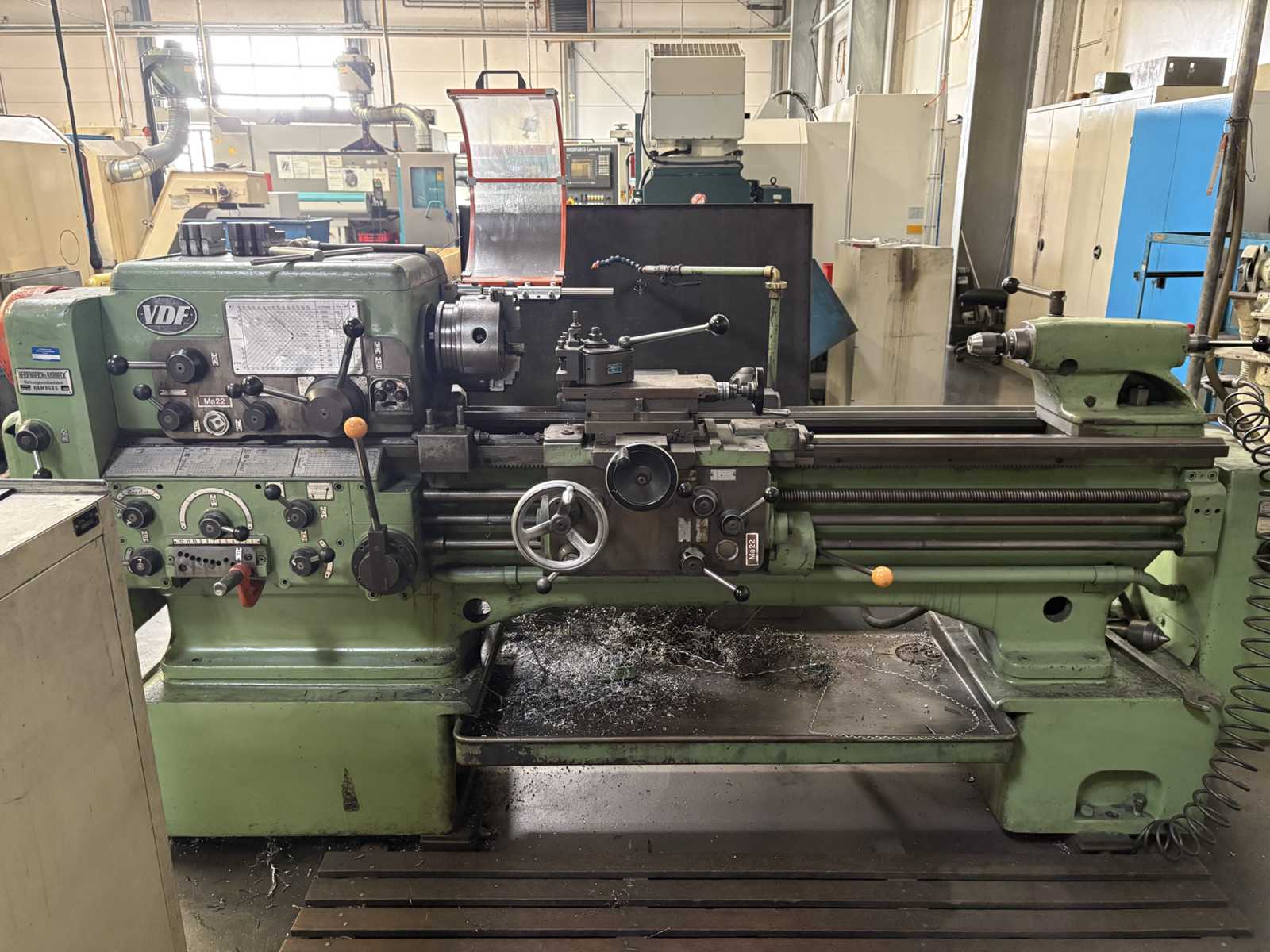

Manufacturer: Heidenreich & Harbeck (VDF), Hamburg , Type: 18 RO , Year of construction: 1960 , Working range: Center width: approx. 1,000 mm , Circulation over bed: approx. 360–380 mm , Circulation over support: approx. 200 mm , Speed range: 28 – 1,250 rpm , Multi-stage mechanical transmission , 3-jaw chuck Forkardt Ø200 mm , Operating voltage: 380 V ; Control current: 220 , frequency: 50 Hz I ; PhotosTotal current: approx. 4 A , Equipment: Multifix quick-change holder , Type B several rotary holders and drill holders ,Forkardt 3-jaw chuck Ø200 mm , extensive tool equipment , see photos for more details

Professional Industrial Machine Digital display 3-jaw chuck 200 mm. 4-jaw chuck Face Plate Fixed bezel Steady bezel Multifix steel holder. Machine Light Foot brake Chip tray, chip protection wall Hardened and ground bed sheets Complete coolant system Feed protection Machine feet Machine Tool Turning diameter over bed 400 mm Turning diameter over support 260 mm Turning length 1500 mm Turning diameter in the offset 570 mm Speed 45 - 1800 rpm Tip height 210 mm Spindle bore 52 mm Tailstock quill holder MK 4 Connection voltage 400 V Total power requirement 3.5 kW Machine weight approx. 1.5 t Dimensions approx. 2.6 x 1.1 x 1.7 m

Equipped with - 27 mm spindle passage - Adjustable guide tracks - Powerful motor with 0.75 kW - High resolution of the axis spindles for exact positioning - Attention without digital display Scope of delivery: 3-jaw chuck 100 mm, interchangeable wheel set, splash guard. Turning diameter over bed 250 mm Turning diameter over support 130 mm Turning length 700 mm Speed 115 - 1620 rpm Tip height 125 mm Spindle bore 27 mm Tailstock quill holder MK 2 Tailstock quill stroke 40 mm Metric threads 0.2 - 3.5 mm Thread - Inch 8 - 56 inch. Thread - Module 0.2 - 12.5 mm Swivel range +/- upper slide 45 ° Connection voltage 400 V Total power requirement 0.75 kW Machine weight approx. 0.15 t Dimensions approx. 1.41 x 0.61 x 0.41 m Condition: never used / new (5)

CNC Control: FANUC 21i-TB Number of axes: 3 (including C-axis) Max. rotation diameter: 120 to 150 mm (depending on tooling) Max. turning length: 120 mm X/Z axis strokes: 340 / 240 mm Max. spindle speed: up to 8,000 rpm Spindle nose: designed for precision grippers or chuck C-axis: 0.001° resolution (positioning and milling) Turret: high-precision, 12 positions (VDI 16 or VDI 20) Motorized tools: radial and axial drilling/milling, speed 4,000 to 6,000 rpm Documentation: complete Weight (kg): 2200 Year & Manufacturer: 2007 – SPINNER

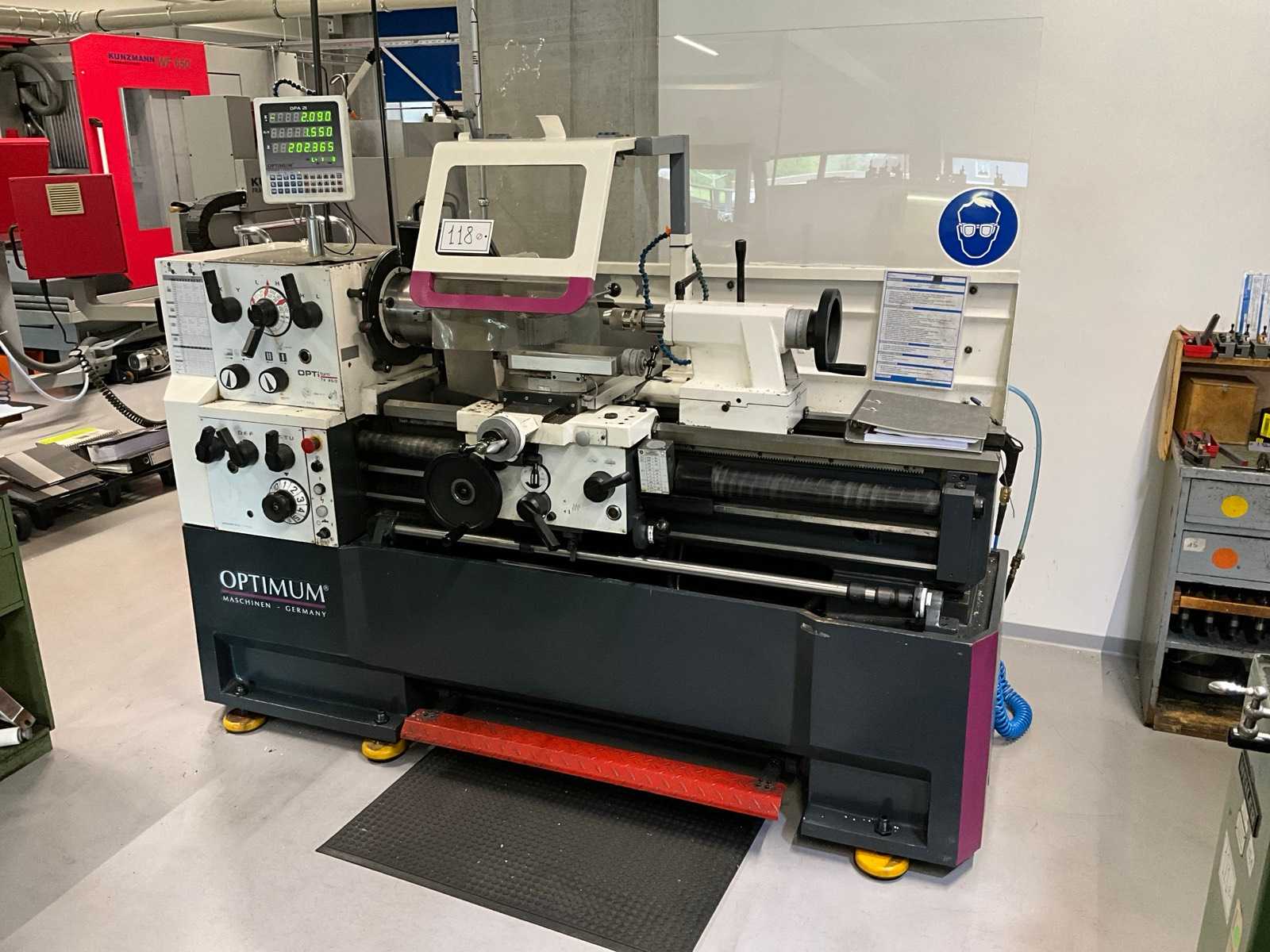

OPTIMUM TH 4610 Centre Lathe (2018) Serial Number: J0517120461 Tip width: 1060 mm Tip height: 230 mm Circulation over bed: 460 mm Circulation over slide: 270 mm Turning length: 240 mm Bore main spindle: 58 mm Max. workpiece weight: 300 kg Morse taper of main spindle: MK6 Spindle speed range: 25 – 2000 rpm Facing slide travel 285 mm Upper slide travel: 125 mm Quill diameter: 60 mm Quill path 130 mm Cone in the quill: MK4 Diameter of three-jaw chuck: approx. 200 mm Feel free to take a look at the videos about this machine

Lathes with: - Copying device - Forkardt 3-jaw chuck F250 - Multifix steel holder - Coolant system - Machine light - Feed protection - Chip tray - Chip protection wall - Foot brake Turning diameter over bed 410 mm Turning diameter over support 220 mm Turning length 1000 mm Center height 205 mm Circumferential diameter in offset mm Spindle bore 46 mm Spindle speeds 40 - 2000 rpm Total power requirement 22.0 kW Machine weight approx. 1.8 t Space requirement approx. 2.42 x 1.3 x 1.55 mm

CONTROLS   CNC Teach In Controls FAGOR 8050 BASIC FUNCTIONS   number of spindles: 1 WORKING RANGE TURNING   swing diameter (max): 400 mm   turning diameter (max): 210 mm   worpiece length max.: 1000 mm MAIN SPINDLE   spindle revolutions (min): 0 /min   spindle revolutions (max): 3000 /min   spindle bore diameter: 51.6 mm TAILSTOCK   distance betw. centers (max): 1000 mm   sleeve stroke: 145 mm   sleeve diameter: 52 mm   taper: MK 4 ELECTRICAL SPECIFICATIONS   total power consumption: 11 kW   mains power supply: 16 kVA   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 2700 mm   space requirements -front/back-: 1900 mm   total height: 1700 mm   total weight approx.: 1800 kg ATTACHMENTS (TURNING)   tailstock: yes   European CE standards: yes Features: - 3-jaw chuck SMW Ø210 - various jaws  ...

A CNC short-bed turning machine Emco is available. Travel X/Z: 100mm/300mm, max. turning diameter: 85mm, max. swing diameter: 250mm, max. turning length: 255mm, center distance: 405mm, max. bar capacity: 25.5mm, spindle bore: 30mm, spindle speed: 6300rpm, tool stations: 12, tool interface: VDI16, rapid traverse: 15m/min. Machine dimensions X/Y/Z: approx. 1700mm/1300mm/1850mm, weight: approx. 1400kg, control: Siemens Sinumerik 810D, operating hours: approx. 27000h, spindle hours: approx. 11000h. Including bar feeder. The spindle was replaced in 2021 at approx. 25000 operating hours. Documentation available. An on-site inspection is possible.

Diameter of the table: 3000 mm turning diameter: Max. 5500 mm column travel: 1000 mm passage: Querbalken 1000 max. mm Passage height: Vertikalschlitten 1854 ma mm table turning speeds: 82 U/min table load: max. 25 t weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the  ...
