High-quality lattice supports with high load capacities, inexpensive alternative for gratings – Brand new – Prices on request! Manufacturer: Delta Shelving Type: Manta Mesh Standard width: 885mm (with a 2.70m trusss then 3 supports are needed = 2.655mm) 1335mm Frame depths: 1.05m 1,10 1.20m Other depths on request! Evenly distributed load: between 250 and 1,500kg Standard (price applies to the standard version): 1.000kg, i.e. also per pallet Lattice grid: 50 x 100 or 25x100mm Please also indicate which beam type (truss type) you have! So whether box profile (or IPE carrier) 50 or 40mm, or whether they have trusses with step. Advantages: no sharp edges 200% safety factor – independent of the shelf beams Bealstable for permissible deflection and structural failure Large selection of standard sizes and load capacities MantaMESH is our market-leading wire me ...

S/s mobile dough sheeter, infeed clearance: 550 mm x 350 mm, s/s roller width: 550 mm, total dimensions: 1100 mm x 800 mm x 1820 mm.

Mobile dough sheeting and stamping machine, plastic belt, belt width: 430 mm, cloth belt, belt width: 395 mm, total dimensions: 4150 mm x 1250 mm x 1700 mm.

<br>Collective chain &amp; investors 1 station hand feeding 6 Stehendbogenanleger Double and false sheet control Bulletin station 2 Heftk pfe Hohner Large of roller cleaning for 4 wire wheels 1 Three knife trimmer Media cutting device Band display<br><br>Still in operation: No.<br>Available: immediately

Fan filter, fan line, air cooler, control cabinet fan, fan -Manufacturer: Sheng Kwei, fan fan -Engine: Type SK205AP-11-1 -Dimensions: 205/80/H205 mm -Weight: 2,6 kg

Fan filter, fan array, air cooler, control cabinet fan, filter fan, cabinet cooler, axial fan -Manufacturer: Shen Zhen, axial fan type FP-20060EX S1-B -Voltage: 220-240 V / 65 W -Number: 5 fans available -Price: per piece -Dimensions: 200/200/H60 mm -Weight: 1.4 kg

Robot cell including safety enclosure and light curtain 6-axis robot HYUNDAI HH020 Transfer weight/free payload 13 kg Matrix version, material supply using matrices We currently have 2x SherpaLoader 20 in stock, e.g. built in 2018, approx. 7,500 operating hours (of which >70% is waiting time in front of the machine for the next loading request). Component dimensions Ø10 – 200 mm, length 10 – 200 mm; effective payload up to 13 kg, raw parts are supplied to this system via grid matrices. Before sale, the system will be serviced with - Software update for master control and HMI - Gear grease change on axes 1 - 6 - Encoder battery replacement on axes 1–6 and mainboard - Replacement of all energy chain cables on axes 3–6 Find more here - / Contact us at -

Lifting height: 140 cm Max. load capacity: 180 kg Height: 167 cm Weight: 55 kg

General SKU418W1324 MakeSGL Carbon GmbH (DE) LocationBarneveld CEcheck TypeRS 77-2-31.15.1 Pressure Vacuum possiblecheck Working pressure shell6 Bar Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Mild steel Tube (Material)Diabon Surface5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface5m² Tube capacity35 l. Number of tubes:31 Tube diameter25mm Tube length1500mm Max. temperature170°C Shell capacity75 l. Shell diameter332mm Shell length2200mm Max. temperature170°C Shell with expansion jointcheck Shell connections(2x) dia. 80mm Cover connectionsDia. 140mm, dia. 40mm MaterialGraphite Diabon With jacketcheck General No.41038641/200 Year of construction2015 Floorspace0,80x0,60 m Total height2,50 m Weight450 kgShell and tube heat exchangersSGL TechnikHeat exch ...

General SKU373X901 MakeZürcher LocationBarneveld CEcheck Type25 m² Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell13 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Hastelloy Surface25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface25 m² Tube capacity300 Ltr. Number of tubes:199 Tube diameter23 mm Tube length1700 mm Max. temperature-30/200°C Shell capacity260 Ltr. Shell diameter500 mm Shell length1900 mm Max. temperature-30/200°C Shell connectionsDN80 MaterialStainless steel 1.4404 (316L), Stainless steel 2.4602 (Hastelloy C-22) With jacketcheck General No.2933 Year of construction2014 Floorspace1,10 x 0,80 m Total height1,90 m Weight650 kg Extra Specificat ...

General SKU292W1597 MakeTransitherm LocationBarneveld TypeAD2000 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes10 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface25m² Tube capacity235 l. Number of tubes:91 Tube diameter25 mm Tube length3700 mm Max. temperature0°C/+300°C Shell capacity210 l. Shell diameter400 mm Shell length3840 mm Max. temperature0°C/+300°C Shell with expansion jointcheck Shell connectionscheck MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.11043 Year of construction2004 Mounted on legscheck Floorspace0,70 x 0,70 m Total height1,20 mShell and tube ...

General SKU309N504 LocationBarneveld MakeFalk Gmbh&:Co KG No.24320 Material Shell materialStainless steel 1.4571 (316Ti) Tube materialStainless steel 1.4571 (316Ti) Pressure Working pressure shell0.49 Bar Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Notified bodyAD2000 Heating surface25m2 Tube capacity140 Ltr Number of tubes:64 Tube diameter25,4mm Tube length5000mm Wall thickness tubes1,6mm Max. temperature60 degr.C. Shell capacity317 Ltr Shell diameter356mm Shell length5000mm Max. temperature100 degr.C. Shell connectionsdn65 Cover connections(2x)dn80 With jacketcheck General Year of construction2007 Mounted on legscheck Floorspace5,7x0,7 M Total height1,0 M Weight800 KGShell and tube heat ex ...

General SKU214W277 MakeQVF Glasstechnik LocationBarneveld CEcheck TypeROB DN100,0,5M Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface0.5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN100 Cover connectionsDN50 MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General No.98069A Year of construction1998 Floorspace0,22 x 1,57 m Total height0,22 m Weight7 ...

General SKU214W276 MakeQVF Glasstechnik TypeROB32/150/SH/3/SIC Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface3.2 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface3,2 m2 Tube capacity10 Ltr. Number of tubes:37 Tube diameter14 mm Tube length1980 mm Max. temperature+150°C Shell capacity24 Ltr. Shell diameter124 mm Shell length2250 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN100 (2x) Cover connectionsDN40: DN50 MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General Floorspace0,25 x 2,30m Total height0,25 m Weight100 kg CEcheck ATEX designedcheck Tec ...

General SKU214W275 MakeQVF Glasstechnik LocationBarneveld CEcheck TypeROB DN100,05M Pressure Working pressure shell2 Bar Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface0,5m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity7 Ltr Shell diameterDN100 Shell length1100 mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 2x MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General No.98067a Year of construction1998 Floorspace0,22 x 1,50m Total height0,22 m Weight50 kg ATEX designedcheck Technical specs Extra info ...

General SKU214W274 MakeQVF Glasstechnik TypeROB DN100. 0.5m³ No.98071 Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Working pressure shell2 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface0,5m³ Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200mm Max. temperature+150°C Shell capacity7 Ltr. Shell diameter100mm Shell length1100mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN50, DN80 Cover connectionsDN50 MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General Floorspace0,22x1,50m Total height0,22m Weight50kg Technical specs Extra information- SIC ...

General SKU214W271 MakeQVF Glasstechnik LocationBarneveld TypeS-ROB64/300/SH/2/SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface6.4 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface6,4m² Tube capacity33,7 Ltr. Number of tubes:164 Tube diameter14 Tube length±850 mm Wall thickness tubes1,5 Max. temperature+150°C Shell capacity46 Ltr. Shell diameter300mm Shell length850mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150, DN50 Cover connectionsDN80 MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General No.98075 Year of construction1998 Floorspace0,42x1,40 m Total height0,42 m Weight190 kg Tec ...

General SKU214W270 MakeQVF Glasstechnik LocationBarneveld TypeS-ROB71/300/SH/3/SIC Pressure Vacuum possiblecheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface7.1 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface7,1m² ( in use 4,2m²) Tube capacity40 Ltr. Number of tubes:97 Tube diameter14 mm Tube length1980 mm Wall thickness tubes1,5 mm Max. temperature+150°C Shell capacity113 Ltr. Shell diameter300mm Shell length1800mm Max. temperature+150°C Shell with expansion jointcheck Shell connectionsDN150, DN200 Cover connectionsDN50, DN80 MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General No.98072a Year of construction1998 Floorspace0,42x2,50 m Total he ...

General SKU394U1138 LocationBarneveld CEcheck MakeGab Neumann TypeN-B-6,9-C Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface6.6 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Notified bodyTÜV Heating surface6,6 m² Max. temperature-30/+180°C Shell capacity37 ltr Shell diameter650 mm Shell length800 mm Shell with expansion jointcheck Shell connectionsDN50 (2x) Cover connectionsDN200, DN50 MaterialGraphite With jacketcheck General No.25865-20250 Year of construction2007 Floorspace0,7x0,7 m Total height1,35 m Weight620 kg Technical specs Extra informationVolume 29 ltr, allowable pressure -1/+6 bar, allowable temp -30/+80 ...

General SKU214W146 MakeQVF GLASTECHNIK TypeROB DN 100, 0,5m² No.98066 A Year of construction1998 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell2 Bar Working pressure tubes3 Bar Main Features Shell (Material)glass Tube (Material)Graphite Surface0.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface0,5 m² Tube capacity3 Ltr. Number of tubes:11 Tube diameter14 mm Tube length1200 mm Max. temperature150 °C Shell capacity7 Ltr. Shell diameterDN100 Shell length1425 mm Max. temperature150 °C Shell with expansion jointcheck Shell connectionsDN80 (2x), DN50 Cover connectionsDN50 (2x) MaterialBorosilicate Glass 3.3, Graphite, Stainless steel 1.4301 (304) With jacketcheck General Floorspace0,2x1,4 m Total height0,2 m Extra Specifications- SIC better hea ...

General SKU212T533 LocationBarneveld CEcheck MakeNantong Sunshine TypeSS-XYK347 10/8-6.4 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes3.2 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface6.4 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface6.4 m² Tube capacity25,9 Ltr. Max. temperature-10/200°C Shell capacity25,5 Ltr. Shell diameter388 mm Shell length1026 mm Max. temperature-10/200°C Shell with expansion jointcheck Shell connectionsDN 100, DN 50 Cover connectionsDN 200, DN 125 MaterialGraphite With jacketcheck General No.2016812 Year of construction2016 Floorspace0,7x0,65 m Total height1,25 m Weight450 kgShell and tube heat exchangersOils & fatConsumer ...

General SKU309N500 MakeFalk gmbh &: Co. KG No.3304 Year of construction2007 Mounted on legscheck Material Shell materialStainless steel 1.4571 (316Ti) Cover materialStainless steel 1.4571 (316Ti) Tube materialStainless steel 1.4571 (316Ti) Pressure Working pressure shell1 Bar Working pressure tubes4 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface150.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Notified bodyAD2000 Heating surface150,5 m2 Tube capacity830 Ltr U-typecheck Number of tubes:157 Tube diameter25mm Tube length(2x)5900mm Wall thickness tubes2,0mm Max. temperature100 degr.C Shell capacity1530 Ltr Shell diameterdia.711mm Shell length6370mm Wall thickness shell5mm Max. temperature100 gr.C. Shell connectionsdn500, dn80 Cover connections(2x)dn200 With jacketcheck ...

General SKU309N516 LocationBarneveld MakeFalk Apparate- und Rohrleitungsbau gmbh&:co KG No.3305 Material Shell materialMild steel Tube materialStainless steel 1.4462 (318LN) Pressure Working pressure shell4 Bar Working pressure tubes1 Bar Main Features Shell (Material)Mild steel Tube (Material)Stainless steel Surface49 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Notified bodytuv Heating surface49 m2 Tube capacity262 ltr Number of tubes:76 Tube diameter25mm Tube length3900mm Wall thickness tubes2,0mm Max. temperature165 gr.C. Shell capacity503 ltr Shell diameter508mm Shell length4070mm Wall thickness shell6,3mm Max. temperature165 gr.C. Shell connectionsDN65, DN40 Cover connections(2x) DN100 Capacity3,9 m3 With jacketcheck General Year of construction2007 Mounted on legscheck Floorspace5,0x0,8 M Total he ...

General SKU289N419 MakeFunke Wärmetauscher Apparatebau Gmbh Gronau (DE) LocationBarneveld CEcheck TypeC-300 1508-6-4- Weg Material Shell materialStainless steel 1.4306 (304L) Pressure Working pressure shell20 Bar Working pressure tubes25 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface32.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface32,5 m2 Tube capacity106 l U-typecheck Number of tubes:234 Tube diameter8 mm Tube length(2x) 2750 mm Max. temperature240°C Shell capacity260 l Shell diameter400 mm Shell length3400 mm Shell connectionsdia.200mm, dia.100mm Cover connections(2x) dia.80mm MaterialStainless steel 1.4552 With jacketcheck General No.0620741 Year of construction2009 Floorspace3,4 x 0,5 m Total height0,7 m Weight700 kgShell and tube heat exchang ...

General SKU309N518 MakeEbner Anlagen und Aparate Germany No.062404700 Year of construction2007 Mounted on legscheck Material Shell materialStainless steel 1.4462 (318LN) Cover materialStainless steel 1.4462 (318LN) Tube materialStainless steel 1.4462 (318LN) Pressure Vacuum possiblecheck Working pressure shell0.5 Bar Vacuum possible shellcheck Working pressure tubes2 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface120 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface120 m2 Tube capacity820 l Number of tubes:334 Tube diameter25 mm Tube length5000 m Wall thickness tubes1,0 mm Max. temperature100°C Shell capacity1600 l Shell diameter750 mm Shell length5000 mm Wall thickness shell4,0 mm Max. temperature120°C Shell connectionsDN200, ...

General SKU330N520 MakeGesellschaft fuer Oeltechnik mbH Waghäusel TypeE-302B No.106/1545/86 Year of construction1986 LocationBarneveld Material Shell materialStainless steel 1.4541 (321) Pressure Working pressure shell13 Bar Working pressure tubes13 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface11.1 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface11,1 m2 Tube capacity58 l U-typecheck Number of tubes:31 Tube diameter16 mm Tube length+/- (2x) 3000 mm Max. temperature200°C Shell capacity100 l Shell diameter400 mm Shell length3800 mm Max. temperature75°C. Shell connections(2x) dia.50 mm, (2x) dia.25 mm Cover connections(2x) dia.100 mm MaterialStainless steel 1.4541 (321) With jacketcheck General Floorspace3,7 x 0,7 m Total height0,7 m Weight450 kgShell a ...

General SKU392W1203 MakeSGL Carbon LocationBarneveld CEcheck TypeRS 77-1-37.40.1 Pressure Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Mild steel Tube (Material)Diabon Surface12.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface12,5 m2 Tube capacity90 l. Number of tubes:37 Tube diameter32 mm Tube length4000 mm Wall thickness tubes22 mm Max. temperature180°C Shell capacity165 l. Shell diameter336 mm Shell length4011 mm Max. temperature180°C Shell connectionsDN100 MaterialGraphite Diabon, Mild steel With jacketcheck General No.41037886/1 Year of construction2015 Floorspace0,65x0,65 m Total height5,170 m Weight670 kgShell and tube heat exchangersSGL CarbonHeat exchangers > Shell and tube heat exchangersBrand > SGL Carbon What you c ...

General SKU392W1206 MakeSigri LocationBarneveld TypeRS77-1-10950.1 Pressure Working pressure shell6 Bar Working pressure tubes3 Bar Main Features Shell (Material)Mild steel Tube (Material)Diabon Surface53.7 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface53,7 m² Tube capacity350 l. Max. temperature165°C Shell capacity520 l. Shell diameter550 mm Shell length5000 mm Max. temperature165°C Shell connectionsDN150 Materialcarbon steel ST52 1.0570, Graphite Diabon With jacketcheck General No.34164/5 Year of construction1992 Floorspace0,80x0,80 m Total height6,80 mShell and tube heat exchangersSigriHeat exchangers > Shell and tube heat exchangersBrand > Sigri What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destination worldw ...

General SKU418W1323 MakeGab Neumann TypeG3-400/250/80-4/10-D No.15754-12721 Year of construction1985 LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface2.48 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface2.48 m² Tube capacity17 l. Max. temperature-30°C/+80°C Shell capacity17 l. Shell diameter500 mm Shell length615 mm Max. temperature-30°C/+180°C Shell connections2x dia. DN50, MaterialGraphite With jacketcheck General Floorspace0,70x0,70 m Total height1,50 m Weight340 kg Technical specs Extra informationVolume 17 l., allowable pressure-1/+3 bar, allowable temperature-30°C/+180°CShell and ...

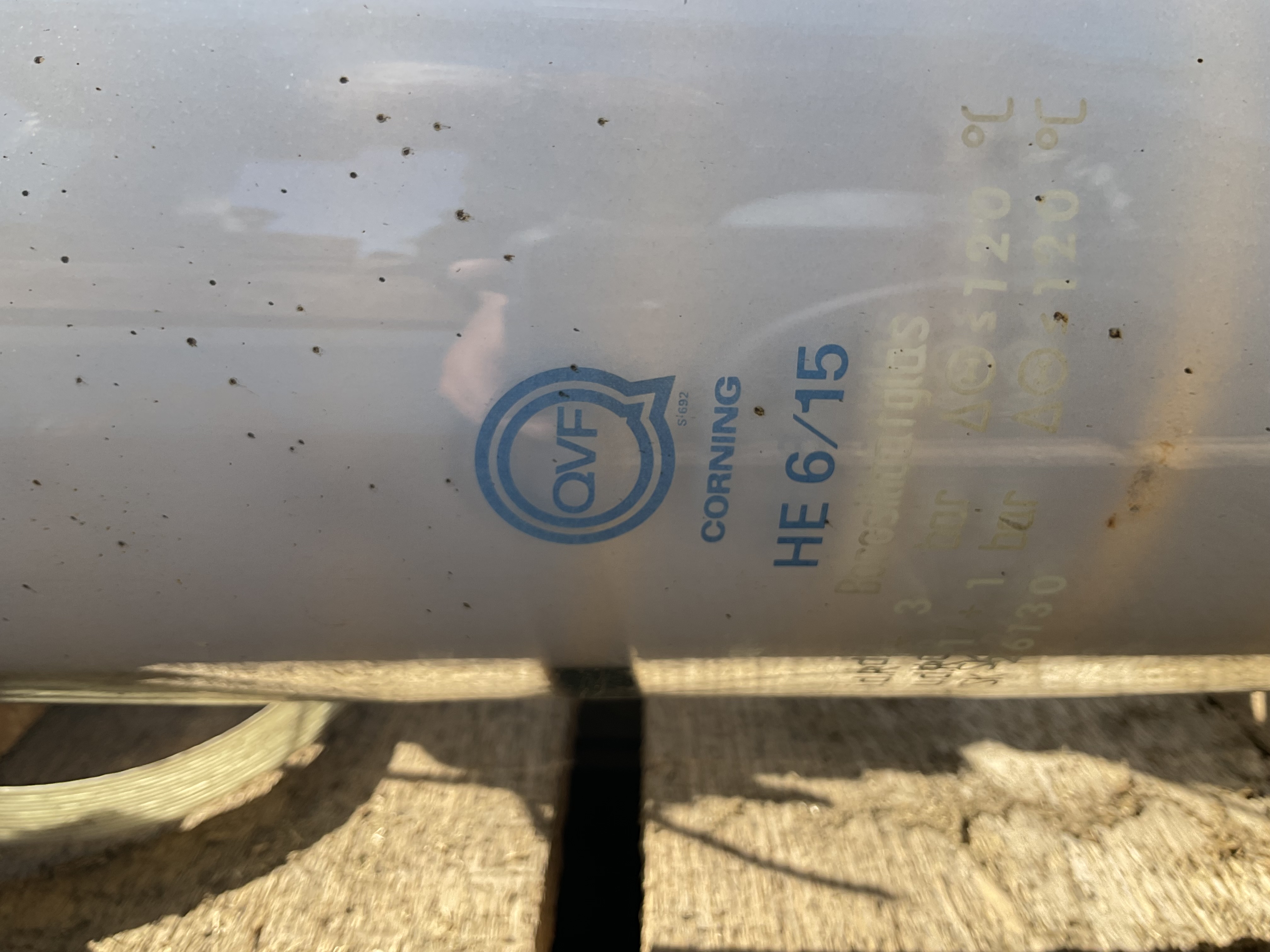

General SKU366W1214 LocationBarneveld Pressure Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes1 Bar Main Features Shell (Material)glass Tube (Material)glass Surface1.5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface1,5 m² Tube capacity10 l. Max. temperature120°C Shell capacity11 l. Shell diameter170 mm Shell length1500 mm Max. temperature120°C Shell connectionscheck Cover connectionscheck MaterialBorosilicate Glass 3.3 With jacketcheck General MakeQVF Glasstechnik TypeHE6/15 Floorspace0,40x0,40 m Total height1,50 mShell and tube heat exchangersQVF GlasstechnikHeat exchangers > Shell and tube heat exchangersBrand > QVF Glasstechnik What you can expect from Foeth: -- Machine is in working condition -- At a reduced price compared to new -- Ready for shipping to any destinat ...

General SKU339W1459 MakeRobert Jenkins LocationBarneveld TypeGEKBL Pressure Working pressure5.17 Bar Working pressure shell5.17 Bar Working pressure tubes5.17 Bar Main Features Shell (Material)Mild steel Tube (Material)Graphite Surface3.4 m2 Size length500 mm Sizes width500 mm Specified Features - Shell and tube heat exchanger Heat exchangercheck Heating surface3,4m² Max. temperature165°C Shell length500 mm Shell connectionscheck With jacketcheck Heat exchangers Plate heat exchangersBlock heatexchanger Max. temperature165°C Specified Features - Shell and tube heat exchanger MaterialGraphite General No.020055 Year of construction1990 Floorspace1,0x0,80 m Total height0,55 m Weight400 kg Extra SpecificationsBlock heatexchanger.this item was refurbished in 09-2002.Shell and tube heat exchangersRobert JenkinsHeat exchangers > Shell and tube heat exchangers ...

General SKU204W1596 MakeS.A.G. LocationBarneveld CEcheck Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell8 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface2 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface2 m2 Tube capacity16 l. U-typecheck Tube length1100 mm Max. temperature-20°C/+160°C Shell capacity35 l. Shell diameter200 mm Shell length1350 mm Max. temperature0°C/+180°C Shell connectionsDN25 Cover connectionsDN25 MaterialStainless steel With jacketcheck General No.12327-5 Year of construction2007 Floorspace0,50x0,50 m Total height1,60 m Weight90 kgShell and tube heat exchangersSagHeat exchangers > Shell and tube heat exchangersBrand >  ...

General SKU332X713 MakeIgefa Weinbrenner LocationBarneveld CEcheck Type061U-600-600 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes10 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface41 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface41m² Tube capacity582 l. Number of tubes:178 Tube diameter33,7 mm Tube length2200 mm Wall thickness tubes2 Max. temperature0°C/+200°C Shell capacity252 l. Shell diameter600 Shell length2500 Max. temperature0°C/+200°C Shell connectionsDN80 Cover connectionsDN500 MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.50467 Year of construction2014 Mounted on framecheck Floorspace2,70x1,00 m To ...

General SKU373X904 LocationBarneveld MakeAse Apparatenbau GmbH Type16 m² Tantal Pressure Working pressure shell8 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Surface16 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface16 m² Tube capacity100 Ltr. Number of tubes:62 Tube diameter20 mm Tube length3000 mm Max. temperature-30 / 200 °C Shell capacity153 Ltr. Shell diameter300 mm Shell length3700 mm Max. temperature-30 / 200°C Shell connectionsDN110 Cover connectionsDN200, DN110, DN60 MaterialStainless steel 1.4571 (316Ti), Tantalum With jacketcheck General No.00093 Year of construction2000 Floorspace3,72 x 0,55 m Total height0,75 m Weight580 kg Extra SpecificationsMaterial tubes HII/TantalShell and tube heat exc ...

General SKU373X900 LocationBarneveld CEcheck MakeZürcher AG Type25 m² Pressure Working pressure shell13 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Hastelloy Surface25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface25 m² Tube capacity300 Ltr. Number of tubes:199 Tube diameter23 mm Tube length1700 mm Max. temperature-30/200 °C Shell capacity260 Ltr. Shell diameter500 mm Shell length1900 mm Max. temperature-30/200°C Shell connectionsDN80 MaterialStainless steel 1.4404 (316L), Stainless steel 2.4602 (Hastelloy C-22) With jacketcheck General No.2934 Year of construction2014 Floorspace1,10 x 0,90 m Total height1,90 m Weight650 kg Technical specs Extra informationWithout side cover platesShel ...

General SKU373X899 MakeZürcher LocationBarneveld CEcheck Type25 m² Pressure Vacuum possiblecheck Working pressure shell13 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Hastelloy Surface25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface25 m² Tube capacity300 Ltr. Number of tubes:199 Tube diameter23 mm Tube length1700 mm Max. temperature-30/200 °C Shell capacity260 Ltr. Shell diameter500 mm Shell length1900 mm Max. temperature-30/200°C Shell connectionsDN80 MaterialStainless steel 1.4404 (316L), Stainless steel 2.4602 (Hastelloy C-22) With jacketcheck General No.2935 Year of construction2014 Floorspace1,10 x 0,70 m Total height1,90 m Weight650 kg Extra SpecificationsWithout side cover plate ...

General SKU252X215 MakePharmatec LocationBarneveld CEcheck TypeRet P15680 Pressure Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes10 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface5 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface±5m² Tube capacity67 l. U-typecheck Number of tubes:43 Tube diameter10 mm Tube length2000 mm Max. temperature200°C Shell capacity22 l. Shell diameter250 mm Shell length2100 mm Max. temperature200°C Shell connectionscheck MaterialStainless steel With jacketcheck General No.12 1675 01 Year of construction2012 Floorspace0,75x0,75 m Total height2,2 m Weight240 kgShell and tube heat exchangersPharmatec GmbHHeat exchangers > Shell and tube heat exchangersBrand > Pharmatec G ...

General SKU390X996 MakeWilhelm Deller LocationBarneveld TypeBEM 324/1350 Pressure Working pressure shell18 Bar Vacuum possible shellcheck Working pressure tubes65 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface5.25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface5,25 m² Tube capacity44 Ltr. Number of tubes:62 Tube diameter20 mm Tube length1350 mm Max. temperature—10 / 330 °C Shell capacity24 + 8 Ltr. Shell diameter300 mm Shell length1900 mm Max. temperature—10 / 330 °C Shell connectionsDN25 Cover connectionsDN80 MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.38028/2 Year of construction2012 Mounted on framecheck Floorspace2,0 X 0,50 m Total height0,965 m Weight725 kgShell and tube heat exchangersWil ...

General SKU390X1020 MakeAsdorfer Eisenwerk LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell18 Bar Vacuum possible shellcheck Working pressure tubes55 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface5.2 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface5,2 m² Tube capacity46 Ltr. Number of tubes:62 Tube diameter20 mm Tube length1348 mm Max. temperature—10 / 330 °C Shell capacity70 Ltr. Shell diameter324 mm Shell length2006 mm Wall thickness shell5 mm Max. temperature—10 / 330 °C Shell connectionsDN25 Cover connectionsDN80 MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.077713-1 Year of construction2008 Mounted on legscheck Floorspace2,15 x 0,45 m Total h ...

General SKU390X1013 MakeAsdorfer Eisenwerk LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell18 Bar Vacuum possible shellcheck Working pressure tubes55 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface5.2 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface5,2 m² Tube capacity46 Ltr. Number of tubes:62 Tube diameter20 mm Tube length1348 mm Max. temperature—10 / 330 °C Shell capacity70 Ltr. Shell diameter324 mm Shell length2006 mm Wall thickness shell5 mm Max. temperature—10 / 330 °C Shell connectionsDN25 Cover connectionsDN80 MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.077713-2 Year of construction2008 Mounted on legscheck Floorspace2,15 x 0,45 m Total h ...

General SKU397X1137 MakeGAB Neumann LocationBarneveld TypeN-A-1,8 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface1.2 m2 Specified Features - Shell and tube heat exchanger Heat exchanger(cooler/chiller) Notified bodyGAB Neumann Heating surface1,2 m² Tube capacity11,7 Ltr. Number of tubes:1 Tube diameter180 mm Tube length700 mm Max. temperature–30 / +180 °C Shell capacity5,5 Ltr. Shell diameter600 mm Shell length244 mm Max. temperature–30 / +80 °C Shell connectionsDN50 Cover connectionsDN100 MaterialGraphite G16-5-180 With jacketcheck General No.31786—22873 Year of construction2013 Floorspace0,7 x 0,7 m Total height0,7 m Weight300 kgShell and tube heat  ...

General SKU397X1135 MakeGAB Neumann LocationBarneveld TypeN-A-1,8 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell6 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface1.2 m2 Specified Features - Shell and tube heat exchanger Heat exchanger(cooler/chiller) Notified bodyGAB Neumann Heating surface1,2 m² Tube capacity11,7 Ltr. Number of tubes:1 Tube diameter180 mm Tube length700 mm Max. temperature–30 / +180 °C Shell capacity5,5 Ltr. Shell diameter600 mm Shell length244 mm Max. temperature–30 / +80 °C Shell connectionsDN50 Cover connectionsDN100 MaterialGraphite G16-5-180 With jacketcheck General No.29593—22051 Year of construction2013 Floorspace0,7 x 0,7 m Total height0,7 m Weight300 kgShell and tube heat  ...

General SKU390X1032 LocationBarneveld MakeWilhelm Deller TypeBEM 324/1350 Pressure Working pressure shell18 Bar Vacuum possible shellcheck Working pressure tubes65 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface5.25 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface5,25 m² Tube capacity44 Ltr. Number of tubes:62 Tube diameter20 mm Tube length1350 mm Max. temperature—10 / 330 °C Shell capacity24 + 8 Ltr. Shell diameter300 mm Shell length1900 mm Max. temperature—10 / 330 °C Shell connectionsDN25 Cover connectionsDN80 MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.38028/1 Year of construction2012 Mounted on framecheck Floorspace2,00 x 0,50 m Total height0,965 m Weight725 kgShell and tube heat exchangersW ...

General SKU312P726 LocationBarneveld MakeGEA Tuchenhagen Dairy Sysytems GmbH TypeC15 No.C15/700096 Pressure Working pressure shell8 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface0.6 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface0.6 M2 Tube capacity2,5 Ltr Number of tubes:84 Tube diameterdia. 6mm Tube length440 mm Max. temperature-10/100 degr.C Shell capacity2,6 ltr Shell diameter110 mm Shell length370mm Max. temperature-10/180 degr.C. Shell connections1x dia 27 mm 1x dia 45 mm Cover connectionsdia 55mm MaterialStainless steel 1.4541 (321) With jacketcheck General Year of construction2004 Floorspace1,6x0,6 M Total height0,2 M Weight60 KgShell and tube heat exchangersOils & fatConsumer wastePaints & coatingsPowdered foodsGeneri ...

General SKU204W052 LocationBarneveld CEcheck MakeSAG Charlier Pressure Working pressure shell8 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface1 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface1m² Tube capacity16 l. U-typecheck Number of tubes:9 Tube diameterinner14mm /outer19 mm Tube length1100 mm Max. temperature-20°C/+160°C Shell capacity35 l. Shell diameter220 mm Shell length1300 mm Max. temperature0°C/+180°C Shell connectionscheck MaterialStainless steel 1.4305 (303) With jacketcheck General No.12327 Year of construction2007 Floorspace0,55x0,55 m Total height1,55 m Weight90 kg Extra SpecificationsInlet 2x DN25, outlet DN25Shell and tube heat exchangersOils & fatConsumer wastePaints & coatings ...

General SKUR0873 MakeJaeggi Guentner AG (CH) LocationBarneveld Type36,2 m2 Pressure Working pressure shell6 Bar Working pressure tubes10 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface36.2 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Horizontalcheck Heating surface36.2 m2 Tube capacity164 ltr U-typecheck Number of tubes:120 Tube diameter16 Tube length3300 mm Wall thickness tubes1mm Max. temperature-30/200 Degr.C Shell capacity206 ltr Shell diameter406,4 mm Shell length2964 mm Wall thickness shell4 mm Max. temperature-30/200 Degr.C Shell connectionsDN656 (2x), DN15 (1x) Cover connectionsDN100 (2x) MaterialStainless steel 1.4435 (316L) With jacketcheck General No.2613 Year of construction1996 Mounted on legscheck Floorspace3,7x0,6 m Total height1,3 m Weight750 kgShell and tube heat  ...

General SKU338T911 MakeSchrader apparatebau GMBH LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes100 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface2.75 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface2,75 m² Tube capacity24 Ltr. Number of tubes:14 Tube diameter25 mm Tube length2500 mm Wall thickness tubes1,6 mm Max. temperature140 °C Shell capacity34 Ltr. Shell diameter218 mm Shell length2500 mm Wall thickness shell4 mm Max. temperature140 °C Shell connectionsDN 40 (2x), R3/8: Cover connectionsDN 25 (2x) MaterialStainless steel 1.4571 (316Ti) With jacketcheck General No.2180 Year of construction1996 Floorspace0,5x0,5 m  ...

General SKU338T909 MakeSchrader apparatebau GMBH LocationBarneveld TypeW 513 Pressure Vacuum possiblecheck Working pressure shell10 Bar Vacuum possible shellcheck Working pressure tubes100 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface2.75 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Notified bodyTUV Heating surface2,75 m² Tube capacity24 Ltr. Number of tubes:14 Tube diameter25 mm Tube length2500 mm Wall thickness tubes1,6 mm Max. temperature140 °C Shell capacity34 Ltr. Shell diameter168 mm Shell length2500 mm Wall thickness shell4 mm Max. temperature140 °C Shell connectionsDN 40 (2x) Cover connectionsDN 25 (2x) MaterialStainless steel With jacketcheck General No.2179 Year of construction1996 Floorspace0,5x0,5 m Total height3,3 m We ...

General SKU212T543 MakeKuehni LocationBarneveld Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell1 Bar Vacuum possible shellcheck Working pressure tubes6 Bar Main Features Shell (Material)Stainless steel Tube (Material)Stainless steel Surface6.3 m2 Specified Features - Shell and tube heat exchanger MaterialStainless steel 1.4571 (316Ti) Heat exchangercheck Horizontalcheck Heating surface6.3 m² Tube capacity17,5 Ltr. Number of tubes:1 Tube diameter30 mm Tube length± 13,1 m Wall thickness tubes2 mm Shell capacity41 Ltr. Shell diameter190 mm Shell length2490 mm Wall thickness shell2,6 mm Max. temperature- 200 °C Shell connectionsDN 25, DN 15 Cover connectionsDN 80, DN 40 Information No.227480 Year of construction1990 Floorspace2,6x0,55 m Total height0,35 m Weight160 kgShell and tube heat exchangersOils & fatConsumer wast ...

General SKU335W844 MakeGab Neumann LocationBarneveld CEcheck TypeNB7-14 Pressure Vacuum possiblecheck Vacuum possible jacketcheck Working pressure shell3 Bar Vacuum possible shellcheck Working pressure tubes3 Bar Tubular vacuum possiblecheck Main Features Shell (Material)Graphite Tube (Material)Graphite Surface16.1 m2 Specified Features - Shell and tube heat exchanger Heat exchangercheck Verticalcheck Heating surface16,1 m² Tube capacity84 l Max. temperature-10/+80°C Shell capacity77 l. Shell diameter600 mm Shell length1835 mm Max. temperature-30/+180°C Shell connectionsDN80 MaterialGraphite With jacketcheck General No.33187-23314 Year of construction2015 Floorspace0,85x0,70 m Total height2,50 m Weight1030 kgShell and tube heat exchangersOils & fatConsumer wastePaints & coatingsPowdered foodsGeneric medicinesOintmentsTea, herbs & coffeeFine chemical ...
