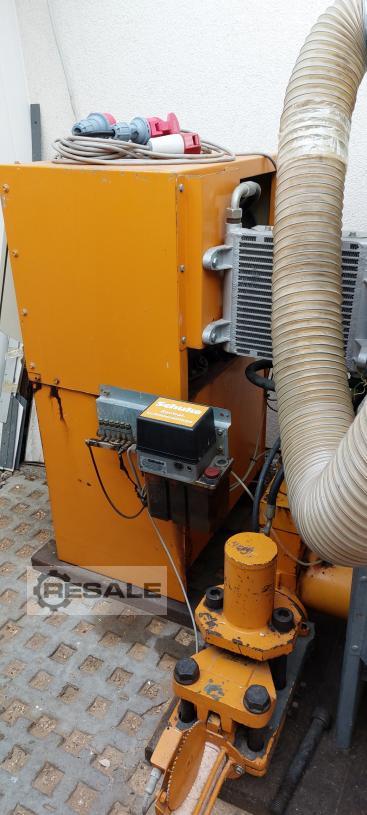

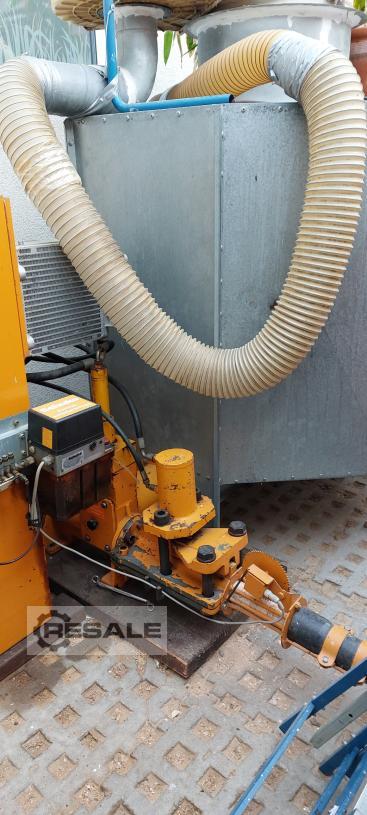

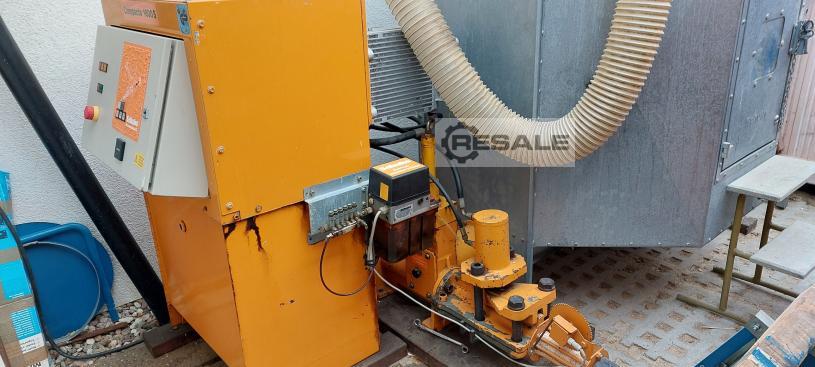

Briquetting press Schuko Compacto 1600 S , Type SC 1600 S - BL,
Fabr.Nr.: 386,
Very good condition, built in 1994,
Press:

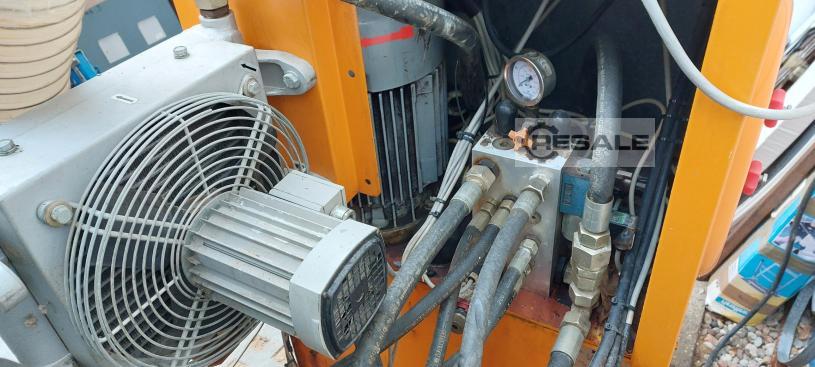

Hydraulics 5.5 KW 380 V,

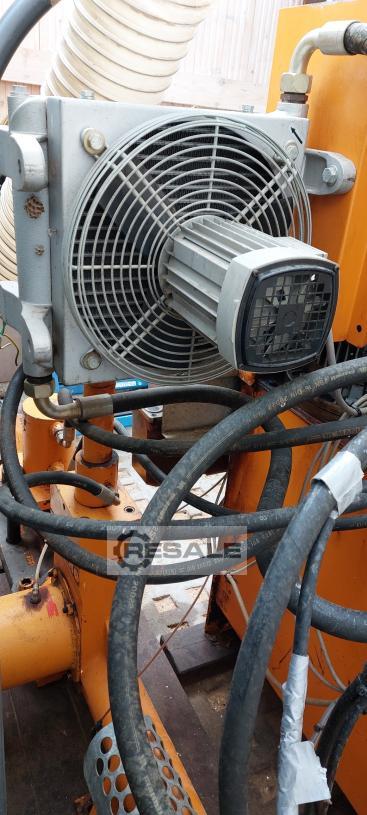

Hydraulic cooler 0.21 KW,
Briquette capacity approx. 85 Kg/h
Press pressure 190 bar controllable,
Hydraulic tank 110 liters,
Schuko central lubrication system ( use manually as required )

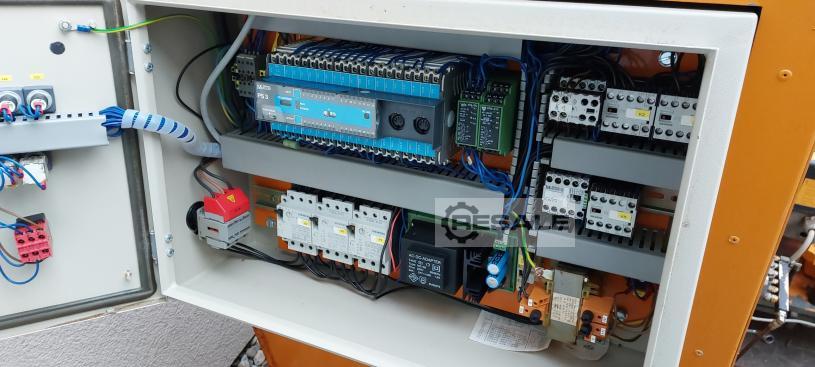

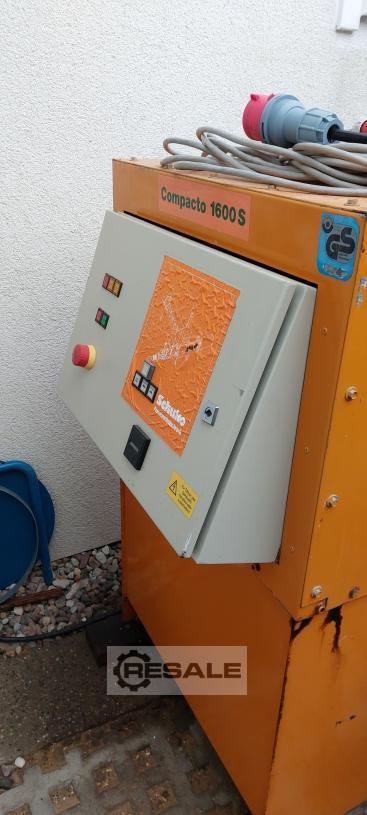

Control cabinet:
Control module Möller PS3, software SUCOSOFT S3

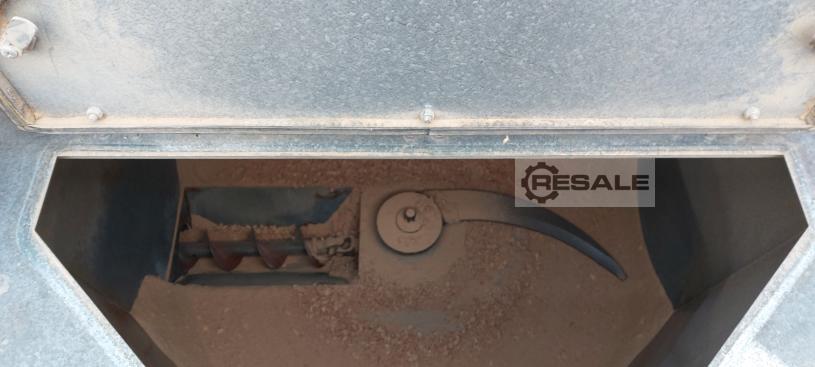

Chip container type SPS 1600 ( 1.6 cbm capacity ) with discharge screw
and
Chips agitator 1.5 KW,
Filling neck diameter 500mm ,
Shavings container size length 1500 mm x width 1500 mm,
On the filling neck is a chip suction device mounted with suction hose
of the motor
220 V can be switched on separately.
Plug ready, ready to use,
Briquette size: diameter 60 mm, length max. 60 mm
Pressing without additives
Pressing of wood dust, wood chips, 6163976 wood chips, paper and
cardboard chips,
Instruction manual with parts lists and E-Plan.
The briquetting press can, if necessary and by prior arrangement, be
installed at my site
can be inspected and tested.
Pick-up desired, delivery only possible within the radius of the
location (15374) with
Delivery costs.
When I pick it up, I can charge the machine with my forklift.
Germany
