Working parameters: Max. turning diameter 325 mm Max. turning length 400 mm Spindle speed 30 – 4,500 rpm X-axis strokes 215 mm / Z-axis 420 mm Equipment included: 12-station turret VDI 40 Hydraulic chuck 3 jaws Ø 204 mm Tailstock CM4 Tool holder with motorized tools Coolant Bar loader Year & Manufacturer: Year 2000 Manufacturer HYUNDAI Auction-ID: A1-46647-266

CNC Control: FANUC 18i-T Number of Axes: 5 (Twin-Spindle Configuration) Main Spindle: Present Sub-Spindle: Turrets: 2 Turrets with Motorized Tools Configuration: Combined Turning and Milling Weight (kg): Approx. 9000 Year & Manufacturer: 2004 – HARDINGE Auction-ID: A1-46647-259

CNC Control: Fanuc 0T-F (with C Axis) Diameter Above Bed: 500 mm Max Turning Diameter: ~280 mm Max Turning Length: ~500 mm Bar Capacity (Main Spindle): 65 mm Bench Design: 30° or 45° Inclined Spindle Nose: ASA 6\" Main Spindle Speed: Up to 4,000 RPM Sub-Spindle Speed: Up to 4,000 RPM C-Axis: 0.001°Turret : 12 stations Tooling type: VDI 40 Speed motorized tools: ~3,000 - 4,000 rpm Lots sold as is, unchecked, with tool and tool holder. Auction-ID: A1-46647-201

CNC Vertical Machining Center Manufacturer: HEAD Model: CUV-10 Year: 2001 Order: FANUC OMD Strokes: X 1,020 mm / Y 510 mm / Z 635 mm Spindle: up to 7,500 rpm 2-speed transmission Construction: shrouded machine, integrated coolant Condition: Used machine Auction-ID: A1-46647-234

NEW UNUSED MACHINE WITH DRIVEN TOOLING AND Y-AXIS! Specifications: Spindle: - Spindle hole diameter: 65mm - Bar capacity: 51mm - Chuck: 10” - Max spindle speed: 2600rpm Capacity: - Max. Swing diameter over bed: 600mm - Max. Turning diameter: 420mm - Max. Turning length: 550mm - X-axis: 280mm - Z-axis: 650mm - Y-axis: +/- 50mm - C-axis: yes Feedrate: - Rapid traverse X: 20m/min - Rapid traverse Z: 25m/min Turret: - Positions on turret: 12 - Driven tooling: yes - Tool shank: BMT-55 Tailstock: - Tailstock quill taper: MT-5 - Travel: 600mm Accuracy: - Positioning accuracy: 0.008mm - Repeated positioning accuracy: 0.008mm Machine is equipped with: - Chip conveyor - Tool setter - All tooling in turret included - Tailstock - Tooling as showed in pictures Auction-ID: A1-45752-4

Machine is equipped with: - chip conveyor - renishaw probe system Auction-ID: A1-45752-12

CNC lathe for turning and machining metal parts. CNC control: Traub TX 8 Max. turning circle: 275 mm Max. turning length: 450 mm Bar pass: 65 mm Chuck diameter: 210 / 250 mm Bench inclination: 40° Spindle speed: 0 – 4,000 rpm Spindle nose: A2-6 Spindle motor power: 11 / 18.5 kW C-axis: 0.001° with hydraulic brake Turret: 12 positions VDI 30 Motorized tools: 4,000 rpm – 4.4 kW Fast feeds: X 15 m/min / Z 20 m/min Auction-ID: A1-46647-241

CYBELEC V-DNC-1200/B DNC 1200 Ps/B, working lengh - 4100mm, pressing force - 150 ton, max. stroke - 415mm, max. closing speed - 200mm/s, pressing speed - 1-10mm/s, Auction-ID: A7-46486-4

Manufacturer: HURON Year: 2001 Type: 4-axis CNC vertical machining center Numerical control: Siemens Sinumerik 840D Strokes: X 700 mm / Y 600 mm / Z 450 mm Table: 800 × 600 mm – max. load 500 kg 4th axis: Integrated rotary table Spindle: HSK63-A – SKF – 24,000 rpm – 18 kW (spindle overhauled in 2024, approx. 1,000 h) Tool magazine: 20 stations Dimensions (mm): 3000 × 2100 × 3300 Weight (kg): 8000 Remarks: High-speed machining center with 4th axis. Machine used, functional. Auction-ID: A1-46647-215

Spindle diameter: 580 mm Tailstock stroke: 570 mm Turret stroke: 150 mm Machine not working, FANUC power unit NEEDS REPLACEMENT Sale intended only for revampists or scrap dealers Auction-ID: A7-46538-32

X-axis travel 420 mm Z-axis travel 1100 mm VDI 50 tool holder 2x ASA 8 spindles LH Head Working Hours: 16624 Working hours head RH: 16272 With loading table diameter: 1700 mm Equipment: 2x automatic arms for loading and unloading workpieces Unloading roller conveyor dimensions: 3000x530 mm Tools and spare parts included Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-46538-40

Manufacturer: HARTFORD Year: 1999 Type: CNC Vertical Machining Center Numerical Control: FANUC O-M Axes: 3 Axes (X, Y, Z) Strokes: X 1000 mm / Y 500 mm / Z 550 mm Spindle: BT40 – 8000 rpm Equipment: Chip Conveyor, Full Documentation (Operator's Manual, Electrical Diagrams, FANUC Documentation) Condition: Machine in working order, loaded on truck (LOADED) Condition: used Auction-ID: A1-46647-229

CNC vertical machining center for machining metal parts. Numerical control: Heidenhain TNC 426 (3D) Strokes: X 1,000 mm / Y 600 mm / Z 600 mm Table: 1,250 ×,800 mm Tool changer: 30 positions Spindle taper: SK 40 (DIN) Spindle speed: up to 15,000 rpm Spindle motor power: 18 / 15 kW IKZ / CTS: 40 bar Equipment: Chip conveyor, air blowing, closed cab Auction-ID: A1-46647-243

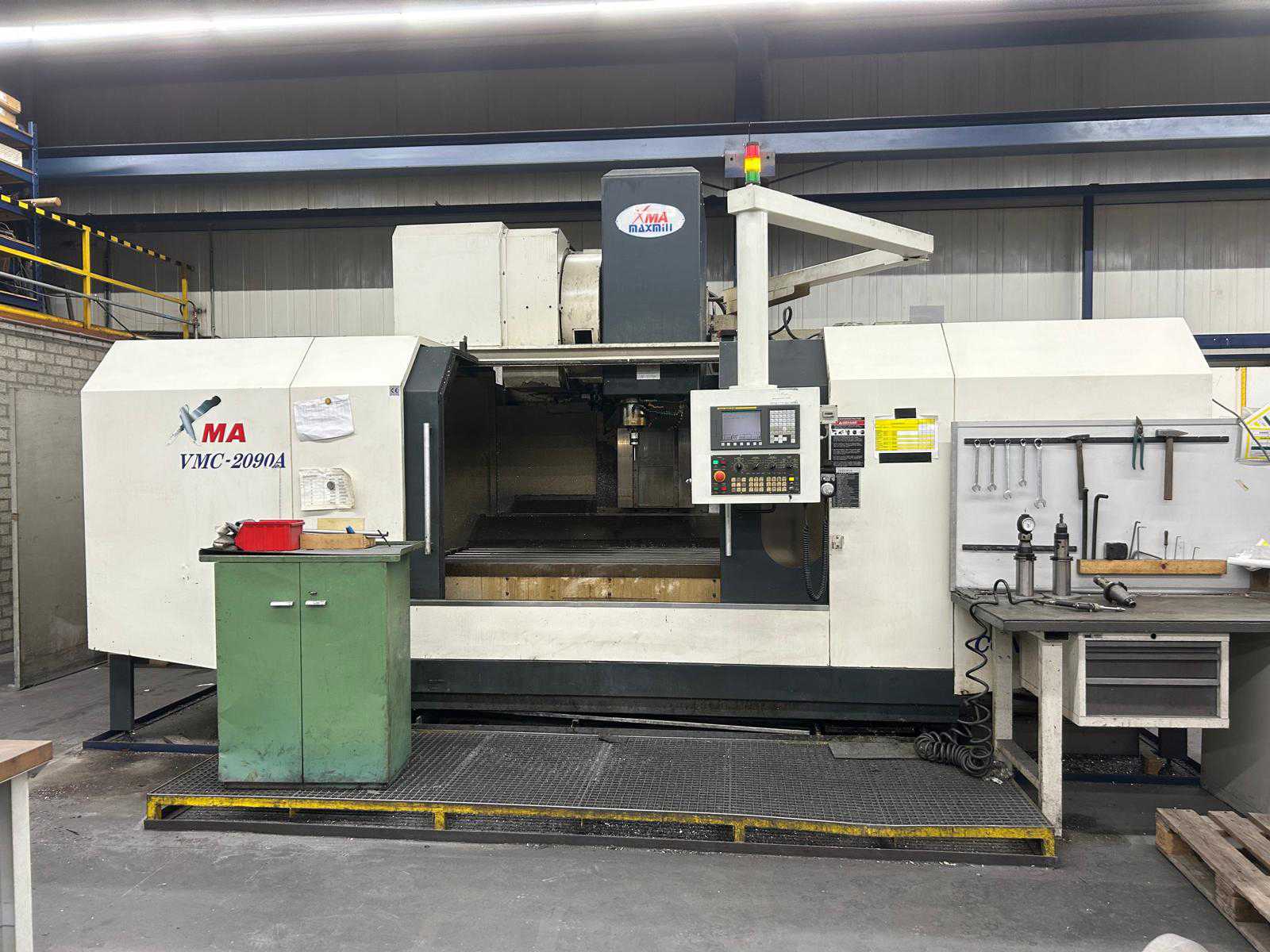

X-axis: 2500mm Y-axis: 920mm Z-axis: 820mm Machine is equipped with: - chip conveyor - through spindle coolant 40 bar - coolant filtration system - 30 position ATC Auction-ID: A1-45752-5

AC power supply 220 V, 3PH, 50/60 Hz; control voltage AC 110 V / DC 24 V; rated current 75 A; installed power 35 kVA; spindle speed up to 6000 rpm; ASA A2#5 spindle nose; 53 mm spindle passage; 12-tool VDI turret; Tool dimensions 25 x 25 mm; boring bar Ø 40 mm; strokes X 242 mm / Z 440 mm; fast feeds X 20 m/min, Z 25 m/min; 11 kW spindle motor; X-axis motors 1.4 kW / Z axis 2.8 kW; lubricating tank capacity 100 L; Max turning Ø 350 mm; Max turning length 425 mm Auction-ID: A1-46647-12

Manufacturer: LAGUN Year: 1991 Type: CNC universal milling machine Numerical control: Heidenhain TNC 355 Axes: 3 axes (X, Y, Z) Strokes: X 1100 mm / Y 600 mm / Z 600 mm Table: 1200 x 550 mm Spindle: 50 to 3000 rpm – motor power 20 kW Equipment: HURON universal head type, coolant system Remarks: Robust CNC universal milling machine for heavy and versatile milling. Auction-ID: A1-46647-226

Control: Heidenhain iTNC 530 Speed: 10,000 rpm Travel in X/Y/Z: 1,050/540/720 mm Spindle: Technology: Belt spindle Speed: 10,000 rpm Power: 12 kW Tool holder: SK40 Work table: Clamping area: 1,120 x 610 mm Table load (max.): 1,000 kg General: Tool magazine: 30 stations Rapid traverse in X/Y/Z: 36/36/30 m/min Equipment/accessories: Chip management: Chip conveyor Coolant management: IKZ pump with filter and high pressure Setup operation: Electronic handwheel Other accessories: Div. gebr. Tool holder and 3 pcs machine vices (1x 125/2x 160), rinsing gun Auction-ID: A7-46660-102

Year: 1998 Serial No.: 458-66 Type/Function: 4-Axis Vertical CNC Machining Center Configuration: 2 Pallets, 2 × 4th Axis Tsudakoma Numerical Control: SIEMENS Included Equipment: KNOLL Filter Unit, Chip Conveyor Auction-ID: A1-46647-270

Manufacturer: YAMAZAKI MAZAK Model: Quick Turn 20 Year: 1998 Numerical Control: Mazatrol T Plus Axes: 2 Axes (X, Z) Capacities: Max. diameter above bed: Ø 300 mm Distance between points: 446 mm X-axis stroke: 180 mm Spindle: Bore: 61 mm Max. speed: 4500 rpm Engine power: 15 kW Turret: 8 positions Dimensions per machine: 2660 x 1520 x 1879 mm Unit weight: approx. 4170 kg (total batch weight approx. 8340 kg) Condition: used Lot sold as a single set (2 machines) Auction-ID: A1-46647-231

Machine is equipped with: - chip conveyor - through spindle coolant - 30 positions ATC - Nikken 4th& 5th axis Auction-ID: A1-45752-19

Manufacturer: OMEGA Year: 1990 Type: High-capacity CNC vertical machining center Numerical control: FANUC 15M Axes: 3-axis (X, Y, Z) Strokes: X 1650 mm / Y 850 mm / Z 790 mm Table: 1900 x 850 mm Spindle: BT50 – up to 6000 rpm – gearbox 2 ranges Tool magazine: 30 positions Weight: approx. 15000 kg Notes: Heavy duty CNC vertical machining center, suitable for intensive machining and large parts. Auction-ID: A1-46647-227

Control: Siemens Acramatic A2100 Di Speed: 6,000 rpm Travel in X/Y/Z: 510/510/510 mm Spindle: Technology: Belt spindle Speed: 6,000 rpm Tool holder: SK40 Work table: Clamping area: 700 x 520 mm Table load (max.): 500 kg General: Tool magazine: 21 stations Rapid traverse in X/Y/Z: 24/24/24 m/min Equipment/accessories: Chip management: chip tray Coolant management: IKZ pump with filter and high pressure Tool Measurement: Pushbutton, Renishaw TS27R Setup operation: Electronic handwheel Other equipment: Div. gebr. Tool holder and 1 pc. machine vice (Allmatic HD 125), transformer ATTENTION: The machine is not wide and is sold as a parts carrier. According to the dispenser, the control (board) is defective. Auction-ID: A7-46660-129

Manufacturer: HERMLE Year: 1999 Type: Universal CNC machining center Numerical control: Heidenhain TNC 430 PA Axes: 5 axes (3 linear axes + 2 rotary axes in positioning) Strokes: X 800 mm / Y 500 mm / Z 500 mm Table: integrated roto-pallet table – max. load 250 kg Spindle: ISO 40 – 20 to 15,000 rpm Tool magazine: 30 tools SK40 Equipment: remote crank, external coolant, external blowingWeight: approx. 8,500 kg Notes: Robust and precise CNC universal machining center, functional machine. Auction-ID: A1-46647-224

24-position tool changer HAAS HRT310 Rotary Table - 4 Axis Table diameter: 310 mm Bore diameter: 82 mm RENISHAW 40-2 Probe With accessories Assorted quantities and types, as shown in the photo. The total availability of individual visible elements is not guaranteed. Auction-ID: A7-46538-30

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-203

Specifications: - X-axis: 162mm - Z-axis: 750mm - Y-axis: +/- 50mm - C-axis: yes - B-axis: 670mm - sub spindle speed: 4500rpm - sub spindle motor power: 5,5kW - live tooling: yes - live tooling speed: 3000rpm - live tooling type: BMT-55 Machine is equipped with: - Chip conveyor - Bar feeder - live tooling - y-axis - tooling in turret included - pallet with tooling included Auction-ID: A1-45752-10

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm Auction-ID: A1-46647-17

Manufacturer: HYUNDAI Year: 1999 Type: CNC lathe CNC numerically controlled: Siemens Sinumerik 840C Max. turning circle: Ø 254 mm Diameter above bed: Ø 440 mm Max. turning length: 500 mm Bar capacity: Ø 51 mm Spindle: 36–4,000 rpm – nose A2-6 – 11 kW (continuous) / 15 kW (30 min) Chuck: Ø 210 mm, Hydraulic clamping Turret: 8 stations – 25 × 25 mm tools / Ø 40 mm bars Tailstock: programmable hydraulic – CM4 taper Chip conveyor: hinged, side outlet Dimensions (mm): 2600 × 1700 × 1750 Weight (kg): approx. 4200 Remarks: Machine used, sold with tailstock and conveyor. Auction-ID: A1-46647-214

CNC control: MSX-850 III Number of axes: 2 Strokes: X = 260 mm, Z = 590 mm Spindle speed: 50 – 5000 rpm Power: 15 kW Bar capacity: Ø 65 mm Spindle bore: 73 mm Turret : 12 stations (BMT) Max turning diameter: 356 mm Max turning length: 510 mm Chip conveyor: yes 235L high-pressure pump: yes Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-204

CNC controller CYBELEC MODEVA 10S working lengh - 3550mm, pressing force - 150 ton, Auction-ID: A7-46486-3

4TH AXIS! Machine is equipped with: - 4th axis - through spindle coolant - oil chiller - chip conveyor - Renishaw probe system Auction-ID: A1-45752-6

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe. Auction-ID: A1-46647-225

CNC Control: FANUC 0M (original manual) Number of axes: 3 Axis strokes: X 1100 mm / Y 650 mm / Z 800 mm Maximum spindle speed: 8000 rpm Cooling: with coolant Spindle taper: BT40 Tool changer: automatic, 30 stations Year: 1994 Manufacturer: SUPERMAX Auction-ID: A1-46647-269

HERMLE C 1200 V – Vertical Machining Centre General data: Width: 3970 mm Depth: 4629 mm Height: 3050 mm Machine weight: 12700 kg Main drive: Number of spindles: 1 Spindle speed range: up to 16000 rpm Spindle motor power: 10 kW Tool taper: SK 40 Number of axes: 3 Movement: X-axis travel: 1200 mm Y-axis travel: 900 mm Z-axis travel: 500 mm Table: Table length: 1400 mm Table width: 900 mm Description: This 3-axis HERMLE C 1200 V vertical machining centre was manufactured in 2003. It is equipped with a robust clamping table (1400 x 900 mm) and a high-performance milling spindle delivering up to 10 kW power, torque up to 87 Nm, and speeds up to 16000 rpm. The machine is suitable for precise and complex machining operations and offers high reliability and durability. Additional information: The tool magazine can be dismantled, allowing the machine width to ...

CNC Machining Center JOHNFORD VMC-850 | Year of construction 2023 | FANUC | 60-fold tool changer Manufacturer: JOHNFORD Model No.: VMC-850 Machine Type: CNC Machining Center Year of manufacture: 2023 Operating hours: approx. 667 h ⸻ CNC control • FANUC 0i-MF Plus • Manual Guide i • Dual Check Safety (safety software) ⸻ Spindle & Tool Changer • Tool changer with double-arm gripper • 60 tool positions • Tool holder: SK40 • Milling spindle: 5.5 / 7.5 kW • Speed: up to 12,000 1/min ⸻ Measuring & Cooling Systems • Glass scales in X, Y and Z axes • IKZ 30 bar through the spindle • Programmable air/water switching • Oil mist extraction, programmable • Renishaw OMP40-2 touch probe (wireless) • Renishaw OTS tool measuring tool setter (wireless) ⸻ Workspace • X-axis travel: 800 mm • Y-axis  ...

CNC Control: FANUC series O-M Axis strokes: X 600 mm / Y 420 mm / Z 450 mm Table: 750 × 400 mm Spindle speed: 6000 rpm Spindle power: 13 kW Spindle taper: ISO 40 Tool changer: 30 positions Included equipment: NIKKEN 4th axis divider Ø 250 mm Year: 1989 Manufacturer: SIGMA Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-267

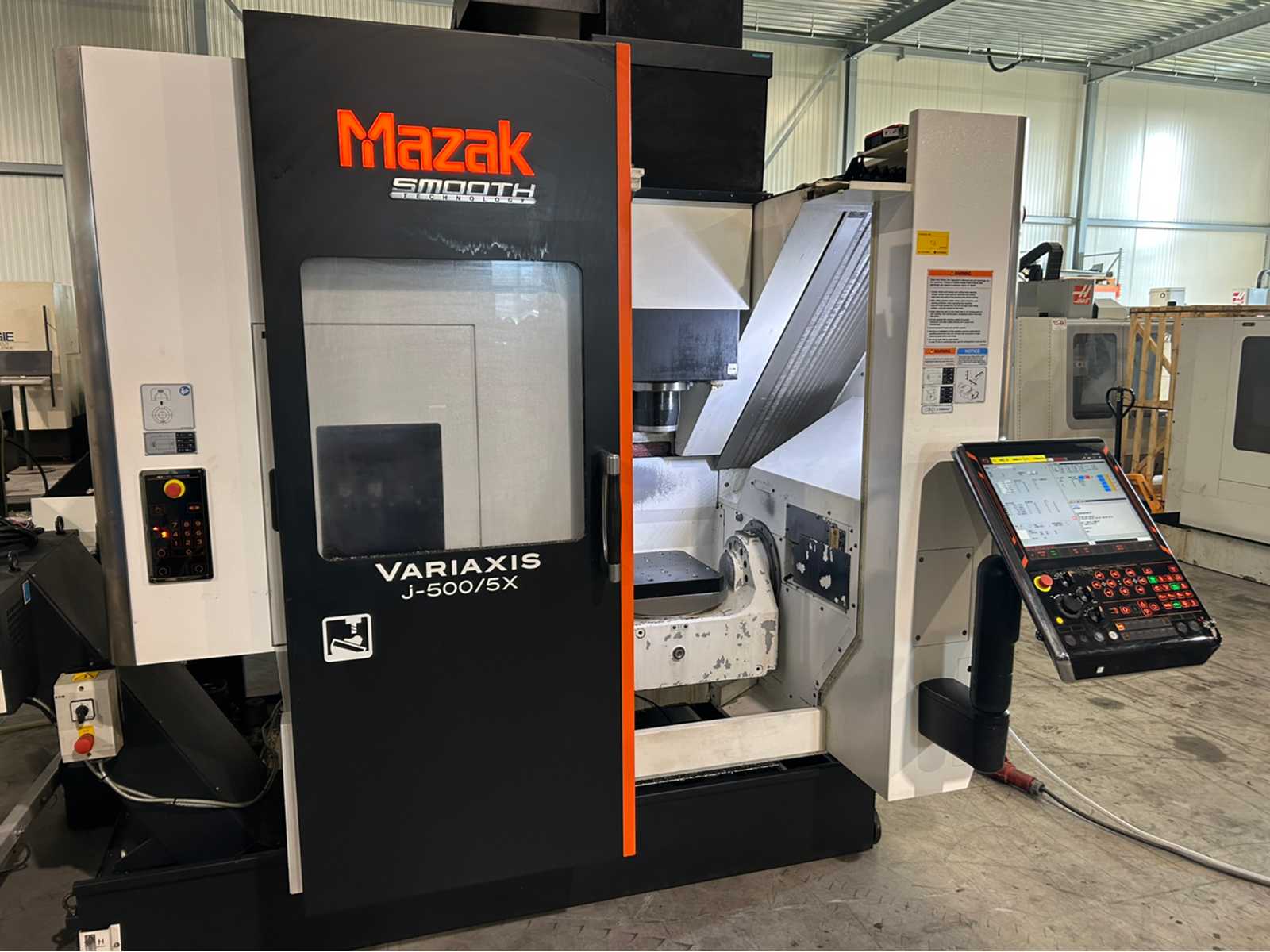

Control: Mazatrol Smooth X Hours: 11019 X-axis: 350mm Y-axis: 550mm Z-axis: 510mm A-axis: -120° ~ +30° C-axis: 360° Rapid feedrate: 30m/min Table size: 500mm x 400mm Max. Workpiece weight: 200kg Min. / max. Height under spindle: 50 ~ 560mm Spindle taper: SK-40 Spindle speed: 12.000 Spindle motor power: 11Kw Positions on ATC: 30 Machine is equipped with: - Chip conveyor - Through spindle coolant - Renishaw RMP 40 probe - Digital user manuals Auction-ID: A1-45752-1

CNC vertical machining center for machining metal parts. Numerical control: Hurco WinMax Axes: 4 axes (including 1 rotary axis) Strokes: X 660 mm / Y 355 mm / Z 457 mm Table: 762 × 355 mm Maximum load table: 500 kg Spindle taper: ISO 40 Spindle speed: 10,000 rpm Spindle power: 11 kW Tool changer: 24 tools (RANDOM type) Equipment: 1-axis divider with tailstock Auction-ID: A1-46647-245

Machine is equipped with: - Chip conveyor - Oil skimmer - Through spindle coolant Auction-ID: A1-45752-17

X-axis travel: 150 mm Z-axis travel: 520 mm Tailstock stroke: 340 mm Self-centering head diameter: 210 mm X-axis repeatability +/- 0.003 mm Z-axis repeatability +/- 0.005 mm Sale intended only for revampists or scrap dealers NOT Working - Faulty Board Auction-ID: A7-46538-33

CNC Control: BROTHER CNC-A00 X/ Y/Z Axis Travels: 480 × 360 × 410 mm Table Dimensions: 600 × 300 mm Number of Tools: 14 Spindle Taper: BT30 Max. Spindle Speed: 16,000 RPM Spindle Motor Power: 7 kVA Drilling Capacities: Steel Ø 32 mm, Aluminum Ø 25 mm, Cast Iron Ø 25 mm Tapping Capacities: steel up to M16 Included equipment: 4 BT30 tool holders, lubrication tank with pump Weight (kg): 1800 Year & Manufacturer: 2007 – BROTHER Auction-ID: A1-46647-252

CNC vertical machining center for machining metal parts. Axes: 3-axis Strokes: 610 x 410 x 450 mm Numerical Control: Fanuc OT Equipment: Chip Conveyor Manufacturer: Yang Iron Works Co., Ltd.Country of Manufacture: Taiwan Serial No.: Z00321 Auction-ID: A1-46647-239

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-202

CNC Vertical Machining Center Order: Heidenhain TNC 426 Axes: 3 Table (mm): 1100 × 600 X/Y/Z strokes (mm): 1000 × 600 × 800 Spindle: ISO 40, max. 8,000 rpm Tool magazine: 40 positions Equipment: Chip conveyor Serial number: Notes: Used machine, Auction-ID: A1-46647-260

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI Auction-ID: A1-46647-253

Manufacturer: VICTOR Year: 1996 Type: CNC Vertical Machining Center Numerical Control: FANUC Series O-M Strokes: X 800 mm / Y 500 mm / Z 510 mm Table: 1100 × 500 mm – max. load 600 kg Guides: Prismatic slides with Turcite-B coating Spindle: 60–6,000 rpm – BT40 / SK40 taper – 7.5 kW (continuous) / 11 kW (30 min) Tool changer: 24 tools – exchanger arm – 2.5 s tool-tool – max. tool Ø 80 mm Weight (kg): approx. 6000 Notes: Mehanite heavy construction machining centre. Good working condition. Auction-ID: A1-46647-213

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-46647-221

CNC vertical machining center for machining metal parts. CNC control: Fanuc 0M Strokes: X 850 mm / Y 440 mm / Z 630 mm Table: 940 × 400 mm Max. table load: 250 kg Spindle taper: BT 40 Spindle speed: 45 – 8,000 rpm Spindle motor power: 7.7 / 5.5 kW Tool changer: 22 positions Projection: 380 mm Total power: 10 kVA Voltage: 380 V Auction-ID: A1-46647-240

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...
