rotary table grinding used for sale

Grinding wheels - 2 pieces Type Spec. 9A 541 JB U76 Max. RPM 2,360 Auction-ID: A1-47017-82

Thread Worm Grinding Machine Make: LINDNER Type: GSM Year of Make: 1965 Control type: conventional Technical details: Workpiece diameter : 200/250 mm Thread length: 500 mm Thread pitch: 6 - 72 mm Grinding diameter - min.: 1 mm Center width: 800 mm Module - max: 8 Workpiece spindle speeds: 0.19 - 32 rpm Slope angle: 40° Leg grind: 0.015 - 4 mm Grinding wheel diameter min./max.: 275 / 350 Total power requirement: 11 kW Machine weight: approx. 3.6 t Space requirement: approx. 3.8 x 2.3 x 1.0 m Additional information: a lot of accessories, 2 pullers Auction-ID: A1-47017-35

Code: 0308 Brand: AGLA Model: 900 Roll polishing machine for polyester and varnish - It is suitable for buffing of high gloss polyester or polyurethane paints, metals, marble and similar materials Sturdy structure Table dimensions mm 2950 x 850 Working width mm 900 Working height mm 700 Brush diameter mm 300 Motor Hp 10 Automatic table lifting Overall dimensions mm 3100 x 1750 x 1650 h Weight kg 1200

STRUERS MOTOPOL 2000 GRINDER POLISHER Grinding/Polishing Machine Auction-ID: A1-47049-222

grinding diameter:600 mm grinding length:3000 mm centre height:300 mm weight of the machine ca.:11,8 t dimensions of the machine ca.:7100x2300 mm spindle turning speed range:14 - 220 U/min grinding wheel diameter:650 mm grinding wheel flange for width 25-40 mm:3 Stk. open tailstocks:3 Stk. chuck:Ø310 mm fixed steady:320 mm Distance between center: 3000 mm. Height of centres: 300 mm. Spindle speed: (n°12) 14 - 220 Rpm Max grinding diameter: 600 mm. Stroke the wheelhead:(rapid) 50 mm. Stroke the wheelhead:(rapid+ micrometrical): 1 5 500 m mmm. . Max grinding wheel diameter: 650 mm. Max tilt table: 3° 30' Total absorbed power: 27,7 Hp Dimension: 7100x2300 mm. Weight approx: 11800 Kg.

workpiece diameter:5-125 mm grinding depth:50-1000 mm clamping length:1000 mm total power requirement:1.9 KVA weight of the machine ca.:630 kg max. workpiece weight:100 kg Center Hole Grinding Machine. Workpiece must be rotated by machine during grinding

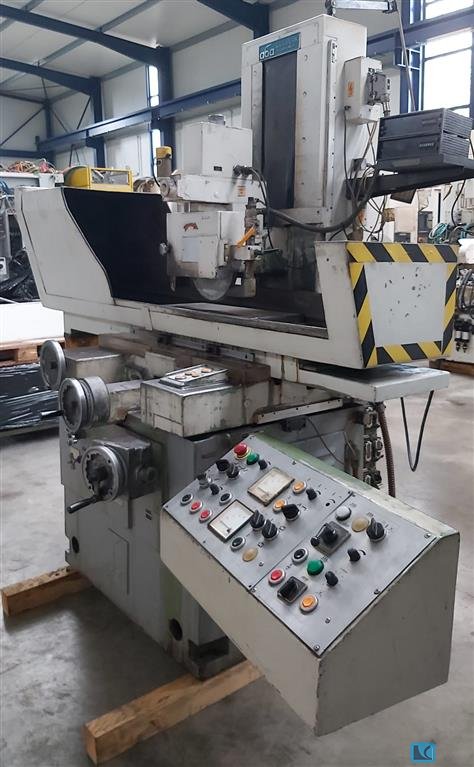

grinding length:600 mm grinding width:300 mm total power requirement:7,5 kW number of spindle speeds:0-3000 grinding wheel motor:7,5 kW grinding wheel diameter:300 mm dimensions of grinding wheel:76 x 20 mm ABA magnetic table flat grinding machine

drill diameter:5,,,,40 mm drilling length:600 mm lip angle:90-150 ° total power requirement:4,5 kW weight of the machine ca.:0,8 t dimensions of the machine ca.:2-2-2 m CNC programmable according to ISO Point angle 90-140 degrees, disc stroke x 80mm y 80mm grinding wheel 6mm to 150mm ceramic or CBN speed 2500 to 6000 rpm Grinding options - 3 facets 6 surface grinding (Renault patent) - conical surface grinding with cross-section correction / point thinning / cross point. / Type 2/1 Avyac grind / 4 faces gr. Cross for deep drill

weight of the machine ca.:24 t dimensions of the machine ca.:3900 x 3500 x 2500 m -the machine has no B axis -two grinding spindles with one grinding wheel each - The transport instructions can be found in the documentation (attachment). including Hoffmann KSM filter system Loading list available Operating data v. 03/27/2023: Operating time: 21727 h / production time: 11960 h Machine documentation: 1 set of circuit diagrams, electrical plans, operating instructions Accessories: 2 replacement measuring heads Marposs S/500; prism supports Other: Hoffmann KSM filter system Machine condition: according to age, due to processing with emulsion

grinding diameter:20 mm grinding length:20 mm max. workpiece diameter:20 mm min. workpiece diameter:1 mm grinding wheel diam. min/max.:300-400 grinding wheel turining speeds:2.000-7.000 U/min Weight:950 kg dimensions: 1200 x 2100 mm

grinding length:600 mm centre height:180 mm swing dia.:360 mm workpiece weight:80 kg max. dia. of grinding wheel:500 mm grinding wheel width:80 mm grinding wheel hole diameter:203,2 mm peripheral speed:45 m/sec There is also a 3200 liter coolant tank including cooling unit + fire extinguishing system.

max. wheel diameter:260 mm gear width:320 mm max. module:5 weight of the machine ca.:21 t dimensions of the machine ca.:8,71 x 5,97 x 3,49 m no. of teeth:1...999 max. helix angle:+45/-45 ° pitch min.:0,1 mm pitch max.:1000 mm X-axis:345 mm y-axis:250 mm Z-axis:320 mm b-axis:360 ° c-axis:360 ° Coolant is not available. It was central and there is only a booster pump without filtering. For loading system there is a 2-axes robot with workpiece conveyor.

internal diameter:140 mm total power requirement:5,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:2,8 x 2,5 m max. workpiece weight:15 kg clamping dia. max.:140 mm clamping length:250 mm max. bore diameter to be ground:0,8-90 mm min./max. hole to grind:160 mm centre height:90 mm workpiece spindle stepless:112-1000 U/min

grinding diameter:5-55 mm grinding length:500 mm total power requirement:44 kW -- Intended use and general information -- Fully automated external and surface grinding of synchronous rings Centre height: 200 mm Grinding length: 500 mm Grinding wheel arrangement: right, 30° angled Grinding wheel dimensions: 600 x 30 x 203.2 mm Drive power: 7 kW X/Z axis drive: ball screw Travel speed: 0.01 - 10,000 mm/min. Resolution: 1 µm Concentricity of workpiece spindle: < 1 µm Workpiece changing system: Fanuc robot Control: Siemens Sinumerik 840-D Machine weight: 7,000 kg Centre height: 200 mm Grinding length: 500 mm

grinding diameter:200 mm grinding length:320 mm total power requirement:3,5 kW weight of the machine ca.:9 t space required L x W X H:5,28 x 4,5 x 2,4 m max. wheel dia.:200 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm

max. wheel diameter:210 mm total power requirement:60 kW weight of the machine ca.:8 t dimensions of the machine ca.:2,85 x 2,60 x 1,80 m grinding slide feed:700 mm grinding slide feeds:1-15.000 m/min max. workpiece weight:150 kg centre height:260 mm grinding wheel diameter:240 mm

grinding length:1370 mm grinding width:560 mm workpiece height:800 mm total power requirement:50 kW dimensions of the machine ca.:9 m ABA Z&B 2000, profile grinding machine with swivel dresser Mounting fixtures: magnet, dividing head E-axis dresser B-axis dividing head

max. module:7 weight of the machine ca.:5 t worm grinding diameter:280-350 mm width of grinding worm:84-104 mm min. number of teeth:6 max. number of teeth:600 max. top circle diameter:360 mm max. workpiece weight:60 kg without filter

grinding length:1500 mm centre height:325 mm weight of the machine ca.:12 t Karstens EMAG H310 Universal Grinding Machine Year of manufacture: 2004 Center distance: 1500 mm Center height: 325 mm Reinforced workpiece spindle, load capacity up to 250 kg Driven C-axis for polygon, thread, and eccentric grinding. 3 individually mounted grinding spindles. Siemens 840D control system

max. wheel diameter:180 mm max. module:5 min. module:1 weight of the machine ca.:14 t dimensions of the machine ca.:4,5 x 2,84 x 2,8 m min. number of teeth:7 toolpiece turning speed range:4000-10000 U/min tool length:210 mm With tail stock No dressing device Only CBN

adjustment drive of the grinding spind.slide:0,0025 - 0,05 mm total power requirement:100 kW adjustment of grinding head slide:150 mm weight of the machine ca.:17 t grinding spindle drive:2 x 37 kW grinding width:30-150 mm peripheral speed:34 m/sec workpiece speeds:60 - 300 mm/Sek. grinding height:70 mm grinding wheel diameter:750 mm grinding tools:750 x 75 x 350 mm grinding wheel turning speeds:870 U/Min. max. workpiece diameter:250 mm

grinding diameter:250 mm grinding length:2710 mm max. module: min. module: total power requirement:45 kW weight of the machine ca.:15 t space required L x W X H:7,1 x 4,7 x2,7 m max. wheel dia.:450 mm Spindle drives Arena Siemens For Worm grinding we have not module, but pitch. Pitch is freely programmable from 0.001 to big value i.e. 500mm Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2026, Josef Weber. All rights reserved.

grinding height:-- mm grinding width:220 mm grinding wheel diameter:762 mm total power requirement:90 kW weight of the machine ca.:13 t grinding spindle 1 drive::37 kW grinding spindle 2 drive::37 kW Grinding machine for pre-grinding the connecting rod With 2 replacement spindle motors

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:450 mm grinding width:250 mm workpiece height:280 mm Table area:760 x 250 mm grinding spindle drive:2,5 kW grinding wheel dia. x width:250x 25 mm grinding spindle speed:1430/2900 U/min way of grinding spindle saddle, vertical:400 mm total power requirement:4,5 kW weight of the machine ca.:1,8 t dimensions of the machine ca.:1,8 x 1,4 x 2,0 m Machine equiped with magnetic plate - dresser

grinding length:4000 mm grinding width:1450 mm workpiece height:1250 mm total power requirement:40 kW dimensions of the machine ca.:12,3 x 6 x 4,8 m distance between columns:1460 mm table surface area:4000 x 1250 mm max. workpiece weight:11.000 kg cross rail adjustment:1250 mm Machine is in very good condition for highest precision! With CNC control SIEMENS 840 D 1 universal grinding support, 7.5 kW, swivelling grinding spindle ±110° Peripheral grinding wheel dimensions Ø 500 x 60 mm Vertical adjustment 350 mm, with dressing device 1 peripheral grinding support, 22.5 kW Grinding wheel dimensions Ø 600 x 100 mm Vertical adjustment 150 mm, with dressing device With 6 magnetic plates arranged on the table Various grinding wheel holders

workpiece length:350 mm work piece width:150 mm diameter:Tellerradius 200 mm tool taper:M32 x 1,5 spindle diameter:32 mm grinding width:max.450 mm turning speeds:3385 U/min work table::Höhe 1000 mm workpiece height max.:100 mm total power requirement:1,1 kW weight of the machine ca.:300 kg dimensions of the machine ca.:700 x 800 x 1170 mm

table diameter:520 x 22 mm table - swivable:45 Grad total power requirement:1,6 kW weight of the machine ca.:130 kg dimensions of the machine ca.:520 x 520 x 1200 mm mit Schleifzylinder Zubehör: 4 ( Aluzylinder) Werkzeuge zur Aufnahme von Schleifmitteln Ø 50, 70 , 90, 120 mm x 223 mm neuer Motor

grinding length:600 mm grinding width:250 mm workpiece height:380 mm :Sinumerik max. dia. of grinding wheel:300 mm weight:4000 kg total power requirement:12,5 kW grinding wheels:Ø 400 mm max. width of grinding wheel:100 mm grinding wheel hole diameter:127 mm turning speeds:470 - 12030 1/min x-axis:600 mm y-axis:300 mm z-axis:250 mm grinding range:450 x 200 mm distance spindle nose and table:500 mm table load:250 kg dimensions of the machine ca.:2600 x 2100 x 2400 mm switchgear cabinet:1300 x 800 x 2000 mm hydraulical unit::450 x 350 x 500 mm Documents:vorhanden

grinding length:1250 mm grinding width:400 mm workpiece height:550 mm workpiece weight:750 kg table-size:1720 x 400 mm magnetic clamping plate:1250 x 400 mm dist. center of grinding spindle - table:750 mm turning speed range - grinding wheel:3000 U/min Length movement of the table:1300 mm grinding wheel size:Ø 400 x 50 x 127 mm switchgear cabinet:inkl. hydraulic power unit:inkl. coolant:inkl. voltage:380 V table load:max. 1100 total power requirement:13,8 kW weight of the machine ca.:6000 kg dimensions of the machine ca.:5000 x 3400 x 2400 mm Documents:inkl.

internal diameter:315 mm grinding depth:315 mm swing diameter:420 mm number of spindle speeds:32 - 360 U-min wheel box:-drehzahl 100 - 8000 U/min face diameter:500 mm total power requirement:12 kW weight of the machine ca.:5900 kg dimensions of the machine ca.:3400 x 1750 x 2000 mm

grinding length:1000 mm grinding width:250 mm workpiece height:400 mm total power requirement:12 kW weight of the machine ca.:3,8 t dimensions of the machine ca.:3.300 x 1.800 x 2.300 mm hydraulic power unit:400 x1000 x 1500 mm control cabinet:2 Stück, 1000 x 1400 x 1500 mm

grinding length:150 mm total power requirement:3 x 380 /220 V weight of the machine ca.:2100 kg dimensions of the machine ca.:1200 x 1700 x 2000 mm grinding wheel diameter:280 - 350 mm grinding wheel width max.:20 mm workpiece diameter:65 - 120 mm workpiece turning speeds:1,5 -20 U/min Documents:vorhanden

grinding length:1500 mm grinding width:700 mm workpiece height:580 mm table load capacity:2380 kp table speed -stepless-:5 - 35 m/min grinding wheel dia. x width:500 x 100 x 203 mm grinding wheel motor:18 kW speeds::stufenlos elektronisch total power requirement:35 kW weight of the machine ca.:12 t dimensions of the machine ca.:5,3 x 2,9 x 3,8 (3,18) m surface grinding machine, paper-filter, DRO 3 axis, automatic infeed, el.handwheel, full cabin

x-travel:400 mm y-travel:250 mm workpiece height:500 mm grinding diameter:220 mm table surface area:600 x 320 mm throat:310 mm range of angles:12 ° grinding wheel stroke - vertical:110 mm stroke speeds:0 - 6 m/min grinding spindle speed:bis 50000 U/min peripheral speed:max. 35 m/sec capacity:ca. 7 kVA power capacity:6 kW weight of the machine ca.:2 t dimensions of the machine ca.:3 x 3 x 3 m rotary table d = 300 mm frequency changer Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding diameter:600 mm grinding length:3000 mm centre height:315 mm workpiece weight max.:3000 kg work piece spindle speed:8 - 120 U/min grinding wheel motor:25 kW grinding wheel speed:45 m/sec grinding wheel width x diameter:750 x 80 mm table speeds:30 - 4500 mm/min feeds of grinding head:0 - 5 mm/min table swivelabel +/-:7,5 ° total power requirement:55 kVA weight of the machine ca.:18 t dimensions of the machine ca.:11,5 x 4 x 2,2 m - Internal grinding device - taper grinding up to 10,1° based on diameter - automatic grinding cycle - grinding wheels and flanges - dressing device - coolant attachment - dust exhauster, various steady rests

grinding length:600 mm grinding width:300 mm workpiece height:450 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2,8 x 3,0 x 2,0 m grinding spindle speed:1440 / 2905 U/min with magnetic plate 600 x 200 mm autom. vertical feed coolant attachment Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

grinding diameter:300 mm grinding length:600 mm centre height:190 mm z-axis:865 mm x-axis:250 mm clamping length:1000 mm peripheral speed:45 m/sec grinding slide swivable +/-:8 ° grinding wheel width x diameter:80 x 508 mm work piece spindle speed:1 - 800 U/min weight of the machine ca.:5 t Machine with SIemens 840 C control - coolant device - Marposs measuring device

grinding length:1250 mm grinding width:600 mm workpiece height:730 mm table surface area:1720 x 500 mm headstock: dist. table - spindle center:900 mm max. longitudinal movement:X-1450 feed range:10 - 20.000 mm/min vertical movement:Y-730 mm feed range:0,2 - 3.000 mm/min cross travel:Z-550 mm feed range:5 - 5.000 mm/min power capacity:1500 U/min.- 44 kW / 8000 U/min. - 38 kW kW grinding wheel turining speeds:50-6.000 U/min cutting speed:max. 80 m/sec. weight of the machine ca.:11 t with CNC SIEMENS 840 C auto. dynamic balncing system integrated in the grinding conus profile grinding unit ( on table mounted ) Diamant profile rollers ( dia. max 140 mm , width max. 200 mm, hole 52 H3 ) speed 3000 rpm two magnetic plates ( 1000 x 400 mm, 1200 x 350 mm ) divers Flanges ect.

Serial number: 815 Operating voltage: 380 V Frequency: 50–60 Hz Rated current: 14 A Table dimensions: 500 x 200 mm Universal part-head tip height: 170 mm Tailstock tip height: 120 mm (with intermediate support: 170 mm) Max. workpiece length between tips: 336 mm Workpiece diameter with self-supporting fastening: approx. 600 mm Max. tip length: 950 mm Inner cone Partial spindle: Morse 4 / Unified 40 T-slots: 12 mm (machine stand), 8 mm (other elements) Sharpening stroke: 190 mm Transverse movement Tool holder: 100 mm Vertical movement Grinding head: 325 mm Tool holder: 230 mm Dividing head on tool slide: 330 mm Grinding head holder / Tool holder / Grinding head / Universal apparatus: 360° Three-phase motor: 0.7 / 0.85 kW DC motor: 1.3 kW Spindle speed: 4000 / 8000 rpm (double priority) Infinitely variable DC: 2000 – 10000 rpm incl. two-axis digital display, Extensive accessories suita ...

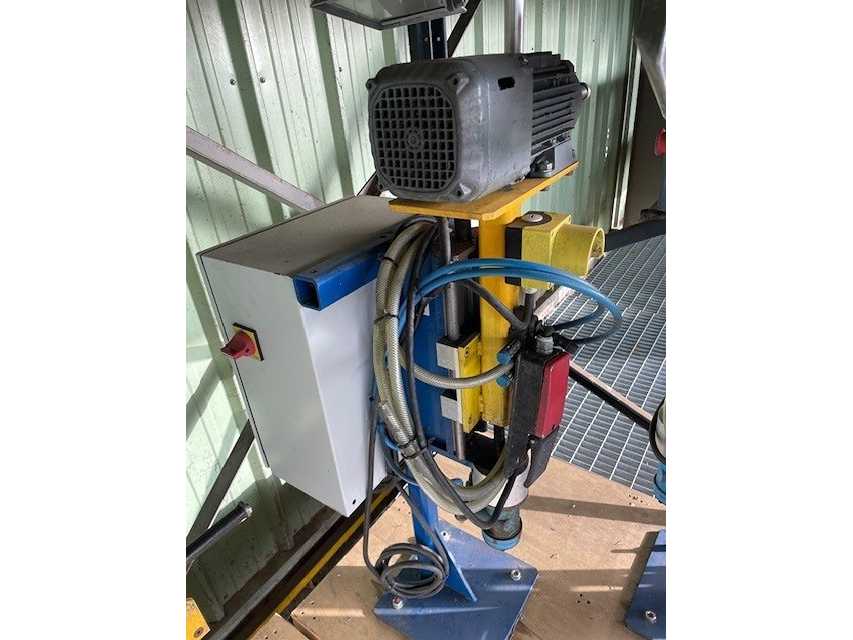

Industrial Deburring Stations – Year 2019 SEW USOCOME actuator – Pneumatic control - General Description: We offer for sale these industrial deburring stations in good condition, year of construction 2019, designed for deburring operations in industrial environments. Robust, compact and safe stations, ideal for mechanical, machining, sheet metal or industrial subcontractors. - Technical characteristics Equipment Type: Deburring Station Year: 2019 Engine : SEW USOCOME Engine type: DRN80M2/BE05/FI B3 Maximum speed: 2860 rpm Order Type: MCLTPB0015-5A3-4-00 Structure: Column station with reinforced base - Integrated equipment Pneumatic up/down Foot pedal control Adjustable protective screen Built-in light stand Complete electrical box with dimmer and protections - Benefits Recent Material (2019) Rugged industrial manufacturing Engine recognized for its reliability Quick and easy inst ...

Industrial Deburring Stations – Year 2019 SEW USOCOME actuator – Pneumatic control - General Description: We offer for sale these industrial deburring stations in good condition, year of construction 2019, designed for deburring operations in industrial environments. Robust, compact and safe stations, ideal for mechanical, machining, sheet metal or industrial subcontractors. - Technical characteristics Equipment Type: Deburring Station Year: 2019 Engine : SEW USOCOME Engine type: DRN80M2/BE05/FI B3 Maximum speed: 2860 rpm Order Type: MCLTPB0015-5A3-4-00 Structure: Column station with reinforced base - Integrated equipment Pneumatic up/down Foot pedal control Adjustable protective screen Built-in light stand Complete electrical box with dimmer and protections - Benefits Recent Material (2019) Rugged industrial manufacturing Engine recognized for its reliability Quick and easy inst ...

Industrial Deburring Stations – Year 2019 SEW USOCOME actuator – Pneumatic control - General Description: We offer for sale these industrial deburring stations in good condition, year of construction 2019, designed for deburring operations in industrial environments. Robust, compact and safe stations, ideal for mechanical, machining, sheet metal or industrial subcontractors. - Technical characteristics Equipment Type: Deburring Station Year: 2019 Engine : SEW USOCOME Engine type: DRN80M2/BE05/FI B3 Maximum speed: 2860 rpm Order Type: MCLTPB0015-5A3-4-00 Structure: Column station with reinforced base - Integrated equipment Pneumatic up/down Foot pedal control Adjustable protective screen Built-in light stand Complete electrical box with dimmer and protections - Benefits Recent Material (2019) Rugged industrial manufacturing Engine recognized for its reliability Quick and easy inst ...

WMA1 version: - With grinding cycles vertical axis and additional automatic dressing compensation - With grinding wheel compensation - Automatic dressing by means of hydraulic dresser and calculation of the dressing value during the roughing process various grinding wheels max table load: 700 kg Table longitudinal movement: 900 mm Table feed: 10-25 m/mm Min./Max.: Distance spindle nose table: 170 - 600 mm Handwheel pitch vertical: 0.001 mm Handwheel rotation vertical: 0.1 mm Automatic grinding feed: 0.001 - 0.025 mm Vertical rapid traverse (Y-axis): 300 mm/min Cross travel: 450 mm Transverse feed per stroke: 1.5 - 10 mm Transverse Traverse: 1000 mm/min Handwheel pitch transverse: 0.02 mm Handwheel rotation transversely: 5 mm Grinding spindle motor: 5.5 kw Grinding wheel: 355 x 38 x 127 mm Hydraulic motor: 2.25 kW

Year of manufacture 05 2015 The WICKI CG12GE is a high precision centerless grinding machine designed for efficient mass production of small to medium diameter cylindrical parts The machine operates without workpiece clamping between centers The workpiece is continuously guided between the grinding wheel regulating wheel and support blade ensuring very high dimensional accuracy surface quality and high productivity Grinding processes Through feed grinding for continuous serial production In feed plunge grinding for short precision parts and shoulders Technical data approx Grinding range Ø 1 30 mm Workpiece length up to approx 140 mm depending on process Grinding wheel Ø 305 150 127 mm Regulating wheel Ø 205 150 90 mm Grinding wheel speed approx 1900 rpm Grinding speed approx 30 m s Grinding wheel motor power approx 5 5 kW Regulating wheel motor power approx 1 3 kW Total connected  ...
