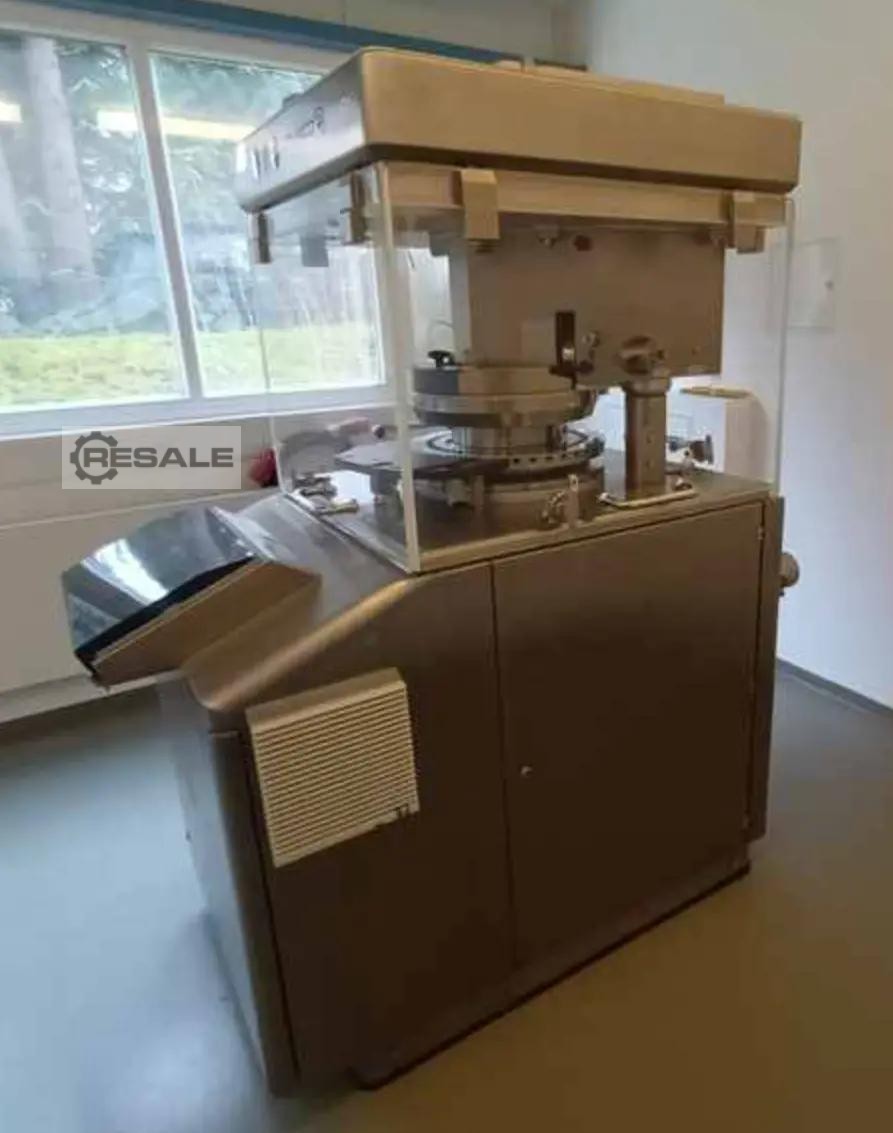

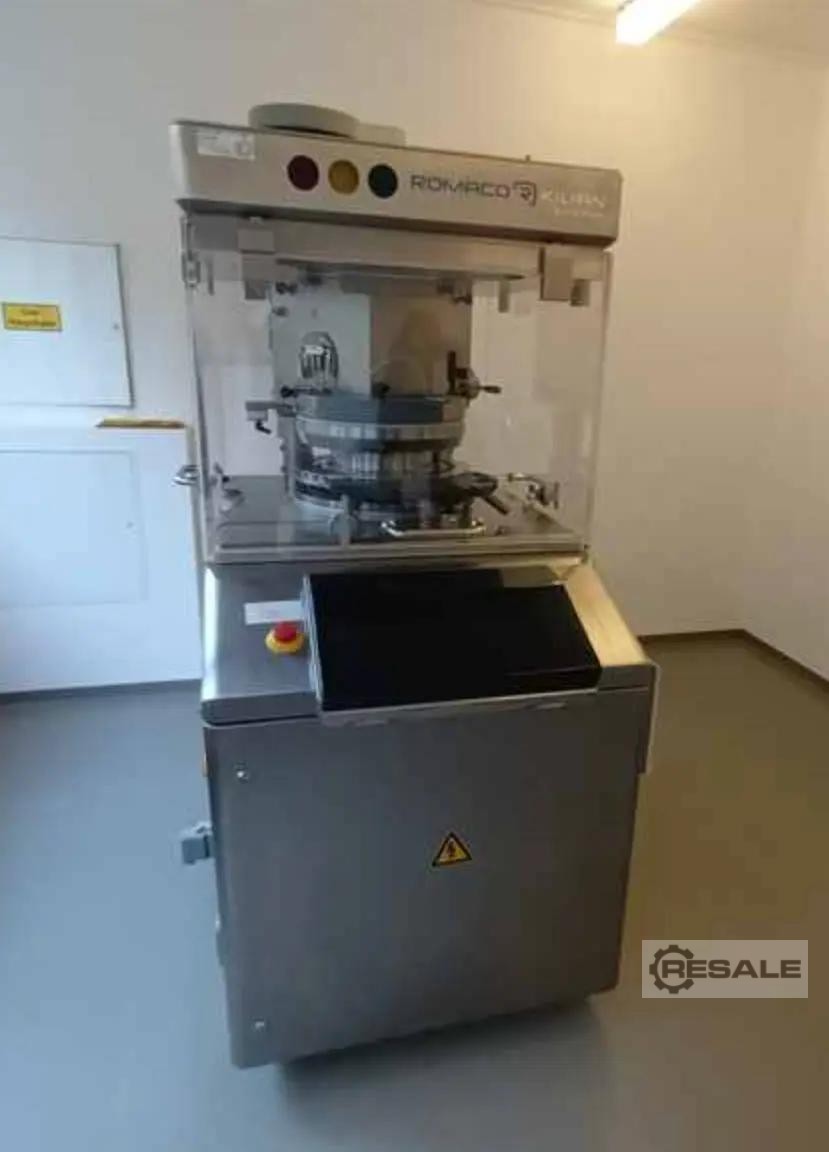

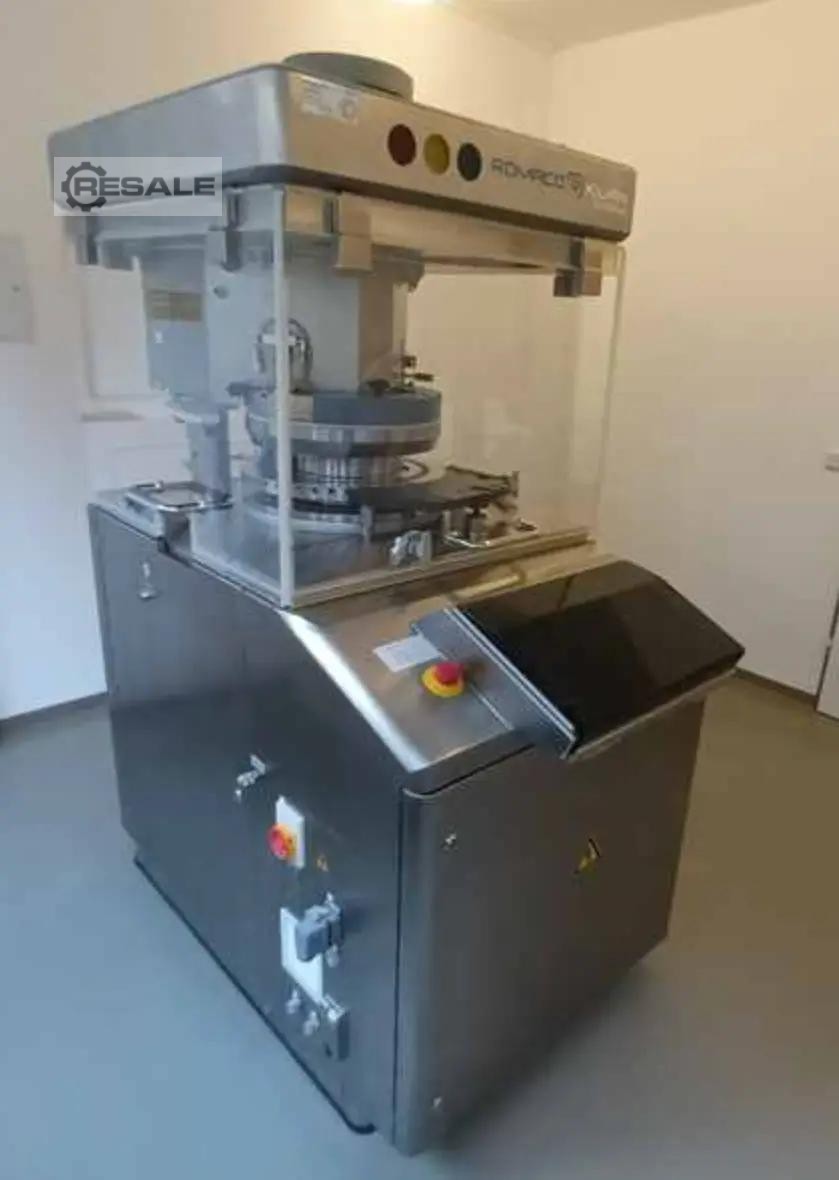

ROMACO KILIAN TABLET PRESS, MODEL S370 PRIME
Medium-sized single-layer rotary tablet press. Modular and compact,
for flexible tablet production. Made in Germany. Built in 2022.
CHARACTERISTICS
- Interchangeable die table
- Tablet chute on one side
- Simple and intuitive HMI control system
- Connectable tablet control unit for automatic in-process control
- Weight: 1.925 kg
PRODUCTION
- Output: 156,000 to 330,000 (depending on tablet size and pressing
material)
- Printing stations: 26 to 44
- Number of dies: 44; 40; 32; 26
- Tool type (EU and TSM): B; D
- Die type: BBS; BB; B; D
- Max. pre-compression force: 40 kN
- Max. main compression force: 80; 100 kN
- Max. tablet diameter: 11; 13; 16; 25 mm
- Max. die fill: 16; 20 mm
ENERGY CONSUMPTION
- Drive power: 5.5 kW
- Standard voltage, frequency: 400 V, 50/60 Hz
- Compressed air: 6 bar
