135,188 used machines on RESALE, but how to find them? Machine Search
Year of manufacture 2010 TOP condition! Siemens Control Spindle 18000 rpm 10610 Spindle hours Tool changer for 30 tools IKZ el. Handwheel Chip conveyor

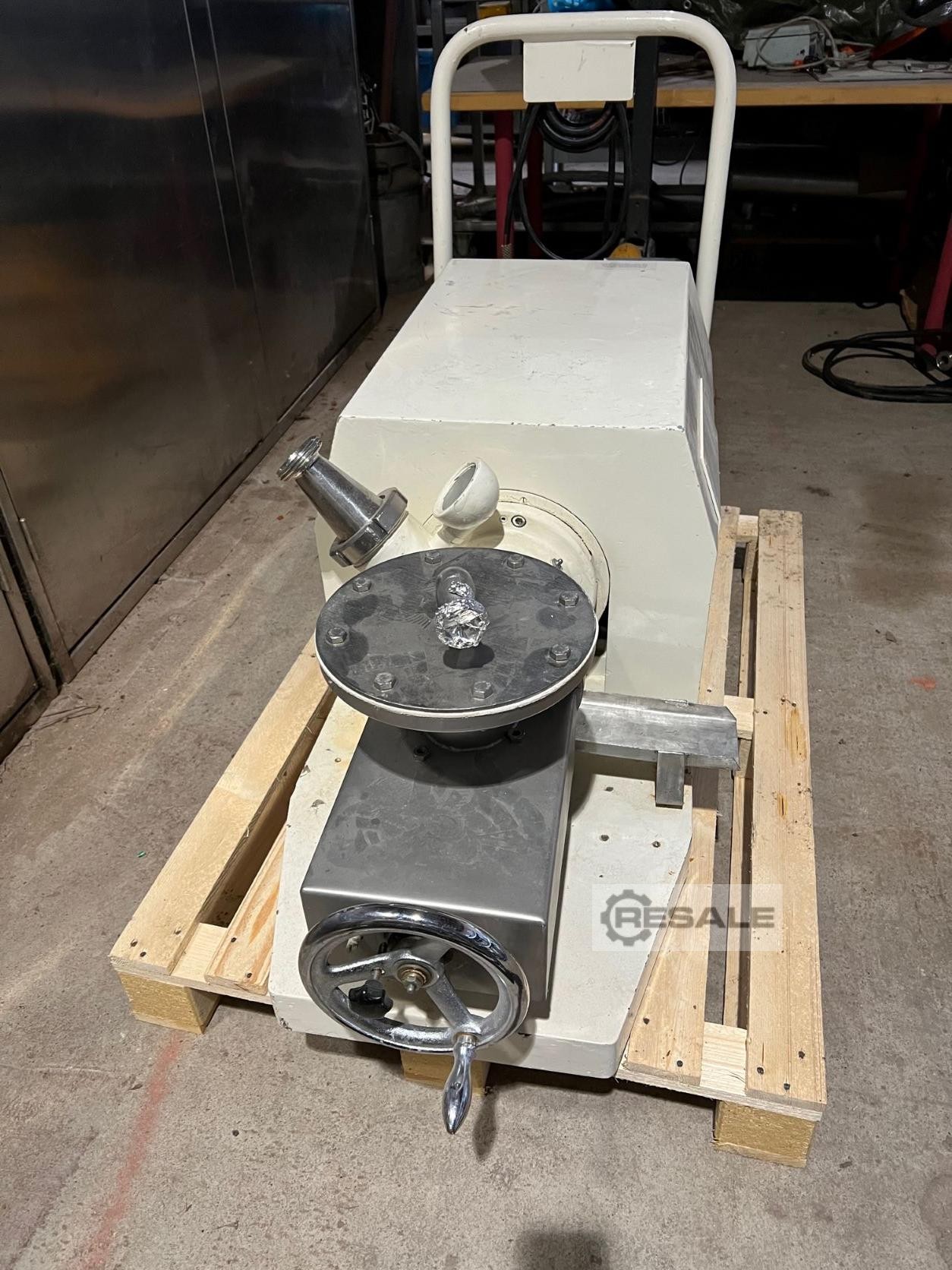

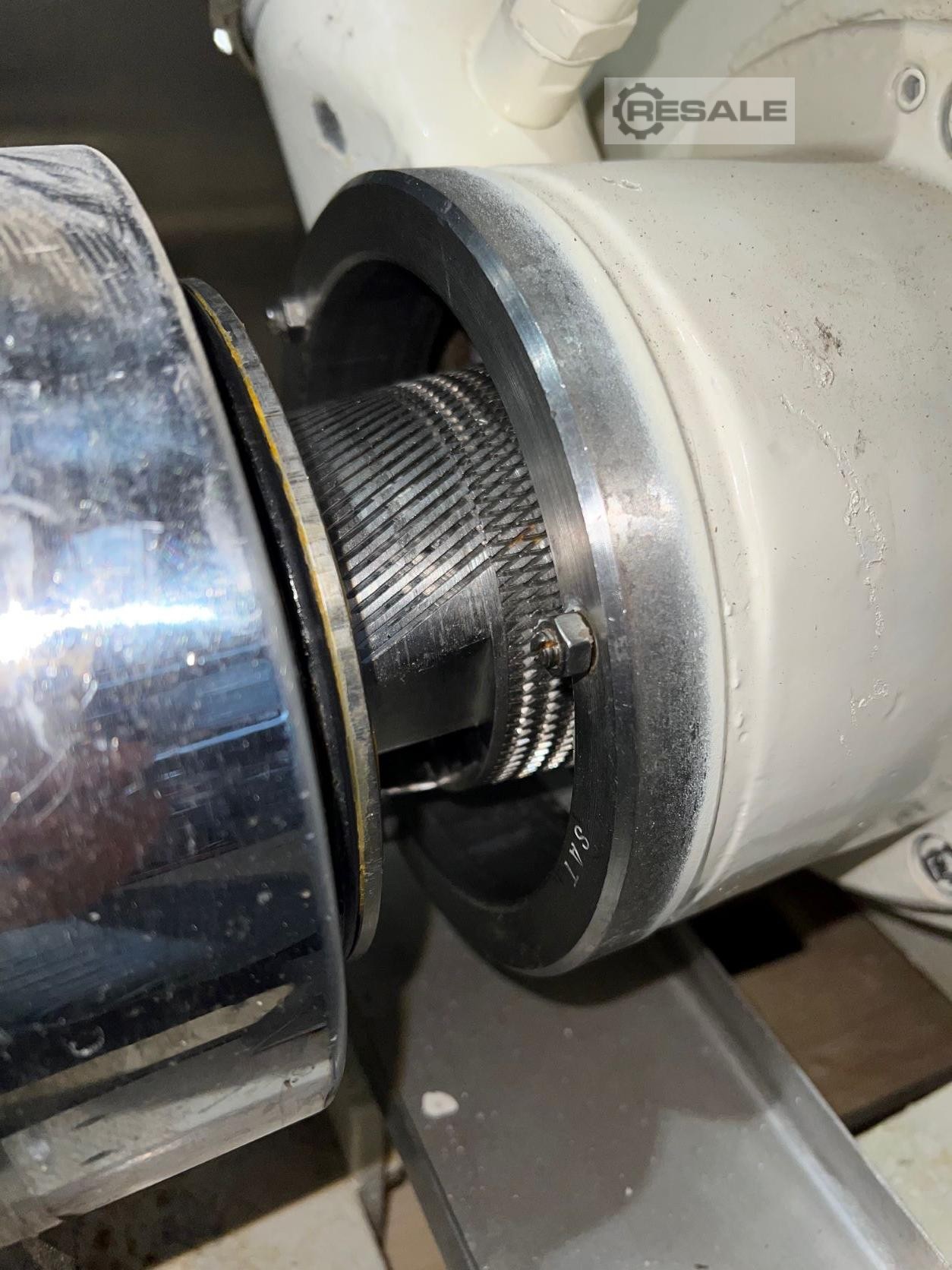

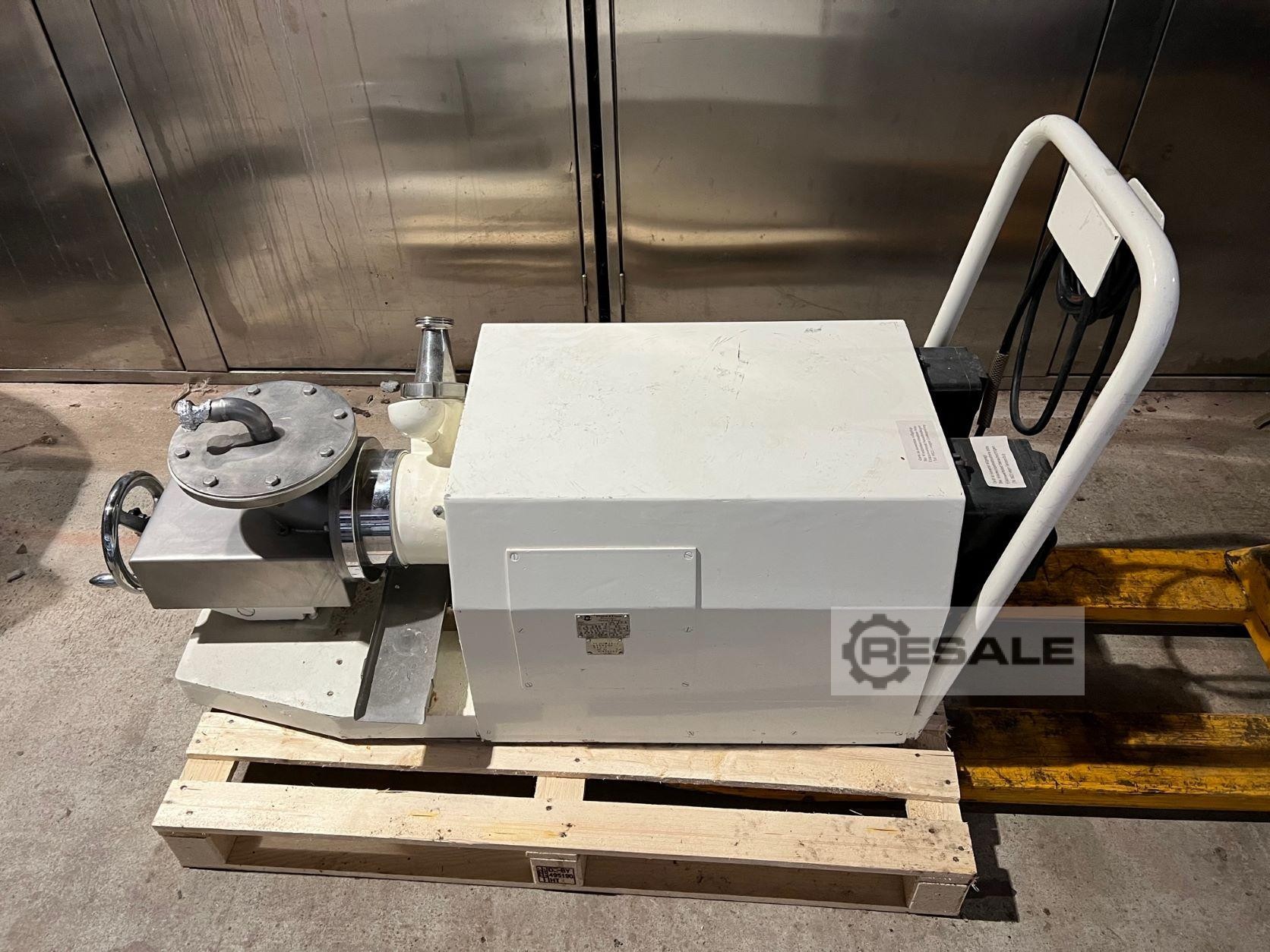

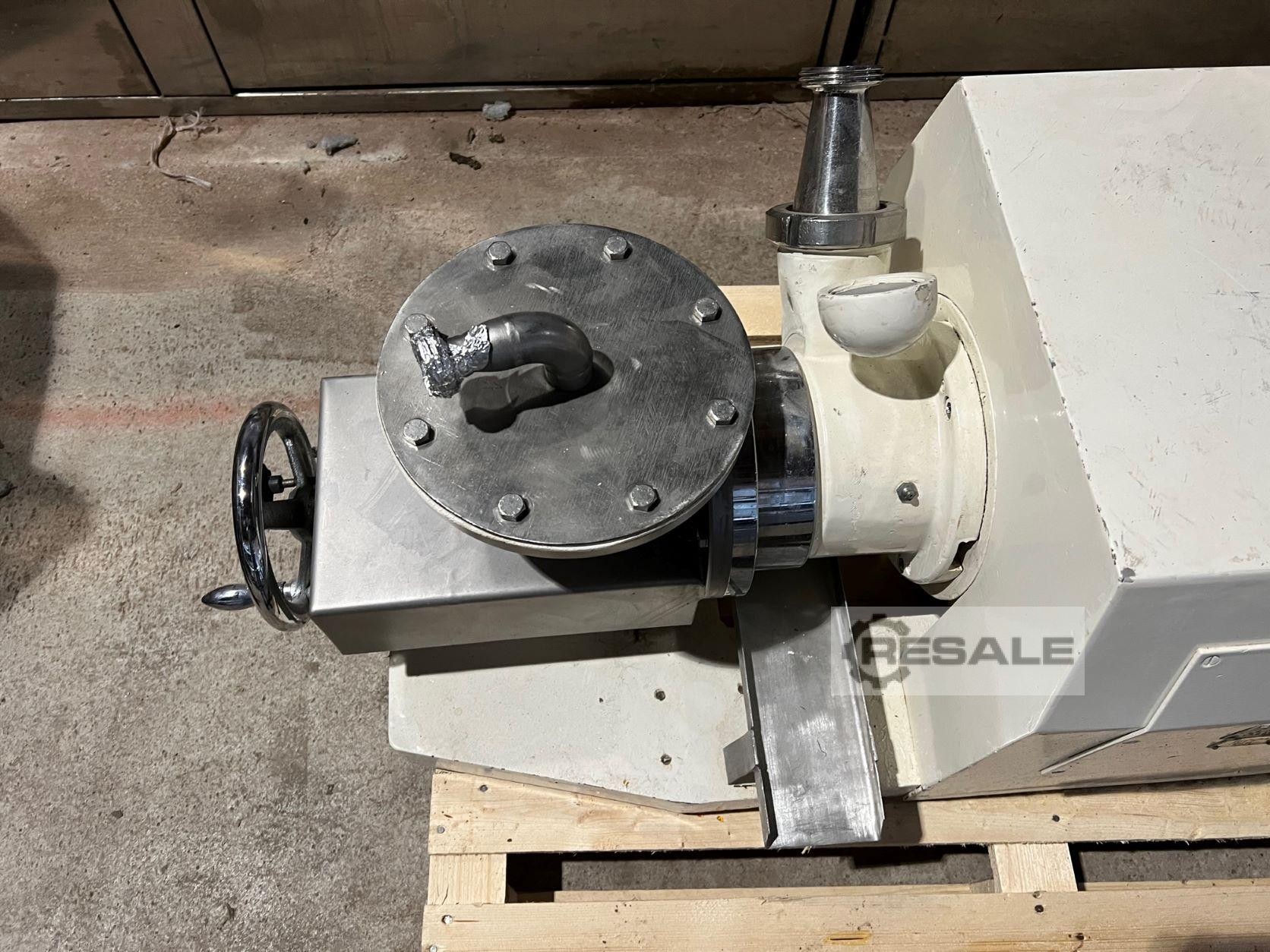

Dental colloid mill Manufacturer: Probst & Class PUC Type 10 L Power 7.5 kW RPM 2910
Used machine DMF200/8 Machine type: Universal milling center Model No.:DMF200/8 Manufacturer: DMGMORI Control: CELOS with Siemens 840D sl Operate Year of manufacture: 2023 Location:Germany Equipment: - Travelling column milling machine DMF 200/8 - NC swivel milling head (B-axis) - Motor spindle speedMASTER® - Tool holder SK40 DIN - Spindle speed 20 - 15,000 rpm 21 kW/16 kW - Chain magazine for 40 tools, - Chip conveyor (scraper belt) - Fixed table with integrated rotary table - Internal coolant supply 40 bar/600ll with paper belt filter - Oil and emulsion mist separators - Blowing air through the spindle center - Infrared probe PP60 optical - 3D quickSET - Laser tool measurement Blum LC50 Technical data Travel range X-axis approx. 2000 mm Y-axis approx. 800 mm Z-axis approx. 850 mm B-axis (head) +-120° ° Rotary table in table 800 mm Table size appro ...
Stock No.: 4041 MACHINING CENTER Manufacturer: FANUC, Type: ROBODRILL D21 Serial No.: P156YG066, Year of manufacture: 2015 Specifications: Longitudinal movement (X) 500 mm Transverse movement (Y) 500 mm Vertical movement (Z) 330 mm Spindle Taper 30 ISO Stepless spindle speeds 10000 rpm Tool Changer 21 Rapid traverse 54 Control FANUC 31i - B5 Controlled in axles 4 Operating hours spindle 12401 hours Accessories: Cooling by spindle CNC rotary table. Tool holders Tools Robot FANUC M-710 ic Dimensions: Weight: 2100 kg
A - T-slot size: approx. 21.5mm, B-35, thread M20 16 T-slot nuts 20 pcs threaded rods M20, L-120 – 400mm 3 x 2 pcs clamping claws 4 nuts long, 6 nuts, washers 2 blocks for adjustment with adjustment screw 4 blocks 80 x 60 x40mm ( underlay ) Price : Euro 400,- ex works ! B - T-slot size : approx. 17, thread M16 20 T-slot nuts approx. 17, B-28-32mm 6 clamping claws 4 pcs. Threaded rods M16 – L110 AMF 12 winding rods L to 260mm 16 Pcs Nuts, Weight approx. 24Kg Price: Euro 150,- C - Clamping Set Clamping Clamps, Groove Width approx. 21.5mm W-36mm, M16 2 pcs. 0 – 25 – 70 , M16 with clamping claws 2 pcs. 100 – 220 , M16 with clamping p. 2 pcs. 200 – 320, M16 WITH clamping pr. 2 threaded rods M20 L-310 2 threaded rods M20 L 150 1 adjustment block, 4 nuts, 6 nuts Weight: approx. 30kg , Price : 360,- ex works ! D- groove width : approx. 28mm , W-4 ...
turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...
turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.
standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...
turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...
turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m
standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm ...
turning diameter:160 mm turning length:300 mm control:Siemens 840D Spindle 1 Power:22 kW Spindle 1 RPM:5000 1/min Spindle 1 max. bar diameter:65 Spindle 1 Torque:150 Nm Spindle 2 power:16,8 kW Spindle 2 RPM:5000 1/min Spindle 2 torque:100 Nm Travel for pick up of 2nd Spindle:W2=690 mm dimensions of the machine ca.:´4,5x2,0x2,3 m weight of the machine ca.:9 t CNC turning center with 3 turrets with rotary tool drives and 2 spindles. There is an internal coolant system for the turrets with individual pumps
turning diameter:190 mm turning length:503 mm control: Fanuc 31i - TA Travel x/z turret 1:135 / 503 mm Travel Y1:62 (± 31) mm Travel x/z turret 2:135 /503 mm c-axis:Sp. 1 / 2 Spindle 1 RPM:6000 1/min Spindle 1 Power:11/7,5 kW Spindle 1 max. bar diameter:42 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11/7,5 kW Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:6000 1/min Turret 1 power rotary tools:7,1 / 2,2 kW Turret No.2 stations / rotary tools:12/12 Turret 2 tool RPM:6000 1/min Turret 2 power rotary tools:7,1 / 2,2 kW total power requirement:53 kVA weight of the machine ca.:5700 t dimensions of the machine ca.:2,3 x 1,6 x 1,94 m High precision cnc turning center, rotary tools and y-axis on upper turret, Robot loader for shafts.
turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis and robot loading. Stäubli Robot for shaft loading.
standard turning dia.:42 / 140 turning length:170 mm control:Mitsubishi max. turning diameter:140 mm bar material dia.:42 mm turning speed range - spindle:80-8000 1/min spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:60-6000 1/min spindle nose:JIS A2-6 bar material dia. max:42 mm collet chuck:173E C-Axis:0,001 ° Number of Turrets:2 . Number of tool stations:12 x 2=24 pos power capacity - driven tools:7,5 / 5,5 kW total power requirement:92,7 kVA weight of the machine ca.:3,3 t dimensions of the machine ca.:2,4 x 1,6 x 2,2 m The Boley BE 42 2 has 2 spindles und 2 turrets with 12 toolstations VDI 20 each. It can work simultaneus with 7 Achsen. The machine has ca. 22.000 run hrs. The coolant system has a cooling unit 15 collets 173E come with the machine. A bar feeder interface is installed.
x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach
x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...
x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.
x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20
x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...
rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m max. swing diameter:250 mm Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours
x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown
x-travel:3600 mm y-travel:1250 mm z-travel:1600 mm table load capacity:8000 kp table clamping surface::4100 x 1050 feed range:10 - 5000 mm/min rapid traverse feeds:10000 mm/min spindle motor:29 kW spindle taper::ISO 50 spindle turning speed range:5 - 4000 U/min total power requirement:70 kW weight of the machine ca.:28 t dimensions of the machine ca.:8,5 x 5,4 x 3,2 m Machine with Heidenhain TNC 430 Steuerung - tool changer 30-fold - milling head indexable 2,5° - 4. axis turn table
x-travel:600 mm y-travel:450 mm z-travel:400 mm Table area:700 x 480 mm spindle turning speed range:10 - 3150 U/min spindle taper ISO:40 quill stroke:80 mm dimensions of the machine ca.:1,8 x 2,1 x 1,9 m total power requirement:8 kW weight of the machine ca.:3,5 t Machine with universal turn, sviwel and tilting table - CNC control DIALOG II - splash guards - misc. parts
spindle diameter:130 mm spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-travel:1000 mm w-axis:1075 mm table surface area:2000 x 1800 mm workpiece weight max.:8000 kg spindle turning speed range:4,5 x 900 U/min spindle taper: ISO:50 faceplate turning speed range:4,5 x 180 U/min faceplate diameter:785 mm rapid traverse::5000 mm/min total power requirement:40 kW weight of the machine ca.:35 t dimensions of the machine ca.:5,5 x 6,9 x 5,2 m Machine retrofit and overhould with TNC 360 Heidenhain in 2023 and stepless spindle speeds - table indexing 4 x 90° - facing head 785 mm - exhauster - various arbors and tooling
x-travel:1000 mm y-travel:600 mm z-travel:550 mm fixed clamping table:1200 x 600 mm spindle drive motor:9 kW spindle taper ISO:40 spindle turning speed range:10 - 5000 U/min feed range:2 - 6000 mm/min total power requirement:15 kW weight of the machine ca.:6 t
x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm Speed of boring spindles:1,25 - 1250 U/min. ram stroke:700 mm dimension of the ram:340 x 340 mm mm spindle taper ISO:50 rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m CNC control Siemens 840 Dsl completely modernized 2010 FIBRO CNC drilling work table 2500 x 2500 mm 50 to. workpiece weight Longitudinal travel 2500 mm Angular milling head 4 x 90° Universal angular milling head Panel area approx. 10000 x 5000 mm Chip conveyor and coolant device Aerostatic guides
x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800 ...
bore capacity in steel (diameter):- mm throat:- mm bore stroke:- mm x-axis:1.800 mm y-axis:1.600 mm z-axis:1.250 mm w-axis:630 mm max. table load:5.000 kg table length:1.400 mm table width:1.600 mm spindle diameter:105 mm spindle turning speed range:3.300 U/min numbers of positions in the tool changer:40 internal coolant system feed:40 bar Splash guard around rotary table Chip Conveyor Oil cooling unit (chiller) Touch probe Renishaw RMP60 Upgrades in 2024 and 2025 Retrofit of X and Z axis ball screws at producer ? KSK Kurim CZ New linear scales Heidenhain in X and Z axis including cabling retrofit of Z axis - new Biplast V lining on guideways, hand scraped Biplast lining on Z axis new TOS Varnsdorf parts for tool clamping and automatic tool changer arm Overhaul of X, Z and Y axis feed motors at authorized Siemens service (new bearings and sensor) New Siemens hand wheel
turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package
spindle diameter:100 mm x-travel:1250 mm y-travel:1100 mm z-travel:950 mm spindle turning speed range:2500 U/min Rotary-table:1100 x 1000 mm table surface area:1000 x 1100 mm tool clamping:69871 DIN spindle stroke:630 mm spindle taper:SK50 total power requirement:22/34 kW max. workpiece weight:3000 kg weight of the machine ca.:13000 kg
x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm w-axis:800 mm bore spindle speeds:2500 U/min table load:12 t dia. of rotary table:1800 x 2200 mm numbers of positions in the tool changer:60 ? Overhauled in 2025 and 2026 ? The spindle was relubricated and new spindle bearings fitted in 2025 by technicians from TOS Varnsdorf ? 12-month warranty and guarantee on geometric accuracy Scope of repairs to the X, Z and B axes 1. Complete dismantling and cleaning of the machine bed for the X and Z axes as well as the B axis 2. Regrinding of X and Z axis guide ways at Czech manufacturer of CNC horizontal boring machines 3. Removal of the old lining from the X- and Z-axis slides and the B-axis 4. Anchoring of re-grinded X and Z axis machine bed 5. New, hand-scraped lining made from Biplast-V on the X- and Z-axis slides, and from new Biplast-V on the B-axis 6. Installation of ball screws, lin ...
groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled
groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer
spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ
automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze
x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden
bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975
x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel
x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden
x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg
x-travel:700 mm y-travel:450 mm z-travel:500 mm total power requirement:23,4 kW weight of the machine ca.:3100 kg dimensions of the machine ca.:3200 x 4000 x 2500 mm tool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/U spindle speeds::20 - 3150 , direkt programmierbar /min feed range:1 - 3000, in B=0,01 - 3 U/min rapid traverse in x-y-z axis:6m/ min, B = 7,6 U/min work table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432
maximum number of results exceeded
please refine your search
10 €
