roll turning lathe used for sale

Control: manual Max.turning length: 1500 mm Max swing diametr over bed: 500 mm Quick Change Toolposts:1 Coolant tank:50l 2006 Made in Slovakia

Control: SIEMENS / MTC K Max.turning length: 1000 mm Max swing diametr over bed: 500 mm Quick Change Toolposts:1 Coolant tank:100l Made in Germany

Max.turning length: 600 mm Max swing diameter over bed: 250 mm Quick Change Toolposts:1 Coolant tank:50l Made in Germany Control: manual

Auction-ID: A7-46309-26

Auction-ID: A1-46315-81

Auction-ID: A1-45170-36

turning length: 220 mm control: Fabnuc OSPL 500 L turning diameter: 150 mm weight of the machine ca.: 4 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Seiger SLZ 1200 x 3000 heavy lathe with Siemens cycle control Seiger, type SLZ 1200 x 3000.The machine is equipped with a Siemens Sinumerik cycle control (teach-in). Version with AC main drive, face plate, 2x chip conveyor, hydraulic power unit and separate control cabinet. Documentation and tool holders available. Machine without tailstock. Viewing and test run under voltage possible by appointment. Working range Center width: 3000 mm Circulation diameter over bed: 1200 mm Rotation diameter over face slide: 850 mm Travel distance face slide: 620 mm Bed width: 750 mm Spindle head: DIN 55027 Size 11 Spindle diameter front bearing: 190 mm Spindle bore: 104 mm Speed range: 5 – 900 min⁻¹ Max. torque: 6000 Nm Main drive Drive power: 37 / 52 kW (100 % / 60 % ED) Feed X-feed force: 24,000 N Z-feed force: 16,000 N Rapid traverse X: 7 m/min Rapid traverse Z: 4 m/min Tool holder Turning  ...

Mobile milling machine for attachment, e.g. a lathe. As good as new, almost unused condition More data according to photos

Tip distance approx.                                                    400 mm Tip height above bed 130 mm 12 speeds from 125 – 2800 rpm Space requirements, length x width 1.2 x 0.6 m Weight estimated approx.                                          400 kg

Tip distance approx.                                                    500 mm Tip height above bed 125 mm 16 speeds from 120 – 1800 rpm Space requirements, length x width 1.2 x 0.6 m Weight estimated approx.                                          450 kg

Specifications: Maximum turning length 90 mm Circulation diameter over bed 220 mm Circulation diameter over support 110 mm Center width 160 mm Bore 23 mm 3 speeds 350 / 700 / 1400 rpm

Tip distance approx.                                                    500 mm Tip height above bed 125 mm 8 speeds from 220 – 1800 rpm Space requirements, length x width 1.2 x 0.6 m Weight estimated approx.                                          400 kg

Center height 110 mm Center width 160 mm Spindle bore 23 mm Motor power 1.7 kW . Speeds : 700 - 1400 - 2800 rpm .

Specifications: Center height 110 mm Center width 160 mm Spindle bore 23 mm Motor power 1.7 kW in each case rotational speed via potentiometer To be set from approx. 100 – 2,300 rpm 3 preset speeds or 3 switching stages

turning diameter over bed: 250 mm turning diameter over slide rest: 140 mm turning length: 550 mm turning speeds: 50 - 2000 U/min centre height: 125 mm spindle bore: 26 mm tailstock quill taper MT: 2 MK tailstock quill stroke: 65 mm connected load frequency: 230 V total power requirement: 1,1 kW weight of the machine ca.: 0,15 t dimensions of the machine ca.: 1,3 x 0,6 x 0,65 m Benchtop lathe with base cabinet 3-axis LCD digital display system fully assembled. Longitudinal feed. 3-jaw chuck 125 mm. 4-jaw chuck 125 mm. Clamping plate. 4-way steel holder. Clock for thread cutting. Drip tray Hardened bed tracks. Emergency stop switch. Forage protection Set of wheels. Appropriate tools. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

TRAUB Sonim TND 200 CNC Lathe YOM 1994 CNC Lathe – Inclined Bed Type TRAUB TX8F CNC control Turning diameter 350 mm Turning length 200 mm Total power requirement 20 kW Turning diameter over bed slide 200 mm X-axis 180 mm Z-axis 300 mm Spindle bore 42 mm Spindle motor 12 kW Spindle turning speed range 10 – 5000 rpm Feed speed X:155, Z:250 mm/min Rapid Travel Speed X-Axis 15 m/min Rapid Travel Speed Z-Axis 25 m/min Weight of the machine ca. 4 t Dimensions of the machine ca. 6.5 × 1.5 × 1.75 m 12-fold revolving head Traub Bar loader 3-fold power chuck Chip conveyer

Description HEYLIGENSTEDT face lathe KH35-CNC with control Sinumerik 840 D Details Serial No. 70000134 Turning diameter over bed carriage 900 mm Turning diameter over bed sheets 1,400 mm Center height above floor 1,480 mm Tip height over bed panels 680 mm Bed width 850 mm Bed height 550 mm Control SIN 840 D Main spindle diameter at front bearing 206 mm Main spindle bore 100 mm max. main spindle torque 15,000 Nm Three-phase main spindle motor 40 kW

General description CNC lathe WEILER 120 CNC, designed for precision turning operations in toolroom and small batch production environments. Compact and robust German-built machine suitable for prototyping and workshop use. Technical details Manufacturer: Weiler (Germany) Model: 120 CNC Type: CNC / teach-in lathe Control: Siemens SINUMERIK System 3 Tooling system: Multifix quick-change toolpost Working area: Enclosed with splash guard Cooling: Coolant hoses visible Operation: CNC with manual access doors and chip tray Control panel: Screen, keypad, feed/speed controls, emergency stop Application: Precision turning, prototyping, and small series production Equipment - Siemens SINUMERIK System 3 control - Multifix quick-change toolpost - Coolant system - Enclosed working area - Chip tray Condition and remarks Used machine, untested. Shows signs of wear consistent ...

SECOND-HAND OLEO PNEUMATIC LATHE FOR TURNING AND SANDING OF SMALL WOODEN ELEMENTS LOCATELLI MOD. OMK 300 - control panel - automatic loader - Maximum working length 300 mm - min / max working diameter 8/80 mm - working stations: automatic loader turning with n. 2 gouges (roughing + finishing) 1° shaped knife 2° shaped knife unloading

modernization 2006 Control system 'Siemens' Max working diameter: 700-1500 mm Distance between railway wheels: 1435 mm Regulating distance between railway wheels: 1524 or 1676 mm Length of railway wheels sets: 1640-3000 mm Jaws clamp diameter: 550-1350 mm Max wheel width: 140 mm Spindle turn range: 4 Spindle turn: 9, 13, 5-18, 27 rpm Stepless feed speed range: 1,6-50 mm/min Machine dimensions: 8700 x 3650 x 3250 mm

Manufacturer: Padovani Model: Labor E 255x1500 Control System: Siemens Sinumerik 805 Year of Manufacture: 1996 Centre height: 255 mm Turning length: 1,500 mm Find more here - / Contact us at -

Manufacturer: DMG Mori Seiki Model: NEF 400 V3 Driven tools: 6 cross-driven tools Control System: Heidenhain Manual Plus Year of Manufacture: 2013 Find more here - / Contact us at -

Key data: 1400 , 1000 , 11280

SKODA SRM heavy duty lathe Turning diameter over bed 1400mm Turning diameter over support 1000mm turning length 11280mm faceplate 1250mm Workpiece weight in the stands max. 20000kg Bezel 395mm Bezel 620mm workpiece weight 16000kg Total power requirement 40kW

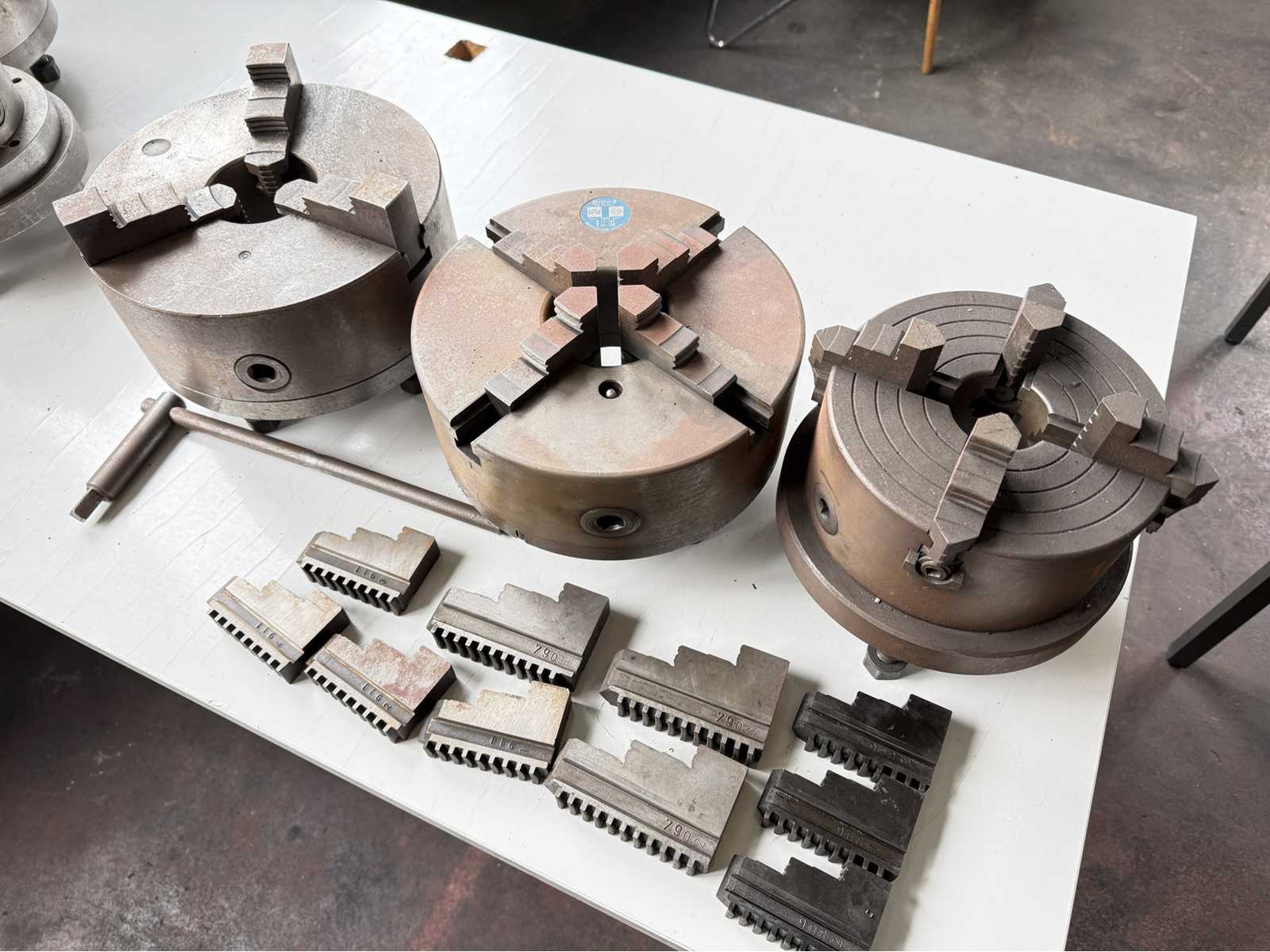

Diameter: 250mm, 200mm, different makes; see photos for more details Auction-ID: A7-46619-334

turning diameter over bed: 280 mm turning diameter over slide rest: 158 mm turning length: 600 mm turning speeds: 45 - 2000 U/min centre height: 140 mm spindle bore: 26 mm tailstock quill taper MT: 2 tailstock quill stroke: 60 mm metric threading: 0,25 - 2,5 mm thread - inch: 6 - 96 TPI connected load frequency: 230 V total power requirement: 0,75 kW weight of the machine ca.: 0,16 t dimensions of the machine ca.: 1,26 x 0,58 x 0,60 m Professional metal lathe, gearing machine - 3-jaw chuck - 4-jaw chuck - hardened bed tracks - Clamping plate - 4-way chisel holder - Feed protection - standing and rotating bezel - Splash guard - Machine light The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

• 4-JAW LATHE CHUCK Ø=200 MM Industrial-grade axial spiral lathe chuck made of cast iron with cylindrical holder according to DIN 6350 and one-piece, hard jaws • Speed: max. 2,500 min-1 • Pitch circle fastening thread (F): Ø 176 mm • Mounting thread (G): 6 x 60° | M10 • Centering heel (DxC): Ø 160 x 4 mm • Passage (E): Ø 55 mm • Width (W): 75 mm • Weight (net): approx. 17.5 kg • Including 1 set each of one-piece turning and drilling jaws, tension wrenches and fastening screws • Quality flat spiral lathe chuck made of cast iron for universal applications • Threaded holes (G) on the pitch circle (F) for fastening with screws from the back • Uniform clamping force due to centrally clamping jaws • Cast iron lining body with ground guides • Spiral ring made of high-alloy tool steel, drop-forged and hardened • Gears, pinions and guides hardened and completel ...

Details Machine no. 2042.6616-05 Year of manufacture 2004 Circumferential diameter over bed 1,000 mm Circumferential diameter over bed 1,000 mm Center height over flat web 500 mm Bed width 560 mm Bed slide guide length 800 mm Spindle diameter front bearing 170 mm Spindle bore 128 mm Three-phase motor infinitely variable (AC motor) Drive power 37 kW Torque max. 4,069 Nm Total speed range 6.4 - 1,600 Gear stages 2 Heidenhain control system Manualplus 4110, completely renewed about 1 to 2 years ago 2 Lynettes Equipped with rotary power chuck, diameter approx. 500 mm. Including a lot of accessories of clamping jaws, estimated 15 sets, as well as approx. 15 sets of Multifix base holders, size D. Machine was equipped with a separate milling device, with its own control system, value approx. € 20,000.00. Only served by the owner, ver ...

Power consumption 18 kVA, current consumption 21 A Auction-ID: A1-46781-17

Auction-ID: A7-46755-5
