ring mill used for sale

x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min. distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm,  ...

spindle diameter:200 mm x-travel:10000 mm y-travel:4000 mm z-axis:1500 mm W-axis (spindle longitudinal):1000 mm bore spindle turning speed range:1 - 2000 U/min dimension of the ram:600 x 530 mm high speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/min rapid motion - y-axis:8000 mm/min rapid traverse Z-axis:5 m/min total power requirement:120 kW weight of the machine ca.:135 t dimensions of the machine ca.:16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. v-axis 2500 mm chip conveyor and coolant attachment

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Serial number: 4432 Operating voltage: 380 V Frequency: 50 Hz Rated current: 13 A Speed: from 40 to 2000 rpm Tool holder: SK 40 Feed range infinitely adjustable: 5 - 500 mm/min Creep traverse: 4 mm/min Rapid traverse: 1200 mm/min Table Longitudinal movement: 300 mm Spindle block Transverse movement by hand: 160 mm Support Vertical movement motorized: 280 mm by hand: 290 mm without protective bar: 330/340 mm Vertical milling head on spindle block can be moved by hand: 100 mm Table dimensions: 600 x 210 mm with 4 grooves and an attached vice, jaw width: 160 mm

Drilling and milling machine with - Variable spindle speed - Digital depth display - Left/right switch - Cross support - Swivelling spindle head - Feeds via hand crank - Tool case with contents Drilling capacity in steel 13 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 13 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 220 mm Table adjustment longitudinal 160 mm Table clamping area 500 x 140 mm Connection voltage 230 V Total power requirement 0.5 kW Machine weight approx. 0.06 t Space requirement approx. 0.6 x 0.45 x 0.76 m Attention: Machine is without digital display! Condition: never used / new (5)

Machine hours reading approx. 80,276 hours, spindle hours reading approx. 23,414 hours. Equipped with: 5-axis milling head type VH30 with A- and C-axis (A-axis ±110°, C-axis 360°), suitable for simultaneous 5-axis milling. Equipped with high-frequency spindle with HSK 63A mount, max. speed 22,000 min⁻¹, power 60 kW (constant from approx. 6000 min⁻¹) and max. torque approx. 95 Nm. Automatic tool changer KTC Handlingstechnik, type: ATC 60/HSK-A63 (60 positions) with carousel magazine. Includes chip evacuation and peripherals consisting of: (1x) KÜMA refrigerant/filter system type KF1/515WB, (1x) KÜMA filter unit type BF Gr.3, (1x) KÜMA pump unit type FA10/03, (1x) H.I.B Systemtechnik industrial chiller type RKH/W-14300 (R134a), (1x) LTA Industrial Air Cleaning oil mist extraction type AC 2000 H Solid. Suitable for high-speed processing of aluminum and composite, amon ...

Technical data Manufacturer: HERMLE Model: U 630 T Year of Make: 1998 Machine Type: Universal CNC Milling Machine Travel (X/Y/Z): 630 / 500 / 500 mm Tool holder: SK40 Speed range: 20 – 7,000 rpm Spindle power (40% ED): 11 kW Tool positions: 16 Machine weight: approx. 4,250 kg Configuration Control: Heidenhain TNC 410 / TNC 426 Tool changer: 16-fold magazine Coolant device: 120 L tank, 24 L/min at 3 bar Connection: 400 V / 50 Hz, 14 kVA, 6 bar compressed air

Equipment: 3-axis digital display Digital depth display Motorized feed for X and Y Left/Right Run Emergency stop Swivelling drill head Spindle protection. Machine Light Tool case with contents Drilling capacity in steel 35 mm Projection 230 mm Drilling stroke 125 mm Spindle holder ISO 40 Spindle speeds 115 - 1750 rpm Table adjustment transverse 375 mm Table adjustment longitudinal 175 mm Table clamping area 1000 x 240 mm Max. distance between work table and spindle nose 120 - 375 mm Connection voltage 400 V Total power requirement 0.85 / 1.5 kW Machine weight approx. 0.95 t Space requirement approx. 1.3 x 1.2 x 2.1 m Condition: never used / new (5)

Drilling/milling machine with: • Tapping device • Cross table with adjustable guides • Drill quill feed • Manual transmission • SK 40 mount Drilling capacity in steel 40 mm Projection 275 mm Drilling stroke 120 mm Spindle Holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping area 700 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1/1.5 kW Condition: never used / new (5)

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 2   number of turrets: 2   live positions: yes   number of c-axes: 2   number of y-axes: 1   number of b-axes: 1 WORKING RANGE TURNING   bar diameter (max): 50 mm MAIN SPINDLE   spindle revolutions (max): 5000 /min   drive power: 11 kW   spindle bore diameter: 50 mm   c-axis: yes COUNTER SPINDLE   spindle revolutions (max): 5000 /min   drive power: 7.5 kW   c-axis: yes   Z-axis travel: 465 mm X/Z SLIDE   tool fixture: Turret   number of tool positions (total): 24   number of live positions: 24   - rotation speeds (max): 6000 /min ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 4500 mm   space requirements -front/back-: 2200 mm   total height: 1900 mm   total weight approx.: 5500 k ...

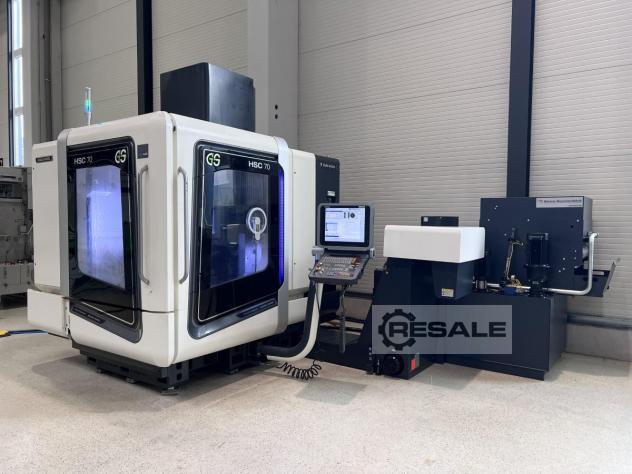

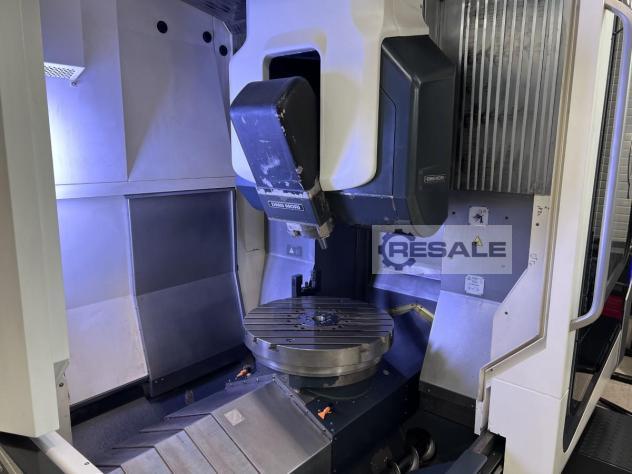

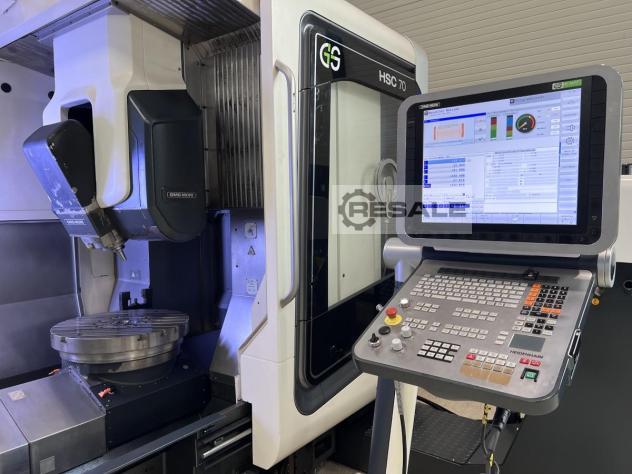

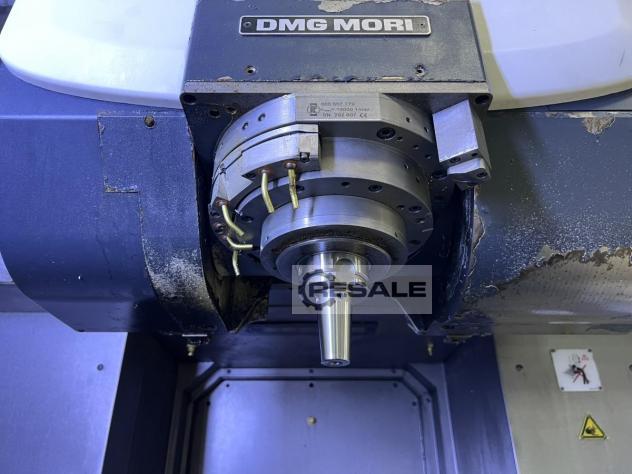

Control Heidenhain TNC 640 Speed [rpm] 18000 Travel X/Y/Z [mm] 850/600/450 Tool pick-up HSK-A63 Spindle: T Technology Motor Spindle Speed 18,000 rpm Power 15 kW Torque 79 Nm Tool holder HSK-A63 B-axis 20°/-110° NC rotary table: Technology Rotary table with torque drive C-axis 360° Clamping surface ø600 mm Table load (max.) 500 kg General: Tool magazine 30 stations Rapid traverse in X/Y/Z 50 m/min Equipment/accessories: Displacement measuring system directly in X/Y/Z (glass scales) Chip Management Chip Conveyor Coolant management IKZ system with paper belt filter and high pressure, 40 bar Workpiece Measurement Infrared Probe, Heidenhain TS 649 Tool Measurement Laser, BLUM Oil Mist Extraction Mechanical Separator Setup operation Electronic handwheel Visiport process monitoring Other equipment Spindle cooler, rinsing gun
