Features
Volume 23330 L
Material V2A (AISI 304) 1.4301

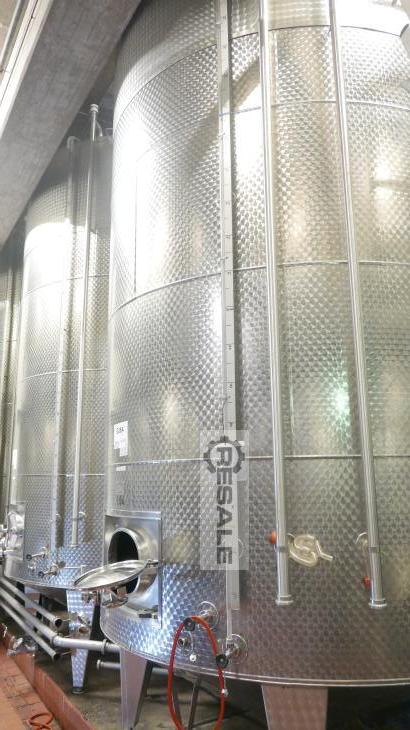

Vertical design
Last Use Food
Technical Documentation Yes
Number of feet 4
Total height 5200 mm
Height 4250 mm
Outer diameter 2750 mm
Surface inside 2B=IIIC ground
Surface marbled on the outside
Agitator Propeller
Insulation version 5 cm
Description
Topsoil:
Flat bottom
Central nozzle DN 50 with CIP ball central
Downwards drawn ventilation pipe DN 50
Second filling pipe DN 50 with T-piece
Airlock connection DN 50
Tank cylinder:
Level indicator with strip and scale with threaded connection socket
20 mm
Manhole 430x330 mm
Ladder hooks

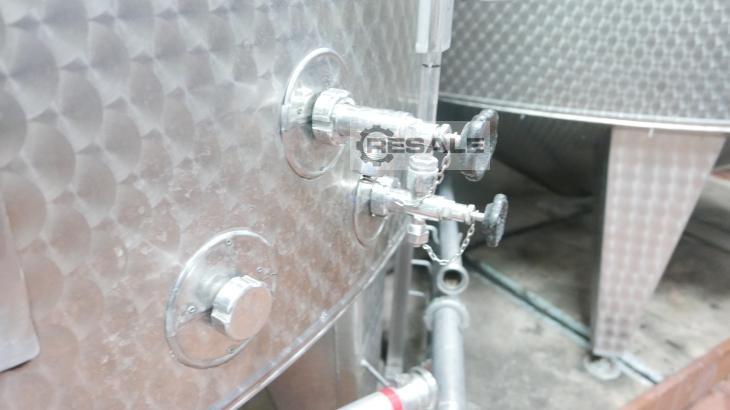

2x clear drain with flange and disc valve
Insulation 5 cm

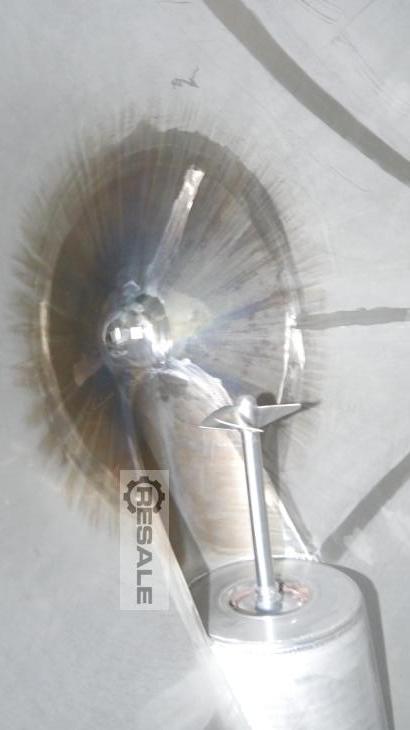

Side agitator mixer with propeller, motor: 2.5 kW
Level Measurement Sensor
5x Threaded Weld-on Sockets DN 20
Underbody:
Inclined cone base 45°
Forward-drawn residual drain pipe with flange connection and angled
seat valve DN 50 with flange connection
4 calotte feet height-adjustable with washers

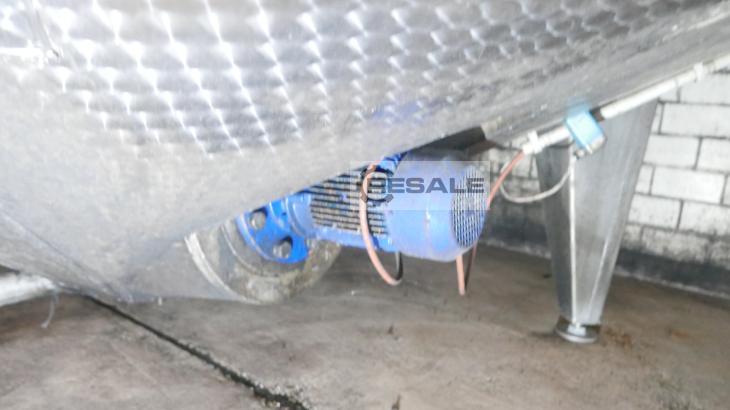

Agitator with propeller, motor: 1.5 kW
