radial drill used for sale

drilling diameter in mild steel 32 mm diameter during thread cutting 20 mm Projection 1,000 mm Power requirement 3.5 kW Machine weight approx. 1.7 t Accessories: Cube table

Brand SASS Italy Model TRM 2200 Capacity 100 mm Spindle taper MT 6 Drilling depth 500 mm Spindle speed 18-1600 O-min. Horizontal movement 1845 mm Distance table spindle 2230 mm Colum diameter 550 mm T-slot base plate size 22 mm Floor dimensions 3500 x 1250 mm Power 11 Kw Weight 9000 Kg Dimensions L x W x H 3500 x1250 x 3700mm Extra Block table angle adjustable 760 x 1000 x 600 mm Blok table 1000 x 1000 x 600 mm

bore capacity in steel (diameter): 50 mm arm length: 350 - 1600 mm workpiece height max.: 1420 mm spindle taper MT: 5 spindle turning speed range: 56 -1450 U/min threading:: 40 mm quill stroke: 270 mm feed range - spindle: 0,06, 0,10, 0,20 mm/U slide adjustment -horizontal: mm table-size: 635 x 500 x 500 mm column diameter: 320 mm no. of turning speeds: 12 max. dis.center milling spindle to column: 1420 mm range L-W-H: 2060 x 995 x 2760 mm total power requirement: 3,5 kW weight of the machine ca.: 3300 kg Radial drilling machine with hydraulic clamping system. With IC timer - making it possible to release the arm for up and down movement and stopping the arm with one button. When changing the tool, the spindle can remain in its current position. gear wheels in oil bath safety device to prevent arm from falling down abruptly precision ground gear wheels integrated cooling system automatic ...

bore capacity in steel (diameter): 32 mm arm length: 220 - 950 mm workpiece height max.: 1210 mm spindle taper MT: 4 spindle turning speed range: 88 - 1500 U/min threading:: 27 mm quill stroke: 220 mm feed range - spindle: 0,05 - 0,09 - 0,15 mm/U slide adjustment -horizontal: 730 mm table-size: 600 x445 x 380 mm column diameter: 210 mm total power requirement: 1,5 kW weight of the machine ca.: 1400 kg dimensions of the machine ca.: 1805 x 82´6 x 2190 m Radial drilling machine with mechanical clamping. Auxiliary dial for spindle feed depth indication. The main spindle is balanced by a special spring that makes it more durable than all other balancing mechanisms. gear wheels in oil bath safety device to prevent arm from falling down abruptly precision ground gear wheels integrated cooling system automatic tool ejector gear wheel drven 2 speed motor The data for this ad was created with  ...

bore capacity in steel (diameter): 50 mm arm length: 360 x 1250 mm workpiece height max.: 1270 mm spindle taper MT: 4 spindle turning speed range: 56-1450 U/min threading:: M 27 mm quill stroke: 270 mm feed range - spindle: 0,06, 0,10, 0,20 mm/U slide adjustment -horizontal: 890 mm table-size: 635 x 520 x 420 mm column diameter: 300 mm base plate: 1785 x 785 x 190 mm no. of turning speeds: 12 max. distance between table and spindle: 1350 mm total power requirement: 3,5 kW weight of the machine ca.: 2300 kg range L-W-H: 2060 x 995 x 2645 mm Radial drilling machine with hydraulic clamping system. With IC timer - making it possible to release the arm for up and down movement and stopping the arm with one button. When changing the tool, the spindle can remain in its current position. gear wheels in oil bath safety device to prevent arm from falling down abruptly precision ground gear wheels  ...

bore capacity in steel (diameter): 80 mm arm length: 500 - 2500 mm workpiece height max.: 2000 mm spindle taper MT: 6 spindle turning speed range: 16 - 1250 U/min threading:: M 65 mm quill stroke: 450 mm feed range - spindle: 0,04 - 3,2 mm/U slide adjustment -horizontal: 2000 mm table-size: 1000 x 800 x 560 mm column diameter: 550 mm base plate: 3520 x 1400 x 320 mm no. of turning speeds: 16 total power requirement: 7,4 kW weight of the machine ca.: 12500 kg dimensions of the machine ca.: 4000 x 1600 x 3850 mm Radial drilling machine with hydraulic clamping system. With IC timer - making it possible to release the arm for up and down movement and stopping the arm with one button. When changing the tool, the spindle can remain in its current position. gear wheels in oil bath safety device to prevent arm from falling down abruptly precision ground gear wheels integrated cooling system auto ...

bore capacity in steel (diameter): 42 mm arm length: 280 - 1100 mm workpiece height max.: 1270 mm spindle taper MT: 4 spindle turning speed range: 44 - 1500 U/min threading:: M 25 mm quill stroke: 230 mm feed range - spindle: 0,05 - 0,09 - 0,15 mm/U slide adjustment -horizontal: 820 mm table-size: 635 x 520 x 415 mm column diameter: 260 mm total power requirement: 2,2 kW weight of the machine ca.: 1400 kg dimensions of the machine ca.: 1880 x 864 x 2210 mm Radial drilling machine with mechanical clamping. Auxiliary dial for spindle feed depth indication. The main spindle is balanced by a special spring that makes it more durable than all other balancing mechanisms. gear wheels in oil bath safety device to prevent arm from falling down abruptly precision ground gear wheels integrated cooling system automatic tool ejector gear wheel drven 2 speed motor The data for this ad was created wi ...

bore capacity in steel (diameter): 50 mm arm length: 490 - 2000 mm workpiece height max.: 1900 mm spindle taper MT: 5 spindle turning speed range: 35 - 1890 U/min threading:: M 50 mm quill stroke: 370 mm feed range - spindle: 0,07 - 0,96 mm/U slide adjustment -horizontal: 1510 mm table-size: 1000 x 800 x 500 mm column diameter: 432 mm base plate: 2908 x 1102 x 250 mm no. of turning speeds: 12 total power requirement: 5,5 kW weight of the machine ca.: 6600 kg dimensions of the machine ca.: 3105 x 1400 x 2960 mm Radial drilling machine with hydraulic clamping device. With timer IC which makes it possible to release the arm to move up/down and to stop with one button. The spindle can remain in the same position when changing the tool. Accesories: - Gears in oil bath - Protection against suddenly falling arm - Precision ground gears - Integrated cooling system - automatic tool ejector The  ...

Webo BR 35 V / 1250 radial drilling machine incl. Peiseler reversible clamp Workspace Delete. v Spindle to stand smallest 280 mm / largest 1250 mm Delete. v Spindle or drill. b. Table top smallest 0 mm / largest 900 mm Delete. v Spindle to base plate smallest 200 mm / largest 1400 mm Diameter of the drill smallest 860mm / largest 2800 mm Swivel range 2,200mm / clamping diameter approx. 240mm Aufspannfl. upper 650 x 500 mm / side 770 x 500 mm Drilling spindle 40/85 ⌀ mm Speed 30 - 1800 rpm Year of construction 1971 Further technical data can be found on the machine map Item condition: used, impeccably and top maintained. Item location: 42859 Remscheid Dismantling and transport by the buyer. The dismantling, loading, as well as transport can alternatively be offered by us.

Projection: 1200 mm Drilling capacity steel: Ø 30 mm Casting drilling capacity: Ø 40 mm Spindle Mount: MK4 Spindle speeds: 1350 rpm. Clamping sleeve LxWxH: 460 x 550 x 500 mm Surface flat floor plate: 1100 x 500 mm Country of origin: Italy Machine LxWxH: 1750 x 640 x 2100 mm Machine weight: 1500 kg

: gebraucht : 2021 : 3965 : prompt, Zwischenverkauf v : Taiwan : 15600 € : 1 : 42 mm : MK 4 : 280 - 1.100 mm : 44 - 1.500 (12) U/min : Stahl: M 25, Guss: M 38 : 1880 mm : 870 mm : 2210 mm : 1800 kg : 470 - 1.270 mm : 0,05 - 0,15 (3) mm/min : 2.2 kW : 260 mm : 280 mm : 1.725 x 715 x 180 mm : 0,75 kW : 635 x 520 x 415 mm : 2530 mm DEMO MACHINE left/right rotation automatic feed drilling depth limit manual headstock adjustment with mechanical clamping electric height adjustment of extension arm and mechanical clamping mechanical clamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution  ...

: gebraucht : 2011 : 3960 : prompt, Zwischenverkauf v : Taiwan : 12200 € : 1 : 42 mm : MK 4 : 280 - 1100 mm : 44 - 1.500 (12) U/min : M 25 / M 28 : 1880 mm : 870 mm : 2210 mm : 2600 kg : 470 - 1.270 mm : 0,05 - 0,15 (3) mm/min : 2.2 kW : 280 mm : 1725 x 715 x 180 mm : 0,75 kW : 635 x 520 x 415 mm : 2530 mm coolant equipment machine lamp mechanical clamping box table new Repar2 spindle protection HYDRAULIC CLAMPING OF THE COLUMN AND THE ARM User Manual in English COMPLIES WITH GERMAN UVV &, AUSTRIAN AMVO The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 50 mm arm length: 1600 mm workpiece height max.: - mm threading:: 40 mm column diameter: 350 mm bore head horizontal movement: 1250 mm drilling head vertical adjustable: 580 mm spindle stroke: 315 mm transmission ratio: 16 Distance Pinole - Ground Plate: 1250 mm turning speed range: 25-2000 U/min feed range: 0,04 - 3,2 mm/U tool taper: MK 5 total power requirement: 4 kW weight of the machine ca.: 3,5 t dimensions of the machine ca.: 2500 x 1060 x 2840 m new radial drilling machine for solid drilling, boring, reaming, Thread cutting, trimming and lowering. machine with high drilling efficiency and coordinated speed graduation in stable cast construction with electro-magnetic clutch. Drilling depth setting, A tapping with automatic Direction of phase inverter circuit, Feed-overload clutch, hydr. Speed & feed circuit, hydr.-mechanical Pillar & Drilling hea ...

bore capacity in steel (diameter): 80 mm arm length: 2500 mm workpiece height max.: mm threading:: 63 mm column diameter: 550 mm bore head horizontal movement: 2000 mm drilling head vertical adjustable: 1000 mm spindle stroke: 450 mm transmission ratio: 16 Distance Pinole - Ground Plate: 2000 mm turning speed range: 16-1250 U/min feed range: 0,04 - 3,2 mm/U tool taper: MK 6 total power requirement: 7,5 kW weight of the machine ca.: 11 t dimensions of the machine ca.: 3730 x 1400 x 4025 m new radial drilling machine for solid drilling, boring, reaming, Thread cutting, trimming and lowering. machine with high drilling efficiency and coordinated speed graduation in stable cast construction with electro-magnetic clutch. Drilling depth setting, A tapping with automatic Direction of phase inverter circuit, Feed-overload clutch, hydr. Speed & feed circuit, hydr.-mechanical Pillar & Drilling hea ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 27100 € : 547.42 € : 50 mm : MK 5 : 360 - 1.250 mm : 44 - 1.206 (12) U/min : Stahl/Guß: M40/M50 : 2060 mm : 995 mm : 2240 mm : 2300 kg : 441 - 1.345 mm : 0,06 - 0,2 (3) mm/min : 3.7 kW : 300 mm : 270 mm : 1.785 x 785 x 190 mm : 0,75 kW : 635 x 520 x 420 mm : 2645 mm : 0,75 kW left/right rotation automatic feed drilling depth limit manual headstock adjustment with hydraulic clamping electric height adjustment of extension arm andhydraulic clamping hydraulicclamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6 Monate ab Auftragse : Taiwan : 48700 € : 983.74 € : 65 mm : MK 5 : 440 - 1.580 mm : 40 - 1.920 (12) U/min : Stahl/Guß: M50/M60 : 2850 mm : 1400 mm : 2940 mm : 4600 kg : 380 - 1.600 mm : 0,07 - 0,96 (6) mm/min : 5.5 kW : 432 mm : 370 mm : 2.480 x 1.050 x 210 mm : 1,5 kW : 700 x 500 x 400 mm : 3170 mm : 0,75 kW left/right rotation automatic feed drilling depth limit manual headstock adjustment with hydraulic clamping electric height adjustment of extension arm andhydraulic clamping hydraulicclamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH (sample photo) The data for this ad was created with ModulMWS - the software solution of Log ...

: neu : ca. 6 Monate ab Auftragse : Taiwan : 32200 € : 650.44 € : 50 mm : MK 5 : 350 - 1.600 mm : 56 - 1.450 (12) U/min : Stahl/Guß: M40/M50 : 2670 mm : 1120 mm : 2410 mm : 3300 kg : 465 - 1.420 mm : 0,06 - 0,2 (3) mm/min : 3.7 kW : 320 mm : 270 mm : 2.550 x 970 x 200 mm : 1,5 kW : 630 x 500 x 500 mm : 2760 mm : 0,75 kW left/right rotation automatic feed drilling depth limit manual headstock adjustment with hydraulic clamping electric height adjustment of extension arm andhydraulic clamping hydraulicclamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6 Monate ab Auftragse : Taiwan : 14600 € : 297.84 € : 32 mm : MK 4 : 220 - 950 mm : 73 - 1.247 (6) U/min : Stahl: M 25, Guss: M 32 : 1800 mm : 830 mm : 2190 mm : 1250 kg : 350 - 1.210 mm : 0,05 - 0,15 (3) mm/min : 1.5 kW : 210 mm : 220 mm : 1.260 x 640 x 160 mm : 0,75 kW : 600 x 445 x 380 mm : 2320 mm left/right rotation automatic feed drilling depth limit manual headstock adjustment with mechanical clamping electric height adjustment of extension arm and mechanical clamping mechanical clamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: neu : ca. 6 Monate ab Auftragse : Taiwan : 18300 € : 373.32 € : 42 mm : MK 4 : 280 - 1.100 mm : 44 - 1.500 (12) U/min : Stahl: M 25, Guss: M 38 : 1880 mm : 870 mm : 2210 mm : 1800 kg : 470 - 1.270 mm : 0,05 - 0,15 (3) mm/min : 2.2 kW : 260 mm : 280 mm : 1.725 x 715 x 180 mm : 635 x 520 x 415 mm : 2530 mm left/right rotation automatic feed drilling depth limit manual headstock adjustment with mechanical clamping electric height adjustment of extension arm and mechanical clamping mechanical clamping of swivel movement of extension arm central operation panel on the front side power load readout for drilling spindle hand wheel for spindle fine feed coolant equipment machine lamp box table machine and equipment according to the CE-regulations operating manual in GERMAN and ENGLISH The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity: 50 mm Radius: 2070 mm Spindle taper: 350   Arm Length:                  2070mm Max. drill Ø cast:           50mm Max. tap Ø:                  M48M Stroke pinole:               350mm Max. distance spindle - table:1550mm Min. distance spindle - table:305mm Floor / table area:          X Travel 1200mm Speeds / ranges:             800Rpm Spindle Taper:               5ISO/Bt/Mk Power:                       8kW Length:                      5800mm Width:            ...

Longitudinal X: 6000 mm Radius: 100 mm Drilling capacity: 100 mm Spindle taper: 100   CNC Brand: Siemens CNC Model: 840D incl. Boring shaft   75 x 5900 incl. Boring shaft   94 x 5900 incl. Boring shaft 106 x 5900 incl. Boring shaft 130 x 5900  Max. drill Ø steel:250mm Spindle bore:      100mm Drilling depth:    6000mm Power on spindle:  63kW Speeds / ranges:   750Rpm Length:            18000mm Width:             3800mm Height:            2100mm Weight:            35000kg

Drilling capacity: 25 mm Radius: 32 mm Spindle taper: 1   incl. X/Y Table coordianten incl. coolant system Max. drill Ø steel:25mm Max. drill Ø cast: 32mm Max. tap Ø:        M 20M Stroke pinole:     120mm Throat:            260mm Column sleeve:     110mm Spindle Taper:     3ISO/Bt/Mk Speeds / ranges:   2160Rpm Table Length:      500mm Table Width:       350mm Power:             1,5kW Length:            800mm Width:             400mm Height:            1800mm Weight:            260kg

Drilling capacity: 32 mm Radius: 22 mm Spindle taper: 32   Max. drill Ø steel:32mm Max. tap Ø:        22M Stroke pinole:     150mm Throat:            835mm Column sleeve:     120mm Spindle Taper:     3ISO/Bt/Mk Speeds / ranges:   Vario 1170Rpm Table Length:      480mm Table Width:       400mm Power:             2kW Length:            1000mm Width:             500mm Height:            2100mm Weight:            340kg

Maag VR4A Mk4 Admission in drilling-spindle (morse): Mk4 Max drilling capacity: 50/60 mm Longitudinal travel drilling-head (X-axis): 945 mm Height-travel arm (Y-axis): 710 mm Min dist. round column--drillingsp (X-axis): 310 mm Max dist.round column -- drillingspindle: 1265 mm Dia spindle: 40 mm Max drilling-depth: 310 mm Speeds: 40 > 2000 rpm Power on the spindle: 3 kW Height: 2240 mm Weight: 910 mm ACCESSORIES: 2860 mm Cooling system: 2,55 ton

Arlo Mk5 - 2050 Admission in drilling-spindle (morse): Mk5 Max drilling capacity: 63 mm Base dimensions (1) Table dim (2) : 2900 x 1250 x 250 mm Height-travel arm (Y-axis): 1200 mm Min dist. round column--drillingsp (X-axis): 450 mm Max dist.round column -- drillingspindle: 2050 mm Max drilling-depth: 400/145 mm Speeds: 20 > 1600 rpm Power on the spindle: 5,5 kW Height: 3110 mm Weight: 1250 mm ACCESSORIES: 3150 mm Cooling system: 7 ton

included tilting table Admission in drilling-spindle (morse): Mk4 Max drilling capacity: 40 mm (St 60) Base dimensions (1) Table dim (2) : 2050 x 930 mm Longitudinal travel drilling-head (X-axis): 950 mm Height-travel arm (Y-axis): 1000 mm Min dist. round column--drillingsp (X-axis): 300 mm Max dist.round column -- drillingspindle: 1250 mm Max drilling-depth: 355 mm Speeds: 20 > 1200 rpm Power on the spindle: 3,7 kW Height: 2050 mm Weight: 930 mm ACCESSORIES: 3200 mm Cooling system: 3 ton

Radial drilling machine, used Typ/ type: BR 50 x 1600 Hersteller/ make: WMW Jahr/ year of make: 1984 length of arm: 300...1600 mm Drilling capacity/ capacity at boring: 50 mm ( St 60 ) Drilling capacity/ boring: 60 mm ( GGL 20 ) Thread cutting: max. 36 mm ( St 36 ) max. 45 mm ( GGL 20 ) Bohretiefe/ drilling depth: 355 mm Tool holder / taper in spindle: MK 5 Distance from spindle head to base plate/ distance Spindle head to base: max. 1600 mm Base: 2600 x 1000 mm Drehzahlbereich/ range of speeds: 31,5 .. 1400 rpm // rpm Feed: 0,063...0,63 mm/rev// mm per round Power: 7.5 kW Weight: approx. 3.2 t

Radial drilling machine, used Manufacturer: KOVOSVIT Type: VO 50 Year built:1999 Projection: 1600 mm Drilling capacity: 60 mm Quill stroke 310 mm Table / footprint 1470 x 986 mm Weight: approx. 5 t

Radial drilling machine RABOMA 12Uh1600 MK5 without table Projection: 1600 mm used, tested ! Dimensions: 2800 x 980 x 3000 mm

Radial drilling machine WMW-FRITZ HECKERT BR40/2 x 1250 year of construction approx. 1986 drilling capacity in steel: 40 mm 1Projection: 1250 mm workpiece height-max.: 1390 mm Clamping area: 1450 x 920 mm Table surface: 750 x 1350 mm Clamping surface: 1450 x 920 mm spindle mount MK: 5 total power requirement: 5 kW clamping cube: 620 x 500 x 500 mm used, tested ! Dimensions: 2060 x 930 x 2760 mm

High-speed radial drilling machine, radial drilling machine, high-speed radial DONAU Projection: approx. 1300 mm spindle stroke: 140 mm swivel and boom in pneumatically braked ! Height under arm: approx. 1550 mm drilling spindle motor: 0.5 kW 380 V foot: 600 x 500 mm used, tested ! Dimensions: 1400 x 600 x 2000 mm

High-speed radial drilling machine, radial drilling machine, high-speed radial DONAU DR13B Year: 1979 Projection: approx. 800 mm spindle stroke: 100 mm Height adjustment of the swivel arm defective height under arm: approx. 1450 mm speed: infinitely variable 310 - 3400 rpm drilling spindle motor: 0.75 kW 380 V Base: 600 x 500 mm used, tested ! Dimensions: 1400 x 600 x 2000 mm

Drilling capacity: 50 mm Radius: 50 mm Spindle taper: 50   Radial arm drillRF 50 / 1600 MACH-ID 7692 Type: RF 50 / 1600 Year: 1990

Key data: 60 mm, 1600 mm

Specifications: - Drilling capacity 60 mm - Projection 1600 mm - Drilling spindle mount MK 5 - Drilling spindle stroke 390 mm - Spindle speeds, 20 steps 20 - 2000 rpm - Clockwise and counterclockwise rotation - Feed, 12 steps 0.056 - 2.5 mm/rev - Drive 400 V / 12.8 kW - Electromechanical clamping of the boom and drilling unit - Distance between machined machine bed – drill quill - min. approx. 900 mm - max. approx. 1600 mm - usable machine bed with 4 T-slots 950 x 1700 mm - Coolant device - Dice table - Space requirement approx. W 2600 x H 3000 x D 1000 mm - Weight approx. 4500 kg

Base plate, for radial drilling machine, clamping plate CSEPEL RFH75 clamping surface: 1700 x 940 mm height: 280 mm web width: 157 mm, 3x 172 mm, 155 mm groove width: 28 / 48 mm, groove depth: 50 mm flange for column: Ø 520 / 800 mm bolt circle diameter: Ø 700 mm, 6x threaded hole: M36 x 4, depth: 100 mm flange for coolant pump: Ø 100 / 145 mm bolt circle diameter: Ø 115 mm, 6x threaded hole: M6 x 1, depth: 10 mm base: 2750 x 1155 mm used, tested ! Dimensions: 2750 x 1155 x 280 mm

Key data: 50 mm, 1500 mm, 1400 mm

Code 231017 Description Radial drilling machine Make MEUSER + CO Model M 50 R Serial No. 39112 Year Capacity in Steel 60 50 mm Capacity in Cast Iron 60 mm Thread cutting in Steel 60 M 45 Thread cutting in Cast Iron M 55 Spindle taper 5 MC Spindle radius: max/min 1700/600 mm Spindle traverse 1100 mm Min / Max height spindle / top of base plate 500 / 1400 mm Arm truss 600 mm Quill stroke 310 mm Number of speeds 18 Spindle speed range 25 – 2000 rpm Number of spindle feeds 14 Spindle feed range 0.06 – 0.80 mm/rev Baseplate size 2400 x 860 mm Clampsurface base plate 1700 x 860 mm Main motor 5 kW - 380 Volts Dimension of machine 2400 x 1100 x 2800 (3100) mm ( L x W x H ) Weight 4070 kg Accessories Box 650 x 500 x500 mm Coolant Hydraulic clamping Conditon Machine is in very good and nice condition

Clamping cube for radial drilling machine Clamping plate, clamping block, slot table Clamping surface above: L x W = 1200 x 800 mm Clamping surface laterally: L x H = 1200 x 200 mm Height: 400 mm T-slots: 20 mm T-slot spacing: 200 / 60 mm Overall dimensions L x W x H: 1200 x 800 x 400 mm Weight: 680 kg; used

Rapid radial drilling machine, radial drilling machine, drilling machine, boom drilling machine -Clamping table: 500 x 1055 mm -Projection: 1120 mm -Cone mount: MK4 -Motor power: 1.5/2.2 kW -Speeds: 45-2240 rpm, electrically switchable in steps -Columns: Ø 150 mm -Spindle stroke: 160 mm -Tapping device: YES -Feed: 0.075 - 0.3 mm/rev -Dimensions: 2000/1200/H2320 mm -Weight: 1800kg

Rapid radial drilling machine, radial drilling machine, drilling machine, boom drilling machine -Clamping table: 400 x 1100 mm -Projection: 930 mm -Cone mount: MK4 -Motor power: 1.35/1.8 kW -Speeds: 41-1700 rpm -Columns: Ø 200 mm -Spindle stroke: 125 mm -Tapping device: YES -Feed: 0.075 - 0.3 mm/rev -Dimensions: 1800/1235/H2240 mm -Weight: 1500kg

Radial drilling machine, drilling machine, boom drilling machine, universal drilling machine, milling machine -Projection: 645 mm -Taper mount: MK3 -Speeds: 95 - 1050 rpm -Columns: Ø 190 mm -Spindle stroke: 195 mm -automatic feed: 0.05/0.10/0.20 mm/rev -Clamping table: 735 x 520 mm -Dimensions: 1350/705/H2170 mm -Weight: 1100 kg

The machine is in good condition for its age Availability: immediately

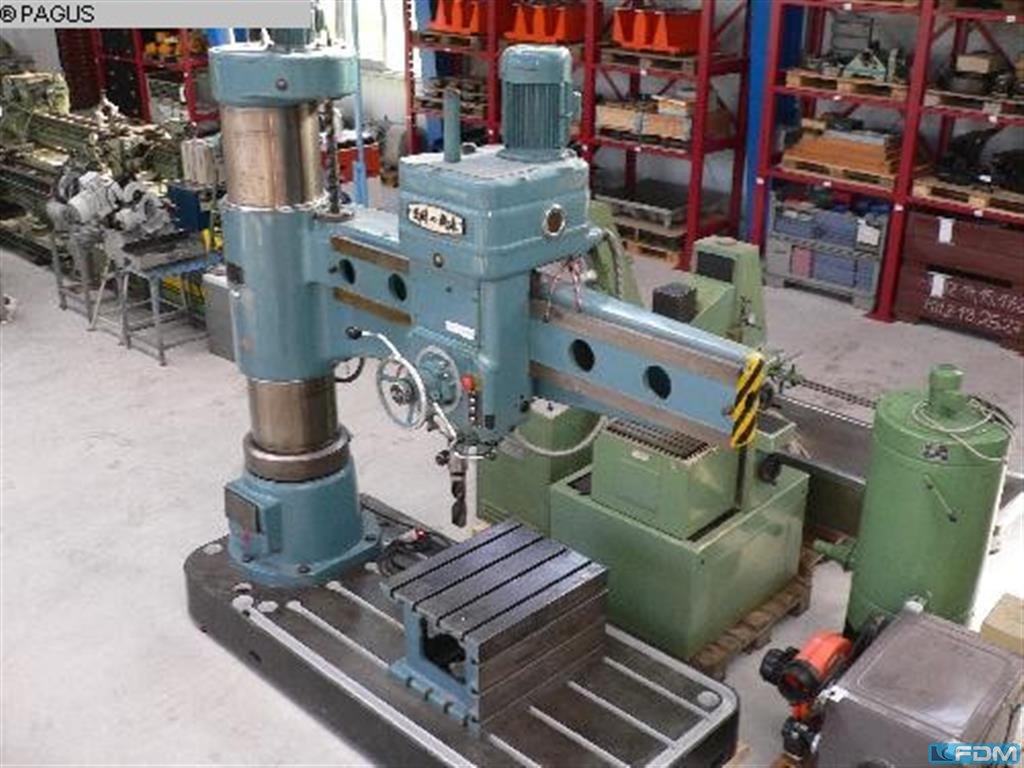

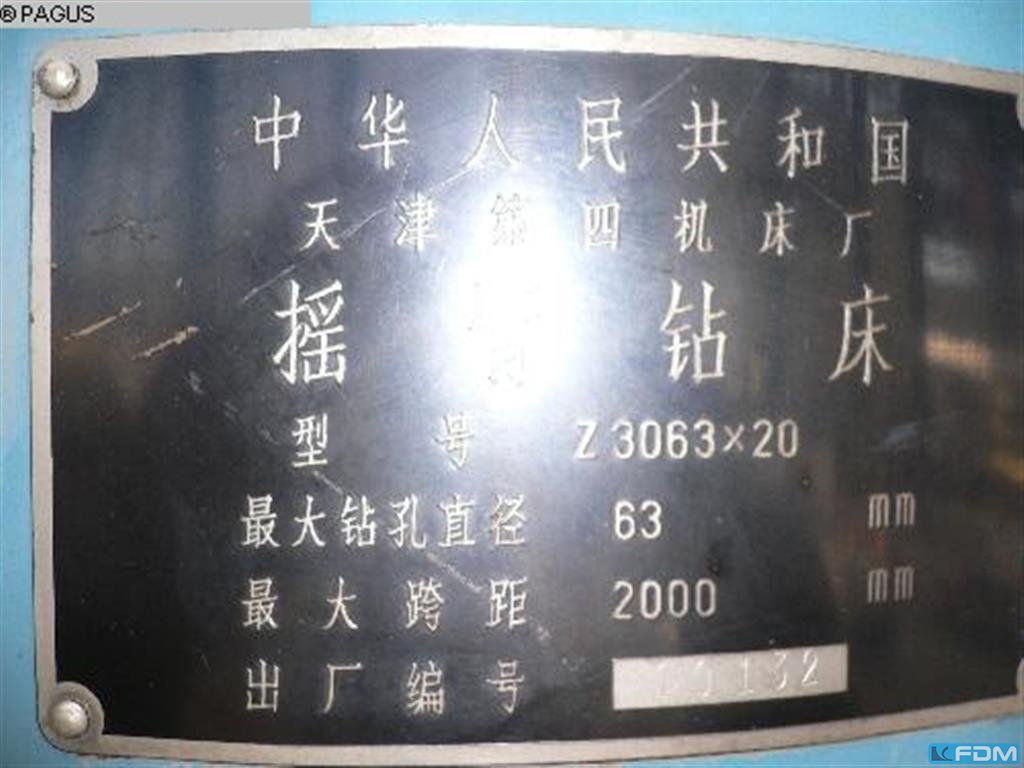

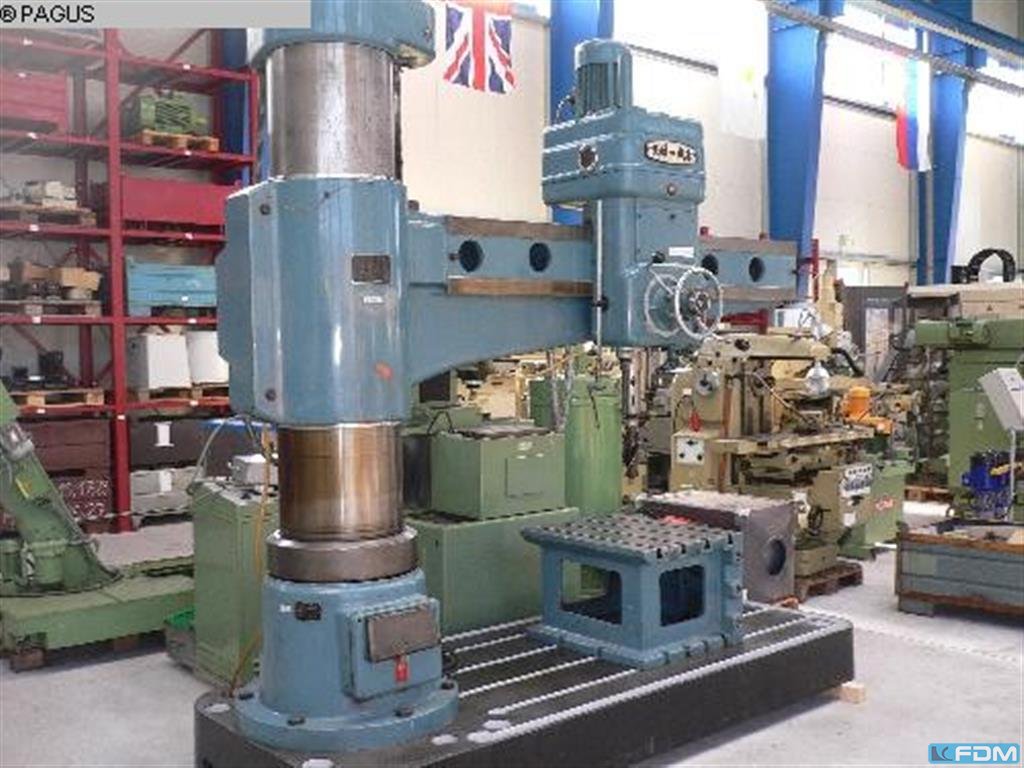

Maximum drilling capacity in steel/casting 63/80 mm The maximum drilling diameter in steel 300 mm leadership Maximum distance spindle axis to the leadership mantle 2000 mm Vertical adjustment arm 950 mm spindle speed - The number of stages 16 - Range from 11 to 2000 /min Main engine power of 5.5 kW Total input 8,5 kVA Weight 7100 kg

Type VR 6A Producer Mas Year of manufacture Max. drilling diameter iron/casting 63/80 mm Max. vertical arm adjustment 950 mm Max. motion of milling head on arm 1613 mm Dimensions l x w x h 3240x1300x3900 mm Machine weight 5800 kg Main motor output 5.5

Specifications: Tool holder: MK 4 Drilling capacity in ST 60: ø 25 mm Drilling capacity in cast iron GG 20: ø32 mm Tapping performance in ST 60: M24 Tapping capacity GG20: M30 Speed range: (12) 102 - 2000 1/min Spindle stroke: 150 mm Feeds: 0.1 / 0.2 / 0.3 mm/rev Table size: 1175 x 525 mm Column diameter: 170 mm Motor power: 1.1 / 1.5 kW Connection: 400 V Weight, approx.: 2200 kg Dimensions (WxDxH), approx.: 1300 x 1620 x 2270 mm Equipment: - Machined foot with T-slots - Feed device - R- L- Barrel - Tapping device - Emergency stop push button -Chuck -Vice - Machine wedge shoes - Swivel machine table - Dice table - Base plate with T-slots - Machine lamp

bore capacity in steel (diameter): 55,0 mm arm length: 1750 mm workpiece height max.: 1630 mm turning speeds: 19 - 1320 U/min bore spindles - Morse Taper: 5 MK engine output: 5,5 kW weight: 5 t range L-W-H: 2,4 x 1,0 x 3,55 mm feed movement: 475 mm floor plate size:: 1650x1000 mm feeds: 0,07-2,9 mm/U The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 50,0 mm arm length: 1.350 mm workpiece height max.: 1630 mm turning speeds: 19 - 1320 U/min bore spindles - Morse Taper: 5 MK engine output: 5,5 kW weight: 5 t range L-W-H: 2,4 x 1,0 x 3,55 mm feed movement: 475 mm floor plate size:: 1650x1000 mm feeds: 0,07-2,9 mm/U The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Key data: 28 mm, 280 mm

16 speeds 90 – 1980 rpm Drive power 0.7 / 1.3 kW Tool holder MK 3 Drilling capacity in ST60 28 mm Column diameter 105 mm Projection 280 mm Spindle stroke 150 mm

Key data: 40 mm, 1200 mm

Specifications: Drilling capacity to the full: 40 mm Projection 1200 mm Motor power 3.5 kW Tool holder MK4

Offer 23387 Specifications: - Drilling capacity in steel ST 60 approx. 50 mm - Tapping up to approx. M 50 - Drilling spindle holder MK 5 - Drilling spindle stroke 300 mm - Projection min. / max. 320 / 1600 mm - Column diameter 320 mm - Boom stroke 650 mm - min/max distance: - Spindle – base plate approx. 600 - 1250 mm - Machined base plate, clamping surface approx. 1000 - 1700 mm - 18 spindle speeds 40 - 1800 rpm - 8 feeds 0.04 - 0.63 m/rev - Drill spindle drive 400 V / 7.5 kW - E – Hydr.- Central clamping - Cube table with machine vice - Coolant device - Space requirement approx. W 2400 x H 2950 x D 1050 mm - Weight approx. 3500 kg
