radial drill used for sale

Radial drilling table Dimensions LxWxH 600 x 750 x 550 mm Tilting 0o - 90o This radial drilling table is unused

Code 61078 Description Radial drilling machine Make BERGONZI Modell F 32 / 1000 Serial No. F 00 – 592 Year 1991 ( as NEW ) Capacity in Steel 60 35 mm Capacity in Cast Iron 26 45 mm Spindle taper MC 4 Spindle radius ( max.) 1100 mm Min/max height spindle / top of base plat 330 / 1030 mm Arm traverse 500 mm Spindle traverse 220 mm Number of speeds 12 steps Speed range 60 – 1300 rpm Feed range 0,06 – 0,12 – 0,22 mm/rev. Working surface base plate 1070 x 515 mm Base plate 1600 x 600 mm Motor 2,5 kW – 380 Volts Total power 3 kW Dimension 1600 x 600 x 1950 (2400) mm (L x W x H) Weight of machine 1300 kg Accessoiries coolant Box: 450 x 550 x 500 mm Condition Machine is in new condition

Code 71112 Description Radial drilling machine Make SORALUCE Modell TRO - 1250 Serial No. 2754 10406 Year 1975 Capacity in Steel 60 40 mm Capacity in Cast Iron 50 mm Thread cutting in Steel 60 M 30 Thread cutting in Cast Iron M 40 Spindle taper 5 MC Spindle radius: max / min 1400 / 450 mm Spindle traverse 950 mm Min / Max height spindle / top of base plate 300 – 1300 mm Arm traverse 700 mm Quill stroke 300 mm Number of speeds 12 Spindle speed range 25 – 1440 rpm Number of spindle feeds 6 Spindle feed range 0,08 – 0,99 mm/rev Baseplate size 1900 x 750 mm Clampsurface base plate 1200 x 650 mm Main motor 3,0 kW - 380 Volts Dimension of machine 2000 x 750 x 2150 ( max.2650 ) mm ( L x W x H ) Weight 2500 kg Accessoiries Box 600 x 450 x 400 mm Coolant elect ...

Code 71130 Description Radialbohrmaschine Make BREDA Modell R 55 x 1600 Serial No. 224 Year 1990 Capacity in Steel 60 55 mm Capacity in Cast Iron 70 mm Thread cutting in Steel 60 M 50 Thread cutting in Cast Iron M 65 Spindle taper 5 MC Spindle radius: max / min 1785 / 495 mm Spindle traverse 1290 mm Min / Max height spindle / top of base plate 505 - 1670 mm Arm traverse 855 mm Quill stroke 310 mm Number of speeds 12 Spindle speed range 30 - 1200 rpm Number of spindle feeds 8 Spindle feed range 0,06 – 1,0 mm/rev Baseplate size 2505 x 1000 mm Clampsurface base plate 1700 x 1000 mm Main motor 4,4 kW - 380 Volts Dimension of machine 2570 x 1000 x 2740 (3275) mm ( L x W x H ) Weight 4070 kg Accessoiries Box 1000 x 700 x 500 mm Coolant Hydraulic clamping  ...

Code 81221 Description Position Controlled Fast Radial Drilling machine Make DONAU Model DR 32 NC Serial No. 7107 Year 1984 Control Heidenhain TNC 145 Drilling cap. in St. 60 in full 32 mm Drilling cap. in Castiron GG 22 in full 45 mm Thread cutting in St. 60 M 26 Thread cutting in Castiron GG 22 M 36 Table 1120 x 800 mm X – Axis 800 mm Y – Axis 630 mm Z – Axis ( Quill ) 170 mm Max. distance Column-Spindel 750 mm Vertical movement Spindelhead 400 mm Spindle taper MC 4 Spindle speeds 45 – 2240 rpm Quill movement 170 mm Rapide feed 8000 mm/min Feeds 4000 mm/min Motor 2,2 / 4,0 kW 380 Volts Dimension 5,0 x 4,0 x 2,7 meters (L x W x H) Weight 3000 kg Accessoiries Position controlled in X – Y – Z ( Quill ) Coolant Machine can also be used without control Condition Machine is in good  ...

Code 111258 Description Rapid Radial Drilling machine Make DONAU Model DR – 24 Serial No. 2300 – 3 Year 1984 Drilling cap. in St. 60 in full 28 mm Drilling cap. in Cast Iron 35 mm Tapping cap. in St. 60 M 20 Tapping cap. In Cast Iron M 30 Spindle taper 3 MK Spindle radius max / min. 1000 / 400 mm Min/max height spindle / top of table 80 / 650 mm Arm traverse 450 mm Spindle traverse 175 mm Number of speeds 18 steps Speed range 45 – 2240 rpm Number of feeds 4 Feed range 0,075 – 0,15 – 0,3 – 0,45 mm/rev. Working surface table 1200 x 500 mm Motor 1,1 / 1,6 kW – 380 Volts Dimension W x D x H 1200 x 1600 x 1910 mm Weight 1400 kg Accessoiries screw cutting Condition Machine is in normal condition

Drilling capacity in steel (diameter): 80 mm Thread cutting in steel: M 80 x 4 mm Projection: approx. 500/2500 mm kl./gr. Distance between contact surface and drill pinole: 650/2300 mm Pinole stroke: 500 mm Table clamping surface: 1250 x 2800 mm Speeds: 9 - 1800 rpm Feeds: approx. 2 - 1250 mm Spindle drive: 7.5 kW Weight: 12000 kg Space requirement: 4000 x 1280 x 4100 mm

Code 111263 Description Radial drilling machine Make CSEPEL Model RFH 100 / 3000 Serial No. 73089 Year of make 1975 Drilling Cap. in St. 60 / cast iron 100 / 120 mm Spindle taper 6 MK Spindle radius 3500 mm Min/max height spindle / top of base plate 440 – 2100 mm Arm traverse 1260 mm Spindle traverse 400 mm Number of speeds 21 steps Speed range 18 – 1800 rpm Feed range 18 0,0375 – 2,0 mm/rev. Working surface bed plate 3160 x 1550 mm Motor 15 kW – 380 Volts Total power 20 kVA Dimension 4390 x 1550 x 4130 mm (L x W x H) Weight of machine 14.000 kg Accessoiries Box 1000 x 1000 x 500 mm Automatic Clamping Cooling Condition Machine is in good condition

Rapid radial / Rapid radial / Snel radial DANUBE DR 13

Arm length: 1600 mm Drilling capacity in steel: Ø 50 mm Tapping in steel: M50 x 1.5 mm Spindle holder: MK 5 Spindle speeds: 28 - 2500 rpm. Spindle feed: 0.05 - 2 mm/rev Spindle stroke: 310 mm Spindle -> slab: 1500 mm max. Tension throwers; 1000 x 750 mm Clamping flat floor plate: 1820 x 986 mm Complete with: - Kuhlanlage - Operating instructions Spindle motor: 4 kW Country of origin: Czech Republic Machine Weight: 4300 kg Machine LxWxH: 3250 x 1120 x 3400 mm

Brand SASS Italy Model TRM 2200 Capacity 100 mm Spindle taper MT 6 Drilling depth 500 mm Spindle speed 18-1600 O-min. Horizontal movement 1845 mm Distance table spindle 2230 mm Colum diameter 550 mm T-slot base plate size 22 mm Floor dimensions 3500 x 1250 mm Power 11 Kw Weight 9000 Kg Dimensions L x W x H 3500 x1250 x 3700mm Extra Block table angle adjustable 760 x 1000 x 600 mm Blok table 1000 x 1000 x 600 mm

Radial drill Manufacturer: Archdahle

2K52-1 radial drilling machine was built in the 80s in the USSR. The offered machine is perfect for both unit and small batch production. It is capable of performing operations such as drilling, reaming, countersinking and threading in workpieces of various sizes. All these machining processes are performed by means of a reliable, tiltable spindle with an optimised speed range. This solution enables the machining of workpieces at different angles, without the need for repositioning them. The work head with spindle moves along the arm, enabling precise setting of the drilling point. The arm, in turn, moves vertically and horizontally along the rotating column, providing great flexibility during operation. The machine column rotates around its own axis, allowing the arm to be repositioned relative to the base. The 2K52 radial drilling machine is also equipped with, among others, a work tab ...

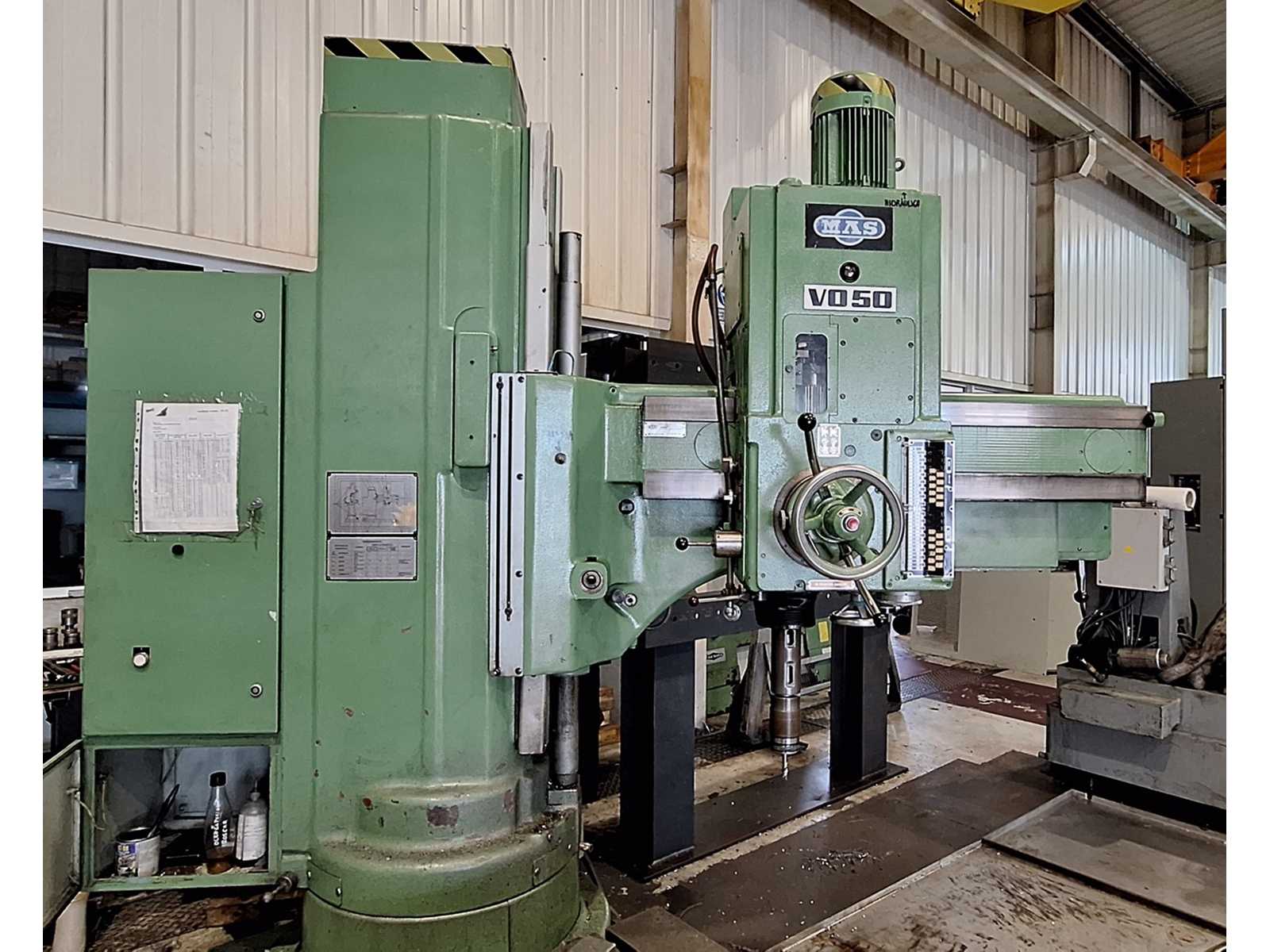

Radial drilling machine, used Manufacturer: KOVOSVIT Type: VO 50 Year built:1999 Projection: 1600 mm Drilling capacity: 60 mm Quill stroke 310 mm Table / footprint 1470 x 986 mm Weight: approx. 5 t

bore capacity in steel (diameter):1-13 mm The machine has a 2.2 kW spindle motor with a 2-stage gearbox for drilling and tapping. Table size is 100 x 50 cm Stroke length approx. 200 mm

arm length:1.600 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm spindle taper: MT:5 table surface area:750 x 1380 mm surface area:1450 x 920 mm total power requirement:5 kW weight of the machine ca.:3000 kg dimensions of the machine ca.:2060× 930 × 2760 mm

bore capacity in steel (diameter):55 mm arm length:1600 mm total power requirement:4 kW weight of the machine ca.:5,5 t dimensions of the machine ca.:2800 x 980 x 3000 mm

arm length:1600 mm weight of the machine ca.:5,5 t dimensions of the machine ca.:2800 x 980 x 3000 mm

Equipped with: Otto Müller, M12, fast radial drilling machine, connection: 380 V – 50 Hz, mechanically switched speed, radially adjustable arm, vertical arm adjustment along column, spindle with hand feed, solid cast iron work table with T-slots, drill spindle holder (Morse): 30mm, longitudinal travel drill chuck (X-axis): 750 mm, height travel arm (Y-axis): 350 mm, spindle diameter: 55 mm, max drilling depth: 125 mm, speed: 2400 rpm, dimensions: 175x130x215cm (LxWxH), Power supply: 380V

Key data: 50 mm, 1500 mm, 1400 mm

Code 231017 Description Radial drilling machine Make MEUSER + CO Model M 50 R Serial No. 39112 Year Capacity in Steel 60 50 mm Capacity in Cast Iron 60 mm Thread cutting in Steel 60 M 45 Thread cutting in Cast Iron M 55 Spindle taper 5 MC Spindle radius: max/min 1700/600 mm Spindle traverse 1100 mm Min / Max height spindle / top of base plate 500 / 1400 mm Arm truss 600 mm Quill stroke 310 mm Number of speeds 18 Spindle speed range 25 – 2000 rpm Number of spindle feeds 14 Spindle feed range 0.06 – 0.80 mm/rev Baseplate size 2400 x 860 mm Clampsurface base plate 1700 x 860 mm Main motor 5 kW - 380 Volts Dimension of machine 2400 x 1100 x 2800 (3100) mm ( L x W x H ) Weight 4070 kg Accessories Box 650 x 500 x500 mm Coolant Hydraulic clamping Conditon Machine is in very good and nice condition

Maximum drilling capacity in steel/casting 63/80 mm The maximum drilling diameter in steel 300 mm leadership Maximum distance spindle axis to the leadership mantle 2000 mm Vertical adjustment arm 950 mm spindle speed - The number of stages 16 - Range from 11 to 2000 /min Main engine power of 5.5 kW Total input 8,5 kVA Weight 7100 kg

Type VR 6A Producer Mas Year of manufacture Max. drilling diameter iron/casting 63/80 mm Max. vertical arm adjustment 950 mm Max. motion of milling head on arm 1613 mm Dimensions l x w x h 3240x1300x3900 mm Machine weight 5800 kg Main motor output 5.5

With clamping block

Key data: 60 mm, 1600 mm

virgin Solid design, guide tracks on the boom hardened and ground, Stepless speed control, digital speed display Specifications: Drilling capacity max. 60 mm Threading up to M 46 Projection 350 - 1600 mm Vertical movement of the boom 585 mm Drilling head travel (horizontal) 1250 mm Quill stroke 325 mm Tool holder MK 5 Speed range (2) 38 - 275 / 275 - 2000 rpm Feed range (8) 0.06 - 1.00 mm/rev Distance spindle/cube table 165 - 750 mm Distance spindle/base plate 665 - 1250 mm Clamping surface base plate 1740 x 980 mm Cube table 750 x 500 x 500 mm incl. accessories: - Dice table - Drill chuck mandrel MK5 / B16 - Reducing sleeves MK5/4 MK4/3 MK3/2 - LED machine light - Coolant device - Digital speed display - Height-adjustable protective cover - Operating tool - Operating instructions, CE declaration of conformity

Offer 24402 Specifications: - Drilling capacity in steel 50 mm - Drilling spindle holder MK 5 - Drilling spindle stroke 315 mm - Projection min / max 350 / 1600 mm - Column diameter 350 mm - max. / min. – distance: - Spindle – base plate 350 - 1250 mm - Vertical stroke of the boom 580 mm - 16 spindle speeds 25 - 2000 rpm - Feed rates 0.04 - 3.2 m/rev - Drilling spindle drive 400 V / 4 kW - Lift drive 1.5 kW - Column clamping 0.75 kW - Dice table - Coolant device - Space requirement approx. W 2490 x H 2645 x D 1060 mm - Weight approx. 3500 kg

MAS VR5A, Radial drill, 1500mm arm, MT 4, low price, Can be inspected under power in our warehouse, Arm : 1600mm, Weight : Weight 3,7 Ton, Spindelmotor: 4 kW - 28 - 2500 RPM, Clamiping area : 1800 x 1000, Max dia in steel : 50mm, Max dia in cast iron: 60mm, Max threading in steel : M30, Max threading in cast iron : M42, Distance table spindle nose : 1600 mm

Max. Drilling Diameter... 50mm Spindle holder ... ISO 50. Max. vertical arm adjustment ... 875mm Max. distance of the spindle axis from the stand ... 1250mm Main engine power ... 4kW Total power requirement ... 6kVA L x W x H ... 2750 x 1120 x 3271mm Machine weight ... 4550kg

Mas VR4A Mk4 Admission in drilling-spindle (morse): Mk4 Max drilling capacity: 50/60 mm Longitudinal travel drilling-head (X-axis): 945 mm Height-travel arm (Y-axis): 710 mm Min dist. round column--drillingsp (X-axis): 310 mm Max dist.round column -- drillingspindle: 1255 mm Dia spindle: 40 mm Max drilling-depth: 310 mm Speeds: 40 > 2000 rpm Power on the spindle: 3 kW Height: 2240 mm Weight: 910 mm ACCESSORIES: 2860 mm Cooling system: 2,55 ton

Ema Mk3 Admission in drilling-spindle (morse): Mk3 Max drilling capacity: 32 mm Max drilling-depth: 300 mm Speeds: 50 > 1750 rpm Height: 1500 mm Weight: 800 mm ACCESSORIES: 2300 mm Cooling system: 1000 kg

Kovosvit VRM 50A Admission in drilling-spindle (morse): Mk 4/5 Max drilling capacity: 50 mm Longitudinal travel drilling-head (X-axis): 1200 mm Height-travel arm (Y-axis): 1250 mm Min dist. round column--drillingsp (X-axis): 1170 mm Max dist.round column -- drillingspindle: 2070 mm Dia spindle: 70/75 mm Max drilling-depth: 350 mm Speeds: 16 > 800 rpm Power on the spindle: 4 kW Weight: 6,5 ton

bore capacity in steel (diameter): 50,0 mm arm length: 1.350 mm workpiece height max.: 1630 mm turning speeds: 19 - 1320 U/min bore spindles - Morse Taper: 5 MK engine output: 5,5 kW weight: 5 t range L-W-H: 2,4 x 1,0 x 3,55 mm feed movement: 475 mm floor plate size:: 1650x1000 mm feeds: 0,07-2,9 mm/U The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

: 40 1008 rated current: 20 A voltage: 24 V weight of the machine ca.: 3,5 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity in steel/cast iron: 40mm/60mm, throat depth range: 300mm-1250mm, max. workpiece height: 745mm, spindle mount: MK5, spindle stroke: 355mm, speed: 1200rpm, feed: 756mm/min, column diameter: 300mm, spindle-plate distance: 280mm-1380mm, table dimensions X/Y: 1400mm/750mm. Machine dimensions X/Y/Z: approx. 2200mm/1000mm/2800mm, weight: approx. 3000kg. On-site inspection is possible.

Arm length: 1000mm, max. drilling diameter steel/cast iron: 32mm/40mm, spindle stroke: 250mm, spindle holder: MK4, max. tapping capacity: M20, spindle table distance min./max.: 270mm/1040mm, table dimensions X/Y/Z: 1150mm/800mm, speed: 4500rpm. Machine dimensions X/Y/Z: approx. 1700mm/1100mm/2600mm, weight: approx. 2000kg. The emergency stop switch of the machine is defective. Documentation available. On-site inspection is possible.

Key data: 60 mm, 350 mm

Radial Column Drilling Machine RSBM 5/60 Standard equipment: - Keyless chuck B 16, 1 - 16 mm - Tapered mandrel MK 5 / B 16 - Reducing sleeve MK 5 / MK 4 - Tool set with expulsion wedge - Instruction manual / CE The RSBM 5/60 offers plenty of space for extra-large workpieces: - Cubature 630 x 500 x 720 mm - Spindle projection 350 - 1600 mm Specifications: Drilling capacity in steel 60mm Threading capacity M46 Spindle holder (turning spindle) MK 5 Speed range 25 - 2000 rpm Speed levels 16 Quill stroke 315 mm Quill feed stages 16 Quill feed 0.04 - 3.2 mm/rev T-slots, width (table/base) 22/28 mm Drill head stroke 580 mm Spindle projection 350 - 1600 mm Drill head rotatable ± 180 ° Quill spacing base 1220 mm Quill spacing table 0 - 720 mm Drilling table area 630x500 mm Drilling table height 500 mm Motor power 4000 W Lifting spindle drive 1500 W Mai ...

: ja : Hydraulische klemmung weight of the machine ca.: 3,3 t t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

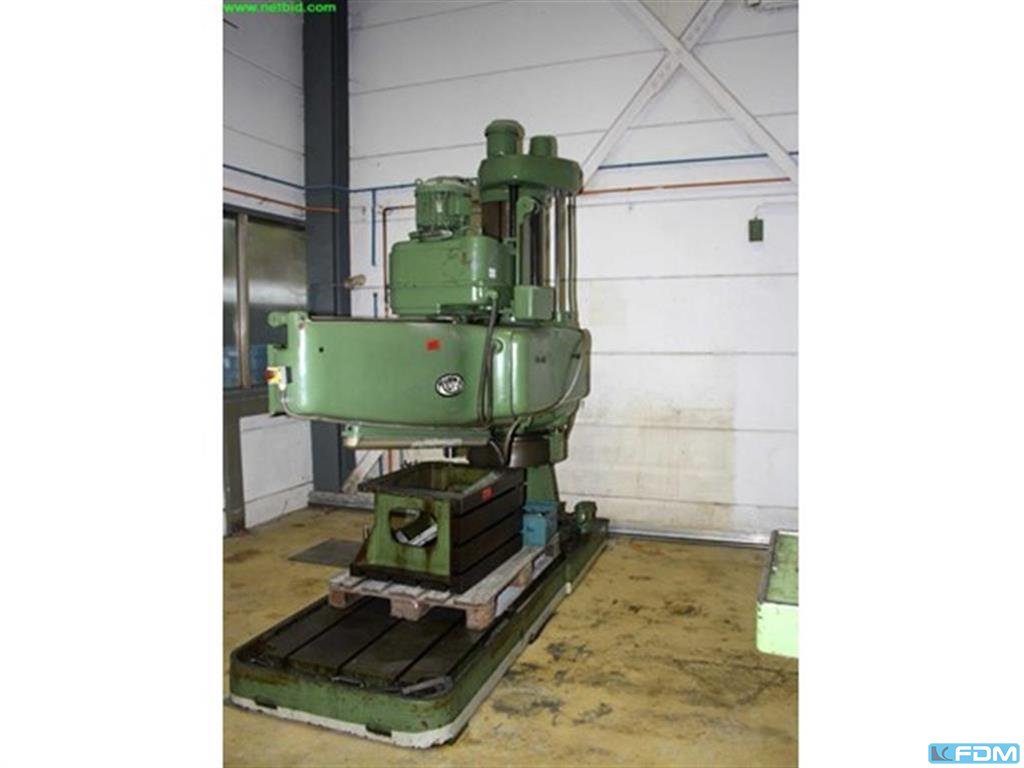

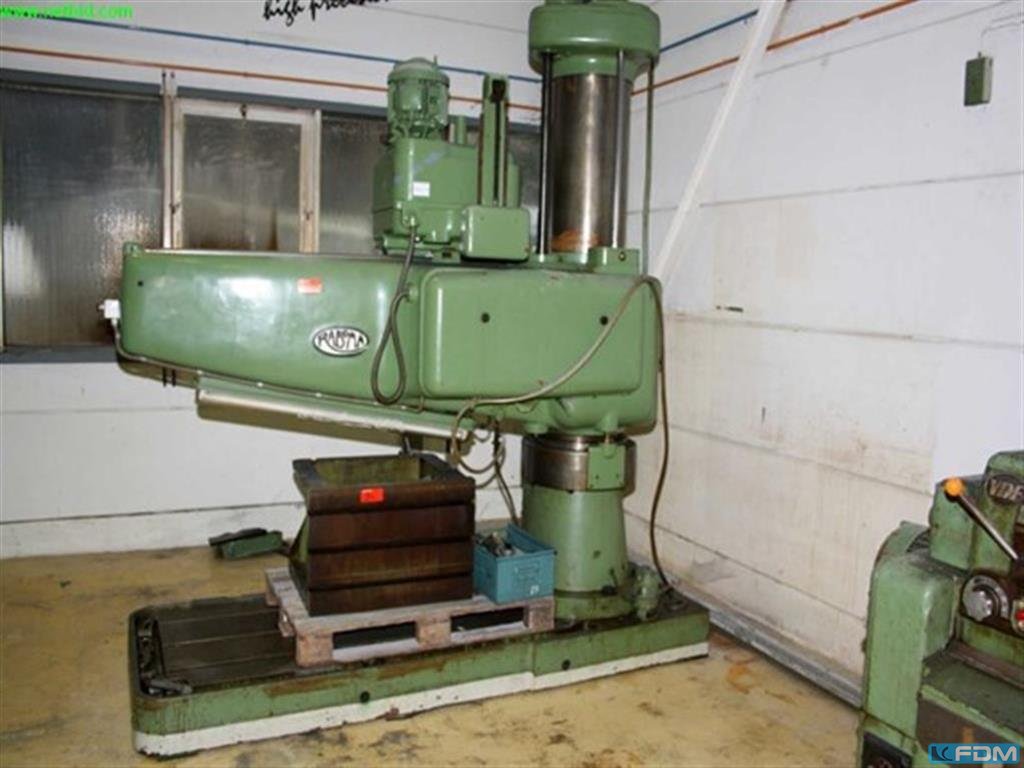

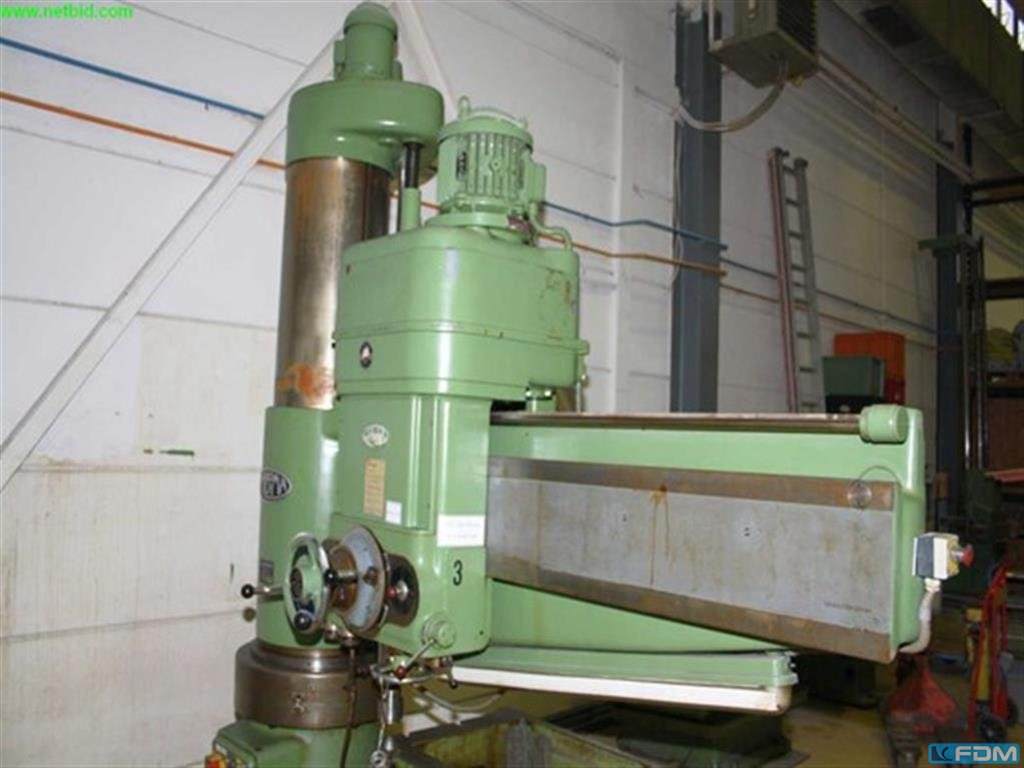

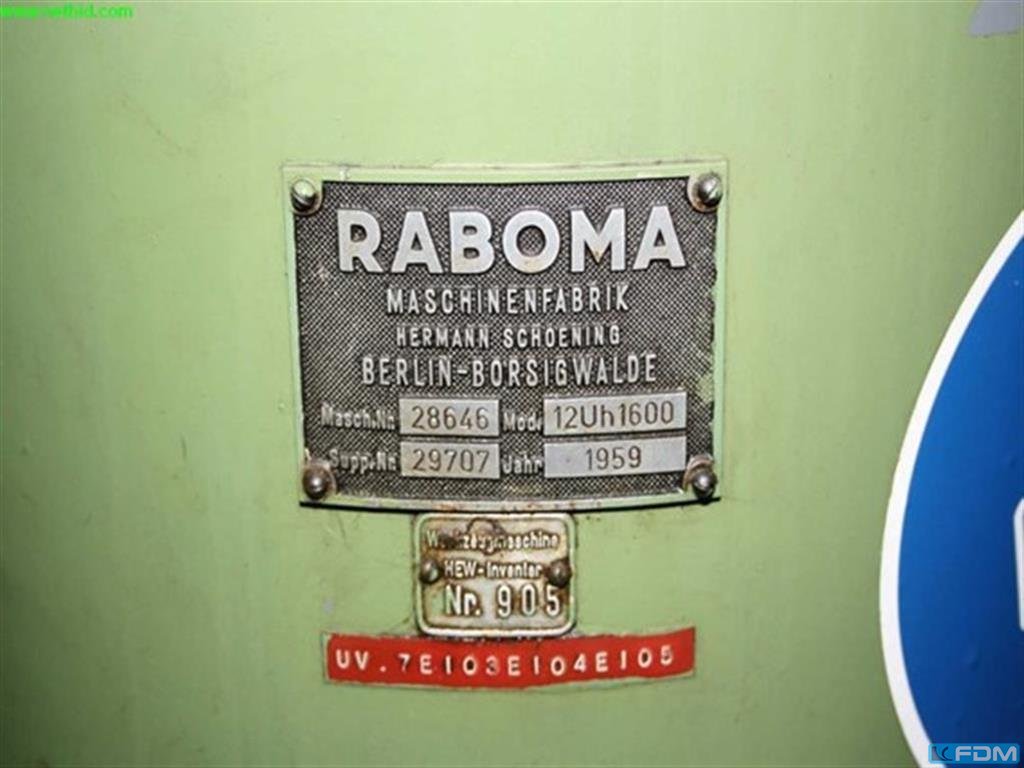

Manufacturer: RABOMA Model: 12Rh1600 Year of Manufacture: 1957 Type of Machine : Radial Drilling Machine Technical Specifications: - Max. Drilling Capacity (solid material): 75 mm - Spindle Diameter: 114 mm - Spindle Taper: MK 5 - Spindle Travel: 500 mm - Drive Power: 7.5 kW - Speed Range: 14 – 1,400 RPM Worktable Dimensions: - Top Surface: 750 × 1,000 mm - Side Surface: 530 × 1,000 mm - Base Plate: 1,000 × 1,600 mm Adjustments & Movements: - Boom Adjustment: - Vertical: 1,000 mm - Horizontal: 950 mm (lockable) - Drill Slide Adjustment: - Horizontal: 1,000 mm - Boom Swivel Range: 360° - Spindle to Table Distance: - Min: 800 mm / Max: 1,800 mm - Spindle Center to Column Distance: - Min: 600 mm / Max: 1,600 mm Find more here - / Contact us at -

Radial drill Manufacturer: Valmer Type: TR 80/2500 SP Year of Make: 2006 Table dimensions: 1,000 x 800 x 560 mm Drilling diameter max.: 80 mm Max. tap diameter: 42 mm Max. spindle axle/column distance: 2,500 mm Max. distance between spindle axle and column: 500 mm Head movement horizontally: 2,000 mm Max. distance between spindle nose and working surface: 2,000 mm Distance between spindle nose and working surface min.: 550 mm Spindle stroke: 450 mm Morse taper: MT 6 Power: 7.5 kW Machine dimensions: 3,730 x 1,400 x 3,825 mm Weight: 11,000 kg

bore capacity in steel (diameter): . mm arm length: . mm workpiece height max.: . mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The tech. Data are manufacturer or operator information and therefore non-binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Your Markus Hirsch Team The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Drilling capacity: 35mm, drill spindle taper: MT4, quill stroke: 285mm, reach: 300mm-1000mm, speed: 2500rpm, arm length: 500mm, spindle-to-base plate distance: 1000mm, base plate dimensions X/Y: 1150mm/780mm. An on-site inspection is possible.

bore capacity in steel (diameter): 32,0 mm arm length: 310 - 820 mm workpiece height max.: 370 - 870 mm turning speeds: 75 - 1220 U/min spindle taper MT: 4 MK base plate: 825 x 690 mm threading: 24 M quill stroke: 250 mm quill feed: 0,1/0,16/0,25 mm/U travel x / y: 500 / 510 mm total power requirement: 2,25 kW weight of the machine ca.: 1200 kg. range L-W-H: 1470 x 750 x 2100 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - ...

bore capacity in steel (diameter): 50,0 mm arm length: 350 - 1.590 mm workpiece height max.: 645 - 1.240 mm turning speeds: 25 - 2000 U/min spindle taper MT: 5 MK base plate: 980 x 1.600 mm threading: 42 M quill stroke: 320 mm total power requirement: 4,0 kW weight of the machine ca.: 3.500 kg. range L-W-H: 2450 x 980 x 2840 mm Description : - Large-sized base plate - ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good sliding of the drill head on the boom thanks to the ground surface scope of delivery : - Cube table - Reducing sleeves MK 5/4, MK 4/3, MK3 / 2 - LED mach ...

bore capacity in steel (diameter): 50,0 mm arm length: 320 - 1.220 mm workpiece height max.: 330 - 1.170 mm turning speeds: 25 - 2000 U/min spindle taper MT: 5 MK base plate: 1300 x 980 mm threading: 42 M quill stroke: 335 mm total power requirement: 4,0 kW weight of the machine ca.: 3000 kg. range L-W-H: 2035 x 1000 x 2830 mm Furnishing: - Large-sized base plate, ideal for processing large workpieces - Thick-walled, polished column for increased sliding properties of the boom - Extension arm and drill head with independent hydraulic clamping - Simple height adjustment of the extension arm using a lifting motor - Ideal for drilling, countersinking, reaming and thread cutting - Hardened and ground gears, running in an oil bath - Good gliding ability of the drill head on the boom - sanded surface Scope of delivery: - Cube table - Drill chuck arbor MK 5 / B 16 - Reducing sleeves MK 5/4, MK  ...

threading: 30 M bore capacity in steel (diameter): 40,0 mm workpiece height max.: 380 - 785 mm arm length: 985 mm spindle taper: 4 MK boring head swiweling right/left: -80 / +80 Grad turning speeds: 50 - 2000 U/min table surface area: 1210 x 520 mm column diameter: 220 mm column diameter: 220 mm table surface area: 1.210 x 520 mm quill stroke: 200 mm feed range - spindle: 0,08 - 0,5 mm/U total power requirement: 2,2 kW weight of the machine ca.: 2.800 kg. dimensions of the machine ca.: 2,45 x 1,2 x 2,72 m characteristics - A variety of clamping and machining options thanks to the construction-related construction - Electromotive height adjustment of the drill head without adjusting the Drilling position, ideal for deep hole drilling - Drill head can be swiveled 180 °, boom can be moved back and forth and horizontally pivotable - Thread cutting device and 6 automatic drilling feeds in ...

Radial drilling machine BR 56 x 1600 Year of construction: approx. 1965 (estimate) equipped with coolant device and drilling table as optional accessories

Witzig & Frank high-speed radial drilling machine LEO 32 AS Defects: (clamping no longer works, running noises present)

Drilling capacity (steel): 50mm, spindle speed: 1700rpm, reach: 45mm-1500mm, workpiece height range: 470mm-1500mm, sleeve stroke: 680mm, quill stroke: 350mm, spindle taper: MK5, max. tool weight: approx. 30kg. Machine dimensions X/Y/Z: approx. 2600mm/1100mm/3500mm, weight: approx. 4000kg. An on-site inspection is possible.
