rack milling used for sale

Universal Milling Machine - Digital display - Chip protection - Coolant system - Machine light - Chip tray x-travel 560 mm y-travel 300 mm z-travel 420 mm Table size 1055 x 240 mm Spindle holder ISO Sk 40 Spindle speeds 40 - 1550 rpm Total power requirement 5.5 kW Machine weight approx. 1.3 t Dimensions L x W x H 1.6 x 1.5 x 1.85 m Auction-ID: A7-46460-401

Milling machine with - Heidenhain TNC 135 - Rapid traverse - Milling head with hydr. Tool sparing - Coolant system - Central lubrication x-travel 1000 mm y-travel 450 mm z-travel 450 mm Table clamping area 1370 x 400 mm Number of T-slots 5 pcs. Spindle speeds: 32 - 1500 rpm Tool holder SK 50 Total power requirement 7.0 kW Machine weight approx. 3.1 t Dimensions L x W x H 2.1 x 1.7 x 1.9 m Auction-ID: A7-46460-409

Drilling/milling machine with: • Tapping device • Cross table with adjustable guides • Drill quill feed • Manual transmission • SK 40 mount Drilling capacity in steel 40 mm Projection 275 mm Drilling stroke 120 mm Spindle Holder MK 4 Speed range 75 - 3200 rpm Table adjustment transverse 190 mm Table adjustment longitudinal 490 mm Table clamping area 700 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1/1.5 kW Condition: never used / new (5) Auction-ID: A7-46460-404

ZAYER 4BM horizontal milling machine Technical characteristics Brand: ZAYER. Model: 4BM. Serial number: 35121. Type: Horizontal milling machine. Motor power: 11.75 HP. Power supply: 220 V. Frequency: 50 Hz. Phases: 3. Intensity: 32 A. Untested operation. The batch is delivered loaded by truck. Dismantling and loading costs are indicated as additional costs. Auction-ID: A7-46053-1

Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right Switch Head swivel left/right 90° Spindle protection. incl. toolbox with various tools Drilling capacity in steel25 mm Projection 175 mm Drilling stroke 50 mm Capacity finger milling machine 16 mm Spindle holder ISO 30 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 380 mm Table adjustment longitudinal 175 mm Table clamping area 700 x 180 mm Connection voltage 230 V max. distance between work table and spindle nose max. 320 mm Total power requirement 0.75 kW Machine weight approx. 130 kg Dimensions approx. 670 x 550 x 910 m Condition: never used / new (5) Auction-ID: A7-46460-458

Equipment: Drill chuck with ISO-30 mount Digital depth display Left/right switch. Emergency stop Swivelling drill head Spindle protection. Feed via handwheel. Small tool case Machine base optional. Drilling capacity in steel 45mm Projection 230 mm Drilling stroke 125 mm Spindle holder ISO 30 Spindle speeds 75 - 1600 rpm max. cutter diameter 80 mm Table adjustment transverse 560 mm Table adjustment longitudinal 230 mm Table clamping area 800 x 240 mm max. distance between work table and spindle nose 460 mm Connection voltage 230 V Total power requirement 1.1 kW Machine weight approx. 320 kg Space requirements approx. 1.0 x 0.8 x 1.45 m Auction-ID: A7-46460-476

Horizontal milling machine - Incl. partial table x-travel 780 mm y-travel 220 mm z-travel 410 mm Table length 1100 mm Table width 270 mm Spindle speeds 40 - 960 rpm Spindle holder SK 40 Total power requirement kW Machine weight approx. 1.7 t Space requirements approx. 1.8 x 1.6 x 1.8 m Condition: unchecked (6) Auction-ID: A7-46460-515

Drilling and milling machines: digital depth and speed display, 2 gear stages with fine adjustment and variable speed, Includes left-right switch Left and right swivel head Comes with associated tools Drilling capacity in steel 25 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 16 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 280 mm Table adjustment longitudinal 155 mm Table clamping area 500 x 180 mm Connection voltage 230 V max. distance between work table and spindle nose max. 320 mm Total power requirement 0.8 kW Machine weight approx. 150 kg Dimensions approx. 670 x 550 x 910 m Condition: never used / new (5) Auction-ID: A7-46460-414

Equipment: - Heidenhain digital display - Feed and spindle infinitely variable - Coolant system - Chip protection - hydr. Vise - Good condition - SK40 Tool Holders and Accessories see pictures x-travel 850 mm y-travel 300 mm z-travel 450 mm Table size 1100 x 250 mm Conventional control Mounting SK40 Speed range 35.5 - 1800 rpm Quill stroke mm Total power requirement 5.0 kW Machine weight approx. 1.25 t Dimensions L x W x H 1.8 x 1.7 x 1.8m Auction-ID: A7-46460-432

Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. Powerful 2-speed engine. Left/Right Switch Head swivel left/right 90° Recording MC 3 - B16. Drill chuck 3 - 16 mm. Spindle protection. incl. toolbox with various tools Drilling capacity in steel30 mm Projection 200 mm Drilling stroke 70 mm Capacity finger milling machine 16 mm Spindle mount MK3 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 565 mm Table adjustment longitudinal 220 mm Table clamping area 840 x 210 mm Connection voltage 400 V max. distance between work table and spindle nose max. 470 mm Total power requirement 1.1 kW Machine weight approx. 230 kg Space requirements approx. 0.75 x 1.05 x 1.3 m Condition: never used / new (5) Auction-ID: A7-46460-546

Equipment: - New TFT screen - Coolant system - Hydraulic tool clamping - Milling head with quill - Documentation x-travel 410 mm y-travel 310 mm z-travel 400 mm Table size 700 x 280 mm Control Heidenhain TNC 145 Mounting SK40 Speed range 40- 2,000 rpm Rapid traverse speed 1.5 m/min Feed speed 1500 mm/min Drive power 2.2 kW Quill stroke 63 mm Weight 1.3 t Total power requirement 2.2 kW Machine weight approx. 1.5 t Dimensions L x W x H 1.4 x 2.1 x 2.0 m Auction-ID: A7-46460-469

Drilling/milling machine with: • Digital display • Digital depth gauge for quills • Adjustable guides through wedge strips • Large 12-step speed range from 75 - 3200 rpm • Extremely smooth running due to hardened and ground gears running in oil bath • Right-counterclockwise rotation • Prism guides in all axes • Gear head can be swivelled 90° • Chip protection with safety circuit Machine base optional. Not included. Drilling capacity in steel 40 mm Projection 290 mm Drilling stroke 130 mm Spindle holder SK 40 Spindle speeds 75 - 3200 rpm Table adjustment transverse 500 mm Table adjustment longitudinal 230 mm Table clamping area 720 x 210 mm Connection voltage 400 V Milling cutter diameter max. 80 mm Total power requirement 1.1 kW Machine weight approx. 0.35 t Dimensions approx. 1.1 x 0.9 x 1.2 m Condition: never used / new (5) Auction-ID ...

CNC Milling Machine - Heidenhain TNC 310 with handwheel - hydr. Tool Clamps - Central lubrication - Coolant system - Machine light - Machine feet - Enclosure x-travel 600 mm y-travel 400 mm z-travel 400 mm Table size 800 x 400 mm Spindle holder ISO Sk 40 Spindle speeds: 10 - 3150 rpm Quill stroke mm Total power requirement 12.0 kVA Machine weight approx. 2.2 t Dimensions L x W x H 2.0 x 1.85 x 1.95 m Auction-ID: A7-46460-587

Milling unit with holder for disc cutter sepatae drilling unit Deh Speeds 1750rpm 1.5 KW Pneumatic clamping unit see pictures Auction-ID: A7-46460-573

Universal tool milling machine - Digital display - Horiz. Milling device - Coolant system - Vise - Instruction manual x-travel 600 mm y-travel 410 mm z-travel 200 mm Speed range - horizontal 30 - 1280 rpm Speed range - vertical 50 - 2150 rpm Head swivels +/- 90° Spindle holder ISO SK40 Table area 1000 x 315 mm Total power requirement 3.2 kW Machine weight approx. 1.44 t Space requirement approx. 1.6 x 1.7 x 2.1 m Condition: unchecked (6) Auction-ID: A7-46460-538

Milling machine with - Toolmaker's table - Heidenhain digital display - Rapid traverse - Coolant system - Central lubrication - Machine feet - Incl. drawer cabinet with contents x-travel 600 mm y-travel 400 mm z-travel 400 mm Table clamping area 720 x 410 mm Spindle speeds 40 - 2000 rpm Tool holder SK 40 Total power requirement 3.0 kW Machine weight approx. 1.4 t Dimensions L x W x H 1.8 x 1.6 x 1.9 m Auction-ID: A7-46460-411

Drilling and milling machine with - Variable spindle speed - Cross support - Rotatable spindle head left/right 90° - Feed via hand crank Drilling capacity in steel 16 mm Projection 185 mm Drilling stroke 50 mm Capacity finger tiller 20 mm Spindle Holder MK 2 Spindle speeds 100-1500 / 200-3 rpm Table adjustment transverse 175 mm Table adjustment longitudinal 280 mm Table clamping area 500 x 180 mm Connection voltage 230 V Total power requirement 0.85 kW Machine weight approx. 0.12 t Space requirement approx. 0.86 x 0.6 x 0.9 m Condition: never used / new (5) Auction-ID: A7-46460-504

Drilling and milling machine with - Variable spindle speed - Digital depth display - Left/right switch - Cross support - Swivelling spindle head - Feeds via hand crank - Tool case with contents Drilling capacity in steel 13 mm Projection 170 mm Drilling stroke 50 mm Capacity finger milling machine 13 mm Spindle Holder MK 2 Spindle speeds: 50 - 3000 rpm Table adjustment transverse 220 mm Table adjustment longitudinal 160 mm Table clamping area 500 x 140 mm Connection voltage 230 V Total power requirement 0.5 kW Machine weight approx. 0.06 t Space requirement approx. 0.6 x 0.45 x 0.76 m Attention: Machine is without digital display! Condition: never used / new (5) Auction-ID: A7-46460-488

Key data: 600 mm, 400 mm, 400 mm

MAHO MH 600 E CNC milling machine – used, functional (only for commercial use) For sale is a MAHO MH 600 E CNC milling machine from 1989 in used condition. The machine shows signs of wear and tear according to its age, but is basically in functional condition and is currently under power, so that an inspection and demonstration during operation is possible at any time by arrangement. Technical data: Travels: X 600 mm / Y 450 mm / Z 450 mm Spindle speed: max. 4,000 rpm Tool holder: SK40 Condition / Notes: Machine running and ready for use All axes can be moved Control system functional Z-axis clearly audible during the process (according to the fitter's statement, not unusual for this type) Slipper clutch of the Z-axis is oily and should be replaced when the opportunity arises Note: Sale only to tradespeople Under exclusion of any warranty and guarantee N ...

Spindle vertical stroke 150 mm Table size 1300x450 mm For ISO 40 cones Max piece weight about 1000 kg Accessories and tools INCLUDED DISMANTLING AND LOADING COST: EURO XXXXXXXXXX Note: The functionality of the goods has not been verified. They are sold in their existing state, without warranty of operation. Auction-ID: A7-45789-28

Multi-purpose machine rarity Circular saw, milling machine, slotted hole drilling machine in one machine Solid Casting Block Auction-ID: A1-46501-2596

Bäuerle table milling machine with swivelling table Auction-ID: A1-46501-2584

Auction-ID: A1-46501-2986

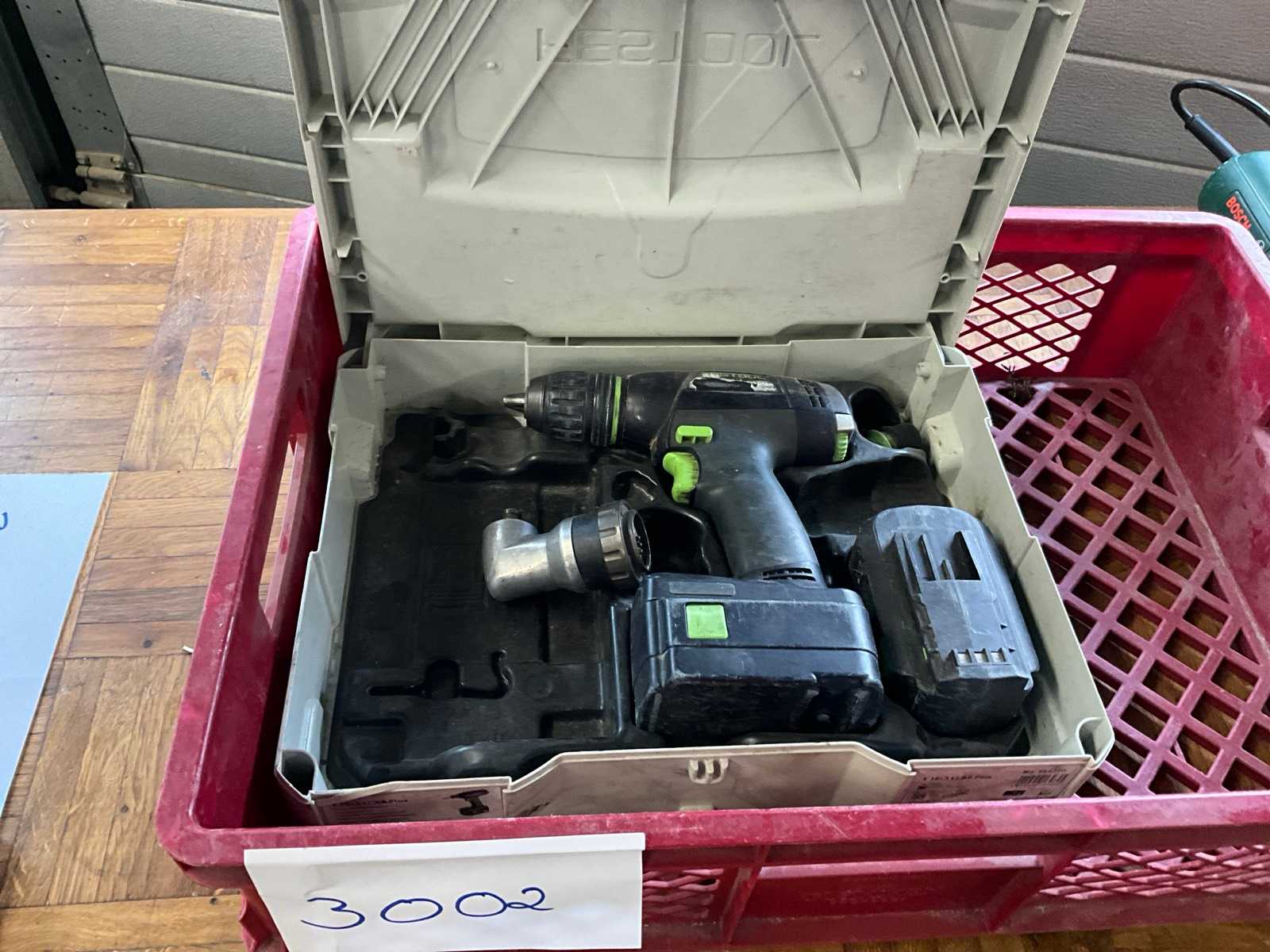

Festool cordless screwdriver with two batteries in plastic box Bosch Lamello milling machine green, 220V Black & Decker, Eccentric Sander 220V In plastic box Auction-ID: A1-46501-3002

milling unit with double segment suspension, Quick-change system for milling spindle Milling table opening 230 mm, Under-sink extraction Electric height adjustment of the tiller Electric angle adjustment 90°-45° with end stops in the end positions Digital LED display for milling spindle height and waves Milling spindle D-30 mm, shank length/clamping length/ Effective length (90°) 117/124/115 mm, 3500/6500/8000/10,000 rpm Dispensing and slotting table Z ANODIZED length 1000 mm, table movement 1000 mm Sliding table prepared Tap and slot clamping set.Router table size with Sliding table L = 1010 mm x W = 760 mm Milling fence \"230\" Milling fence with infinitely variable fine adjustment of the acceptance side, quick clamping ADDITION: Feeder S\"308\" 3 x 400 V - 50 Hz Technical data: 8 feed speeds: 3.2/6.3/8.3/ 12.5/16.7/25/32/63 m/min., forward and return 3 wheels, D= 120 mm Roll wi ...

LAMELLO ZETA P2 CORDLESS GROOVE MILLING MACHINE, DIA The battery-powered P-System groove milling machine, with which all connecting fittings of the Lamello P-System can be milled quickly and precisely. After changing the milling cutter, classic flat dowels can also be milled in. TECHNICAL DATA Voltage: 18 V Speed: 9,000 rpm Cutting Material: DIA Number of cutting edges: Z3 Max. milling depth: 20 mm Weight: 3.7/4.1 kg with battery 4.0Ah/5.5Ah FEATURES AND BENEFITS Fast, form-fitting anchoring of all P-System fittings. After changing the milling cutter, classic flat dowels made of wood can be milled in. Member of the \"Cordless Alliance System\" CAS → batteries from external companies of the CAS compatible. Time saved, as fittings are simply inserted by hand - no additional fastening material required. A wide variety of mounting brackets can be realized by swivel stop. Cabinet connec ...

Auction-ID: A1-46501-2133

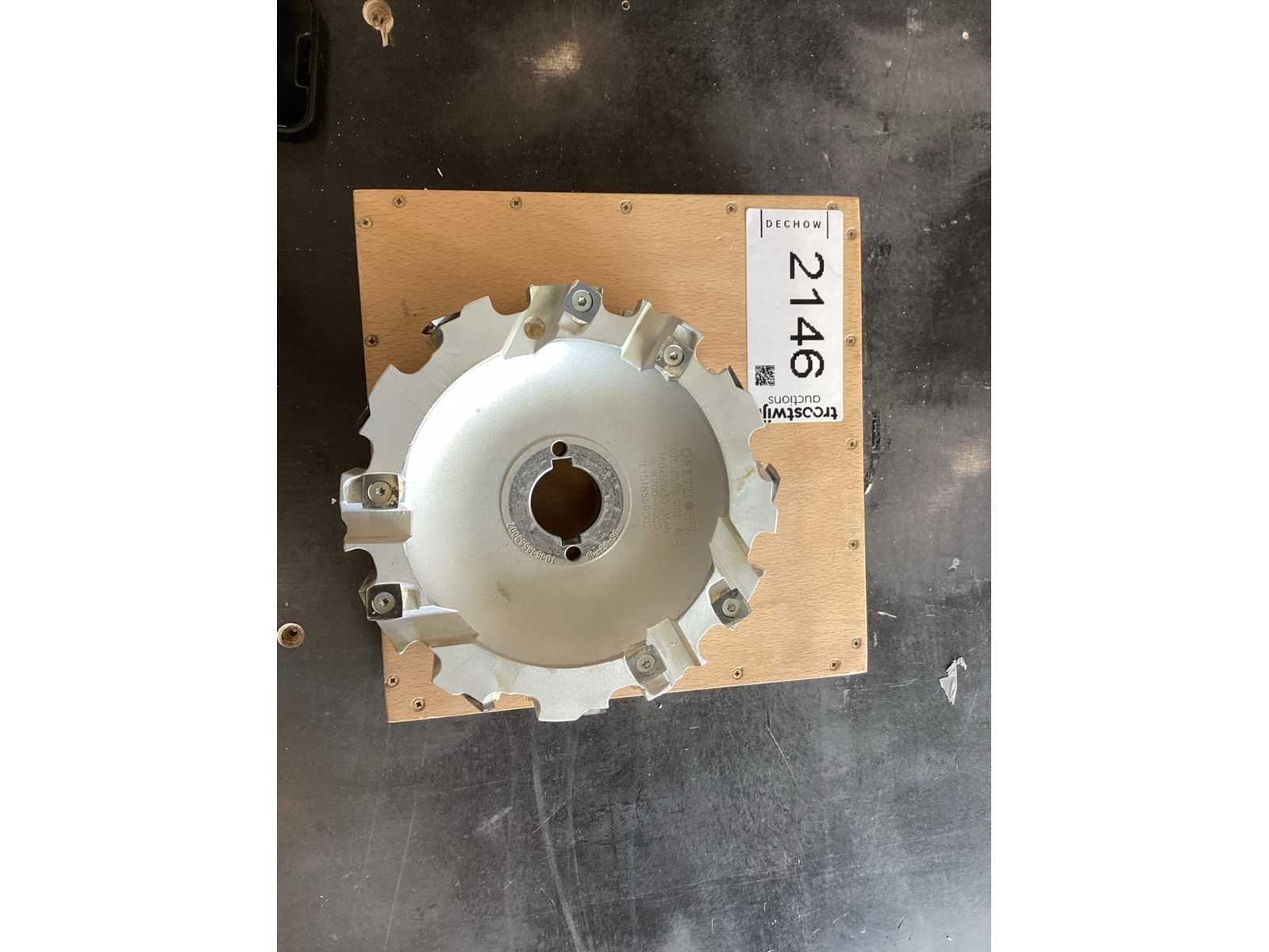

Oertli high-performance folding cutter with indexable inserts Z3 Auction-ID: A1-46501-2146

Auction-ID: A7-46327-40

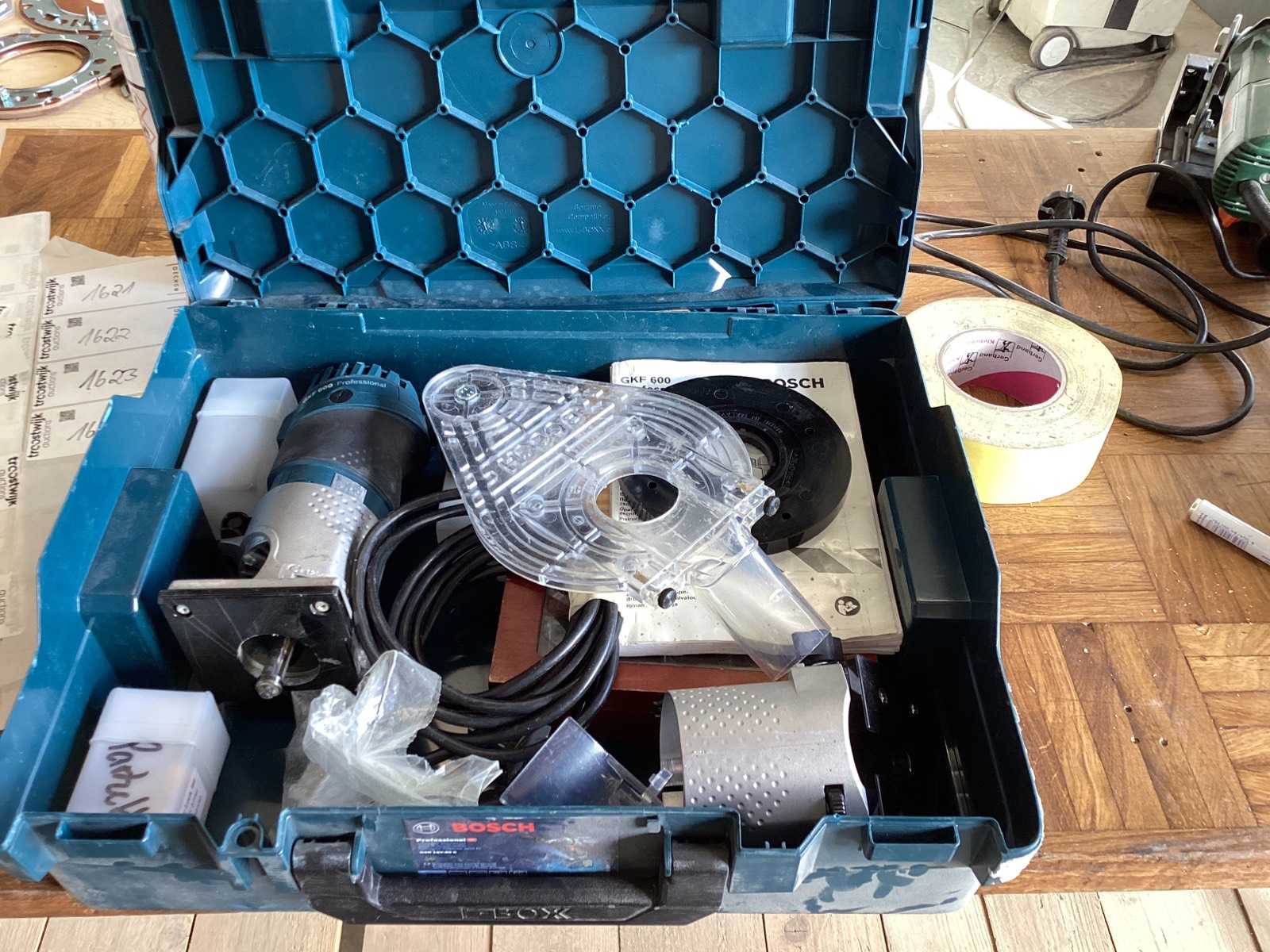

Bosch professional (blue) L-Box GKF 600 Professional 220 Incl. various milling cutters in a set incl. various accessories see pictures Auction-ID: A1-46501-808

Profile milling system for tongue and groove connections e.g. parquet, wall cladding,... Auction-ID: A1-46501-2064

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm FLOOR PLATE:. - clamping surface (left-right):7000 mm - clamping surface (front-back):2000 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELE ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.
