ra used for sale

bore capacity in steel (diameter):40 mm arm length:1250 mm workpiece height max.:1390 mm Dist. spindle nose & working surface base:350 - 1260 Spindle travel:315 max. boring diameter:40 mm Distance between spindle axis and column:350 - 1260 spindle taper:4 MK Range of spindle speeds:22,4 - 2800 Number of spindle speeds:16 Number of spindle feeds:16 Table:500 x 630 Travel of spindle head:900 mm total power requirement:3,5 kW dimensions of the machine ca.:2150x1070x2840 m feed:0,09 - 1,5 m/min weight of the machine ca.:3 t

bore capacity in steel (diameter):45 mm WORKING RANGE -BORING-:. - drilling capacity full bore (steel):45 mm - drilling capacity full bore (cast iron):55 mm - horizontal travel:1050 mm - vertical travel:450 mm - sleeve stroke:200 mm WORKING SPINDLE / HEAD:. - spindle revolutions (min):15 /min - spindle revolutions (max):2800 /min - number of gears:2 - taper fixture : MK 4 :. - spindle power (continuous):5.5 kW - torque (max.):250 Nm - max. distance spindle ... clamping surface:710 mm - thread cutting attachment : yes :. TABLE:. - clamping surface (left-right):1200 mm - clamping surface (front-back):750 mm ELECTRICAL SPECIFICATIONS:. - total power consumption:7 kW - mains power supply:9.3 kVA - mains voltage:400 V - mains frequency:50 Hz DIMENSIONS / WEIGHTS:. - space requirements length:3000 mm - space requirements width:3000 mm - total height:3000 mm - total weigh ...

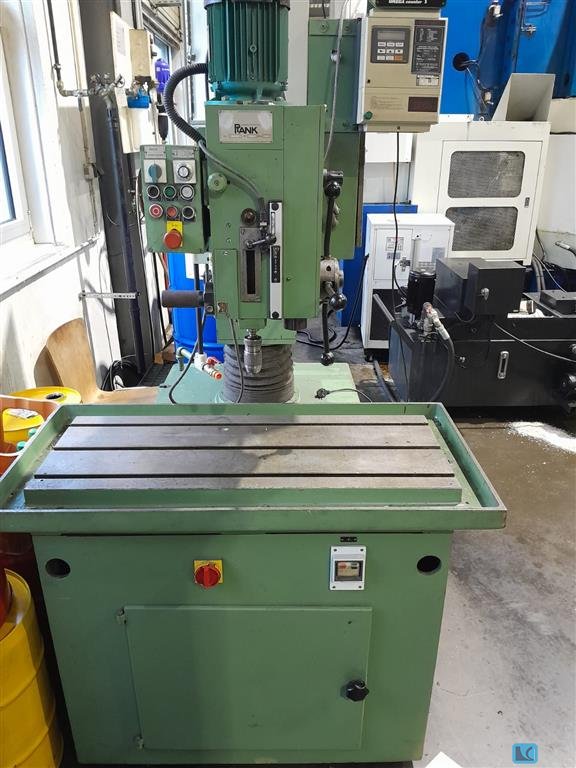

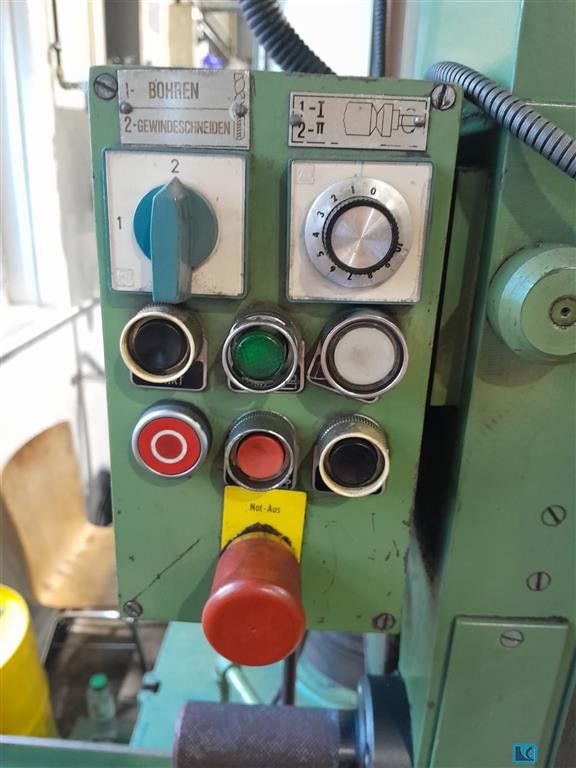

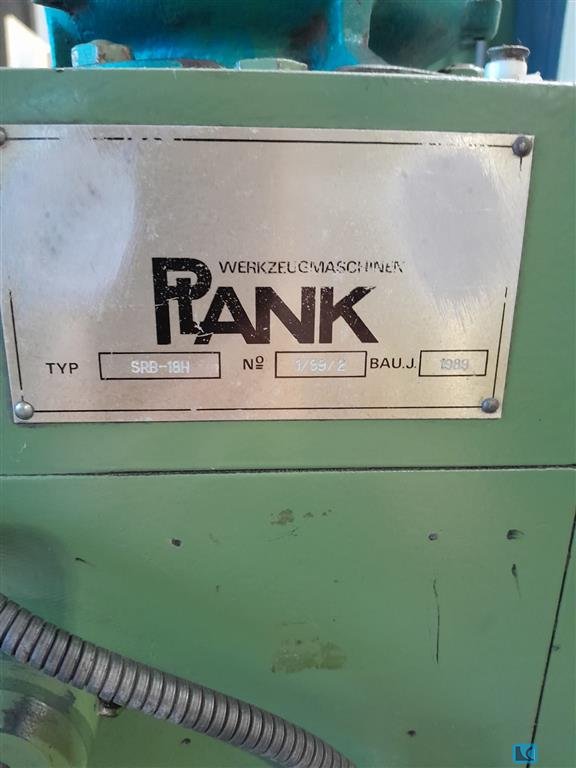

bore capacity in steel (diameter):1-13 mm arm length:100 mm workpiece height max.:400 mm total power requirement:3 kW dimensions of the machine ca.:2.0 x 1,2 x 2,2 m bore spindle turning speed range:0-3000 U/min boring spindle drive:2,2 kW max. Y-axis travel:550 mm max. Z-axis travel:300 mm The machine has a 2.2 kW spindle motor with a 2-stage gearbox for drilling and tapping. Table size is 100 x 50 cm Stroke length approx. 200 mm

spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW Machine Technical Data ·Machine weight: approx. 130 t including accessories ·Z travel (ram): 1250 mm ·W axis (spindle): 1000 mm ·Sleeve extension: 1250 mm ·Sleeve dimensions: 450 x 450 mm ·Boring spindle stroke: 1000 mm ·Boring spindle speed: 920 rpm Rotary Table: ·Motor driven rotary table ·IOS 40 ·CNC control ·2 axes B and V ·Rotary table size: 3000 x 3500 mm ·Rotary table CNC IOS 40 NC Indexing and Accuracy: ·Infinitely adjustable ·Diameter related ·Indexing: 4 x 90 degrees up to 360000 ·Angular resolution: 0.001 degrees Travel Ranges: ·Longitudinal cross travel: 1230 mm Load Capacity: ·Maximum rotary table load: 40 t Clamping Plate: ·Clamping plate: 3 x 8000 x 2000 mm

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

bore capacity in steel (diameter):63 mm arm length:2000 mm workpiece height max.:135 mm spindle stroke:400 mm reus:16 Stufen table-size:630 x 800 mm tool taper:MK 5 speeds:20 - 1600 U/min spindle feeds::0,04- 32 mm/U work table::800 x 630 x 550 mm total power requirement:5,5 kW weight of the machine ca.:6200 kg dimensions of the machine ca.:3100 x 1250 x 2500 mm Year:ca. 1990

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

bore capacity in steel (diameter):40 mm arm length:1200 mm workpiece height max.:1227 mm surface area:1475 x 900 mm no. of flutes:3 groove width:25/ 50 mm spindle cone:MORSE 4 number of spindle speeds:45- 2800 U/min spindle headstock:Bew.Arm : 945 mm with vertical adjustment:Arm 710 mm spindle diameter:35 mm bore depth:300 mm total power requirement:3,0 kW weight of the machine ca.:2800 kg dimensions of the machine ca.:2290 x 910 x 2860 mm

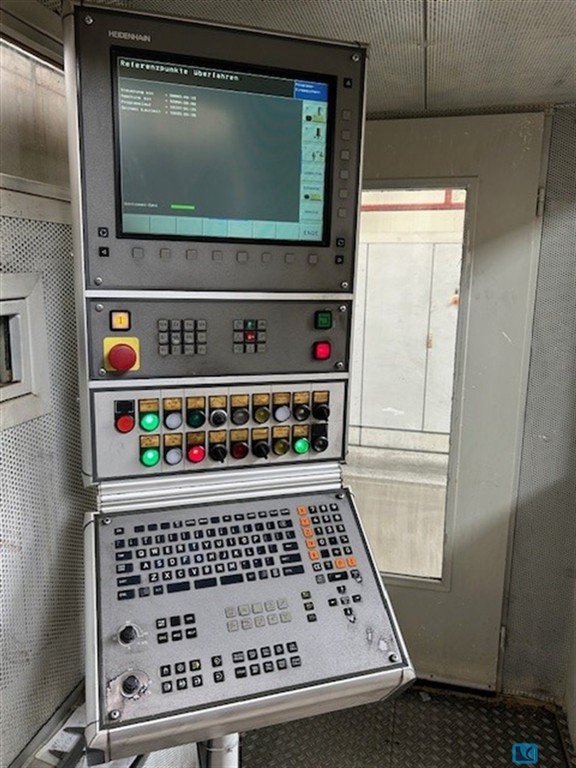

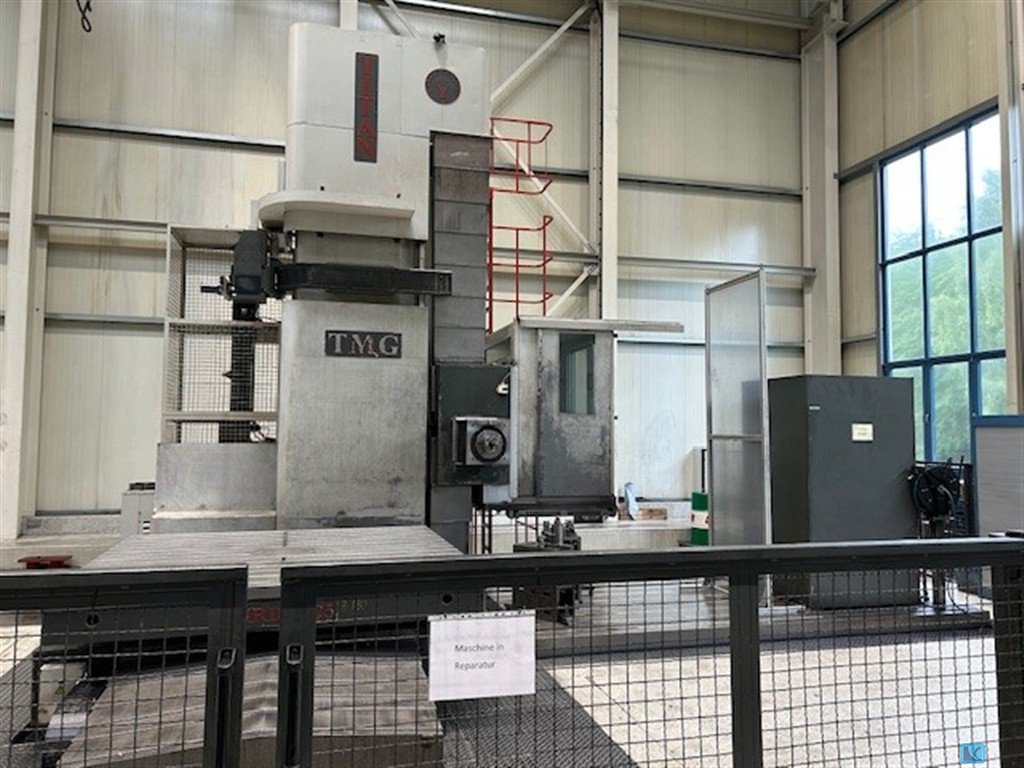

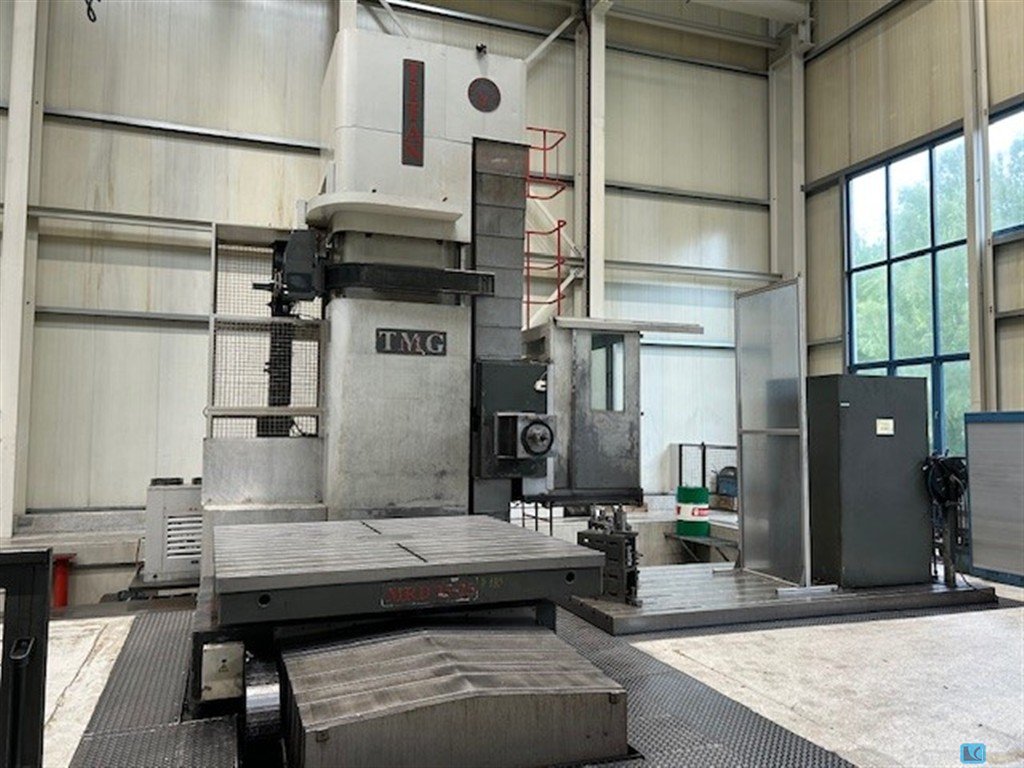

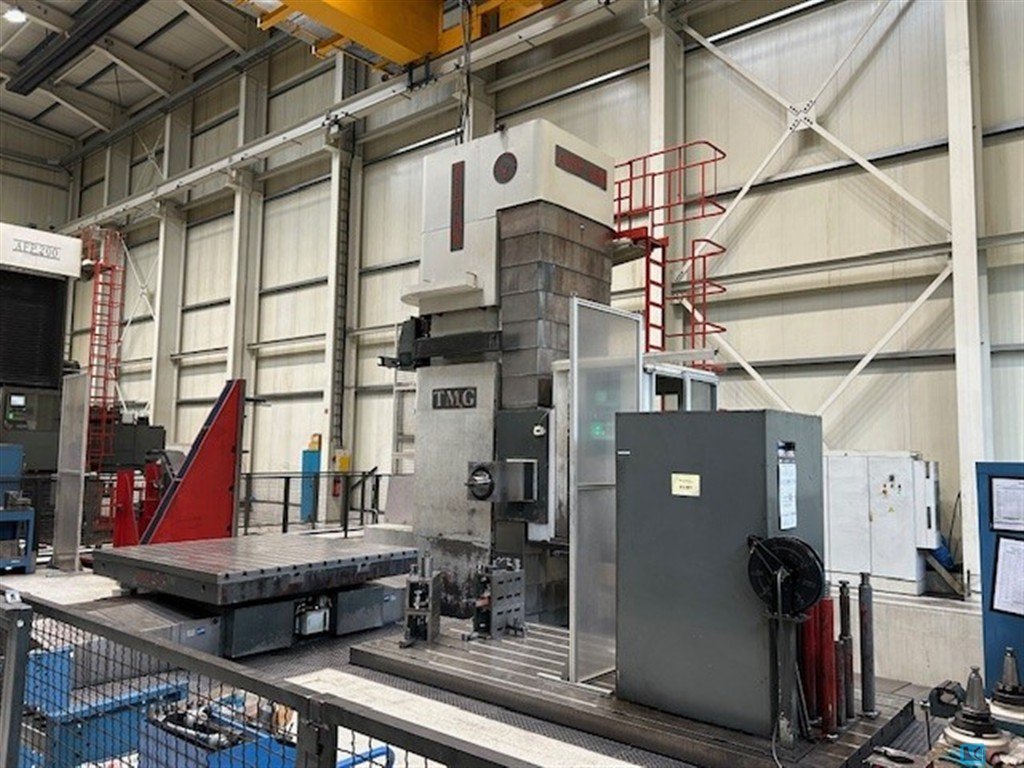

spindle diameter:160 mm x-travel:6500 mm y-travel:3000 mm W-axis (spindle longitudinal):1000 mm dimension of the ram:400 x 420 mm ram stroke:1000 mm bore spindle turning speed range:1 - 2000 U/min spindle taper ISO:50 feed speeds:2 - 6000 - 8000 mm/min rapid speed:8/10 m/min total power requirement:100 kW weight of the machine ca.:76 t dimensions of the machine ca.:12 x 4 x 7,5 ( 5,4 ü.F. ) m with CNC Steuerung HEIDENHAIN iTNC 530 autom. toolchanger 40-pockets autom. Pickup Station for universal milling head, and facing head rotary table 2500 x 2500 mm , max load 25 to. 1500 mm longitudinal movement floor plate 4000 x 2000 mm measuring probe, chip conveyor and coolant attachment

bore capacity in steel (diameter): 40.0 mm thread cutting attachment: M 30 spindle taper MT: 4 MK table surface area: 1200 x 500 mm turning speeds: 50 - 2000 U/min arm length: 1050 mm column diameter: 220 mm spindle stroke - max.: 200 mm feed range: 0.08 - 0.50 mm/U distance spindle /table: 760 mm weight: 2740 kg range L-W-H: 2450 x 2450 x 2800 mm Original price approx. 20.000 Euros Special price on request Equipment: - Robust electro-hydraulic radial drilling machine - Sturdy construction ensures vibration-free operation - Compact design with electro-hydraulic quick-clamping system - Infinitely variable speed adjustment (50–316 + 316–2000 rpm) - Digital speed display - Motorized height adjustment of the drill head - Drill head swivels 180° - Arm movable forwards/backwards and swivels horizontally - Clockwise/counter-clockwise spindle rotation - Manual & automatic spindle feed - L ...
