punching table used for sale

- Including SheetMaster - Resonador is not in use, pending revision - Working area laser (X x Y): 2.585 x 1.650 mm - Working area punching (X x Y): 3.085 x 1.740 mm - Working area punching / laser (X x Y): 2.585 x 1.650 mm - Simultaneous positioning speed: 108 X+Y m/min - Max. workpiece weight: 230 kg - Punching force: 220 kN - Punch diameter max: 76,2 mm - Control: SIEMENS SINUMERIK 840 D - Material thickness (punching) max: 8 mm - Axis speed [X axis] max: 90 m/min - Axis speed [Y axis] max: 60 m/min - Laser Output: 2,4 kW - Laser Type: CO2 - Machine ON Working hours: 63.909 h - Beam ON Working hours: n/a - Number of turret stations (pcs): 18 - Consumption values CO2: 1 l/h - Consumption values He: 13 l/h - Consumption values N2: 6 l/h - Weight: 23.000 kg - Dimensions (long x wide x high): 8.700 x 7.800 x 2.400 mm

Used machine in good condition. Available for immediate delivery. - Max. workpiece weight: 75 kg - Punch diameter max: 38 mm - Axis speed [Y axis] max: 60 m/min - Power supply: 17 kVA - Turret rotation: 180 r/min - Compressed air pressure min: 6 bar - Control type: BOSCH Typ 3 - Simultaneous positioning speed (X / Y): 108 m/min - Number of turret stations (pcs): 9 (multitools) - Axis speed [X axis] max: 90 m/min - Operating hours: 26.751 - Punching force: 180 kN - Working area max: 1.270 x 1.270 (2.020 repositioning) mm - Material thickness (punching) max: 6,4 mm - Power: installed max: 400 kW - Power: installed max: 8 kW - Weight: 8.000 kg - Dimensions (long x wide x high): 4.100 x 5.700 x 2.070 mm

Used machine in good condition. Available for immediate delivery. - Axis speed [X axis] max: 90 m/min - Number of turret stations (pcs): 9 (multitools) - Simultaneous positioning speed (X / Y): 108 m/min - Control type: BOSCH Typ 3 - Compressed air pressure min: 6 bar - Turret rotation: 180 r/min - Power supply: 17 kVA - Axis speed [Y axis] max: 60 m/min - Punch diameter max: 38 mm - Max. workpiece weight: 75 kg - Operating hours: 26.751 - Working area max: 1.270 x 1.270 (2.020 repositioning) mm - Punching force: 180 kN - Material thickness (punching) max: 6,4 mm - Power: installed max: 8 kW - Power: installed max: 400 kW - Dimensions (long x wide x high): 4.100 x 5.700 x 2.070 mm - Weight: 8.000 kg

CadCam DXF integrated TruTops 2000 on machine software Extended version - working area: 2.500x1.250mm Cassetters included - Material thickness (punching) max: 6,4 mm - Axis speed [X axis] max: 90 m/min - Number of turret stations (pcs): 9 (multitools) - Simultaneous positioning speed (X / Y): 108 m/min - Control type: BOSCH Typ 3 - Compressed air pressure min: 6 bar - Turret rotation: 180 r/min - Power supply: 17 kVA - Axis speed [Y axis] max: 60 m/min - Working area max: 2500x1250 mm - Punching force: 180 kN - Punch diameter max: 38 mm - Max. workpiece weight: 75 kg - Power: installed max: 8 kW - Power: installed max: 400 kW - Dimensions (long x wide x high): 4.100 x 5.700 x 2.070 mm - Weight: 8.000 kg

Including tools and Software Tru Tops - Material thickness (punching) max: 6,4 mm - Operating hours: 26.751 - Axis speed [X axis] max: 90 m/min - Number of turret stations (pcs): 9 (multitools) - Simultaneous positioning speed (X / Y): 108 m/min - Control type: BOSCH Typ 3 - Compressed air pressure min: 6 bar - Turret rotation: 180 r/min - Power supply: 17 kVA - Axis speed [Y axis] max: 60 m/min - Working area max: 1.270 x 1.270 (2.020 repositioning) mm - Punching force: 180 kN - Punch diameter max: 38 mm - Max. workpiece weight: 75 kg - Power: installed max: 8 kW - Power: installed max: 400 kW - Dimensions (long x wide x high): 4.100 x 5.700 x 2.070 mm - Weight: 8.000 kg

Includes interesting set of tools - Turret rotation: 30 r/min - Compressed air pressure min: 6 bar - Control type: SIEMENS SINUMERIK 840D - Operating hours: n/a - Number of turret stations (pcs): 20 - Axis speed [X axis] max: 120 m/min - Max. workpiece weight: 13.000 kg - Punch diameter max: 89 mm - Axis speed [Y axis] max: 60 m/min - Power supply: 35 kVA - Punching force: 300 kN - Working area max: 3.074 x 1.565 mm - Material thickness (punching) max: 8 mm - Oil tank capacity: 200 l

Min size 10x10 mm Max size 260 x 280 mm Banding device In/line Busch BD30 Automatic banding device Min banding sizes 25 x 60 mm Max banding size 140 x 200 mm Speed 14 cycles per minute - 840.000 sheets per hour Banding width 20/30/40 mm Banding materials PE-foil Details operated by light curtain, once the operator pulls away their hands the machine will make a cycle, PLC diagnostics display readout for BD30 condition excellent Unit BD30 all pneumatic revised until leak free after order a few more things will be performed Available failry soon after order

Automatic punching machine double stand Pressure 125 ton Stroke 10 - 80 mm Stroke rate 50-300 1/min Stand width 1180 mm Table area 1150 x 850 mm Continuous opening in the table 1000 x 220 mm Plunger area 1210 x 550 mm Plunger adjustment 100 mm Material width feed 350 mm Material thickness - 6 mm Punching system incl. Feed Model RS 350 SL Levelers Kohler Reel

very well preserved automatic machine with/without motor reel

Muhr & Bender KBL 65-30 Optima B profile punching machine Type KBL 65-30 Year of construction 1975 Central lubrication Electrical triggering of the movement via foot pedal 5 tool stations Stop for long material Punch Punch 30mm in 17mm 24mm in 21mm Quick-change device for stamps Profile scissors 1. Z-profile 90° 140mm 2. Angle iron 90° 130x12mm 3. Square aisles 50mm 4. Round iron 55mm 6. T-iron 180mm 7. U-iron 90° 180mm 8. T-iron 90° 100mm Bar steel shears for material 45kp mm² strength 1. Flat iron up to max 60x28mm or 120x18mm 2. Angle iron 80x10mm 3. Square aisles 40mm 4. Round iron 45mm 6. T-iron 80x10mm 7. U-iron 100mm 8. T-iron 100mm Plate shears 1. with knife 13° = 13mm 2. with knife 2.5°= 140x9mm / 220x8mm 3. with knife 5° = 140x13mm / 220x12mm 3 phase current.- Frequency 50 Hz / 4 ...

Details Name Bost SP 142-ER ID PP-28816 Category Flatbed The Cutters Manufacturer Bobst Model SP 142-ER Year 1979 Speed 6000 sheets/h size 1420x1020 mm Min. Size 700x500 mm Condition Good Location Europe Availability Immediately Description • Double stripping • Cutting force 600 t • Working hours: 53000

with CNC X amp; Y positioning table for punchstation equipped with 3 punching units which can be selected with the CNC control Fagor Electric backgauge for flat shear Punching cap: 100 ton Dia x sheet thickness: 31 x 26 mm / dia 100 x 8 mm 28 strokes/min Depth of throat: 610 mm Max hole dia: Ø 100 mm Max cutting-thickness in plate: 600 x 15 mm /nbsp;400 x 20 mm Blade length: 605 mm 90°-cut corner: 152 x 152 x 13 mm 45°-cut corner: 70 x 70 x 7 mm Cut to length round/square: 50 mm Max material thickness by notching: 90 x 52 x 13 mm Power: 9 kW Weight: 3,3 ton

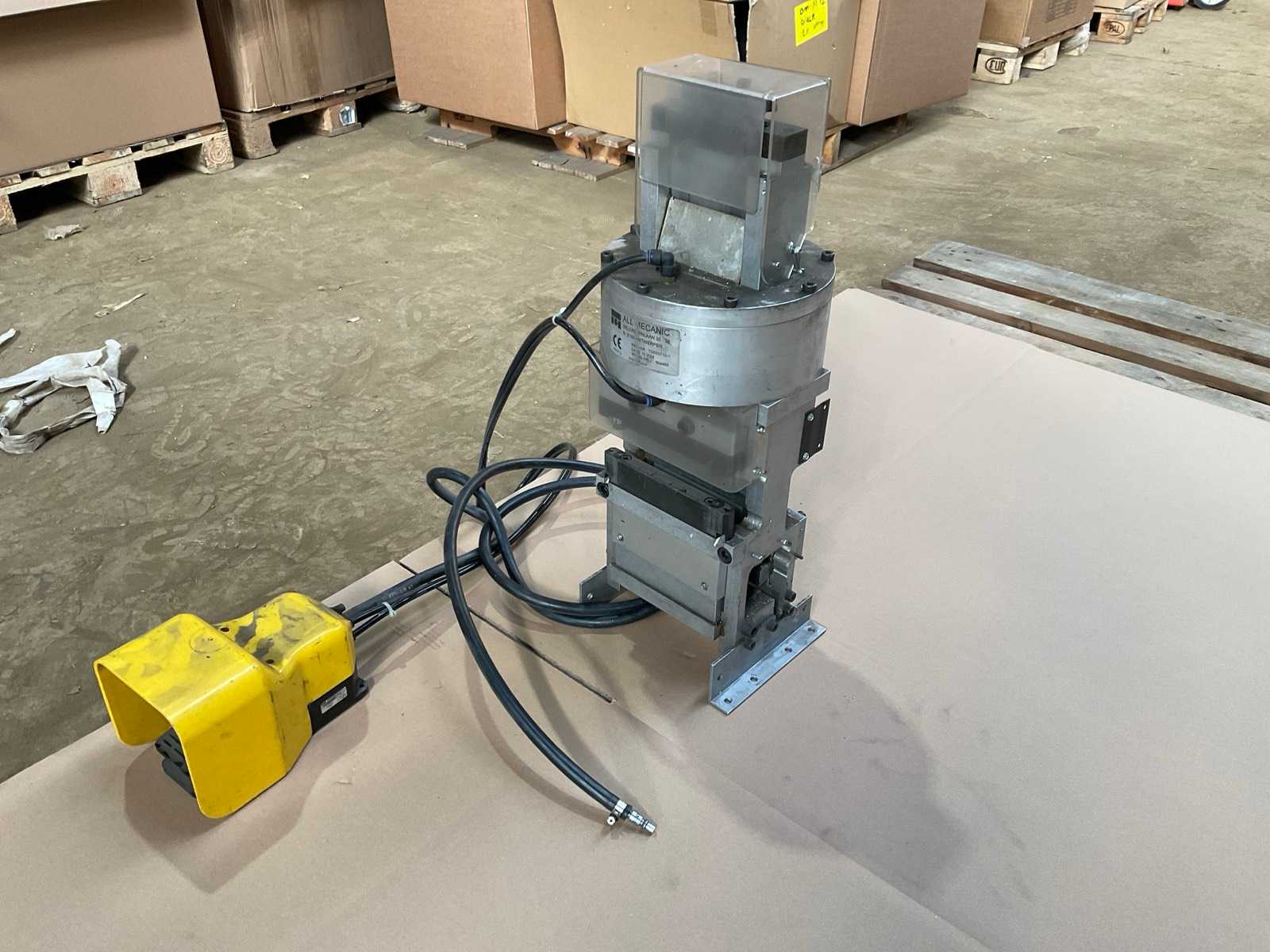

Register punch EUROTRON IND-XR 500, year of construction 2004, serial number S1-2004-1, with adjustable X-axis and Y-axis see result Photo of test, in good condition, immediately available If you are interested, we will also be happy to inform you about other machines in our company. You are welcome, by prior appointment, to visit the machine in our house.

Register punch Hunkeler RE 320, Photocells Working width 42cm+ Machine number 4763-20, in good condition, immediately available If you are interested, we will also be happy to inform you about other machines in our company. You are welcome, by prior appointment, to visit the machine in our house.

Punching force 80 tons punching capacity Ø 25 x 23mm Diameter x thickness Ø 50 x 12mm Projection 310mm stroke length 100mm Stroke rate at 20mm 28 / minute Table size 700 x 500mm Working height 1050mm Motor power 5.6kW Model weight 1960kg Dimensions LxWxH 1280x865x1980mm

Single column hydraulic press, straightening press, punching bar ECKOLD press frame with hydraulic cylinder, mobile press, punching unit type RSD 1500 - 125 Masch. No. 317 / 690 Year of construction approx. 1986 Compressive force 150 ton. Projection 125 mm Ram stroke 35 mm Table size 280 x 210 mm Ram surface 125 mm Installation height (tappet to table) max. 265 mm Table height above corridor 403 mm Hydraulic operating pressure max. 500 bar - without hydraulic unit tappet surface with 4 threads M16 and 20 mm guide groove, in the middle a centering hole 15 mm- 1 piece high-pressure hydraulic hose with male thread M30x1.5 mm , Hose length 4 meters - 1 piece High pressure hydraulic hose with union nut M30x1.5 mm, hose length 4 meters Space requirement L x W x H 700 x 300 x 1450 mm Weight 1250 kg good condition; used

1250 x 1250 with reposition 27 station with 3 index - Very good condition

Standard configuration Machine ? Stable C-frame for easy access ? Coordinate guide for high-precision machining ? Linear magazine, 3 clamps ? Maintenance free drives ? Repositioning device with programmable presser foot ? Parts chute 500 x 500 mm ? Good parts container ? Swarf bucket Cutting head ? Hydraulic punching head ? Single tool adapter ? 360? rotation of all tools ? Programmable presser foot ? Tool length compensation ? Spray lubrication for punches ? Vacuum slug removal ? Forming Control ? Open control system based on BOSCH ? Control panel with TFT colour screen 12.0? ? Program management ? Online-help ? Integrated technology data ? Diagnostic functions ? Teleservice Programming ? Machine-oriented shopfloor programming Data transmission ? Disc drive and network connection Safety ? CE marking ? Light barriers ? Rapid hydraulic shutdown Additional equipment ? Function Mul ...

Standard configuration Machine ? Stable C-frame for easy access ? Coordinate guide for high-precision machining ? Linear magazine with 17 tool stations, 2 clamps ? Drives with maintenance free 3-phase servo motors ? Repositioning unit with programmable stripper ? Ball tables ? Parts chute 180 x 150 mm ? Swarf bucket ? Punching head ? Hydraulic punching head ? Rotatable single tool adapter ? 360? rotation of all tools ? Programmable presser foot ? Tool length compensation ? Spray lubrication for punches ? Vacuum slug removal ? Forming Control ? Controller based on Bosch PNC-P ? Control panel with 15 TFT color touch screen ? Easy to use ? Online-help ? Integrated USB interface ? RJ 45 network connection ? Diagnostic functions Safety ? CE marking ? Light barriers ? Rapid hydraulic shutdown Additional equipment ? Function Multitool ? Function MultiShear ? Function Roller Technology ?  ...

Standard configuration ? Stable C-frame ? Coordinate guide with integrated linear magazine, 18 tool stations, automatic tool changer, 3 clamps ? Automatic parts chute 500 x 500 mm ? Parts container ? Drives: Maintenance-free, three-phase servo motors ? Programmable presser foot for repositioning ? Punching head: Hydraulic single tool adapter, 360? rotation of all tools, automatic tool length compensation, spray tool lubrication, 2nd lubricant container, programmable stripper movement, vacuum slug removal, swarf bucket ? Control: 32 bit microprocessor control TRUMAGRAPH CC 220 S, 10.4 color screen, programmable logic controller, easy to use, diagnostic functions, graphic programming TRUMAGRAPH, integrated 3.5 disk drive, RJ45 network connection ? Safety: CE marking, multi-beam light barriers, rapid hydraulic shutdown Additional equipment ? Function MultiTool ? Pneumatic repositioning  ...

Standard configuration ? Stable C-frame ? Coordinate guide with integrated linear magazine, 11 tool stations for tools and clamps ? Drives: Maintenance-free, digital three-phase servo motors ? Punching head: Hydraulic system with closed control loop, single tool adapter, 360? rotation of all tools ? Automatic repositioning device with programmable presser foot ? Vacuum slug removal ? Swarf bucket ? Brush tables ? Parts chute 200 x 200 mm and sorting of parts into 2 containers ? 2 parts containers ? Controller BOSCH Type 3, activity-oriented user interface, Online help, diagnostic functions, 3.5 disk drive, BNC/RJ45 connection, TFT color screen 10.4 ? Graphic programming ToPs 2000 ? Safety: CE marking, multi-beam light barriers, rapid hydraulic shutdown Additional equipment ? MultitShear ? MultiBend ? SoftPunch ? Table extension ? Start post

Length minimum: 2500 mm Length maximum: 5000 mm Capacity round: 1270 mm Capacity square: 1270 mm Thickness maximum: 6 mm LKI 250 loading arm PR 250 un-loading arm Storage Tower    Table load:                      150 Working area X Axis:             2500mm Working area Y Axis:             1270mm Working area X Axis with override:5000mm Punching force:                  20T Maximum sheet thickness:         6,4mm Turret position:                 31 Auto indexing positions:         3 Positioning speed X and Y Axis:  128.000mm/min. Change speed revolver:          &nbs ...

Magazzino DANOBAT 3 mt. 15 postazioni Circa 15 aanni

AIDA A-SF-7000S (40 ton) press year `2005 for sale. For more information, contact by email (koma7240daum.net) or whatsapp (+821037187243)

The notching machine is in used condition and is fully functional. Ideal for the production of round or square air ducts. - Incl. substructure table with castors - Pneumat. Actuation via foot switch Condition see pictures. Visit and demonstration possible. The indicated price is a net price for collection ex works. A chargeable transport within Germany can be organized on request.

Type: Turret punching machine Finn Power Model: C5 YOM: 2007 Capacity: 30 Ton Maximum Sheet Thickness: 8 mm Maximum Sheet Size: 2530x1270 mm Minimum Sheet Size: 300x100 mm Maximum Sheet Weight: 200 kg Number of Stations: 20 Turret Speed: 24 RPM The machine is still working. You can do an inspection. On request, I will send additional information and photos.

Full complete line SACMI for plastic caps.

• Machine number: 4221875989007 • Punching force max: 800kN • Material thickness max: 25 mm • Punching device max: Ø 90 mm • Accessories according to photos (sold separately on request)

Inv. Num. : 6435 Type: MTX Flex 6 Producer: Euromac Generated: 2014 Parameters: Software: RADAN Operating hours: 19932 h Switch-on hours: 12452 h Compressive force: 30 t Machine height: 1900 mm Machine length: 4840 mm Machine width: 3630 mm Equipment: Multitool Flaps

RASKIN RT 64-2 punching machine manufactured in Switzerland in 1981, is designed for precise punching of holes in workpieces made of e.g. stainless steel, with a force of 30 tonnes. Technical parameters of the RASKIN RT 64-2 punching machine - maximum press force: 30 t - CNC control - number of strokes: 400/min - power supply of machine RT 64: 3x 380 V; 50 Hz

Used SMG HZPUX 350/200 - 1500/1300 moulding press in good condition! Main technical data: - Power: 510 ton - Maximum span with castle: 1460 mm - Minimum light with castle: 520 mm - Maximum span without castle: 2160 mm - Minimum light without castle: 1220 mm

Name: Sprout punch Manufacturer: Schleicher, 8192 Gerelsried/Obb. Machine number: 8922 Year of construction: 1985 Condition: used, completely revised and tested - pneumatically operated rung punch - working height (cutting height): approx. 150 mm - working width (cutting width): approx. 120 mm - Width (incl. table extensions): 1520 mm - Depth: 600 mm - Height: 1120 mm - Two-hand operation - with angle stop - with length display (ruler) - with adjustable supports for processing palatine strips - Compressed air connection: 5 bar - dust-free working - Table extension left + right (removable) - Stops left + right removable - adjustable for single miter 90° and double miter 45° - 1 x sliding stop Transport dimensions (W x D x H): 1520 x 700 x 1370 mm on pallet Weight: 95 kg (incl. pallet) (Changes and errors regarding technical data and prices excepted!) In ...

Catalog No. : 6536 Type: TRUMATIC 500 R Producer: Trumpf Made in: 2000 Characteristic: Hours on: 36200 h Pressing force: 220 kN Travel length X-axis: 2500 mm Travel length Y-axis: 1250 mm Machine weight: 11050 kg Equipment: Tool Cartridges (2x) USB Interface

1250 x 2500mm with SheetMaster loading/unloading - Lots of tooling

Description Plate die-cutter suitable for MAN Roland 300-500-700-900 with autoplate system APL and Graphometronic Film register for plates from CtP systems but also for presses from Heidelberg 52, 74, 102 and XL series and KBA Rapida presses 74, 75, 105, 130, perforations 780 and 425 mm can be switched off each

Model: Super 210 - 20 (electro mechanical) with electric backgauge with feed-in table with large selection of tools Punching cap: 100 ton Dia x sheet thickness: 30 xnbsp; 25 mm / 90 x 8 mm Max cutting-thickness in plate: 250 x 20 mm Blade length: 300 mm 90°-cut corner: 160 x 100 x 15 mm 45°-cut corner: 150 x 100 x 14 mm Cut to length round: 55 mm Cut to length square: 50 mm Max material thickness by notching: 16 mm Length: 2250 mm Depth: 1210 mm Height: 2420 mm Weight: 4250 kg

force: 80 ton punching cap: dia 25 x 23 mm / dia 50 x 12 mm stroke: 100 mm depth of throat: 310 mm power: 7,5 HP

with hydraulic plateclamp for shear Punching cap: 80 ton Dia x sheet thickness: 40 xnbsp; 15 mm / dia 60 x 10 mm Depth of throat: 510 mm Max cutting-thickness in plate: 500 x 20 mm /nbsp;400 x 19 mm Blade length: 510 mm 90°-cut corner: 120 x 120 x 13 mm 45°-cut corner: 90 x 90 x 10 mm Cut to length round: 45 mm Cut to length square: 40 mm Max material thickness by notching: 90 x 10 x 13 mm

Offer 22523 Specifications: - Pressure capacity at 10 bar 35 KN - Plunger stroke 12 mm - Projection 95 mm - Installation height approx. 134 mm - Table size approx. 230 x 190 mm - Air consumption per stroke 8.0 l - Air inlet 6 - 10 bar - Space requirement approx. W 520 x H 1450 x D 600 mm - Weight approx. 100 kg - with: - Foot switch - Pressure gauge + pressure regulator - 4 x punching tool

Offer 22526 Specifications: - Pressure capacity at 10 bar 35 KN - Plunger stroke 12 mm - Projection 95 mm - Installation height approx. 134 mm - Table size approx. 230 x 190 mm - Air consumption per stroke 8.0 l - Air inlet 6 - 10 bar - Space requirement approx. W 520 x H 1450 x D 600 mm - Weight approx. 100 kg - with: - Foot switch - Pressure gauge + pressure regulator - 4 x punching tool

Inv. Num. : 6612 Type: Trumatic 500 Producer: Trumpf Created: 1955 Parameters: Operating hours: 69739 h Compressive force: 220 kN Maximum length of the sheet plate: 2500 mm Maximum blade width: 1250 mm Machine weight: 11050 kg 4 cassettes for a single tool and a cassette for a 6-way multitool

Table load:                      150 Working area X Axis:             1300mm Working area Y Axis:             1300mm Working area X Axis with override:10000mm Punching force:                  30T Maximum sheet thickness:         0,6 - 8mm Auto indexing positions:         1 Length:                          2240mm Width:                           3630mm Height:                          2500mm Weight:                    ...

Gebr. SCHLEICHER mitre punch mechanical foot actuation Table support left + right Weight: approx. 50 kg from location

AMADA EM 2510 NT Turret punching (year 2012) AC servo Direct twin drive Punching hours: 14271 h Machine on hours: 29580 h Excellent maintenance Punching force: 200 kN Work field: 1270 x 2500mm With replacement: 1270 x 5000mm Thickness max. of the material: 3.2mm ( ST-400N/mm2 ) Maximum material thickness: 3.2 mm. (brush table) Swan neck: 1,310mm Max weight of the piece: 50kg (F4) 150kg (F1) X-axis feedrate: 100m/min Y-axis feedrate: 80m/min Control: Amada AMNC-PC RS-232C serial interface Simultaneous axes speed: 128m/min Turret traverse speed (bidirectional): 30 1/min Max cadence punching with dies VACUUM” (hit rate): 500/min (5mm stroke, 25.4mm pitch) 780/min (5mm stroke, 1mm pitch) 1800/min (1.4mm stroke, 0.5mm pitch) Stroke length: 36 mm. Punching accuracy: ±0.07mm C axis speed: 60 rpm Stations: 45 of them 4 AMADEX Diameter max. tool: 114.3mm Tool change  ...

max. format 34 x 46 cm Year of construction: 1954 Hot foil stamping machine 1 Slide preference 1 heating plate Delivery date: immediately Price on request. We deliver and install worldwide!

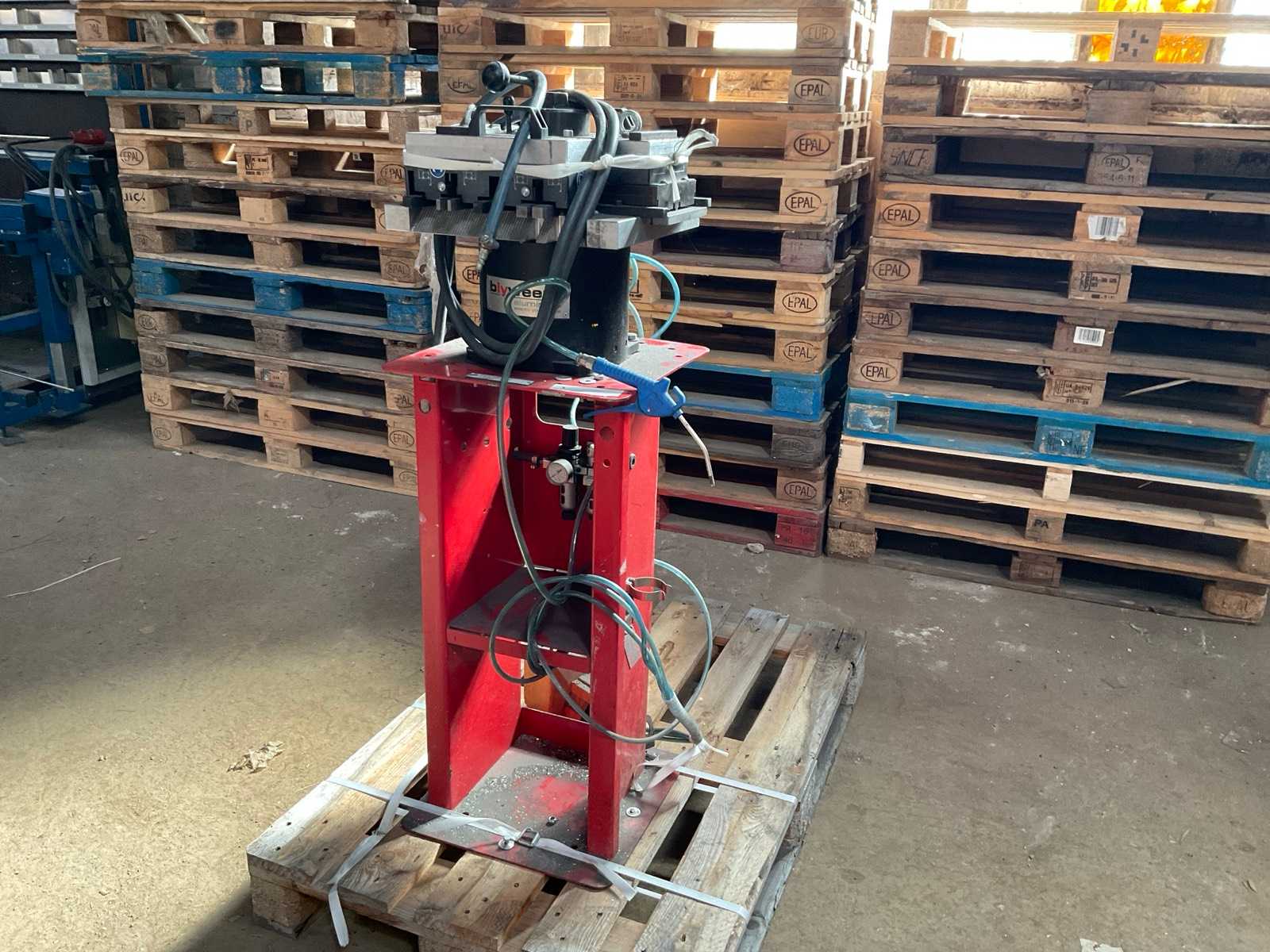

Hydro press, punching frame for the use of punching units JOKA type HP-S Hydraulic punching machine, hydraulic press for punching bracket Year of construction approx. 1995 Pressure capacity 5 ton. Projection 155 mm Stroke approx. 20 mm Punching unit width max. 54 mm Punching unit height max. 220 mm Die holder 48 mm Motor power 1.5 kW Mains connection 230 volts, 50 Hz - for the universal use of punching units JOKA SW 20 or SWD 20- Projection of the punching units can be larger, can be pushed through to the rear- Stroke release via electric two-hand operation - Hydraulic power unit HAWE, type HCW 4 / 2.5-B 1/400-1 - on frame base, mobile space requirement L x W x H 1100 x 800 x 1450 mm weight approx. 200 kg good condition; used

Universal stamping machine Max impact power 50 KN Total stroke 80 mm Stroke sequence per hour 1500 Pneumatic Data

Nibbel, stamping and forming center with C frame (C – Frame stress-free annealed before mechanical processing – 15-year warranty on freedom from cracking) All with one machine: Nibbling – Stamping – Forming – Embossing – Tapping – Marking – Deburring Servo-electric punch head drive - up to 950 strokes per minute, adjustable depending on the material feed speed. Maximum punching force 300 kN Maximum sheet thickness 6.5 mm Largest workpiece weight 200 kg Machining area 1,500 mm x 4,000 mm (with repositioning up to 8,000 mm) Punching head with FANUC® drive - Programmable: - Punching stroke - Punching depth - Punching speed and - Stamping tool acceleration Tool magazine for 15 pieces up to optionally 150 pieces indexable tools Indexing accuracy 0.01° On request, the machine can be supplied with a TRUMPF® tool system Patented vertical tool magazine ...

Tartellette machine / floor punching machine Peerless Model: OMatic Floor-standing machine with 5 moulds Machine with adjustable step heating for punching head. For molds: Upper diameter: 120 mm Bottom diameter: 115 mm Height: 20 mm Mass: Width: 800 mm Depth: 800 mm Height: 1900 mm Condition: very good, mechanically tested, ex service
