punching cnc machines used for sale

Lathe M. Ernault Sorma Cholet 550

Control Siemens 828D - ShopTurn Rotary diameter. [mm] 405 Turning length [mm] 956 Main spindle: Lining SAMCHULLY HS-12 (12 inches) Spindle speed (max.) 3,000 rpm Spindle nose A2-8 Motor power (Cont./Max) 18.5 kW / 26 kW Max. turning Ø x turning length 405 mm x 956 mm Tool carrier (X/Z): Number of tool positions 12x BMT65 Max. milling Ø 433 mm Travel (X/Z) 245 mm / 1,040 mm Rapid traverse (X/Z) 24 m/min / 30 m/min Tailstock: Quill Ø 110 mm Quill stroke 100 mm Equipment/accessories: Control SIEMENS 828D - ShopTurn Bed construction 45° inclined bed (cast from one piece) Additional equipment Tool Probe (Tool Setter, swivel) Collision protection turret with Hirth serration Weight 5,600 kg (according to configuration nameplate) Chip Management Chip Conveyor Electrical connection 380 V / 3PH. PE / 50/60 Hz / 42 kVA

Tool milling machine Maho, 700C Control : Maho 432, Year of construction 1989, Mounting SK40, Process : X-700, Y-450, Z-500, quill Machine can no longer be viewed under power. Has lost parameters! Would also sell spare parts, table, milling head, drives, control, ...

Key data: 1600 mm, 800 mm, 650 mm

CNC bed milling machine with Heidenhain control 415, good condition, hydraulic tool clamping, coolant device, central lubrication, lighting,.. Travel X1600/y800/z650/ Spindle holder SK 50 Spin elder speed 60-1800rpm Working feed rate 10-3000mm/min Rapid traverse 10m/min Table clamping surface 1800x610mm Machine weight 9500kg Table load 3000kg

video available

Travel distance: X= 600, Y= 400, Z= 400 mm Table size: 900 x 480 mm Spindle speed: 40 - 4,000 1/min Dimensions LxWxH: 2500 x 2200 x 2200 mm Weight: approx. 3,000 kg

Haas Automation, VF2, Control : Micro-Haas VF2 X-1250mm, Y-508, Z-600, Spindle : SK40 , 10 - 7500 rpm , Feed rate : 0 - 4500mm/min, rapid traverse : 15m/min Table load : 1000kg Weight : 6to, L- 370cm, W330cm, H-290cm, No shift work !

Inv. Num. : 9085 Type: KMX XL 32 Producer: Manurhin Created: 2003 Parameters: Maximum turning length: 330 mm Max. turning diameter: 33 mm Length: 3850 mm Width: 2000 mm Height: 2100 mm Weight: 6000 kg

Inv. Num. : 9089 Type: CT 40/1000 Producer: Gildemeister Created: 1991 Parameters: Maximum turning length: 1000 mm Maximum turning diameter over bed: 400 mm Maximum turning diameter over support: 225 mm Spindle diameter: 56 mm Weight: 3200 kg Equipment: Chip conveyor Tailstock Spare parts Shovel Powered tools

AMADA LCG 3015 AJ fiber laser was built in 2016 in Japan by Amada Co., Ltd. It is an extremely versatile machine designed for precision machining of a wide range of materials, i.e. structural steel, stainless steel, aluminium, brass and copper. It is distinguished by the use of state-of-the-art components and a robust design that maintains stability during even the most demanding challenges. The sheet metal cutting process is performed by means of fibre optic technology, which offers many advantages over traditional cutting methods. The use of this technology in production makes it possible to quickly cut complex shapes with the highest precision and accuracy. It is also distinguished by its high energy efficiency, which results in lower energy consumption and a significant reduction in operating costs. The AMADA LCG-3015 AJ is equipped with a reliable cutting head with an efficien ...

The machine is in good technical condition, after prior agreement it is possible to test it. approx. 3000 hours of TRIPS 550X400

The machine is in good technical condition, after prior agreement it is possible to test it. ideal machine for complete machining in one clamping (turning + milling). Equipment and parameters: - main spindle + counter spindle (complete machining from both sides) milling spindle with B axis Mazatrol SmoothG control 36-position tool magazine Capto C6 / PSC63 internal cooling large number of accessories (jaws, clamps, holders, etc.) a functional postprocessor for SolidCAM is included in the sale significant time and cost savings when introducing the machine into production

The machine is in good technical condition, after prior agreement it is possible to test it. Head Precitech - Germany, Source IPG. Dior plates changed this year. Automatic change - 2 tables. Table 3x1.5 m.

The machine is in good technical condition, after prior agreement it is possible to test it. Fanuc i Series, Dmax320mm, X175 Z330, 5,000rpm, 12 tool positions, Tool measuring system, Part catcher, 4 jaw inserts,, Clamping pliers, many accessories

General Manufacturer: Spinner Type: Microturn LT Year of construction: 2024 Control: Siemens One Travels: X 600 mm Z 350 mm Y +/- 50 mm Switch-on hours: 4,587 h Work spindle hybrid bearing Speed: 10,000 rpm Tool/movement Tool holder: BMT45 with Y-axis Tool turret: 12-speed Condition Condition: Used Functional: tested and fully functional Other equipment and accessories included: High-precision motor spindle with a circular shape deviation and 1um Power Chuck Röhm KFD-HS 125 Power Chuck SMW Autoblok BH-D 165-46-3-A05 Various owners and AGW High-pressure system 70 bar including fine filter Chip conveyor Spindle coolers

Control Siemens C 200 – 4D Turning diameter: 100 mm Turning length 280 mm 8-fold revolver with applied revolver Wkzg. 6-fold revolver with applied revolver Wkzg. Spindle speed 6000 min-1 Max. bar passage 60 mm Rear drilling unit for 5 stations Chip conveyor Knoll Coolant system

Inv. Num. : 9102 Type: Hi-TECH 230 BL YMC Producer: Hwacheon Created: 2019 Parameters: Control system: FANUC Hours: 6623 h Maximum turning length: 584 mm Maximum turning diameter: 400 mm Maximum turning diameter over bed: 750 mm Maximum spindle speed: 3500 1/min Weight: 6650 kg

Distance between the centres ( mm) 755 Type cnc Stroke ( X/mm) 230 Stroke ( Z/mm) 700 Number of spindle per minute mm 1 ' 20 Number of inserts in the tool magazine 12 Bar passage ( mm) 64 Chuck connection din 55026 a2-6” Hole diameter in the chuck (mm) 76 Sleeve diameter ( mm) 95 Machine Conditions ce marked

Automatische roterende freeskop: 90° en 45° Automatische gereedschapswisselaar met 30 posities spanentransporteur koelunit + filter maximaal werkstukgewicht 6 ton Longitudinal travel X-axe: 1700 mm Cross travel Y-axe: 1200 mm Travel Z-axe: 1000 mm Dimensions clamping space- table: 2000 x 1000 mm Max height workpiece: 934 mm Power on spindle: 22 kW Admission in millinghead (ISO): BT50 Max speedrange: 35 > 3000 rpm Control: Heidenhain Power needed (KVA): 56 kVa Length : 5300 mm Depth: 4950 mm Height: 2800 mm Weight: 18 ton

HERMLE UWF 802 M universal milling machine with HS 401 route control -HS 401- Track control -Travel X / Y / Z 500x430x400mm -Rigid angle table -Speed range 18-3550 rpm -Feed continuously variable in all three axes 0-1600 mm/min -Rapid traverses 0-1.6 m/min in all three axes -Vertical - Horizontal milling device -Tool holder ISO 40 -Hydraulic tool clamping -Central lubrication -Chip tray -Drive power 6 KW -Work light -Spindle protection -Documentation Dimensions LxWxH 1.9x1.8x1.9 meters / Weight: 1800Kg

Key data: 32 mm, 32 mm, 320 mm

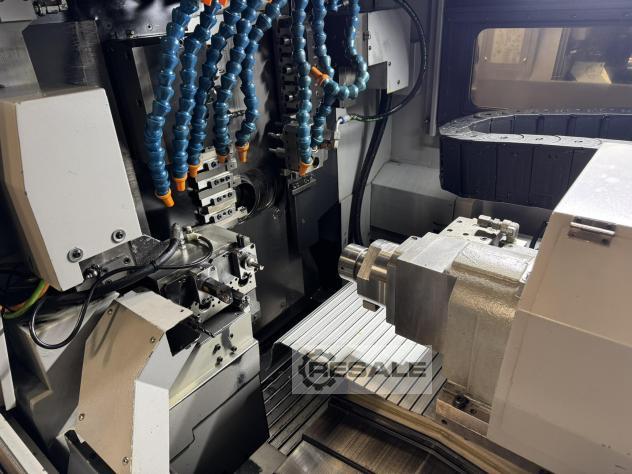

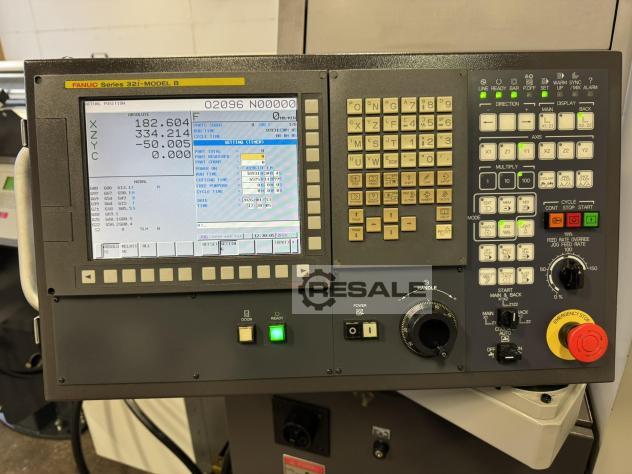

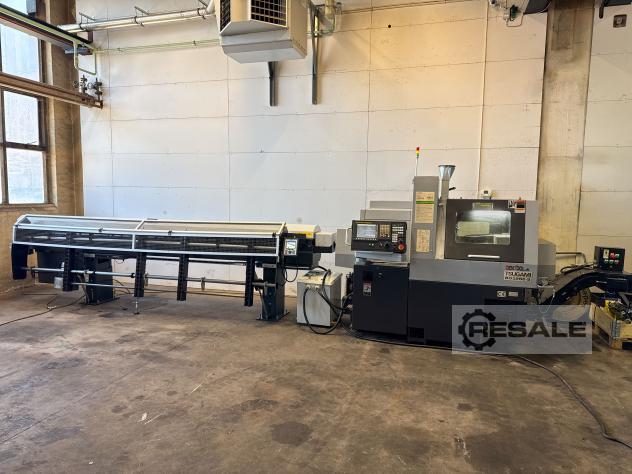

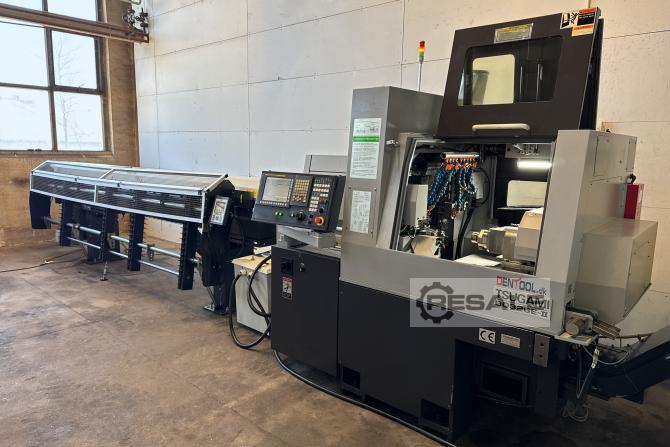

Stock number: 4010 CNC lathe SWISS TYPE Manufacturer: TSUGAMI, Type: BO326E-II - 2016 Machines NO.: 23031A, Year of manufacture: 2016 Specifications: Size capacity 32 mm Ø Ma. turning length (fixed guide bush) 320 mm Ma. Turning length (Rotary guide bush) 70 mm Max. threading force of the main spindle M 10 Max. speed drilling capacity 12 mm Main spindle effect 3.7/5.5 kw Sub-spindle Sub spindle speeds 8000 rpm Spindle bore 32 mm Driven tool transformer 6000 ( 4800) - 1 kW pr/min Subspindle effect 2.2/3.7 kw Control Fanuc 32i-B Fabr. Axis Controlled X1-X2-Z1-Z2-Y1-Y2 Opreation time 6575 hours Length: 2400 mm, Height: 2000 mm, Width: 1500 mm, Weight: 3500 kg

Motor power: 1,5 kW. Max. mortise width: 180 mm. Max. mortise depth: 180 mm. Chain width: 2x10 mm. Machine dimensions: 600x950x1900 mm. Weight: ~200 kg.

Kettenstemmer GF L x W x H: 120 x 70 x 270 cm Weight 570 kg Baeqvhtqms Year of construction 1983 The machine is in good condition, ready to use. Subject to changes, errors, prior sale! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Tel. 0041 62 966 18 32 Fax 0041 62 966 21 12

TECHNICAL DATA: Max oscillation length mm: 100 Max depth of slots mm: 80 Spindle center distance min mm: 84 / max 1170 Spindle rotation rpm: 6.000 / 12.000 Processing: double sided Weight Kg: 2250

TECHNICAL DATA: Clamping height max mm: 1040 Tenoning depth max mm: 150 Slot length max mm: 340 Main motor power HP: 3 Weight Kg: 340

Chain resisters L x W x H: 1.2 x 0.8 x 2.2 m Weight approx. 480 kg Year of construction 1977 The machine is in good condition, ready for operation. Subject to change, error, prior sale ! Service/spare parts by MATEC CH-4900 Langenthal/DE-79618 Rheinfelden MATEC system + technik GmbH Mechanical engineering Eisenbahnstrasse 25 CH-4900 Langenthal/Switzerland Phone 0041 62 966 18 32 Fax: 0041 62 966 21 12

Make : TREPKO Model : 222 KPS Year Of Manufacture : 2004 Machine Dimensions : 1,35 x 1,55x 3,32 metres with conveyor 3,2 meters Product : Butter / Margarine/soft products Cup Dimensions : 115 mm x 75mm Volume : Min 180ml | Max : 500ml Cleaning : CIP Hours : 688,45 Plastic Cup With Aluminium Lid and Cover Cap Condition : Good

Make : Regal Model : 9000 YoM: 2004 Refurbished in 2018 Current Cup Dimensions: 71 mm ( This can be changed on request) Speed : 2400 Cups per Hour Stations : Cup Dispenser- Filler - Aluminium Lid - Sealing - Outfeed conveyor Controls : Very Good condition Available : Immediately after service Location : Dairy Machinery UK

MUTI chain mortiser and bits model OMS 4MM for locks: • Vertical unit with chain, 3 hp motor • Vertical unit with 2 points, 0.75 hp motor • Horizontal unit with 2 points, 2.5 hp motor • Weight approx. 550 kg • Machine not according to CE standards, for export AVAILABILITY FROM APRIL 2024

BACCI multiple oscillating mortiser mod. MX90 - 5+5 horizontal spindles - 2+2 vertical spindles - Selectable spindle revolutions motor per motor. . laps 1' 6000/12000 - Max. slot inclination 20° - Tilt to and from the outside – standard -7° + 30° - Max. distance between spindles 1280 mm - Matr. 228 - CE standards - Year 1999 - Complete with manual and CE declaration

CAMAM oscillating mortiser with 2 benches mod. MO/2A - 4 spindles -Volt. 380/50 - Matr. 145

Machine is in good condition.

Oscillating mortiser with 2 benches BALESTRINI mod. 2CAP

REF-2665 ILPRA FS 2500 V/G AUTOMATIC CUP FILLER-SEALER Manufacturer: ILPRA Series: FILL SEAL Model: FS 2500 V/G FL Serial no.: FS1071 Year: 2017 Automatic rotary filling-sealing machine for cups of different materials. Compact and flexible model, tailored to handle a diverse range of food products from liquids and creams to granules, even with solid particles in suspension. Maximum output of approximately 2,500 pieces per hour. Voltage: 400 V + N Overall dimensions (mm): 2,350 x 1,280 x 2,200 (LxWxH) Weight: approx. 900 kg

Bulk Distribution Station

Grunwald Fully automatic cup filling and sealing system - 3 Format sets (BJ 2019) - Ink-jet encoding - Conveyor belt extension - Dosing bar incl. aerator inserts (BJ 2020) Filling Temperature: Cold Filling Cup: A) Round plastic bucket with handle and collection basket, ø175 x H 131 mm B) Round plastic cup, approx. ø 104 x H 55 or 65 mm C) Round plastic bucket with handle and grass collector, ø 227 x H 194 mm Lid: A+C) Plastic slip-on lid (tamper-evident closure) B) Pre-punched plastic blanks + slip-on lid Connected load: approx. 12 kW, 3/400 V/N/PE, 50 Hz Air requirement: dry, filtered compressed air, 6 bar, approx. 300 l/min. Dimensions: approx. L 2,200 x W 2,200 x H 3,200 mm (without removal belt and control cabinet) Weight: approx. 3,500 kg Condition: well-maintained, in working order Availability: immediately

The machine is equipped with controlled B-axis smallest delivery 0.001, swivel range 340, controlled workpiece spindle stick (C-axis)smallest delivery 0.05, max. 42 rpm, equipped with an external grinding spindle (left and right spindle end), 1 internal grinding spindle. For an additional charge, a second internal grinding spindle can be delivered. Z-way 680 mm, X-way 255 mm, smallest delivery of the axles 0.001 mm. Tip height 175 mm, W.-stock MK 5, step. adjustable 1 - 1200 rpm, external grinding spindle 1000 - 3000 rpm, max. grinding wheel perm. 300 mm. The machine is suitable for ideal for the processing of carbide and technical ceramics (SIC and Al 2). Intermediate sale:reservations Delivery time:4-6 months

Technical data: Turning diameter over bed: 1260 mm Turning diameter at opening: 2700 mm Turning diameter at the pit: 3800 mm Turning diameter via slide: 900 mm Turning length: 4000/5000 mm

Technical data: Diameter over bed: 625 mm Turning length: 1500 mm Diameter via slide: 325 mm Spindle head shape: Cam-Lock Spindle drilling diameter: 105 mm

Manufacturer Heckler & Koch Model AM 444 A Power consumption: 5.5 KW Voltage: 380/400 Volts Spindle holders for vertical and horizontal spindles: 40 Slide movement x = 410nn y = 350mm z = 400mm Vertical clamping table 850 x 255 mm Feed range 0-1500 mm/min Sliding gearbox 12-stage Speed: 63-2800 rpm Step jump 1.4 CNC control CNC 783/m Dimensions (HxWxD) 1.800x2.400x1.700mm Weight 1,500 kg Ref.Nr PLW18 Mistakes reserved!

Technical data: The machine is completely overhauled in 2011 with new electrics, new wiring, including new control SIEMENS Sinumerik 840D max. circulating and turning diameter: 2,000 mm max. turning height: 1,500 mm Sheet disc diameter: 1,600 mm max. table load: 11.20 to. Cross-beam adjustment: 1,170 mm

Aufspannflaeche 3,000 x 2,000 mms table height 1,150 mms

Machine number: 3728-87 Grinding length 2000 mm (Roll grinding machine)

Force of pressure: 400 tons of working width: 4100 mm clear stand width: 3150 mm stand projection: 330 mm Electr. Supply: 400 V, 37 kW weight: 25 tons of space: 4100 x 2300 x 3910/530 mm

Force of pressure: 150 t working width: 4500 mm clear stand width: 3050 mm stand projection: 300 mm rear gauge: 1000 mm Electr. Supply: 380 V, 18.5 kW weight: 14.8 t space: 4200 x 2000 x 3000/3150 mm

Force of pressure: 250 t working width: 3550 mm clear stand width: 3050 mm stand projection: 300 mm rear gauge: Yes Electr. Supply: 400 V, approx. 26 kW weight: 20 t space: 2100 x 3800 x 3100 mm

Force of pressure: 150 t working width: 4300 mm clear stand width: 3600 mm stand projection: 300 mm maximum height: approx. 500/700 mm operating speed: up / down 41 - 65/10 mm / sec back gauge: 1000 mm Electr. Supply: 400 V, approx. 15 kVA kW weight: 14 t space: 4600 x 1950 x 3100 mm

Working width: 3050 mm sheet thickness: 6 mm throat depth: 200 mm rear gauge: 1000 mm power: 15 kW space: 4100 x 2300 x 2100 mm weight: 8500 kg well-preserved CNC hydraulic shear, with pivoting Panel, serial control. CYBELEC, CNC 1000, Hours of operation according to the operating hour counter: 2700 h

Controls: Heidenhain TNC 360 (1992) Table size: 1,000 x 1,000 mm Table size with extension: 1,345 x 1,000 mm Table load max.: 2,000 kg Distance between the s distance Spindle to table top: 0 - 1,100 mm Travel distances: X 1400 mm Y 900 mm Z 850 mm W 370 mm spindle holder: MK 5 spindle drive power: 6 kW spindle speeds: 30 - 1,500 rpm Drilling spindle diameter: 82 mm drill diameter: 2 - 70 mm Drilling tools Diameter: 17 - 450 mm Drilling capacity to full ST60: 45 mm Drilling capacity to full GG: 70 mm Zubehoer: drills; tools; usw. machine was rebuilt in 1992 and !; Very good

Control: Heidenhain TNC 360 (1992) Table size: 1000 x 1000 mm Table size with front extension: 1345 x 1000 mm Table load max.: 2000 kg Distance spindle centre to column min/max.: 270 ~ 1270 mm Distance spindle nose to table min/max.: 0 - 1100 mm Distance between the upright columns: 1855 mm Table longitudinal travel : 1400 mm Boring ram carriage cross travel: 900 mm Crossrail vertical travel: 850 mm Boring spindle travel: 370 mm Spindle motor rating: 6 KW Spindle speed range: 30 - 1500 rpm Boring spindle diameter: 82 mm Spindle taper: MK 5 Borer diameter: 2 - 70 mm Boring tool diameter: 17 - 450 mm Boring diameter in solid ST 60: 45 mm Boring diameter in solid Cast iron: 70 mm Equipped with: Tooling; Accessories Machine overhauled and retrofitted in 1992 !; Very good
