press brake 100 used for sale

x-travel:1000 mm y-travel:610 mm z-travel:600 mm table-size:1150 x 600 mm table load capacity:1000 kg rapid traverse X- and Y-axis:24 m/min rapid traverse Z-axis:24 m/min spindle taper::SK 40 spindle turning speed range:10.000 1/min spindle drive:15/22,5 kW tool change unit:30 Pos. CNC-control:SIEMENS 828D operate shopmill distance spindle nose and table:110 / 710 mm weight of the machine ca.:7 t dimensions of the machine ca.:3,2 x 2,2 x 2,7 m vertical machining center, - internal coolant supply 30 bar - chipconveyor - cartridge filter - flat tracks - el. handwheel - prepared for 4th axis - 3D touchprobe RENISHAW OMP 60 - indirect measuring system - accessories (approx. 30 pcs. SK 40 toolholders incl. 2 racks, chip tray) approx. 6.000h "spindle on"

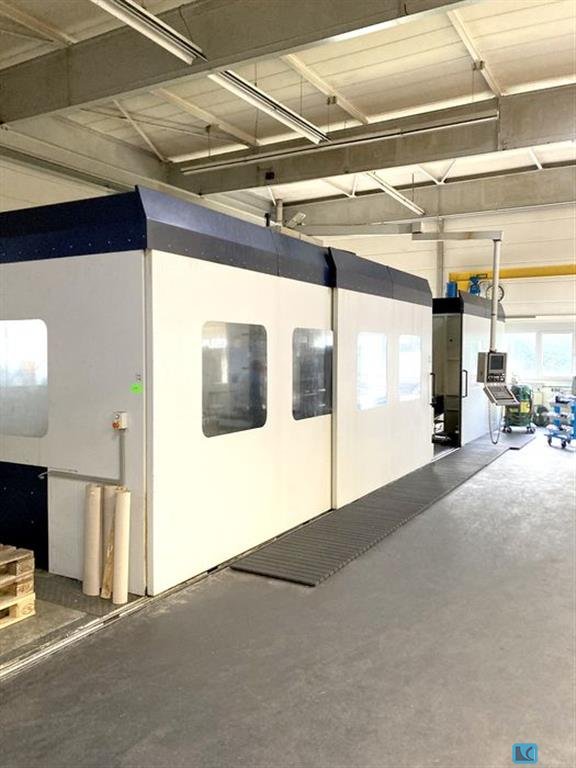

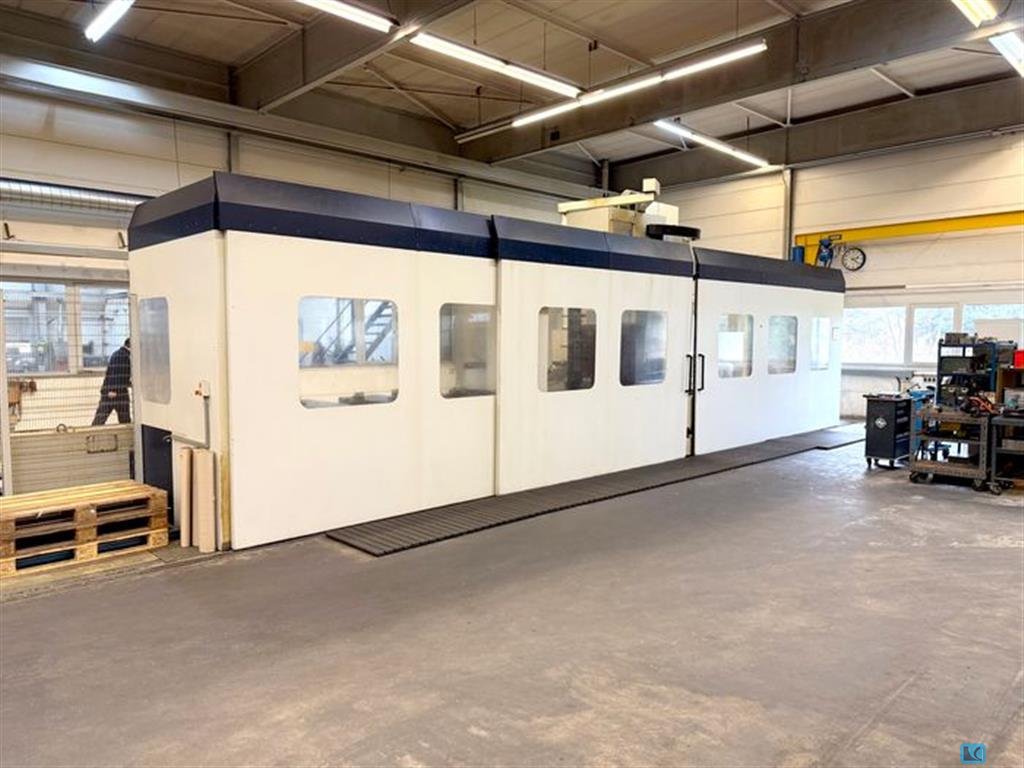

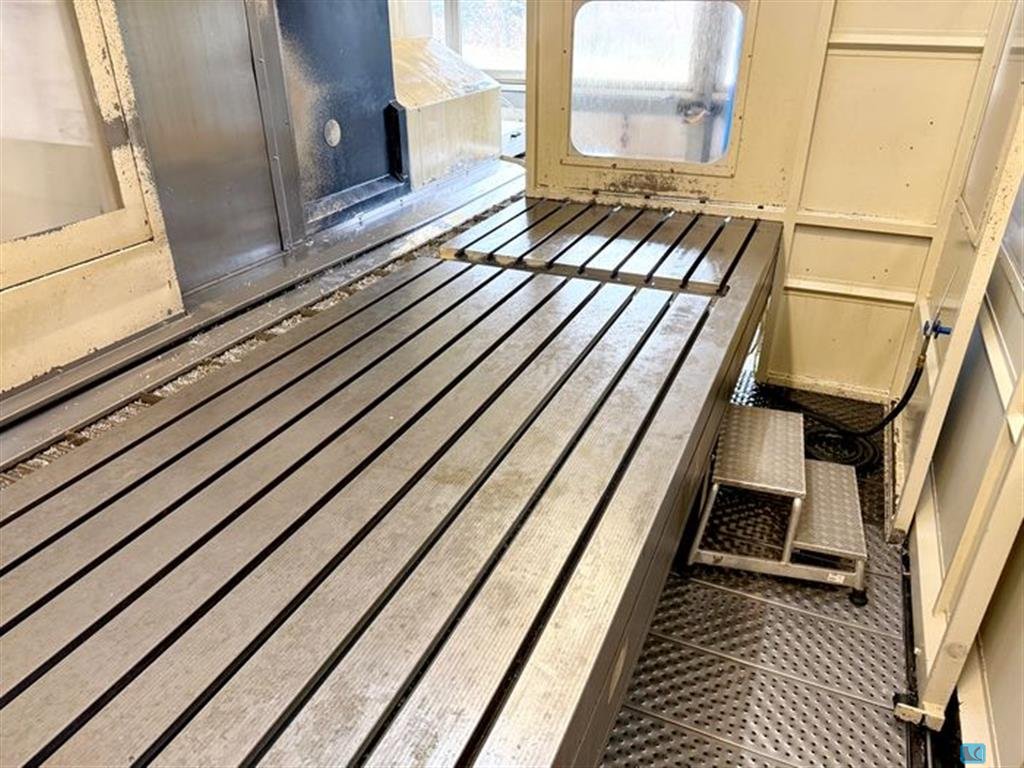

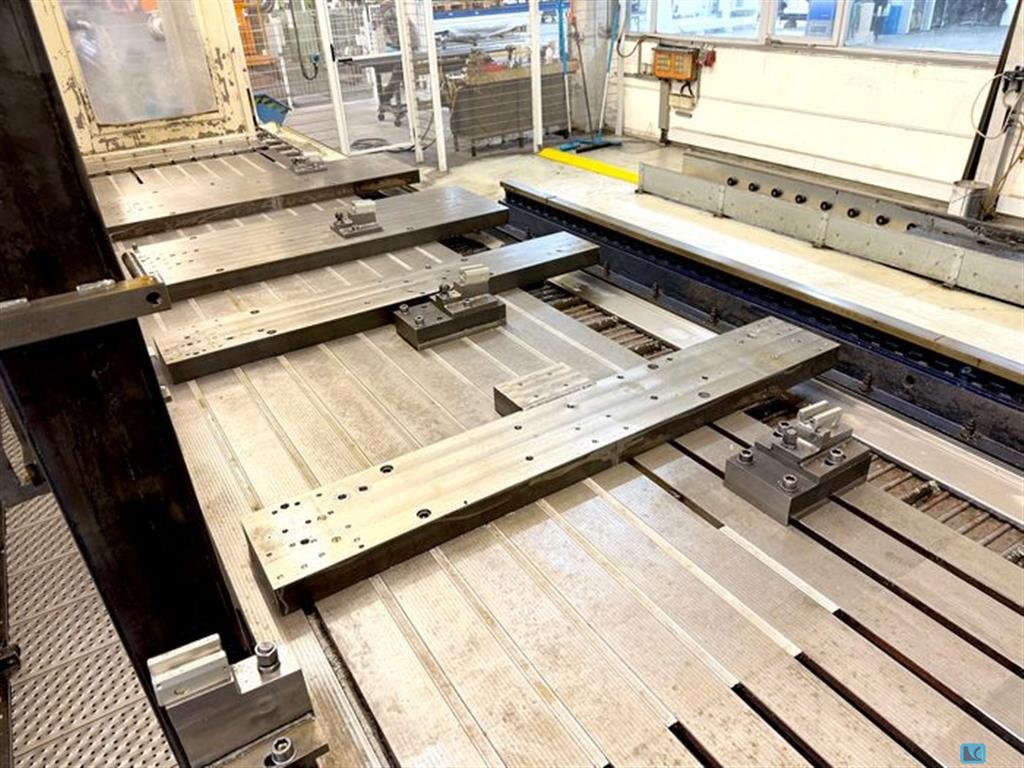

x-travel:8500 mm y-travel:2000 mm z-travel:1500 mm rapid travel x/y/z:25 m/min table-size:10.000 x 1.350 mm table load:max. 5 t/qm universal head:orthogonal 1° x 1° tool taper:SK 50 milling head speed:4.000 1/min power capacity:37 kW max. torque on the spindle:900 Nm internal coolant system feed:15 bar control:HEIDENHAIN iTNC 530 Tool changer:60 Pos. total power requirement:75 KW dimensions of the machine ca.:12,7 x 5,2 x 4,6 m weight of the machine ca.:35 t universal travelling column - universal machining center, orthogonal milling head, water-cooled, with 1° indexing in 2 axis (360 pos. in rear layer, 270 pos. in front layer) 3D touch probe M&H 20.41, dividing wall for 2 table machining, internal air blast, 15bar high pressure pump, prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel, chipconveyor, handwheel HR 410, controlled security fence, miscella ...

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

x-travel:2500 mm y-travel:1000 mm z-travel:750 mm table surface area:3220 x 1000 mm Workpiece weight approx.:3000 kg spindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/min feed speeds:1- 30000 mm/min rapid traverse:30 m/min total power requirement:40 kW dimensions of the machine ca.:6,9 x 4,1 x 3,7 m weight of the machine ca.:21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

material width:800 mm coil weight:12,0 t coil internal diameter:470 - 520 mm coil external diameter:1500 mm material thickness:0,4 - 2,5 mm no. of straightening rolls:8 straightening roll diameter:53 mm number of draw-in rolls:2 inlet roll diameter:160 mm speed:35 m/min material thickness at 150 mm material width:2,5 mm material thickness at 650 mm material width:1,5 mm material thickness at 800 mm material width:1,0 mm straightening machine:RM 8-53/160-800 decoiler:HE 200-1000

article nr. : 67347-0101 Control card brake of PT 8 Tetra Pak Pull Tab applicator

Bridge crane, indoor crane, disc brake, crane brake, disc, drum and storm brakes, overhead crane brake, brake ring, conical brake disc -Manufacturer: Demag, brake ring conical brake disc unused -Type: 628 626 44 RIW -Dimensions: see photos -Dimensions: Ø 310 x 40 mm -Weight: 0.9 kg

Bridge crane, indoor crane, disc brake, crane brake, disc, drum and storm brakes, overhead crane brake, brake ring, conical brake disc -Manufacturer: Demag, brake ring conical brake disc unused -Type: 089 746 84 KB 160 RIW -Dimensions: see photos -Dimensions: Ø 275 x 40 mm -Weight: 1.0 kg

Rotor brake, disc brake, electro-hydraulic disc brake, crane brake, disc, drum and storm brakes, overhead crane brake -Manufacturer: Pintsch Bubenzer, rotor brake disc brake unused -Type: SB 23-450x30-80/6 -Braking torque: 1850 Nm -Accessories: incl. 3 sets of replacement burners -Quantity: 2 pieces brake available -Price: per piece -Dimensions: 370/330/H650 mm -Total weight: 105.7 kg/pc.

Equipped with new control and laser protection from PILZ; including 1 set of tools with 2 V die sizes Auction-ID: A1-45793-16

Brake BAUER type: GBRX 100 GS 24 V DC 1.9 A 3.8 Nm shaft: Ø 36 mm explosion-proof ! New !' Dimensions: 250 x 140 x 115 mm

Brake with sensor KEB type: 06.02.100 24 V DC 12 W shaft: Ø 12 mm used, tested ! Accessories for AGIE CUT 300 ! Dimensions: 130 x 95 x 90 mm

Magnetic plate, clamping plate, magnetic clamping plate, magnetic clamping plate -Clamping surface: 100 x 100 x 300 mm -Dimensions: 100/100/H360 mm -Weight: 18.4 kg

Not tested; Auction-ID: A7-45992-225

Auction-ID: A7-46458-42

Panel Mount Meter Set, Panel Panel Panel Meter with Rotary Coil Meter AMS SQ72DS 19010200 Scale Range: 0 - 100 V Measurement Range: 0 - 100 V Accuracy Class : 1.5 IP54 Panel Meter Set consists of 3 gauges! New !' Dimensions(Single Gauge): 72 x 50 x 72 mm Dimensions: 240 x 85 x 75 mm

Pneumatic cylinder FESTO DVG-50-100 -PPV 39D 1301/ 50.100 164454 VDMA stroke: 100 mm rod diameter Ø 20 mm New ! Dimensions: 280 x 70 x 65 mm

Pneumatic cylinders, standard cylinders FESTO DNG-40-100-PPV-A 36337 stroke: 100 mm rod diameter: Ø 16 mm pmax: 12 bar New ! Dimensions: 265 x 55 x 55 mm

Pneumatic cylinders, standard cylinders FESTO DNG-50-100-PPV-A 36349 DSBG-50-100-PPVA-N3 1646713 stroke: 100 mm rod diameter: Ø 20 mm pmax: 12 bar New ! Dimensions: 280 x 65 x 65 mm

Precision scale KERN PCB 100-3 max 100 g, d=0.01 g, calibration 2025-03, S/N WD130048199, inventory no. 480003, internal W012

Column-mounted slewing crane 100 kg with electric chain hoist Manufacturer: Meier-Rädsch GmbH Type: SDK / GK / 100 Year of construction: 2003 Factory no.: 2003 / GK / 02 Column-mounted slewing crane make Meier-Rädsch with a load capacity of 100 kg. The crane was used for loading and unloading CNC machining centers and is particularly suitable for smaller workpieces, clamping devices or tools. The system is equipped with an ABUS electric chain hoist. The stroke is carried out electrically via the electric chain hoist. The movement of the trolley on the boom is manual (forward/backward). The crane is moved manually. Operation via pendant switch control with emergency stop. A crane inspection book in accordance with DGUV is available. System consisting of column, boom and electric chain hoist. Column-mounted slewing crane , boom approx. 2.7 m , ABUS electric chain hoist, manual trolle ...

\" Mitutoyo U-gauge 75–100 mm – 0.01 mm – type OM-100 – in the case U-screw gauge from the manufacturer Mitutoyo, type OM-100. The measuring device covers the measuring range 75-100 mm and has a reading of 0.01 mm. • Manufacturer: Mitutoyo • Type: OM-100 • Measuring range: 75–100 mm • Reading: 0.01 mm • Version: mechanical, metric • Ratchet: available Auction-ID: A7-46417-215

Column-mounted slewing crane 100 kg with electric chain hoist Manufacturer: Meier-Rädsch GmbH Type: SDK / GK / 100 Year of construction: 2001 Factory no.: 2001/GK/01 Column-mounted slewing crane make Meier-Rädsch with a load capacity of 100 kg. The crane was used for loading and unloading CNC machining centers and is particularly suitable for smaller workpieces, clamping devices or tools. The system is equipped with an ABUS electric chain hoist. The stroke is carried out electrically via the electric chain hoist. The movement of the trolley on the boom is manual (forward/backward). The crane is moved manually. Operation via pendant switch control with emergency stop. A crane inspection book is available. System consisting of column, boom and electric chain hoist. Column-mounted slewing crane , boom approx. 2.45 m , ABUS electric chain hoist, manual trolley travel , manual swivel mo ...

Empas MCB 1000 – in good condition Only 771 working hours Hot water up to max. 108°C Maximum pressure: 150 bar Water output: 12 litres/min Equipped with water softening system (liquid and electronic) 1000 litre storage tank Fill/Feed Pump: Honda, 620 litres/min Electric start Auction-ID: A1-40137-213

New hydraulic press brake. Pressing force: 125Tn. Working lenght: 3200mm. Distance between housings: 2650mm. Stroke of the ram: 120mm. Distance between table and ram: 415mm. Depth of throat: 320mm. Motor power: 7,5kw. Weight: 7850Kgs. Dimensions: 3300x1800x2690mm. CE.

Hydraulic Abkant and used stamping press, under current hydraulical embossing press / press brake, used, under power Serial / make: Hämmerle type / model: 2s 100-2050 year / year: 1978 pressing force / force: 100 t Bending length / operation length: 2050 mm tappet adjustment / ram adjustment: 150 mm Distance from plunger table / distance ram to table: 400 mm Stroke / stroke: 150 mm connection value / connected load: 11 kW weight / weight: 5,9 t

Hydraulic press brake. Working length: 3.000mm. Pressing force: 200Tn. Back gauge.

Rated force 2200 Kn Max bending length 3340 mm Table length 3220 mm Table width 180 mm Table height 960 mm Passage between press bar 450 mm Stroke 180 mm Extension 410 mm Distance between stands 2700 mm Max Print 292 Bar Number of cylinders 2 pieces Oil capacity 190 litres Engine power 15 kW Max delivery speed 100 mm/s Working speed 1 - 7.5 mm/s Stroke speed 1 - 75 mm/s Total height with NC 2990 mm Total length with NC 3750 mm Total width with NC 2200 mm and light curtain 250 mm Total weight with NC 12500 kg Amada bending system Length 3750 mm Depth 2200 mm Height 2940 mm

The press brake HAMMERLE BM 200-3100 press brake was built in 1996. The folding machine was serviced regularly. Technical parameters of the press: - control: INFINITRON - number of NC axes: 11 - pressure: 200 tons - bending length: 3100 mm - working stroke: 400 mm - distance between the body walls: 3240 mm - maximum distance between the table and the bumper: 965 mm - voltage: 3 x 400 Volt - control voltage: 24 V = - total power: 28 kW - deflection arrow compensation - total machine width: 4400 mm - total height of the press: 3400 mm - weight of the press: 16 600 kg

Press brake TRUMPF TrumaBend V 85 Year of construction 1999 Machine specifications: working length 2050 mm - Stand passage 1750 mm - pressing force 850 kN - Distance table / plunger 410 mm - Stand projection 410 mm - Plunger stroke 285 mm - Lifting speeds - Downward speed rapid path 200 mm/sec - Upward speed 135 mm/sec - Downward press speed 1 - 11 mm/sec - Total drive power 13 kVA - Space requirement approx.B 3700 x H 2700 x D 2100 mm - Weight approx. 8000 kg

pressure: 160 t chamfer lenght: 4000 mm distance between columns: 3060 mm control: FORTRON CNC 10 H 4 throat: 280 mm stroke: 250 mm dayligth: 500 mm table length: 4050 mm table width: 280 mm feed down: 70 mm/sec feed up: 68,4 mm/sec working feed: 9 / 3,5 mm/sec operating pressure: max. 205 bar oil volume: 400 l total power requirement: 19,5 kW weight of the machine ca.: 20,8 t Total weight including accessories: 22 t dimensions of machine L x W x H: 4,8 x 1,88 x 2,93 m dimensions of switch cabinet: 1,6 x 0,5 x 2,25 m Acc.: programmable back gauge, upper and lower dies, table extensions The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 200 t chamfer lenght: 3000 mm distance between columns: 2560 mm dayligth: 450 mm throat: 450 mm adjustment of stroke: 240 mm horn length over column outer edge each: 175 mm table length: 3050 mm table width: 280 mm table height over floor: 820 mm electrics - voltage/frequency: 220/50 V/Hz control: CYBELEC, DNC60 stroke: 250 mm operating pressure: 150 bar total power requirement: kW weight of the machine ca.: 15 t dimensions of the machine ca.: L:4,0 x B:3,2 x H:3,44 m • hydraulical press brake, • new control CYBELEC DNC60 (in 2005), • lower part of the machine moves down 500 mm to the floor, at the moment the machine is mounted on a double-T-support, • prism and upper part of the machine in 3000 mm length The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 300 t chamfer lenght: 3050 mm distance between columns: . mm Control: Cybeleg type: DNC880S total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

pressure: 1500 kN chamfer lenght: 3550 mm distance between columns: 3044 mm Control: Cybelec 34 PS-CN column arm: 350 mm max. ram stroke: 220 mm dimensions of the machine ca.: 3200 x 4200 x 2100 m sheet support: hinten / back number of support arms: 2, verschiebbar / adjust. die shift: hydraulical tool clamping: upper tool quick change system: crown: 3 sets of tools included The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

The machine is in good technical condition, after prior agreement it is possible to test it. - Nominal forming force: 120 t Working length: 3106 mm CNC control Delem (graphic 2D programming) Automatic calculation of bending sequence and collision detection Back gauge X axis with 2× manually adjustable stop fingers CNC electromotive height adjustment of the back gauge (R axis) CNC electrically controlled table deflection Upper tool adapter ROLLERI Equipment and accessories: - Front protective device (tilting door) - Rear protective device (sliding door) - 1× freely movable two-hand / foot control - Operating instructions including CE declaration

Stop for press brake, bending machine, guillotine shear, drive shaft -Drive shafts: for stop, from press brake EHT type EHP 11-40, 2 pieces -Length: 515 mm -Hole: Ø 25 mm -Price: complete -Dimensions: Ø 50 x 515 mm -Weight 5.1 kg/pc.

Bending tool, die, upper knife, upper tool, straight tool, die tool, seam closing tool -Tool: for press brake, die tool -Measures: see drawing in the photos -Dimension: 3060/20 / H79 mm -Weight.: 30.3 kg

Bending tool, die, upper knife, upper tool, straight tool -Tool: split, for press brake -Tool angle: 90° -Drawing: in the photos -Dimension: 33 x 170 mm -Length: 1485 mm (1 x 855/630 mm each) -Weight: 44.6 kg

Bending tool, die, upper knife, upper tool, straight tool -Tool: split, for press brake -Tool angle: 90° -Drawing: in the photos -Dimension: 29 x 171 mm -Length: 1570 mm (1x 650/500/420 mm each) -Weight: 41.2 kg
