126,768 used machines on RESALE, but how to find them? Machine Search
groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled
groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer

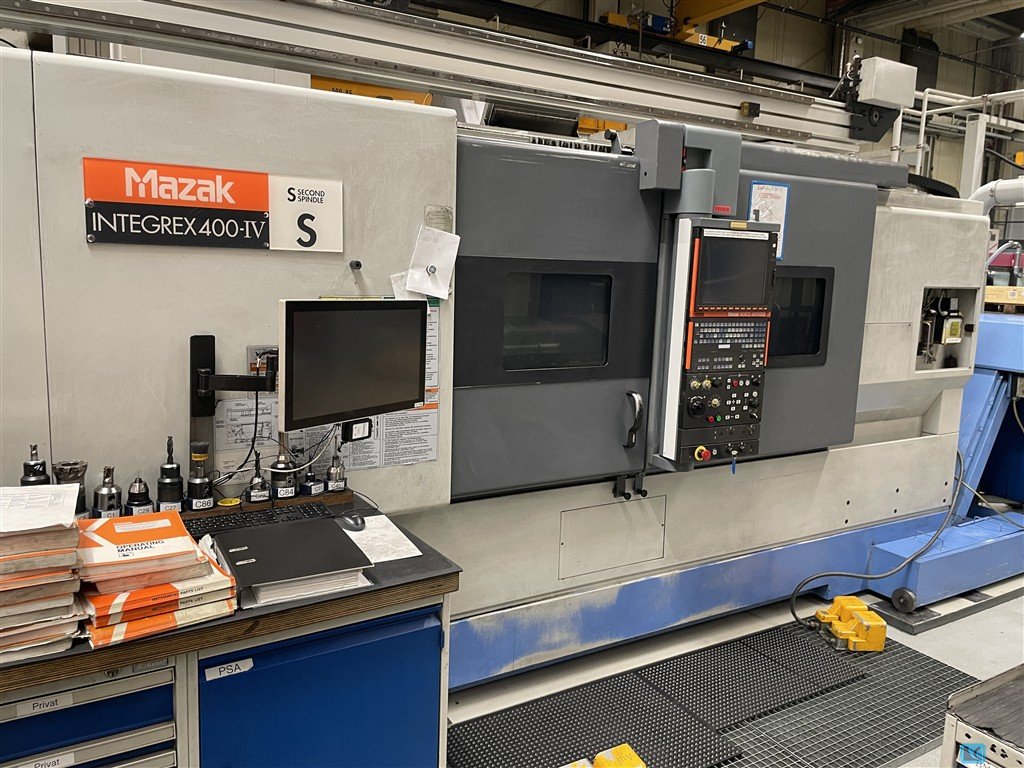

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included
spindle diameter:150 mm x-travel:3.000 mm y-travel:2.000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 mm column travel:1.500 mm high speed spindle taper ISO:50 bore spindle turning speed range:3,2 - 1.600 U/min table surface area:2.000 x 2.500 mm max. table load:25.000 kg rapid traverse speed:5/10 m/min feed speeds:1 - 1.500 mm/min faceplate speeds from - to:3,2 - 140 U/min dimensions of the machine ca.:8,4 x 6,8 x 5,9 m weight of the machine ca.:57 t total power requirement:100 kW Full B-axis Aerostatic guides Coolant system with IKZ
automatic:Werkzeugspannung Spannk.15000 N total power requirement:63 KVA weight of the machine ca.:56000 kg table-size:22000 x 800 mm Tool bore:ISO 50, DIN 69871 AD x-travel:20500 mm y-travel:1600 mm z-travel:1000 mm dimensions of the machine ca.:24 x 6 x 4 m tool piece magazine with:30 Plätze
x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden
bore capacity in steel (diameter):5 - 30 mm x-travel:450 mm y-travel:380 mm total power requirement:1,4 / 2,2 kW weight of the machine ca.:1.100 kg dimensions of the machine ca.:1.000 x 1.400 x 2.900 mm gear box:85 - 2.000 U/min spindle diameter:72 mm bore depth:700 mm throat:300 mm spindle taper MT:3 T-slots:3 x 16/25 mm table-size:700 x 300 mm spindle turning speed range:85/170/250/355/475/710/1000/2000 U/min motor speeds::705/1425 Year:ca. 1975
x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel
x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden
x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg
x-travel:700 mm y-travel:450 mm z-travel:500 mm total power requirement:23,4 kW weight of the machine ca.:3100 kg dimensions of the machine ca.:3200 x 4000 x 2500 mm tool taper:ISO 40 feeds:0,2 - 0,6 - 0,12 mm/U spindle speeds::20 - 3150 , direkt programmierbar /min feed range:1 - 3000, in B=0,01 - 3 U/min rapid traverse in x-y-z axis:6m/ min, B = 7,6 U/min work table::NC Rundtisch(B-Achse) D=630 mm, 9T-nuten control:CNC432
x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel
x-travel:850 mm y-travel:280 mm z-travel:355 mm total power requirement:8 kW weight of the machine ca.:4 t dimensions of the machine ca.:2 x 2 x2.40 m revolutions per minute: 28-1.400 U/min table-size:1.200 x 370 mm surface area:1.060 x 260 mm spindle taper:SK 50

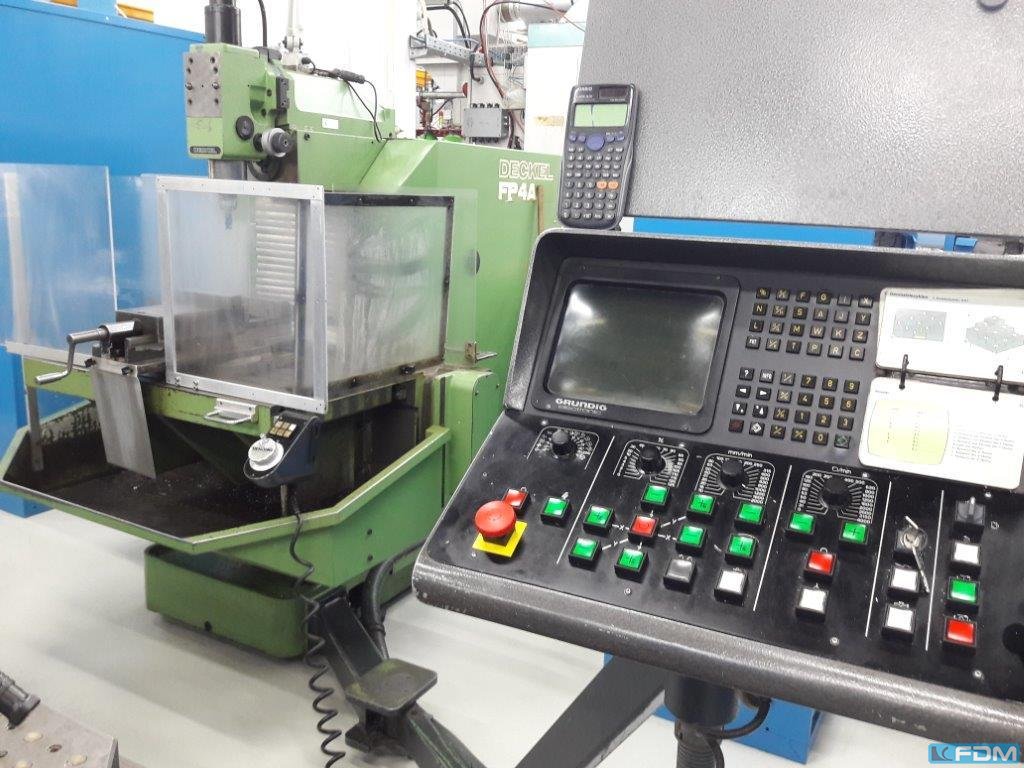

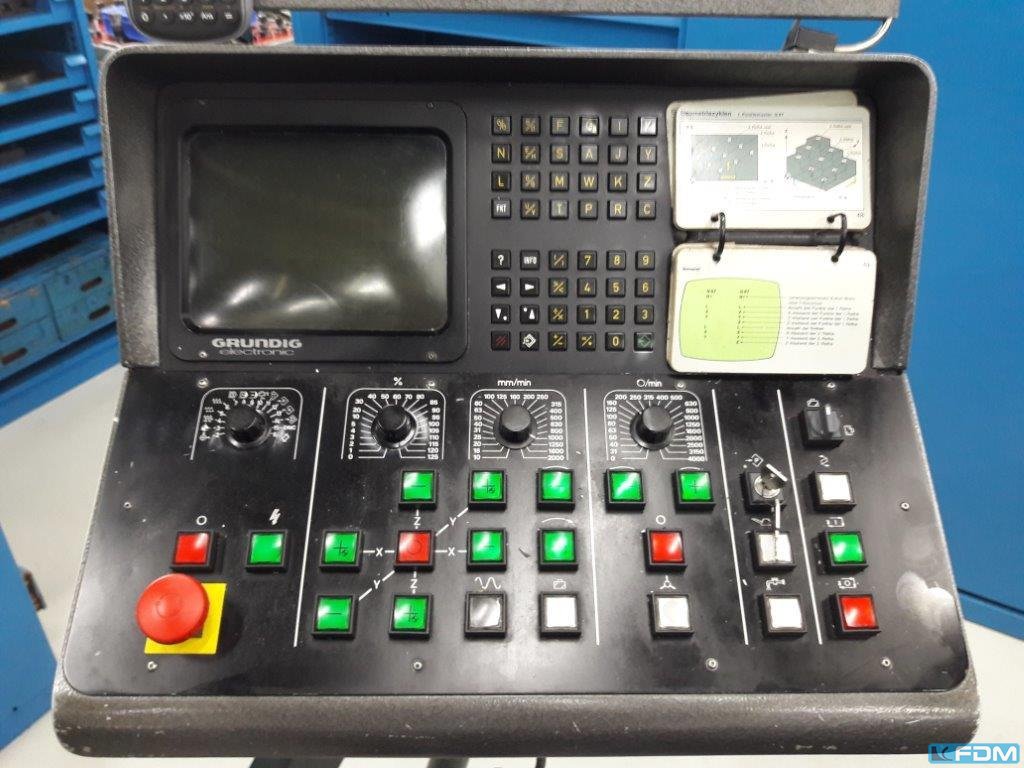

x-travel:560 mm y-travel:500 mm z-travel:450 mm total power requirement:16,5 kVA weight of the machine ca.:2700 kg dimensions of the machine ca.:2,30 x 3,0 x 1,90 m control:Grundig quill stroke:80 mm tool taper:SK 40 spindle speeds::40..4000 1/min feed:2 .3600 mm/min rapid traverse:4000 mm/min Documents:vorhanden
total power requirement:2,4 kW weight of the machine ca.:1150 kg dimensions of the machine ca.:1550 x 1615 x 1630 mm table clamping surface LxW:315 x 710 mm max. tool weight:200 kg T - slots distance:63 mm T - slots - width:12 mm taper bore:Spindel SK 40 spindle turning speed range:56 - 1800 U/min feed speeds:11,2 -355 mm/min Documents:vorhanden
x-travel:600 mm y-travel:400 mm z-travel:380 mm total power requirement:6 kW weight of the machine ca.:1700 t dimensions of the machine ca.:1800 x 2130 x 1980 mm Table dimensions:400 x 800 mm T-slots:7 St.,14 x50 table load:300 kg spindle:SK40 turning speed range:63-250 U/min speed steps work spindle:18 spindle speeds::50- 2500 n/min feeds:10-500 mn/min Documents:vorhanden
x-travel:500 mm y-travel:400 mm z-travel:340 mm work table::800 x 400 mm control:Numerik CNC - H 646 spindle turning speed - stepless:20 - 3000 U/min total power requirement:14 kW weight of the machine ca.:2400 kg dimensions of the machine ca.:2100 x 1800 x 2400 mm
x-travel:600 mm y-travel:500 mm z-travel:400 mm spindle diameter:90 mm spindle turning speed range:45 - 2000 U/min table length:1250 mm table width:200 mm groove width:14 mm table rotating:45 ° total power requirement:4,2 kW weight of the machine ca.:2000 kg dimensions of the machine ca.:2000 x 1800 x 1550 mm Year:ca.1957 Documents:vorhanden
x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine with toolchanger, Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device oroginal table included
x-travel:600 mm y-travel:400 mm z-travel:400 mm number of spindle speeds:63 - 3.150 1/min feed stepless:12-3000 / 6-1500 (Z) mm/min quill stroke:100 mm milling-head swivable +/-:90° spindle taper ISO:SK 40 surface area:630 x 400 mm total power requirement:8 kW weight of the machine ca.:2,2 t dimensions of the machine ca.:2 x 1,9 x 1,95 m universal milling machine with point to point control, mechanical handwheels, swivel - rotary table (mech.) +-45°, hydr. tool clamping, half cabin, coolant device, manuals (German language)
spindle diameter:180 mm x-travel:6.000 mm y-travel:2.900 mm total power requirement:95 kW weight of the machine ca.:130 mit Zubehör t z-travel:1.250 Ram mm w-axis:1000 Spindel mm ram stroke:1250 mm dimension of the ram:450 x 450 mm bore spindle stroke:1000 mm bore spindle turning speed range:920 1/min powered rotary table: IOS 40 CNC 2 Achsen B u.V Rotary-table:3000 x 3500 mm Rotary-table: CNC-IOS 40 NC mm stepless adjustable, relative to diameter:Index 4x 90° -360000 Winkel =0,001 Grad mm travel - cross:Längs 1230 mm table load of rotary table max.:40 Tonnen clamping plate:3 x 8000 x 2000 mm CNC Ram-Type Floor Boring and Milling machine, dismantled and stored The headstock sliding guides were recoated and scraped.
x-travel:7000 mm y-travel:1200 mm z-travel:1300 mm rapid travel x/y/z:10 m/min table-size:7.200 x 1.000 mm table load:max. 4 t/qm universal head:5 Pos. plus manuell 1° tool taper:SK 50 milling head speed:20 - 2.000 1/min power capacity:30 kW max. torque on the spindle:Getriebe 2 stufig , 1.500 Nm control:HEIDENHAIN TNC 360 total power requirement:50 KW dimensions of the machine ca.:9,0 x 3,8 x 4,6 m weight of the machine ca.:25,0 t universal travelling column - universal milling machine orthogonal milling head with 5 controlled Pos. with M-code and additional 1° indexing, manually in spindle axis, prepared for HSC milling heads incl. torque support, moveable operator-cabin/panel, chipconveyor, incl. controlled security fence, miscellaneous accessories (angle milling heads, vices...) on request still under power in closed factory
x-travel:600 mm y-travel:500 mm z-travel:450 mm turning speeds:5 - 5000 U/min quill stroke:90 mm total power requirement:9 kW feed range:0-10.000 mm/min weight of the machine ca.:3260 kg dimensions of the machine ca.:2200x2800x2000 mm spindle:6 kW vertical milling head:SK 40 CNC universal milling machine (without toolchanger), Equipped with CNC-Heidenhain TNC 407 el.handwheel coolant device
spindle diameter:150 mm x-travel:10000 mm y-travel:2500 mm bore spindle stroke:700 mm ram stroke:700 dimension of the ram:340 x 340 mm spindle taper ISO:50 Speed of boring spindles:1,25 - 1250 U/min. feed speeds infinitely variable:1 - 5000 mm/min rapid traverse:5 m/min total power requirement:120 kW weight of the machine ca.:115 t dimensions of the machine ca.:15,1 x 10 x 6,4 m with CNC SIEMENS 840 Dsl complete retrofit in 2010 FIBRO CNC rotary table 2500 x 2500 mm, 50 to. loading capacity, longitudinal movement 2500 mm, angular milling head 4 x 90° universal milling head floor plate area ca. 12000 x 6000 mm ( 72 m²) chip conveyor and coolant attachment aerostatic guideways
turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and ...
spindle diameter:150 mm x-travel:3000 mm y-travel:2000 mm spindle stroke:700 mm dimension of the ram:340 x 340 mm ram stroke:700 column travel:1500 mm spindle taper ISO:50 bore spindle turning speed range:3,2 - 1600 U/min table surface area:2000 x 2500 mm max. table load:25000 kg rapid speed:5 / 10 m/min feed speeds:1 - 5000 mm/min total power requirement:100 kW weight of the machine ca.:57 t dimensions of the machine ca.:8,4 x 6,8 x 5,9 m with CNC SIEMENS 840 D full B-axis aerostatic guideways facing head ( 3,2 - 140 rpm ) angular milling head 1000 Nm coolant attahcmnet with internal cooling supply
spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster
spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

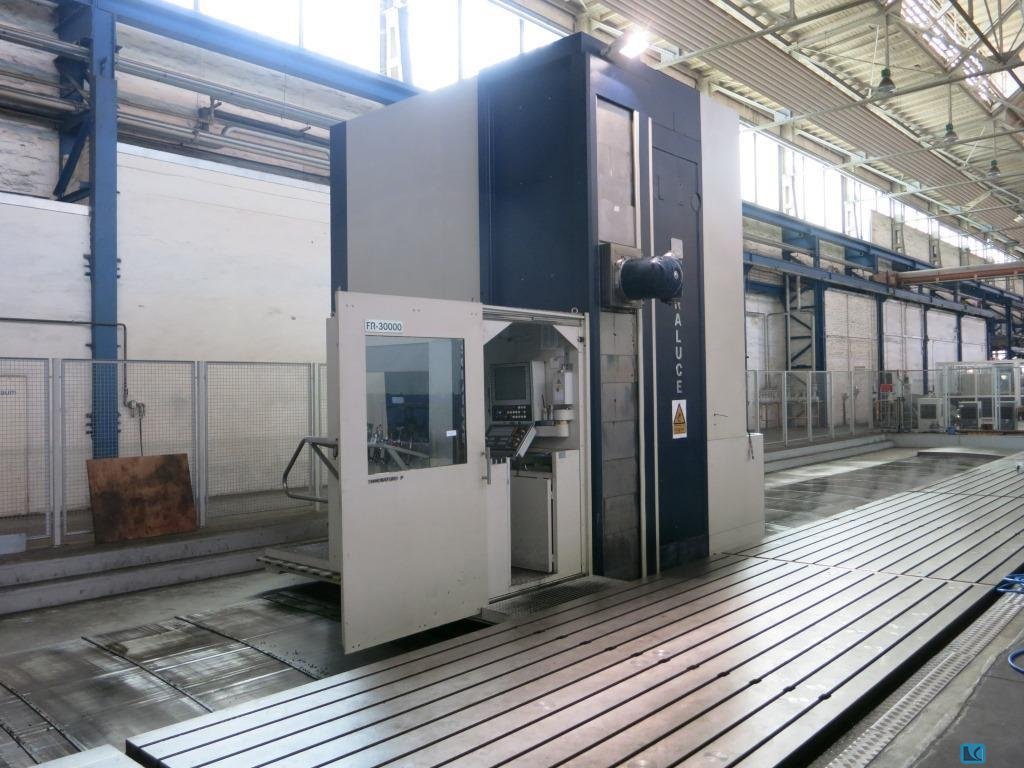

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment
x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head

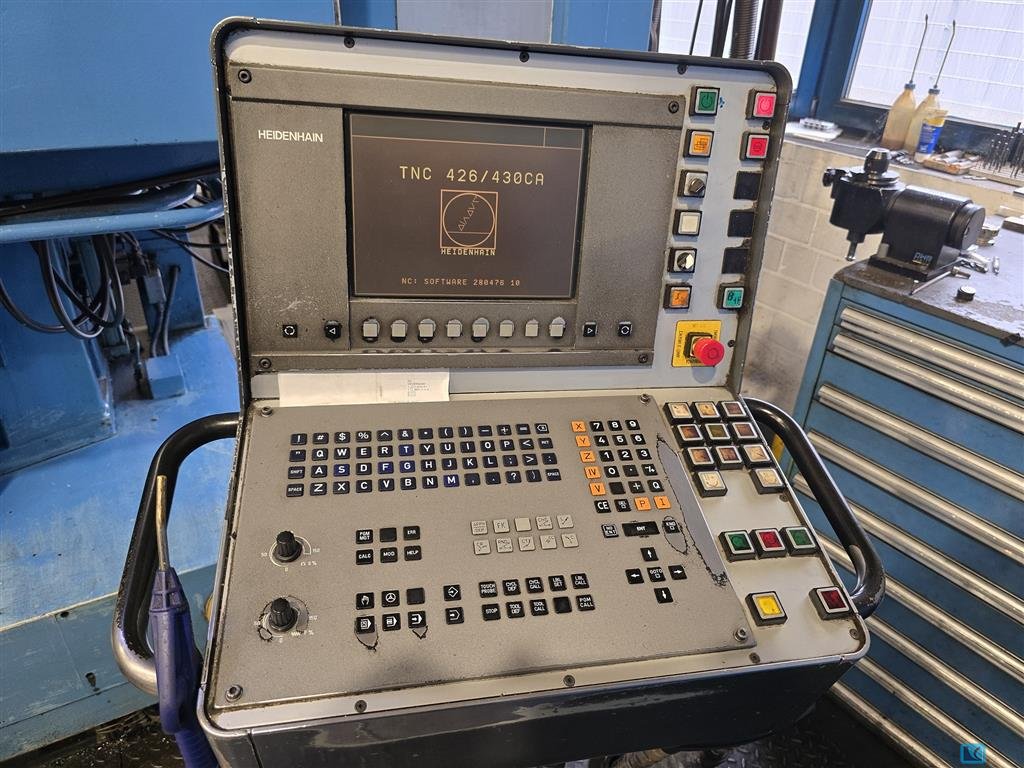

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor
x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min. distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm, ...
spindle diameter:200 mm x-travel:10000 mm y-travel:4000 mm z-axis:1500 mm W-axis (spindle longitudinal):1000 mm bore spindle turning speed range:1 - 2000 U/min dimension of the ram:600 x 530 mm high speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/min rapid motion - y-axis:8000 mm/min rapid traverse Z-axis:5 m/min total power requirement:120 kW weight of the machine ca.:135 t dimensions of the machine ca.:16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. v-axis 2500 mm chip conveyor and coolant attachment

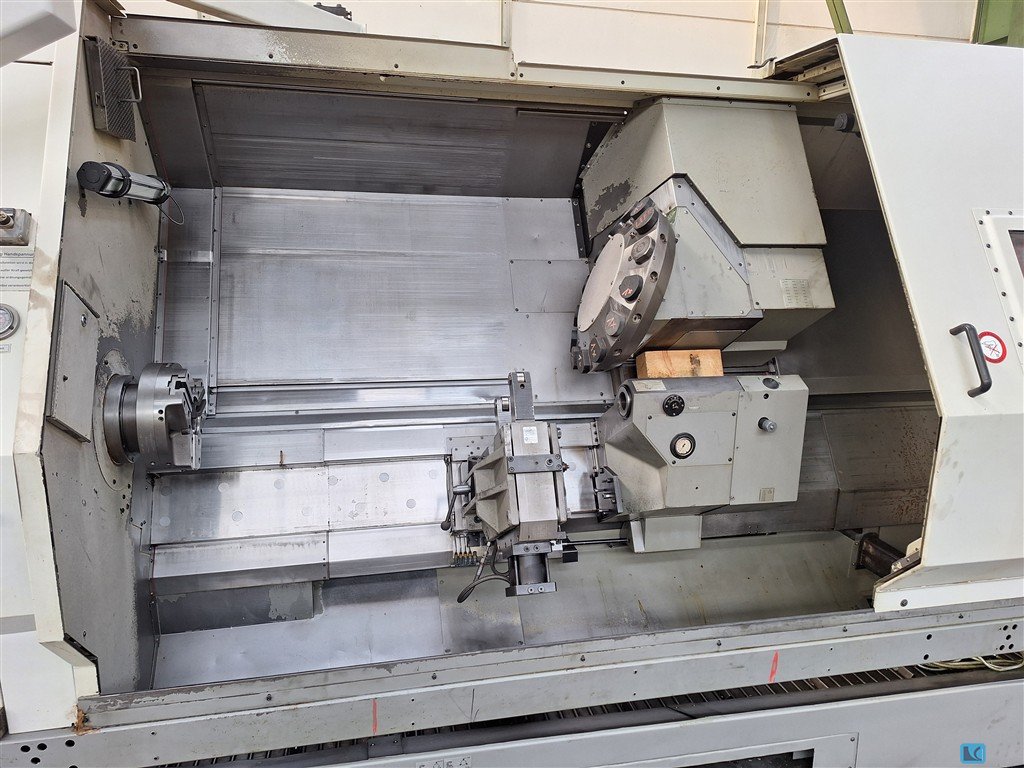

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment
Technical data Manufacturer: HERMLE Model: U 630 T Year of Make: 1998 Machine Type: Universal CNC Milling Machine Travel (X/Y/Z): 630 / 500 / 500 mm Tool holder: SK40 Speed range: 20 – 7,000 rpm Spindle power (40% ED): 11 kW Tool positions: 16 Machine weight: approx. 4,250 kg Configuration Control: Heidenhain TNC 410 / TNC 426 Tool changer: 16-fold magazine Coolant device: 120 L tank, 24 L/min at 3 bar Connection: 400 V / 50 Hz, 14 kVA, 6 bar compressed air
CNC Bar Machining Center for Aluminum, Machine No. 6100013187, control Beckhoff C6140 renewed in 2020, infeed of extrusion profile magazine length max. approx. 6000 mm, machining units (drilling / milling: vertical top 1 piece / vertical bottom 4 pieces / horizontal front 1 piece / horizontal rear 1 piece) and (sawing 3 pieces: 45 / 90 / 45 degrees), outfeed belt max. approx. 2700 mm, chip conveyor belt (The article is in condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! Mediation of dismantling and loading possible. Contact: Dejan Ducic / dejan.ducic@surplex.com
Serial number: 4432 Operating voltage: 380 V Frequency: 50 Hz Rated current: 13 A Speed: from 40 to 2000 rpm Tool holder: SK 40 Feed range infinitely adjustable: 5 - 500 mm/min Creep traverse: 4 mm/min Rapid traverse: 1200 mm/min Table Longitudinal movement: 300 mm Spindle block Transverse movement by hand: 160 mm Support Vertical movement motorized: 280 mm by hand: 290 mm without protective bar: 330/340 mm Vertical milling head on spindle block can be moved by hand: 100 mm Table dimensions: 600 x 210 mm with 4 grooves and an attached vice, jaw width: 160 mm
maximum number of results exceeded
please refine your search
