pneumatic punching machine used for sale

Rabolini Imperia "F" Gold with Hot Foil stamping Age: 2020 Max. Sheet Size: 120 x 165 cm Punching force: 380 tons Performance: up to 1300 sheets/hour Max. solid cardboard thickness: 1.6 mm Max. Corrugated Cardboard thickness: 7 mm Min. solid cardboard: 300 gr Equipment: Safety rules as described in CE and G.S: 2x Safety Mats and additional safety precautions at the machine. Pneumatic brake-clutch system with safety valve Automatic Central lubrication Control Panel with rotatable Arm Operation Modes: Single, Timer, Continuous Time setting at Control Panel: Time between opening and closing 1 – 6 seconds Second Timer for timed operation in closed position Batch Counter Hardened and ground Die Plate, 50 HRC, 5 mm 1x Universal locking Frame with Electric Motor Pressure Fine Tuning (Micrometric pressure adjustment of the platen die-cutter) Extended Opening of the Di ...

MAIN TECHNICAL DATA • Punching Force: 180 kN (18 Tons) • Working range (X x Y): 2500 mm × 1250 mm (without repositioning) • Maximum sheet thickness: 6.4 mm • Maximum weight of the piece (sheet metal): 150 kg • Maximum punching diameter: 76 mm (single punching) PERFORMANCE AND SPEED • X-axis positioning speed: 90 m/min • Y-axis positioning speed: 60 m/min • Simultaneous speed (X+Y): 108 m/min • C-axis rotation speed: 180 rpm • Number of punching strokes: up to 900 strokes/min (1 mm pitch) • Number of marking/gnawing shots: up to 2200 strokes/min TOOL SYSTEM AND CNC • Numerical Control: CNC based on Bosch Type 3 • Tool magazine: Linear with 19 stations with 2 self-centering clamps • Tool rotation: 360° full rotation for all stations (all tools are rotating) • Multitool compatibility: Configuration from 19 to 190 tools in total (when using ...

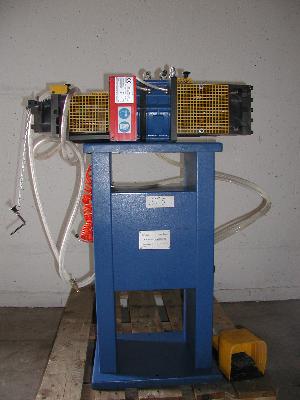

Offer 22523 Specifications: - Pressure capacity at 10 bar 35 KN - Plunger stroke 12 mm - Projection 95 mm - Installation height approx. 134 mm - Table size approx. 230 x 190 mm - Air consumption per stroke 8.0 l - Air inlet 6 - 10 bar - Space requirement approx. W 520 x H 1450 x D 600 mm - Weight approx. 100 kg - with: - Foot switch - Pressure gauge + pressure regulator - 4 x punching tool

Key data: 100 t

Hydraulic flat, bar. Profile and angle steel shears with notching device and hole punch Make: Muhr + Bender (Mubea) Model No.: HIW 1000 Year of Make: 1990 -Punching force: 1000 KN = 100 tons. -Hole punch: Ø 40 mm in 22 mm material -Angle steel shears 90°: 160 x 16 mm -Flat steel shears: 600 x 15 mm -Notching device: sheets 13 mm Weight: 2550 kg Visually good condition Technical good condition Accessories: Punches and matrices see photo no guarantee, no return, no warranty Machine is still in commercial use and can be viewed by appointment. Transport from the hall and removal is carried out by the buyer and at his expense

Forklift available for loading Auction-ID: A3-46161-19022

This AMADA AC2510 NT + MP 250 was manufactured in 2009. It features a 51-station turret and can handle sheet sizes up to 1270 × 5000 mm, with a maximum thickness of 3.2 mm for mild steel. The machine includes a loading system MP 250, enhancing its efficiency. Consider the opportunity to buy this AMADA AC2510 NT + MP 250 CNC punching machine. Contact us for more information.

CNC punching machine manufactured in 1995. This TRUMPF Trumatic 500 features a maximum punching force of 220 kN, accommodating workpieces up to 150 kg. It offers a working range of 2500 mm along the X-axis and 1250 mm along the Y-axis, allowing for efficient processing of various sheet sizes. If you are looking to get high-quality punching capabilities, consider the TRUMPF Trumatic 500 machine we have for sale. Contact us for further details regarding this machine.

Nibbel, stamping and forming center with C frame (C – Frame stress-free annealed before mechanical processing – 15-year warranty on freedom from cracking) All with one machine: Nibbling – Stamping – Forming – Embossing – Tapping – Marking – Deburring Servo-electric punch head drive - up to 950 strokes per minute, adjustable depending on the material feed speed. Maximum punching force 300 kN Maximum sheet thickness 6.5 mm Largest workpiece weight 200 kg Machining area 1,500 mm x 4,000 mm (with repositioning up to 8,000 mm) Punching head with FANUC® drive - Programmable: - Punching stroke - Punching depth - Punching speed and - Stamping tool acceleration Tool magazine for 15 pieces up to optionally 150 pieces indexable tools Indexing accuracy 0.01° On request, the machine can be supplied with a TRUMPF® tool system Patented vertical tool magazine ...

• Description: Versatile punch with many inserts • Power: max. pressure: 35t • Working height: approx. 1000 mm • Dimensions: 1350 x 850 x 1724 mm • Weight: 1540 kg • In operation since: 06.1998 • Accessories: Trolley with many suitable tools

Auction-ID: A1-47364-88

Book spine punching machine Schmedt Präcut HHS 6501; good condition; cleaned and tested; Block height max.350mm; Block thickness max.90mm; 3 knives. Book block spine machine Schmedt Präcut HHS 6501; good condition; cleaned and checked; max.block hight 350mm; max.block thikness 90mm; three knives.

WE ARE SELLING AN NICE CONDITION TRUMPF ROTATION. MACHINE IS READY FOR USE. MACHINE INCLUDES ALSO TOOL GRINDER AND EXISTING TOOLS FOR CUSTOMER WE ORGANIZE TRANSPORT AND DISMANTLING AS WELL

sheet width:400 mm plate length:500 mm plate thickness:4 mm total power requirement:0,5 kW Punching and Nibling machine with 6 x 3 mm nibling and 4 mm for cuting

air pressure:8 bar Air consumption:NI 18 l/min. weight:110 kg dimensions of the machine ca.:700 x 300 x 1000 mm

Key data: 20 t, 600 mm, 600 mm

We offer our reliable Amada Aries-222 punching machine for sale here. The machine is fully functional. The associated tool kit is complete and the machine is fully equipped.

Serial No.: 1704 Punching capacity: Ø 28 x 16 Available with special tools: Ø 100 x 4 Year of construction: 1997 Country of origin: Italy

Key data: 75 t, 80 mm, 250 1/min

Pressing force: 75t Table: 650 x 560 mm Plunger area: 500 x 300 mm Stroke rate: 50-250 stroke/min Lifting height: 8-80 mm max. installation height: 400 mm Passage between the side stands: 300 mm Feeder: Manufacturer: GSW Type: WV32/80 Band width: max. 320mm Tape thickness: max. 3.5mm Roller diameter: 80mm

Roller feed KAISER ZR 12 Belt width - 120 mm Feed length 100 mm Feed angle - adjustable - 90 - 180 degrees Tech. Condition - good, complete With pneumatics. Spare parts Btto 250 kg

Key data: 30 t, 100 1/min

Specifications Pressing force 30 t Stroke rate 100 – 600 mm Plunger stroke adjustable up to 40 mm Installation height 300 mm with built-in clamping plate

More details upon request

Automatic Die-Cutting/Lable Punching Machine, Max. Punching Size: 180x180mm, Min. Punching Size: 20x20mm, Max. Feeding Height: 150mm, (Height of Punching Die 60/70mm), Punching Strokes 12 p/min., Machine Output 720.000 Sheets/Hour, (Insertion 1000 Sheets/80gsm), Punching Pressure 2.500 Kg

Brand New / Unused, With Auto Feeder

Capacity: 60t, Bar: 150

Bobst SP 130 E Year 1985 Max.Size: 920x1300 mm Min.Size: 450x580 mm Max.Speed: 7000 Sh/h Max. Cutting force: 500 T Centerline Immidiately available.

cutting and punching machine

For sale SBG Cylinder 77x56

Bobst 1080

3000 x 1500mm LOW HOUR MACHINE with Compact Express / Brush Tables

Inv. Num. : 7488 Type: Aries 245 II Producer: AMADA Generated: Parameters: Compressive force: 200 kN Machine height: 1963 mm Machine length: 3814 mm Machine width: 2560 mm Machine weight: 11600 kg

Stripping Device, Varioplan System, Mabeg Non-Stop Feeder with Pre-Loader, Non-Stop Delivery, Centerline, Elevated, Sidelays On Operator And Off-Side, Formats: Max. 750x1050mm, Min. 350x400mm, Max. Cardboard Thickness: 1,8mm, Max. Corrugated Cardboard Thickness: 3mm, Speed: 9000 Sheets/Hour

Die-cut crucible Gietz MDST, machine number 11848, year of manufacture 1989, in good condition, immediately available We have two more Gietz models. Please request a quote. If you are interested, we will also be happy to inform you about other machines in our company. You are welcome to visit the machine in our house by prior appointment.

Stamping jar Simplacutter, 72 x 102 cm, in good condition, immediately available If you are interested, we will also be happy to inform you about other machines in our company. You are welcome to visit the machine in our house by prior appointment.

Reference ID PP-42880 Category Flatbed Die Cutter Manufacturer Bobst Model SPrintera 106 PER Year Built 2003 Color- Impression- Working Hours - Speed 12000 sheets/h Max. size 106 x 76 cm Condition Good Location Europe Availability December 2024 Machine Description Paper : min. 70 g/m2 Solid board (depending on the quality) : up to 2000 g/m2 Corrugated board (depending on the quality) : up to 4 mm Non Stop feeder and delivery 2x Stripping Powder register is new 2024 New controls Fully automatic feeders Semi-automatic delivery units

Table surface ... 3070x1660mm Nominal pressing force ... 18t Axis X ... 3070mm Axis Y ... 1660mm Max. sheet thickness ... 6.4mm Number of positions in the tool changer ... 22 Control Machine weight ... 14850kg L x W x H ... 7600x6700x2230mm The machine is in good condition, possible to test under power.

Inv. Num. : 7935 Type: Trumatic 2000 R Producer: Trumpf Created: 2003 Parameters: Compressive force: 18 t Maximum length of sheet metal plate: 2070 mm Maximum blade width: 1270 mm Maximum sheet metal plate weight: 75 kg Max. sheet thickness: 6.4 mm Maximum punching speed: 900 1/min Machine height: 2070 mm Machine length: 6000 mm Machine width: 5600 mm Machine weight: 8000 kg

Hoza EMU Punch This machine is ideal for punching out small moulded parts made of paper, rubber or textile goods. It has a high pressing force and fits on any stable table. The cut is initiated via a two-hand safety control. Forged knives or strip steel cuts can be inserted into the machine. Knife stroke: 30 mm Max. die-cutting format: 150 x 100 mm Weight: approx. 150 kg Colour: hammered blue Dimensions: 450 x 360 x 600 mm More items in other sizes - new and used - can be found in our shop! International shipping costs on request!
