plate rolling machine used for sale

3-roll hydraulic with dual pre-pinch planetary configuration. new to complete, 45 days from order. -Plate width 3000 mm -Capacity rolling plate thickness 50 mm -Pre-pinch plate thickness 40 mm Machine configuration and accessories installed: -useful surface length on the rolls 3100 mm -upper roll size 480 mm -lower rolls size 440 mm -Digital position readouts. -Hardening treatment of the 3 rolls. -3 rolls driven hydraulic motorized with independent axial gear box on each roll. -Conical plate bending attachment with tiltable lower rolls hydraulic. -CE quality certification, Made in Italy manufacturing. -Service manuals and operation instruction manuals. -Hydraulic diagrams -Electric & electronic schematics with parts list. -Set of service tools for maintenance. -Electric power installed 50Hp. -3 phase voltage to be specified Warranty 12 months.  ...

Technical data: maximum sheet width: 3000 mm maximum plate thickness at maximum yield of 240 N / mm² on bending: 35 mm On bending length: 2,2 x S Diameter of roller upper roller: 552 mm Bottom roll: 532,4 mm Side rolls: 400 mm

Working width: 1020 mm, sheet thickness: 1 mm top rollers diameter: 55 mm bottom rollers diameter: 55 mm space requirement: 1370 x 570 x 1100 mm

Printing plate development machine Koenings KTW 653; good condition, cleaned and tested; 3 brushes; inlet width 650mm; suitable for waterless panels. Plate processor Koenings KTW 653; good condition; cleaned and checked; 3 brushes; width 650mm; Used for waterless plates.

PLATE BENDING MACHINE FACCIN - 4 ROLL HYDRAULIC 3000 X 40 MM - MODEL 4HCI3-35/30 YEAR 1990 /2025 PLATE BENDING ROLL LINEAR GUIDEWAYS DOUBLE PINCH PRE-BENDING Machine in good working condition Bending capacity -Plate width : 3000 mm -Rolling plate thickness 40 mm - Prebend thickness 35 mm Rolls dimensions: -Useful length 3050 mm -central rolls upper/lower D 470 mm -side rolls left/right D 420 mm • Hardening of the 4 rolls high strength surface • 3 rolls driven powered with gear unit with hydraulic motor • Conical bending attachment side rolls tiltable to form cones, contrast pad roller type. • Opening front hydraulic drop-end to unload the closed shell. • Variable speed working roll bending rotation hydraulic speed fas ...

Mechanic plate bending machine Goyar 3C-25/20. Bending lenght: 2000mm. Bending capacity: 25mm. Diameter of upper cylinder: 285mm. Diameter of lower cylinders: 235mm. Main motor power: 20cv. Bending speed: 5 mpm. Weight: 5500Kgs.

Extraordinary precision Milling, engraving or cutting is possible with the highest precision, due to the high-quality inclined toothed racks installed on each axis. Ideal for processing plate material With the large machining area, the T-Rex is the best possible choice for milling plate materials, as well as for text or image engraving on 2D, 2.5D or 3D workpieces. Thanks to a assembly aid on the short side of the CNC milling machine, the work surface can be ideally and comfortably equipped with the plate material. The ball rollers allow an effortless glide of the plates. External dimensions LxWxH: 3780x2850x1950 mm Weight: circa 1950 kg Clamping surface XxY: 3030x2020 mm Travel XxYxZ: 3000x2000x200 mm (optional 300/400 mm in Z-axis) Width linear guides X,Y,Z: 20 mm Repeatability: 0.01 mm Reverse play: approx. 0.015 mm Working speed: 12000 mm per minute  ...

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation - automatic CNC – controlled double-sided pre-bending - Conical bending device - three hydraulically driven rollers (one hydraulic motor per roller) - hydraulic linear under-roll adjustment - hard chrome-plated piston rods - hardened and ground rollers - PILZ® laser protection - BECKHOFF® CNC control with Ethernet technology and large touch screen - DANFOSS® precision hydraulics - Central lubrication system

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic CNC – controlled double-sided pre-bending – conical bending device, three hydraulically driven rollers (one hydraulic motor per roll), hydraulic linear sub-roll adjustment – hard chrome-plated piston rods – hardened and ground rollers - PILZ® laser protection - BECKHOFF® CNC – control with Ethernet technology and large touch screen - DANFOSS® precision hydraulics – central lubrication system Maximum bending length 2,000 mm Roll diameter 170 mm Smallest weft diameter = 1.1 x the roll diameter The rollers run in bronze plain bearings. Nominal pre-bending performance over the entire bending length at 5 x D = 5 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 7 mm sheet steel/ST40 Drive power  ...

Very high-quality CNC – controlled precision sheet metal round bending machine with automatic bending sequence calculation – automatic CNC – controlled double-sided pre-bending – conical bending device, three hydraulically driven rollers (one hydraulic motor per roll), hydraulic linear sub-roll adjustment – hard chrome-plated piston rods – hardened and ground rollers - PILZ® laser protection - BECKHOFF® CNC – control with Ethernet technology and large touch screen - DANFOSS® precision hydraulics – central lubrication system Maximum bending length 2,000 mm Roll diameter 170 mm Smallest weft diameter = 1.1 x the roll diameter The rollers run in bronze plain bearings. Nominal pre-bending performance over the entire bending length at 5 x D = 5 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 7 mm sheet steel/ST40 Drive  ...

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic, CNC – controlled double-sided pre-bending – conical bending device Roll diameter 350 mm Smallest weft diameter 1.1 x the roll diameter = 385 mm Maximum bending length 3,000 mm Nominal pre-bending performance over the entire bending length at 5 x D = 18 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 22 mm sheet steel/ST40 Drive power 22 kW Weight 13,500 kg. Three hydraulically driven rollers (one hydraulic motor per roller) - The rollers run in bronze plain bearings Hydraulic linear sub-roller adjustment Hard chrome-plated piston rods Hardened and ground rollers PILZ® Laser Validation BECKHOFF® CNC – Control with Ethernet technology and large touch screen DANFOSS® Precision Hydraul ...

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic, CNC – controlled double-sided pre-bending – conical bending device Roll diameter 350 mm Smallest weft diameter 1.1 x the roll diameter = 385 mm Maximum bending length 3,000 mm Nominal pre-bending performance over the entire bending length at 5 x D = 18 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 22 mm sheet steel/ST40 Drive power 22 kW Weight 13,500 kg. Three hydraulically driven rollers (one hydraulic motor per roller) - The rollers run in bronze plain bearings Hydraulic linear sub-roller adjustment Hard chrome-plated piston rods Hardened and ground rollers PILZ® Laser Validation BECKHOFF® CNC – Control with Ethernet technology and large touch screen DANFOSS® Precision Hydraul ...

Double disc grinding machine

Roller bench Material thickness 1 mm Usable length 1,275 m Weight 200 kg

Disc grinding machine Grinding machine for plates, bowls, rings, wheels, etc. Manufacturer: Hempel Model No.: PQ-4 Year of construction: 1982

Technical data of the used Lisse Z4-30 calender: Upper roller diameter: 230 mm Diameter of lower rollers: 170 mm Machine dimensions: 4800 x 1250 x 1300(h) mm

Technical data of the Faccin HAV 3162 hydraulic plate calender used: Upper roller diameter: 620 mm Diameter of side rollers: 550 mm Machine dimensions: 8600 x 3500 x 3700(h) mm Weight: 90.000 kg

Sealing device SG-Verpackungen U 22, with base frame and foil, adjustable temperature sealing plate Connection 230V, dimensions LxWxH approx. 80x55x100cm, weight approx. 41kg, used, functional

Round Plate, Packing Machine, ...

Specifications: Working length: 3050 mm Max. bending power: 30.0 mm Max. bending capacity length 1500 mm: 42 mm Bend: 25.0 mm Diameter upper roller: 460 mm Diameter lower roller: 460 mm Number of driven rollers: 3 hydraulic snap roller bearing Engine power: 37 kW Dimensions (length x width x height): approx. 5850 x 2550 x 2650 mm Weight: approx. 30 tons Note: Compact design, therefore low space requirement Parts of the hydraulics installed under the machine

Specifications: Working length: 2550 mm Max. bending power: 6.0 mm Bend : 4.0 mm Diameter upper roller: 176 mm Diameter lower roller: 176 mm Control panel with digital display Motor power: 7.5 kW CE mark Dimensions (length x width x height): approx. 4000 x 1400 x 1500 mm Weight: approx. 3.6 tons Note: the machine was used exclusively for straightening coated aluminum sheets Rollers were wrapped in foil, which was removed without leaving any residue Condition of the rollers almost as good as new few operating hours

Specifications: Working width: 1050 mm Max. bending power: 100.0 mm Max. bend: 80.0 mm Diameter upper roller: 530 mm Diameter of side rollers: 530 mm Conical bending device by inclined position of the two side rollers Mobile control panel with digital display Engine power: 37 kW Hydraulic Safety Chucks CE mark Net weight: approx. 16 tons Auxiliary: 2. Roller set : Diameter upper roller: 360 mm Diameter of side rollers: 360 mm

Specifications: Working length: 4100 mm Max. bending power: 10.0 mm Bend: 8.0 mm Diameter upper roller: 310 mm Diameter of lower rollers: 285 mm Hardened rollers hydraulic snap roller bearing Conical bending device Control panel with digital display CE mark Dimensions (length x width x height)): approx. 5100 x 1250 x 1400 mm Weight: approx. 6.2 tons Condition: very good, almost mint condition The seller is not liable for typographical or data transmission errors. The machine is appropriate for its age in terms of appearance, technology and wear; used machines are sold without any warranty.

Baking Plates for EWA Baking Machine for Molded Cones - Condition: used - Wafer Length: approx. 130 mm - Wafer Diameter: approx. 30 mm

Baking Plates for PRO 1 Baking Machine - Condition: used - Engraving (Lower Baking Plate): approx. 5 x 5 mm - Engraving Depth (Lower Baking Plate): approx. 1,45 mm - Wafer Sheet Thickness: approx. 3 mm - Connecting Shaft: approx. Ø 16 mm - Collar radius: approx. 96,5 mm

Copper plate for lapping machine. Dia 600mm, NEW, make: Melchiorre, Mimu Machine Tools Gussago BS Italy, Lapping is a machining process in which two surfaces are rubbed together with an abrasive between them, by hand movement or using a machine., This can take two forms. The first type of lapping (traditionally called grinding), involves rubbing a brittle material such as glass against a surface such as iron or glass itself (also known as the lap or grinding tool) with an abrasive such as aluminum oxide, jewellers rouge, opticians rouge, emery, silicon carbide, diamond, etc., between them. This produces microscopic conchoidal fractures as the abrasive rolls about between the two surfaces and removes material from both., The other form of lapping involves a softer material such as pitch or a ceramic for the lap, which is charged with the abrasive. The lap is then used to cut a harder mate ...

Straightening and welding plate steelMilled steel plate with good surface, heavy straightening plateLength 1900 mmWidth 1500 mmThickness 70 mm continuous machined surface, surface milled- plate provided with some symmetrical holesWeight approx. 1600 kggood conditionHeight-adjustable feet made of cast steel can be found in our shop; used

Clamping plate, machine table with metal baseClamping table, assembly table, clamping bracketClamping surface: 1200 x 370 mmD- Groove spacing: 90 mmTable height: 870 mm- Slot table used to be a machine table from a milling machine- 4 T-slots 16 mm- Metal substructure with height-adjustable feet- Multi-layer wood panel L x W x H 1200 x 400 x 18 mmOverall dimensions L x W x H 1400 x 770 x 870 mmWeight: 250 kggood condition; used

Clamping plate, machine table with T-slots made of steelClamping tableClamping plate, clamping table, machine table SELF-MADEcan also be used as a straightening plate or welded plateTable surface: 2150 x 1040 mmOverall height: 200 mm- Top and bottom machined in parallel, planed surfaces- Table top L x W x H = 2150 x 1040 x 65 mm- Table top with some symmetrical holes Table top with M16 and M24 threaded holes, M16, M24, M16, M24 etc. Bore spacing in length: approx. 250 mm Bore spacing in width: approx. 255 / 165 /

OFFER PLATE ROLL 2000x6 mm SERGI 3ROLL INITIAL PINCH ASYMMETRIC 2050 X6 MM Rolls length 2050 mm -Top roll 170 mm -lower/Side rolls 150 mm -Power electric 5,5 Hp Capacity -plate width 2000 mm -plate thickness 6 mm with prepinch Configuration on the machine -Rollers surface hardened high strength -Central rolls driven electric rotation on gearunit -side roll electric run with prepinch Pinch roll position with handwheel Front open manual drop-end -Readout gauge of side bending roll -Foot-pedal electric rollers rotation back/forth -Joystick electric control of side roll -Safety installations with emergency stop. -Machine in good conditions

4roll plate bending machine 2500 X 12 mm with central support hydraulic for large diameters and side arm plate support Capacity plate width 2500 mm Plate thickness 12 mm Prebend 10 mm Upper roll 265 mm Lower rolls 245 mm Surface useful on rolls 2550 mm Power supply 380/50 Electric motor 15 Kw on hydraulic unit Configuration Hardened rolls very high surface resistance Conical bending attachment Digital position readout of the rollers Safety and emergency installed per norms Hydraulic rolls power driven with planetary gear unit Hydraulic motion of rollers individual with dual initial pre-pinch Open front drop-end hydraulic to unload the closed shells Central support vertical hydraulic operated for large diameters Side arm operated hydraulic support Total weight of the machine 7500 Kg Total weight of the machine 7500 Kg machine layout 4200X15 ...

G&J C85, Clean Out Unit

Key data: 3000 mm, 8 mm

3-roll bending machine / round roller Schäfer SRMVHY – fully functional For sale is a used 3-roll bending machine (round roller / sheet metal bending machine) from the manufacturer Schäfer, model SRMVHY, built in 1992. The machine is in fully functional condition and is ready for immediate use. The rollers are hydraulically adjustable, which allows for precise and comfortable adjustment. The round bending machine is ideal for bending sheet metal in workshops and production plants. Technical data: Manufacturer: Schäfer Model No.: SRMVHY Year of Make: 1992 Max. sheet width: 3,000 mm Max. sheet thickness (mild steel): 8 mm Roller diameter: approx. 200 mm Voltage: 380 V Dimensions (L x W x H): approx. 5,300 x 1,800 x 1,300 mm Condition: used, fully functional Equipment: hydraulically adjustable rollers Changes and errors in the technical data, ...

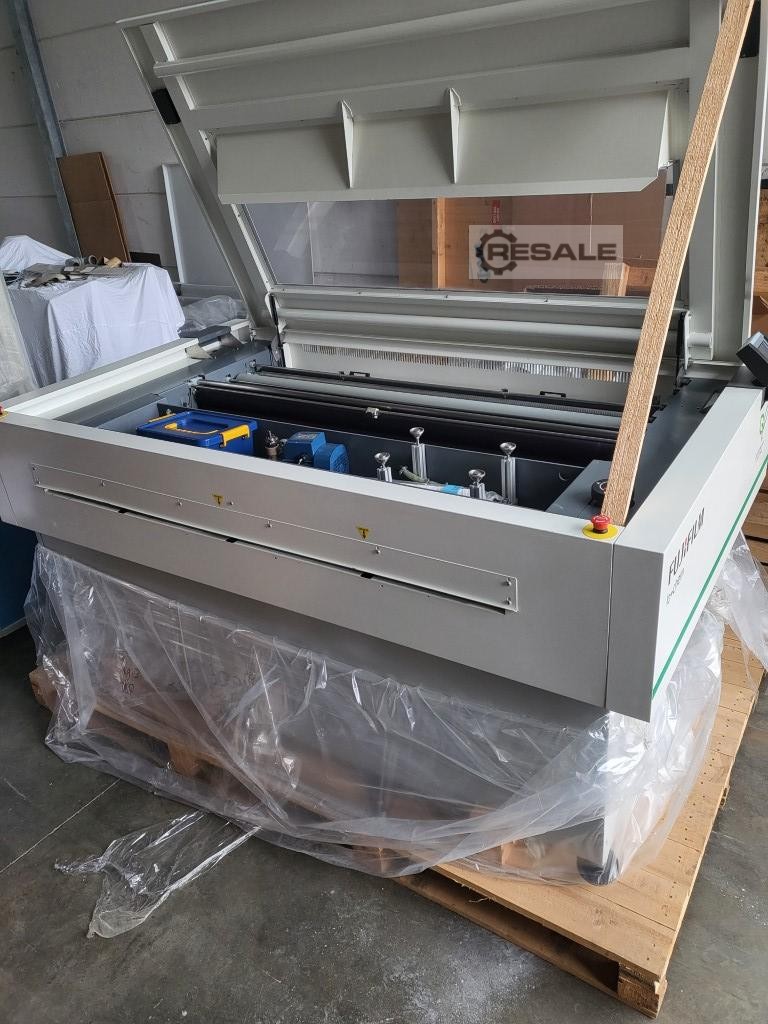

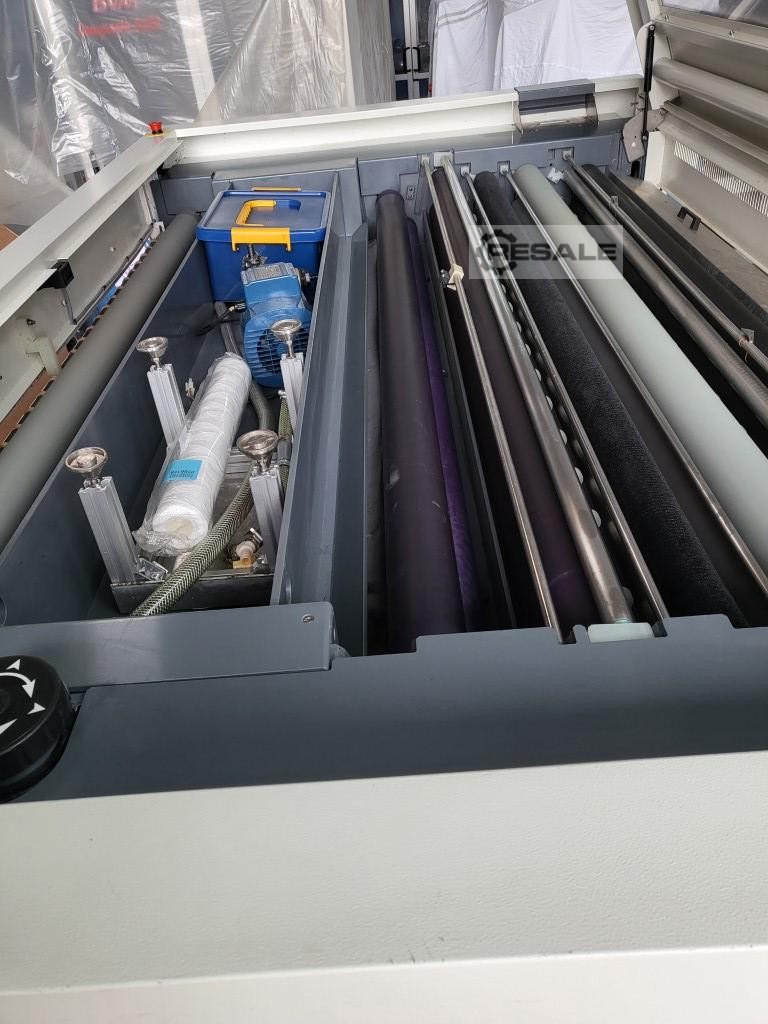

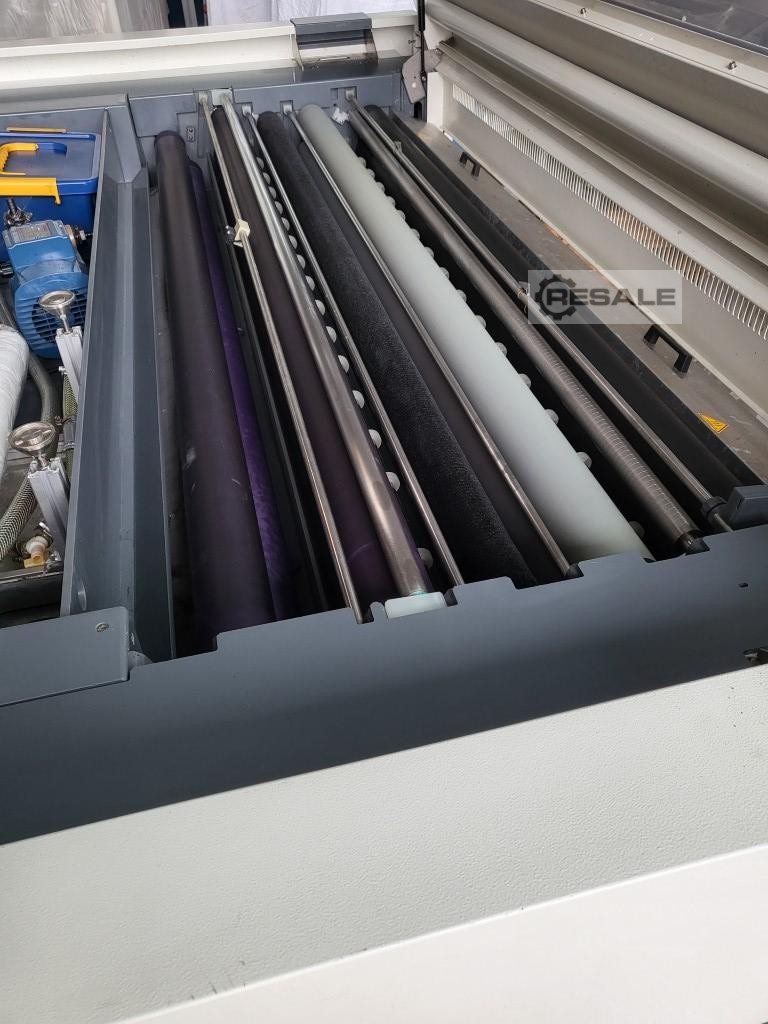

Printing plate development machine Fuji FLHZ 165 CD; infeed width 165cm; Interface Kit; High Pressure Kit; Chiller; Drip pan; Lay on Roller flushing section; Raised feet 80mm. Plate processor Fuji FLHZ 165 CD; working width 165cm; Interface Kit; high pressure kit; chiller; drip tray; lay on roller for water section; elevated foot 80mm.

Plate punching machine 70x100 Brand: Grapho Metronic

4 ROLL HYDRAULIC DUAL PRE-PINCH 3000x15 MM PLATE BENDING MACHINE NEW Brand MG model M3015 -Width of plate 3000 mm -Thickness of plate rolling 15 mm -Thickness of plate pre-bend 12 mm minimum bending diameter ID 350 mm Rolls dimensions: -Surface length mm. 3100 -Top roll mm. 290 -pinch roll mm. 270 -Power electric 10 Hp Technical data: -rolls hardened surface high resistance -variable rolling speed -Powered driven hydraulic rolls rotation -conical bending attachment roller type -calibration system re-rolling welded shells -deflection pinch pressure adjustable upon the thickness -overload protect complete safe operation of the machine. -control console on wheels with electric joysticks commands -position readout digital display for rolling memorize and repeat -safety and emergency systems installed -manuals and schematics along with the machine

Flat steel bending machine The following bending tools are included: 1\" - 1 1/4\" - 1 1/2\" - 2\", - 2 1/2\", - 3\" Bending tools diameter 1\" to 3\" mm Wall thickness max. 16 mm Machine weight approx. 26 kg Package size max. 0.6 x 0.3 x 0.3 m Condition: never used / new (5) Auction-ID: A7-46642-171

Type: Sheet Metal Plate Chamfering Machine Manufacturer: Aceti Macchine (Italy) Model: Not specified Year: 2000 CE Marked: Yes Power supply: 400 V / 50 Hz / 3 Phases Motor power: 2.2 – 1.3 kW (3 – 1.8 hp) Motor speed: 2800 – 1400 rpm Noise emission: 68 dB Machine dimensions (LxWxH): 1000 x 700 x 1300 mm Own mass: approx. 210 kg Equipment: Adjustable working table, motorized chamfering unit, control panel with emergency stop Remarks: Machine in working condition; can be inspected on site. Visible signs of normal use. See photos for overall condition. Auction-ID: A7-47063-11

<br><br><br>Still in operation: Yes<br>Verf Gbar: Immediately

Chamber filter plates PP Polypropylene chamber filter plate -for almost all manufacturers: Rittershaus & Blecher, Passavant, Netzsch, Hoesch, von Roll, Diemme, Filox, Andritz, etc. Cake thicknesses and plate thicknesses are freely selectable depending on the application and filtration conditions. The chamber filter plate made of plastic is characterized by excellent chemical resistance and easy handling due to its low dead weight. - One component - The filter surface consists of a special conical bump structure. This pimpled structure supports the filter cloth and ensures excellent filtration performance for each individual chamber. - Filtratin inputs and filtrate sequences individually according to customer requirements - High plan parallelism, thus flawless sealing in the closed state. Standard formats: 250, 400, 470, 500, 630, 800, 915, 1000, 1067, 1200, 1300, ...

Membrane filter records Standard welds together the filtration cycle can be shortened by the application of membrane filter records considerably, while the unproductive phase of the pressure filtration is broken off and is substituted with the postpressing. full plastic membrane record with welded together membranes, thereby the easiest Handling and the highest chemical permanence perfect separation of the Nachpressmediums of the filtration product variable material choice membrane corners as ? circle to the membrane movement poor in tension for almost all formats and manufacturers. they need spare parts, accessories, service or servicing for your chamber filter press high-pressure membrane pump or drainage facility? request us. we help you with pleasure.

plate heat exchanger Gea Ahlborn with 2 centrifugal-pumps:(hotwaterpump and recirculationspump) Manufacturer: Gea Ahlborn 6 Sections: preheater 1,preheater 2,heater,precooler 1,cooler,hotwater Type: VT 4 P (1.4401) Fabr.Nr.: 177/4113 flow rate: ca. 750 ltr/h (5 to 72/75°C) - 80 % gain of heat day of construction:1994 weight : ca. 220 kg Dimension : length x width x hight: ca. 103 x 44 x 143 cm

APV K 55 plate apparatus, 6 departments, Y.O.M.1994, late 2005 dismantled, cleaned, new clip seals and plates UV tested. test log exists. Power approx. 960,000 Kcal/h

used membrane filter records, membrane chamber filter records 1000 x 1000 pp approx. 190 pieces in the camp

Cat. No. 13-0217B-03 in very good condition measurement and weight: 2 plates in stainless steel 60 x 60 HxLxW: 134 x 220 x 97 cm 37 plates in pvc 60 x 60 weight: appr. 850 kg All prices are valid Ex-Works, excl.VAT Freight Charges: depending on dimensions and destination Delivery: from 97753 Karlstadt-Karlburg Subject to prior sale

Length: 350 mm Width: 150 mm Polarity ~ 9 mm Space requirement approx.: L: 440 x W: 210 x H: 135 mm Voltage: 24V Power: 2,04A

Chain plates (used) Serial No.: IMA -with rubber plate and mounting bracket -Dimensions: 80 x 60mm -more than 100 PCs available Price per piece: 4,50 euro + VAT

GEA Ahlborn plate heaters used

feeder: • pallet feeder • machine number (feeder) 34103/88 • counter EVZ 30 1st folding unit: • pre-slitter shafts • 4 buckle plates • rear-mounted slitter shafts • noise prevention 2nd folding unit: • working width max. 94cm • 4 buckle plates • rear-mounted slitter shafts • noise prevention 3rd folding unit • working width max. 66cm • 2 buckle plates • rear-mounted slitter shafts • noise prevention Still in operation: No Available: sofort
