plate line used for sale

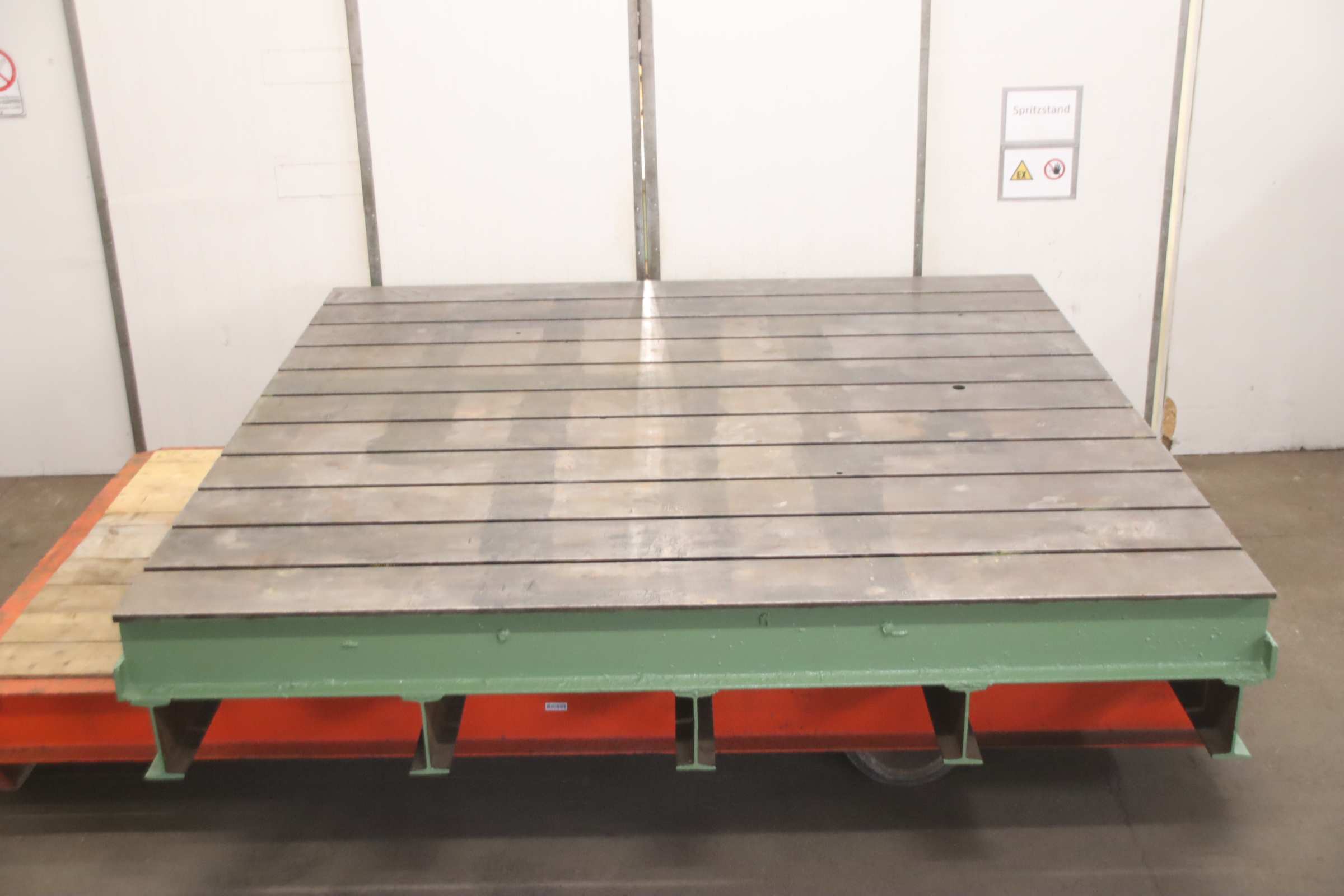

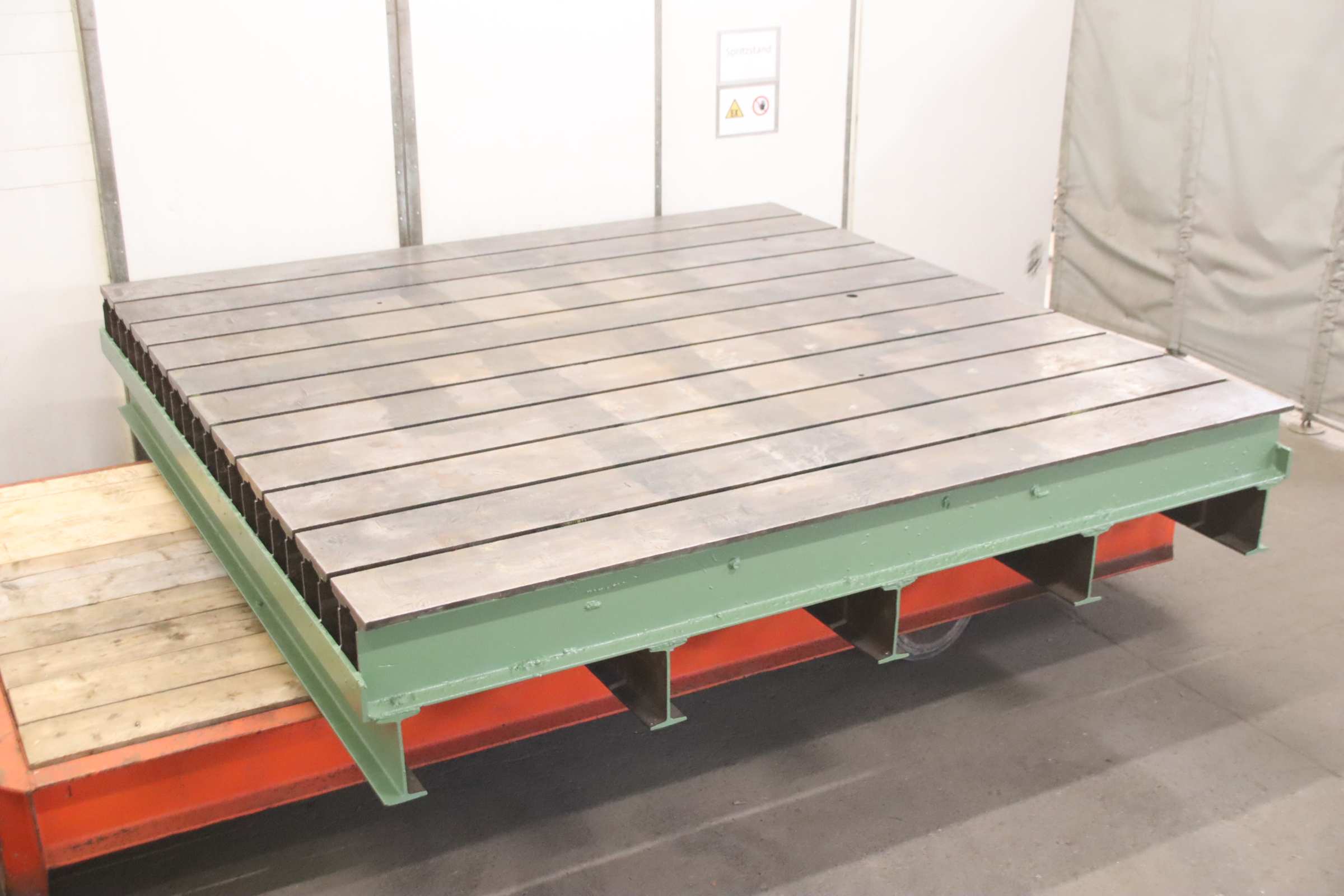

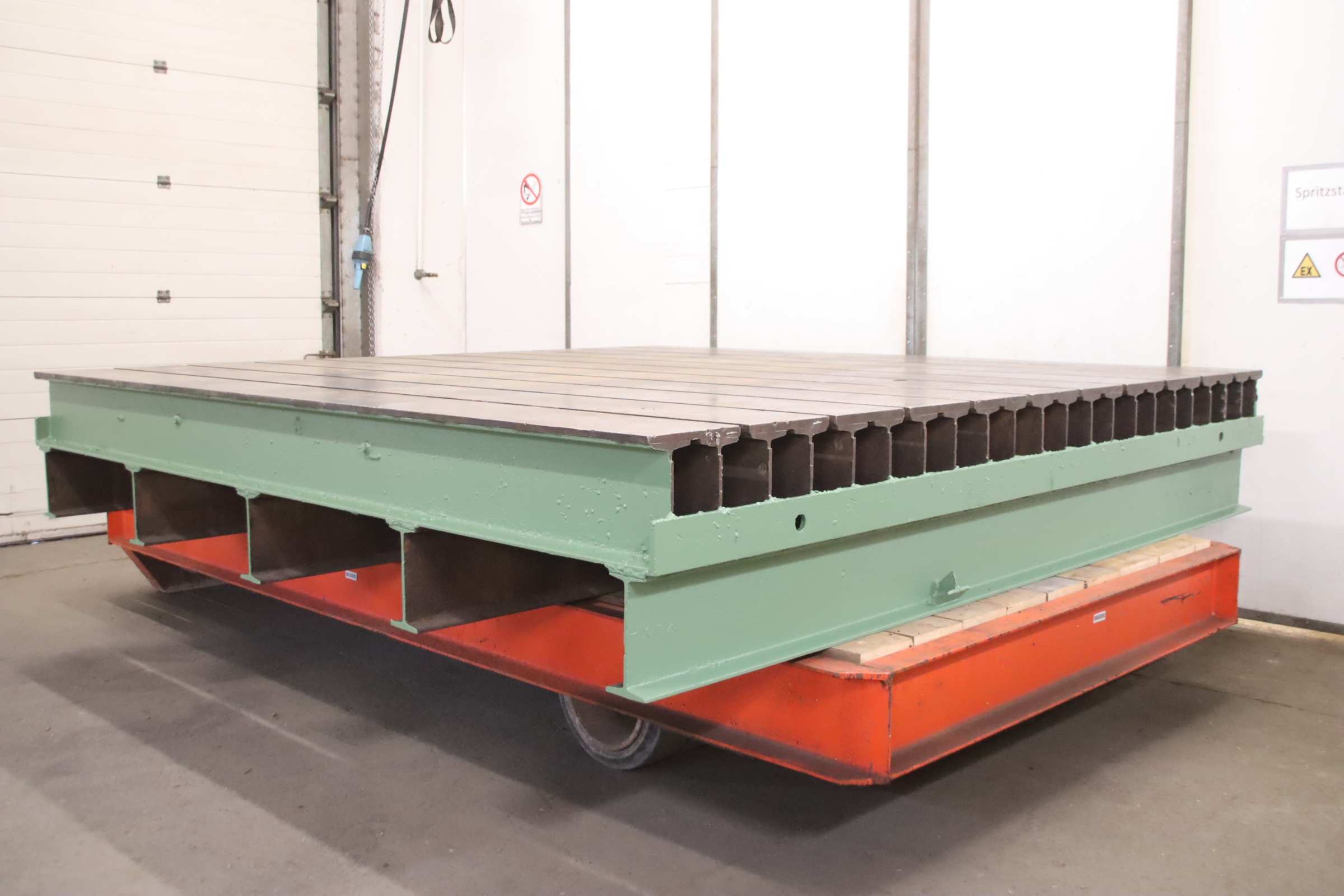

Clamping plate with T-slots, plate panel, welding table, T-slot plate, clamping plate, scribing and marking plate, measuring plate, measuring table, leveling plate, scribing plate -Mounting plate: T-slot plate with solid base frame -Length: 3030 mm -Width: 3000 mm -Groove width: 25 mm -Dimensions: see photos -Overall dimensions: 3030/3000/H500 mm -Weight: 4500 kg

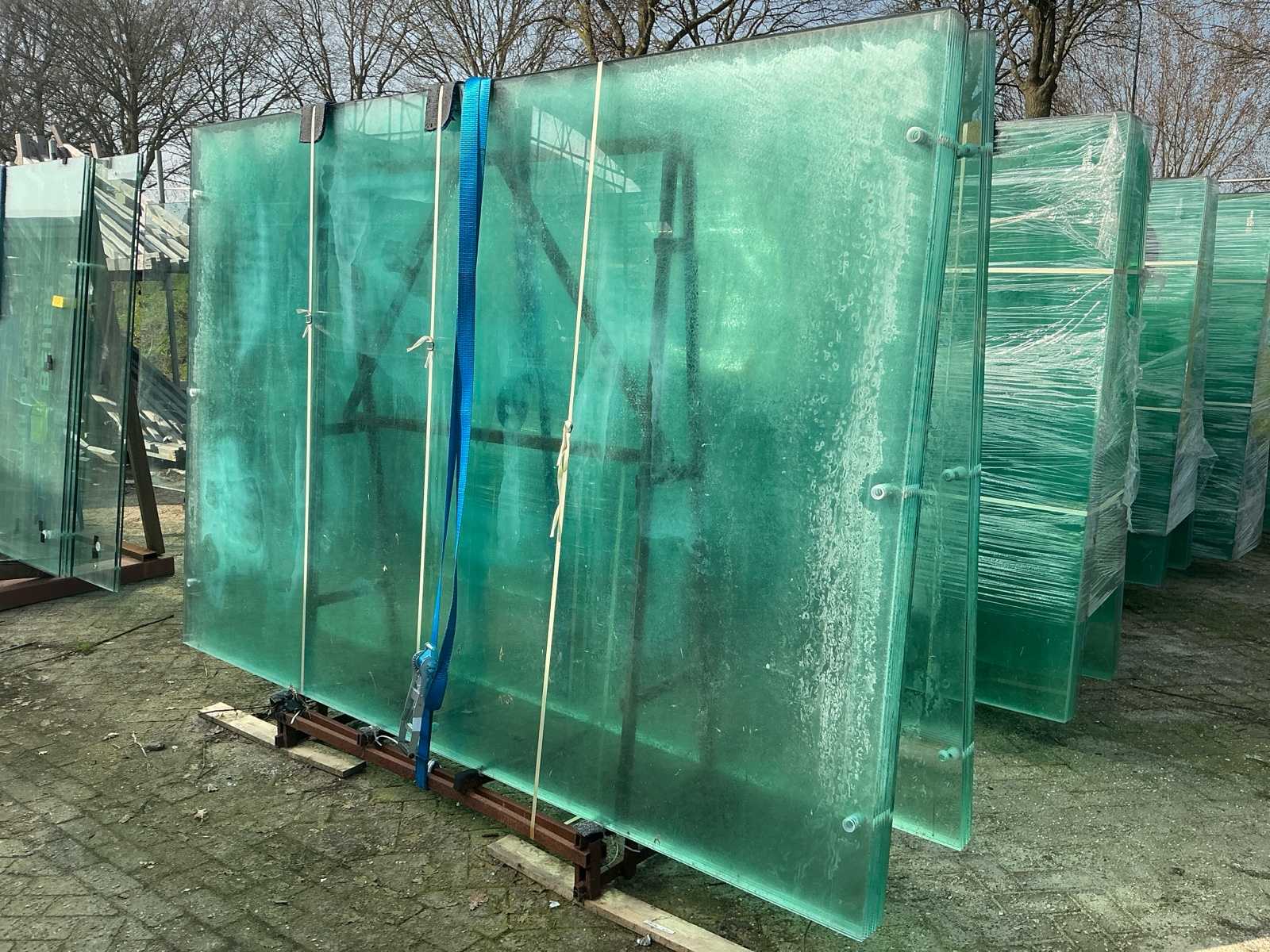

Equipped with: 1x trestle with 18 pieces of glass plate. Glass thickness: 12mm Auction-ID: A1-40115-46

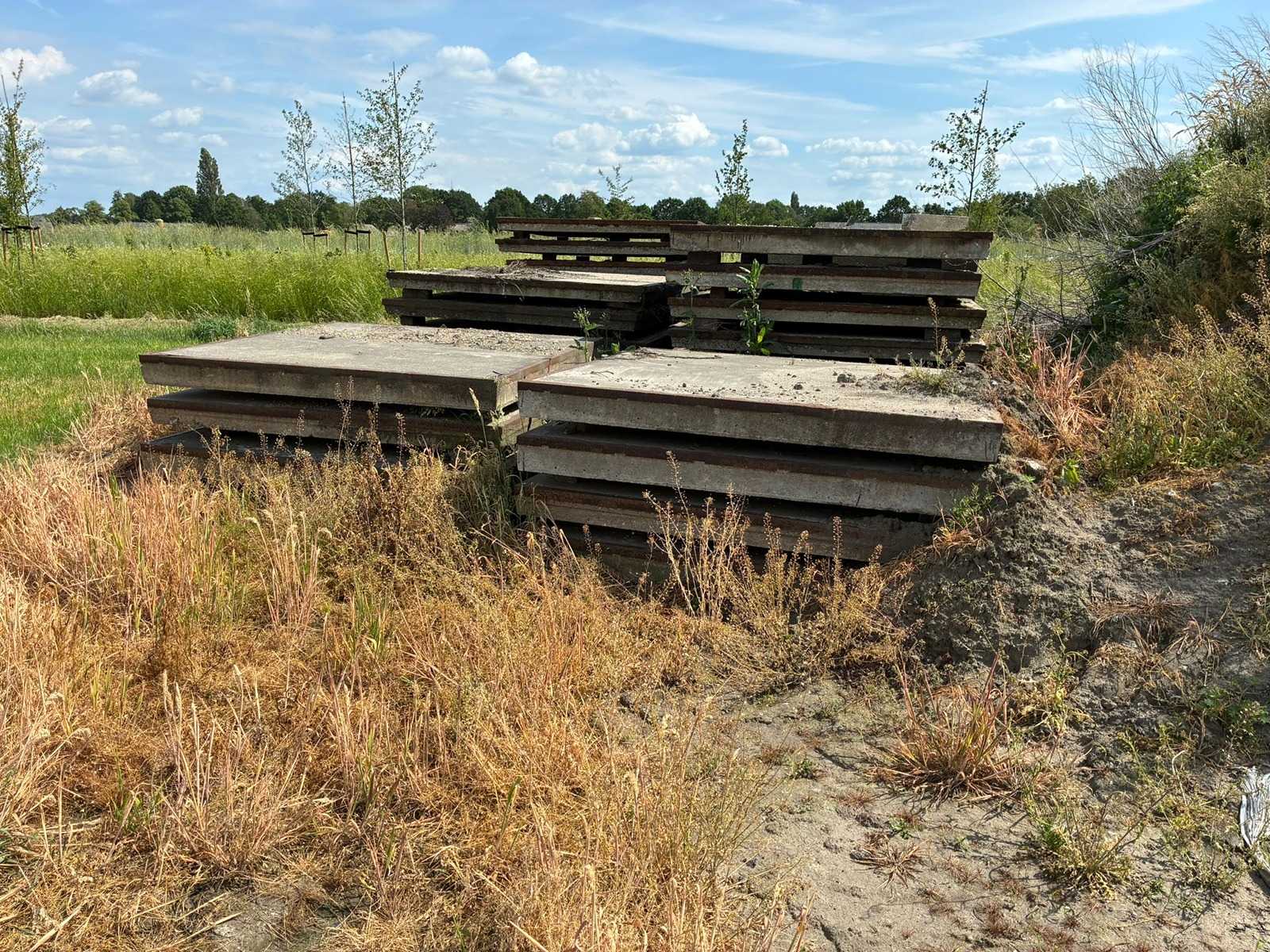

Equipped with: Reinforced concrete stelcon slab with dimensions of 200 × 200 × 14 cm, a surface area of 4 m², a weight of approximately 1,400–1,500 kg, equipped with lifting anchors and often a steel corner edge, suitable for heavy traffic such as trucks, agricultural and earthmoving machines. Auction-ID: A1-40141-281

Equipped with: 1x trestle with 18 pieces of glass plate. Glass thickness: 12mm Auction-ID: A1-40115-42

Equipped with: 1x trestle with 18 pieces of glass plate. Glass thickness: 12mm Auction-ID: A1-40115-43

Equipped with: 1x trestle with 18 pieces of glass plate. Glass thickness: 12mm Auction-ID: A1-40115-45

Equipped with: 1x trestle with 18 pieces of glass plate. Glass thickness: 12mm Auction-ID: A1-40115-44

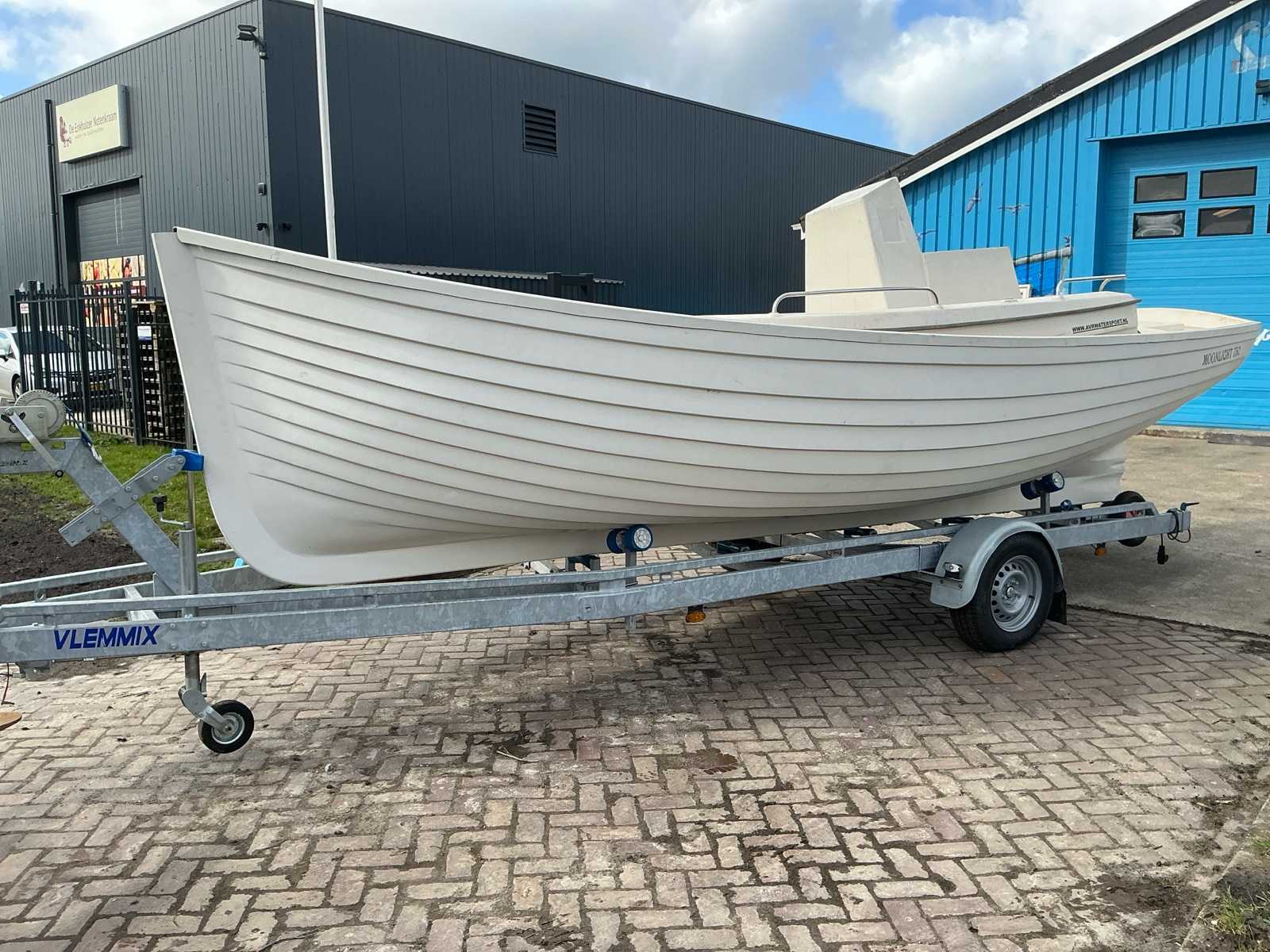

Casco sloop with Vlemmix boat trailer (license plate) Type: Casco sloop (finishing project) Length of sloop: approx. 7.5 meters Width of sloop: approx. 2.2 meters Version: Casco (not finished) Including: Vlemmix boat trailer Trailer: Equipped with registration Including a small boat in the sloop with a ''Honda'' Outboard motor (condition of the engine unknown) Auction-ID: A1-42020-99

workpiece thickness max.:80 mm workpiece thickness min.:5 mm plate size without being adjusted:2000x1000 mm size of plate min.:100x100 mm control:CNC Mubea Matic100 hole diameter:min/max:10/40 mm workpiece weight:750 kg deburring device max.:d=40 mm traversing speed:80 m/min work height max.:1050 mm positioning accuracy:+/- 0,5 mm opening of gripping pliers min/max.:Typ I: 5/45 mm opening of gripping pliers min/max.:Typ II: 45/85 mm feed length:max. 150 mm rapid traverse::8 m/min spindle turning speed range:112-180-224-280-355-560 U/min work table::L:2500;B:950 mm arm gripping device:4 Stück tool taper:Kegel DIN 6327 longitudinal travel:x=2800 mm cross travel:y=1000 mm bore spindle stroke:max. 150 mm total power requirement:25,0 kW weight of the machine ca.:5,5 t space requirements approx. LxWxH:5,0x5,5x2,7 m plate size with beeing adjusted also 1000x4000 mm possible with roller conveyo ...

length:1500 mm width:1000 mm weight of the machine ca.:0,2 t dimensions of the machine ca.:1,5 x 1 x 0,8 m Surface plate / Welding bench with underframe Texte, Bilder, Grafiken, Layout, Strukturen und Algorithmen etc. unterliegen weltweitem Urheberrecht. Unerlaubte Verwendung der Daten, werden sowohl strafrechtlich als auch zivilrechtlich verfolgt. Das ausschließliche Urheber- / Nutzungsrecht dieser Daten wurde nachfolgender Person eingeräumt. Copyright © 2005-2024, Josef Weber. All rights reserved.

Teflon infeed, hold down belt, circulation pump, oil level control, sediment removal, electric hoists, prepared for CO2 fire extinguisher, Including separate infeed belt, Machine delivered with CFS VTC1100-194 oiltank and oilpump, Belt width: 500 mm, Frying length: 3000 mm, Heating: electric, Power: 3 x 380V, 50Hz, 72kW, Weight: 2500 kg, Dimensions: 6300 x 1700 x 3100 mm

With flipover conveyor in the middle, Including welding trolley, Belt width: 1100 mm, Cooking length: 10000 mm, Heating: thermal oil, 189kW + electric, 128kW, Exhaust: 1000 m³/h, Steam: 3 - 7 Bar, Compressed air: 6 Bar, 12 l/min, Water: 15,4 l/min for belt washer, Power: 3 x 400V, 50Hz, 168kW, Dimensions: 10000 x 2200 x 2450 mm

Including continuous belt washerSiemens Simatic S7 control panel, Belt width: 700 mm, Belt length: 12500 mm, Max. product height: 180 mm, Heating: steam, Cooking time: 3 - 18 min., Power: 3 x 400V, 50Hz, 26kW, Dimensions: 14600 x 2400 x 4400 mm, Weight: 9500 kg

Teflon infeed, hold down belt, circulation pump, electric hoists, oil level control, prepared for CO2 fire surpression system, Belt width: 630 mm, Frying length: 5000 mm, Heating: thermic oil, 250kW, Power: 3 x 400V, 50Hz, 11kW, Dimensions: 9100 x 1900 x 2900 mm

Hold down belt, circulation pump, sediment removal, oil level control, manual hoists, prepared for CO² fire extinguisher, Belt width: 400 mm, Frying length: 3000 mm, Heating: electric, 66 kW, Power: 3 x 400V, 50 Hz, 72kW, Dimensions: 5400 x 1650 x 3150 mm, Weight: 2450 kg

Hold down belt, sediment removal, circulation pump, oil level control, Prepared for CO2 fire extinguisher, Belt width: 600 mm, Frying length: 3000 mm, Heating: thermal oil, 90kW, Power: 3 x 380V, 50Hz, 3.6kW, Dimensions: 5650 x 1800 x 3450 mm, Weight: 2150 kg

Hold down belt, sediment removal, circulation pump, electric hoists, oil level control, Prepared for CO2 fire extinguisher, Belt width: 600, Frying length: 4500 mm, Heating: thermal oil, 214kW, Power: 3 x 380V, 50Hz, 10kW, Dimensions: 7400 x 1900 x 3150 mm, Weight: 2750 kg

Inclusief gereedschap voor het buigen van secties: 3x voor tubedia 115 mm 3x voor tubedia 90 mm 2x voor tubedia 65 mm 2x voor tubedia 70 mm 2x voor tubedia 50 mm 1x voor tubedia 60 mm 3x plat gt; breedte 60 mm 2x plat gt; breedte 120 mm kleine adapterplaten verschillende diktes 3x plat gt; breedte 60 mm (zonder montage of machine) 1x plat gt; breedte 120 mm (zonder montage of machine) de onderste rollen liggen heel dicht bij de bovenste hoofdrol, wat een zeer strak voorbuigen mogelijk maakt Number of rolls: 3 rolls Roll capacity cold: 2550 x 15 mm Roll dia upside: 275 mm Dia under roll - side rolls: 205 mm Power needed: 7,5 kW Length: 4300 mm Depth: 1500 mm Hight: 1500 mm Profile bending machine: yes Pre-bending : yes

Capacity: 125 ton, Strokes per minute: 85-500 / min, Slide: 870 x 550 mm, Plate width: 260 mm, Year of manufacturing: 1980

Cat.-Nr. 11-1045 Capacity: 500 up to 1000 Litres COMPLETE For producing juice and filling in from fruits and vegetables For Washing/Grinding, Pressing, Storing, Pasteurizing, Filling Complete Production Line with following machines: Cat-Nr 10-2346 - Eurolux Big-Box Dumper for emptying fruits and vegetables from wood or OVC boxes LxWxH: 1680 x 1480 x 1220 mm Cat-Nr 10-2347 – Eurolux Wash and Grinding Mill Unit Capacity: 2000 kg/h - Motor Power: 3,0 kW Cat-Nr 10-2337 – Eurolux Automatic Continuous Belt Press EL-500 for producing fruit juice and fruit wine, cider from apples, pears Capacity: 500 up to 1000 kg/h Cat-Nr 06-1101 – Eurolux Floating Lid Tanks 2 x 1000 Litres Floating Lid Tanks 2 x 500 Litres Floating Lid Tanks 2 x 300 Litres Floating Lid Tanks Cat-Nr 10-2350 – Eurolux Pasteurizing Machine EL-1500 with Plate Heat Exchanger Capacity: 10 ...

Stand drilling machine in row arrangement, used Gang drilling machine, used Type: BT 6.52 Manufacturer / make: Steinel Built/ new in: 1978 Drilling capacity / drilling capacity: 6 mm in St 60 Spindle cone/ spindle taper: MK 1 Drilling spindle discharge / distance center drill spindle to column: 204 mm Drilling stroke/ way of spindle: 90 mm Table clamping area/ table size: 800 x 390 mm Column diameter/ diam. of coulmn: 60 mm Drilling spindle speeds / speeds of drilling spindle: 1400 / 2800 / 5600 per min/ per minute Total connection value / rated power: 0.25 kW each => 1 kW Weight / weight: approx. 0.4 t

Precast - Wall - Filigree - factory. Good as new circulation system: 60 pallets with 3.5 mx 8 m, 3 x lateral transport of pallets - Facilities, 1 x vibrated concrete station, new control - Beckhoff. Concrete distributor Crane 1.4 m³. Friction wheels. Roller blocks. Planning and installation as required. Formwork on request. Is dependend on the application. For low cost housing, cmodul austria low cost housing Affordable housing Low-cost housing Mixing system 1 m³ at extra charge. Tilting device if needed for concrete slabs vertical-tansport at extra charge. Cran for stock handling at extra charge. Projects for social housing are our daily work. Civil work plans, drawings and calculations, we can create for you. Similarly, profitability calculations.

1 x Adamson 96in wide x 32in dia 4 roll Z Calender line, peripherally drilled rolls with oil heating, motorised nip adjustment to rolls 1,2 and 3 (roll 4 fixed). Cross axis roll 4. Hydraulic pre-load to all rolls, Adjustable stock guides, rubber coated pressure roller with hydraulic adjustment and v/s motor to roll 4, with Adamson unidrive gearbox on universal couplings, with 500HP, 850/1300rpm, 785A, 500V, 3ph, 60Hz Reliance DC variable speed motor to rolls 1, 2 and 3. 200HP, 850/1400rpm DC variable speed motor to roll 4. 1 x Embossing station 1 x set of 8 x 96in wide x 24in dia stainless steel cooling drums. 1 x Dual turret winder. Full drawings available. We can supply the upstream equipment I.e. internal mixers that fed the calenders, along with the batching and material handling/dosage equipment. Complete line available in very good condition previously us ...

Rodolfo Comerio 5 roll 'L' calender, Year: 1981, Peripherally drilled hard chrome plated rolls 650mm dia x 2400mm wide (2 spares), High pressure hot water heating (28 bar), Roller bearings, Motorised nip adjustment, Roll bending on rolls 2,4 and 5, Cross axis on rolls 1 and 4, With Farrel Pomini full unidrive gearbox (choiceable 2 speed 30m/min or 60m/min), dc variable speed motor to each roll 88.2kW to rolls 1,3,4 + 5, 110kW to roll 2?. Motors not included. Previously used for rigid PVC film 2000mm finished width, 100micron - 1100micron. Calender max speed 60m/min. Post calender equipment:- 7 x Take off rolls? 150mm dia x 2200mm wide (3 groups), Hydraulic embossing station 300mm dia x 2200mm wide (rubber roll driven, emboss roller free running against rubber roller), 12 x cooling drums (4 groups) 180mm dia x 2200mm. Beta thickness gauge (not available) Berstorff edge ...

Used line for packaging of powdery materials in plastic buckets from 2.5 kg to 10 kg. Semi-automatic line of packing and transporting the dispenser weight The line consists of: Two unloading of big bags Oblique conveyor The buffer tank Two batchers Stacking conveyor The set of the transporters with the balance cruise control, feeder lids and closing buckets, made as part of the line for packing powdery materials. The line consists of: Conveyor separator Cruising verified checkweigher Discriminator transporter odstawiaj?cym Conveyor feeder lids Crimper Stacking Conveyor Appetizer - welding machine for bags The checkweigher DWT / xx Technical data: Supply voltage - Uz = 230V Isaiah znamionowy- current = 2-5A (depending on version) Mains frequency - f = 50 Hz overcurrent - F = 10A recommended network layout -TNS Insulation class - I New 2010

STRIP THICKNESS: 0.5-5 MM, SHHET LENGTH: 2 - 4 M,

STRIP WIDTH: MAX. 160 MM; THICKNESS RANGE: 0.5 - 3.0 MM, TUBE OD.: 12 - 50.8 MM, TUBE LENGTH: 3-6 M, TIG-TRICATHODE + LASER ROFIN SINAR 6 KW

An entire line for sale

RAIL LENGTH: 5 - 60 M, CONTINUOUS MEASURING, 6 LASER MEASURING HEADS, SPEED: 1 M/SEC., MODERNISED IN 1992

Comerio Ercole 1500mm wide x 550mm dia 4 roll inverted L calender. Peripherally drilled rolls (high pressure hot water heating), Motorised nip adjustment, Adjustable guides, Cross axis to roll 3, Unidrive gearbox with universal couplings. Motor power: Roll 1 and 4 - 50kW. Roll 2 and 3 - 60kW DC variable speed. Oil lubrication.

Liners Wear less than 0.05

Recon cylinder liner

Bushing obsolete, recon

Liner without APR - almost new

SACMI line for crown corks.

SACMI rotary compression line for plastic caps 38 mm. with control video system.

new cylinder liner for Deutz 545

new cylinder liner for MWM 348

Reconditioned cylinder liner for Deutz 528

New cylinder liner for Deutz 545

COMPLETE HIGHSPEED SAWMILL LINE (capacity 80 000 fm): HIGH PERFORMANCE SASH GANG SAW ESTERER EWD HDN 600 WITH BV..

Used line to grind, capacity 300-600kg / h. (depending on the product) The line is equipped with: - Mill REKORD - Cyclone Filter - Centrifugal fan for air transport.

ULTRASONIC INSPECTION - TESTQMATIC - TYPE: SPA-2N, L=5-60 M, 1 M/SEC., 1988 EDDY CURRENT INSPECTION - MPA - 1989 RAIL PROFIL MEASURING DEVICE - SCHMITZ & SÖHNE AND BSB - 1989 PRODUCT HEIGHT: 95-165 MM, HARDWARE & SOFTWARE

Qty. 1 Second-hand extrusion press line Mfc.: 3TC, Allen Bradley, Rexroth, Gautschi, Elhaus, Nederman, Hydrotec, Marx GmbH, Truninger, Ekatech Force: 3500 MT Built: in 1960’s Pressure: 315 bar Billet dia.: 343 mm x 900 mm (can be modified 14 x 1.0 m) Modernisation: 2011 Complete exchange of control system on press to Allen Bradley Control Logix including encoders for Ram, Container and Shear. Change of pump controls to Bosch Rexroth HS4. 2012 Complete change of hydraulic system (excluding pumps). New side cylinders and container cylinders. Safety rebuild of press and with change of PLC to Allen Bradley Control Guard Logix L72S (which is the current CPU). Change of control system of billet furnace. Complete new electrical system and integration of logic into the press PLC. Modernisation of gas burners in the furnace. 2013 Change of one of the main pumps to Bosch Rexrot ...

1 x BUZULUK 1920mm wide Four-roll 'L' calender - Type: 03506 - Rolls dia 710x1920 mm - Year of manufacture: 1989 - Peripherally drilled rolls - High pressure hot water heating (Steam 1.6 and 3.2 MPa) - Motorised nip adjustment to rolls 1, 2 and 4 (30mm adjustment) - Cross axis on roll 3 (0-30mm) - Roller Bearings - Unidrive gearbox with DC motor to each roll - Rolls 1 and 4: 46 kW - Rolls 2 and 3: 77 kW - Working speed of 4th roll max 60m/min In very good condition.

Many thanks for your interest on our second hand machines, please find follow our offer: Complete Waffle production plant, consiting of: manufacturer : Danger Wafer oven Type : WM 52 plates YOM : ca. 1975 - 1980 heating : natural gas or propane waffle sheet : 470x290 mm deep karee different : automatic sheet take off : Cooler and Fully automatic Hebenstreit WZ-EM wafer spread line for two colours manufacturer : Hebenstreit Type : WZ-EM YOM : 1991 output capacity : up to 50 sheet/min. wafer format : 290 x 470 mm bis 350 x 480 mm dimensions : ca. 11000 x 1300 x 1700 mm different : Film- und Kontaktstreichverfahren consisting of: - wafer magazine - First WZ Cream station - cover station - second WZ cream station - stack station - cover station - Pressing device We offer this machine in 'as is' condition, without warranty, ex Ware ...

Used pet blowing line: - Blowing SIDEL SBO 4/6, New 1997, capacity 4800 bottles/h,the dimensions of 5100 mm x 7700 mm x 3300 mm - Blow molding cooler Sogequip NRP 25, New 1997. - SIDEL preform feeder, New 1997 - Tippler preform BT-2 03, New 2002

Board repair line with double end profiling line in top condition Workpiece parameters of the plates: Min.: 900 mm x 200 mm Weight min. : 17 mm Max .: 5000 mm x 1250 mm Max. Weight: 60 mm Weight: max. 150 kg < Accuracy: +/- 0.2 mm The portals have a max. Clock power of: max. 6 cycles / min The max. Partial performance: 18 parts / min (DEP line) Year of construction 2008 Condition: good (Original price of the line 2008 Euro 4.9 million) Consisting of: Feeding station with feeding rollers, Automatic vacuum lifting table for lengths up to 6 m Conveyor systems Repair line 1 Turning station Transfer service Repair line 2 automatic vacuum lifter for stacking (6m) Stacking roller conveyor Control cabinet with machine control Profilfraessanlage Stacking Tables; very well

Qty. 2 Second-hand pickling lines Mfc.: Sundwig Built: 1968 Tank of clean HCl: 50 m³ Tank for dirty HCl: 50 m³ Strip width: 1525 mm Qty. 3 Tanks interconnected one for each bath 310 m³ Qty. 3 Baths HCl 152.5 m Double bath pre-washing water Bath for final water washing Heater Chimney for taking out the acid vapors Acid pumps Auxiliary pumps Leveling machine Mfc.: AEG-EMG Built: Oiling machine Mfc.: Sundwig Built: Coiler Mfc.: Sundwig Built:
