plate frame used for sale

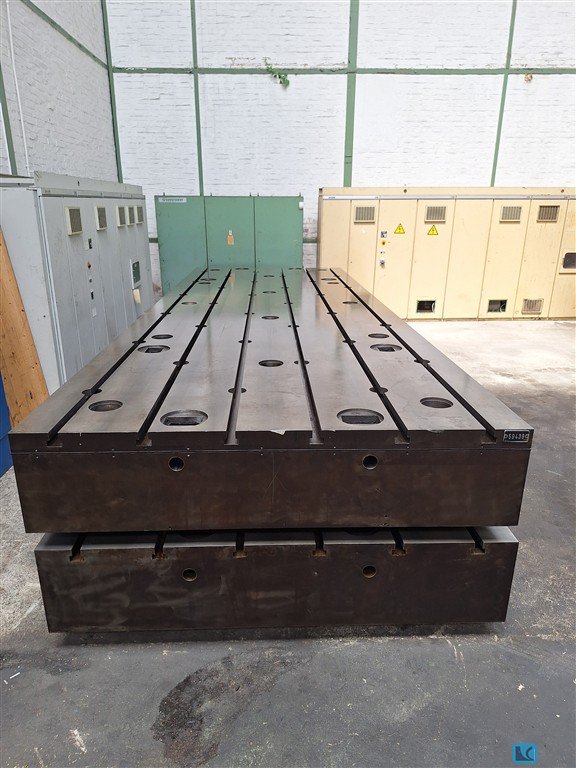

floor-plate length:6000 mm floor-plate width:2000 mm floor-plate height:460 mm weight of the machine ca.:12,5 t dimensions of the machine ca.:6 x 2 x 0,46 m

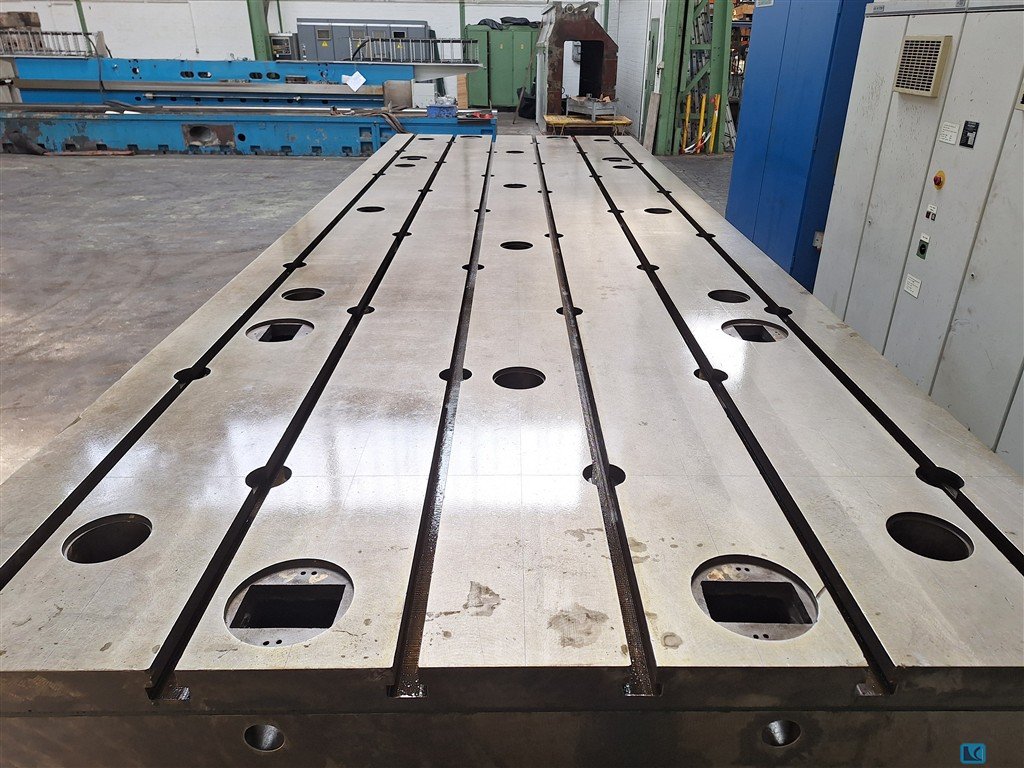

floor-plate length:6000 mm floor-plate width:2000 mm floor-plate height:460 mm weight of the machine ca.:12,5 t dimensions of the machine ca.:6 x 2 x 0,46 m

Face Plate ROTO RECORD PL 315x6 TGL 30-22313 Outer Ø: 315 mm Bolt Circle Ø : 133.5 mm Bore Ø: 100 mm n max: 710 rpm New ! preserved ! Dimensions: 315 x 315 x 125 mm

length: 125 mm width: 100 mm height: 70 mm : - mm weight of the machine ca.: 0,5 Kg dimensions of the machine ca.: 0,15 x 0,15 x 0,07 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

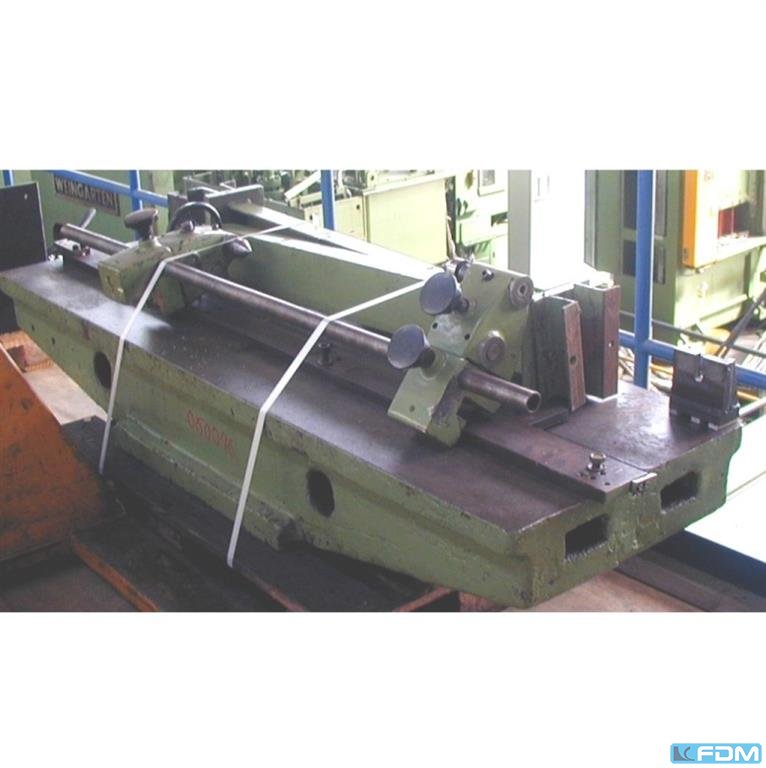

table length:2000 mm table width:600 mm table height:300 mm mounting surface:700 x 600 mm centre distance:1200 mm centre height:160 mm Dimensions (WxDxH):2,0 x 0,6 x 0,3 m

Welding table, straightening table, straightening plate, work table, clamping table straightening plate, leveling table,spotting plate PAGUS work surface: 800 x 630 mm height: 170 mm used, tested ! Dimensions: 800 x 630 mm x 170 mm

Lifting capacity: 2000 Kg Magnetic field: 350 x 150 mm weight: 70 Kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Specifications: Working length: 3050 mm Max. bending power: 30.0 mm Max. bending capacity length 1500 mm: 42 mm Bend: 25.0 mm Diameter upper roller: 460 mm Diameter lower roller: 460 mm Number of driven rollers: 3 hydraulic snap roller bearing Engine power: 37 kW Dimensions (length x width x height): approx. 5850 x 2550 x 2650 mm Weight: approx. 30 tons Note: Compact design, therefore low space requirement Parts of the hydraulics installed under the machine

Specifications: Working length: 2550 mm Max. bending power: 6.0 mm Bend : 4.0 mm Diameter upper roller: 176 mm Diameter lower roller: 176 mm Control panel with digital display Motor power: 7.5 kW CE mark Dimensions (length x width x height): approx. 4000 x 1400 x 1500 mm Weight: approx. 3.6 tons Note: the machine was used exclusively for straightening coated aluminum sheets Rollers were wrapped in foil, which was removed without leaving any residue Condition of the rollers almost as good as new few operating hours

Specifications: Working width: 1050 mm Max. bending power: 100.0 mm Max. bend: 80.0 mm Diameter upper roller: 530 mm Diameter of side rollers: 530 mm Conical bending device by inclined position of the two side rollers Mobile control panel with digital display Engine power: 37 kW Hydraulic Safety Chucks CE mark Net weight: approx. 16 tons Auxiliary: 2. Roller set : Diameter upper roller: 360 mm Diameter of side rollers: 360 mm

Baking Plates for PRO 1 Baking Machine - Condition: used - Engraving (Lower Baking Plate): approx. 5 x 5 mm - Engraving Depth (Lower Baking Plate): approx. 1,45 mm - Wafer Sheet Thickness: approx. 3 mm - Connecting Shaft: approx. Ø 16 mm - Collar radius: approx. 96,5 mm

sheet width: 2000 mm plate thickness: 8 mm pre-bending: total power requirement: 7,5 kW weight of the machine ca.: 3,6 t dimensions of the machine ca.: 3600x1250x1350 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Hot plate press (electric) Brand: ORMA Type: NPC 6/120 new machine Technical data: Heating plates: 3500x1300mm Cylinder: 6 pieces Press force: 120t Stroke/opening dimension: 450mm Connection value: 28.8kW (ELKOM plates) Options: - Intermediate plate - Anodized surface for ELKOM panels - Parallelism sensor á 1,000.00 EUR - Pressing mechanism from above (fixed lower plate) - Max. temperature till 150°C - Max. temperature till 200°C - 4-sided loading possible - Mylar protective film - Fiberglass Teflon protection - Hardware for Industry 4.0

Cutting lenght 6000 mm Cutting thickness 13 mm

Vacuum lifter, vacuum lifter from Schmalz for heavy plates with new suction rubber Load capacity 150kg horizontally and vertically Vacuum cleaner can be swivelled 90 degrees motorised Suction box 1000 x 675mm Acoustic warning signal in case of too low vacuum 400V, 1.5kW Can be attached to on-site chain hoist CE mark No test book available Vacuum cleaner rubber renewed Mint condition The machine can be demonstrated on site by appointment. We offer only machines that are ready for demonstration in our warehouse, see "other offers of this year". provider".

- Filter surface area: 3m2 - Evacuation: manual Equipment : - Control window with inlet and outlet lighting - Circulation pump - Adjustable dosing pump - Agitator - Connection: butterfly valves, Friedrich n°2 40 Dimensions : - Length: 1750 mm - Width: 700 mm - Height: 1000 mm - In working order

Key data: 1470 mm, 1400 mm, 750 mm

2 Cast iron V supports Width: 1400 mm Height: 1370 mm Base depth: 750 mm Slot width: 200 mm V width: 940 mm V depth: 430 mm Total height under sole: 1470 mm Weight: 2,3 T / unit

Fuji FLHZ 85 CD Quartz 3 Plate Developing Machine; very good condition; cleaned and tested; Inlet width 850mm; Chiller. Plate processor Fuji FLHZ 85 CD Quartz 3; very good condition; cleaned and checked; working width 850mm; Chiller.

Ø 100, class 1.6 0 - 25 bar Version: Vertical Display range: 0 - 25 bar Scale graduation: 0.5 bar Materials: Housing 1.4571, measuring system and connection, viewing panel multi-layer safety glass Connection: 1/2'' bottom (AB) Plate spring pressure gauge

Used-refurbished machine Unger 160 mm cutting attachment 4500 kg/h max. capacity Technical data Mixing chamber volume: 400 L Capacity approx.: 4500 kg/h Power: 35 kW (grinder motor) Electrical fuse: 125 A Dimensions: 1500x1335x1810mm Weight: 1700 kg WAW G 160 model 2000 S with mixing arm, hydraulic loader for 200 l hopper, push button operation, mixing arm, hopper volume 400 l, mixing capacity approx. 260 kg, machine weight approx. 1700 kg, hole plate diameter 160 mm, max. capacity 4500 kg/h, brand new cutting set with sorting and separating device (bone removal accessory).

M. No.: 91080-41861 Age : around 1994 Speed: first 70 Sec. / Following 52 Sec. Format (cm): 41,4 x 55 (max.) Equipment / Additional information: Plate width (cm): 22.9 - 41.4 Plate length (cm): 22.0 - 55 Maximum effective image size (cm): 40.4 - 54 Magnification: 100% Lens (cm): 25 Step and Repeat setter: Original side down Digital recording: 0 - 99 Light source: 1 Halogen-Diode, 80 V / 800 W Tank capacity: Activator 0.55 l, stabilizer 0.60 l Power supply: 200 V / 220 V / 240 V, 1.9 Kw High quality plate results: up to 133 lpi

Measuring and marking plateCast steel-grey cast iron heavily ribbedLength 1000 mmWidth 1000 mmThickness 54/225 mmWorking height approx. 800 mm- 4 pieces feet with adjustment screws for aligning the plateWeight 390 kggood surface; used

4 pieces of adjustable jaws INGERSOLL for face plateChuck jaws for lathe chuck, mechanical clamping device, clamping blockNo: 39.02.10000 / 501.397Jaw width 70 mmJaw length 180 mmJaw carrier height 150 mmBase plate 325 x 265 mm- Step jaws for turning as rotary and drilling jaws- Jaw adjustment via trapezoidal threaded spindle- Jaw support with 6 recesses 40 x 30 mm for fastening- Distance between recesses 280 x 133 and 220 x 90 mm (center)Dimensions L x W x H 325 x 265 x 215 mmWeight per jaw 36.5

HORIZONTAL PLATE FREEZER CABINET, TUCAL MODEL: A.H. + COOLING COMPRESSOR IN NOISELESS CABINET, MODEL: UC Technical description: Serial number: 609 Power supply: 400 V, 3 Ph, 50 Hz Pressure: 7/10 bar Temperature: -35 / +35 °C Refrigerant: NH3 Dimensions: 3000 x 1300 x 2300 mm Cooling compressor in noiseless cabinet, model: UC Serial number: 304 Year: 10/2015 Bitzer cooling compressor, type: OSNA8571-k Serial number: 1088702179 Dimensions of noiseless cabinet: 3000 x 1500 x 2320 mm

Pressure plate punch Beil 780/425-S-H-AP2; cleaned and tested; die-cut 780 and 425 mm autoplate; Investment Contact. Plate punch hatchet 780/425-S-H-AP2; cleaned and checked; punch size 780 and 425mm Autoplate; contact for plate.

sheet width: 2100 mm plate thickness: 2,0 mm distance between columns: 2150 mm roll diameter: 90 mm total power requirement: 1,5 KW weight of the machine ca.: 0,7 t dimensions of the machine ca.: 2,5 x 0,7 x 1,3 mm Sheet metal bending machine 3 rollers - 2 driven rollers - Foot switch - Emergency stop device The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Copper plate for lapping machine. Dia 600mm, NEW, make: Melchiorre, Mimu Machine Tools Gussago BS Italy, Lapping is a machining process in which two surfaces are rubbed together with an abrasive between them, by hand movement or using a machine., This can take two forms. The first type of lapping (traditionally called grinding), involves rubbing a brittle material such as glass against a surface such as iron or glass itself (also known as the lap or grinding tool) with an abrasive such as aluminum oxide, jewellers rouge, opticians rouge, emery, silicon carbide, diamond, etc., between them. This produces microscopic conchoidal fractures as the abrasive rolls about between the two surfaces and removes material from both., The other form of lapping involves a softer material such as pitch or a ceramic for the lap, which is charged with the abrasive. The lap is then used to cut a harder mate ...

Unloading plate for cherries 29-20,, Original Ferrum plate,, 50 holes,, outer diameter: 29 mm,, inner diameter: 20 mm,, very good condition.

Halbautomatischer Stanztiegel / Automatic Platen Die Cutter ETERNA ML 930 GII Year 2008 - Serial-No. EP51568 Format 670 x 930mm Weight 2800kgs Included frame and tools, very good condition

Key data: 2075 mm, 1000 mm, 700 mm

Pair of cast iron angle plates Width: 1000 mm Height: 2075 mm Depth: 700 mm Unit weight: 1 T

• Manufacturer: AGI • Model: TOWER A3W • Year of construction: 2017 • Machine Type: Polymer Plate Processor • Machine type: Prepress machine for flexographic printing • Max. plate format: DIN A3 (297 mm x 420 mm) • Application: Development and processing of photopolymer plates • Application: Label printing, packaging, flexographic printing • Compact design, ideal for small to medium-sized printers • Condition: Very well maintained, ready to use

Key data: 3000 mm, 1000 mm, 1245 mm

Pair of cast iron angle plates Height: 3000 mm Width: 1000 mm Depth: 1245 mm Weight: 3 T / unit

Straightening and welded plate cast steel-grey cast iron strongly ribbedLength 2000 mmWidth 1200 mmThickness 150 mmWorking height 800 mmPanel thickness 35 mm- Substructure made of solid woodWeight approx. 950 kgGood surface; used

Measuring and marking plate cast steel-grey cast iron strongly ribbedwith mounting bracket made of steel, 565 mm highYear of construction approx. 1985Length: 1200 mmWidth: 800 mmThickness: 35/150 mmWorking height: 1030 mmWeight approx. 550 kgwith metal basevery good surface; used

Straightening and welding plate cast steel-grey cast iron heavily ribbedheavy straightening plateLength 3050 mmWidth 2000 mmThickness 300 mmPanel thickness approx. 55 mm throughoutWeight approx. 4.5 ton.Good condition; used

Straightening and welding plate cast steel-grey cast iron heavily ribbedheavyheavy straightening plateLength 2000 mmWidth 1600 mmThickness 110 mmWorking height 600 mmPlate thickness 30 mm throughoutWeight approx. 1000 kgGood condition, good surface; used

Straightening and welding plate: cast steel-grey cast iron, heavily ribbedformer marking plate and measuring plateheavy straightening plateLength: 1000 mmWidth: 800 mmThickness: 250 mmWorking height: 820 mmPlate thickness: 30 mm throughout- height-adjustable metal substructureWeight: approx. 400 kgSurface rusted; used

Straightening and welding plate, cast steel-grey cast iron, heavily ribbedformer marking plate and measuring plateheavy straightening plateLength 2000 mmWidth: 1000 mmThickness: 100 mmWorking height: 745 mmPlate thickness: 40 mm throughout- stable metal substructureWeight: approx. 800 kgGood condition; used

Straightening and welding plate cast steel-grey cast iron heavily ribbedformer marking plate and measuring plateheavy straightening plateLength 1000 mmWidth 1000 mmThickness 230 mmWorking height 970 mmPanel thickness 38 mm throughout- Metal baseWeight 450 kg; used

Straightening and welding plate steelMilled steel plate with good surface, heavy straightening plateLength 1900 mmWidth 1500 mmThickness 70 mm continuous machined surface, surface milled- plate provided with some symmetrical holesWeight approx. 1600 kggood conditionHeight-adjustable feet made of cast steel can be found in our shop; used

Straightening and welding plate: cast steel-grey cast iron, heavily ribbedheavyheavy: straightening plateLength 1600 mmwidth: 1005 mmThickness: 280 mmPlate thickness approx. 85 mm, continuous- Center hole 245 mm, 400/800 mm - Tapped holes M 20, approx. 55 mm deep- Through-holes 27 mmWeight: approx. 2.5 to.Good conditionFormer press table - presumably worked on both sides; used

Rear grinding machine with permanent magnetic clamping plate JUNG type HA 20EquipmentNo: 3344Profile depth: max. 15 mmAngle adjustment: 0 to 2Magnetic plate: 115 x 115 mmClamping range: 110 x 75 mmHeight magnetic plate: 119 mmWorkpiece dimensions L x W x H: max. 60 x 100 x 50 mmPower consumption: 1 ampereOperating voltage: 24 volts, direct voltage (V/DC)- mechanically switchable permanent magnetDimensions L x W x H: 500 x 200 x 125 mmWeight: 25 kggood conditionSuitable for cutting tool mold making for conical background cutting plates or

Clamping plate, machine table with metal baseClamping table, assembly table, clamping bracketClamping surface: 1200 x 370 mmD- Groove spacing: 90 mmTable height: 870 mm- Slot table used to be a machine table from a milling machine- 4 T-slots 16 mm- Metal substructure with height-adjustable feet- Multi-layer wood panel L x W x H 1200 x 400 x 18 mmOverall dimensions L x W x H 1400 x 770 x 870 mmWeight: 250 kggood condition; used

Measuring and marking plate cast steel-grey cast iron heavily ribbed STIEFELMAYERfrom a measuring or marking machine with hand-held measuring armMasch. No. 8530979 Year of construction approx. 1989Length 3000 mmWidth 1500 mmThickness 360 mmWorking height 690 mmPanel thickness 70 mm continuous - laterally worked at a 90 angle area 3000 x 360 mm- 6 pieces height-adjustable feet - plus 1 piece measuring arm mechanical and electrical without function the measuring range is approx. X = 2350 mm, Y = 1250 mm, Z = 1300 mmSpace requirement L x W x H 3000 x 2000 x 2500

Straightening and welding plate SIEGFRIED WEYRAUCH GemmingenCast steel-grey cast iron heavily ribbedformer marking plate and measuring plateheavy straightening plateLength 1000 mmwidth 800 mmthickness 28/125 mmworking height approx. 850 mm- feet with adjustment screws for aligning the plateWeight 370 kggood surface; used

length: 1200 mm width: 800 mm table height: 880 mm Plate thickness: 60 mm weight of the machine ca.: 0,6 t dimensions of the machine ca.: 1,20,80,9 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Measuring and marking plate cast steel-grey cast iron heavily ribbed STIEFELMAYER comes from a measuring machine with a hand-held measuring armhigh-precision measuring plate with a good surfaceMasch. No. 8530979 Year of construction approx. 1989Length 5000 mmWidth 2000 mmThickness 350 mmWorking height 690 mmPanel thickness 50 mm throughout- 15 height-adjustable feet- very precise and stable longitudinal guides, screwed to the side of the plateSpace requirement L x W x H 5000 x 2120 x 400 mmWeight approx. 7500 kggood surface; used
