plate bending used for sale

Screen PlateRite 4300E, Year 2008 only approx. 20K plates done RIP York Workflow Inlinepunch 425 Azura C95 Clean out unit Available: at short term

Semi-automatic bending, pipe bending machine, mandrel bending machine MOBITEC type BAH 1-2KOTTMANN and BERGER GmbHFabr. No. 056 Year of construction 09/2004- for simultaneous bending of two pipe sections made of steel up to 12 mmBending angle max. 90Pipe diameter max. 12mmMandrel length approx. 65 mmNominal power 3.5 kWDreturn air max. 6 bar / approx. 1 litre per bending cycleMains connection 400 volts, 50 Hz- Pneumatic clamping- Pneumatic mandrel retraction- Control for angle input via STOBER Controlbox Series 4000/5000- Control SIEMENS

Folding machine KRAMER type A-toll. II 1000Fabr. No. 48 287 Year of construction 1990Useful length 1060 mmmax. Sheet thickness 3.75 mmStroke of the upper beam 180 mmAdjustability of the bending beam 60 mmBack gauge 480 mmDrive power of bending beam drive 4 kWAdrive power of upper beam drive 1.5 kWNet connection 400 volts, 50 Hz- manual and semi-automatic control- angle adjustment via angle selector- one-piece pointed rail 135- back gauge with hand crank adjustment and simple measurement scale-

Downpour record Grey iron GGG50 1500 x 1500 chamber filter records Downpour records for chamber filter pressing 1500x1500 we can offer to you for almost all arrangements chamber filter records also in PP, filter cloths and spare parts almost all manufacturer.

Bending tool, die, upper knife, upper tool, straight tool, die tool, seam closing tool -Tool: for folding machine RAS Typ 74.30 -Dimensions: see the drawing in the photos -Distance recess rail: center center 650 mm -Dimension: 3060/28/H121 mm -Weight: 65kg

Bending tool, die, lower knife, lower tool, lower jaw -Tool: for swivel bending machine -Widthen: for lower cheek -Dimensions: 59 x 19 mm -Length: 1452 mm -Weight: 10 kg

Bending tool, die, upper blade, upper tool, upper jaw, claw bar -Tool for swivel bending machine -Pointed tool -Dimensions: 45 x 120 mm -Length: 800 mm -Weight: 19 kg

Bending tool, die, lower knife, lower tool, lower jaw -Bending tool: from Lotze HDZK swivel bending machine -Widthen: for lower cheek -Dimensions: 2487 x 100 x 15 mm / 190 x 100 x 15 mm -Hole spacing: 100 x 18 mm -Transport dimensions: 2487/100/H30 mm -Total weight: 29.4 kg

Bending tool, die, upper blade, upper tool, upper jaw -Bending tool: from Lotze HDZ swivel bending machine -Length 2678 mm -Hole spacing: 100 mm / M10 -Dimensions: see drawing in the photos -Dimensions: 2678/15/H57 mm -Total weight: 15.7 kg

Bending tool, matrix, upper knife, upper tool, upper beam -Bending tool: from Lotze HDZ swivel bending machine -Length 2678 mm -Hole spacing: 100mm M10 -Dimensions: see the drawing in the photos -Dimension: 2678/6/H45 mm -Total weight: 5,6 kg

Bending tool, die, upper knife, upper tool, straight tool, upper beam -Bending tool: for folding machine -Tool angle: 45° -Dimensions: see the drawing in the photos -Dimension: 47 x 11mm -Length: 945mm -Weight: 3.5 kg

Tube bending machine - mandrel bending machine TRACTO-TECHNIK Type Transfluid DB 2060 KSerien. No. 70173 Year of construction 2004Bending capacity (steel) max. 76.1 x 3.0 mmBending capacity (stainless steel) max. 76.1 x 1.65 mmBending tool max. 70 x 2 mm (for stainless steel)Pipe slide length 4572 mm (4300mm)Bending radius max. 150 mmBending direction clockwise (right)Bending angle max. 190Bending head speed at 90 8 sec. Hydraulic operating pressure 200 barEngine power 3 KWnet connection 400 Volt, 50 Hz, 15

Hand - Swivel bending machine KRAMER type AMS 650 x 1.5Hand swivel bending machine, bending benchYear of construction approx. 1985Working length 650 mmSheet thickness at 40 kg/mm2 1.5 mmUpper beam opening approx. 60 mmBending beam adjustment approx. 0-25 mmBending angle 0-180- Upper beam adjustment via hand crank- Pilot rail for the bending brace- One-piece sharp rail 135Space requirement L x W x H 1200 x 600 x 1100 mmWeight 160 kggood condition; used

Hydr. Press brake, die bending machine HAMBURGER JONESCHEIT type HYPM 70-2600Fabr. No. 4004 Year of construction 1987Printing capacity 70 ton. Working length 2600 mmStand width 2770 mmPlunger stroke 60 mmDistance table - ram max. 390 mmTable size 2750 x 200 mmMotor power 7.5 kWWet connection 380 volts, 50 Hz.- Crimping depth via mechanical fixed stop with electric adjustment and mechanical depth indicator- Lower tool consisting of 2 segments, each 835 mm, with 2 different prisms (15 and 24 mm)- Upper tool,

Manual Pipe Bending Machine, Pipe Bending Machine, Mandrel Bending MachineHand Pipe Bending Machine, Hand Wire Bending Machine, Bending MachineManufacturer: MEWAGing Power: max. 16 mm1 piece bending tool 15 mm with 25 mm bending radius1 piece bending tool 10 mm with 16 mm bending radius1 piece bending tool 8 mm with 9 mm bending radius1 piece bending tool 6 mm with 8 mm bending radius1 piece bending tool 5 mm with 8 mm bending radius- Turning plate with degree marking- Scope of delivery as shown- Wooden box for storageDimensions L x W x H: 570 x 480 x 145

Auction-ID: A1-41277-248

3-roll hydraulic with dual pre-pinch planetary configuration. new to complete, 45 days from order. -Plate width 3000 mm -Capacity rolling plate thickness 50 mm -Pre-pinch plate thickness 40 mm Machine configuration and accessories installed: -useful surface length on the rolls 3100 mm -upper roll size 480 mm -lower rolls size 440 mm -Digital position readouts. -Hardening treatment of the 3 rolls. -3 rolls driven hydraulic motorized with independent axial gear box on each roll. -Conical plate bending attachment with tiltable lower rolls hydraulic. -CE quality certification, Made in Italy manufacturing. -Service manuals and operation instruction manuals. -Hydraulic diagrams -Electric & electronic schematics with parts list. -Set of service tools for maintenance. -Electric power installed 50Hp. -3 phase voltage to be specified Warranty 12 months.  ...

Technical data: maximum sheet width: 3000 mm maximum plate thickness at maximum yield of 240 N / mm² on bending: 35 mm On bending length: 2,2 x S Diameter of roller upper roller: 552 mm Bottom roll: 532,4 mm Side rolls: 400 mm

Working width: 1020 mm, sheet thickness: 1 mm top rollers diameter: 55 mm bottom rollers diameter: 55 mm space requirement: 1370 x 570 x 1100 mm

Plate bend Ingkant SM 52; cleaned and tested; Table equipment; suitable for Heidelberg SM 52 plates. Plate bender SM 52; good condition; cleaned and checked; table top model; used for Heidelberg SM 52 plates.

Printing plate bending for Heidelberg SM 52 Beil PB-S 52; good condition; cleaned and tested; Stand-up device; suitable for printing plates Heidelberg SM 52. Plate bender for Heidelberg SM 52 Beil PB-S 52; good condition; clened and checked; used for Heidelberg SM 52 plates.

M. No.: 6513/19

PLATE BENDING MACHINE FACCIN - 4 ROLL HYDRAULIC 3000 X 40 MM - MODEL 4HCI3-35/30 YEAR 1990 /2025 PLATE BENDING ROLL LINEAR GUIDEWAYS DOUBLE PINCH PRE-BENDING Machine in good working condition Bending capacity -Plate width : 3000 mm -Rolling plate thickness 40 mm - Prebend thickness 35 mm Rolls dimensions: -Useful length 3050 mm -central rolls upper/lower D 470 mm -side rolls left/right D 420 mm • Hardening of the 4 rolls high strength surface • 3 rolls driven powered with gear unit with hydraulic motor • Conical bending attachment side rolls tiltable to form cones, contrast pad roller type. • Opening front hydraulic drop-end to unload the closed shell. • Variable speed working roll bending rotation hydraulic speed fas ...

M. No.: 121

Mechanic plate bending machine Goyar 3C-25/20. Bending lenght: 2000mm. Bending capacity: 25mm. Diameter of upper cylinder: 285mm. Diameter of lower cylinders: 235mm. Main motor power: 20cv. Bending speed: 5 mpm. Weight: 5500Kgs.

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic CNC – controlled double-sided pre-bending – conical bending device, three hydraulically driven rollers (one hydraulic motor per roll), hydraulic linear sub-roll adjustment – hard chrome-plated piston rods – hardened and ground rollers - PILZ® laser protection - BECKHOFF® CNC – control with Ethernet technology and large touch screen - DANFOSS® precision hydraulics – central lubrication system Maximum bending length 2,000 mm Roll diameter 170 mm Smallest weft diameter = 1.1 x the roll diameter The rollers run in bronze plain bearings. Nominal pre-bending performance over the entire bending length at 5 x D = 5 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 7 mm sheet steel/ST40 Drive power  ...

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation - automatic CNC – controlled double-sided pre-bending - Conical bending device - three hydraulically driven rollers (one hydraulic motor per roller) - hydraulic linear under-roll adjustment - hard chrome-plated piston rods - hardened and ground rollers - PILZ® laser protection - BECKHOFF® CNC control with Ethernet technology and large touch screen - DANFOSS® precision hydraulics - Central lubrication system

Very high-quality CNC – controlled precision sheet metal round bending machine with automatic bending sequence calculation – automatic CNC – controlled double-sided pre-bending – conical bending device, three hydraulically driven rollers (one hydraulic motor per roll), hydraulic linear sub-roll adjustment – hard chrome-plated piston rods – hardened and ground rollers - PILZ® laser protection - BECKHOFF® CNC – control with Ethernet technology and large touch screen - DANFOSS® precision hydraulics – central lubrication system Maximum bending length 2,000 mm Roll diameter 170 mm Smallest weft diameter = 1.1 x the roll diameter The rollers run in bronze plain bearings. Nominal pre-bending performance over the entire bending length at 5 x D = 5 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 7 mm sheet steel/ST40 Drive  ...

M. No.: 5301/04

HEIDELBERG Nela Plate Bending suitable for HD SM 52 / 74 /102 and XL machines different years of construction available

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic, CNC – controlled double-sided pre-bending – conical bending device Roll diameter 350 mm Smallest weft diameter 1.1 x the roll diameter = 385 mm Maximum bending length 3,000 mm Nominal pre-bending performance over the entire bending length at 5 x D = 18 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 22 mm sheet steel/ST40 Drive power 22 kW Weight 13,500 kg. Three hydraulically driven rollers (one hydraulic motor per roller) - The rollers run in bronze plain bearings Hydraulic linear sub-roller adjustment Hard chrome-plated piston rods Hardened and ground rollers PILZ® Laser Validation BECKHOFF® CNC – Control with Ethernet technology and large touch screen DANFOSS® Precision Hydraul ...

Very high-quality CNC – controlled precision sheet metal bending machine with automatic bending sequence calculation – automatic, CNC – controlled double-sided pre-bending – conical bending device Roll diameter 350 mm Smallest weft diameter 1.1 x the roll diameter = 385 mm Maximum bending length 3,000 mm Nominal pre-bending performance over the entire bending length at 5 x D = 18 mm for sheet steel/ST40 Nominal bending performance over the entire bending length at 5 x D = 22 mm sheet steel/ST40 Drive power 22 kW Weight 13,500 kg. Three hydraulically driven rollers (one hydraulic motor per roller) - The rollers run in bronze plain bearings Hydraulic linear sub-roller adjustment Hard chrome-plated piston rods Hardened and ground rollers PILZ® Laser Validation BECKHOFF® CNC – Control with Ethernet technology and large touch screen DANFOSS® Precision Hydraul ...

M. No.: 3839/11

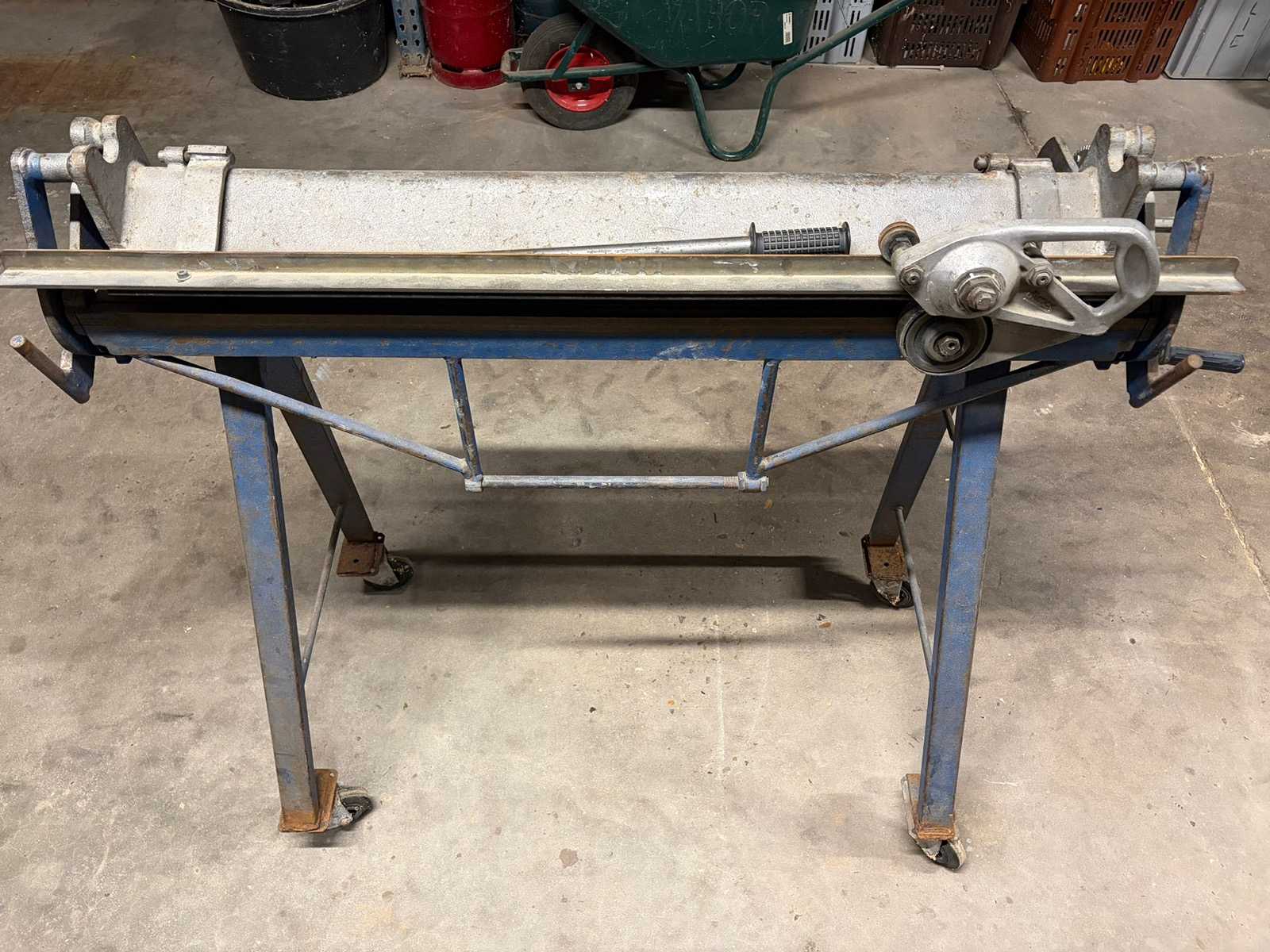

Roller bench Material thickness 1 mm Usable length 1,275 m Weight 200 kg

Technical data of the used Lisse Z4-30 calender: Upper roller diameter: 230 mm Diameter of lower rollers: 170 mm Machine dimensions: 4800 x 1250 x 1300(h) mm

Technical data of the Faccin HAV 3162 hydraulic plate calender used: Upper roller diameter: 620 mm Diameter of side rollers: 550 mm Machine dimensions: 8600 x 3500 x 3700(h) mm Weight: 90.000 kg

Specifications: Working length: 4100 mm Max. bending power: 10.0 mm Bend: 8.0 mm Diameter upper roller: 310 mm Diameter of lower rollers: 285 mm Hardened rollers hydraulic snap roller bearing Conical bending device Control panel with digital display CE mark Dimensions (length x width x height)): approx. 5100 x 1250 x 1400 mm Weight: approx. 6.2 tons Condition: very good, almost mint condition The seller is not liable for typographical or data transmission errors. The machine is appropriate for its age in terms of appearance, technology and wear; used machines are sold without any warranty.

Specifications: Working length: 3050 mm Max. bending power: 30.0 mm Max. bending capacity length 1500 mm: 42 mm Bend: 25.0 mm Diameter upper roller: 460 mm Diameter lower roller: 460 mm Number of driven rollers: 3 hydraulic snap roller bearing Engine power: 37 kW Dimensions (length x width x height): approx. 5850 x 2550 x 2650 mm Weight: approx. 30 tons Note: Compact design, therefore low space requirement Parts of the hydraulics installed under the machine

Specifications: Working length: 2550 mm Max. bending power: 6.0 mm Bend : 4.0 mm Diameter upper roller: 176 mm Diameter lower roller: 176 mm Control panel with digital display Motor power: 7.5 kW CE mark Dimensions (length x width x height): approx. 4000 x 1400 x 1500 mm Weight: approx. 3.6 tons Note: the machine was used exclusively for straightening coated aluminum sheets Rollers were wrapped in foil, which was removed without leaving any residue Condition of the rollers almost as good as new few operating hours

Specifications: Working width: 1050 mm Max. bending power: 100.0 mm Max. bend: 80.0 mm Diameter upper roller: 530 mm Diameter of side rollers: 530 mm Conical bending device by inclined position of the two side rollers Mobile control panel with digital display Engine power: 37 kW Hydraulic Safety Chucks CE mark Net weight: approx. 16 tons Auxiliary: 2. Roller set : Diameter upper roller: 360 mm Diameter of side rollers: 360 mm

OFFER PLATE ROLL 2000x6 mm SERGI 3ROLL INITIAL PINCH ASYMMETRIC 2050 X6 MM Rolls length 2050 mm -Top roll 170 mm -lower/Side rolls 150 mm -Power electric 5,5 Hp Capacity -plate width 2000 mm -plate thickness 6 mm with prepinch Configuration on the machine -Rollers surface hardened high strength -Central rolls driven electric rotation on gearunit -side roll electric run with prepinch Pinch roll position with handwheel Front open manual drop-end -Readout gauge of side bending roll -Foot-pedal electric rollers rotation back/forth -Joystick electric control of side roll -Safety installations with emergency stop. -Machine in good conditions

4roll plate bending machine 2500 X 12 mm with central support hydraulic for large diameters and side arm plate support Capacity plate width 2500 mm Plate thickness 12 mm Prebend 10 mm Upper roll 265 mm Lower rolls 245 mm Surface useful on rolls 2550 mm Power supply 380/50 Electric motor 15 Kw on hydraulic unit Configuration Hardened rolls very high surface resistance Conical bending attachment Digital position readout of the rollers Safety and emergency installed per norms Hydraulic rolls power driven with planetary gear unit Hydraulic motion of rollers individual with dual initial pre-pinch Open front drop-end hydraulic to unload the closed shells Central support vertical hydraulic operated for large diameters Side arm operated hydraulic support Total weight of the machine 7500 Kg Total weight of the machine 7500 Kg machine layout 4200X15 ...

Key data: 3000 mm, 8 mm

3-roll bending machine / round roller Schäfer SRMVHY – fully functional For sale is a used 3-roll bending machine (round roller / sheet metal bending machine) from the manufacturer Schäfer, model SRMVHY, built in 1992. The machine is in fully functional condition and is ready for immediate use. The rollers are hydraulically adjustable, which allows for precise and comfortable adjustment. The round bending machine is ideal for bending sheet metal in workshops and production plants. Technical data: Manufacturer: Schäfer Model No.: SRMVHY Year of Make: 1992 Max. sheet width: 3,000 mm Max. sheet thickness (mild steel): 8 mm Roller diameter: approx. 200 mm Voltage: 380 V Dimensions (L x W x H): approx. 5,300 x 1,800 x 1,300 mm Condition: used, fully functional Equipment: hydraulically adjustable rollers Changes and errors in the technical data, ...

4 ROLL HYDRAULIC DUAL PRE-PINCH 3000x15 MM PLATE BENDING MACHINE NEW Brand MG model M3015 -Width of plate 3000 mm -Thickness of plate rolling 15 mm -Thickness of plate pre-bend 12 mm minimum bending diameter ID 350 mm Rolls dimensions: -Surface length mm. 3100 -Top roll mm. 290 -pinch roll mm. 270 -Power electric 10 Hp Technical data: -rolls hardened surface high resistance -variable rolling speed -Powered driven hydraulic rolls rotation -conical bending attachment roller type -calibration system re-rolling welded shells -deflection pinch pressure adjustable upon the thickness -overload protect complete safe operation of the machine. -control console on wheels with electric joysticks commands -position readout digital display for rolling memorize and repeat -safety and emergency systems installed -manuals and schematics along with the machine

Flat steel bending machine The following bending tools are included: 1\" - 1 1/4\" - 1 1/2\" - 2\", - 2 1/2\", - 3\" Bending tools diameter 1\" to 3\" mm Wall thickness max. 16 mm Machine weight approx. 26 kg Package size max. 0.6 x 0.3 x 0.3 m Condition: never used / new (5) Auction-ID: A7-46642-171

used chamber filter records 1000 x 1000 PP approx. 190 pieces in the camp

Krings Verbau various base plates with mounting plate dimensions, spindles, etc. in the package or individually for sale Mass and guide can be requested to e-mail Price VB

Straightening plate measuring plate measuring plate reinforced plate made of steel casting used. Length approx. 3560 mm Width approx. 985 mm Height approx. 910 mm (adjustable) with 5 feet Casting tear ingenuous plate with height-nivelable feet, support ball-bearing Subject to changes and errors in the technical data, dates and prices as well as intermediate sale.
