plasma cut cnc used for sale

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

turning diameter:38 mm Article: CNC lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2015 Machine was only used for reworking, so only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Chip processing container with coolant pump: 30l/min at 5bar Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading conveyor Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. Transmit function Adjusting microscope 16x magnification Coolant supply through the clamping cylinder of the spindle, sealing air, Speed increase of the motor spindle to 8,0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Kno ...

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

Diameter above the bench : 700 mm Maximum turning diameter: 420 mm Maximum turning length: 737 mm Chuck: 305 mm (12 inches) Spindle speed: 2,500 RPM Engine power: 22 kW (peak) / 18.5 kW (continuous) Maximum torque: 1,050 Nm Spindle Bore: 105 mm Turret: 12 positions Power Tools: 5,000 RPM (5.5 / 7.5 kW) X-axis: 280 mm Z-axis: 790 mm Y-axis: 120 mm (± 60 mm, optional) Fast Forwards: 20 / 24 m/min Tailstock Stroke: 750mm (Standard) CNC Control: FANUC Weight: 5,200 kg Dimensions: 4,354 x 2,076 x 1,917 mm

Strokes: X = 635 mm, Y = 510 mm, Z = 460 mm Spindle speed: 20 – 12,000 rpm Spindle power: AC 13/9 kW Fast feeds: 30 m/min Taper: SK40 DIN69871 Tool changer: 20 positions (disc magazine) + 30 position option Table dimensions: 560 x 790 mm RENISHAW probe: OMP40-2, OTS, OMI-2T module Machine hours: 21,788 h Spindle hours: 8,654 h Lots sold as is, unchecked, without tools or tool holders.

CNC Control: FANUC Series 18-T Number of axes: 3 (including C-axis) Maximum machining diameter: 200 mm Distance between tips: 300 mm Max. spindle speed: 3,000 rpm Spindle power: approx. 17.5 kW Turret: 12 fixed positions + 6 rotating positions Chuck: Ø 200 mm Spindle: direct collet mounting possible Weight (kg): approx. 4200 Year & Manufacturer: 1993 – HARDINGE

Deep Hole Milling Machine TBFZ 1600 CNC Year of Make: 2003 Technical data Travels X-axis travel: 1600 mm Y-axis travel: 1200 mm Z-axis travel: 500 mm W-axis travel: 1200 mm B-axis travel: 360° (turntable) Table Table size (L x W): 1500 x 1500 mm Slots (T-slot): 5 x DIN 650-22 H12, 150 mm spacing Facilities Tool clamping: hydraulic Electrical connection: 400 V, 50 Hz Compressed air connection: nominal flow rate 7000 rpm, operating pressure: 6 bar Botek Driller optionally available Feed Feed Drive: Brushless AC Servo Motors Feed speed: 0 - 20,000 mm/min Rapid traverse: X-axis: 20,000 mm/min Y- and Z-axis: 20,000 mm/min Operating modes Manual mode: 20,000 mm/min Set-up mode: 0 - 2,000 mm/min

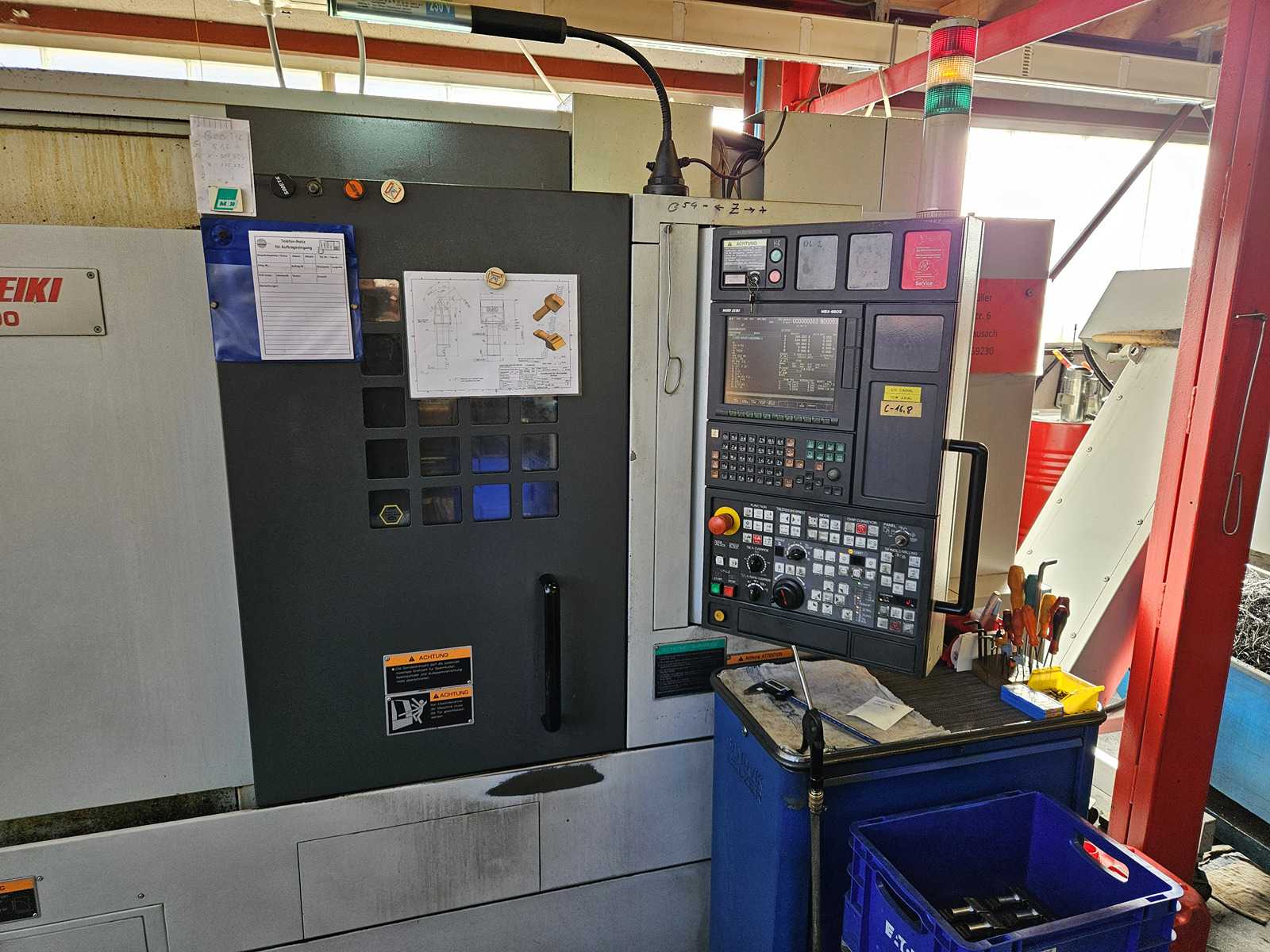

max. turning diameter 356 mm Turning length 510 mm Control M 720 BM MAPPS II Circumferential diameter over bed 923 mm Circumferential diameter over carriage 755 mm Standard turning diameter 275 mm Rod diameter max. 65 mm Main spindle: Spindle nose A2-6 Speed range - spindle max. 5,000 min/-1 Drive power - spindle motor 15 / 11 kW Spindle bearing diameter 120 mm Spindle bore 73 mm max. usable rod diameter 65 mm C-axis 0.001 ° Sub-spindle: Spindle nose A2-5 Speed range - spindle max. 6,000 min/-1 Drive power - spindle motor 11 / 7.5 kW Spindle bearing diameter 85 mm Spindle bore 43 mm max. usable rod diameter ( - ) mm C-axis 0.001 ° Travels: Travel of counter spindle B: 624 mm Travel - x 260 mm Travel - z 590 mm Travel - y 100 (+/-50) mm Tool turret: Turret head (x-fold) 12 powered stations 12 pos Shaft diameter 25 mm Shaft diameter for drill rod max. 50 mm Speed range of the ...

CNC vertical machining center for machining metal parts. Numerical control: Heidenhain TNC 426 (3D) Strokes: X 1,000 mm / Y 600 mm / Z 600 mm Table: 1,250 ×,800 mm Tool changer: 30 positions Spindle taper: SK 40 (DIN) Spindle speed: up to 15,000 rpm Spindle motor power: 18 / 15 kW IKZ / CTS: 40 bar Equipment: Chip conveyor, air blowing, closed cab

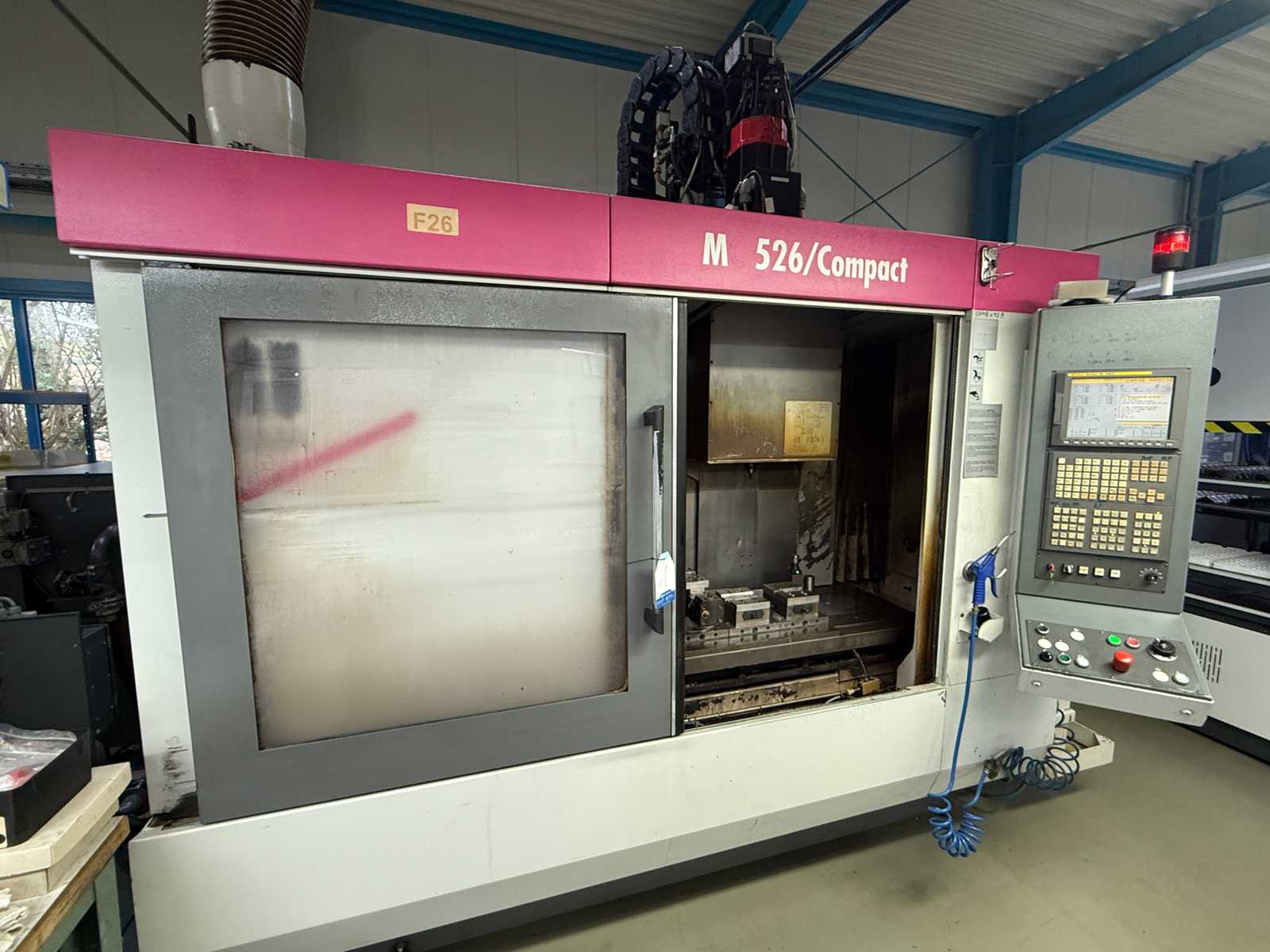

Machine number: KMM526 1506 Operating voltage: 400 V Frequency: 50 Hz Rated current: 45 A Control: FANUC SERIES 18i-MB 5 Table dimensions: 1500 x 470 m with three grooves Attention: without the clamping devices shown in the photos incl. 4th axis Travel X-axis: 1000 mm Travel Y-axis: 400 mm Travel Z-axis: 360 mm Projection: 350 mm Working spindle Spindle bearing diameter: 65 mm Tool holder: SK 40 Spindle speed: from 36 to 12000 rpm incl. 42-fold tool changer Max. tool diameter: 125 mm Max. tool length: 250 mm Feed in X/Y/Z axis: 1 - 10000 mm/min Rapid traverse in X/Y/Z axis: 45 m/min incl. chip conveyor and coolant system Reference: Elos - Lot 1

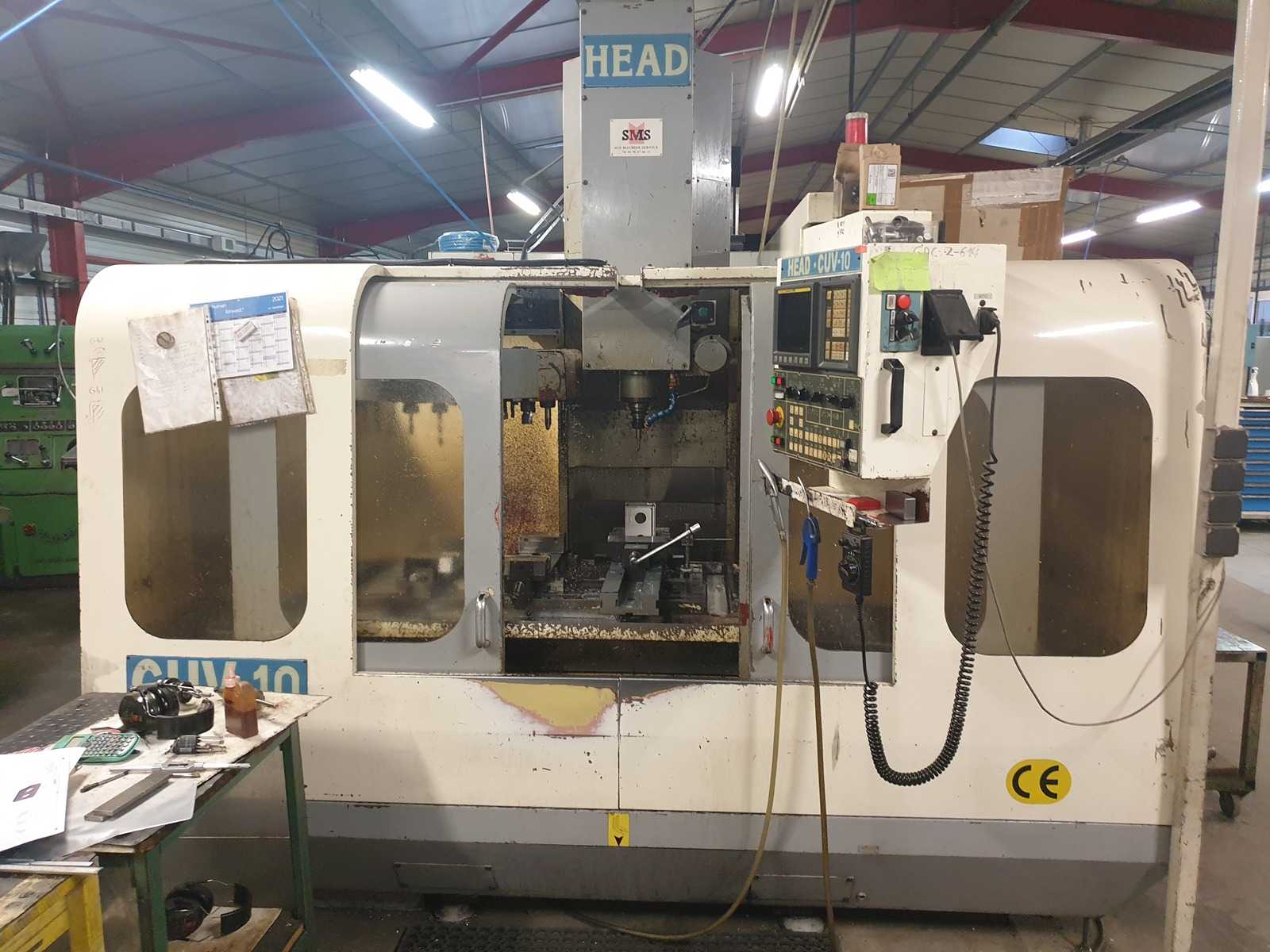

Manufacturer: HEAD / KENT Model: CUV-10 (KMV 10) Year: 1999 Robust CNC vertical machining center, Meehanite cast iron construction, suitable for machining single parts and small to medium series. Numerical control: FANUC OMD Structure: Meehanite cast iron Turcite B-coated slides Rigid thread Portable electronic crank Full protective guard Sprinkler system Work light and end-of-cycle lamp Toolbox Races: X: 1,020 mm Y: 510 mm Z: 510 mm Distance between spindle nose and table: 105 to 740 mm Table: Dimensions: 1,200 × 600 mm T-slots: 18 mm – 3 grooves Max. permissible load: 1,000 kg Spindle: Speed: 30 – 7,500 rpm Transmission: ZF gearbox – 2 ranges Cone: BT 40 Engine power: 11 kW Feeds: Fast feed (X,Y,Z): 24 m/min Working feed: 1 – 10,000 mm/min Tool changer: Capacity: 20 tools Max. tool weight: 6 kg Bidirectional selection Machine dimensions: 2,880 × 2,420 × 2,980 mm Floor space  ...

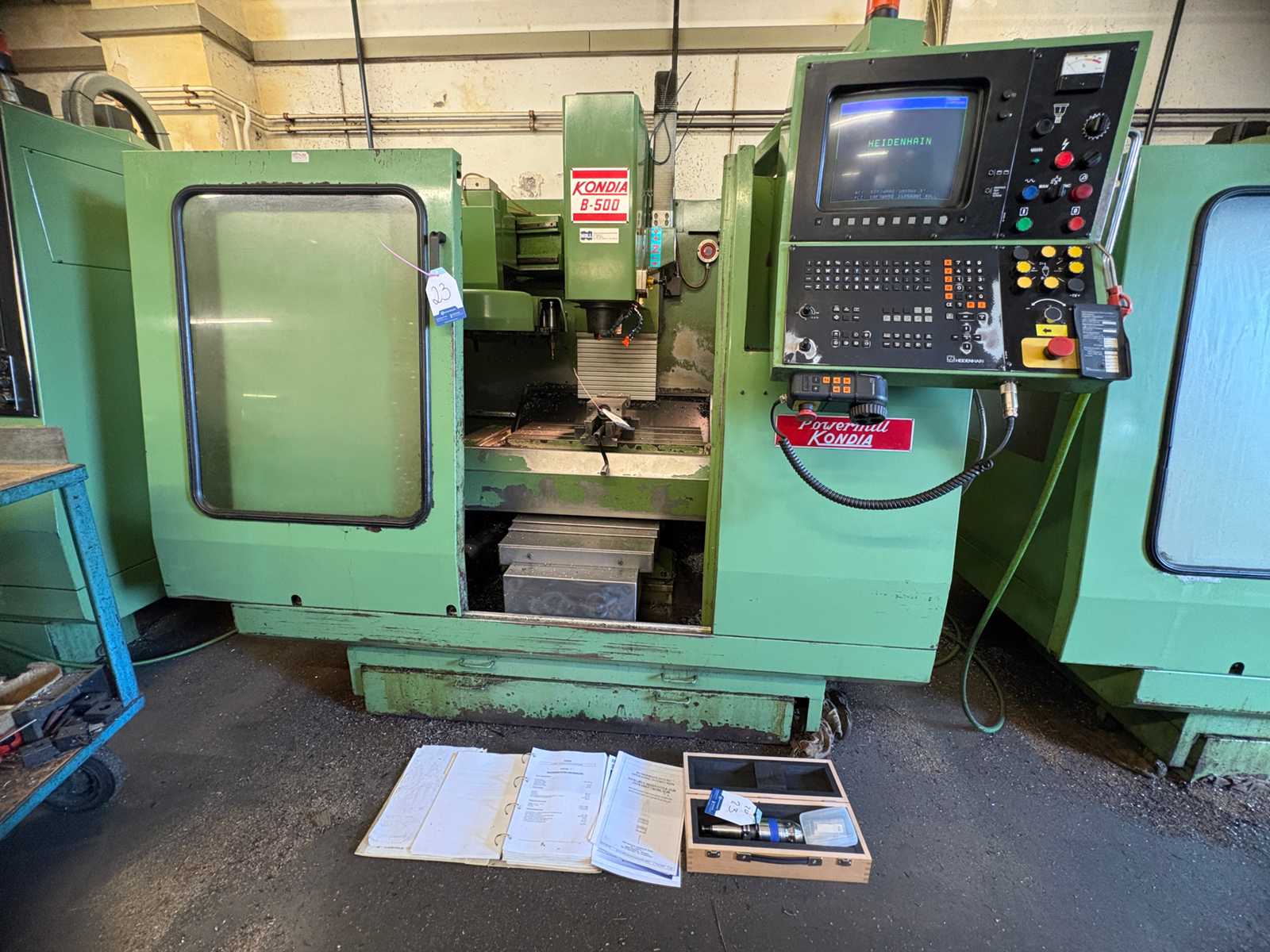

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 kg Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle holder taper: ISO 40 Z-axis travel: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 m Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D touch probe Reference: Schönichen - Lot 23

CNC Control: SIEMENS 810 D Number of axes: 3 Max. turning diameter: 325 mm Max. turning length: 400 mm Max. passage over the bed: 500 mm X/ Z axis strokes: 215 / 420 mm Spindle speed: 30 – 4,500 rpm Spindle bore: 52 mm Spindle power: 15 kW Turret: 12 VDI 40 positions with motorized tools Chuck: 3-jaw hydraulic Ø 204 mm Tailstock: present, CM4 taper Tailstock sleeve stroke: 130 mm, Ø 80 mm Included equipment: coolant, bar feeder Weight (kg): approx. 4500 Year & Manufacturer: 2000 – HYUNDAI

Control: Heidenhain iTNC 530 Speed: 10,000 rpm Travel in X/Y/Z: 1,050/540/720 mm Spindle: Technology: Belt spindle Speed: 10,000 rpm Power: 12 kW Tool holder: SK40 Work table: Clamping area: 1,120 x 610 mm Table load (max.): 1,000 kg General: Tool magazine: 30 stations Rapid traverse in X/Y/Z: 36/36/30 m/min Equipment/accessories: Chip management: Chip conveyor Coolant management: IKZ pump with filter and high pressure Setup operation: Electronic handwheel Other accessories: Div. gebr. Tool holder and 3 pcs machine vices (1x 125/2x 160), rinsing gun

Manufacturer: GILDEMEISTER Year: 1996 Type: CNC lathe Numerical control: Heidenhain ELECTRO PILOT turn plus Axes: 2 axes (X, Z) Turning diameter above the bench: Ø 500 mm Turning diameter above the carriage: Ø 290 mm Max. turning length: 640 mm Spindle: 20–5,000 rpm – 22 kW – max. torque 150 Nm – bore 72 mm – passage 65 mm Strokes: Z 650 mm / X 212 mm Fast feeds X/Z: 10 m/min Tailstock: sleeve Ø 80 mm – CM4 – stroke 100 mm Equipment: 3-jaw chuck Ø 250 mm, SAUTER turret 12 positions VDI 30, tailstock, full documentation Dimensions: approx. 3300 × 1800 × 1900 mm Weight: approx. 5000 kg Remarks: Robust German-made CNC lathe.

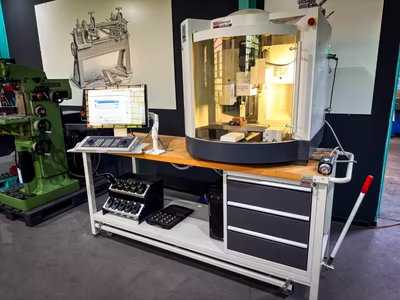

Operating voltage: 230 V Frequency: 50 – 60 Hz Rated current: 2.8 A Control: EMCO EASY 2 CONTROL (HEIDENHAIN TNC 640, SIEMENS SINUMERIC 840) Tool holder: probably SK 30 Max. tool clamping length: 35 mm Table dimensions: 420 x 120 mm with 2 grooves and a special EMCO vice Jaw width: 60 mm Travel - X: approx. 190 mm, Y: approx. 140 mm, Z: approx. 260 mm incl. matching mobile workbench with various suitable contents incl. 7-fold tool changer, collets and various matching tool holders Note: An identical and completely identical machine will be delivered and not exactly the one shown in the photos.

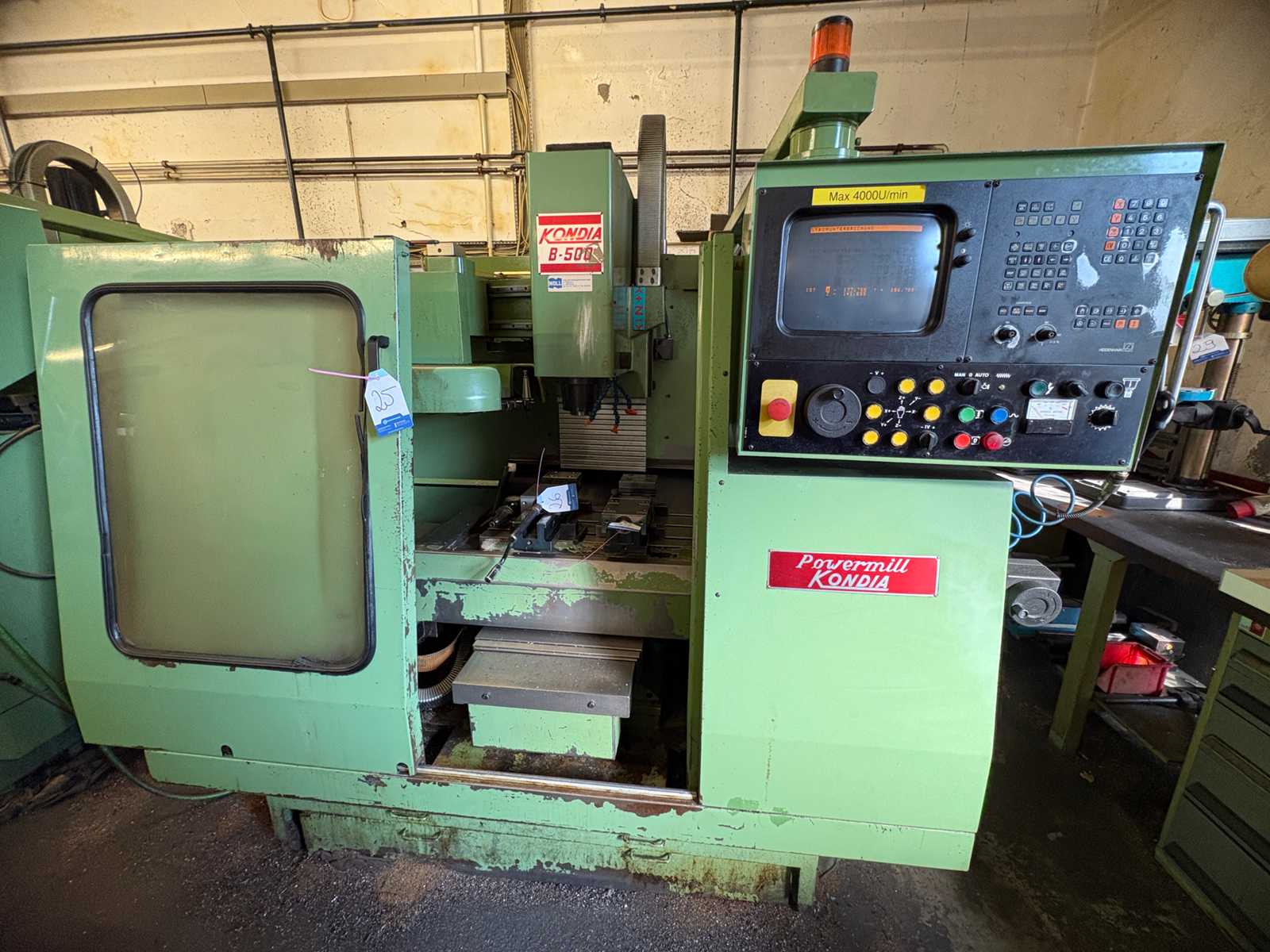

Connection: 13 kW Control: HEIDENHAIN TNC 425 Table dimensions: 700 x 360 mm T-slots Number x width x distance: 3 x 18 x 110 mm Distance table to floor: 840 mm Max. table load capacity: 300 k Travel X-axis: 960 mm Travel Y-axis: 380 mm Ball screw X and Y-axis: 32 x 10 mm Pitch Diameter Distance table center to stand: min. 190 mm, max. 570 mm Spindle mounting taper: ISO 40 Travel Z-axis: 380 mm Spindle speed: 100 to 6000 rpm Rapid traverse: 15 m/min Positioning accuracy: +-0.01 mm Repeatability: +-0.005 mm Resolution: 0.001 mm incl. 16-fold tool changer Max. diameter for adjacent tools: 85 mm Max. diameter for free secondary positions: 135 mm Max. tool length: 250 mm Permissible weight per tool: 6 kg max. total weight of the tools: 60 kg Attention: without the machine vise shown in the photos! Inkl. 3D Probe Reference: Schönichen - Lot 25

Manufacturer: SOTOS VOJUS (VOJUS a.s.) Year: 2001 Type: CNC lathe with automatic cycle Numerical control: Siemens Sinumerik 840D ShopTurn Max. turning diameter: Ø 630 mm Diameter above dragger: Ø 420 mm Max. turning length: 3,000 mm Spindle: up to 2,500 rpm – passage Ø 110 mm Fast feeds: longitudinal 10 m/min – transverse 5 m/min Installed power: approx. 26 kW Equipment: Multifix tool holder, 1 bezel, coolant Dimensions (mm): 3000 × 1800 × 1790 Weight (kg): approx. 4500 Remarks: High-capacity CNC lathe for long workpieces. Serial number included in the description.

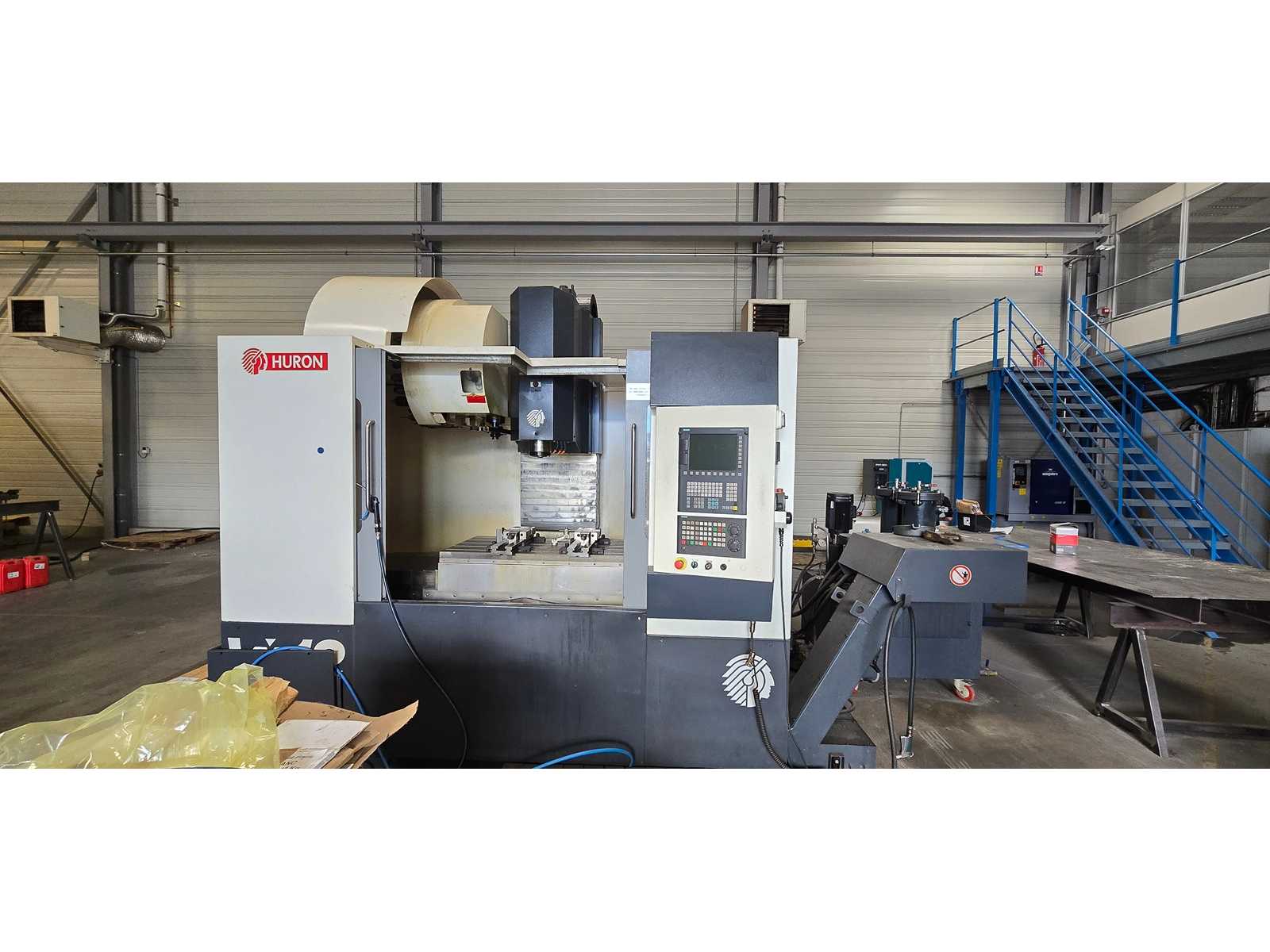

CNC Control: Siemens 828D ShopMill Courses X/Y/Z: 1220 / 600 / 610 mm Total power: 10 / 14 kW Spindle speed: 8,000 rpm Spindle taper: SK40 Tool magazine: 20 positions Equipment: Chip conveyor, coolant, technical documentation Power supply: 400 V – 50 Hz Manufacturer: Huron Year: 2012 Serial number: M02741 Estimated dimensions (mm): 3500 x 2800 x 3200 Weight (kg): 10000

Manufacturer: GILDEMEISTER Model: CTX 400 Series 2 Year: 1998 German-made 2-axis CNC lathe, robust and precise, suitable for turning single parts and small to medium series. CNC : HEIDENHAIN TURN PLUS Axes: 2 axes (X, Z) Turning capacities: Diameter above bed: Ø 570 mm Diameter above carriage: Ø 420 mm X-axis stroke: 220 mm Z-axis stroke: 635 mm Spindle: Bore: 79 mm Chuck diameter: Ø 250 mm Spindle speed: 25 – 5000 rpm Motor power: 21 kW Fast feeds: X-axis: 20 m/min Z-axis: 24 m/min Turret: 12 positions VDI 30 Equipment: automatic tailstock (Ø 80 mm), chip conveyor, parts collector Country of origin: Germany Condition: used

Manufacturer: FAMUP Year: 1998 Type: CNC vertical machining center Numerical control: Heidenhain 410 AC.Strokes : X 1000 mm / Y 470 to 600 mm / Z 470 to 600 mm (according to documentation) Table: 1300 x 520 mm – T-slots 5 x 18 mm (pitch 100 mm) – max. load 800 kg Spindle: ISO 40 DIN 69871 – AC Brushless – 50 to 8000 rpm – 11 kW (30 min) / 7.5 kW S1 Feeds: X/Y/Z 10000 mm/min – X/Y/Z 30000 mm/min fast tool magazine: 24 positions – max. tool diameter 94 mm – max. length 280 mm – max. weight 6 kg – changeover time 3 s Equipment: without spindle center coolant, without chip conveyor, sold without tools Dimensions: 4247 x 3105 x 3310 mm Weight: 6000 kg Lots sold as is, unchecked, without tools or tool holders.

Maximum rotation diameter: 760 mm Maximum turning diameter: 550 mm Maximum turning height: 600 mm Chuck: 15 inches X-axis: 325 mm Z-axis: 625 mm Axis C: Indexation 0.001° Spindle speed: 2,000 RPM Spindle power: 22 kW Spindle nose: A2-11 Type of training: By belt Turret: 12 stations (BMT75) Motorized tool speed: 3,000 rpm Power of motorized tools: 7.5 / 5.5 kW Tool dimensions: 32 x 32 mm Bore bar diameter: Ø 50 mm Fast Forwards: 20 / 18 m/min CNC Control: Fanuc 32i Model B Weight: 8,500 kg Floor dimensions: 2,010 x 3,212 mm

Manufacturer: DMG (Deckel Maho Gildemeister) Year: 2006 Type: CNC Vertical Machining Center Numerical Control: Heidenhain TNC 530 Strokes: X 635 mm / Y 510 mm / Z 460 mm Spindle: 12,000 rpm Tool magazine: 32 positions Spindle center coolant: 20 bar Filtration: Cartridge filtration Tooling: No tooling supplied with the machine Weight (kg): approx. 6000 Notes: Multi-purpose CNC vertical machining center. Serial number included in the description.

CNC lathe GILDEMEISTER CTX 420 Linear Year of Make: 2007 Control: Siemens 840 D Technical data Turning length: 600 mm Turning diameter: 680 mm Spindle passage: 79 mm Speed: 5,000 rpm Variable rotation speed: 5,000 rpm Spindle power: 25 kW Chip conveyor: Yes Main spindle with rod passage: Ø 65 mm Self-centering autoblock: Ø 250 mm

Serial number: 07510001241 operating hours read: 72,899 Spindle hours read: 39,361 Control: SIEMENS SINUMERIK 840 D Rotation diameter: 640 mm Turning diameter: max. 640 mm Turning diameter Sub-spindle: 400 mm Spindle distance: 1500 mm Turning length: 1185 mm Max. workpiece weight: 150 kg Slide path X1: 550 mm Slide path Y1: 180 mm Slide path Z1: 1185 mm Slide path B1: 240 ° Slide path X2: 180 mm Slide path Z2: 1050 mm Slide path Z3: 1150 mm Spindle speed range: 3200/4000 rpm Rapid traverse speed of slide 1 (X/Y/Z): 40/24/70 m/min Rapid traverse speed of slide 2 (X/Z): 24/36 m/min Rapid traverse speed of slide 3 (Z): 36 m/min Tool holder: HSK 63 Spindle speed: 12,000 rpm incl. the tool holders on the turret incl. bar feeder, manufacturer: COCCHE GIOVANNI, type: CNC-DB 110, Year of manufacture: 2008, Serial number: CNCDB-08.306, Weight: 1500 kg Number of tool positions in the chain magazi ...

CNC lathe for turning and machining metal parts. CNC control: Traub TX 8 Max. turning circle: 275 mm Max. turning length: 450 mm Bar pass: 65 mm Chuck diameter: 210 / 250 mm Bench inclination: 40° Spindle speed: 0 – 4,000 rpm Spindle nose: A2-6 Spindle motor power: 11 / 18.5 kW C-axis: 0.001° with hydraulic brake Turret: 12 positions VDI 30 Motorized tools: 4,000 rpm – 4.4 kW Fast feeds: X 15 m/min / Z 20 m/min

Offered is a vertical three-axis machining center. Travels X/Y/Z: 1524mm/660mm/610mm, table: 1675mm x 660mm, spindle speed: 12000rpm, tool holder: SK40, tool changer: 24 positions, spindle hours: 1937h (spindle replaced 10/2019), chip disposal: scraper conveyor, control system: WinMax. Equipped with 3D probe Renishaw, scraper chip conveyor, coolant system, spindle cooler, coolant spray gun, chip splash protection enclosure, flushing system for chip removal, electronic handwheel, rigid tapping, DXF software, cooling air through spindle switchable. Weight: approx. 8400kg, overall dimensions X/Y/Z: approx. 4650mm/3470mm/3030mm. Inspection possible by arrangement.
