plano milling used for sale

GeneralVertical-Machining centre Stealth Design; Control: CELOS with Heidenhain TNC 640 Technical DataRapid traverse longitudinal/transverse/vertical42/42/42 m/minFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minWorking area 1Cross700 mmLongitudinal1450 mmVertical550 mmIntegrated motor spindle speedMASTER®Integrated motor spindle speedMASTER® At speeds > 18.000 min-1, the use of tools with dual contact system (BIG-PLUS®) is stipulated.Drive power (100% DC) 25 kWDrive power (40% DC) 35 kWTorque (100% DC) 86 NmTableTable surface 1760 x 750 mmClamping System DIN ISO 7388-3-ADSpindle taper SK40 Tool holder DIN ISO 7388-1-ASpeed range - 20000 rpmTorque (40% DC) 130 NmSlot width 14 mmMaximum load (table centre) 1500 KgNumber of Slots 7Distance between T-Slots 100 mmCabin roofCabin roof In sheet steel design Open and close via front doorSpecial equipmentClamping pneuma ...

x-travel:600 mm y-travel:500 mm z-travel:450 mm weight of the machine ca.:3,5 t

x-travel:1000 mm y-travel:320 mm z-travel:400 mm Table dimensions:1000 x 400 mm

GeneralVertical Machining Center; Control: Control SINUMMERIK ONE CharacteristicsTable surface850 x 650 mmDimensions (L x W x H)3,07 x 2,67 x 2,84 mRapid feed X / Y / Z24/24/24 m/minMovement X / Y / Z550/550/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with24 PositionsMax. torque64 NmTorque (100% DC)43 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.10000 rpmWeight approx.5600 KgSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872Electronic HandwheelExternal electronic HandwheelSpecial equipment4th. axis Lehmann

GeneralTwo spindle turning/milling centre with - Main and counter spindle; Control: CELOS with Siemens 840D sl Operate Tool holder 2Number of tool stations12 Shank diametre according to DIN 6988040 mmNumber of driven tools12 Speed max.4000 rpmPower max. (40% DC)10 kWTool magazineMax. tool length230 mmNumber of tools24 Max. tool diameter80 mmMax. tool weight7 KgTurning-milling spindleSpindle taperHSK-A 63 Spindle speed-12000 rpmDrive power (100% DC)19 kWDrive power (40% DC)22,5 kWTorque (100% DC)85 NmTorque (40% DC)120 Nmlocking moment1000 NmSwivelling range+/-110 degreeSlide 3Longitudinal stroke1200 mmSlide 2Longitudinal stroke1200 mmTransverse stroke195 mmSlide 1Longitudinal stroke1200 mmTransverse stroke490 mmY axis, vertical+/- 100 mmHeadstock, rightClamping chuck Ø315 mmSpindle nose diameter170h5 mmSpindle bore87 mmSpindle diametre on front bearing130 mmDrive power (100% DC)25 kWDri ...

Slot counter spigot outside inside

x-travel:560 mm y-travel:500 mm z-travel:450 mm

x-travel:560 mm y-travel:500 mm z-travel:450 mm

GeneralVertical-Machining centre Stealth Design; Control: CELOS X with Siemens 840D SL Operate CharacteristicsTable surface1460 x 750 mmMaximum load (table centre)1500 KgTool Magazine with40 PositionsMovement X / Y / Z1150/700/550 mmRapid feed X / Y / Z42/42/42 m/minWeight approx.12900 KgSpindle speed 20 - 12,000 rpm SK50, 288NmSpindle speed 20 - 12.000 rpm SK50 for tool taper according to DIN ISO 7388-1-A50 with power 44/32 kW // 59.0/42.9 hp with torque 288/187 Nm (40/100% DC) (differently from standard)Tool magazine 40 pocketsTool magazine 40 pockets SK50 chain magazine with pockets and double gripper, incl. manually direct loading into the tool magazineCoolant-air blast change-overCoolant - Air-blast changeover external switchable via M-FunctionAir blast through spindle centreAir blast through spindle centre activated by M function, maintained air with low oil rateInternal coolant su ...

x-travel:3.000 mm y-travel:700 mm z-travel:1.200 mm Spindle RPM:2.500 1/min tool taper:SK50

GeneralVertical machining center in C-frame-design New DMG MORI Design Direct Measuring system X,Y,Z; Control: CELOS with Heidenhain TNC 640 Technical DataFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Longitudinal650 mmCross520 mmVertical475 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools30 TableTable surface 960 x 570 mmMaximum load (table centre) 800 KgSlot width 14 mmNumber of Slots 5Distance between T-Slots 100 mmSpindle speed 15,000 rpm, 200 NmMotor spindle speedMASTER® SK 40 Spindle speed 20 - 15,000 min-1 Output 46 kW / 30 kW (62 hp / 40 hp) Torque 200 Nm / 130 Nm (148 ft lbs / 96 ft lbs) (40 / 100 % duty cycle) BIG-PLUS® tools possibleTool magazine 30 pockets SK40Tool magazine 30 pockets SK40 Chain magazine with pockets and with double gripper,  ...

x-travel:100 mm y-travel:100 mm z-travel:100 mm total power requirement:0,6 kW weight of the machine ca.:130 kg dimensions of the machine ca.:1600 x 1000 x 1300 mm milling depth:0-50 mm

x-travel:630 mm y-travel:200 mm z-travel:360 mm total power requirement:7,5 kW weight of the machine ca.:2,5 t dimensions of the machine ca.:1500 x 1800 x 1900 mm spindle taper:SK40 table-size:250 x 1100 mm

GeneralVertical machining center in C-frame-design New DMG MORI Design Direct Measuring system X,Y,Z; Control: CELOS with Siemens 840D sl Operate Technical DataFeed rate longitudinal/transverse/vertical1-42000/1-42000/1-42000 mm/minRapid traverse longitudinal/transverse/vertical42/42/42 m/minWorking area 1Cross520 mmLongitudinal650 mmVertical475 mmTool changerType of magazineChain Type of gripperDouble gripper Number of tools60 TableTable surface 960 x 570 mmMaximum load (table centre) 800 KgSlot width 14 mmNumber of Slots 5Distance between T-Slots 100 mmSpindle speed 20.000 rpmMotor spindle speedMASTER® HSK-A63 Spindle speed 20 - 20,000 min-1 Output 35 kW / 25 kW (47 hp / 33 hp) Torque 130 Nm / 86 Nm (96 ft lbs / 63 ft lbs) (40 / 100 % duty cycle)Tool magazine 60 pockets HSK-A63Tool magazine 60 pockets HSK-A63 Chain magazine with pockets and with double gripper, incl. manually direct t ...

CharacteristicsTable surface1460 x 750 mmMaximum load (table centre)1500 KgTool Magazine with30 PositionsMovement X / Y / Z1150/700/550 mmRapid feed X / Y / Z42/42/42 m/minWeight approx.12900 KgGeneralVertical-Machining centre Stealth Design; Control: CELOS X with Siemens 840D SL Operate Spindle speed 15,000 rpm, 200 NmMotor spindle speedMASTER® SK 40 Spindle speed 20 - 15,000 min-1 Output 46 kW / 30 kW (62 hp / 40 hp) Torque 200 Nm / 130 Nm (148 ft lbs / 96 ft lbs) (40 / 100 % duty cycle) BIG-PLUS® tools possibleTool magazine 30 pockets SK40Tool magazine 30 pockets SK40 Chain magazine with pockets and with double gripper, incl. manually direct loading into the tool magazineCoolant-air blast change-overCoolant - Air-blast changeover external switchable via M-FunctionAir blast through spindle centreAir blast through spindle centre activated by M function, maintained air with low oil rat ...

x-travel:1120 mm y-travel:370 mm z-travel:410 mm total power requirement:14,5 kW weight of the machine ca.:3850 kg dimensions of the machine ca.:3,5 x 3,5 x 2,2 m Table dimensions:400 x 1600 mm spindle taper ISO:50

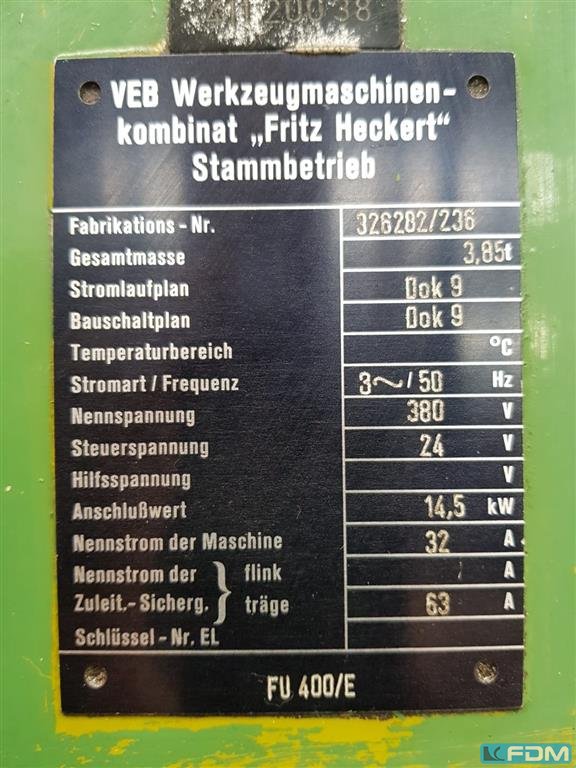

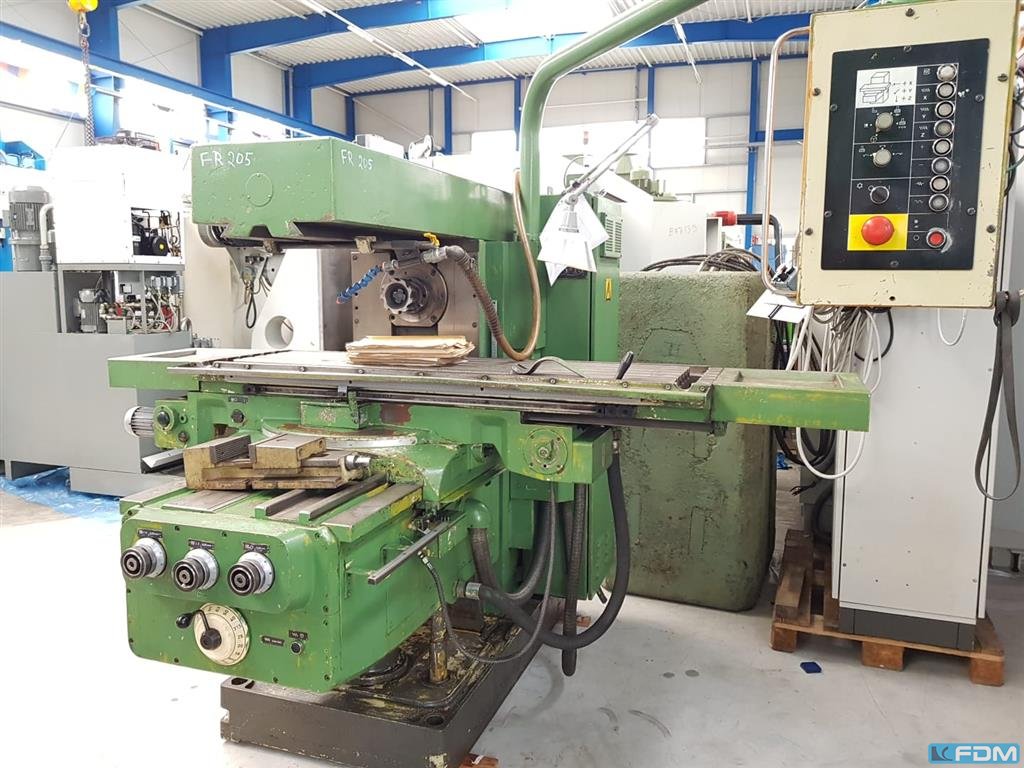

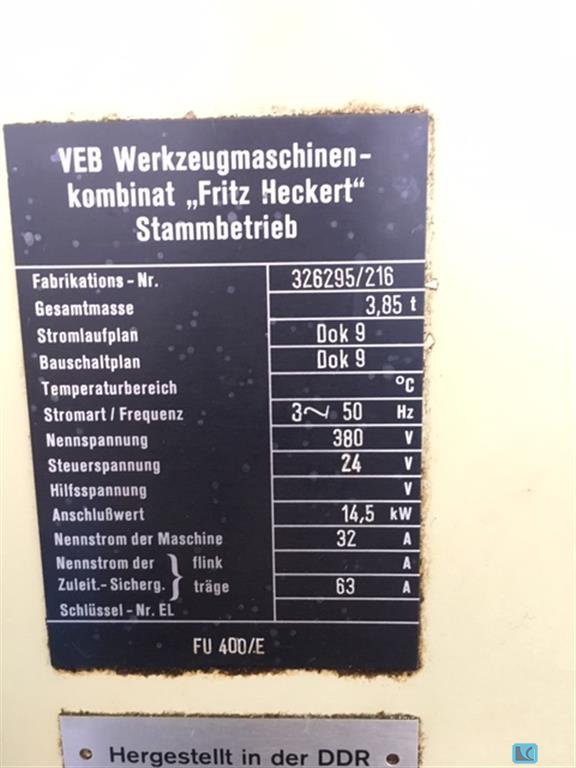

x-travel:1120 mm y-travel:345 mm z-travel:400 mm total power requirement:14,5 kW weight of the machine ca.:3,85 t dimensions of the machine ca.:3.500 x 2.920 x 2.710 mm table-size:1600 x 400 mm spindle taper:SK 50

GeneralVertical Machining Centres; Control: DMG MORI SLIMline® Multi-Touch control CharacteristicsMaximum load (table centre)800 KgDimensions (L x W x H)3,3 x 2,7 x 2,94 mRapid feed X / Y / Z30/30/30 m/minMovement X / Y / Z800/560/510 mmSpindle taperSK 40 DIN 69871 Tool Magazine with30 PositionsMax. torque83 NmTorque (100% DC)57 NmDrive power (40% DC)13 kWDrive power (100% DC)9 kWSpeed max.12000 rpmTable surface1100 x 560 mmWeight approx.5550 KgDirect measuring system X,Y,ZDirect Measuring System X, Y, Z inclusive Air Purge for Measuring SysteminlineMASTER® spindle 12.000 rpminlineMASTER® spindle 12.000 rpm Spindle speed range 20 to 12.000 rpm Tool Taper SK40 DIN69871 with BIG PLUS inteface Tool clamping according to DIN69872 Power: 13kW (40% DC) / 9kW (100% DC) Torque: 83 Nm (40% DC) / 57 Nm (100% DC) bearings oil-air lubrSK40 interfaceTool clamping SK 40 for pull-studs DIN 69872NC-D ...

Machine is already ready for transport and can be assessed on viewing day. Workbench with magnetic plate and milling tool not included

machine ready for transport and to be assessed on viewing day. 5 additional loading meters for chip conveyor / cooling container / leveling feet and books

General2 spindles automatic lathe - 2 cross slides - Main and counter spindle - Y axis on slide 1 - Y axis on slide 2 - C axis on main spindle - C axis on counter spindle - Chip tank with coolant system and coolant pump - Part unloading chute; Control: Numeric control Fanuc 32i Working areaBar diameter max.20 mmCounter spindle collet cleaningCounter spindle collet cleaning with coolantChanging kit from steady to sliding headstockChanging kit from steady to sliding headstock including application bush type Dunner B260 and bush-spindle syncronismAdditional charge for belt type chip conveyorAdditional charge for belt type chip conveyor, compatible with shaft-unloading-device Specific chip removol systems (for example: scraping blades chip conveyors, with additional filtering systems) are recommended in case of short chip material machininOil mist filter for emulsion or oilOil mist filter fo ...

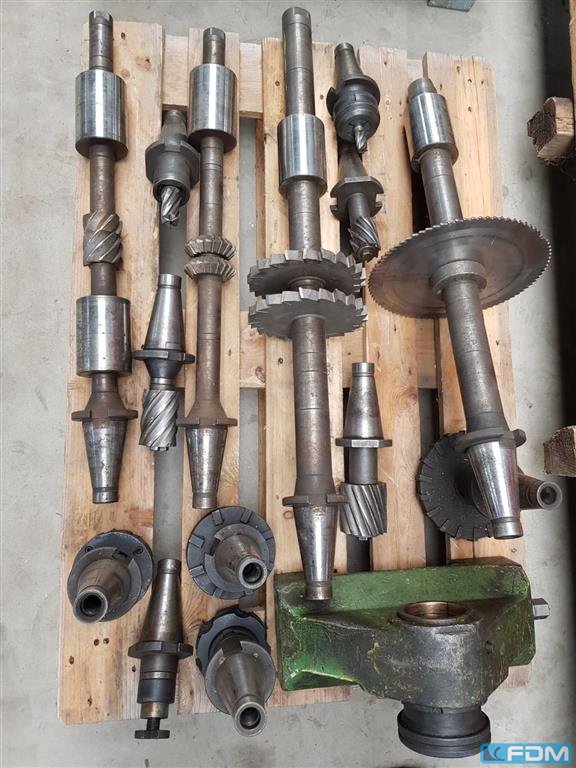

Consisting of milling tools in various sizes and designs, incl. pallet

equipped with clamping block

Among others: 2-sided mills, multiple mills.

BACCI FC 8 2500 linear milling machine Working length 2500mm Working width 200mm Working height 180mm Number of units 8 Milling 7.5kw Milling 7.5kw Milling 5.5kw Milling 5.5kw Grinding/milling 4.5/3.3kw Grinding/milling 4.5/3.3kw Sanding 3kw Sanding 3kw Hydraulic feed Working speed 0-15m/min Return speed 50-100m/min Year of production 2004 CE Certified Machine weight 5100kg

machine ready for transport and to be assessed on viewing day. Machine clamp not included

Manufacturer: CME Year: 1991 Type: CNC universal milling machine Numerical control: Heidenhain TNC 124 Axes: 3 axes (X, Y, Z) Strokes: X 1100 mm / Y 700 mm / Z 500 mm Table: 1400 x 450 mm Spindle: ISO / SK 40 – 40 to 1800 rpm – motor power 10.6 kW Dimensions: 2400 x 2150 x 2100 mm Weight: approx. 3800 kg Notes: Robust Spanish-made universal CNC milling machine.

SC3503.11.001 BB3503.11.001 68-92 mm further data on request

Tool used 320x24x58, n 5600 - 2300 HW, BLAA further data on request

Gear Hobbing Machine Pfauter P 400 With interchangeable wheels

Thread milling and hobbing machine Wanderer 31 NU Machining length 3000 mm With accessories

Consisting of milling tools in various sizes and designs, partly unused, incl. pallet

Gear hobbing machine horizontal Pfauter P160 With accessories

Manufacturer: Tos Kurim Model: FSS 80 NC Year of Manufacture: 1988 Control: Heidenhain TNC 155 Swivel head Travel paths: X = 3000mm Y = 800mm Z = 800mm Spindle power = 20KW Speed: 200rpm SK50 Total power requirement: 40KW 380V Space required: Length = 7770mm Width = 3500mm Height = 2870mm Weight = 12.3t approx. Drive spindle Z: either spindle nut or spindle bearing defective. Find more here - / Contact us at -
