CONTROLS   CNC controls SIEMENS 840 D SL HEAT TREATMENT COMPARTMENT / ZONE   length: 1000 mm   diameter: 36 mm HEAT TREATMENT COMPARTMENT / ZONE   heat treatment process: tempering   length: 1000 mm   diameter: 36 mm DIMENSIONS / WEIGHTS   space requirements -left/right-: 6700 mm   space requirements -front/back-: 7500 mm   total height: 3750 mm   total weight approx.: 20000 kg ELECTRICAL SPECIFICATIONS   total power consumption: 860 kW Accessories: e. g. base plate, exhaust system, tools, ... Operating hours: 7760 type stations / number: hardening 1x - Tempering 1x The machine is sold without workpiece programs.

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m Machine is in nearly new condition and was completely modernized in 2020! With CNC SIEMENS 840 D Automatic tool magazine for 153 tool positions Automatic milling head magazine for 6 milling heads Machining module ? straight ? straight long ? Machining module ? angle standard ? 4000 rpm, 144 x 2.5°, ISO 50 Machining module ? narrow angle extended ? 40 kW, 4000 rpm, 1800  ...

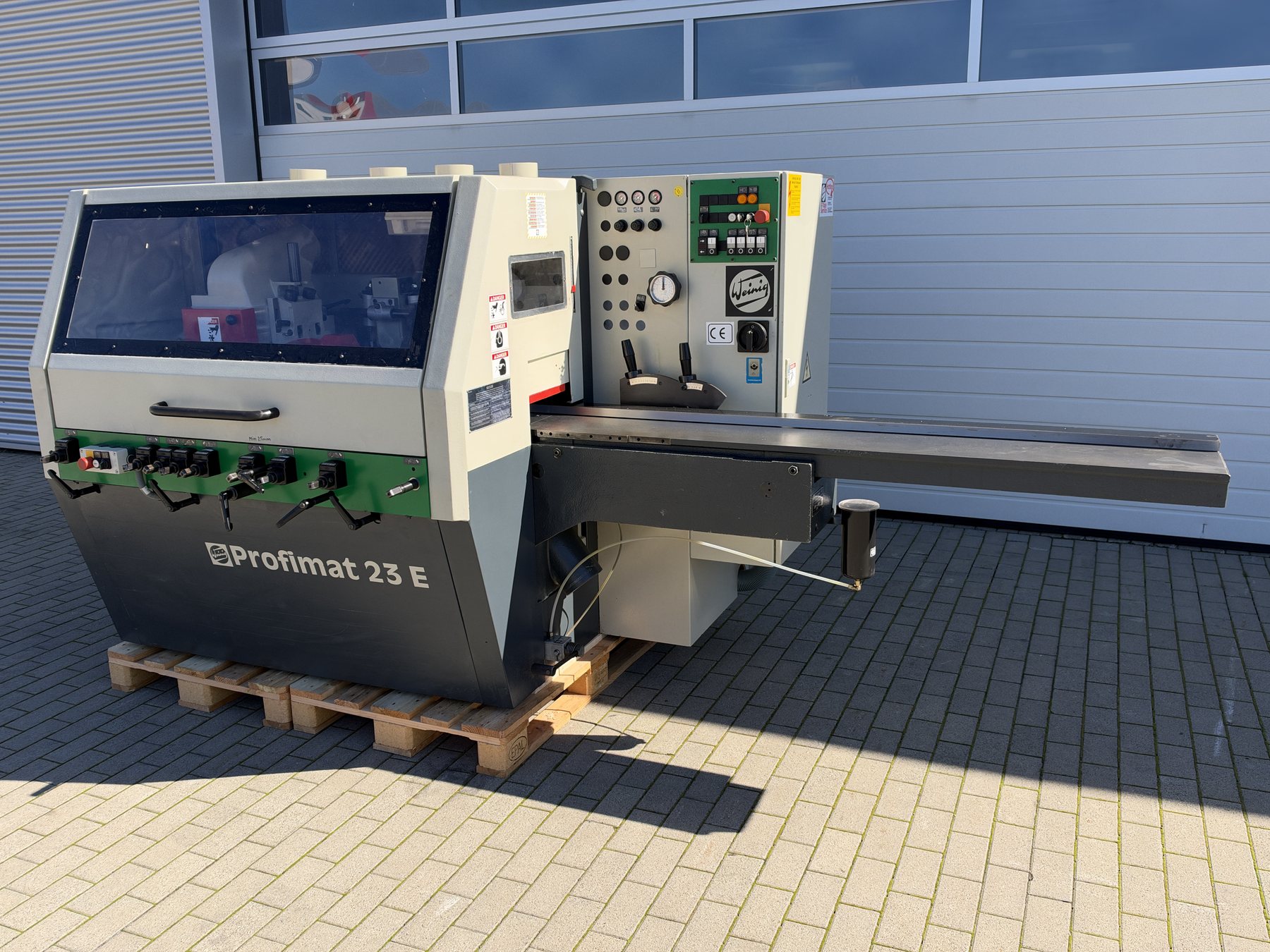

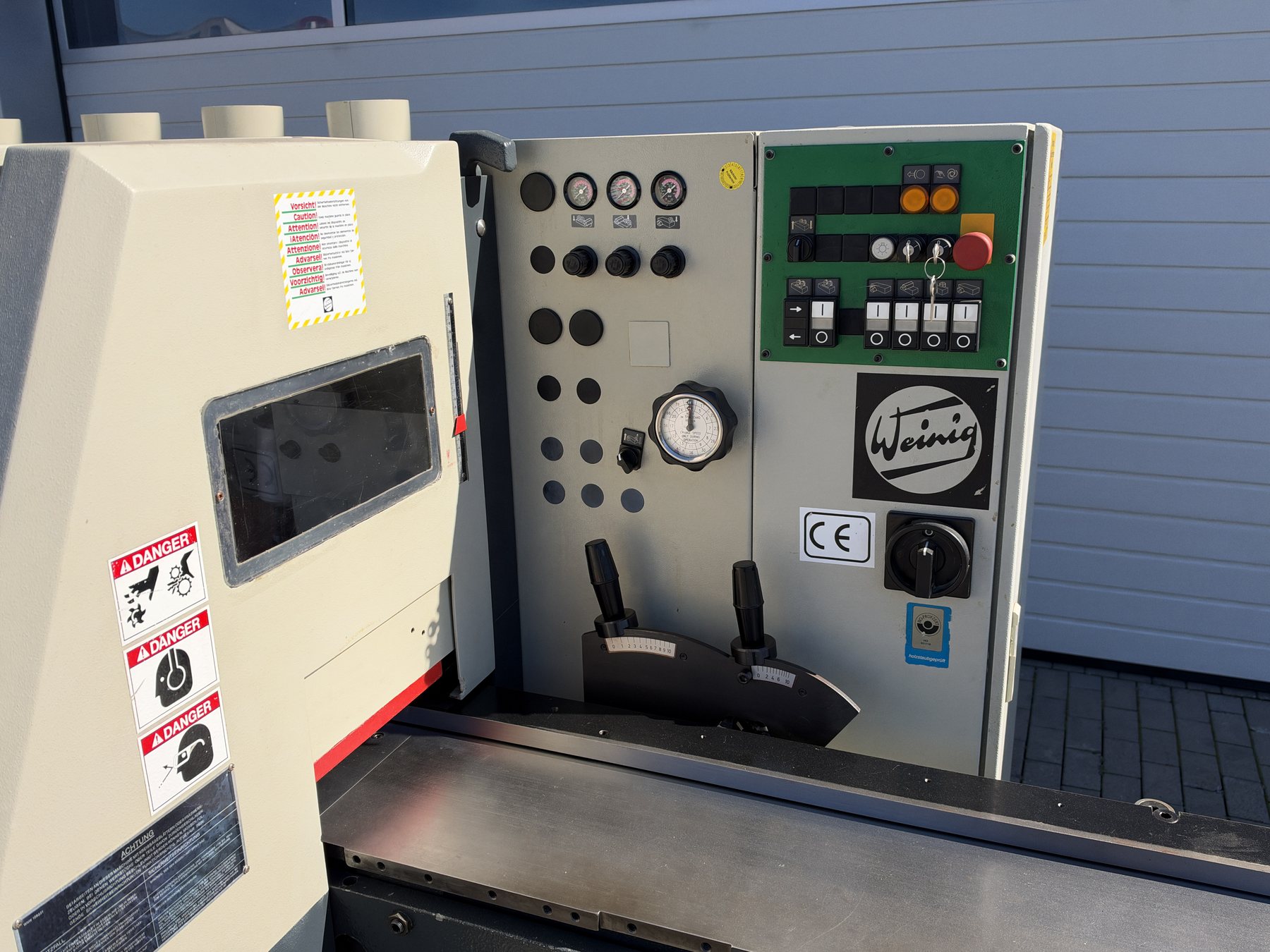

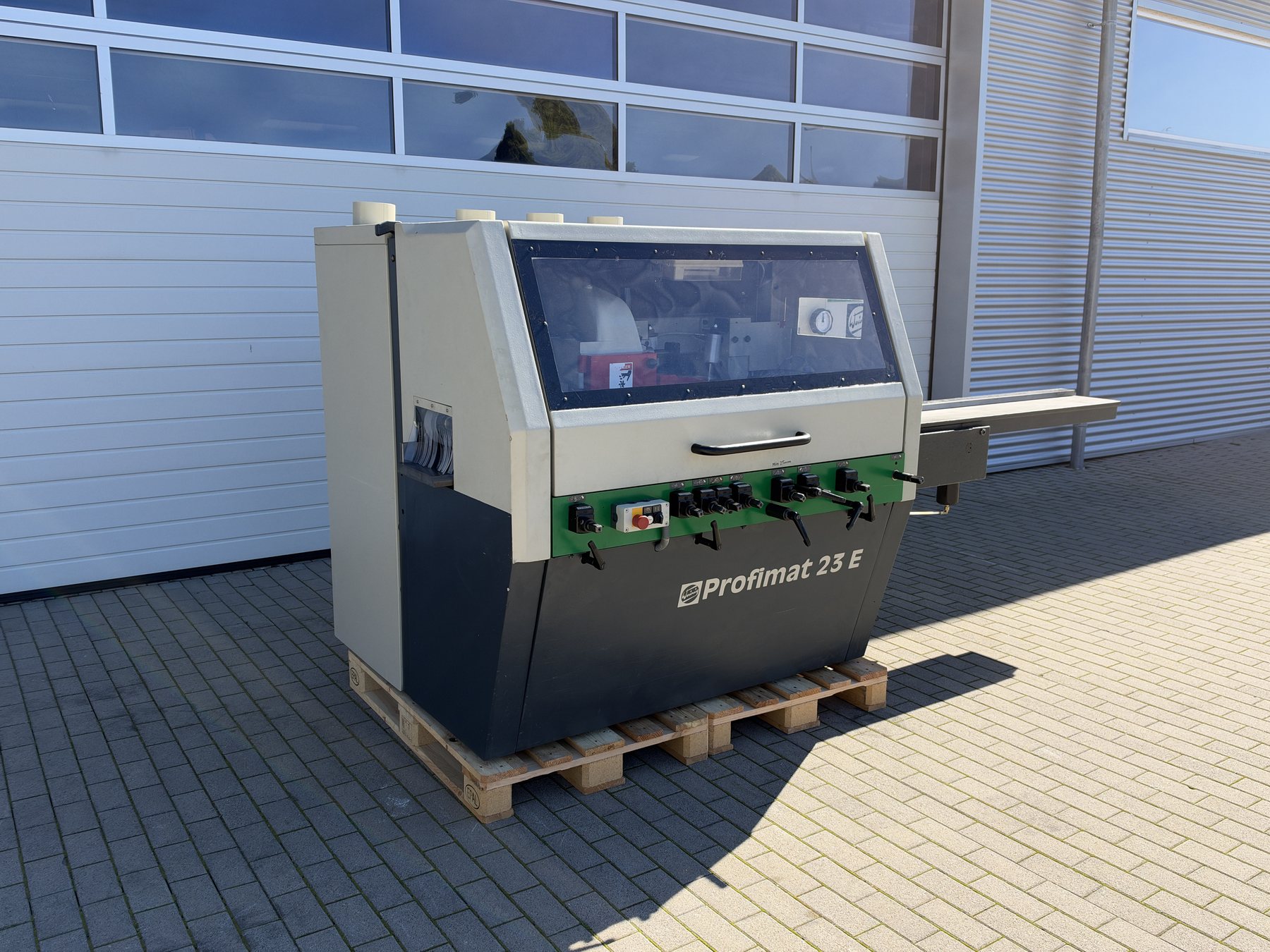

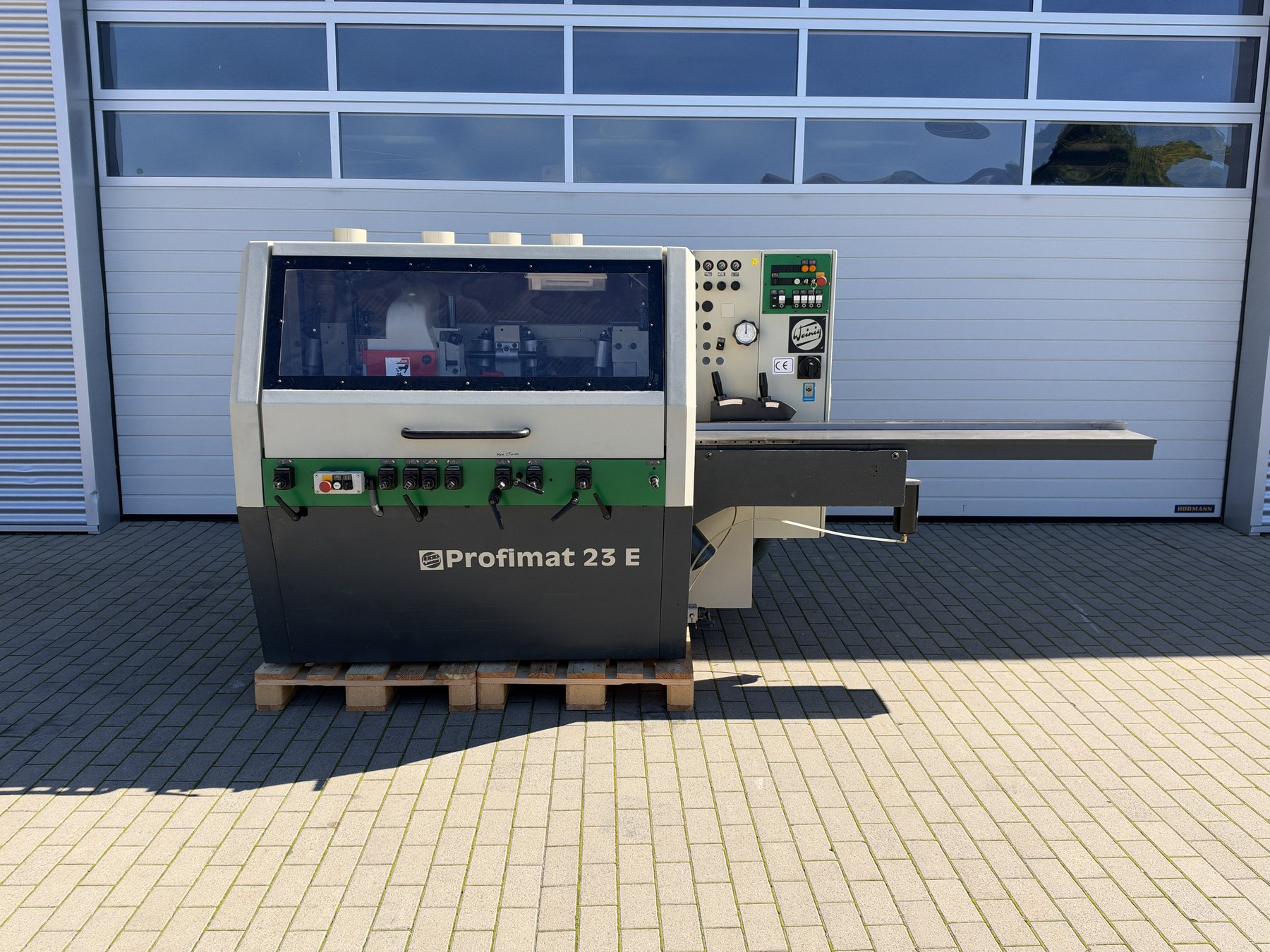

Second-hand Weinig Profimat 23 automatic planing and moulding machine for four-sided planing and profiling of timber, with a long dressing table. Technical data: Spindle 1: Bottom / 4 kW / 40 mm Spindle 2: Right / 40 mm Spindle 3: Left / shared motor with #2 / 40 mm Spindle 4: Top / 5.5 kW / 40 mm Spindle 5: Bottom / 4 kW / 40 mm Spindles: 5 Working width: 230 mm Working height: 120 mm Feed: 2.2 kW Planing table length: 2,500 mm Condition: Gebraucht Location: Tauberbischofsheim, Germany

Consisting of: a.o. 1 API SCHMIDT-BRETTEN - Sigma 16 TCN - Plate Heat Exchanger, 2 KPA - KN 253/ 4A - Pump, 1 ECKARDT - SRI 986 - Steam Control Valve, 1 safety changeover valve, 1 flow tank, 1 control cabinet, dimensions (LxWxH) approx. 510x800x200 mm Incl. stainless steel frame, The tanks in the background are expressly NOT part of the system The last 6 pictures show the separation points. Due to the increased dismantling effort, collection is by prior arrangement. Auction-ID: A1-50564-1

Key data: 27 mm, 36 , 1200 U/min

Warehouse – No. 2875 1 used, in 2026 Partially overhauled and function-tested compounding granulation line, consisting of: Brabender grav. Dosage 2-components (expandable, optional vs. surcharge) with 1x FlexWall 40, 1x DDW-MD5, Congrav RC4 control stand-alone Extruder Twin Screw Leistritz Type ZSE 27 HP Synchronous, seal-combing, segmental screw and barrel with intensive cooling. Screws 2x Ø 27 mm- 36 L/D with 8 cylinder zones with 3x degassing zones, 1x vacuum pump 1.5 kW Screw speed up to 1,200 rpm.-1 – adjustable Extruder drive 33.8 kW - Heating capacity 9.8 kW installed Mass pressure sensor Control Macromatex III MAAG Gala Underwater Pelletizer Type LPU Model SLC 5, incl. Polymer start-up valve with hydraulics Perforated plate 20°, granulator SLC 5 with drive 1.5 kW Water Box - Temperate water system with Granule Centrifugal Dryer Type 1150, Driv ...

consisting of: a.o. Tubular heat exchanger, 10 mm diameter, single tube, 1 APV LAB 60/100 - high-pressure homogenizer, 350 bar, 100 ltr./h, rollable, dimensions (LxWxH) approx. 700x650x1020 mm, 1 GEA - VT 04 CDSC 16 - Plate Heat Exchanger, 1 Progressing cavity pump Allweiler type ASP 1 Grundfos High Pressure Centrifugal Pump, CRN, 1 DP - High Pressure Centrifugal Pump, 2 process vessels, 1 flow tank, 4 control valves 1 control cabinet with 3 frequency controllers Due to the increased dismantling effort, collection is by prior arrangement. Auction-ID: A1-50564-39

working width: 510 mm; cutter head: strip knive; number of blades: 2; surface table length: 2600 mm; adjustment table: hydraulic; Hollow and pointed joints adjustment: ja; read out table hight: Scala; read out Hollow and pointed joints: Scala; fence tilting: yes; motor power: 5,5 kW; motor brake: yes, automatic; machine length: 2600 mm; machine width: 1000mm; weight: 1050 kg;

planing width: 520 mm; planing shaft type: tersa; number of blades: 4; sourface table length: 3000 mm; table adjustment: electrically; read out table height: digital; sourface fence adjustable: yes; motor power: 7 kW; suction connection: 120 mm; machine length: 3005 mm; machine width: 1460 mm; weight: 870 kg; - Dressing tables made of gray cast iron - The dressing table adjustment takes place via a precise parallelogram system, so that the distance between the table tips and - - the knife shaft remains the same in every adjustment position - Large precision aluminium dressing fence, slightly tiltable 90 - 45 ° - The inclination of the stop is easily readable from the operator side - As standard with auxiliary stop for safe planing of even narrow workpieces - Large four-knife shaft, precision-mounted - Quiet running with precision aggregate and heavy cast iron execution -  ...

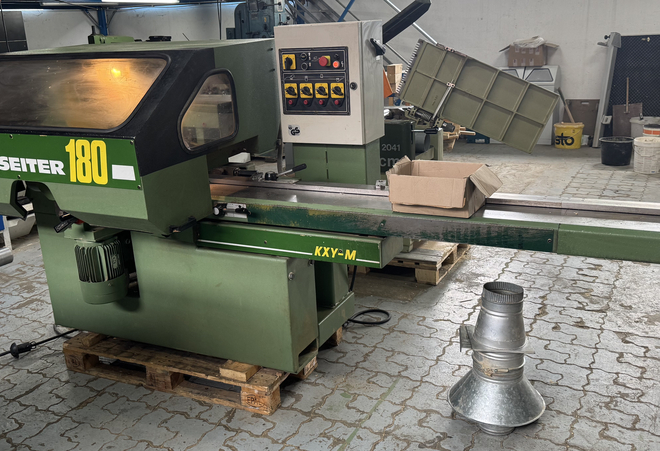

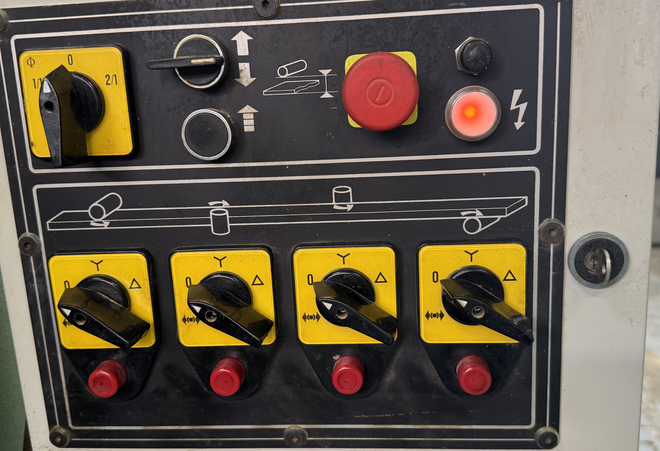

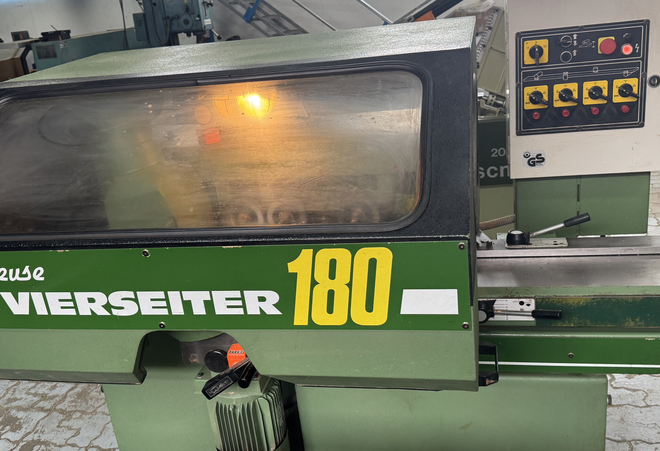

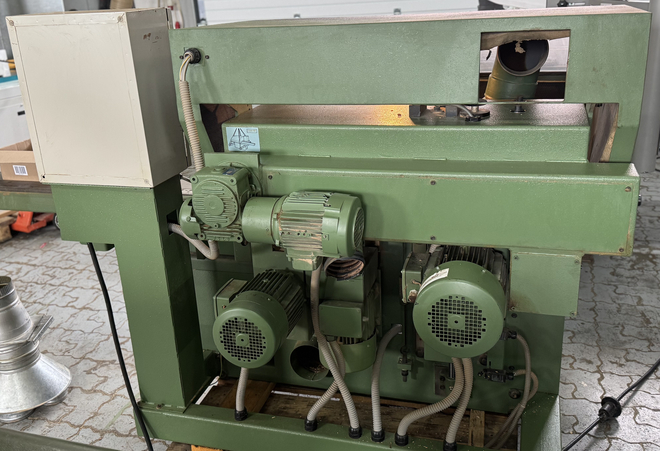

working width: 180 mm; working height: 120 mm; working spindles: 4; spindle following: down, right, left, up; motor power spindle down: 3,7 kW; motor power spindle right: 3,7 kW; motor power spindle left: 3,7 kW; motor power spindle up: 5,5 kW; adjustment spindle down: -; adjustment spindle right: -; adjustment spindle left: manual; adjustment spindle up: electric; cutter heads: turn cutter; feed speed: 2; feed pressure: feather; current consumption: 38 A; motor brake: automatisch; suction connection: machine length: machine width: weight:

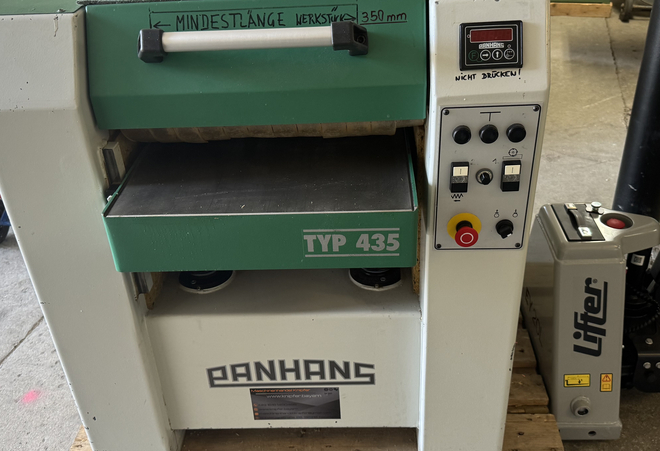

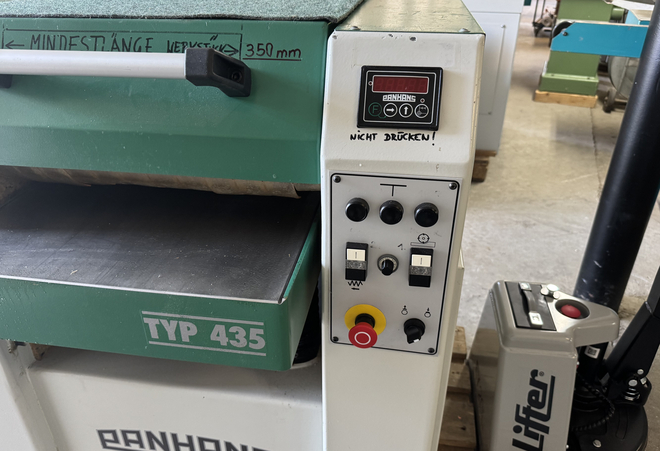

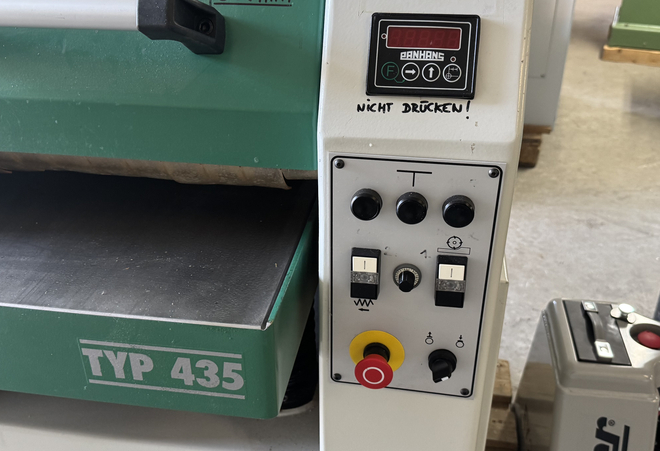

working width: 520 mm; working height: 250 mm; cutter head: strip-knive; number of blades: 4; height adjustment: electrically; read out workpiece thickness: scale; feed speed: 2 speeds; infeed roller: steel; outfeed roller: steel; table roller: yes; motor power: 5,5 kW; suction connection: 140mm; machine length: 1200 mm; machine width: 1400 mm; weight: ca. 900kg;

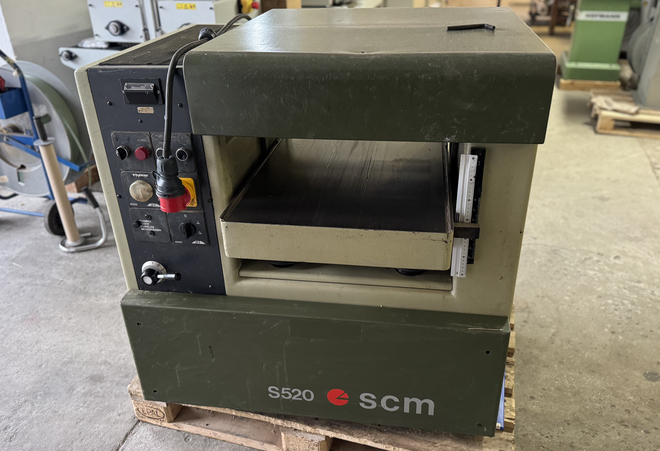

working width: 510 mm; maximum workpiece thickness: 250 mm; kutter head: Tersa; number of blades: 4; adjustment table: electrical; read out workpiece thickness: digital; feed speed: variable; feed roller: rubber; outfeed roller: rubber; table roller: no; motor power: 7,5 kW; suction connection: 160mm; machine length: 1200mm; machine width: 1200 mm; weight: 1000kg;

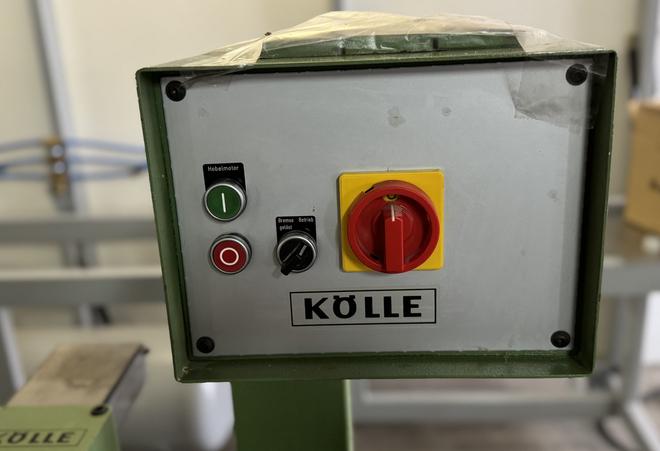

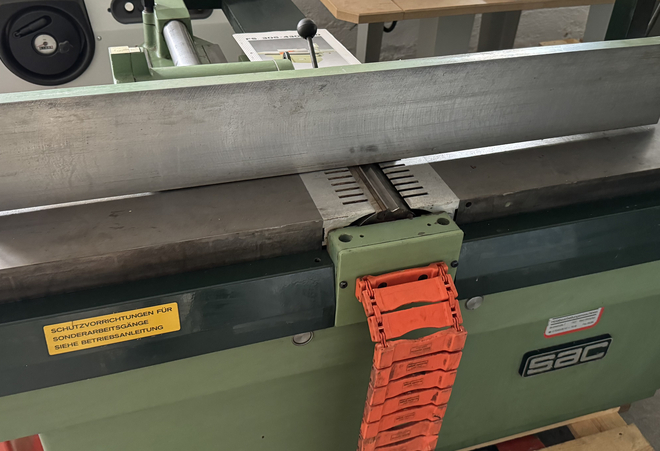

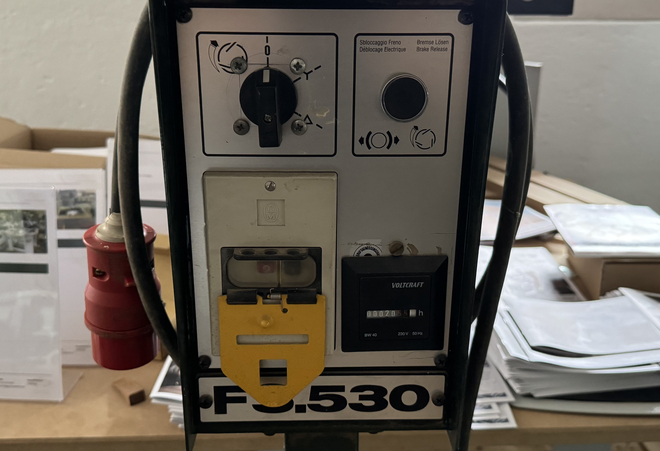

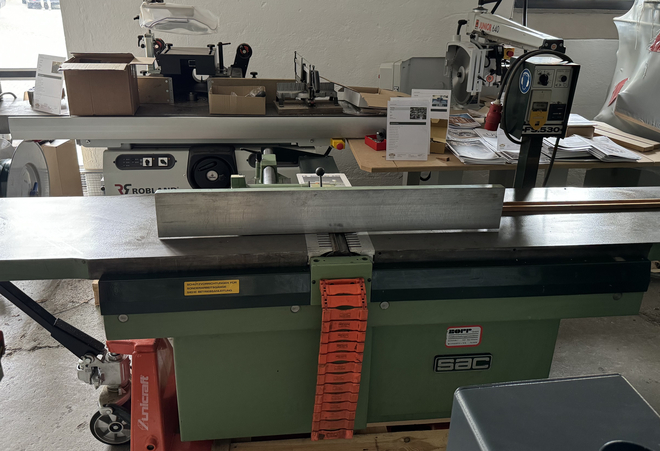

working width: 530 mm; cutter head: Leitz - Centrofix; number of blades: 4; surface table length: 2900 mm; adjustment table: Hebel; read out out table height: Scala; surface fence tiltable: ja; motor power: 4 kW; machine length: 2900 mm; machine width: 1000mm; weight: 800 kg;

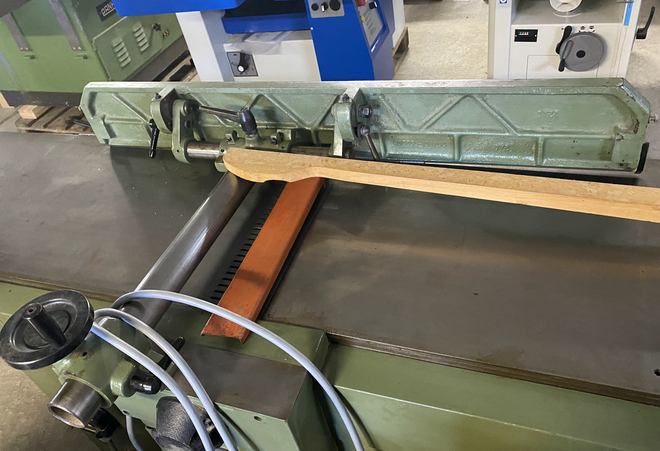

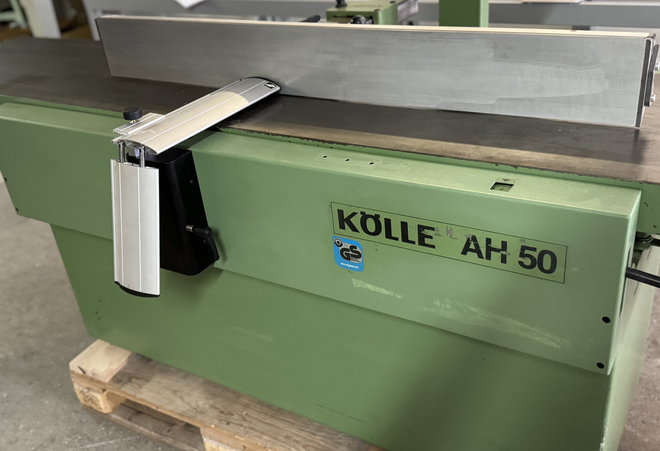

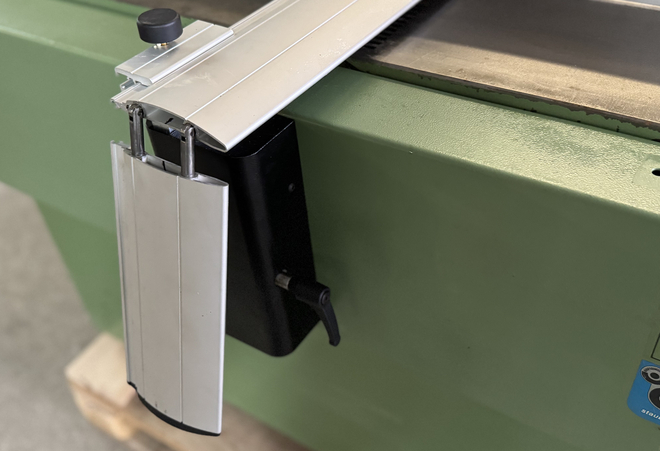

working width: 500 mm; cutter head: Leitz - Centrofix; number of blades: 4; surface table length: 2800 mm; table adjustment: lever; read out table height: scala; sourface fence adjustable: yes; motor power: 5,5 kW; machine length: 2800 mm; machine width : 1000mm; weight: 900 kg;

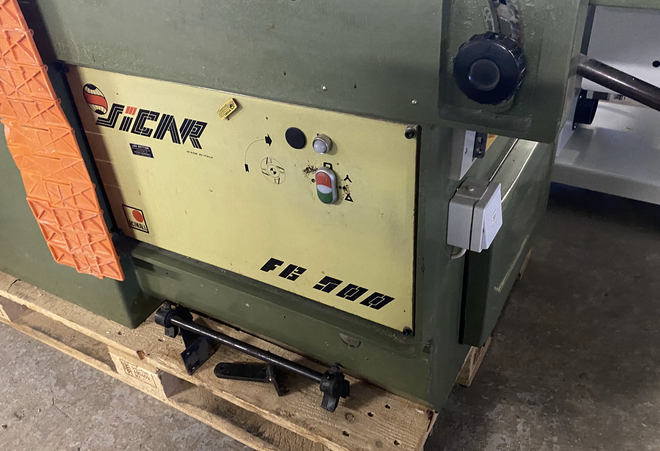

working width: 500 mm; cutter head: strip knive; number of blades: 4; surface table length: 2700 mm; adjustment surface table: Hebel; read out: table height; fence tilting: yes; motorpower: 4 kW; motorbrake: yes, automatic; machine length: 2800 mm; machine width: 1000mm; weight: 1050 kg;
