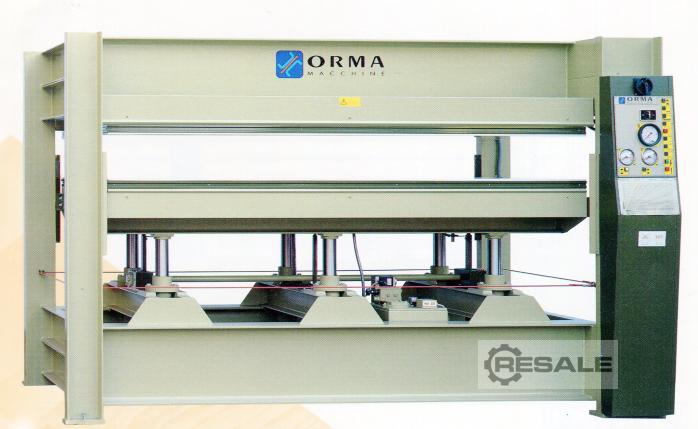

Veneering presses ORMAMACCHINE NPC 6/90 E

Code: 0378
Brand: ORMAMACCHINE
Model: NPC 6/90 E - CE Standard

Hot press with electric platens for veneering, panels, furniture, custom-made furnishings, wooden doors, kitchens, bathroom furniture, composite materials, plastics, and various - CE Standard

Technical data:
Platen dimensions 2500 x 1300 mm
Total thrust 90 tons
N° 6 cylinders
Cylinder diameter 70 mm
Stroke 400 mm
Pressure 3 kg/cm²
Motor 2 Hp

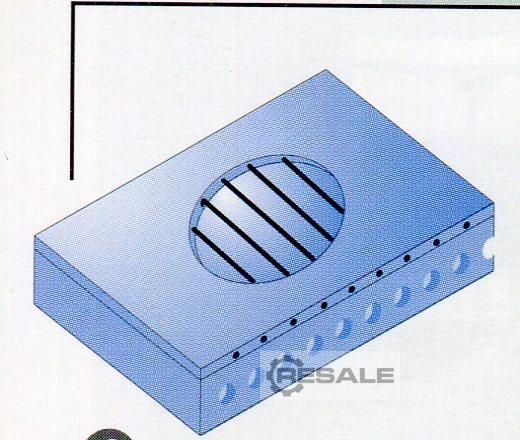

Electric Platens: Max temperature up to 120° C, max working pressure 7 kg/cm². Platen made of a 12 mm aluminium plate which resistances are inserted in underneath a chipboard support with reinforcement tubes inside
Perimeter emergency rope
Double rack system
Lateral guides on platens for a perfect movement further safety feature of the pressing platen
Overall dimensions mm 3060 x 1650 x 1850 h
Weight kg 3400



seller offer No. resale Code: 0378
