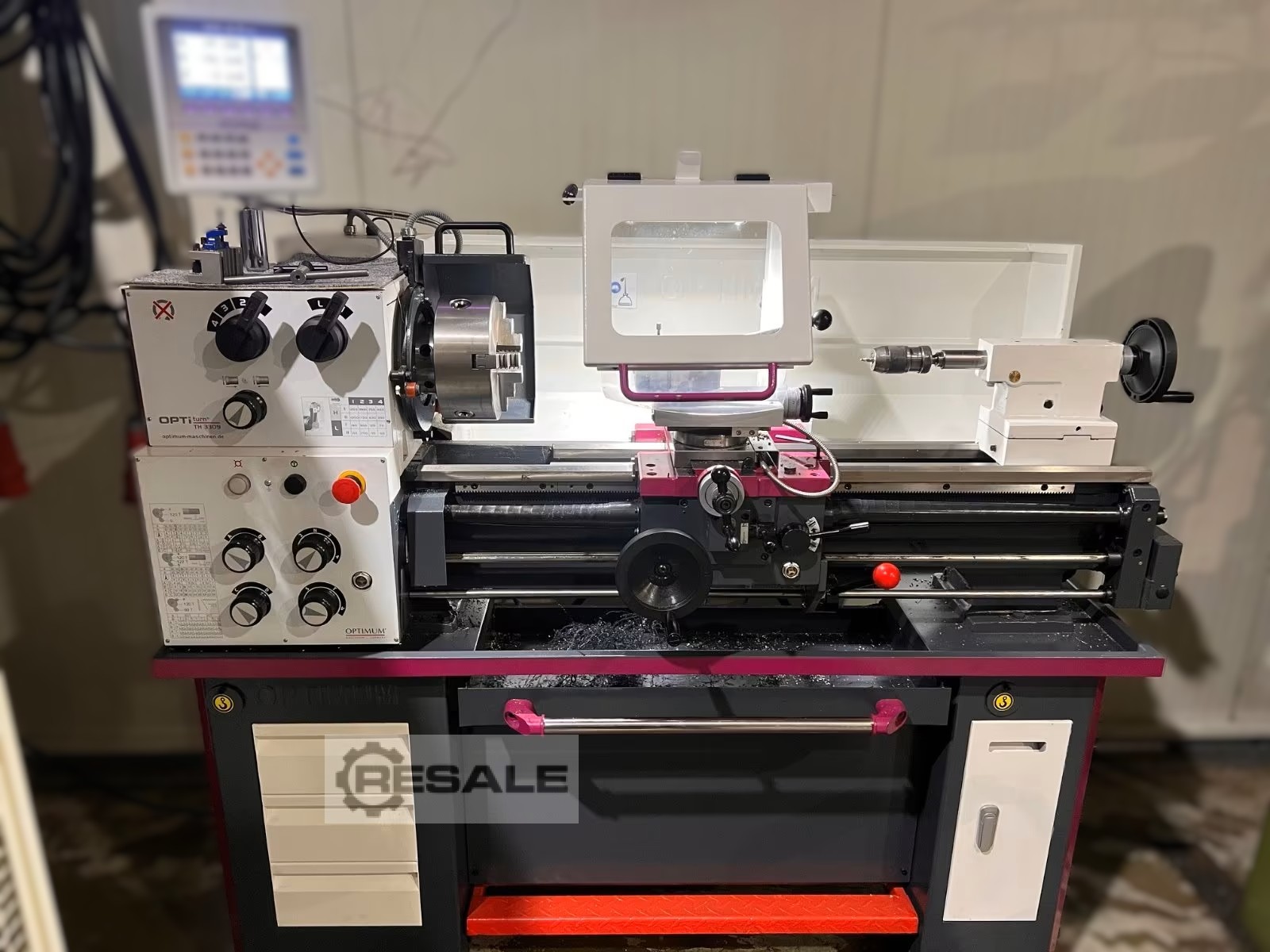

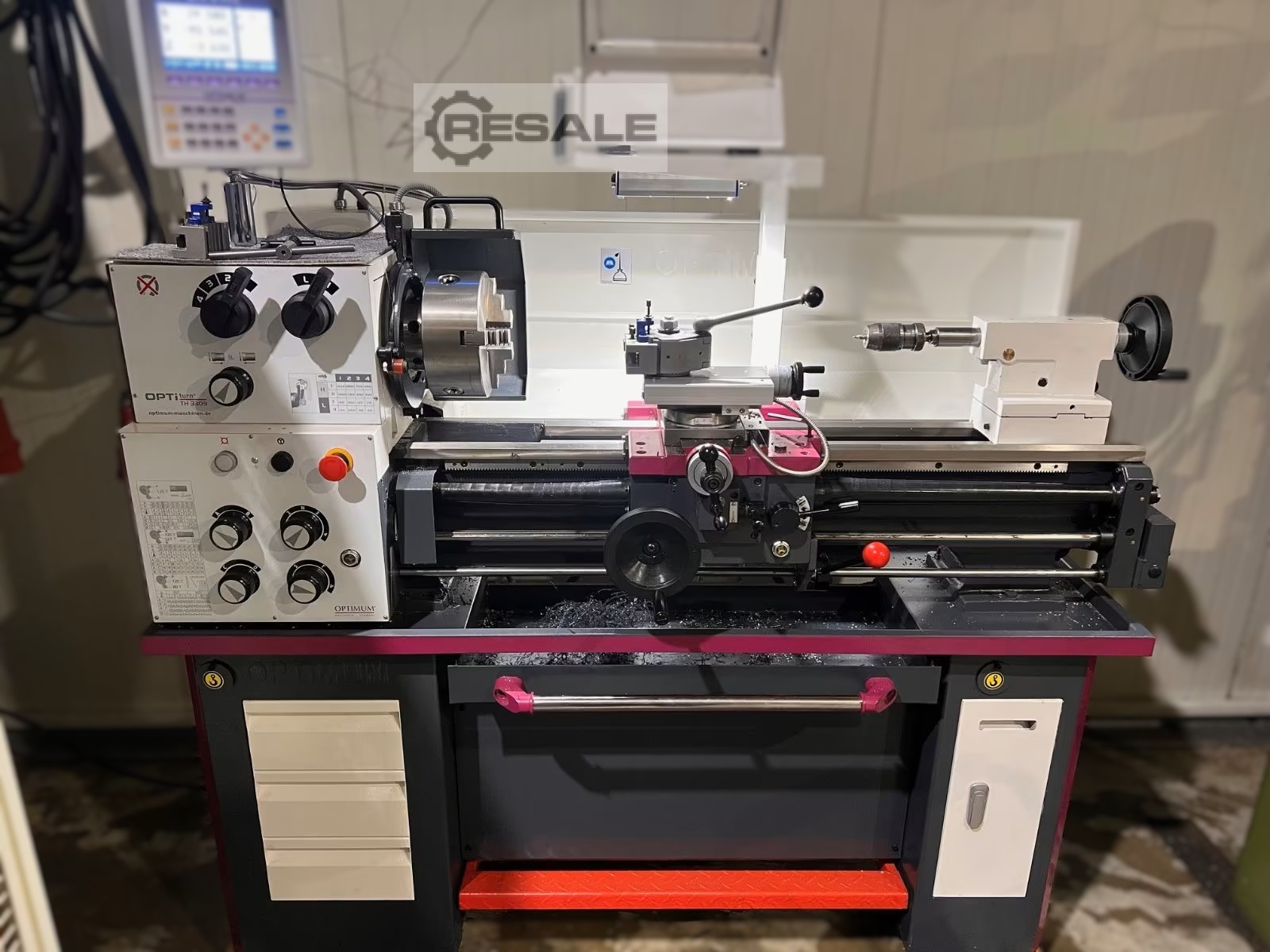

Engine Lathes (Sliding, Surfacing And Screw Cutting Lathes) OPTIMUM TH 3309 D

Manufacturer: Optimum
Year of construction: 2024
Condition: as good as new, workshop tested
Delivery time: immediately available

Specifications

Tip height: 165 mm

Center width: 830 mm

Circumferential diameter over bed: 330 mm

Circumferential diameter over face slide: 208 mm

Swivel length in the bed bridge: 430 mm

Speed ranges: 16 steps, 70–2000 rpm⁻¹

Drive motor: 1.5 kW, 400 V, 50 Hz

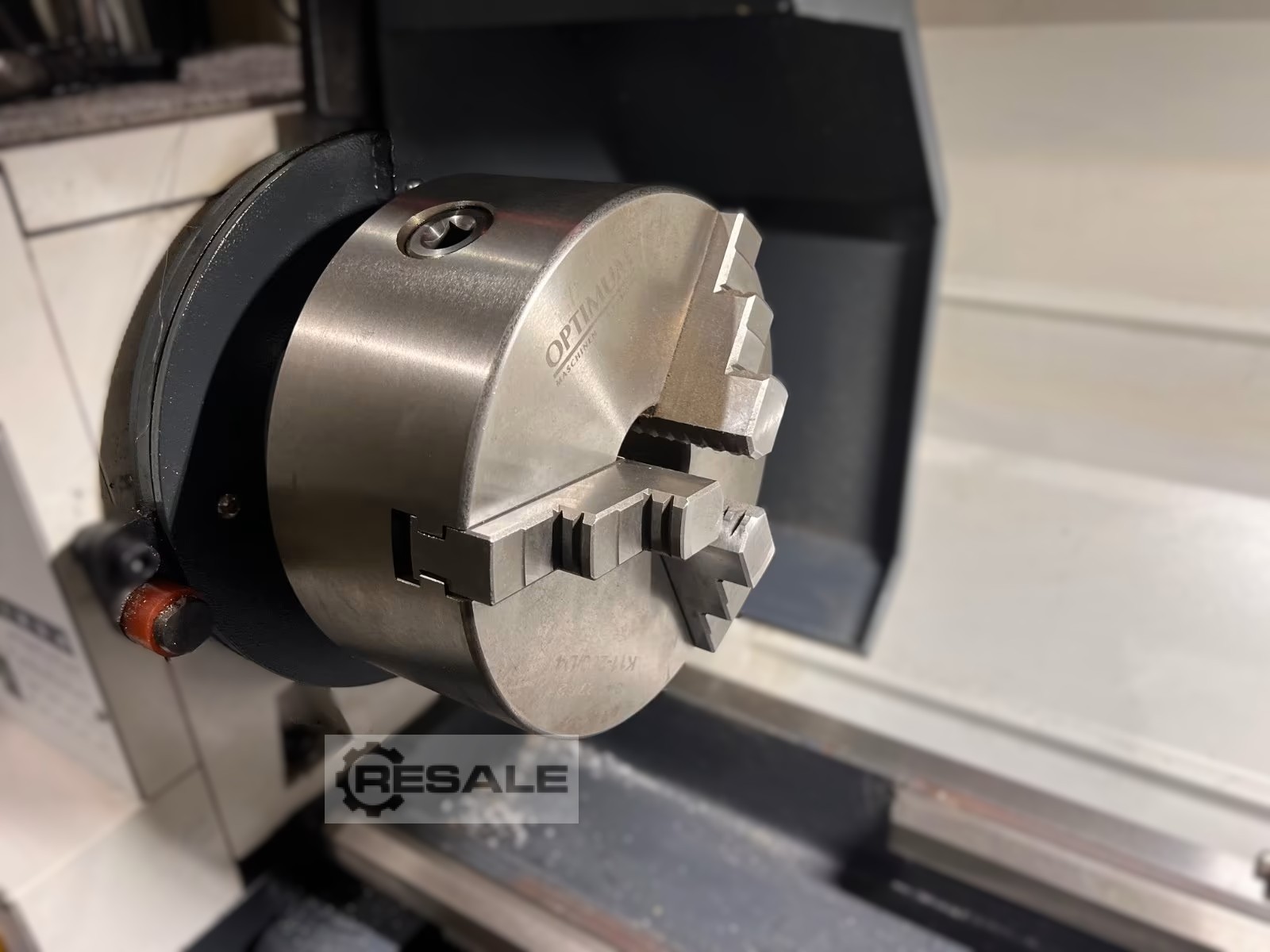

Spindle holder: Camlock DIN ISO 702-2 No.4

Spindle bore: 38 mm

Spindle cone: MK5

Tailstock mount: MK3, quill stroke 110 mm

Weight: approx. 512 kg

Machine dimensions (LxWxH): 1685 × 745 × 1590 mm

Gradients and feed

Metric: 0.4-7 mm/rev (26 pitches)

Inches: 56-4 Gg/1" (34 pitches)

Longitudinal feed: 0.052–1.392 mm/rev (32 K51264321 feeds)

Face feed: 0.014–0.38 K51264321 mm/rev (32 feeds)

Accessories:

Fixed bezel (Ø 6–50 mm)

Rotating bezel (Ø 8–30 mm)

LED Machine Light

Reducing sleeve MK5/MK3

Two fixed centering tips MK3

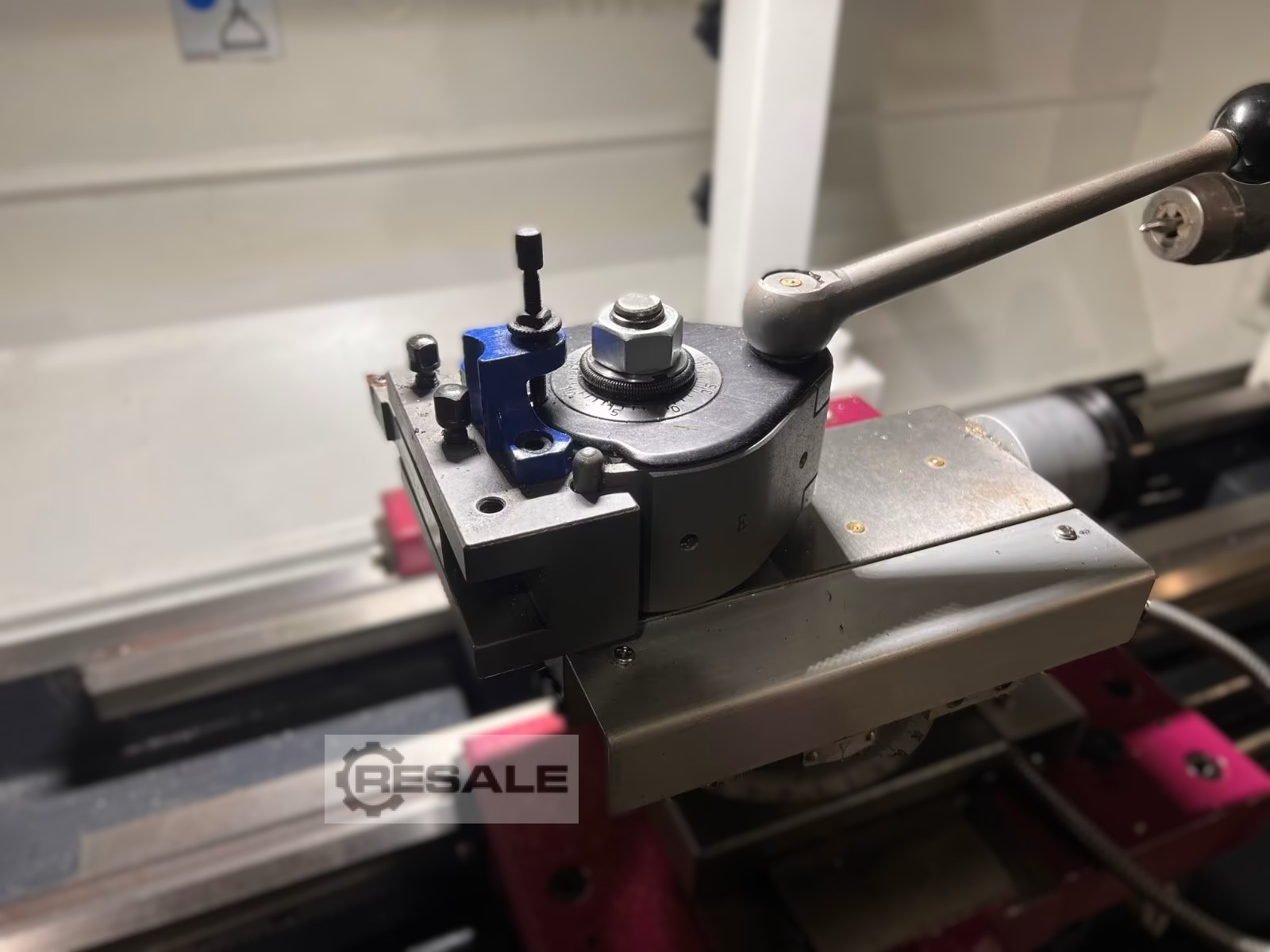

Quadruple steel holder 16 mm

Interchangeable Gears Set

Machine substructure

Initial filling with quality oil

Operating tool
seller offer No. resale 168285348
