Optima/alpha pack complete production and packaging line for ELISA

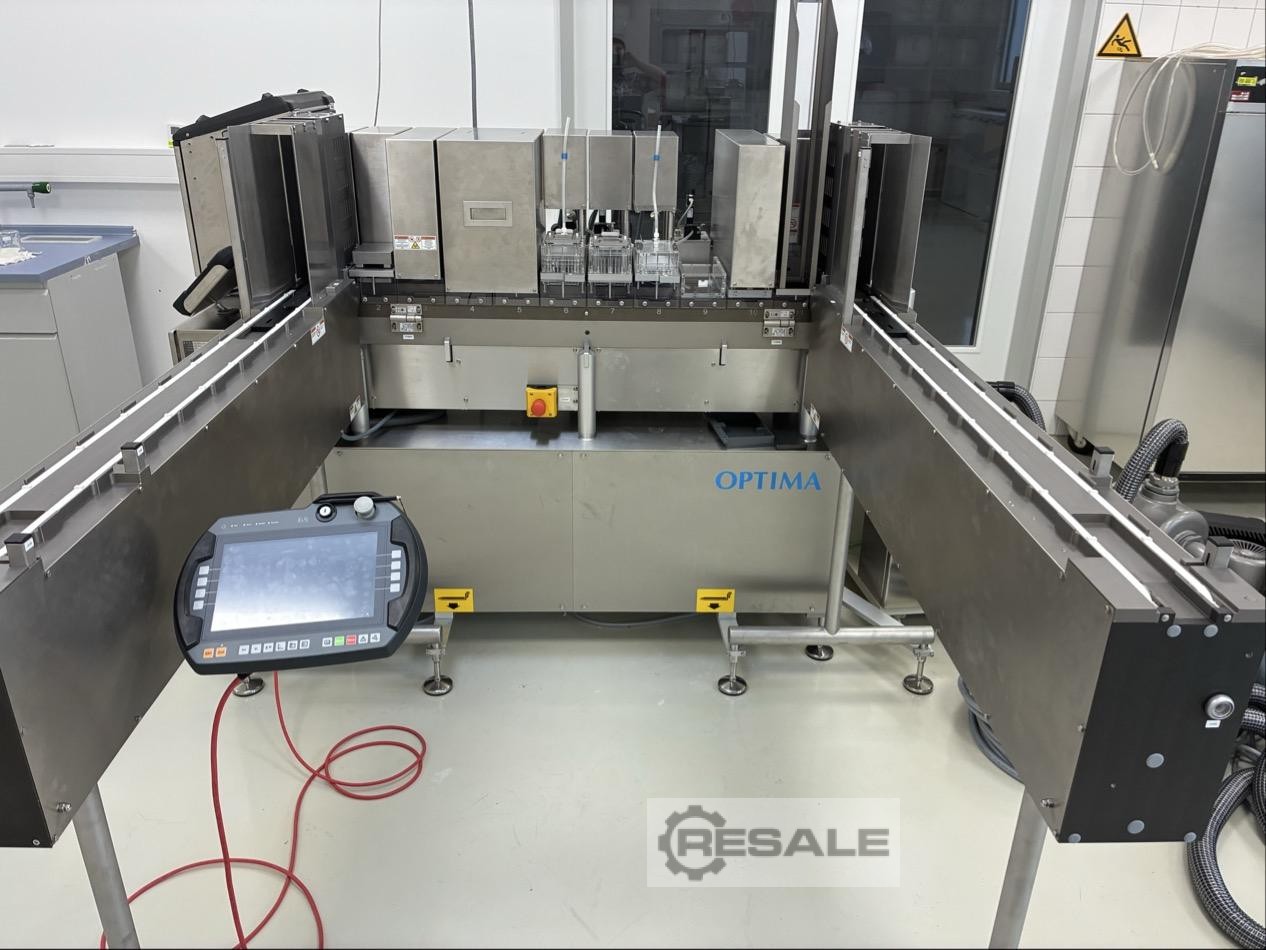

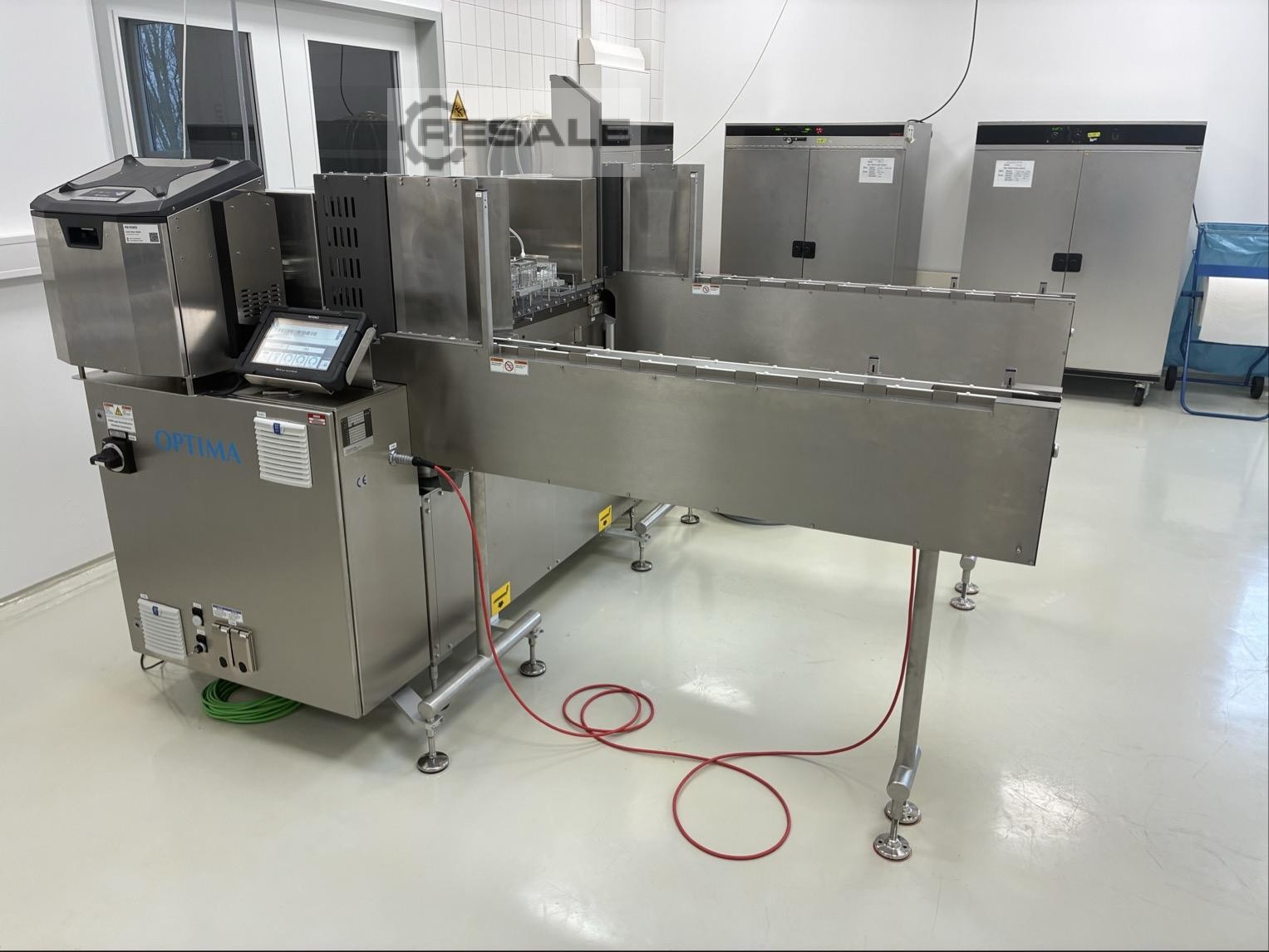

test kits, comprising Optima ImmuCoat coating system for the

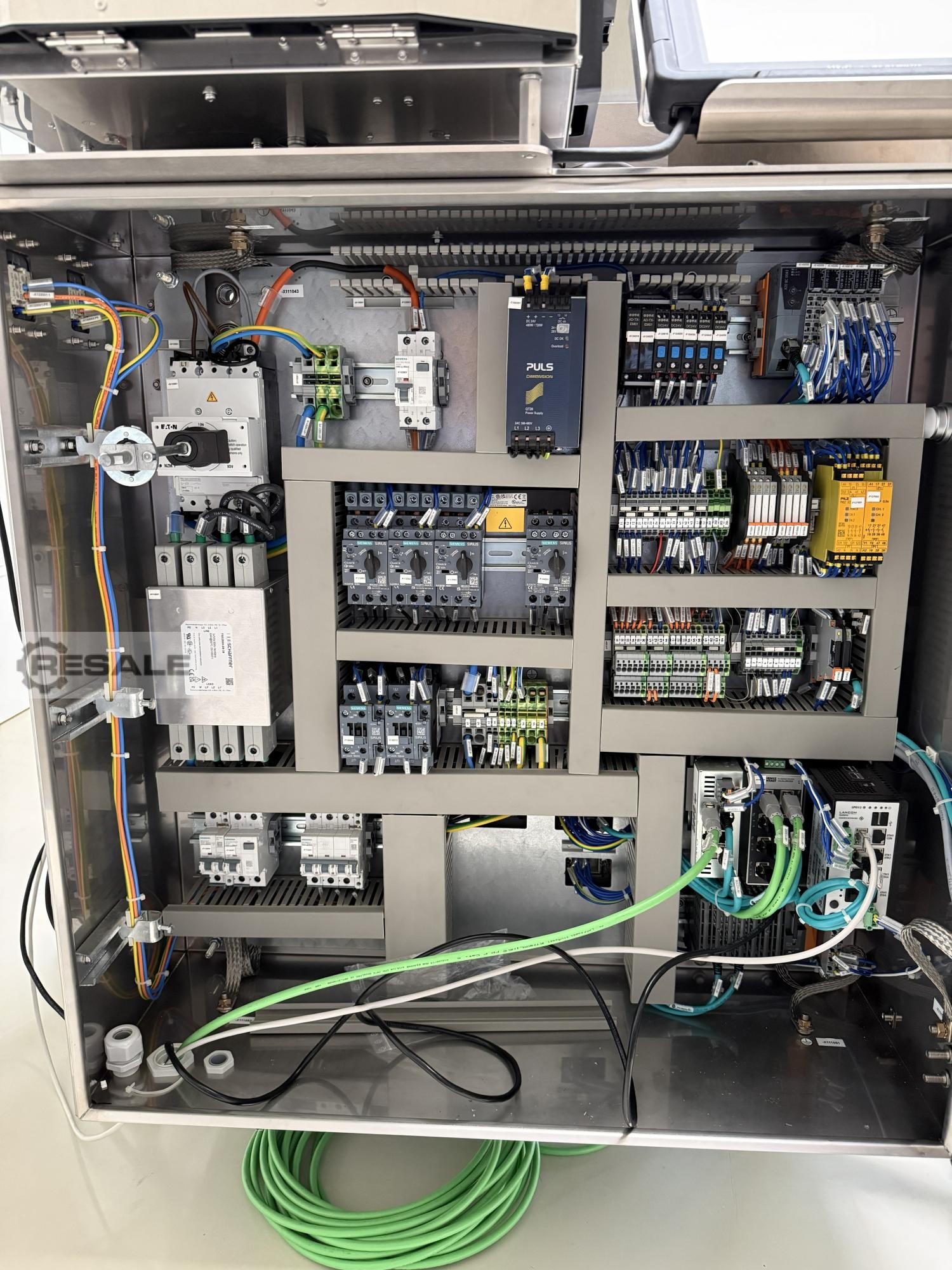

manufacture of 96-well microtitre plates for ELISA tests, B&R machine
control with touchscreen control panel. Operation and process steps:
1. Feeding and preparation: Microtiter plates are automatically
removed from destackers and transferred to the transport system. 2.
Deionisation: To eliminate static charges, the plates are deionised,
which is crucial for uniform coating. 3. Coding: Each plate is
assigned a unique serial number, which is recorded in the system
control for quality control purposes. Keyence printer. 4. Coating: The
system precisely dispenses the biological components (such as
antibodies or proteins) into the wells of the 96-well plate. The
system can coat up to 1.200 plates per hour. 5. Product selection: The
system allows the use of up to 12 base stations for different

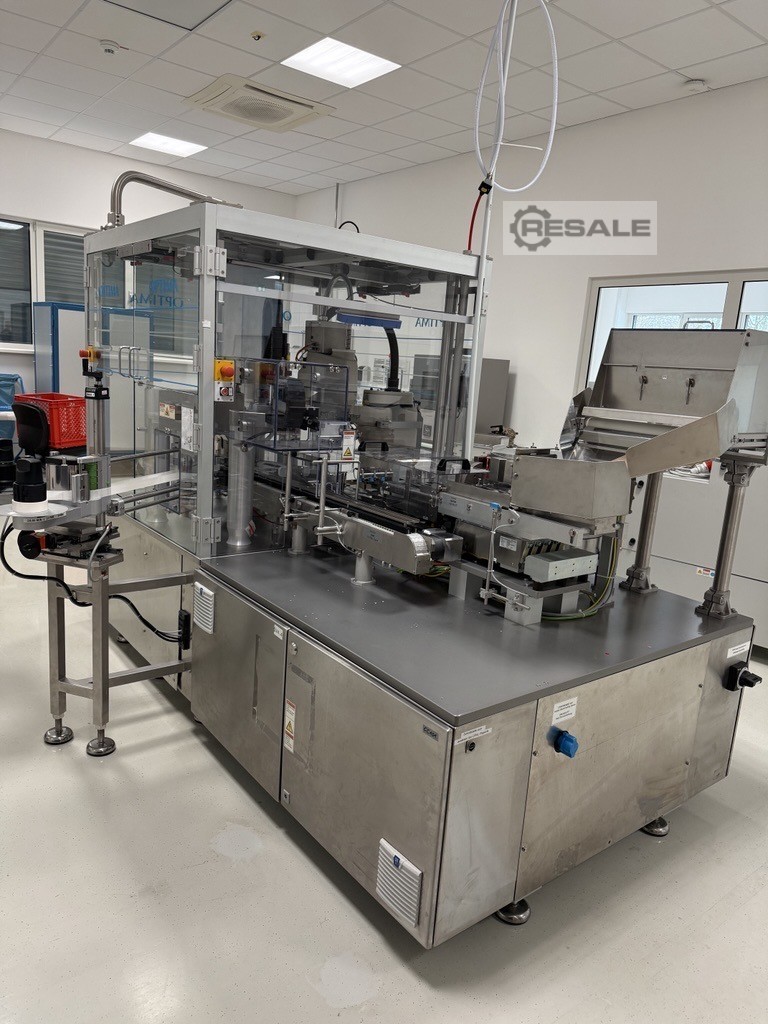

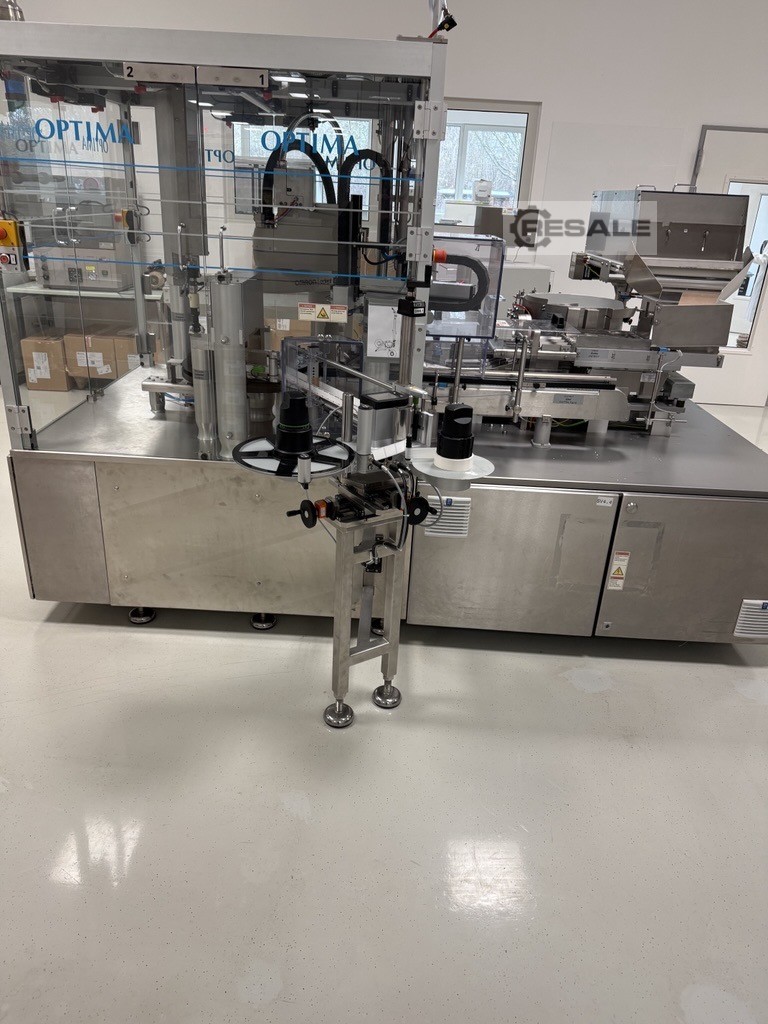

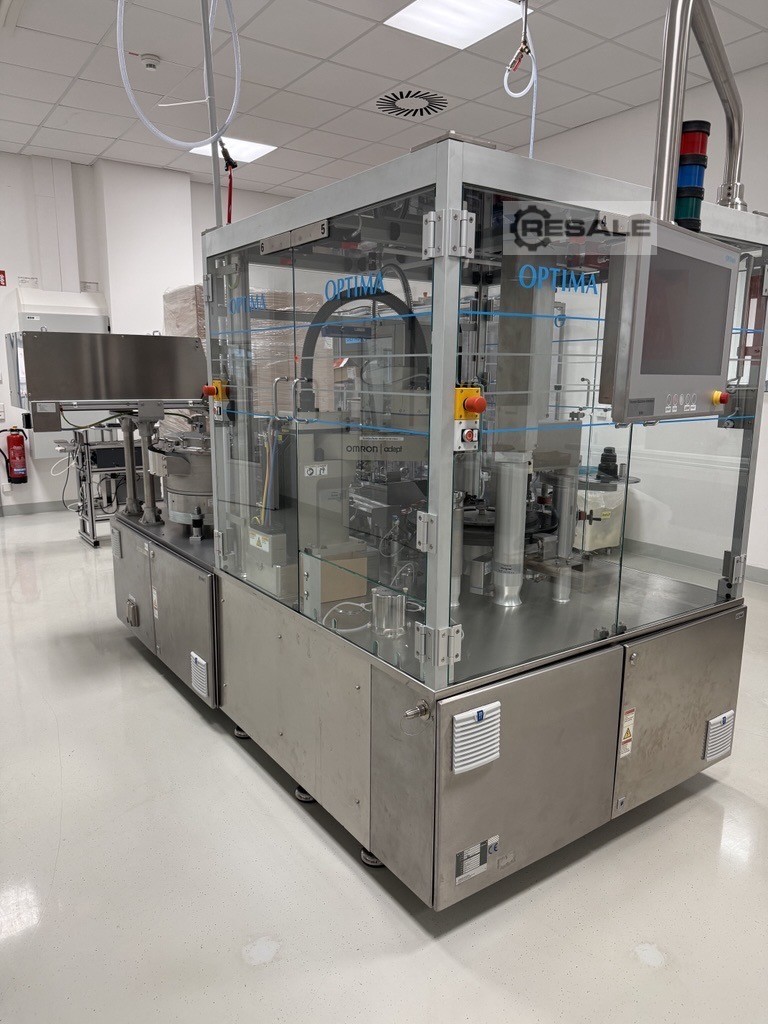

applications. Optima ImmuFill filling and capping machine for plastic
bottles for diagnostic test kits with screw caps and integrated
labelling, object diameter max. 55 mm, object height max. 130 mm,
screw cap diameter max. 28 mm, filling station for micro-dosing using
a peristaltic pump (filling accuracy +/-5% at 0.5 ml),
torque-controlled screw-capping station, Wipotec load cell for
weighing filled items, labelling station including Domino V230i
thermal transfer printer, output of up to 1,500 bottles per hour with
a fill volume of 10 ml, machine footprint approx. 2820 x 2500 mm

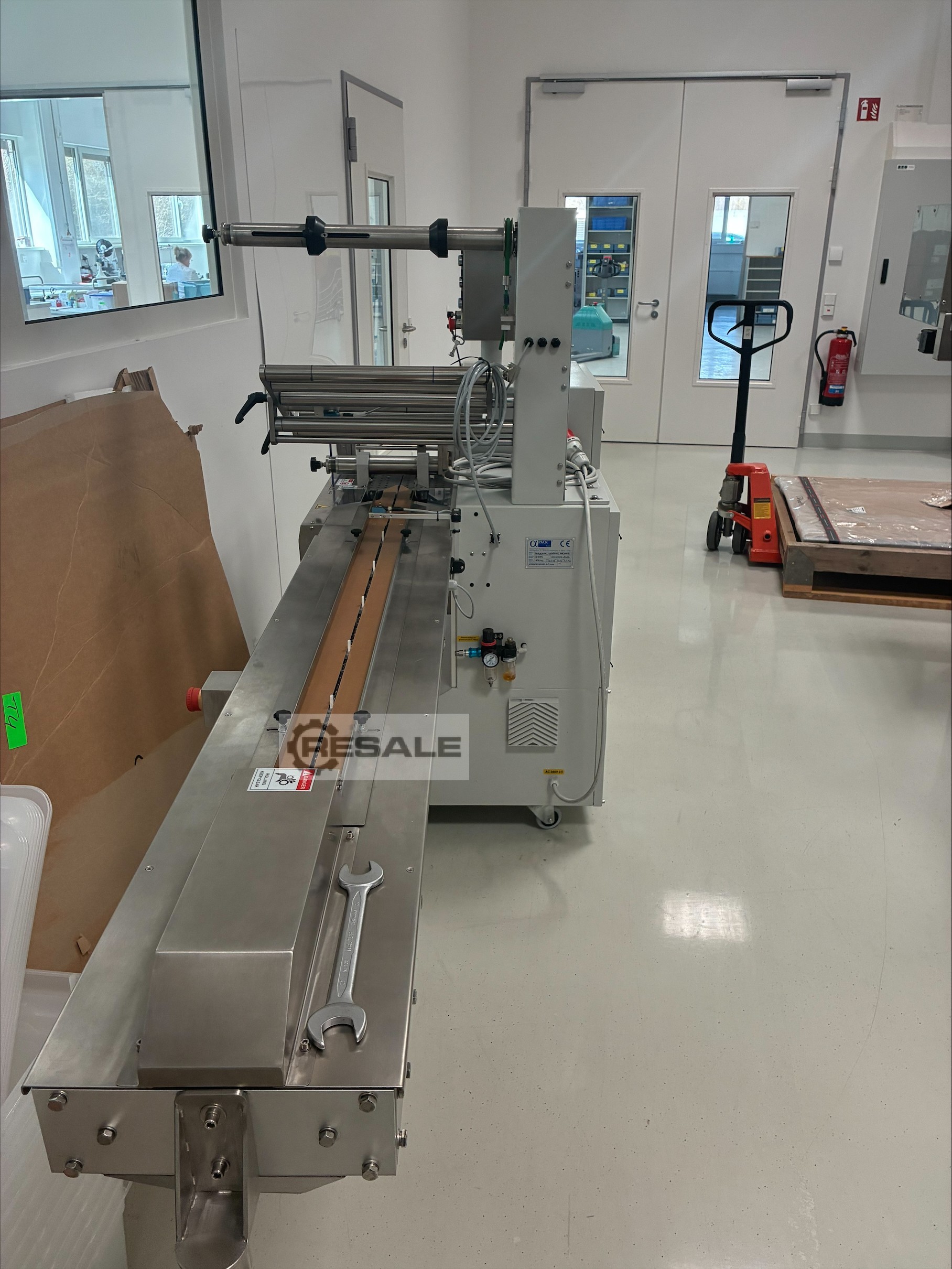

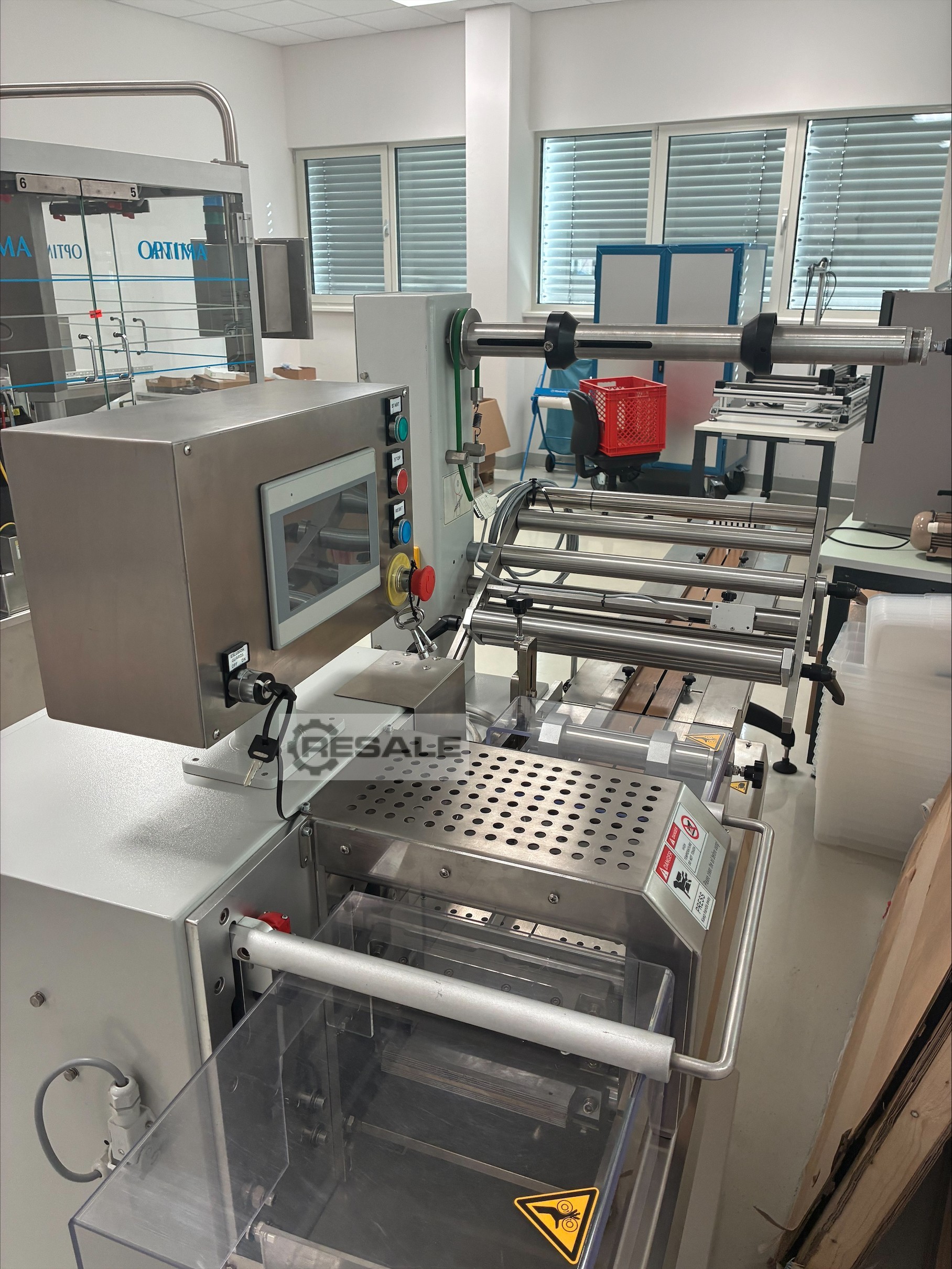

(LxW), machine height approx. 2200 mm. alpha pack DEAHP 450 3 S
horizontal flowpack machine, Omron PLC machine control, max. film size
450 mm (roll width), max. product length 600 mm, compressed air
connection 6 bar dry air, connected load max. 3.5 kW, power supply 400
V/3-phase, machine net weight approx. 720 kg, output up to 90 packs
per minute
Germany
