Madra EDM Drilling Machine Late-Model EDM Drilling Machine This 2020 Madra BT-E is a highly efficient EDM hole drilling machine, engineered for rapid, precise start-hole creation in hardened metals and exotic alloys. Technical Details ‍ 1. Machine identification data Name: EDM Drilling Machine Manufacturer: Madra Model: BT-E Machine number: 191007 Year of manufacture: 2020 2. Operational parameters Travels (X / Y): 300 x 200 mm Travels (Z / W): 345 mm Electrode guide travel: 150 mm Table size: 460 x 210 mm Max. workpiece weight: 200 kg Distance between guide and table: 50 – 200 mm XYZ DRO resolution: 0.005 mm Max. machining current: 30 A Max. power consumption: 4 kVA Electrical connection: 3 x 400 V 3. Weights Machine weight: 550 kg 4. Dimensions Overall machine dimensions (Width x Length x Height): 800 x 800 x 2000 mm

400x190x61 1side bracket fail Can be converted into 1 platform for loading transport Auction-ID: A3-44483-11000

This 3-axis Sodick AL60G die-sinking EDM machine was manufactured in 2021. It features a generous X-axis travel of 600 mm, Y-axis travel of 420 mm, and Z-axis travel of 370 mm. The machine has a maximum workpiece weight capacity of 1,500 kg and a work tank fluid level range of 150 to 400 mm. If you are looking to get high-quality die-sinking capabilities, consider the Sodick AL60G machine we have for sale. Contact us for further details.

This 5-axis Sodick ALC800G Premium was manufactured in 2021. It features an X-axis travel of 800 mm, Y-axis travel of 600 mm, and Z-axis travel of 500 mm, providing a versatile working area with a maximum workpiece weight of 3,000 kg. If you are looking to get high-quality wire EDM capabilities, consider the Sodick ALC800G Premium machine we have for sale. Contact us for further details.

The machine is in good technical condition, after prior agreement it is possible to test it. Maximum size of the machined part mm 1330 x 900 x 595 Max. weight of the machined part kg 5000 Axis travel X/Y/Z/U/V mm 800 / 600 / 400 / 150 / 150 Diameter of the wire used mm 0.15-03 Continuously controlled 4 axes X, Y, U, V Drive system using AC servo drives Max. cut cone 22.5 / 100 mm Accuracy class of ball screws rpm C1 - highest Filtration system capacity l Main tank 1630l, secondary tank (Z=600) 1280 l Max. cutting speed mm/min 250 Dielectric conductivity measurement Auto – 5 ~ 200 kW-cm Dielectric temperature measurement Auto with accuracy 1C Power input kVA 15 Machine footprint mm 4350 x 3600 Height mm 2740 Machine weight approx. kg 8500 • Windows CE control system (described above) • vertical leveling device • paper filter 2 pcs • deionization resin - 1st fill • deionizati ...

Table dimensions 400x200 mm, without dielectric

Manufacturer: Matra Model: Type FANUC A04 Type: Wire EDM Control System: Fanuc Year of Manufacture: 2001 Find more here - / Contact us at -

Manufacturer: Matra Model: Type FANUC A04 B Type: Wire EDM Control System: Fanuc Year of Manufacture: 2002 Find more here - / Contact us at -

Manufacturer: Matra Model: Type FANUC A04 B Type: Wire EDM Control System: Fanuc Year of Manufacture: 2000 Find more here - / Contact us at -

Generator: MGF2 max.travel range: X 450mm Y 350mm Z 350mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Manufacturer: Ingersoll Model: OPS Center 400 Type: Sinker EDM Year of Manufacture: 2000 Find more here - / Contact us at -

Manufacturer: Mitsubishi Model: W30FV2-2 Type: Wire EDM machine (Wire erosion) Date of Manufacture: November 2006 Find more here - / Contact us at -

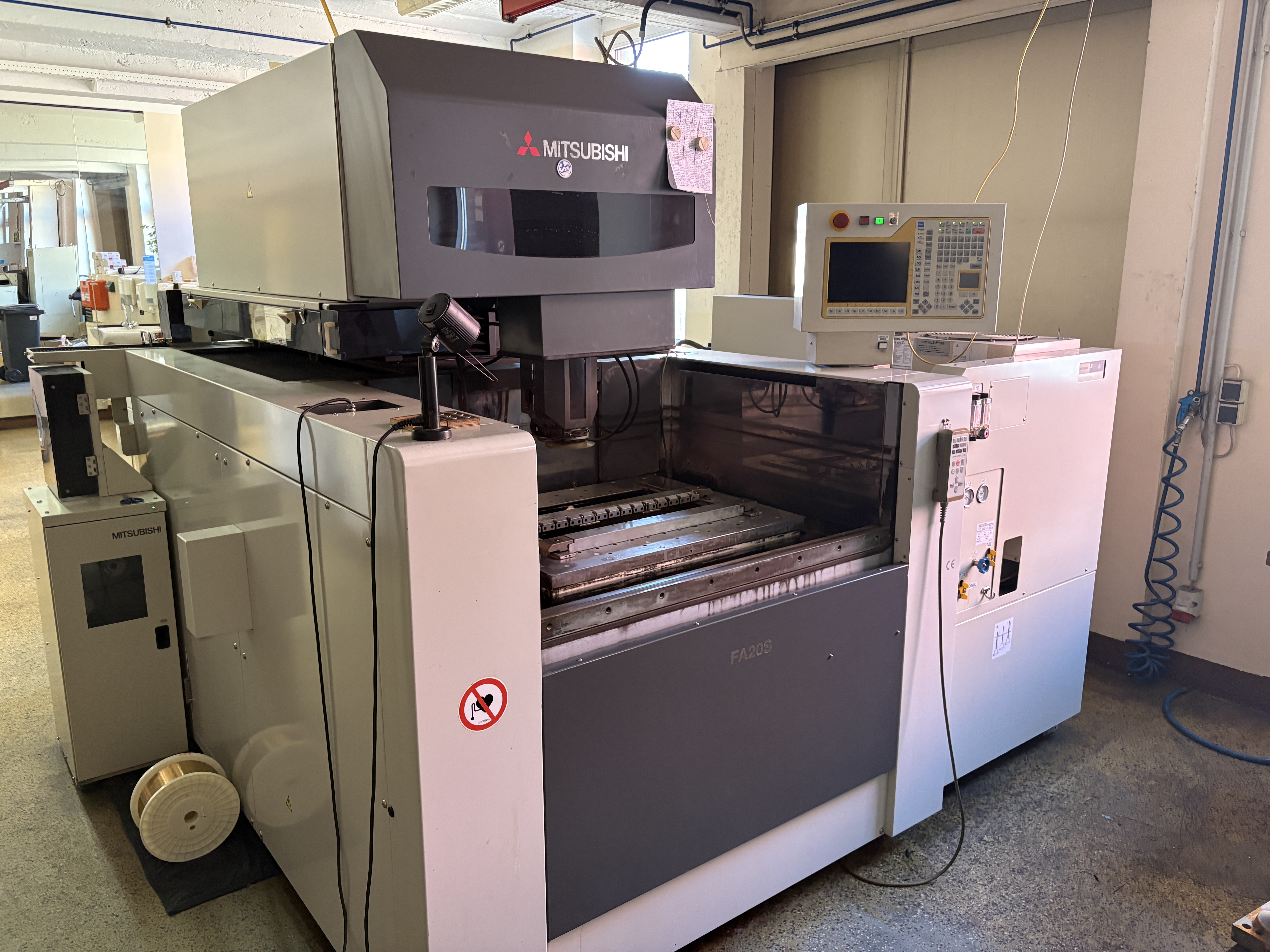

Manufacturer: Mitsubishi Model: W30FAS-2 Type: Wire EDM machine (Wire erosion) Year of Manufacture: 2006 Find more here - / Contact us at -

Auction-ID: A1-46503-145

Generator: MGH max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

Generator: MGH max.travel range: X 800mm Y 500mm Z 400mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 32 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Erow

Generator: MGH5 max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Er

Generator: MGH max.travel range: X 450mm Y 300mm Z 320mm C yes Clamping of tool: Erowa System ITS Clamping of parts:Erowa System UPC Electrode changer: Erowa ITS 72 - 16 position cooling device for dialectricum, fire extinquisher, RS-232 connection, Ero

Plunge EDM CDM ROVELLA mod. Eldis 3.40 Features: X-axis: 400 mm. Y-axis: 300 mm. Z-axis: 200 mm. Table length: 650 mm. Table width: 400 mm. Weight: 1,400 kg.

SODICK AG40L die-sinking EDM was built in 2011. This highly efficient machine is used for precision electrical discharge machining of workpieces with a maximum weight of 550 kg, enabling complex shapes to be achieved in even the hardest materials. Furthermore, workpieces machined in this way do not require other secondary processes to be undertaken, such as polishing. The installed CNC control has a useful perfect active control” function for simultaneous control of high-speed electrical discharges and axis movements, using 1 Gbit/s serial communication technology. The SODICK AG40L LN2 sinker EDM is offered with extensive equipment, consisting of, among others, an EROWA measuring probe, a 4-position linear tool changer and tooling. The total weight of the machine is 3900 kg. Technical specifications of the SODICK AG40L die-sinking EDM - feed in X/Y/Z axis: 400/300/270 mm - work ta ...

Key data: 800 mm, 1900 kg

A favourable price and quality are not a contradiction at Hanst Tec - after all, there is the FORMAXX Z series. Conventional die-sinking EDM systems designed in such a way that their price enables cost-effective hourly rates, while the technology fulfils all the quality criteria that are typical for Hanst Tec: - easy to operate - reliable Traverse paths: X - 500, Y - 400, Z - 350 mm maximum distance Table - working head: 275-625 mm Workpiece load: 1900 kg The machine is in good condition, and available immediately!

Inv. Num. : 7688 Type: 203 F2 Producer: HITACHI Generated: 2000 Parameters: Control System: MARK-10W Max. travel length of the X-axis: 320 mm Max. travel length of the Y-axis: 250 mm Max. travel length of the Z-axis: 170 mm Feed length in U-axis (-): 20 mm Feed length in the V-axis ( -): 20 mm Maximum wire thickness: 0.25 mm Dielectric container capacity: 160 l Max. workpiece dimensions: 450 x 350 x 170 mm Max. workpiece weight: 200 kg Machine height: 1880 mm Machine length: 1525 mm Machine width: 1810 mm Machine weight: 1500 kg

Used machine in good condition. Available for immediate delivery. - Travel (X x Y x Z): 350 x 250 x 256 mm - Control: AGIEVISION - Dimensions (long x wide x high): 2.215 x 2.215 x 2.220 mm - Weight: 3.600 kg - Maximum power consumption: 9 kVa - Display: 15 LCD - Type of EDM : WIRE - Max. workpiece weight: 200 kg

Machining tank inner dimensions (W x D) 1040×780 mm X,Y,Z Strokes 600,400,270 mm U x V axis stroke 80×80 mm Max. taper angle ± 15° (Thickness: 120 mm)

Robofil 4030SI-TW Wire EDM Machine Year of manufacture 2001 Technical details on request

EDAF-3 precise machining machine, ATC 32EA , XYZ Scale, Erowa chuck, micro machining circuit - Dimensions (long x wide x high): 2.314 x 3020 x 2660 mm - Working area (X x Y x Z): 850 x 650 x 400 mm - Max. electrode weight: 60 kg - Weight: 4.800 kg - Max. workpiece weight: 800 kg - Work table size (width x length): 700 x 500 mm - Control: Control CNC

Max. workpiece dimensions (W x D x H) 1050 x 820 x 305 mm Max. workpiece weight 1500 kg Table dimensions (W x D) 860x640 mm Machine travels (X x Y x Z) 600 x 400 x 310 mm Machine travels (U x V) ±75 x ±75 mm

Used machine in good condition. Available for immediate delivery. - Weight: 2.200 kg - Dimensions (long x wide x high): 1.800 x 1.600 x 2.130 mm - Travel (X x Y x Z): 400 x 250 x 200 mm - Type of EDM : WIRE - Max. workpiece weight: 500 kg

An eroding island consisting of two die-sinking EDM machines and an automation system is available. 1) Zimmer & Kreim ZK Genius 700, year of manufacture: 2015, travel X/Y/Z: 400mm/350mm/350mm, table dimensions X/Y: 575mm/500mm, max. workpiece weight: 700kg, generator output: 96A, path eroding: CIMCO, operating hours: 22056h. 2) Zimmer & Kreim ZK Genius 700, year of manufacture: 2019, travel X/Y/Z: 400mm/350mm/350mm, table dimensions X/Y: 575mm/500mm, max. workpiece weight: 700kg, generator power: 96A, path eroding: CIMCO, operating hours: 8255h. 3) Automation Zimmer & Kreim Chameleon Quad, year of construction: 2015, electrode positions: 176, pallet positions with loading drawer: 9, double rotary gripper for Erowa ITS and single gripper for UPC pallets. Overall system dimensions X/Y: approx. 3000mm/6200mm. Including a Kraft & Bauer fire extinguishing system with suction device. Documenta ...

Two identical machines are available. Connected load: 32kW, length: 3500mm, width: 2400mm, height: 2400mm, weight: 3t. On-site inspection is possible.

Used machine in good condition. Available for immediate delivery. - Travel (X x Y x Z): 400 x 250 x 200 mm - Dimensions (long x wide x high): 1.800 x 1.600 x 2.230 mm - Weight: 2.200 kg - Operating hours: 21.483 - Max. workpiece weight: 1.000 kg - Max. workpiece weight: 500 kg - Control: CHARMILLES

ampere: 29,5 protection: P 31 fabric-no.: 812122 frequency: 50 Hz weight: 300 kg The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Inv. Num. : 8050 Type: CM A64C Producer: Chmer Created: 2006 Parameters: Table dimensions: 800 x 500 mm Max. travel length of the X-axis: 600 mm Max. travel length of the Y-axis: 400 mm Max. travel length of the Z-axis: 350 mm Maximum table load: 1500 kg Maximum electrode weight: 100 kg Container dimensions: 1350 x 740 x 450 mm Machine weight: 3000 kg

frequency: 50 Hz weight: 3000 kg voltage: 3 x 400 V output: 8,3 kw ampere: 12 The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Electrode diameter 0.5 to 3mm Travels 300x400x350mm CE certification proves the best possible safety Complete series in above-ground construction Electrodes Ø 0.5-3mm Travel X-axis 300mm Travel Y-axis 400mm Travel Z-axis 350mm Travel W-axis 300mm Speed C-axis 30-60mm/min Rapid traverse Z-axis 120mm/min Aspect ratio 300:1 Table dimensions 320x440mm max. working current 30A

Inv. Num. : 8066 Type: AGIECUT CLASSIC 2S Producer: AGIE Created: 2003 Parameters: Max. travel length of the X-axis: 350 mm Max. travel length of the Y-axis: 250 mm Max. travel length of the Z-axis: 256 mm Maximum workpiece length: 750 mm Maximum workpiece height: 250 mm Maximum workpiece height: 550 mm Maximum table load: 450 kg Machine height: 2305 mm Machine length: 1670 mm Machine width: 2040 mm Machine weight: 2580 kg

Die-sinking EDM BF 1200 ZENIT+ :::TECHNICAL SPECIFICATIONS::: X-axis travel: 1200mm Y-axis travel: 600mm Z-axis travel: 500mm Max piece weight: 250Kg C-axis: yes Number of electrodes: 6 Bowl dimensions: 1880 x 1073 x 565mm :::D DIMENSIONS AND WEIGHT::: Length: 2850mm Width: 2800mm Height: 2730mm Weight: 5500Kg

table length: 500 mm table width: 250 mm ampere: 50 A x-axis: 290 mm y-axis: 200 mm z-axis: 300 mm total power requirement: 6 kW weight of the machine ca.: 1100 kg dimensions of the machine ca.: m CNC-Controlled Die Sinker The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

An Agie start hole drilling machine for the EDM industry is available. Travel X/Y/Z: 300mm/200mm/300mm, electrode diameter: 0.3mm-3mm, max. drilling depth: 200mm, table dimensions X/Y: 400mm/300mm, max. workpiece weight: 300kg. Machine dimensions X/Y/Z: approx. 1400mm/900mm/2000mm, weight: approx. 950kg. Documentation available. On-site inspection is possible.

Travel X/Y/Z/U/V: 400mm/250mm/400mm/400mm/250mm, max. workpiece dimensions X/Y/Z: 850mm/500mm/400mm, wire diameter: 0.1mm-0.3mm, max. table load: 1000kg, power requirement: 10kVA. Machine dimensions X/Y/Z: approx. 1800mm/1600mm/2230mm, weight: approx. 2800kg. On-site inspection is possible.

EDM machine Agie Charmilles Cut e 600 BJ 2018

EDM machine Fanuc Robocut a1iB BJ 2002

Workpiece dimensions X/Y/Z: 1050mm/800mm/295mm, max. workpiece weight: 800kg, table dimensions X/Y: 780mm/630mm, traverse path X/Y/Z: 500mm/350mm/300mm, max. table feed: 1300mm/min, wire diameter range: 0.1mm-0.3mm, max. wire feed: 15m/min, traverse path U/V: +/-32mm, max. taper angle: 15°. Machine dimensions X/Y/Z: approx. 1900mm/2650mm/2100mm, weight: approx. 3500kg. Including generator unit and automatic wire threader AT. Documentation available. On-site inspection is possible.

X,Y travel: 14.6" x U,V,Z Travel: 3.9" x 3.9" x 10.2" Max. workpiece size: 29.5" x 21.7" x 10.2" Max. workpiece weight: 880 LB Max. X, Y rapid traverse: 31.5 in/min Motor Drive System AC Servo Motor/Linear Motor Wire Diameter: 0.004" – 0.012" Max. wire feed: 11.8 in/s Wire tension: 0.44 – 5.52 lb taper angle : ±21°/4.33 inches (DA+DB=0.6 inches) Layout (W x D x H) 90.6" x 89.2" x 80.6

Table clamping surface: 600 x 300 mm Coordinate travel: X 350 Y 250 mm W-axis adjustment range (motor): 200 mm servo-controlled EDM axis Z: 340 mm Holes with electrodes from Ø 0.2 to 4 mm Max. workpiece weight: 300 kg Connected load: 3.5 kVA Machine weight: 700 kg

Power Pack generator power 60 A Table size (width × length) 350 mm × 600 mm Travel (X × Y × Z) 400 mm × 300 mm × 300 mm Control: CNC Incl. extinguishing system

OMEGA CM43 Submerged EDM The OMEGA CM43 submerged EDM is still connected and working perfectly. This machine achieves the highest precision and is an ideal choice for smaller workshops. Working area (mm) 500 x 350 x 300 Electrode size (mm) 100 x 100 x 100 Capacity (kg) 70 Electrode mass (kg) 10 Axis travel: X430, Y320 mm dieletric tank: T4 model power supply: 50A Omega Pulse

X-axis: 400mm, Y-axis: 250mm, Z-axis: 256mm, max. workpiece weight: 400kg, max. workpiece dimensions: 580/860/250mm, support surface: 680/500mm, min. start hole diameter: 2mm, cutting rate: 185mm²/min, generator: Agiplus-MMD, control: Agimatic CF20. With dielectric processing unit DA-15/C. The display power supply is defective. The machine has already been dismantled, an on-site inspection is possible.

CNC-controlled erosion machine for the processing (erosion, grinding, polishing) of PCD tipped tools up to 400 mm diameter and 400 mm length, according to disc-electrical-erosion processes for use in service and in production., Accessories:, Total enclosure, Software path management, Filter system with chiller for dielectric fluid, Automatic fire extinguishing system DIN 14497, Standard programs for measuring, eroding etc., Program for chamfering of workpiece cutting edges,, Automatic Diagnosis program for machine operational status with text output on screen, Loader for workpieces, with CNC-controlled pivot for loading and unloading to a magazine,, 6 sided erosion wheel changer,, Workhead SK 50 with adapter to 12 HSK 63 A,, Turntable workpiece magazine for 12 workpieces SK 50,, Turntable workpiece magazine for 4 workpieces SK 50,, 6 flush sets, QXD250 CAD/CAM for external PC workstation ...

The machine is in good technical condition, testing possible after prior agreement. Table dimensions: 700 x 450 mm Z-axis travel: 255 mm Y-axis travel: 250 mm X-axis travel: 350 mm MACHINE DIMENSIONS: L: 2100 mm x W: 2000 mm x H: 2200 mm
