om vertical lathe used for sale

Vertical band saw MÖSSNER REKORD type SM 420Masch. No. 17010 Year of construction 1968Roller diameter 420 mmRadius in width 415 mmRadius in height 265 mmTable size 605 x 600 mmBelt speed 18 - 562 m/min. 8 stepsSaw blade length min/max. 3150 / 3260 mmDrive power 1.1 / 1.7 kWNet connection 380 V 50 Hz- Saw blade speed over 4 gear stages and 2 motor speeds- Saw blade butt welder IDEAL BS 0-16 with scissors and grindstone- swivelling work table in 2

Vertical band saw JAESPA type MSU 4Fabr. No. 724749 year of construction approx. 1980Roller diameter 420 mmProjection 400 mmTable size 610 x 610 mmCutting height 260 mmSaw blade length min. 3200 - max. 3400 mmSaw blade speed 10-1500 m/min. infinitely variableMains connection 400 volts, 50 Hz- infinitely variable saw blade speed via 2 gear stages and infinitely variable via belt drive- Saw table swivel- Saw blade butt welding machine IDEAL BS0-16- Saw blade shear- Sharpening stone for grinding the weld seamSpace requirement L x W

Thimonier THB9200 Vertical Form Fill & Seal Filling Machine (2021) 50-500ml berlingot (pillow-style triangular pouch) Liquids & viscous products (including corrosive detergents) Auction-ID: A1-48805-2

Thimonier THB9200 Vertical Form Fill & Seal Filling Machine (2021) 50-500ml berlingot (pillow-style triangular pouch) Liquids & viscous products (including corrosive detergents) Auction-ID: A1-48805-1

L + Z lathe HOLZMANN type ED 914GNMasch. No. 20265 Year of construction 2006Center width 800 mmTurning diameter over bed 300 mmCenter height over bed 150 mmTurning diameter over support 190 mmCenter height over support 95 mmSpindle bore 38 mmSpindle speed 70 - 1400 rpm. 9 stepsFeed longitudinal and flatChuck flange Short taper DIN 55029 D1-4 Camlock 63 mmTailstock inner taper MK 3Drive power 1.5 kWNet connection 400 volts, 50 Hz- Spindle speed over 9 gear stages - 4-jaws

Vertical CNC centre lathe, uses / outdated machine type: Emag VSC 200 control: Siemens 840 C construction year: From the in 1995 to the in 2007 overtakes TECHNICAL DATA: speed area / speeds: [1 / min].: 6,000 Drehmoment:/torque [Nm]: 480 Max dreh-? over bed swing diam .: 290 mms impulse achievement / power: [kW] 34 feed ? / chuck diam. 200 mms revolver / turret: 12-fold, VDI 40, shoemaker powered work witness / driven tools 7.8 kW Verfahrwege: X axis / x-travel: 550 mms Z-Achse/z-travel: 200 mms express way / rapidly travel: (X/Z) [m / min] 30 / 20 prepush / feeds: (X/Z) [m / min]. 11 KN connected load: [KW] 36 kW machine weight: [kg] 6,500 equipment signs: filings sponsor / chip conveyor, crowd

CNC Vertical Lathe VTL with Tool Changer.You Ji GTH-35/45 ATC-I.Year of manufacture 2012.Fanuc 0i-TD CNC Control.Face plate diameter 3500 mm.Hydrostatic table - Load max. 50 t.Swing diameter max. 4500 mm.Turning diameter max. 4000 mm.Turning height max. 2200 mm.Ram cross travel X -1750/+2160 mm.Ram vertical travel Z 1500 mm.Table drive 60/75 KW.Table turning speeds 2 ~ 75 mm.Torque at the table 67330 Nm.Tool magazine with 16 positions.Tool taper 7/24 BT 60.Floor space required 12375 x 8210 mm.Machine height 7920 mm.Full guarding.3-colour signal lamp (tower).AS NEW - 200 run hours !Available immediately.; As new

Table diameter: 2,000 mm Max diameter of workpiece: 3,000 mm Main drive: 60 KW Speed rotation of the table: 2.8 - 162 rpm Max workpiece height under the cross member: 2,500 mm Travel RAM: 1,750 mm Tool magazine: 12 workstations Machine Weight: 35 t Accessories: Grinding spindle and various tool holders 3000 rpm Wheel diameter 250 mm

Machine weight: 20,000 kg Faceplate diameter 1250 mm Number of supports: 1 pcs Dimensions: height 4250 mm width 5630 mm depth of 3550 mm Extras: copying apparatus, turret head on the vertical support Technical condition at the time of sale: Replacement rotary amplifier on thyristor converter. Not operated since 1994 p. Small repair and adjustment of electrical and mechanical parts. The maximum dimensions of a workpiece Height 1150 mm The diameter of 1400 mm Weight 8000 kg

INDEX - V 300 Y/B Stock number 1039-9419 Country of origin Germany - incl. 24 pos. Pallet circulation system Schnaithmann - Incl. ball screw as spare part - Incl. 39x driven tools - Incl. 39x tool holders Technical details Circumferential diameter max. 450 mm Chuck diameter 400 mm Control Siemens 840D (Index) Main spindle: Max. speed 4,200 min/-1 Drive power - main spindle ( 35.5 / 56 ) kW Max. torque ( 340 / 550 ) Nm C-axis 0.001 ° Tool turret: Number of tool positions 2x 12 pos powered stations 2x 12 pos VDI 30 tool system Max. speed of the applied speed Tools 6,000 rpm Drive power - applied Tools 9.5 kW Max. torque 40%: 19 Nm Y - axis +/- 90 mm B-axis +270° / -90° Travels: x-axis 730 mm z-axis 340 mm y-axis +/- 90 mm B-axis +270° / -90° Feeds: Rapid traverse X: 40 / Z: 30 m/min Pallet changer: Number of pallets 24 pos. Pallet size 410 x ...

chuck diameter, mm 7100 (8000) Max. work piece diameter, mm 8000 Max. work piece height, mm 3200 Max. work piece weight, kg 125000 Chuck speed, rpm 0,22...20,1 Max. ram movement of vertical support, mm 2000 Max. movement of vertical, mm 4275 Support feed range, mm/min 0,0352...285 Support rapid feed, mm/min 2500 Supports possible work angle, deg. -15...+40 Jaws, units 4 Machine overall dimensions, mm 8615 x 17600 x 9800 Machine weight, kg app. 247300

An Emag vertical CNC lathe is available. Clamping chuck diameter: 250mm, max. circulation diameter: 270mm, max. machining diameter: 250mm, max. machining length: 175mm, speed: 4500rpm, tool positions: 12, tool holder: VDI 40, travel X/Z: 660mm/300mm, rapid traverse X/Z: 60m/30m/min. Machine dimensions X/Y/Z: approx. 4300mm/1600mm/3300mm, weight: approx. 7500kg, control: Fanuc Series 32i-Model A, operating hours: 64137h. Including automatic loading and unloading with pick-up spindle and integrated part diverter and workpiece storage. Documentation available. On-site inspection is possible.

CNC vertical lathe Type: SKJ 12 NC Manufacturer: TOS Modernization: 2002 Control: Mefi CNC 856 Max workpiece diameter: 1400 mm Clamping plate diameter: 1250 mm Maximum workpiece height: 1150 mm Maximum workpiece weight: 6000 kg Clamping plate speed: 2.5 - 225 rpm Main motor power: 37 kW Machine weight: 13000 kg In good condition, fully functional Find more here - .ucymachines/ Contact us at - sales@ucymachines

CNC Vertical Turret Lathe with C axis and live tool 3 Turning Plates Changer (translating pallet system) EQUIPPED WITH: Siemens Sinumerik 840C CNC Control (2015 Retrofit) Vertical Ram with Live Spindle Pallet Changer (3-Pallets) 16-Station Automatic Tool Changer C-Axis Table Year 2005 CNC Siemens 840 C Max. turning dia.: 2200 mm Max. turning height: 1800 mm Ram travel: 1500 mm Main drive: 75 kW Live spindle: 15 kW Spindle rotations: 45- 1350 1/min Max. workpiece weight: 12 000 kg Pallet changer with 3 pallets (turning plates) Tool magazine: Right: 8 turning tools Left: 8 boring/milling tools Feeds: 0,1-6000 mm/min Carriage feed: Vertical: 1500 mm Horizontal: 1320 mm Table rotation (2 ranges): 2,5 – 70 / 10-280 Max. table torque: 50 000 Nm Machine weight: 43 Ton Machine HxWxL: 6,8 m x 10 m x 9,7 m

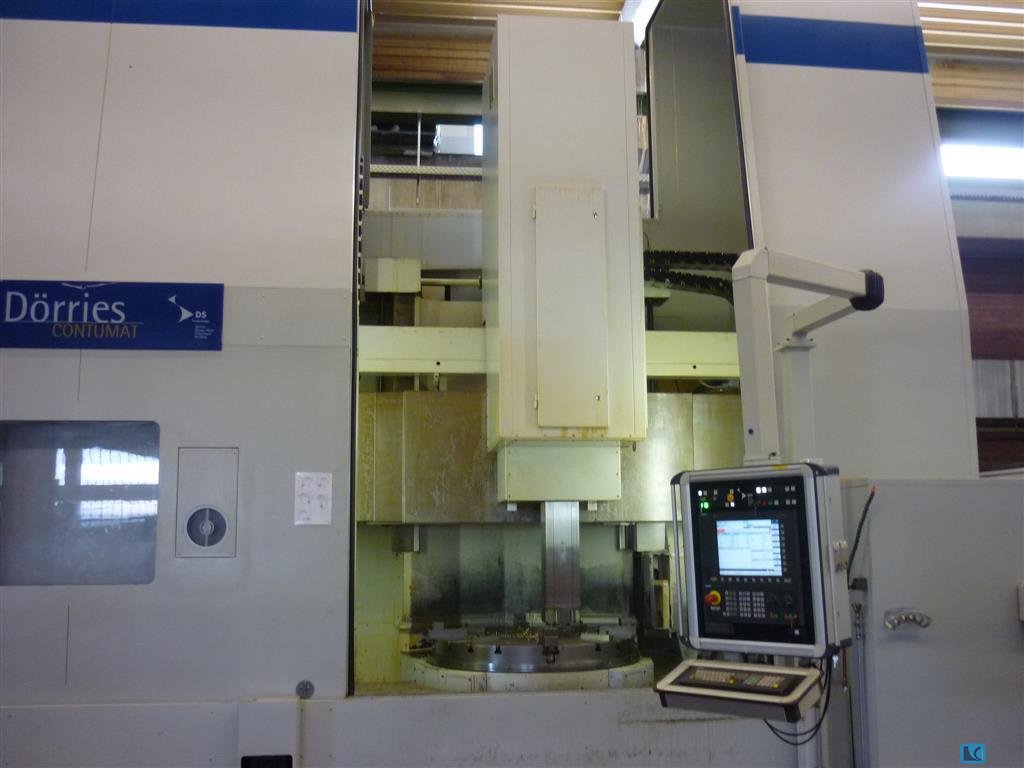

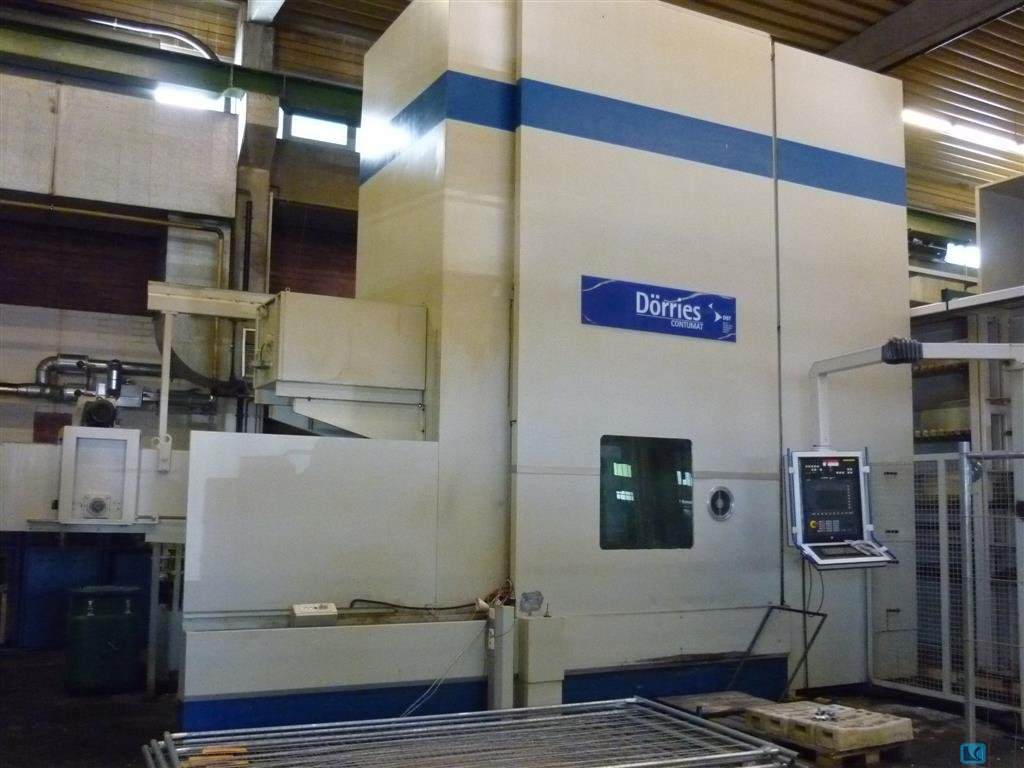

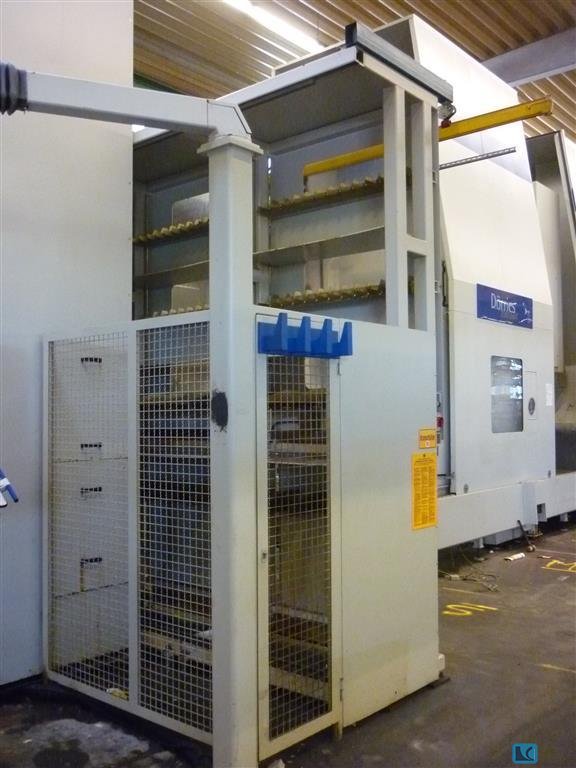

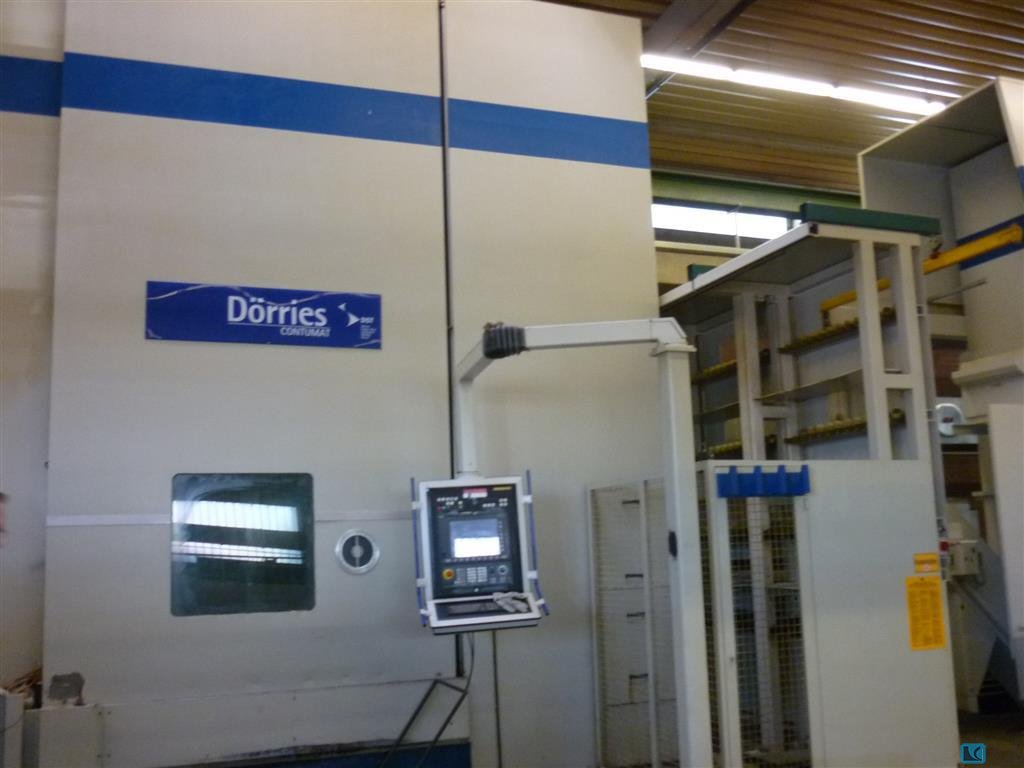

Dörries Contumat VCE 2000-160Year of manuf. : 1991 Control : Siemens 840 Dsl Turning diam. : 1600 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:1991 / 2010Control system retrofit:2010Control system:Siemens 840 DslCircumferential diameter:2,000 mmTurning diameter:1,600 mmTurning height:1,800 mmTable / Faceplate:Technology:Gear-driven tableSpeed:315 rpmPower:105 kWMax. torque:50,000 NmFaceplate:1,600 mmMax. table load:12,000 kgTool carrier:Crossbeam travel (vertical):1,200 mmChisel slide travel:1,500 mmSupport travel (horizontal):2,300 (+/-1,150) mmPenetration diameter:340 mmChisel slide cross-section:240 x 240 mmEquipment:Tool magazine:20 stationsChip removal:Chip conveyorCoolant supply:Coolant system with filterTool measurement:ProbeSet-up:Electronic handwheelTool holders:Various tool holdersControl system overhaul:Year of overhauling:2010Technol ...

vertical turret lathe, year 2000, CNC 840 C. Used machine in good condition. More info & price on IndustrialBuyer.

DÖRRIES SCHARMANN VCE 3000 / 280 CNC Vertikaldrehmaschine Modernisierung: im Rahmen des Retrofits im Jahr 2014 auf Siemens SINUMERIK 840D SL Arbeitsbereich Tischdurchmesser: 2.800 mm Max. Umlaufdurchmesser / Drehdurchmesser: 3.000 mm Max. Tischbelastung: 25.000 kg Max. Drehhöhe: ca. 2.100 mm Verfahrweg X-Achse: ±1.550 mm Verfahrweg Z-Achse / RAM-Hub: 1.500 mm Hauptantrieb und Spindeln Hauptantrieb: Siemens-Hauptmotor Antriebsleistung: 130 kW Max. Spindeldrehzahl: 4.500 min⁻¹ Betriebsart: S6, 40 % Ausstattung: 2 vertikale Spindeln Werkzeugwechsler und Peripherie o    2 automatische Werkzeugwechsler o    Kühlschmierstoffanlage o    Späneförderer o    Ölnebelabsaugung o    2 separate Hydraulikaggregate Betriebsstunden: ca. 12.571 Stunden laut mechanischem Betriebsstundenzähler

CONTROLS   CNC controls FANUC BASIC FUNCTIONS   number of spindles: 1   number of turrets: 1 WORKING RANGE TURNING   turning diameter (max): 220 mm   worpiece length max.: 175 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min X/Z SLIDE   Z-axis travel: 300 mm   X-axis travel: 660 mm ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 3820 mm   space requirements -front/back-: 2040 mm   total height: 2400 mm   total weight approx.: 6500 kg

Max. turning diameter: 1000mm, max. swing diameter: 1250mm, max. workpiece diameter: 1000mm, max. workpiece length: 850mm, max. workpiece weight: 1000kg, X/Z travel: 1250mm/1000mm, max. speed: 900rpm, feed rate: 14m/min, rapid traverse: 20m/min, spindle nose: DIN 55026 short taper size A15, tool interface: DIN 69880 VDI60 tool holder, spindle diameter at the front bearing: 240mm, control: Siemens Sinumerik 840D. Machine weight: approx. 25t, space requirement: 85m². Equipment: SMW IN-D 1000 chuck, chip conveyor. The machine has no driven tools. Documentation available. Inspection possible by appointment.

CONTROLS   CNC controls SIEMENS BASIC FUNCTIONS   number of spindles: 2   number of turrets: 1   number of c-axes: 2 WORKING RANGE TURNING   turning diameter (max): 100 mm   worpiece length max.: 150 mm MAIN SPINDLE   spindle revolutions (max): 6000 /min TOOL MAGAZINE   number of positions: 12 ELECTRICAL SPECIFICATIONS   total power consumption: 36 kW   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   total weight approx.: 7000 kg ATTACHMENTS (TURNING)   hydraulic system: yes   European CE standards: yes Machines in good condition: - Integrated pick-up automation - Two EMAG machines configured in a line are for sale. - A robot destacking unit with 100% parts inspection can also be purchased.

- Chainring diameter 1600 mm. - Maximum machining height approx. 1250 mm. - Maximum turning diameter 1850 mm. - Maximum permissible weight on the chainring 5000 kg. - Platter rotation speed from 5 rpm to 195 rpm. - Horizontal movement (X): 1200 mm. - Vertical movement (Z): 700 mm. - Motorized tool turret with 4 positions. - Main motor power 37 kW. - FAGOR 8055 numerical control. - Chip extractor. - Hydraulic unit and lubrication/cooling tank included. - Includes metal shelf with tooling and machining accessories visible in the photographs. - Includes 2 metal cabinets with their contents, consisting of turning tools, tool holders, screws, lanyards, fixing tools and various accessories. - The waste container shown in the photographs is NOT included. - Operating conditions of this item without checking. Auction-ID: A7-48839-50

Daewoo Puma V 550Year of manuf. : 2001 Control : Fanuc 18i-T Turning diam. : 730 mmTurning length : 750 mm____________Description:In General:Year of manufacture:2005Control system:Fanuc 18i-TMax. speed:2,000 rpmTurning diameter:730 mmTurning height:750 mmX-axis:390 mmZ-axis:780 mmChuck diameter:600 mmTool turret:8 stationsEquipment:Chip removal:Chip conveyorCoolant supply:Coolant pumpChuck:3-jaw chuck

Daewoo Puma V 550Year of manuf. : 2005 Control : Fanuc 21i-TB Turning diam. : 730 mmTurning length : 750 mm____________Description:In General:Year of manufacture:2005Control system:Fanuc 21i-TBMax. speed:2,000 rpmTurning diameter:730 mmTurning height:750 mmX-axis:390 mmZ-axis:780 mmChuck diameter:600 mmTool turret:8 stationsEquipment:Chip removal:Chip conveyorCoolant supply:Coolant pumpTool measurement:Renishaw tool setterChuck:SMW Autoblok 3-jaw chuck

faceplate diameter:4000 mm swing diameter:4300 mm turning height:2500 mm max. workpiece weight:63 t total power requirement:125 kW weight of the machine ca.:134 t dimensions:6100x10400x8400 mm Used Vertical Turret Lathe with 2 plungers and CNC Siemens 840 table is hydrostatically. Machine equipped with a grinding head. CNC was overhauled in 2000.

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis

faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

faceplate diameter:1400 mm swing diameter:1470 mm turning height:1325 mm ram stroke range:750 mm adjustment of cross-rail:850 mm max. workpiece weight:12000 kg faceplate turning speed range:4,5 - 224 U/min feed per revolution:0,06 - 8 mm rapid speed:1,8 m/min total power requirement:50 kW weight of the machine ca.:16 t Machine was modernized in 2008 with new electric 2-axes digital readout 5-station turret head autom. swivelling diverse toolholders

Technical data: Completely overhauled in 2001 Circulation diameter over bed: 1000 mm Diameter in recess: 1120 mm Circulation diameter over bed slide: 690 mm max. height above floor: 1110 mm max. height above bed: 460 mm Bed width: 800 mm Width of recess in front of the plan disc: 550 mm

Tip height: 330 mm centre distance: 1500 mm circular diameter: bed 690 mm spindle bore: 82 mm spindle retainer: short taper size 8 taper tailstock: 6 MK spindle speed: 7.1-1400 rpm feeds: longitudinal/plan 0.05 112/0.025 56 mm / U thread pitches: 0.25-560 mm electrical connection: 380 V, 15 kW space: 3350 x 1800 x 1400 mm weight: 4800 kg

Tip height: about quilt 300 mm centre distance: 1500 mm circular diameter: upper bed 640 mm spindle bore: 67 mm spindle retainer: Gr. 8 taper tailstock: 5 MK spindle speed: 18 - 900 rpm feeds: longitudinal/plan 0.063 0.032 2.1 mm / U thread pitches: 0.5-14 mm electrical connection: 380 V, approx. 7.5 kW space: 1550 x 3100 x 1250 mm weight: approx. 3500 kg hardly used and therefore well-preserved bed lathe

Made in Italy machine according to DIN 8606 Tip height: 260 mm Turning diameter over bed: 520 mm Swing over carriage: 300 mm Centre distance: 1500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (24) 9-1600 rpm (option 11-2000 U/min) Engine output: 5.5 kW (option: 7.5 kW) feed Z-axis: (93) 0.028 6.43 mm / Rev Feed x axis: (93) 0.012 2.73 mm / Rev Thread, metric: (54) 0.5-224 mm Thread, Witworth: (55) 72 - 1/8 TPI Thread, module: (54) 0.5-112 mm Thread, Diametral Pitch: (54) 64 - 1/4 D.P.. Cross slide Lxw: 650 x 230 mm Transversal carriage stroke: 340 mm Upper carriage Lxw: 350 x 150 mm Upper carriage stroke: 150 mm Tailstock Quill diameter: 85 mm Tailstock Quill stroke: 200 mm Tailstock taper: MK 5 Weight: 3,100 kg Facilities: -Movement of the tailstock pneumatically supported -Acceptance Protocol according to DIN 8605, ...

Made in Italy machine according to DIN 8605: lathe with increased accuracy. Tip height: 215 mm Turning diameter over bed: 430 mm Swing over carriage: 240 mm Top width: 1,000 mm Bed width: 290 mm Spindle bore: 52 mm Spindle nose: Camlock 6 " Spindle speeds variable: 6 Spindle speeds: 60-2,000 rpm S6/S1 engine power: 4 kW (option: 5.5 kW) feed Z-axis: (38) 0.05 - 1.88 mm / Rev Feed x axis: (38) 0.02 1,084 mm / Rev Thread cutting, metric: (30) 0.45-20 mm Thread cutting, Witworth: (35) 80-1 3/4 TPI Thread cutting, module: (25) 0.25-10 mm Thread cutting, Diametral Pitch: (30) 160-3 1/2 D.P.. Cross slide Lxw: 370 x 190 mm Transversal carriage stroke: 240 mm Upper carriage Lxw: 275 x 115 mm Upper carriage stroke: 120 mm Tailstock Quill diameter: 60 mm Tailstock Quill stroke: 135 mm Tailstock taper: MK 4 Weight: approx. 2,000 kg Facilities: -Infinitely variable  ...

Precision lathe with cycle automatic Make: Hamlet Model: E 70 x 2000 Year of construction: 1997 For food and feed shaft machining Technical data: Workspace Turning length: 2000 mm Swing over bed: 720 mm Swing over cross slide plan: 430 mm Displacement of the plan slide: 410 mm Bed width: 480 mm 3prpek3uq Spindle nose ACC. to DIN 55027: size 11 Spindle diameter in front bearing: 150 mm Spindle bore: 106 mm Inside taper of the main spindle: 112 metric Control: Siemens 805 Spindle gearbox newly stored according to the manufacturer ca. 2.500 EUR

Made in Italy Peak: 300 mm Rotary diameter over bed: 600 mm Rotary diameter via sled: 380 mm Peak: 1,500 mm Bed width: 400 mm Spindle bore: 82 mm Spindle nose: Camlock 8 " Spindle speeds: (12) 16-1200 U/min Engine power: 9.2 kW (special equipment/standard: 7.5 kW) Reprimor Z-axis: (93) 0.028-6.43 mm/U Feed X-axis: (93) 0.012-2.73 mm/U Thread, metric: (54) 0.5-224 mm Threads, Witworth: (55) 72-1/4 x8 TPI Thread, module: (54) 0.5-112 mm Threads, Diametral Pitch: (54) 64 -1/4 D.P. Crossleigh hub: 340 mm Oberslitten hub: 150 mm Riding stock pinol diameter: 85 mm Riding stove pinol stroke: 200 mm Ridstock cone: MK 5 Weight: About 3,200 kg Facilities: -3-axis digital display -Step-by-step speed adjustment -Automatic lubrication of the management railways -LED lighting -Micrometer bed strike -9.2 kW engine instead of 7.5 kW -Quick change holder system mul ...

Tip width: 700 mm Tip height: 150 mm Circulation diameter over bed: 300 mm Bed width: 180 mm Spindle bore: 38 mm Mounting in the spindle bore: MK 5 Speed range, infinitely variable: 30 - 450 / 150 - 3000 rpm Range of longitudinal feeds: (14) 0.07 - 0.65 mm/U Area of plan feeds: (11) 0.03 - 0.12 mm/U Metric threads: (18) 0.2 - 3.5 mm Inch Thread: (21) 8 - 56 Gg/1" Pinole path: 85 mm Pinole holder: MK 3 Engine power S1 100%: 1.5 kW / 400 V Motor recording power S6 40%: 2.2 kW / 400 V Machine dimensions (W x D x H): 1380 x 640 x 500 mm Weight approx.: 235 kg without base Delivery: - Digital display - 3-jaw chuck PO3-160 mm steel version - Feed flange 160 mm - Solid grain tips - Interchangeable wheels - Quick-release steel holder size 20-2 with 2 straight inserts - Slip clutch - Micrometer longitudinal stop - Plan sled with top support - Frequency inverter ...

Stepless guide and pull spindle lathe TC 250 V Peak height: 250 mm Circulation diameter via slide: 350 mm Orbital diameter in the croation: 695 mm Tip width: 1500 mm Spindle nose: DIN 55029, Camlock, size 6 Bed width: 305 mm Cross slide path: 272 mm Upper slide path: 155 mm Spindle bore: 80 mm Speed range, infinitely variable: (3) 30 - 2200 rpm Whitworth Thread: (45) 2 - 72 TPI Metric Thread: (39) 0.2 - 14 mm Diametral Thread: (21) 8 - 44 D.P.I Module Thread: (18) 0.3 - 3.5 module Longitudinal feeds: 0.04 - 1.00 mm/U Flat feeds: 0.02 - 0.50 mm/U Engine power: 5.5 kW Dimensions LxWxH, approx.: 2900 x 1175 x 2040 mm Weight, approx.: 2,200 kg characteristics: - Toolmaker accuracy - Stepless speed control (3 pre-level steps) - Finely-balanced main spindle - Stable machine bed with hardened and ground guides - One-piece cast base - Adjustable precision cone roll ...

Maximum diameter to turn on the bench 2,110 mm Maximum diameter to turn on trolley 1,600 mm Maximum distance between platforms 12,830 mm Spindle hole diameter 155 mm Cone on spindle no. 120 metric Cone on spindle (with reduction) no. 6 clamps Cone on the counterpoint (6-bit reduction) no. 120 metrics Maximum stroke of the counterpoint 400 mm DSeed from the tool support plane to the axis of the 80 mm centers Main engine power 100 HP Spindle speed from 0.9 to 90 rpm with continuous variation Longitudinal feed no. 36: 0.2 to 12.8 Transverse advances No. 36: 0.1 to 6.6 Metric fillets #26: 1 to 42 Whitwoth fillets #17: 0.5 to 11 Quick forwards Maximum permissible load on the tips 50-60 ton Refrigerant liquid system

Peak height 2,600 mm Point distance 10,000 mm Closed bench 2,000x6,000 mm To be completed with CNC

Height tips 220 mm Useful length 1,000 mm 42 mm bar pass

Equipped with no. 03 guides Overhauled with: guide grinding, CN conversion, new electrical and hydraulic system, hydraulic self-centering installation, shaving conveyor; CN Fagor 8055 Numerical Control – BT Maximum turnerable diameter 1800 mm 3-grife hydraulic self-centering with a diameter of 1450 mm with tightening force 30 Ton with 30 bar clamp L max turnerable 3000 mm Spindle engine power 110 Kw Maximum rotation speed 180 rpm Fast value axles 4000 mm/min M3/M4 Spindle Rotation Inversion Possibility 4 speed ranges Hydraulic counterpoint Maximum capacity of workpiece on counterpoint 12500 Kg It is currently possible to work details of up to 3000 mm length but the extension pallet is available to be able to work details up to 8 m in length. (un revised); Machine installed and working

Max length 8,000 mm Maximum turning diameter above wagon 1,250 mm Max vault over guides 1,650 mm Maximum turning diameter under spindle 2,000x700 mm Displayed – two axes
