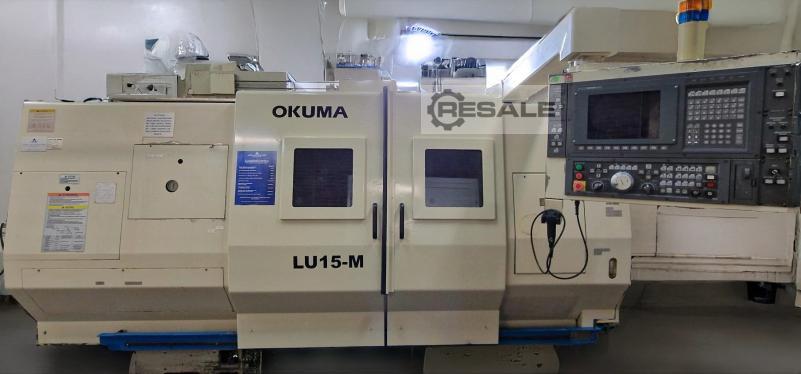

Okuma LU15-M CNC Turning Machines

Machine Type: CNC Lathe
Manufacturer: Okuma
Type: LU15-M
Year of Make: 2000

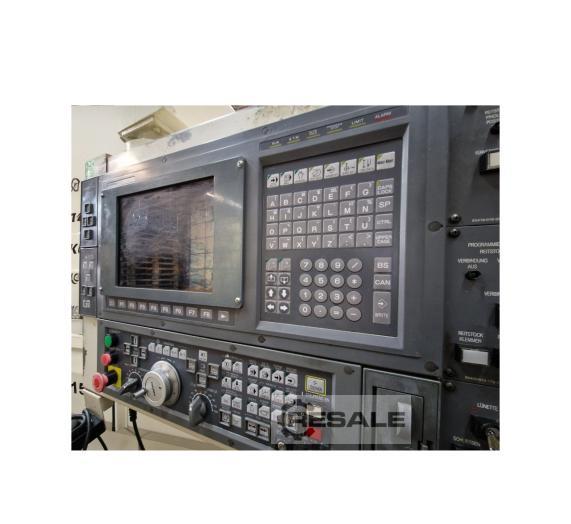

Control: OSP-U100L
Country of origin: Japan
Delivery time: in stock

Long turning length-1000 mm
Towable Tailstock – Automatic G152
Partial hollow clamping device

The lathe is in very good condition. The basic and additional equipment makes it possible to process long turning lengths of up to 1000 mm with this used machine. Effective productions continue to be achieved thanks to the towable tailstock – automatic, the tool breakage/wear control, the partial hollow clamping device, the K-pump and the dialogue programming (IGF). An optimal machine for economical and reliable production. The machine is user-friendly and can be integrated into production immediately.

Machinery
Spindle motor VAC built 22/15 kW
Long turning length – 1000 mm
towable tailstock – automatic G152

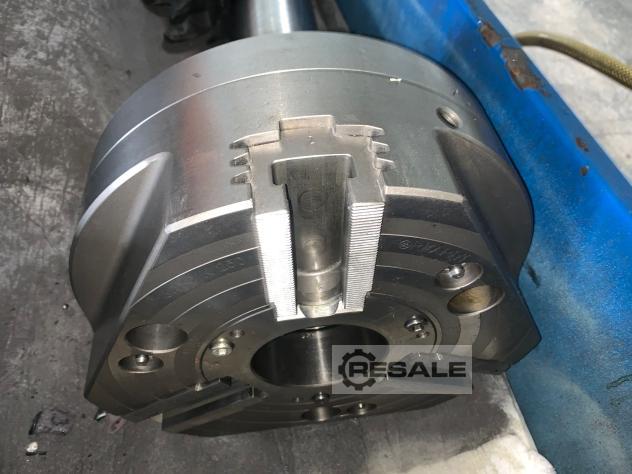

3-jaw chuck Forkardt, diameter 250 mm
Bezel Preparation B-Revolver
Partial hollow clamping device
Dialogue IGF
K-Pump
Tool breakage / wear control
Conveyor

Specifications
Max. turning diameter: 340 mm
Max. turning length: 1000 mm
X-axis travel: upper 260 mm (170+90) ; Lower 140 mm (90+50)
Travel Z-axis: upper 1,040 mm ; Lower 1.015 mm
Travel C-axis: 360°
Spindle – Number of Gears: 2 – Automatic
Bore diameter: 62 mm

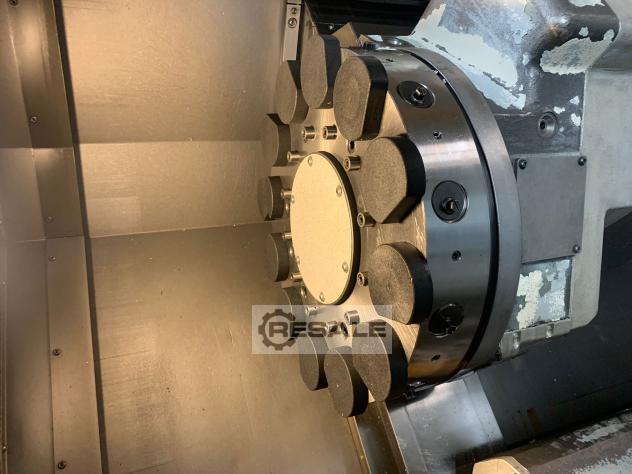

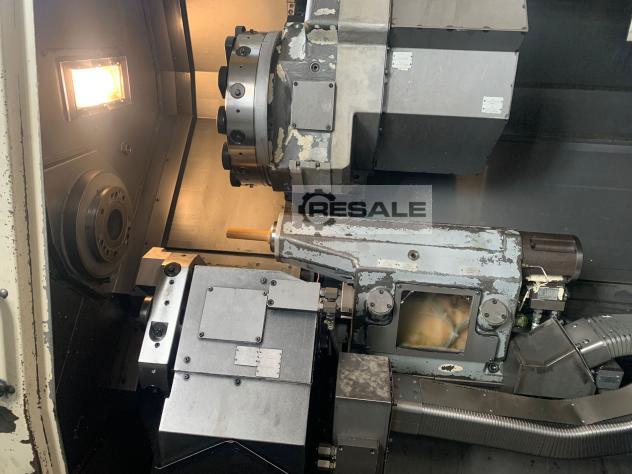

A-turret (upper): 12 tools, all M-tool compatible, VDI 40
B-turret (lower): 8 tools, VDI 40
Rotary Tools Speed: 45~4500 min -1
Rapid traverse feed: m/min X:15, Z:20, C:200 min -1
Tailstock quill diameter: 90 mm
Tailstock quill stroke: approx. 100-120 mm

Machine dimensions without accessories LxW: approx. 4800 x 2200 mm
Machine height: approx. 2030 mm
Weight: approx. 6900 kg

Optional
Transport organisation and implementation
Machine insertion and installation
Machine commissioning and production-ready handover
