offset printing 4 used for sale

x-travel:560 mm y-travel:560 mm z-travel:660 mm control:Celos Siemens 840D SL Operate ERGOline Multitouch turning speeds:20 - 20.000 1/min spindle drive:25/ 35 kW max. torque on the spindle:86 / 130 tool taper:HSK-A63 Number of tool station:60 diameter of tools max.:70 mm Tool diameter with no neighbouring tools:170 mm tool length - max.:450 mm weight of tools max.:12 kg numbers of pallets:2 Pallet dimension:400 x 400 mm max. workpiece diameter:630 mm workpiece height max.:900 mm table load:400 kg rapid travel x/y/z:60 m/min Feed x/y/z:60 m/min internal coolant system feed:70 bar weight of the machine ca.:8,5 t dimensions:3200 x 4800 x 2900 mm Renishaw probe (spindle):Vorbereitung / preparation only Horizontal machining center with Siemens - Celos control, full b-axis, tool magazine with 123 pos. HSK-A 63, coolant through spindle 40 bar. The machine has just received a new milling spind ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

:KVL-450 | KVL-600 | KVL-800| KVL-1100 turning diameter:450|600|800|1100 mm swing diameter:550|650|1000|1250 mm turning height:450|500|750/950|1000 mm spindle nose:A2-8|A2-8|A2-11|A2-15 table rotation speed:50-2500|50-2250|20-1500|20-600 U/min Travel of Ram (vertical):450|500|800 / 1000 (Opt.)|1000 mm Travel of ram (horiz.):300|340|500|700 mm rapid power traverse in X-and Z direction:20/24|20/24|20/20|10/10 m/min Tool changer:8/10/12 mit vertikaler oder horizontaler Scheibe tool taper:VDI40/VDI50 oder Schaftaufnahme drive capacity - spindle motor:11/15|15/18.5|18.5/22|37/45 kW Machine height:2600|2910|4020|4605 mm weight of the machine ca.:4500|6000|13000|18000 kg hydraulic motor:2,2 kW servo motor X-axis:1,6|1,6|4|7 kw servo motor Z-axis:3|3|7|7 kw coolant pump drive:0,75+1,1|0,75+1,1|0,75+0,75+1,1|0,75+0,75+1,1 kW :35|40|50|70 kva CNC controller:Siemens/Fanuc/Fagor CNC controls from:Si ...

pressure:250 t table length:4000 mm table width:3000 mm Controls:SIEMENS SIMATIC C7 PRESS DESIGN:. - frame design : 4 column :. - moving bolster : yes :. PRESS FORCES:. - total force (nominal):250 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - tool weight max.:100000 kg - number of T-slots:12 - distance between T-slots:375 mm - height above floor level:390 mm RAM:. - clamping surface (left-right):4000 mm - clamping surface (front-back):3000 mm - number of T-slots:12 - distance between T-slots:375 mm - stroke:2900 mm - tool weight max.:50000 kg RAM (HYDR. PRESS):. - number of main-cylinders:1 - approximation velocity max.:180 mm/s - working velocity max.:50 mm/s - restoring force of ram:95 to TOOL ASSEMBLY DIMENSIONS:. - distance table - ram max.:2750 mm - distance between columns (H-frame):4100 mm - Free passage be ...

pressure:1000 t table length:4000 mm table width:1600 mm Controls:SIEMENS S7-1500F PRESS DESIGN:. - frame design : Transfer press :. - Drive type : mechnical :. - openings in uprights : yes :. - opening in table : yes :. - moving bolster : yes :. - number of tables:2 PRESS FORCES:. - total force (nominal):1000 to PRESS TABLE:. - clamping surface (left-right):4000 mm - clamping surface (front-back):1600 mm - height above floor level:600 mm - autom. tool clamping device : yes :. RAM:. - stroke:400 mm RAM (MECHAN. PRESS):. - ram adjustment:300 mm - ram adjustment:100 mm - number of strokes min:8 /min - number of strokes max:50 /min - hydraulic overload protection : yes :. TOOL ASSEMBLY DIMENSIONS:. - shut height (stroke down, adjustment up):900 mm - shut height (stroke down, adjustment up):766 mm - distance between columns (H-frame):4250 mm - Free passage between side c ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

degree:900 working heigth:100 mm width:4 x 330 mm dimensions of the machine ca.:20,4 x 3,5 x 2,5 m GENERAL INFORMATION ?Electrically heated roller kiln Mod. TR 18/4x33/10-E 90 ?Condition: as new. Price as new 1,2 Mio. ?. ?Offer for immediate sale There are many different areas of application (e.g. burning in metal, roof tiles, etc.). SPECIFICATIONS The kiln is an electrically heated roller kiln. The product is mechanically transported through the kiln on a roller conveyor. The kiln is designed in such a way that no special foundation is required. The usual concreted, screededflat hall floor is sufficient. The dimensions of the sections of the plant, which consists of heating, sintering and cooling zones, are adapted to the requirements of the temperature curve. Temperatures and pressures in the kiln are controlled automatically. The kiln casings are modular. Each housing is lined with di ...

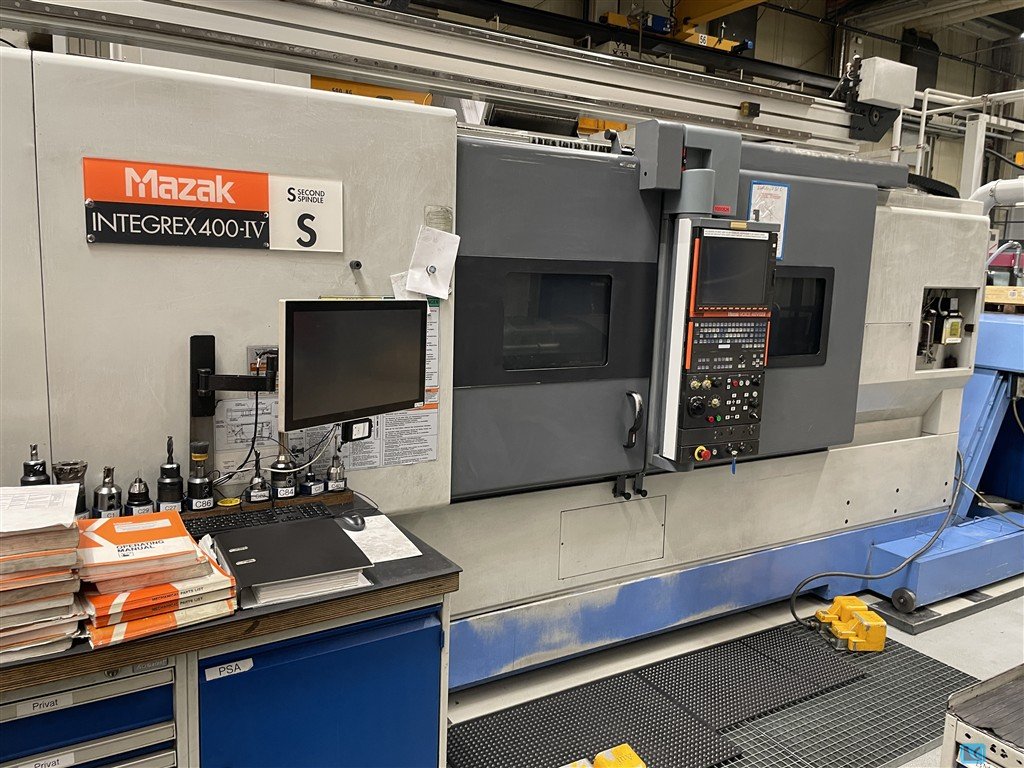

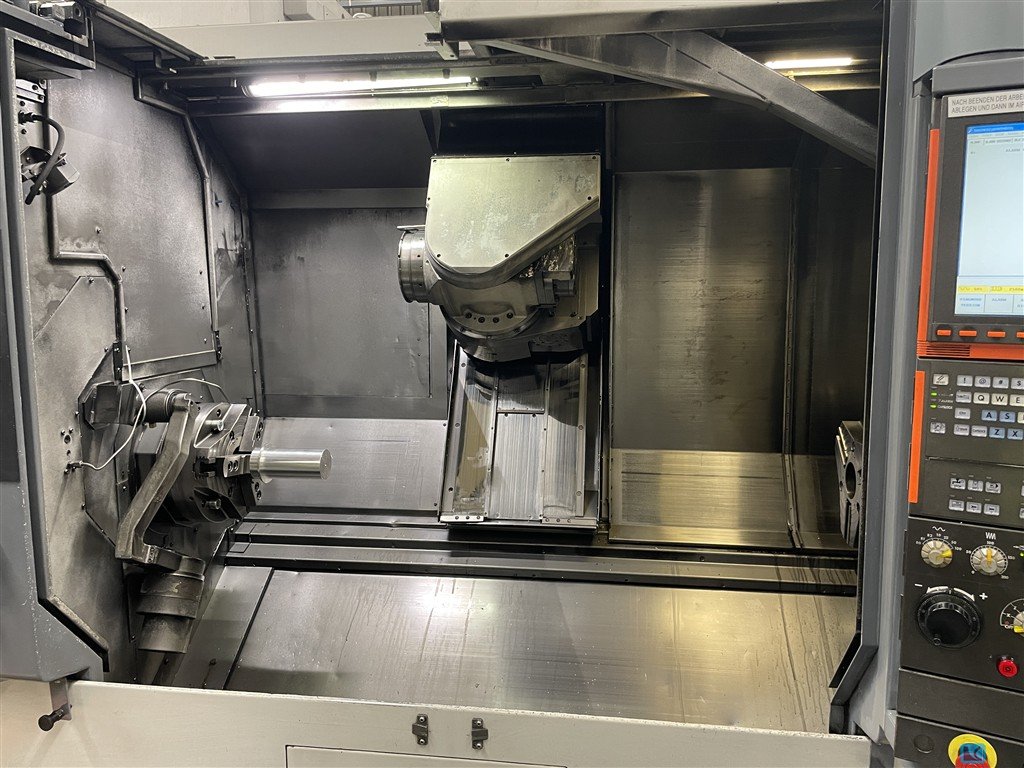

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

turning diameter:830 mm turning length:4.000 mm turning diameter over bed slide:540 spindle bore:130 mm turning speed range:2 - 1.600 U/min rapid speed:4/5 m/min feed speeds:1 - 2.000 mm/min total power requirement:55 kW dimensions of the machine ca.:7 x 2,2 x 2 m weight of the machine ca.:7,5 t

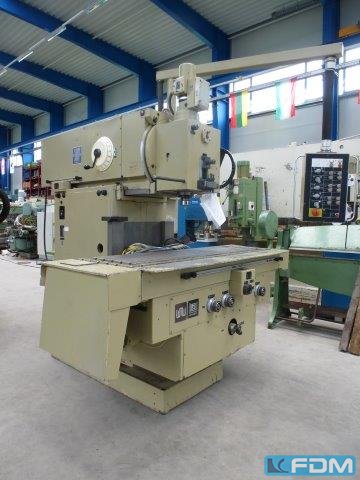

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:710 x 410 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 B table load:180 kg no. of flutes:8 groove width:14/25 mm tool taper:SK 40 speeds::20 - 3000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Year:ca. 1984 Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

x-travel:1190 mm total power requirement:25 kW feeds::3 - 2000 mm/min weight of the machine ca.:4,3 t table-size:1600 x 400, 5 Spannbacken mm dimensions of the machine ca.:4000 x 3600 x 2200 mm speeds:45 - 1800 U/min y-travel:530 mm z-travel:540 mm tool taper:ISO 50 control cabinet:940 kg

x-travel:500 mm y-travel:400 mm z-travel:330 mm table-size:400 x 710 mm spindle taper ISO:40 quill stroke:100 mm control:HEIDENHAIN TNC 335 table load:180 kg no. of flutes:8 groove width:14/45 mm tool taper:ISA 40 speeds::20 - 3000 /28- 4000 U/min feeds:infinitely variable1-1250 mm/min rapid traverse:5000 mm/min total power requirement:13 kW weight of the machine ca.:2500 kg dimensions of the machine ca.:2000 x 2800 x 2300 mm Documents:inkl. Zusatzinformationen ? Schile-Elektroschrank mit CNC-Steuerung Heidenhain TNC 355 ? Starrer Winkeltisch 710 x 400mm ? Spritzschutzverkleidung / Halbkabine ? Kopf nach Skala präzise drehbar über Kurbel ? Kopf komplett wegschwenkbar für horizontal Spindel

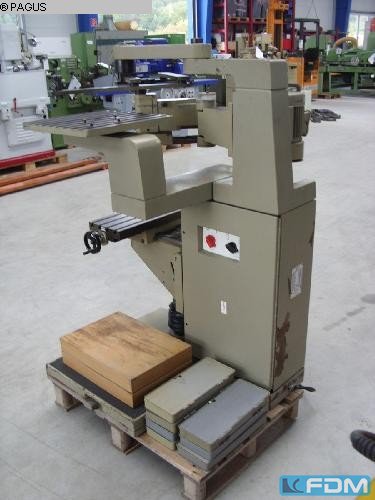

x-travel:500 mm y-travel:250 mm z-travel:325 mm table-size:400 x 200 mm T-slots:10/ 20 mm T-slots:4 St workpiece height max.:300 mm template table:380 x 380 mm speeds::2500 - 20000 U/min no. of turning speeds:3 total power requirement:0,25 kW weight of the machine ca.:430 kg dimensions of the machine ca.:1000 x 1200 x 1500 mm

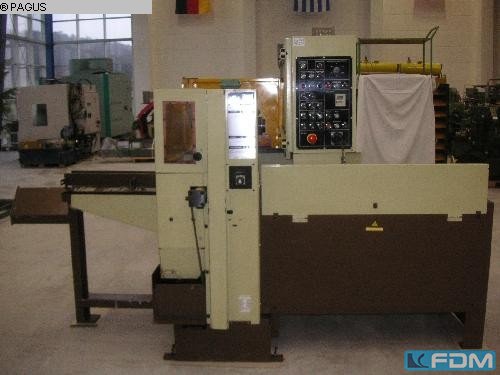

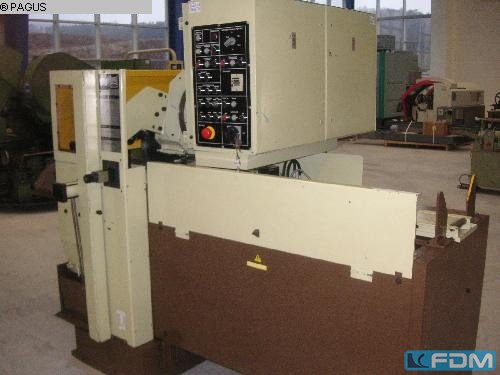

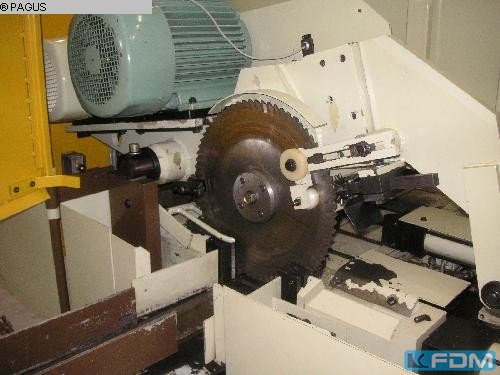

saw blade diameter:400 mm cutting diameter:400 mm material:Vollmaterial 20 - 130 mm material:Walzprofile 40 - 120 mm material diameter from - to::Rohr u. Profilfrohr bis 100 x 14 mm sawblade width:4 mm total power requirement:5,1 kW weight of the machine ca.:1850 kg dimensions of the machine ca.:3300 x 1630 x 1960 mm Documents:vorhanden

x-travel:850 mm y-travel:500 mm z-travel:610 mm rotary table::400 mm spindle turning speed range:12.000 1/min drive capacity - spindle motor:17/10 kW control:HEIDENHAIN iTNC 530 Tool changer:40- fach spindle taper ISO:SK 40 weight of the machine ca.:7,7 t total power requirement:28,5 kW dimensions of the machine ca.:3 x 2.70 x 3,2 m 5-axis simultaneously universal-machining center, NC-rotary-swivelling table dia. 400mm, 3D infrared touchprobe, el. handwheel, chipconveyor, airblast through spindle, internal coolant supply 40bar, flushgun, direct measuring system, approx. 38.000h "machine on", approx. 14.500h "spindle on"

x-travel:1270 mm y-travel:660 mm z-travel:610 mm table surface area:1500 x 660 mm table load:1,3 t control:ULTIMAX 4 turning speeds:10000 1/min spindle:15 kW Tool bore:SK 40 rapid traverse:X/Y/Z 30/30/20 m/min tool change unit:24 Pos. total power requirement:30 kVA weight of the machine ca.:9,5 t dimensions of the machine ca.:4,8 x 4,56 x 2,95 m vertical machining center, el. handwheel, chipconveyor,

turning diameter:420 turning length:1230 mm swing over bed:700 mm swing diameter over slide rest:550 mm centre distance:1390 mm y-axis:+/- 60 mm turning speeds:3500 1/min turret (x-stations):12 power capacity:22 / 18,5 kW :1 / 12 x BMT rapid traverse x + z axis:20 / 24 m/min :76 mm total power requirement:50 kVA weight:7,8 t dimensions of the machine ca.:4,10 x 2,05 x 2,21 m CNC lathe with Y-Axis and driven tools, C-axis, tool eye, hydraulic 3-chaw-juck D= 250 mm, reinforced pump 15 bar, pressure-compensated clamping cylinder , 2 step clamping pressure, prepared for steady (without steady), progr. tailstock (dragging device), live tool device (3,7 kW, 3.000 rpm), chipconveyor, 1 pcs. live tool included approx. 15.500 working hours

x-travel:600 mm y-travel:580 mm z-travel:580 mm numbers of pallets:2 pallet size::400 x 400 mm max. workpiece weight:400 kg spindle taper ISO:40 spindle speeds::35 - 12000 feed speeds:1 - 50000 mm/min rapid speed:50 m/min total power requirement:25 kW weight of the machine ca.:12 t dimensions of the machine ca.:3,6 x 3,6 x 2,9 m with CNC SEICOS 16 M ( FANUC base ) autom. toolchanger 61-pockets pallet indexing 1° chip conveyor and coolant attachment exhauster clamping cube and diverse toolholders

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

grinding diameter:380 mm grinding length:1000 mm centre height:180 mm grinding wheel diameter:400 mm max. workpiece weight between centres:250 kg total power requirement:10 kW weight of the machine ca.:4,1 t dimensions of the machine ca.:3 x 2 x 1,6 m with internal grinding attachment with fixed and swivelling headstock with coolant tank

turning diameter:325 mm turning length:600 mm total power requirement:35 kW spindle drive:25 kW spindle turning speed range:5000 U/min speeds of tool:4500 U/min rapid traverse X-axis:60 m/min diverse toolholders:VDI 40 rapid traverse Z-axis:45 m/min weight of the machine ca.:6,5 t dimensions of the machine ca.:3,5 x 2,5 x 2,1 m Machine with SIEMENS 840 D control power line with shopturn - C and Y-axis, driven tools - bar loader IRCO ILS-RBK - coolant device with coolant throough revolving head - Revolver - counter spindle - chip conveyor - collet clamping - part catcher

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

pressure:400 t distance between columns:3250 mm distance table/ram, max. stroke up, adjustment up:1000 mm stroke:800 mm table surface area:3250 x 1400 mm table height over floor:1250 mm die cushion capacity:170 t die cushion stroke:200 mm die cushion area:1800 x 1000 mm distance between cutting impact cushioning:2610 mm side window:800 mm ram surface:3250 x 1400 mm return capacity:51 t speed down:300 mm/s speed up:300 mm/s working speed:16 - 33 mm/s quantity of oil:2900 l power requirement:100,0 kW weight:70,0 t Dimensions (WxDxH):4,9 x 3,1 x 7,6 m German Safety: permitted for manual loading:UVV 11.064 - VBG 7n5.2 cutting impact absorption:hydraulic

pressure:400 t distance between columns:1250 mm stroke:250 fix mm no. of strokes:45 /min distance table/ram, max. stroke up, adjustment up:825 mm table surface area:1000 x 900 mm column travel -side:400 x 700 mm ram surface:1000 x 900 mm ram adjustment:100 mm capacity of ejector in table:40 t ejector stroke:160 mm power capacity:270,0 kW weight:44,0 t Dimensions (WxDxH):2,4 x 3,6 x 7,2 m height over floor:6,4 m

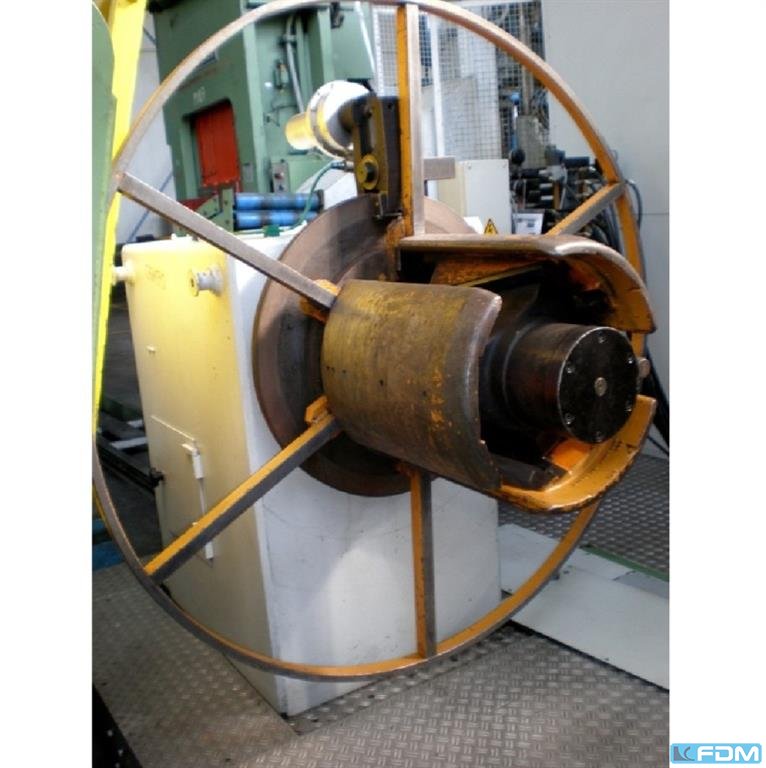

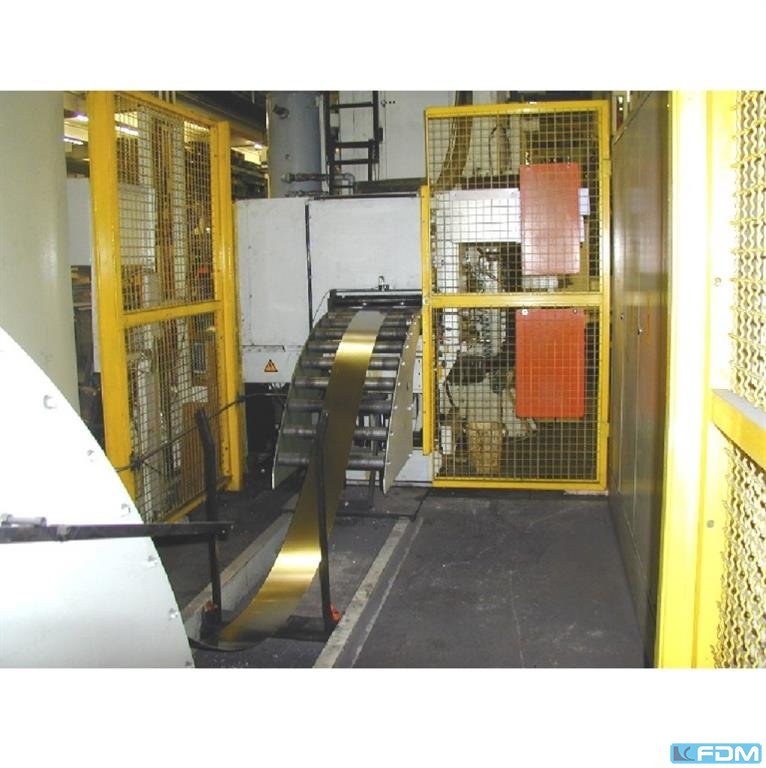

material width:400 mm coil weight:3,0 t material thickness:0,5 - 4,0 mm coil internal diameter:460 - 530 mm coil external diameter:1500 mm no. of straightening rolls:9 straightening roll diameter:50 mm no. of lower support rolls:12 no. of upper support rolls:10 diameter of support rolls:90 mm material cross-cut:1600 mm² speed of coil line:0 - 20 m/min power requirement:35,0 kW weight:10,5 t dimensions (WxDxH):10,0 x 2,5 x 2,9 m straightening machine:KRE 50.400/9 adjustment of straightening rolls :motoric insertion wedge:hydraulic adjustable decoiler:3000.1 snubber roll:hydraulic expansion:hydraulic sideway adjustment:motoric pivoting:manual roll feed:Servo; WVE 160/400 intermittant lifting:hydraulic

pressure:063 t throat:450 mm stroke:8 - 100 mm no. of strokes:65 /min distance table/ram, max. stroke up, adjustment up:415 mm table surface area:720 x 800 mm hole in the table:280/250 mm table height over floor:800 mm passage to the back:290 mm ram surface:450 x 280 mm ram adjustment:63 mm power requirement:7,5 kW weight:4,7 t dimensions (WxDxH):1,3 x 2,0 x 2,65 m clutch:pneumatisch overload protection in ram:mechanisch

Pressure:063 t throat:400 mm stroke:16 - 90 mm no. of strokes:60 /min distance table/ram, max. stroke up, adjustment up:350 mm table surface area:1000 x 750 mm hole in the table:260 x 140 mm table height over floor:710 mm ram surface:600 x 220 mm ram adjustment:50 mm weight:4,3 t dimensions (WxDxH):1,1 x 2,6 x 2,4 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:pneumatisch overload protection in ram:mechanisch ram counterbalance:pneumatisch

pressure:40 t throat:360 mm stroke:400 mm distance table/ram, max. stroke up, adjustment up:600 mm table surface area:620 x 500 mm pressure of drawing cushion in table:16 t stroke of drawing cushion in table:150 mm table height over floor:850 mm ram surface:300 x 250 mm speed down:200 mm/s speed up:200 mm/s working speed:40 mm/s power requirement:11,0 kW weight:2,8 t dimensions (WxDxH):1,1 x 1,7 x 3,0 m drawing cushion in table:hydraulisch

pressure:400 t throat:520 mm stroke:20 - 200 mm no. of strokes:30 /min distance table/ram, max. stroke up, adjustment up:680 mm table surface area:1600 x 1000 mm table height over floor:715 mm passage to the back:1000 mm ram surface:1300 x 800 mm ram adjustment:130 mm power requirement:38,0 kW weight:41,0 t dimensions (WxDxH):2,1 x 2,6 x 4,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch-/ brake combination:pneumatic, Ortlinghaus overload protection in ram:hydraulic ram adjustment:motoric ram counterbalance:pneumatic

pressure:400 t stroke:280 mm no. of strokes:56 Hub/min distance table/ram, max. stroke up, adjustment up:680 mm table surface area:560 x 750 mm allowed max. force:600 t blow die to die:800 t spindle diameter:200 mm ram surface:560 x 560 mm height over floor:4,1 m power requirement:37,0 kW weight:12,0 t dimensions (WxDxH):2,2 x 2,0 x 4,25 m

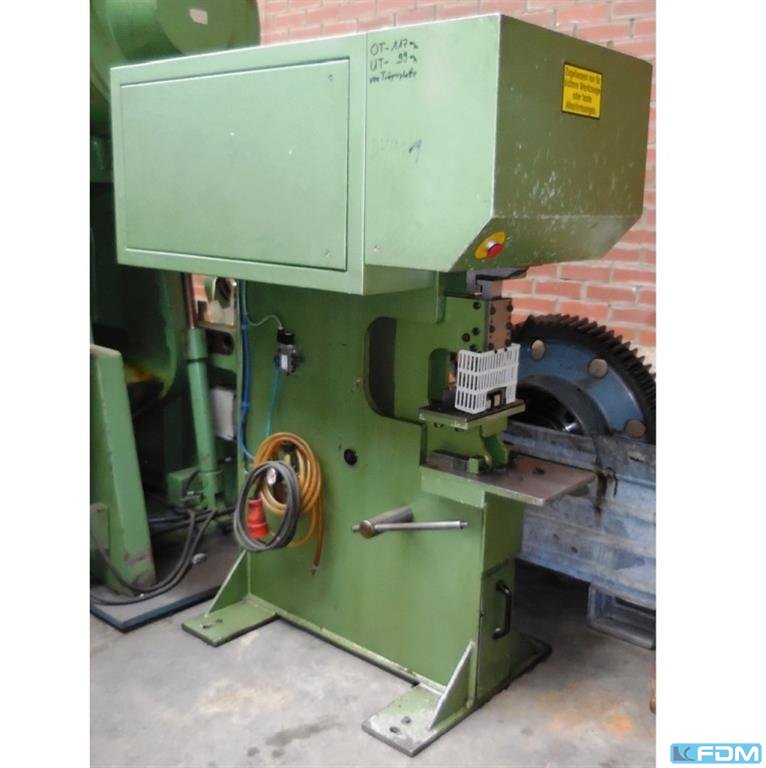

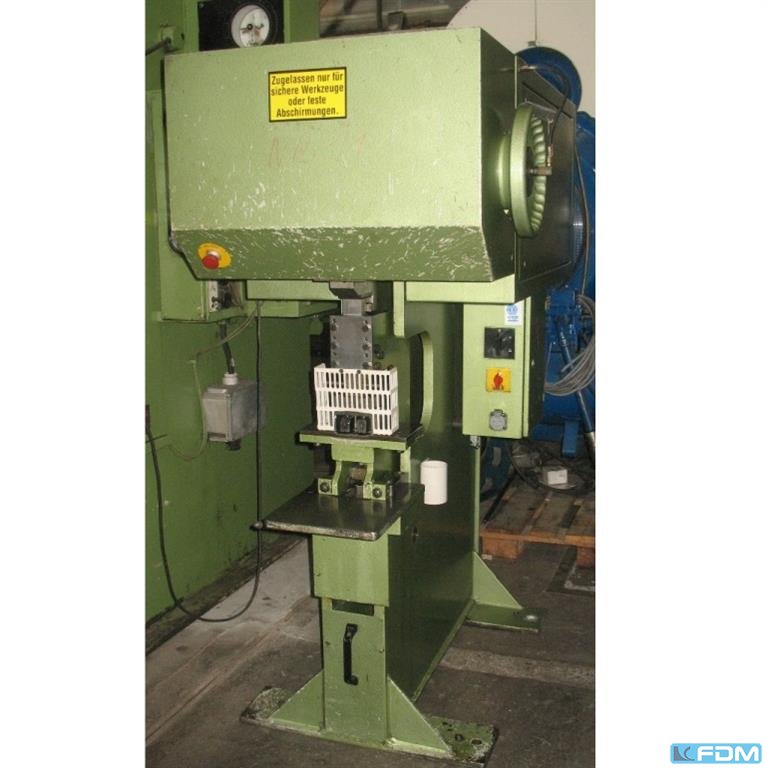

pressure:40 t throat:350 mm material thickness: - 12 mm stamping power-diameter at 12 mm material thickness:24 mm stamping power-diameter at 6 mm material thickness:50 mm power requirement:2,2 kW weight:1,5 t dimensions (WxDxH):0,8 x 1,5 x 1,9 m

pressure:400 t distance between columns:1100 mm stroke:250 mm no. of strokes:25 - 75 /min distance table/ram, max. stroke up, adjustment up:900 mm table surface area:1100 x 965 mm capacity of ejector in table:30 t ejector stroke of ejector in table:80 mm capacity of ejector in ram:3 t stroke of ejector in ram:60 / 70 mm ram surface:980 x 800 mm column travel -side:800 mm ram adjustment:20 mm power capacity:80,0 + 5,5 kW weight:47,0 t Dimensions (WxDxH):3,5 x 3,3 x 6,0 m weight of switch cabinet:1,4 t dimensions of electrical cabinet (WxDxH):4,9 x 0,5 x 2,6 m ejector in ram:hydraulic

pressure:120 t distance between columns:430 mm stroke:125 mm distance table/ram, stroke up:400 mm table surface area:430 x 450 mm table height over floor:860 mm side window:230 mm ram surface:250 mm working speed:10 mm/s power requirement:11,0 kW weight:2,5 t dimensions (WxDxH):1,6 x 1,3 x 2,4 m German Safety: permitted for manual loading:CE-sign

pressure:160 t throat:400 mm stroke:30 - 200 mm no. of strokes:50 /min distance table/ram, max. stroke up, adjustment up:600 mm table surface area:1000 x 770 mm table height over floor:810 mm hole in the table:360 mm Passage to the back:450 mm ram surface:710 x 450 mm ram adjustment:110 mm power requirement:15,0 kW weight:10,5 t Dimensions (WxDxH):1,7 x 2,0 x 3,2 m German Safety: permitted for manual loading:UVV 11.062 - VBG 7n5.1 clutch:hydraulic overload protection in ram:mechanical ram counterbalance:pneumatic

pressure:400 t distance between columns:1060 mm stroke:450 mm no. of strokes:15 - 30 /min distance table/ram, max. stroke up, adjustment up:1160 mm table surface area:1000 x 700 mm capacity of ejector in table:2 x 16 t ejector stroke of ejector in table:125 mm Die cushion pressure in table:120 t Die cushion stroke in table:2 mm capacity of ejector in ram:2 x 4 t stroke of ejector in ram:100 mm ram surface:1000 x 700 mm column travel -side:630 mm power capacity:55,0 kW weight:50,0 t die cushion in table:2. station

Format: 740 x 1040 mm<br><br><br><br>br>Verf Gbar: Short-term

<br><br><br>Still in operation: Yes<br>Verf Gbar: Immediately

<br><br><br>Still in operation: Yes<br>Verf Gbar: Immediately

4-color format: 212 x 360 mm<br><br><br>Still in operation: Yes<br>

<br><br><br><br>Available: immediately

<br><br><br>Still in operation: Yes<br>Available: immediately

<br><br><br>Still in operation: Yes<br>Available: immediately

<br><br><br>Still in operation: Yes<br>Available: immediately

<br><br><br>Still in operation: Yes<br>Available: immediately

size 740 x 1040 mm<br><br><br><br>Available: short term

HEIDELBERG GTO 52 • Year: 1988 • Size: 36 x 52 cm • Serial: 694596 • Counter: 45.396.545 • Size: 36 x 52 cm • Bacher Register 22 cm • Speed: up to 8.000 sheet/h • checked • cleaned • new rollers Good Working Condition test possible Please ask for quotation: send us an email
