multi spindle lathe used for sale

turning diameter:1600 mm turning length:6200 mm spindle bore:130 mm turning speed range:5 - 710 U/min turning diameter over bed slide:1250 total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus, diameter 630 mm 3 x fixed liners (1200 / 570 / 400 mm) Coolant system and chip conveyor Miscellaneous accessories

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5 Documents:vorhanden

turning diameter over bed:240 mm turning length:450 mm total power requirement:0,5 kW weight of the machine ca.:120 kg dimensions of the machine ca.:1500 x 600 x 1200 mm centre height:120 mm spindle bore:21 mm revolutions per minute: 75 - 2980 U/min

turning diameter:480 mm turning length:1250 mm control:H 645 weight of the machine ca.:8 t dimensions of the machine ca.:5 x 2 x 2 m centre distance:1580 mm swing over bed:495 mm swing diameter:üb.Querschlitten ca.350 mm working area:1600 mm control:H645 connected load:50 kW

control: Numeriksteuerung CNC 700 K total power requirement:28 KVA weight of the machine ca.:7,8 t dimensions of the machine ca.:6610 x 2280 x 2235 mm work height max.:1060 mm greates pass round over bed:305 mm spindle bore:82 mm Documents:vorhanden

turning length:630 mm total power requirement:16 kW weight of the machine ca.:5 t dimensions of the machine ca.:3400 x 1500 x 1600 mm swing diameter over slide rest:Hinterdrehschlitten 250 mm centre height:über Hinterdrehschlitten 150 mm center height over bed:300 mm turning spindle:Kopf DIN 55021 Gr. 8 centre distance:1000 mm accessories::2 Schränke Wechselräder

turning diameter:500 mm turning length:1000 mm control:MANUAL PLUS Grundig total power requirement:24 kVA weight of the machine ca.:2650 kg dimensions of the machine ca.:2500 x 1750 x 1850 mm swing diameter over face slide:290 mm chuck:Ø max. 260 mm cross movement:260 mm spindle head:DIN 55027 Größe 8 spindle bore diameter:70 mm rapid travel - longitudinal/face:8 /6 m/min spindle speeds::8 - 2800 tailstock travel:180 mm tailstock quill taper MT:5

turning length:2000 mm control:- total power requirement:25 kW weight of the machine ca.:3 t dimensions of the machine ca.:3800 x 1800 x 1850 mm swing over bed:500 mm swing diameter over face slide:280 mm control:Zyklen-Steuerung Heidenhain bed width:350 mm Documents:vorhanden

faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders

faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor

faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories

turning diameter over bed:1000 mm turning diameter over slide rest:745 mm turning length:3000 mm turning speed range:4,5 - 900 U/min spindle bore:110 mm max. workpiece weight between centres:12500 kg total power requirement:30 kW weight of the machine ca.:9 t dimensions of the machine ca.:5,2 x 2,3 x 2 m 3-axes digital readout rapid feed, feed at upper support 350 mm 1 fixed steady face plate diameter 1000 mm coolant attachment

turning diameter:830 mm turning length:4000 mm turning diameter over bed slide:540 mm spindle bore:130 mm turning speed range:2 - 1600 U/min rapid speed:4 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:55 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:7 x 2,2 x 2 m with Teach In controll R&D MTC-K MULTIFIX toolpost size D coolant attachment

turning diameter:500 mm turning length:1500 mm turning diameter over bed slide:290 spindle bore:71 mm turning speed range:3 - 2800 U/min rapid speed:10 / 5 m/min feed speeds:1 - 2000 mm/min total power requirement:22 kW weight of the machine ca.:3,2 t dimensions of the machine ca.:3,0 x 1,6 x 2 m with Teach In controll R&D MTC-K PARAT toolpost 1 fixed steday dia. 100 mm 4 jaw face plate dia. 500 mm coolant attachment

turning diameter:800 mm turning length:2965 mm max. turning dia. over saddle:520 mm spindle bore:92 mm turning speed range:3 - 1800 U/min spindle head:Größe 11 total power requirement:37 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:5,2 x 2,2 x 1,9 m Teach In Control MTC-K 3-jaw chuck ROTAS Dia. 400 mm face plate RÖHM Dia. 630 mm 4-station toolholder system PARAT 1 fixed steady coolant attachment and chip conveyor

turning diameter:480 mm turning length:800 mm total power requirement:30 kW turning diameter over bed slide:240 spindle bore:65 mm disc turret:12 fach rapid travel range:20 / 10 m/min weight of the machine ca.:4,5 t dimensions of the machine ca.:4 x 2,2 x 2,1 m with CNC TRAUB TX 8 H C-axis driven tooling, 6 positions 3,5 kW / 4000 rpm power chuck coolant attachment, chip conveyor diverse toolholders

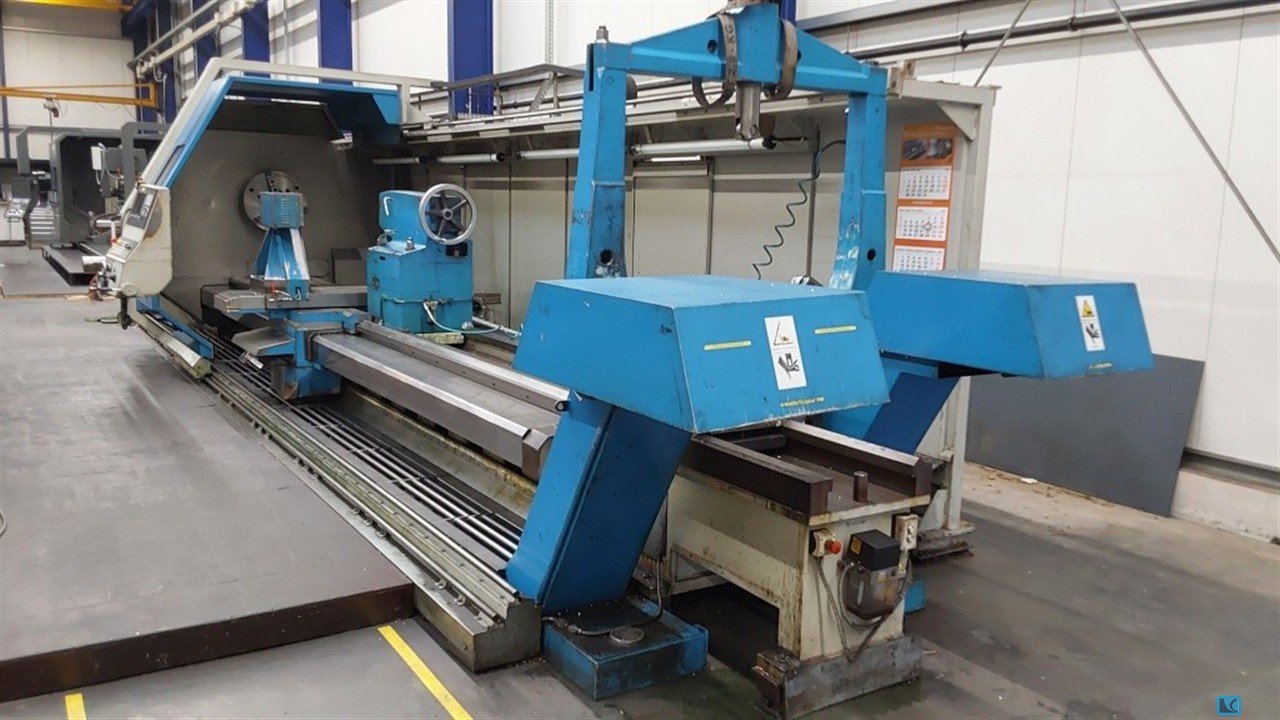

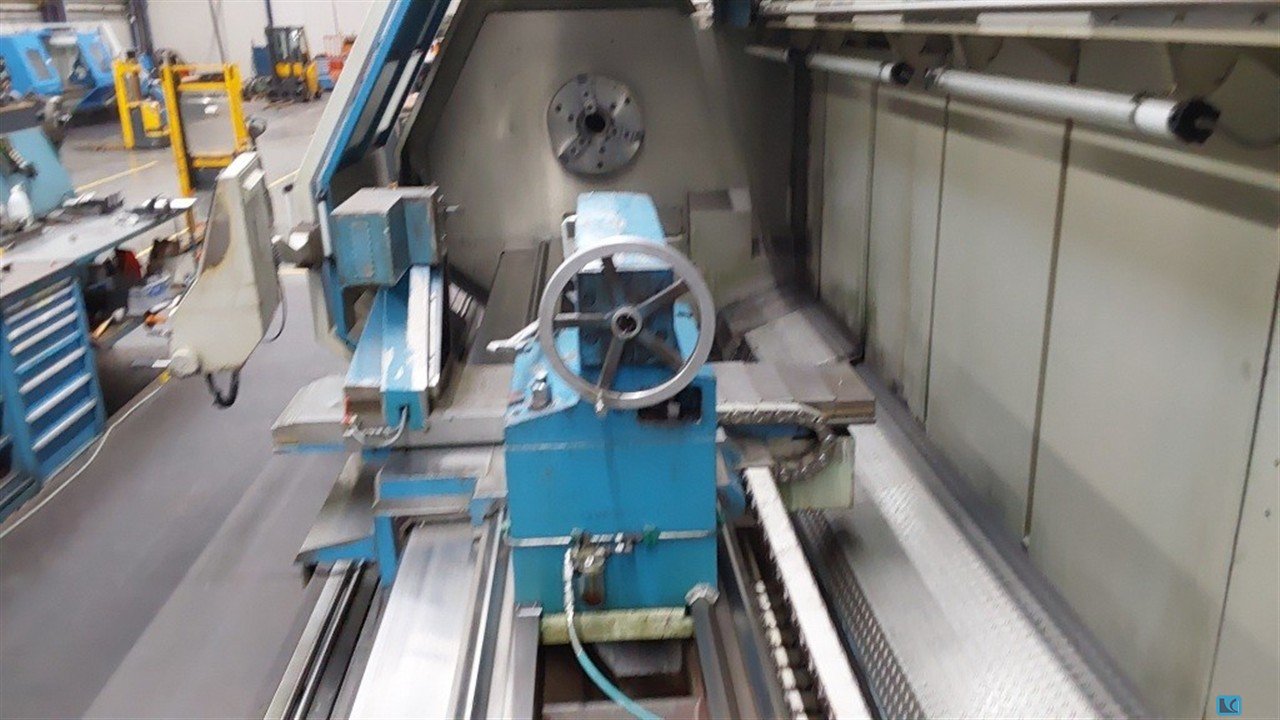

turning diameter:1600 mm turning length:6200 mm turning diameter over bed slide:1250 Turning rate:5 - 710 U/min. total power requirement:37/52 kW weight of the machine ca.:16 t dimensions of the machine ca.:12 x 4 x 2 m CNC SIEMENS Sinumerik 3-jaw chuck SCHUNK Rota Plus Dia. 630 mm 3 x fixed steadies ( 1200 / 570 / 400 mm ) coolant attachment and chip conveyor diverse accessories

faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor

faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment

turning diameter:626 mm turning length:3000 mm Turning diameter:600 mm spindle bore:100 mm spindle turning speed range:2800 U/min weight of the machine ca.:18 t Machine overhold and retrofit in 2003 with SIEMENS 840 D control - NC steady rest - 12-fold revolving head - splash doors - tailstock - coolant device

faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders

faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D

turning diameter over bed:1450 mm turning diameter over slide rest:1000 mm turning length:8000 mm spindle bore:160 mm turning speed range:2,8 - 560 U/min bed width:850 mm faceplate diameter max.:1400 mm turning diameter in the gap:1800 mm length of gap:600 mm dimensions of the machine ca.:12 x 2 x 2,5 m with Digital Readout 2 fixed steadies dia 1070 mm chip conveyor

faceplate diameter:1400 mm swing diameter:1470 mm turning height:1325 mm ram stroke range:750 mm adjustment of cross-rail:850 mm max. workpiece weight:12000 kg faceplate turning speed range:4,5 - 224 U/min feed per revolution:0,06 - 8 mm rapid speed:1,8 m/min total power requirement:50 kW weight of the machine ca.:16 t Machine was modernized in 2008 with new electric 2-axes digital readout 5-station turret head autom. swivelling diverse toolholders

turning diameter over bed:400 mm turning diameter over slide rest:250 mm turning length:1000 mm max swing over gap:520 mm Height of centres:200 mm crossed path:230 mm bed width:218 mm main spindle bore:52 mm spindle size:MK 6 speeds::55-2000 U/min turning angle of tool post:90 grad tail stock:50 mm taper in tailstock:MK 4 threading metric:0,4-7 mm threading WHITWORTH:4-60 TPI total power requirement:2,2 kW dimensions of the machine ca.:1940 x 820 x 1545 mm weight of the machine ca.:750 kg tailstock quill:110 mm tapping modul:0,4-3 mm tapping diametral:8-84 Gang/Zoll

turning diameter:38 mm Article: CNC Long-turn automatic lathe Manufacturer: Hanwha Type: STL38H Year of construction: 2013 Control: Siemens 840SL for 8 axes Main spindle: max. turning diameter: 38mm; spindle bore max. 42mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z1 320mm; synchronised guide bush unit; guide bush type JBS or SL38; type collet 173E / F48 Counter spindle: max. pick-up diameter: 38mm, n max. 6,500 rpm Power max. 23 kW; C-axis with 0.001 degree; stroke Z2 320mm; type collet 171E / F42 Tool turret: n max. 6,000 rpm Power max. 2.6 kW; Servo axes: X2, Y2, Z2; Stroke [mm]: X2 = 115, Y2 = 100, Z2 = 120 Bar feeder FMB Turbo 5-55 High-pressure station SFB-301 eco 150bar Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

spindle passage:25 mm Article: CNC sliding headstock automatic lathe Manufacturer: Tornos Type: Deco 2000/20 Year of construction: 2001 Control: Fanuc spindle diameter: D25 mm max. speed: 7000 rpm comb: 2 (X,Z,Y-axis) Front attachment: 1 (X,Z,S-axis) Loading magazine: Tornos Robobar SSF Chip conveyor: Hinged belt conveyor other: various accessories such as polygonal impact device, HF spindle Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

turning diameter:26 mm Article: High-precision CNC lathe with linear cross slide Manufacturer: Benzinger Type: GOFuture B1 Yob: 2016 Machine was only used for reworking, i.e. only light machining work was carried out! Control: Siemens Sinumerik 840Dsl Main spindle: maintenance-free motor spindle Bar capacity: D26mm Loading and unloading device type IB Additional gripper system for placing the workpieces in the correct position on the unloading belt Coaxial valve for coolant to the linear tools (3 pieces) Internal clamping device C-axis main spindle for digital control incl. transmit function Adjusting microscope 16x magnification Coolant supply through the spindle clamping cylinder, Sealing air, Speed increase of the motor spindle to 8. 0000 rpm Nordmann tool monitoring Profibus master interface Hinged belt conveyor Knoll Compact coolant device Knoll MBE interface Small fire extinguishin ...

turning diameter:336 mm turning length:216 mm weight of the machine ca.:8,3 t Article: CNC multi-axis lathe Manufacturer: Hurco Model: TMX 8MYSi Year of manufacture: 2022 CNC multi-axis lathe Excerpt from manufacturer?s specifications: Working area: Max. turning diameter: 336 mm Max. swing diameter: 560 mm Main spindle specifications: Max. speed: 4,500 rpm Chuck diameter: 210 mm Tie-bar diameter: 64.5 mm Counter-spindle specifications: Max. speed: 6,000 rpm Tool turret with driven tools Bar-Loading Magazine: SAMSYS M3000 (2022 model) HYDAC Cooler The machine can be visited under power. The tool configuration included in the scope of delivery may differ from the images Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com

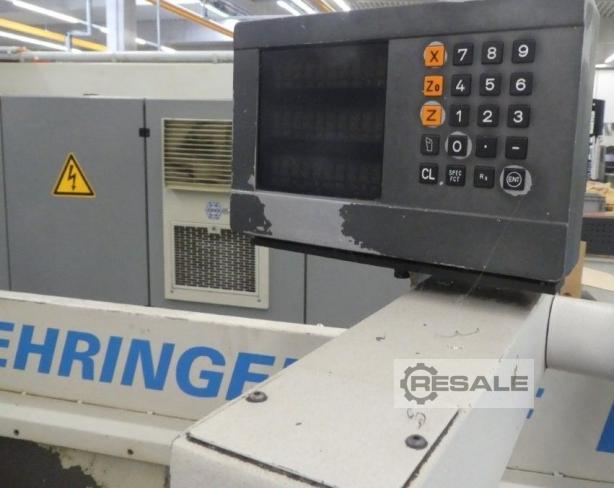

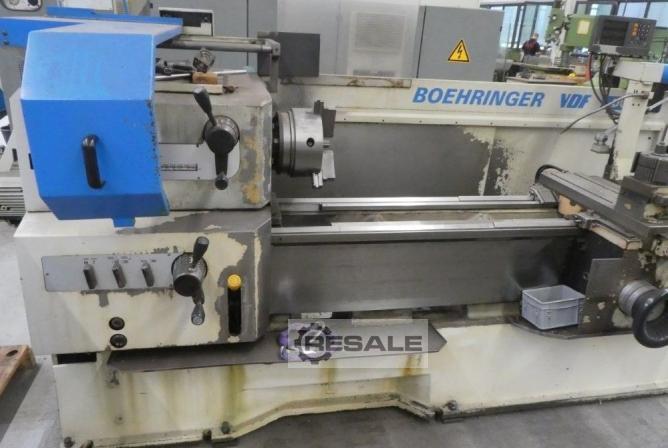

Digital display Heidenhain Max. circumference over bed: 570 mm Turning length 1500 mm Max. spindle speed 2,240 min-1 Multifix Size C 3-jaw chuck, diameter 250 mm Fixed bezel, diameter 20 – 315 mm Tailstock
