mobil band used for sale

Serial Number: 220.06.018.18 Power: 15.0 kW Voltage: 400 V / 3-Phase / 50 Hz Current: 28.0 A Operating Hours: Approx. 695 h (very low) Control System: Smartouch CNC – x-motion Plus Machine Code: 3676 Min. Air Pressure: 7 bar Technical Specifications Processing height: 8–60 mm ABS edge band thickness (roll material): 0.4–3 mm Capability to glue thick edges up to 6 mm All units can be pneumatically activated/deactivated via touchscreen Drive & Motor Configuration 2 × 1.1 kW jointing cutters (12,000 rpm) 0.75 kW feed motor (10 m/min) 2 × 0.75 kW trimming motors (12,000 rpm) Processing Units 2 × Pre-milling units (1.1 kW) Glue unit (EVA & PUR capable, reversible roller, Teflon-coated glue pot for granulate) Pressure unit with three pressure rollers Cutting unit End trimmi ...

Hot glue tub for edges application on both linear and shaped panels - Main motor 3.95 kW - Accidental burn protection - Height adjustable edge guide - Rubber pre-tape roller - Double flat scrapers on both sides of the panel - Edge header - Edge thickness 0.8 - 2 mm - Min/Max panel thickness 12/43 mm - Working speed: 7 m/min Machine condition: unchecked. Approx. Transport dimension: LxWxH 2000 x 670 x 1260 mm; Approx. Weight: 470kg The item for sale may not be the one shown in pictures, but will have equal specifications and performance. Auction-ID: A7-45991-16

Wheel diameter: 790mm Auction-ID: A1-45979-104

Machine number: 693601 Blade length: max. 3320 mm Blade length: min. 3120 mm Table dimensions: 500 x 500 mm incl. saw blade welder and grindstone Auction-ID: A7-46287-85

Mössner band saw machine type SSF 630 Year of construction 2019 Serial number 31387 400V/50Hz, 24V DC control voltage Rated power 20.2 kVA, rated current 29.2 A, fuse 32 A (max. 63 A) 2-speed manual transmission and SEW Eurodrive frequency converter Cutting speeds 27–142 m/min and 410–2200 m/min Possible saw blade dimensions for manual transmission: 6 x 0.65 mm to 20 x 0.9 mm Impeller diameter 630 mm Max. cutting width 605 mm, max. cutting height 460 mm With feed table / table enclosure For the feed table with 4 T-slots, Mössner mentions a table inclination of approx. 8° to the right and 14° to the left Documentation / operating instructions available CE marking available Auction-ID: 04M-45T-1

Auction-ID: A3-43519-17230

Machine number: 01882 Cutting length: 300 mm incl. roller conveyor Roller conveyor width: 380 mm Roller conveyor length: 4000 mm Auction-ID: A7-46287-143

Joint milling, adhesive unit, pressure zone, chop saws, radius milling, radius scrapers, flat scrapers Auction-ID: A1-41994-2

Power: 1.1kW Auction-ID: A1-46037-2971

6-60 mm, joint cutter, multi-cutter, copy, scrapers radius/phase, Auction-ID: A1-41994-3

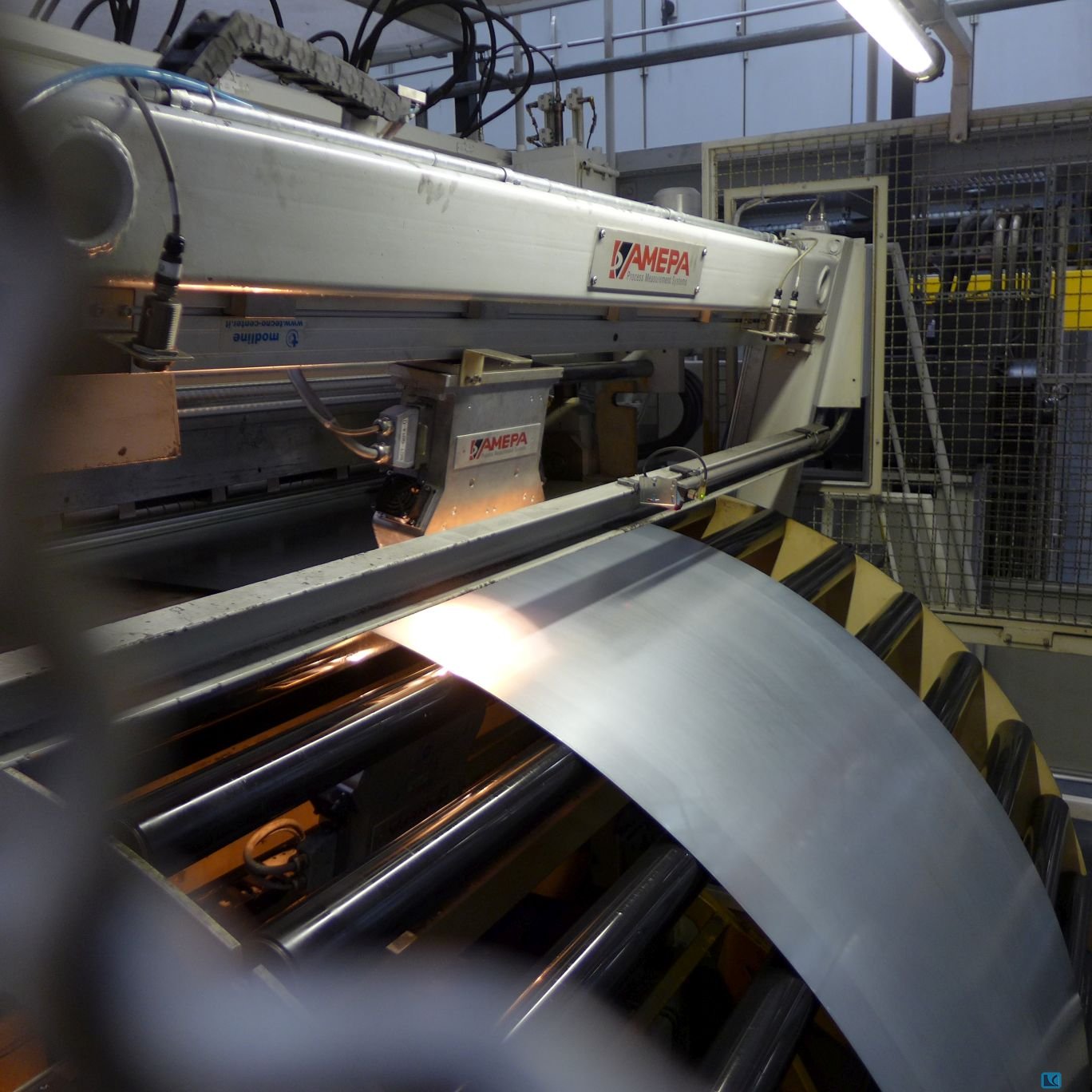

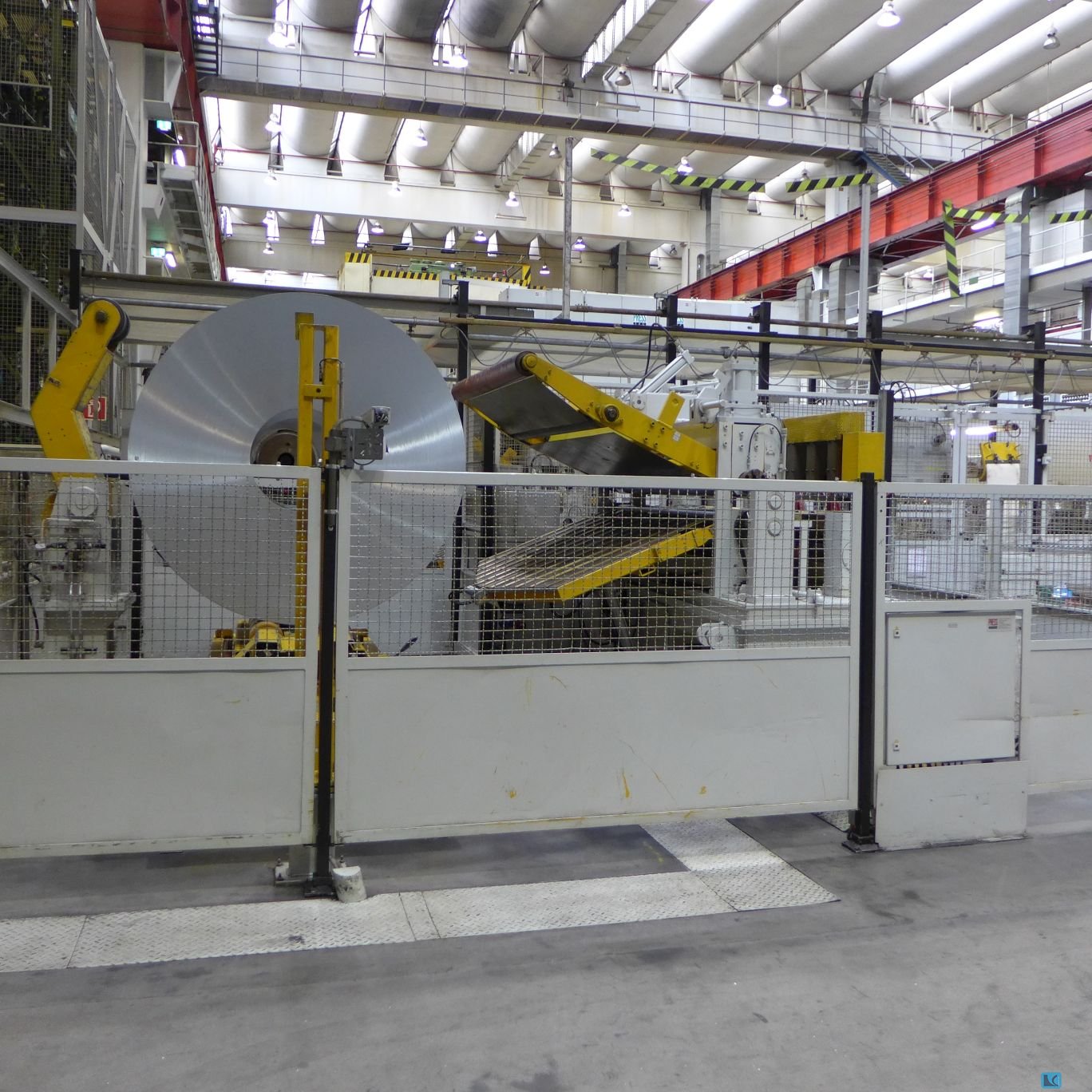

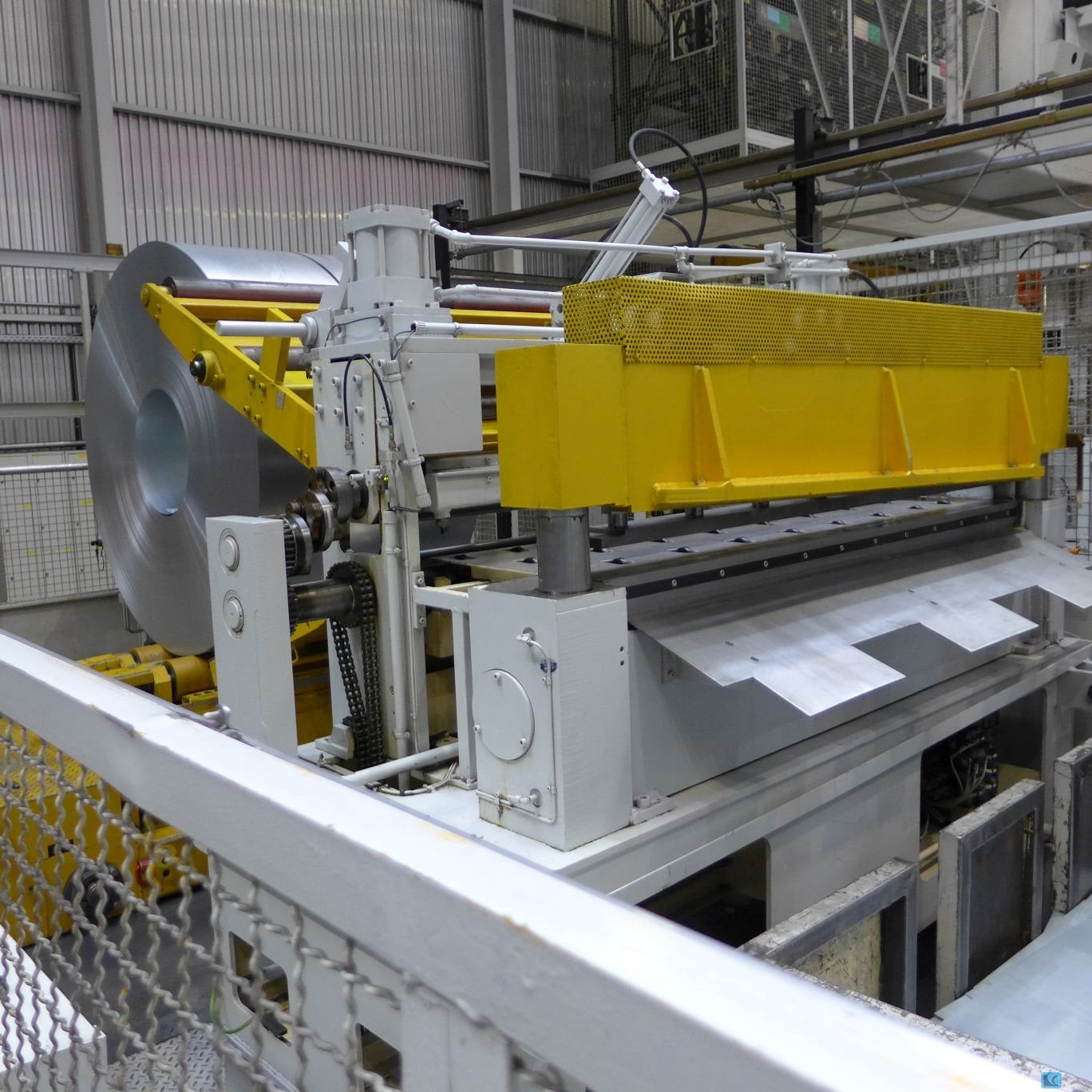

band width:1050 mm plate thickness:8 mm number of rolls:8 DECOILER:. - design : single coil :. - sheet width max:1050 mm - sheet width (min):150 mm - max. weight of coil:22 to - max. diameter of coil:2000 mm - min. internal diameter of coil:570 mm FEEDERS:. - feeder: type : roll feeder :. - sheet width max:1050 mm - sheet thickness max:150 mm LEVELER UNIT:. - sheet width max:1050 mm - sheet width (min):150 mm - sheet thickness max:8 mm - sheet thickness (min):2.5 mm - number of leveler rolls:8 - diameter of leveler rolls:96 mm - distance between leveler rolls:104 mm - diameter of feed rolls:160 mm - feed velocity min.:2 m/min - feed velocity max.:43.5 m/min ELECTRICAL SPECIFICATIONS:. - mains voltage:400 V - mains frequency:50 Hz Technical description : Sheet metal unrolling and straightening system for thick sheet metal up to 8 mm, consisting of: - LAWECO COIL LOA ...

band width:2000 mm plate thickness:1.8 mm number of rolls:13 Controls:SIEMENS DECOILER:. - design : single coil :. - sheet width max:2000 mm - sheet width (min):400 mm - max. weight of coil:30 to - max. diameter of coil:2000 mm - min. internal diameter of coil:610 mm FEEDERS:. - sheet width max:2000 mm - sheet thickness max:2 mm - feeding step max.:4000 mm LEVELER UNIT:. - sheet width max:2000 mm - sheet width (min):400 mm - sheet thickness max:1.8 mm - sheet thickness (min):0.6 mm - number of leveler rolls:13 - diameter of leveler rolls:50 mm

roll diameter:420 mm throat:400 mm workpiece height:325 mm table surface area:615 x 615 mm table swivelabel +/-:10/45 ° table - inclinable:+/- 20 ° cutting speed:20 - 2500 m/min total power requirement:2 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,95 x 0,65 x 1,83 m

weight of the machine ca.:1750 kg sawing motor:2,2 kW total power requirement:5 kW cutting speed:17 - 90 m/min cutting diameter:320 mm cutting range max.:320 x 320 mm saw band length:4.930 x 34 x 1,1 mm feed length:max 9x 600 mm dimensions of the machine ca.:2,6 x 2,4 x 1,40 m Bandsaw automatic, straight cut, min. cutting diameter 10mm, min. cutting length 6mm, min. offcut 15mm (automatic 80mm), max. weight of material 400kg/m, coolant box 60l, pump 16l/min, clamping pressure 20-60bar, dimensions: chipconveyor 2.400x 950mm roller track 2.200 x 950mm, 5pcs. saws (new) 4.930 x 34 x 1,1mm operating manual,

cutting diameter:320 mm saw band length:3280 mm cutting width:320 320 mm total power requirement:3,8 kW weight of the machine ca.:1150 t - columm guidance - roll-conveyer 4000mm / 1000 mm lenght - cutting speed 15 - 105 m / min - mitre cutting up to 60°

Mössner band saw machine type SSF 630 Year of construction 2019 Serial number 31387 400V/50Hz, 24V DC control voltage Rated power 20.2 kVA, rated current 29.2 A, fuse 32 A (max. 63 A) 2-speed manual transmission and SEW Eurodrive frequency converter Cutting speeds 27–142 m/min and 410–2200 m/min Possible saw blade dimensions for manual transmission: 6 x 0.65 mm to 20 x 0.9 mm Impeller diameter 630 mm Max. cutting width 605 mm, max. cutting height 460 mm With feed table / table enclosure For the feed table with 4 T-slots, Mössner mentions a table inclination of approx. 8° to the right and 14° to the left Documentation / operating instructions available CE marking available

Contour edge banding & trimming machine Make: VITAP Type: SMART-3 New machine - With swivable trimming station - For straight and formed workpieces (convex and concave) - 1 glue spreading roller for 10-60 mm panel thickness - Guillotine to cut bands up to 3 mm thickness - edge 0,5-3mm 2 tape feeding speed (3 m/min or 7 m/min) -Glue pot 1kg capacity - Tape plate Ø=520mm Solid Phenolic table - Easy to clean - With no heat transmission - Electronic temperature control - Foot pedal command for the guillotine Tilting trimming unit - with 1 high frequency motor HP 0.75 (kw0,55) - 1 cutter Head with 2 knives r1mm/r2mm/r3mm - Support tape plate Ø 600 mm - Semi-automatic end-cutter with motor 0,5 kw and blade Ø=125 mm - Working table 400 x 300 mm. - CE standards. Optional available for an extra charge: - Cutter (without knives) - Set ...

Used single-sided edge banding machine Brand: Homag Type: Profi KAL 330/ 9/A6/L Year of manufacture: 2011 Feed speed Infinitely adjustable 18-25 m/min Release agent spray unit top/bottom - To reduce surface contamination. Jointing unit KAL300/S2 - 2 motors, each 3 kW, Hz 9000 1/min - Motor shaft Ø 30x68 mm, KN - Electropneumatic control of both motors for joint milling. - Automatic adjustment of the joint milling cutter to the center of the workpiece. Melting unit with granulate container - Granulate container 12L - Level control of the melting quantity Lasertec activation unit standard - The gluing unit is designed so that it can be used with either EVA/PU adhesive or LaserTec. - Manual conversion from LaserTec to PU/EVA Magazine 1 roll - For solid edges, strip goods, and roll goods - Automatic strip separation via vacuum suction cup - 1 edge f ...
