turning diameter: 175 mm
travel -z axis: 435 mm
control: Fanuc
18i-TB
turning length: mm
total power requirement:
kW
weight of the machine ca.: t
dimensions of the machine
ca.: m

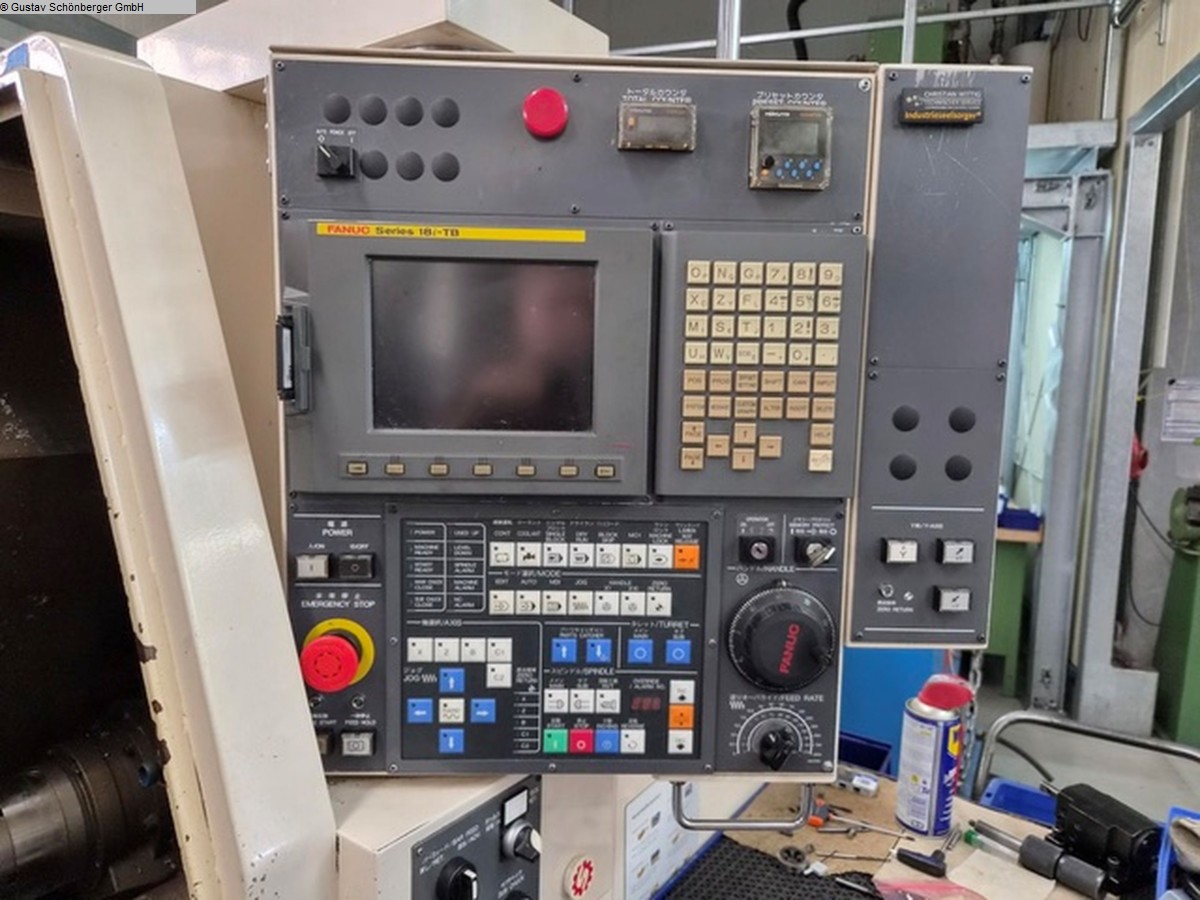

Fanuc 18i-TB control
Collet chuck device main
spindle
Collet chuck device sub
spindle
C-axis
Y-axis

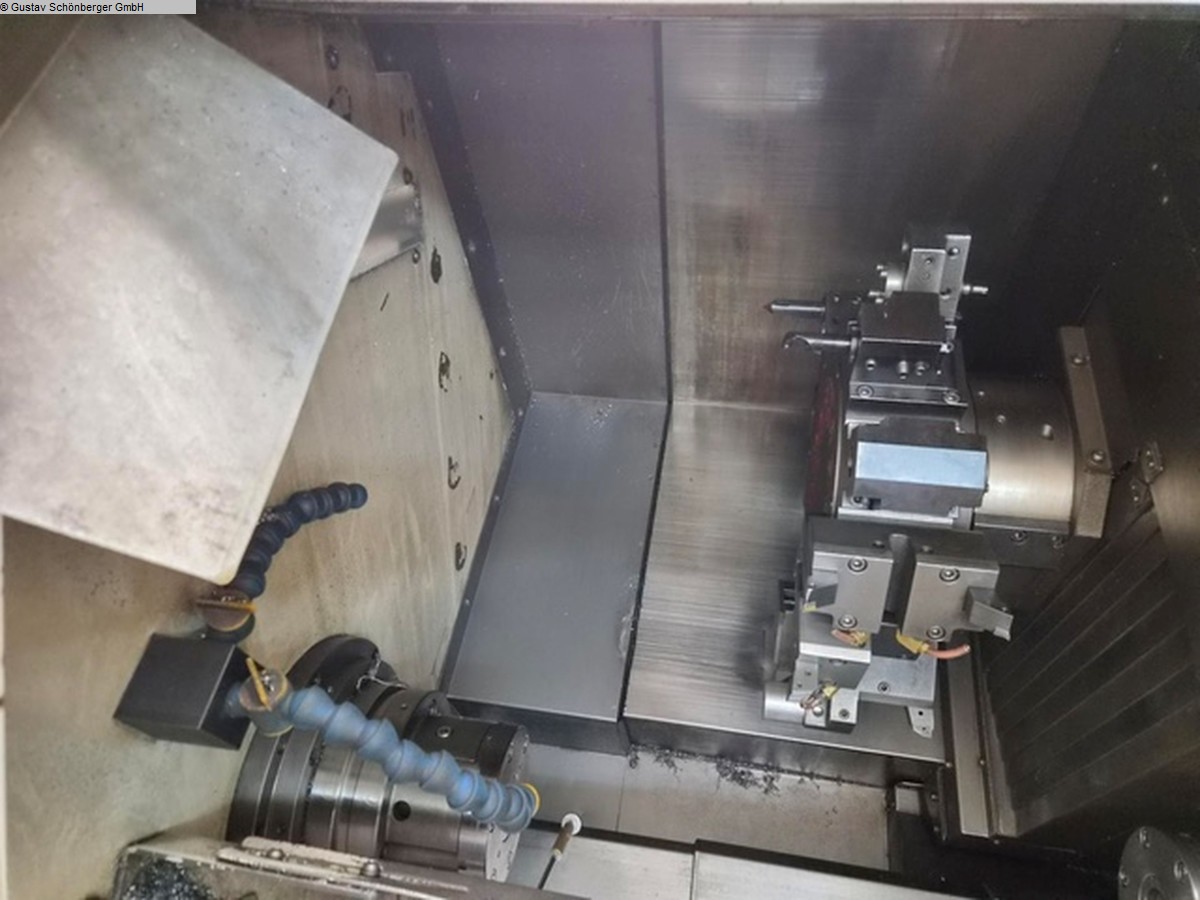

12-fold turret with driven
tools
chip conveyor

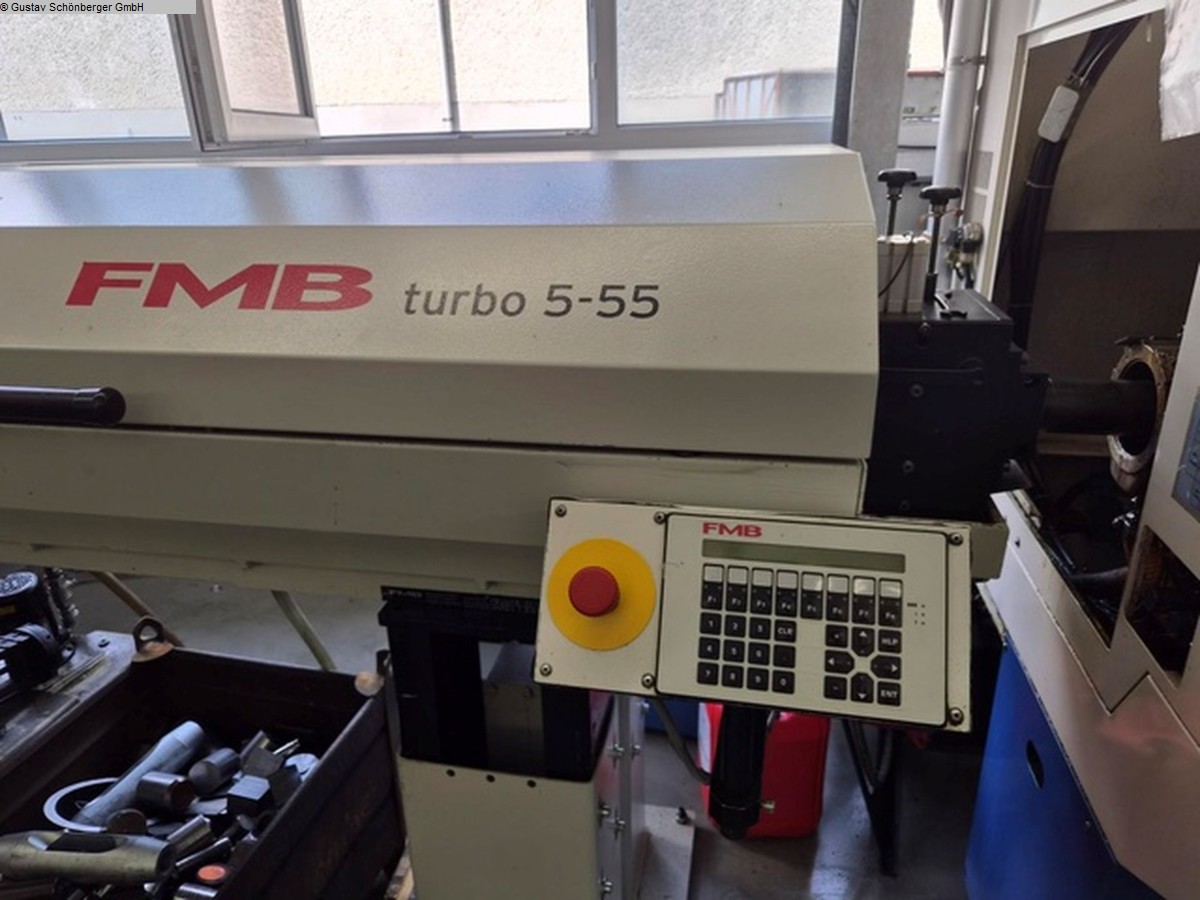

bar loading device

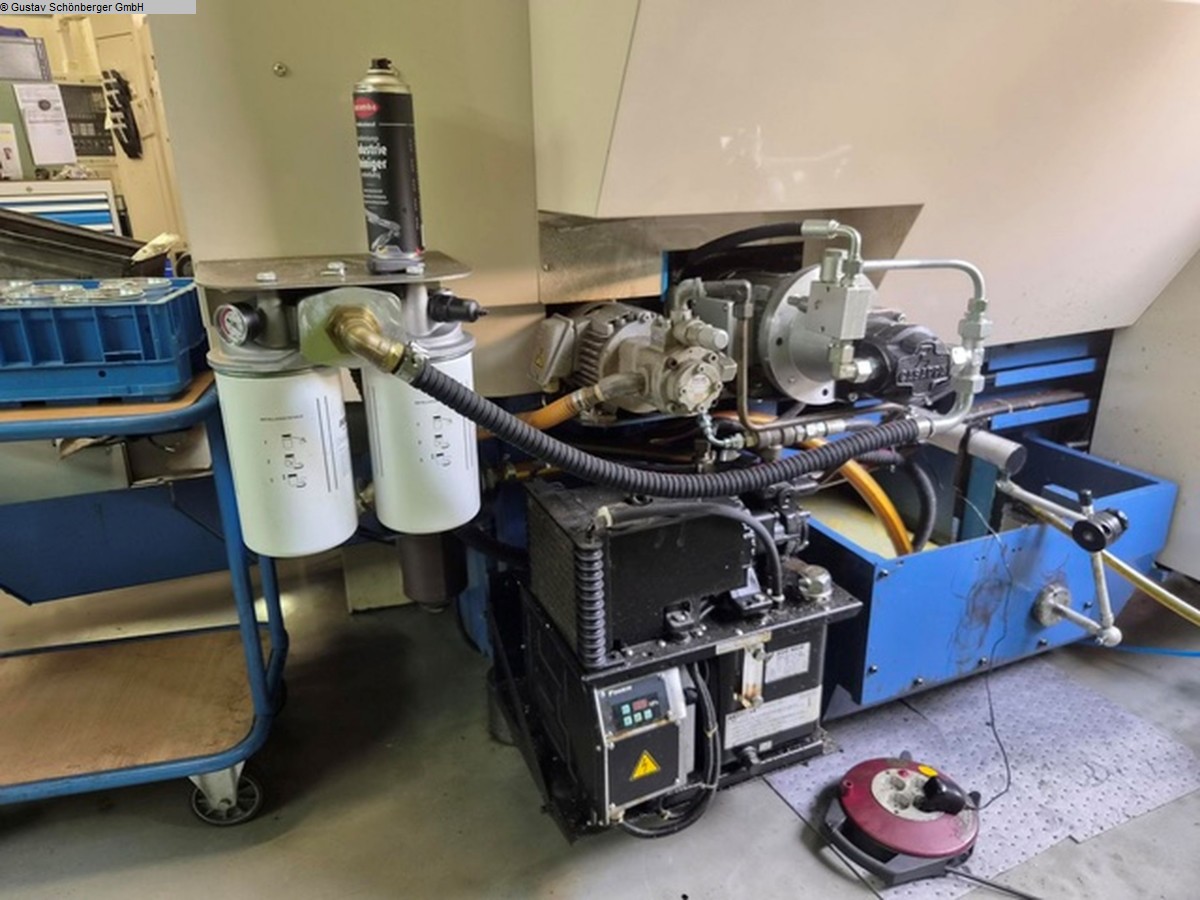

coolant
device
Technische Daten: / technical details
max.
Stangendurchlass / max. bar diameter 51 mm
max.
Drehdurchmesser / max. turning diameter 175 mm
Verfahrweg X
/ travel X 175 mm
Verfahrweg Z / travel Z 435
mm
Verfahrweg Y / travel Y +-40 mm
max. Drehzahl / max.
spindle speed 5000 UpM/rpm
Anzahl der Revolverplätze /
number of tool places 12
Eilgang X,Z,Y / rapid feed X,Z,Y
18,20,12 m/min
Gewicht/weight 4550 kg
Technische
Daten, Zubehör und Beschreibung der Maschine sind unverbindlich
-
Technical data, accessories and description of the machine are
not binding.
