mixing mill used for sale

D=20x36 / 59x111 and D= 16/15,5 x 45 / 71 x 118 KD1410, weight 1kg Auction-ID: A7-51245-116

Mitutoyo LH-600 digital height measuring instrument with QM-Data 100 control/display unit. Measuring range 600 mm, powered on and display visible in the photos. Suitable for quality control and workshop inspection. Auction-ID: A1-51153-58

Manufacturer Nicolás Correa SA, Spain Door Design A-10 Year of manufacture 1989 Registration/machine identification 9562807 Machine type CNC bed-type milling machine X-axis travel 1,300 mm Transverse travel 630 mm Vertical travel 630 mm Table size 1,700 × 630 mm Spindle taper ISO 50 Spindle speed range 80-3,150rpm Spindle motor power 16 kW Table load capacity 3,000 kg machine weight 9,000 kg Auction-ID: A1-51153-77

Incl. WSP, weight 5kg Auction-ID: A7-51245-85

Schlicht/Schrough, NC tapper up to D=20, partly long, from Garant/Fette/Gühring/Atorn, weight 8 kg Auction-ID: A7-51245-24

Deckel FP3LB Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP3LB Serial number: 0554 X-axis travel: 500 mm Y-axis travel: 300 mm Z-axis travel: 400 mm T-slot table size: 300 x 1000 mm Taper: SK40 Speed range: up to 2000 rpm Engine power: 4 kW Machine weight: approx. 1100 kg Dimensions (L x W x H): 2000 x 1200 x 1800 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-65

Hydraulic die spotting press for assembly, adjustment, inspection, maintenance and testing of large moulds and dies. Year 1991. Serial no. 635/2036. Useful platen dimensions approx. 2,000 × 1,500 mm. Distance between columns 2,130 × 1,630 mm. Vertical stroke 1,200 mm. Maximum closing force 1,500 kN (approx. 150 t). Maximum opening force 350 kN (approx. 35 t). Adjustable hydraulic pressure 0–250 bar. Maximum load on lower platen 30,000 kg and upper platen 15,000 kg. Upper platen rotation 100° and lower platen rotation 70°. T-slots 22 mm, DIN 650. Lower platen height from floor 770 mm. Rapid approach speed 65–80 mm/s, working speed 8 mm/s and return speed 35–50 mm/s. Main motor power 11 kW, auxiliary motor 1.1 kW, total installed power 12.1 kW. Electrical supply 380 V / 50 Hz. Approx. overall dimensions 6,150 × 2,130 × 4,700 mm. Approx. machine weight 27,000 kg. Equipped with o ...

Bridgeport by Adcock-Shipley vertical turret milling machine with swivelling head and manual table. Classic workshop milling machine, used condition as shown. Tooling/accessories to be confirmed. Auction-ID: A1-51153-66

Also from Ceratizit and Zürn, all unused, weight 5Kg Auction-ID: A7-51245-125

From Botek/Orion/Jongen, weight 1Kg Auction-ID: A7-51245-15

Diameter 2/3/4/5/6/8/10/12/16/20 mm, also from Gühring et al., weight 2kg Auction-ID: A7-51245-43

MILLER SYNCROWAVE 300 – AC/DC TIG Welding Machine Manufacturer: Miller Electric Model: Syncrowave 300 Machine Type: Industrial TIG / Stick Welding Power Source Condition: Used Technical Specifications Description Specification Brand Miller Model Syncrowave 300 Welding Processes TIG (GTAW) / Stick (SMAW) Welding Current Type AC / DC Maximum Welding Current 375 A indicated on control scale Current Adjustment Continuously Adjustable AC Balance Control Adjustable Pulse Welding Integrated Pulser Pulse Frequency Adjustable Background Current Adjustable Pulse On-Time Adjustable Post-Flow Gas Timer Adjustable, up to 60 seconds Crater Fill Control Integrated Arc Starting High-Frequency Start Amperage Control Panel / Remote Polarity Selection AC / DC / DC Reverse Current Display Analog Ammeter Voltage Display Analog Voltmeter Cooling Ventilated Power Source Main Features - AC/DC TIG welding - S ...

EURO F2 – Universal Milling Machine Manufacturer EURO Model F2 Machine Type Conventional Milling Machine Milling Configuration Vertical Control System Manual / Conventional X-Axis Travel (Longitudinal) Approx. 800 mm Y-Axis Travel (Cross) Approx. 350 mm Z-Axis Travel (Vertical) Approx.450 mm Working Table Dimensions Approx. 1,200 × 300 mm Spindle Taper ISO 30 Spindle Speed Range Machine Weight Approx. 1,300 kg Auction-ID: A1-51153-49

Mostly new, also from Sandvik Auction-ID: A7-51245-99

Deckel FP2 Milling Machine Component Type: Milling machine component Manufacturer: Deckel Model: FP2 Length: approx. 100 cm Height: approx. 31 cm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-59

Deckel FP33 Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP33 T-slot table size: 430 x 1000 mm Approx. dimensions (L x W x H): 2150 x 1800 x 2200 mm 5 horizontal T-slots 2 vertical T-slots Tension clamp: 90 x 90 mm x 4 T-slot width: 20 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-51153-25

GeneralVertical Machining Center; Control: Control M730UM with CELOS CharacteristicsTable surface1350 x 600 mmMaximum load (table centre)1200 KgSpeed max.12000 rpmDrive power (100% DC)22 kWDrive power (25% DC)37 kWTool Magazine with30 PositionsSpindle taperBT 40 Movement X / Y / Z1050/530/510 mmRapid feed X / Y / Z30/30/30 m/minDimensions (L x W x H)3,02 x 2,98 x 2,61 mWeight approx.7000 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with multi touch screens Uniform management, documentation and visualization of order, process - and machine data Networkable with CAD / CAM User friendly and p High-torque spindle 12,000min-1, 37/ 22 kW (#40)High-torque Spindle 12,000 min-1, 37/22 kW (#40) Motor spindle powerMASTER® Spindle speed: 12,000 min-1 Output: 37/22 kW (50/30 HP) (10%ED/cont) Torque: 360/177 Nm (265.52/130. ...

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-20000 rpmDrive power (100% DC)25 kWDrive power (40% DC)42 kWTable size400x400 mmSwivelling range360x1 degreeMaximum load (table centre)400 KgMax. work piece diameter630 mmMax. work piece height900 mmPalett changer with2 PalletMovement X / Y / Z560/560/660 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperHSK-A 63 Max. tool length450 mmDimensions (L x W x H)2,68 x 4,19 x 2,54 mWeight approx.8500 KgPreparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining point and prolonging a tool life. Spindle Taper HSK-A63Spindle Taper HSK-A63 This specification uses ...

Manufacturer: BURKHARDT + WEBER GmbH Model (Typ): MC 100 S0 Machine Type: CNC Horizontal Machining / Boring Center (floor-type) Country: Germany Delivery Date: July 1992 Series: MC Series (Modular Machining Centers) Travels X (Column travel): ~3,000 – 5,000 mm Y (Vertical): ~2,000 – 2,500 mm Z (Ram): ~800 – 1,200 mm W (Spindle quill): ~500 – 800 mm Spindle Diameter: 100 mm (this is what MC 100” refers to) Spindle Taper: ISO 50 / SK50 Spindle Speed: ~2,000 – 3,000 rpm Main Motor Power: ~30 – 50 kW Auction-ID: A1-51153-37

GeneralHorizontal machining center; Control: Siemens S840Dsl with CELOS CharacteristicsSpeed max.-15000 rpmDrive power (100% DC)30 kWDrive power (40% DC)46 kWTable size400x400 mmSwivelling range360x1 degreeMaximum load (table centre)400 KgMax. work piece diameter630 mmMax. work piece height900 mmPalett changer with2 PalletMovement X / Y / Z560/560/660 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperHSK-A 63 Max. tool length450 mmDimensions (L x W x H)2,68 x 4,19 x 2,54 mWeight approx.8500 KgHigh-torque spindle 46 /30 kW, 15,000 min-1High-torque spindle 46 /30 kW, 15,000 min-1 (SIEMENS) Preparation for Center Through-spindle coolant systemCenter Through-Spindle Coolant System It can supply coolant through the holes of the spindle and tool. The coolant supply path to the tool tip is a center-through type. Effective for removing chips, cooling a machining poin ...

GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmDrive power (100% DC)30 kWTable size630 x 630 mmSwivelling range360 x 1 degreeMaximum load (table centre)1500 KgMax. work piece diameter1050 mmMax. work piece height1300 mmPalett changer with2 PalletMovement X / Y / Z1050/900/1030 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with60 PositionsSpindle taperBT 50 Weight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control with m ...

GeneralHorizontal machining center Chip conveyor (ejection to the rear) Coolant gun for setup station side Oil skimmer Sludge collecting function inside coolant tank In-machine measuring system (spindle) touch sensor (Renishaw OMP60) + workpiece setter Tool breakage detection system Manual pulse generator (separate type) Full closed loop control (Scale feedback); Control: Control F31iB with CELOS CharacteristicsSpeed max.-12000 rpmDrive power (100% DC)30 kWTable size630 x 630 mmSwivelling range360 x 1 degreeMaximum load (table centre)1500 KgMax. work piece diameter1050 mmMax. work piece height1300 mmPalett changer with2 PalletMovement X / Y / Z1050/900/1030 mmRapid feed X / Y / Z60/60/60 m/minTool Magazine with120 PositionsSpindle taperHSK-A 100 Weight approx.18750 KgCELOS - ERGOline TouchCELOS - ERGOline Touch to facilitate machine operation incl. 21.5 " ERGOline Touch ® control w ...

Mori Seiki NT 5400 DCG - 1800 SZYear of manuf. : 2009 Control : Fanuc 30i (MSX-711) Turning diam. : 920 mmTurning length : 1800 mm____________Description:In General:Year of manufacture:2009Control system:Fanuc 30i (MSX-711)Max. turning diameter:920 (470) mmTurning length:1,800 mmBar capacity:103 mmMilling spindle:8,000 rpm, HSK 100Main spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Sub spindle:RPM:2,400Max. power:37 kWMax. torque:1,432 NmC-axis:0.001°Chuck:SMW Autoblok KNCS 500-155Tool carrier I (X/Y/Z/B):Technology:Traveling column with milling spindleMilling spindle:8,000 rpmPower:30 kWTorque:302 NmTool holder:HSK 100X-axis:1,040 mmY-axis:510 (+/- 255 mm) mmZ-axis:1,940 mmB-axis:+/- 120°, index 1°Tool carrier II (X/Z):Technology:Cross slide with tool turretTool drive:6,000 rpm, 40 NmNumber of stations:10X-axis:267 mmZ-axis:1,8 ...

x-travel: 1200 mm y-travel: 600 mm z-travel: 600 mm control: Sinumerik 840D SIEMENS table-size: 1.420 x 600 mm table load: 2,0 t spindle taper ISO: 50 spindle turning speed range: 4.000 U/min feed: 2.000 mm/min rapid traverse: 10,0 m/min voltage: 400 V total power requirement: 42 kW weight of the machine ca.: 6,5 t dimensions of the machine ca.: 3,60 x 2,45 x 2,15 m coolant tank: 1,25 x 1,25 x 0,50 m - Serial-No.: 076 - Control system: SIEMENS Sinumerik 840D - Electric handwheel - Hydraulic tool clamping with foot switch - SEMPUCO universal milling head - Coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

HURON VX8 CNC Machining Center – Year 2015 For sale is a CNC vertical machining center HURON VX8, built in 2015, with Heidenhain TNC 620 control. The machine is in very good general condition, has been tested in the workshop and is energized. With a spindle speed of up to 12,000 rpm, a 24-fold tool changer and a wide range of accessories, the machine offers solid equipment for demanding milling operations. Technical data Manufacturer: HURON Model: VX8 Year of Make:2015 Control: Heidenhain TNC 620 Engine hours ON: 22,873 h Program running time: 6,968 h Travel X: approx. 820 mm Travel Y: approx. 510 mm Travel Z:approx. 510 mm Rapid traverse:approx. 24 m/min Usable table surface: approx. 1,000 × 530 mm Permissible table load: approx. 500 kg Spindle speed: up to 12,000 rpm Tool holder:ISO 40 Tool changer:24 places Dimensions (L × W × H): approx. 2, ...

Granulator - MSM FW 35 Description: Slow-moving granulator with gearbox Power: 2.2 kW 2 stator blades, 21 rotor knives, the sieve - interchangeable Hopper inlet: 350x210 mm Grinding chamber opening: 350x180 mm Hole for material case is prepared for connection with suction conveyor All offered devices are started by our service technicians before they are sold. It is possible to receive a video of the technical tests of the selected machine or to participate in live technical tests at our company in Łódź. Price: On request

Key data: 630 mm, 500 mm, 500 mm

Control: Name: Heidenhain Technical data: • Spindle: 20-7000 rpm • Table: 900 mm x 528 mm • SK40 interface • Quill • Semi-cabin Prior sale is reserved. No liability is assumed for the technical information provided here. The legal provisions apply.

HAAS VF-2SS CNC vertical machining center was built in 2013 in the United States by HAAS AUTOMATION, INC. The machine is designed for the automatic machining of metal workpieces weighing up to 680 kg. It performs such operations as precision milling, threading and drilling. Its wide machining capabilities, combined with proven components, make it an excellent choice for the production of repeatable parts used in many industries. The HAAS VF-2SS is equipped with a spindle with Inline Direct-Drive drive, reaching a maximum speed of 12000 rpm. It cooperates with a 31-position tool magazine that automatically changes tools according to the machining program. Machining is performed in three axes, X, Y and Z, with feed ranges of 762 mm, 406 mm and 508 mm respectively. The worktable with T-slots allows for the quick clamping of the tooling and workpieces. The machine’s rigid design ensures ...

HAAS VF-4SS CNC vertical machining center was built in 2012 in the United States by HAAS AUTOMATION, INC. The machine is designed for the automatic machining of metal workpieces weighing up to 794 kg. It performs such operations as precision milling, threading and drilling. Its wide machining capabilities, combined with proven components, make it an excellent choice for the production of repeatable parts used in many industries. The HAAS VF-4SS is equipped with a efficient spindle reaching a maximum speed of 12000 rpm. It cooperates with a 31-position tool magazine that automatically changes tools according to the machining program. Machining is performed in three axes, X, Y and Z, with feed ranges of 1270 mm, 508 mm and 635 mm respectively. The worktable with T-slots allows for quick clamping of the tooling and workpieces. The machine’s rigid design ensures stable operation even du ...

With two machining modules, X-axis: -50 to 725mm, Y-axis: -200 to 300 / -250 to 250mm, rapid traverse X-, Y-, Z-axis: 18/12/30m/min, control: Siemens Sinumerik, temperature range: 5–40°C, power type/frequency: 3 PEN / 50Hz, rated voltage: AC 400V, control voltage: DC 24V, auxiliary voltage: AC 230V, connected load: 102kVA, rated current: 148A, rated current (fast): 148A, fuse (slow): 160A, length: 8000mm, width: 3000mm, height: 4000mm, weight: approx. 17t, operating hours: approx. 80,000h. The machine is fully functional, the ball screw drive (recirculating spindle) of the Z-axis was renewed in 2024 and it has been regularly maintained. Comes with documentation, control cabinet, hydraulic unit, filter elements, and chip conveyor. An on-site inspection is possible.

table-size: 1300 x 280 mm travel -x axis: 950 mm travel -y axis: 300 mm travel -z axis: 450 mm spindle speed:: 60–3.000 U/min : 16 spindle taper: NT40 quill stroke: 140 mm automatic feeds: 13–600 mm/mi rapid traverse: 2.500 mm/min m/min table load: max. 250 kg weight of the machine ca.: 2040 kg dimensions: 2.450 × 1.800 × 2.370 mm The machine is equipped with a digital position display, a machine vise, a swiveling vertical milling head, and several mechanical feed drives. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

315 kW/450 hp, 1500 rpm, reading hours 816, equipped with receiving hopper with jacks. Equipped with digital Pro-face touchscreen/HMI. Total dimensions approximately 1600x4160x7300mm. Please note! This lot is part of a combination lot. Namely lot 21. Auction-ID: A1-51255-3

1,0 pcs. Granulator incl. extraction Manufacturer: DREHER Year of Make: 1998 Type: S34/52 GFS Spec. Insertion size: 375 mm x 370 mm Rotor diameter: 340 mm Rotor width: 520 mm Motor power; 2 2 KW

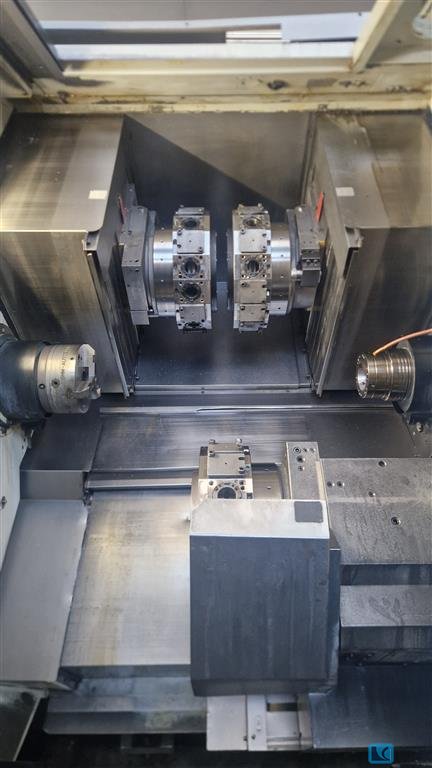

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS IV greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm D ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

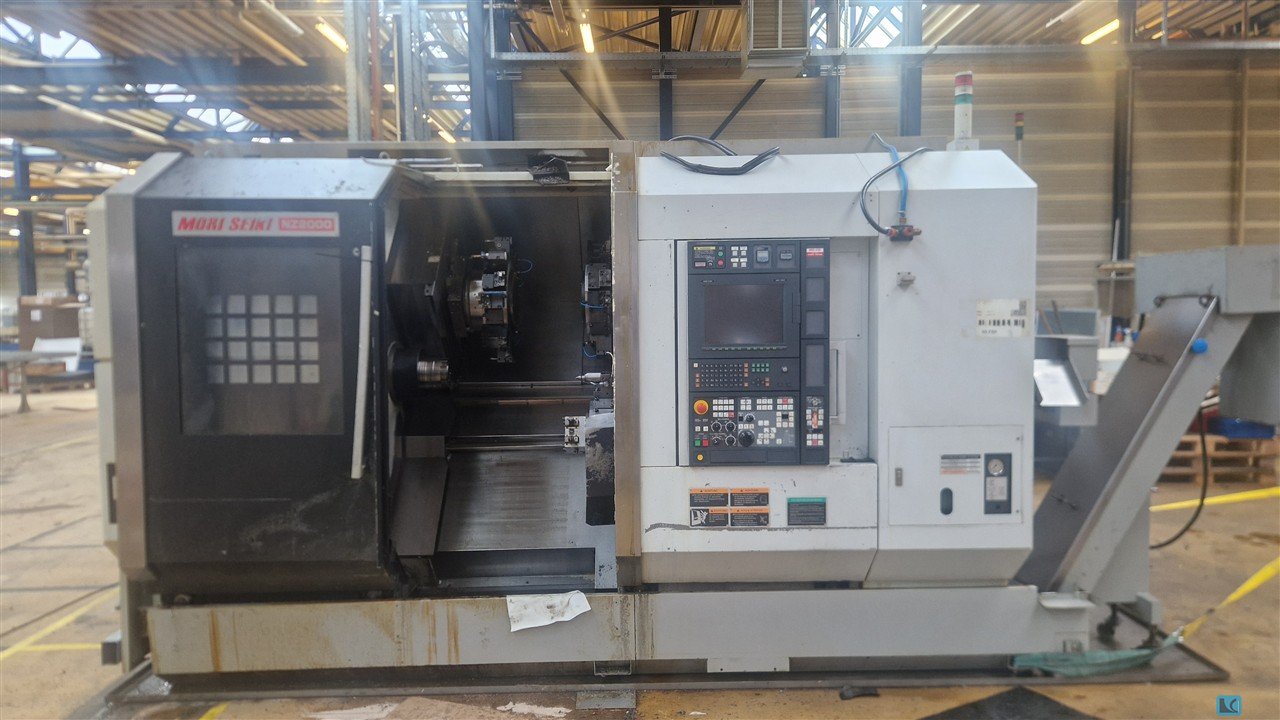

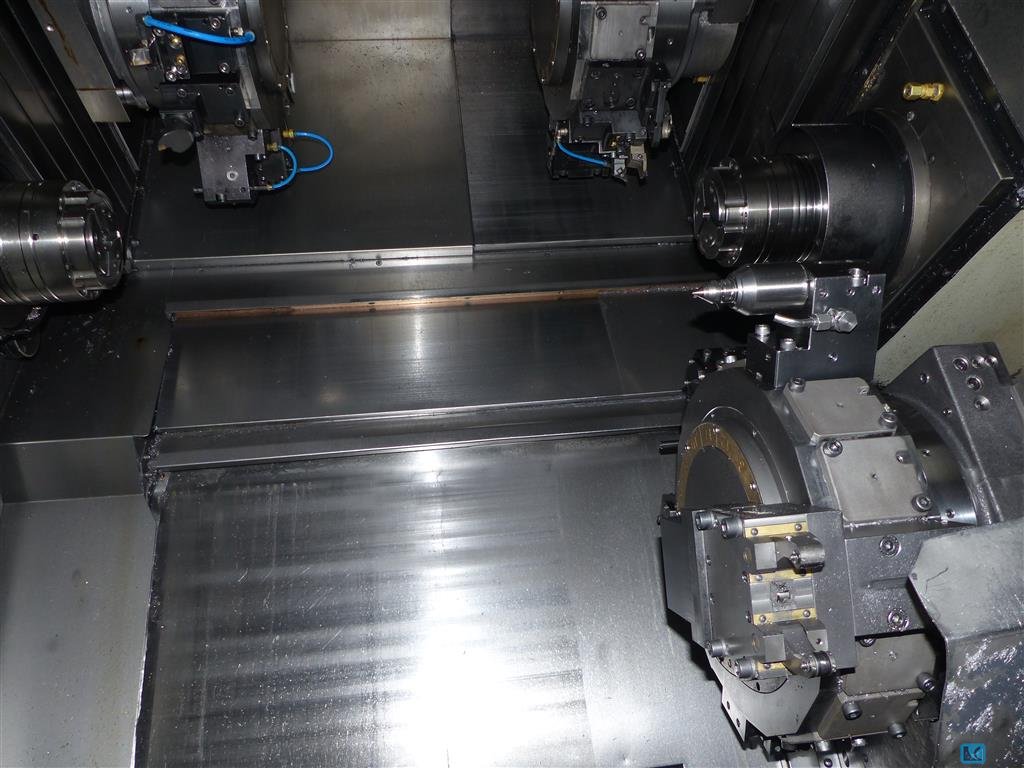

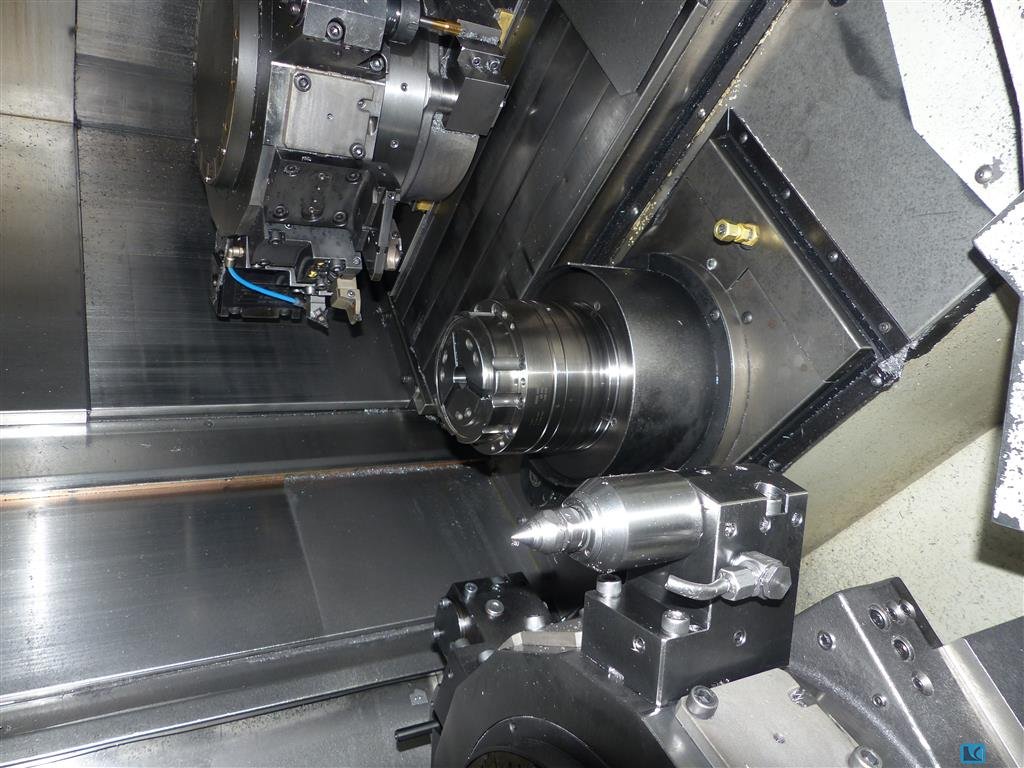

standard turning dia.:200 turning length:max. 810 mm control:MSX-701 MAPPS III greates pass round over bed:800 mm Max. distance between centres:1130 mm max. turning diameter:320 mm max. workpiecediameter:300 mm bar material dia.:65 mm Traverse X-Axis 1:210 Traverse X-Axis 2:210 mm Traverse X-Axis 3:210 mm Traverse Y-Axis 1:110 (+65/-45) mm Traverse Y-Axis 2:110 (+45,/-65) mm Traverse Z-Axis 1:300 mm Traverse Z-Axis 3:300 mm Traverse Z-Axis 2:810 mm Traverse B-Axis:870 mm turning speed range - spindle:5.000 1/min Number of spindle speed ranges:2 . spindle nose:JIS A2-6 spindle bore:73 mm spindle bearing diameter:120 mm C-Axis:0,001 ° turning speed range - spindle:5.000 1/min spindle nose:JIS A2-6 spindle bore:73 mm bar material dia. max:65/52 mm spindle bearing diameter:120 mm C-Axis:0,001 ° Number of Turrets:3 . Number of tool stations:16 x 3=48 pos Schank height for square tool:20 mm  ...

turning diameter:410 mm turning length:500 mm control:Fanuc 21i TB standard turning diameter:275 mm travel -x axis:277 mm travel -y axis:82 (±41) mm travel -z axis:500 mm Spindle 1 RPM:4500 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:65 mm turret stations / rotary tool stations:12/12 Power rotary tools:5,5 kW RPM of rotary tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m collet chuck:Hainbuch High precision Turning and Milling Centre with Y-axis. Machine was running with oil, not coolant. A fire extinguisher system is installed.

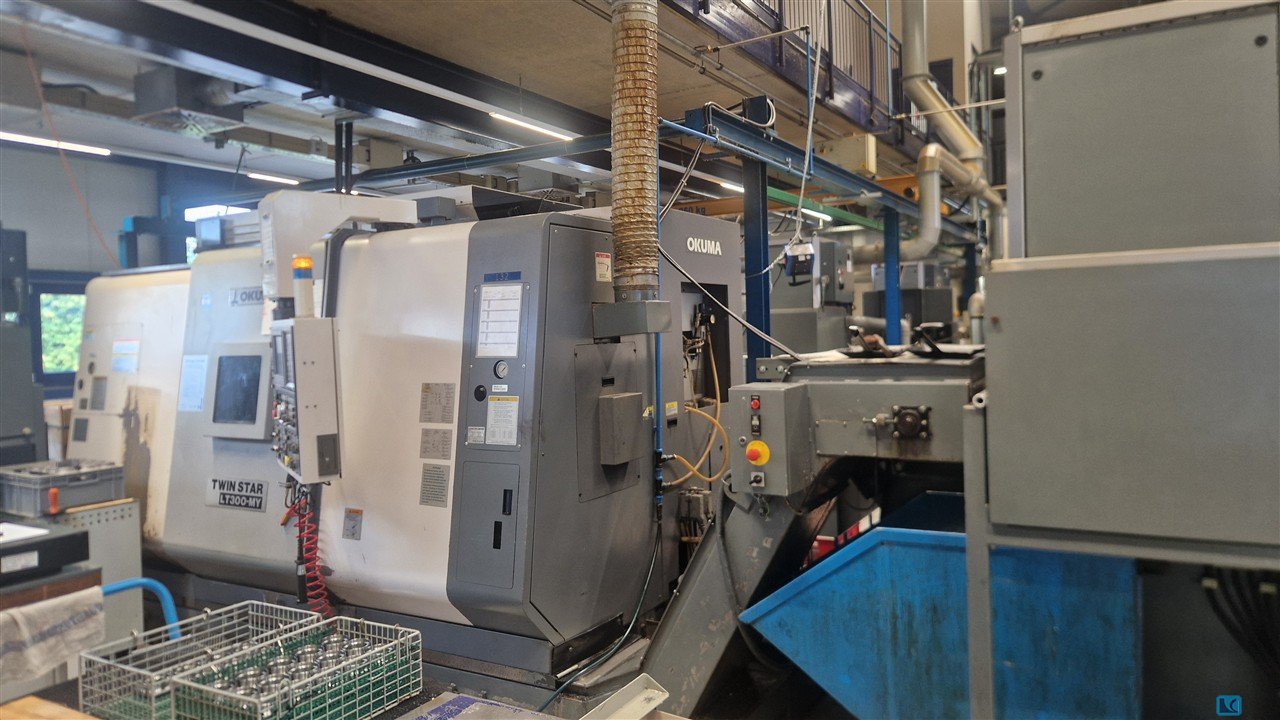

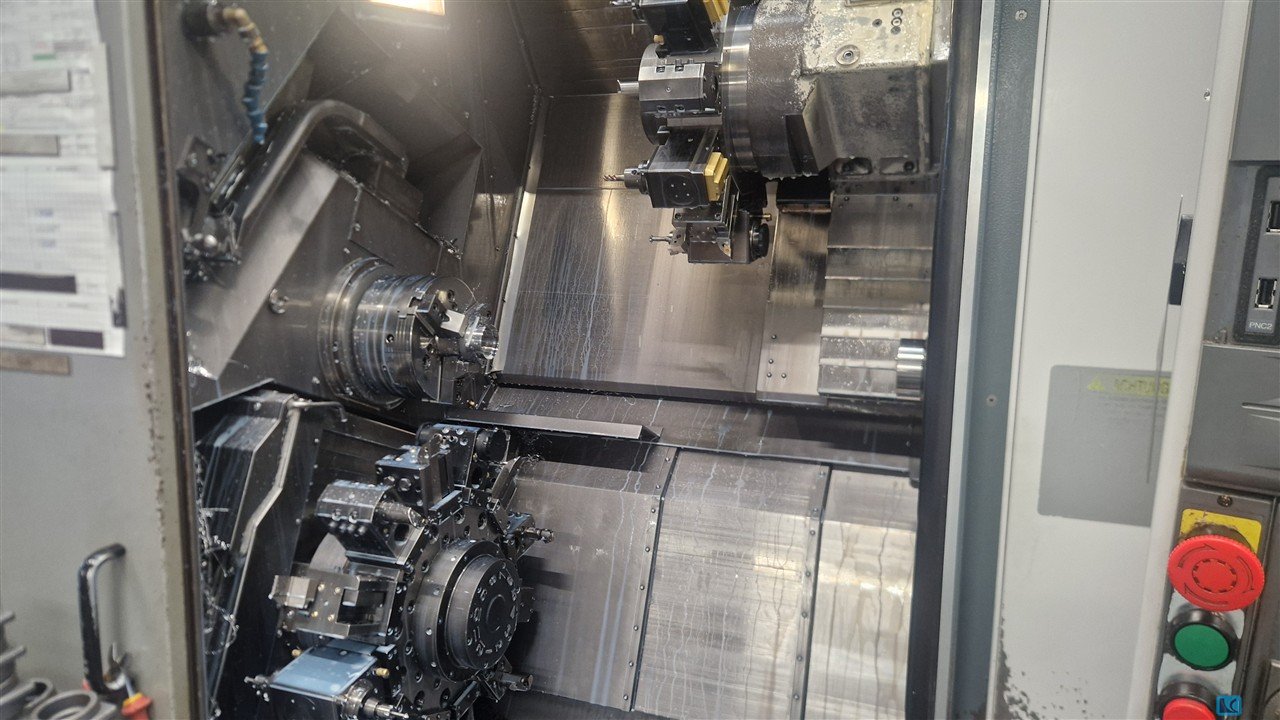

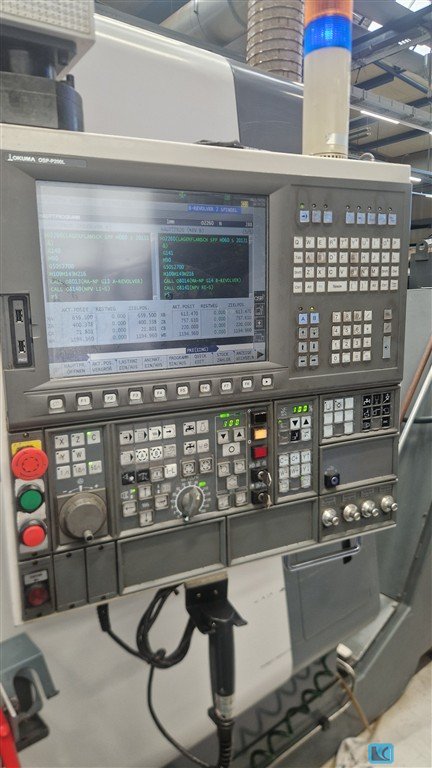

max. turning diameter:350 mm turning length:1040 mm control:OSP E 100 L Fanuc greates pass round over bed:550 mm Max. distance between centres:1200 mm max. workpiecediameter:550 mm Traverse X-Axis 1:270 Traverse X-Axis 2:230 mm Traverse Y-Axis 1:120 (±60) mm Traverse Z-Axis 1:930 mm Traverse Z-Axis 2:920 mm Spindle 1 Power:22 / 15 kW Spindle 1 RPM:5000 1/min spindle nose:JIS A2-8 bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 VDI 40 Turret 1 tool RPM:4500 1/min Turret 1 power rotary tools:7.0 / 3,3 kW Turret No.2 stations / rotary tools:12/12 VDI 40 Turret 2 tool RPM:4500 1/min Turret 2 power rotary tools:7.0 / 3,3 kW rapid traverse X-axis:30 m/min rapid traverse Y-axis:26 m/min rapid traverse Z-axis:40 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:7,0 x 2,3 x 2,3 m spindle load m ...

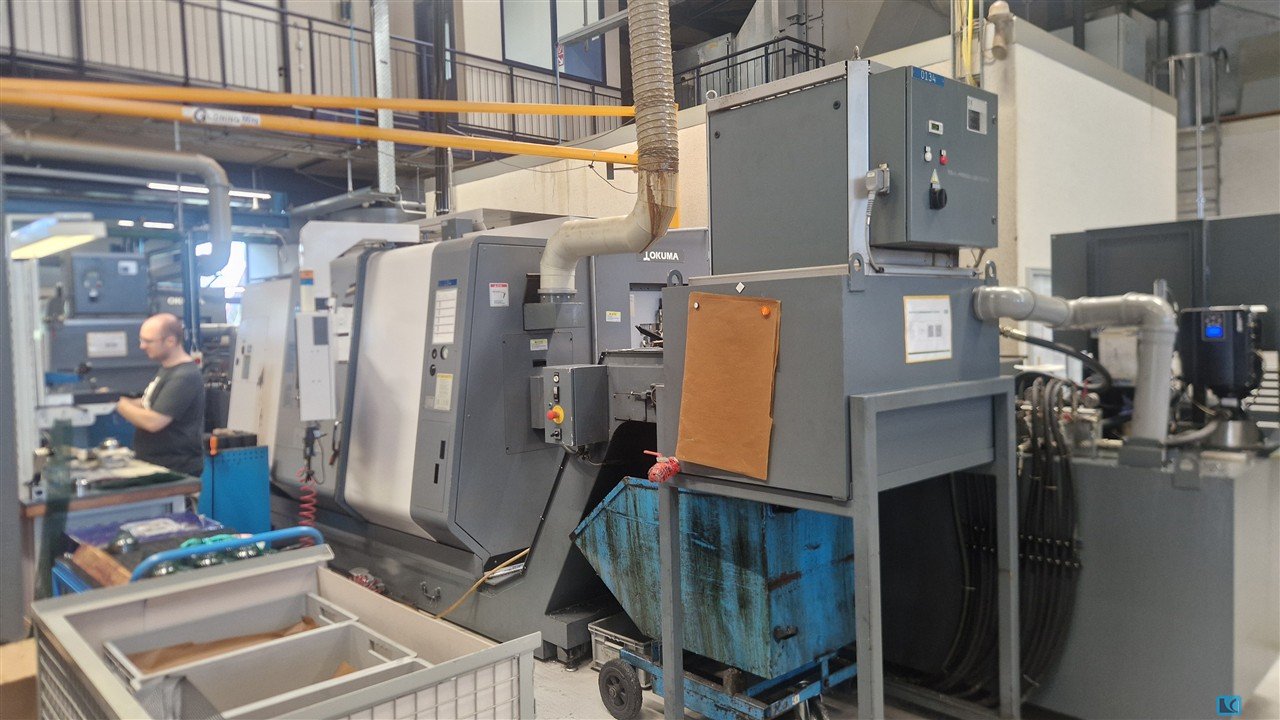

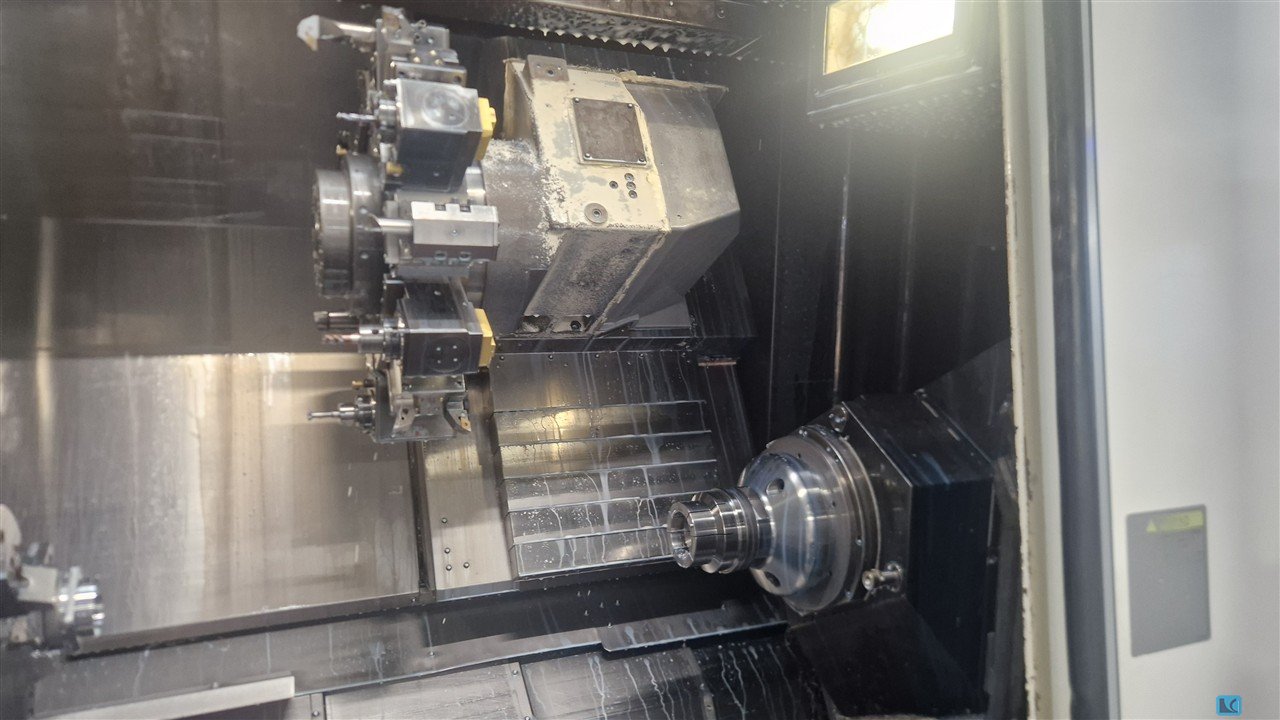

max. turning diameter:320 mm turning length:1040 mm control: OSP E 100 L Dialog Fanuc greates pass round over bed:530 mm standard turning dia.:350 Max. distance between centres:1200 mm max. workpiecediameter:525 mm Traverse X-Axis 1:500 Traverse X-Axis 2:350 mm Traverse Y-Axis 1:160 (+80/-80) mm Traverse Z-Axis 1:1200 mm Traverse Z-Axis 2:1200 mm Spindle 1 Power:22 kW Spindle 1 RPM:3800 1/min spindle nose:JIS A2-8 spindle bore:80 mm bar material dia.:65 mm C-Axis:0,001° Number of Turrets:2 Turret No.1 stations / rotary tools:12/12 Turret 1 tool RPM:4500 1/min Turret No.2 stations / rotary tools:12/12 rapid traverse X-axis:20 m/min rapid traverse Z-axis:25 m/min total power requirement:33 kVA weight of the machine ca.:10 t dimensions of the machine ca.:6,0 x 2,5x 2,3 m High pressure coolant system:INterlit 8/20 bar spindle load monitor:B Spindle 1 Chuck:SMW 300 mm CNC Turning-and Milli ...

x-travel:14000 mm y-travel:3100 mm z-travel:1.200 mm (220 - 1.420) mm distance between columns:4.417 mm table-size:14.000 x 2.500 mm workpiece weight:15.000 kg/m drive capacity - spindle motor:25 kW spindle cone:63 HSK spindle turning speed range:18000 rpm milling feeds:30000 mm/min dimensions of the machine ca.:15.000 x 8.418 x 6.033 mm weight of the machine ca.:135 t CNC controller: SIEMENS 840 D universal milling head:5 Achsen mit ?C5C? Elektrospindel automatic tool changer:24 fach

x-travel:2000 mm y-travel:800 mm z-travel:800 mm table-size:2.000 x 700 mm workpiece weight:3500 kg drive capacity - spindle motor:17 kW spindle cone:50 ISO spindle turning speed range:3000 U/min dimensions of the machine ca.:5265 x 3250 x 2730 m weight of the machine ca.:9 t CNC controller:HEIDENHAIN TNC-426 :manuell used universal bed type milling machine with chip conveyor, automatic 2 position (vertical/horizontal) head 3000Rpm The retrofitting jobs done in this machine, are the same than those done to all of our machines. - Completely repair of the head, replacing bearings, shafts and engaging gears. - Completely replacement of all the bearings of the machine. - Replacing the joining screws of the bodies. - Completely repair of spindles. - Adjustment and repair of axis. - Grinding and adjusting all guides, because of deterioration. - Grinding and adjusting of the guide ways of the ...

x-travel:600 mm y-travel:580 mm z-travel:530 mm distance spindle center to column:630 mm distance spindle center to table:100-600 mm milling feed range:1-10.000 mm/min max. table load:200/100 kg max. tool weight:8 kg positioning accuracy:+/- 0,01 mm :8000/15000 1/min spindle drive:7,5/11,5 /5,5 kW repeating accuracy:+/- 0,008 mm weight of the machine ca.:7,4 / 7,65 t Brand-new CNC vertical machining center with CNC control FANUC or HEIDENHAIN Warranty: 12 months More information can be found in the Appendix.

x-travel:1000 mm y-travel:1150 mm z-travel:700 mm table-size:900 mm table load:1500 kg spindle speeds:10.000 1/min spindle drive:Motorspindel von Cytec CS34-180-A 34&42KW/160&200 Nm spindle taper:A100 HSK T-slots:18mm/7/100 mm milling feed range:20.000 mm/min rapid traverse feeds:X/Y/Z: 24 m/min diameter of tools max.:150 mm workpiece length:300 mm weight of tools max.:20 kg weight of the machine ca.:15 t dimensions of the machine ca.:s. Katalog m CNC controller:Heidenhain iTNC-640 HSCI-Steuerung cnc rotary table:von Cytec; mit Ø900mm; 800 1/min Drehmomenttisch (AS3347) + HSK-T63/100 Spindel & ATC + TNC-640 Fräsdrehzahlregelung B-axis:Fräskopf, 0-180° c-axis:0,001° automatic tool changer:HSK-A/T100; 60 fach Scales:in X/Y/Z von Heidenhain mit Druckluft inner coolant:20

x-travel:6000 mm y-travel:2100 mm z-travel:1500 mm Controls:HEIDENHAIN iTNC 530 BASIC DESIGN:. - basic design : travelling column :. WORKING RANGE -MILLING-:. - x-axis travel:6000 mm - y-axis travel:2100 mm - z-axis travel:1500 mm WORKING SPINDLE / HEAD:. - spindle type : orthogonal head :. - tilting range:360 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - tilting range (2nd axis):270 ° - - mode of operation : automatic :. - - positioning/indexing:1 ° - spindle revolutions (min):20 /min - spindle revolutions (max):4000 /min - spindle diameter:90 mm - taper fixture : ISO SK 50 :. - spindle power (continuous):32 kW - torque (max.):910 Nm AXIS DRIVES:. - feed velocity (min):2 mm/min - feed velocity (max):20000 mm/min - rapid traverse:25000 mm/min ELECTRICAL SPECIFICATIONS:. - total power consumption:79 kW - mains voltage:400 V - mains freque ...

rotor dia:30-500 mm hobbing length:500-1000 mm total power requirement:80 kW weight of the machine ca.:15 t dimensions of the machine ca.:3,6 x 2,5 x 3,0 m max. module:8 Max. module Et milling = 12 Max. module hobbing = 12 Max. axial travel = 110 to 1100mm Max. cutter speed = 300rpm Max. cutter displacement tangential = -350 to -55mm Max. table speed = 100rpm Table drive: torque motor Filter system: chip conveyor is for magnetic materials, belt filter is for all suspended matter that floats in the oil Including milling mandrel

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with live tools:VDI40 Live tooling VDI40 with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.
