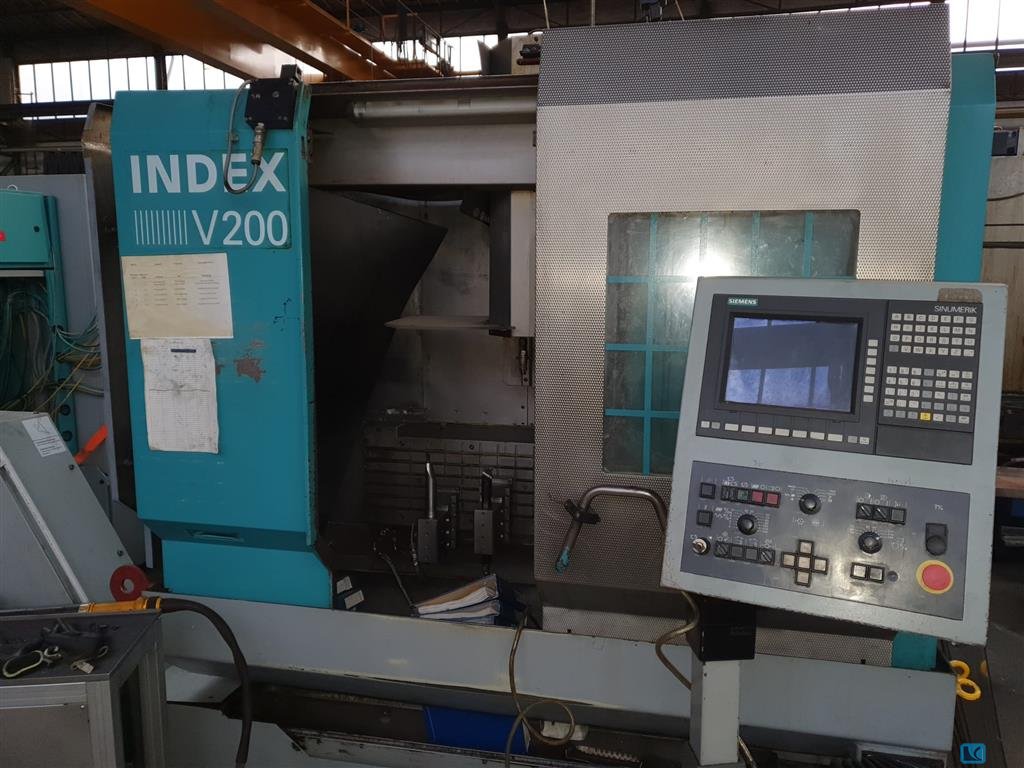

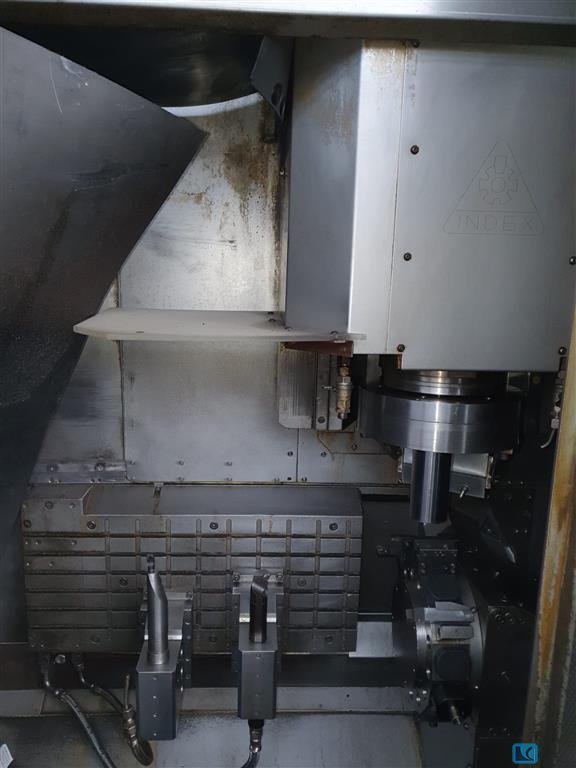

turning diameter:200 mm swing diameter:260 mm turning height:200 mm Tool table:1054 x 400 mm Dimensions (L/W/H):2200 x 2300 x 2300 mm weight:3300 kg slide travel radial ( X-axis ):520 mm slide travel axial ( Z-axis ):200 mm no pallet circulating belt, no C-axis, no driven tools

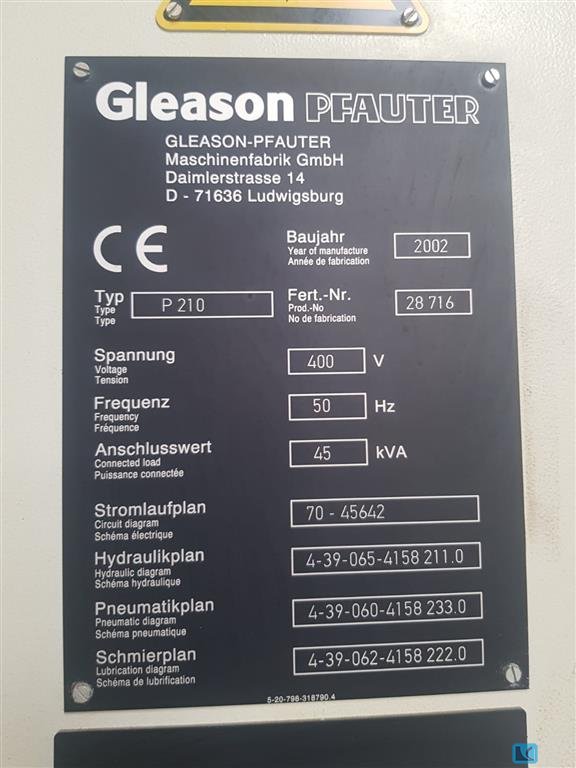

max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:8,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
x-travel:800 mm y-travel:400 mm z-travel:350 mm total power requirement:44 kW weight of the machine ca.:8,8 t dimensions of the machine ca.:6,1 x 4,1 x 3,3 m tool taper:HSK63 number of spindle speeds:36-12.000 Number of tools:2 x 21 St. rotary table diameter:1340 mm
weight of the machine ca.:8 t dimensions of the machine ca.:2,95 x 1,6 x 2,36 m chucking diameter:250 mm swing diameter:265 mm x-travel:170 mm z-travel:200 mm spindle turning speed range:1.500 U/min spindle bearing diameter:100 mm Pick-up machine
max. wheel diameter:200 mm gear width:250 mm max. module:3 min. module:0,5 total power requirement:45 kW weight of the machine ca.:6,5 t dimensions of the machine ca.:4,4 x 2,4 x 2,7 m Machine out of prototype production Without automation
turning diameter:250 mm swing diameter:250 mm turning height:200 mm total power requirement:37,7 kW chuck diameter:315 mm spindle speed max.:5500 1/min travel -x axis:625 mm travel -y axis:+100/-80 mm travel -z axis:250 mm worktool system:VDI 30+40 weight of the machine ca.:8 t The synchronous spindle is powered with 37.7 kW of power, a torque of 300 Nm and a maximum speed of 5,500 rpm. Typical components are ball cages, ball hubs, gear wheels, sliding sleeves, pump wheels, flanges, synchronizer rings, bearing rings and pivot pins. The machine bed is made of Hydropol, a mixture of special concrete and steel, which ensures the greatest smoothness and precision even with larger components and powerful machining.
max. wheel diameter:280 mm max. module:7 weight of the machine ca.:13 t table turning speeds:100 U/min table diameter:250 mm min. number of teeth:4 hob turning speeds:1500 U/min max. hob diameter:160 cutter length max.:230 mm Machine in good condition. Available 01.08.2024
max. wheel diameter:200 mm gear width:60 mm max. module:7 weight of the machine ca.:15 t table diameter:180 mm table turning speeds:100 U/min hob turning speeds:750 U/min Machine in good condition, without feed, without automation Available 24.08.2024

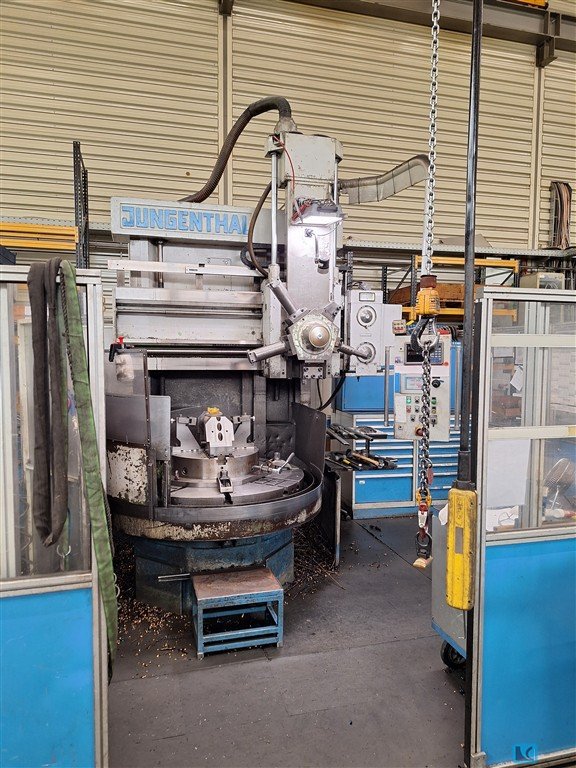

turning diameter:1000 mm swing diameter:1000 mm Machine type: Vertical lathe Manufacturer: Hessapp Type: DV 62 Serial no.: 14.2308 Working range of the spindle Largest diameter 1000 mm Largest swing diameter 1000 mm Cross slide travel Stroke of the vertical slide 900 mm Stroke of the horizontal slide 1810 mm Total travel 2315 mm Turning spindle Spindle head with centering cone according to DIN 55021 A15 Spindle diameter in the front bearing 203 mm Main drive Via a controlled asynchronous motor and gear transmission with range switching. Spindle speeds Speed range I: 5 - 350 rpm. Speed range II: 30 - 1000 rpm. Travel speed X/Z axis: 10 m/min. W1 axis: 8 rpm No C-Axis

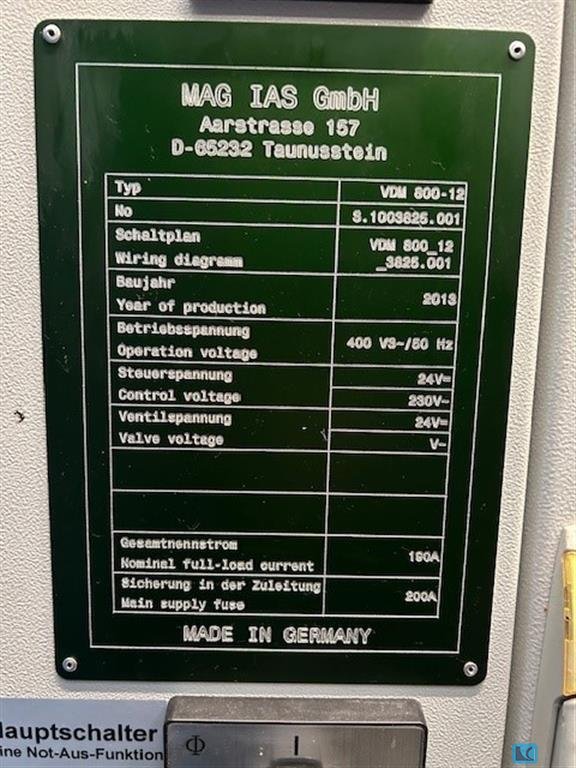

faceplate diameter:800 mm power requirement:110 kW weight of the machine ca.:37.000 / total 52.000 t transport measurements machine:5,07 x 2,98 x 3,90 m clamping diameter:800 mm :Ø 800 x 720 mm Tool bore:Capto C6 tools in tool magazin:2 x 80 With C-Axis
max. wheel diameter:900 mm max. module:10 weight of the machine ca.:8200 kos. hob dia. - max.:190 mm cutter length max.:320 mm milling spindle speeds (infinitely variable):13-80 U/min workpiece length - max.:750 mm max. workpiece diameter:150 mm Counter holder milling mandrel is missing
faceplate diameter:1600 mm power requirement:80 kW weight of the machine ca.:25 t dimensions of the machine ca.:4,4 x 4,62 m max. workpiece diameter:2000 mm max. diameter of face turning:1800 mm tool taper:ISO50 The machine has been regularly serviced and is in good technical condition. With C-Axis

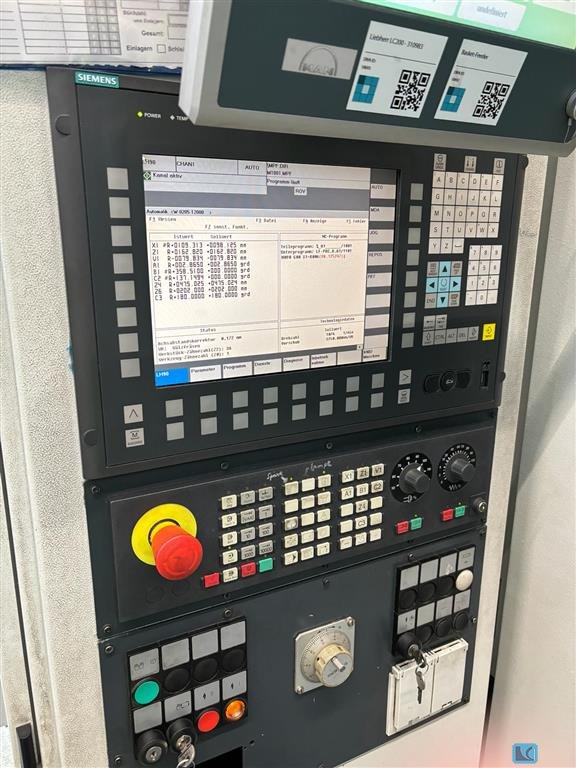

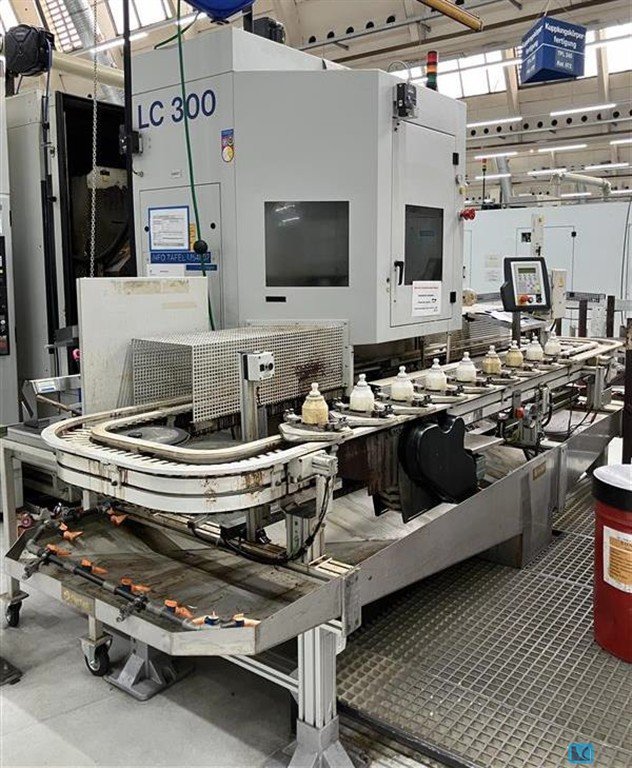

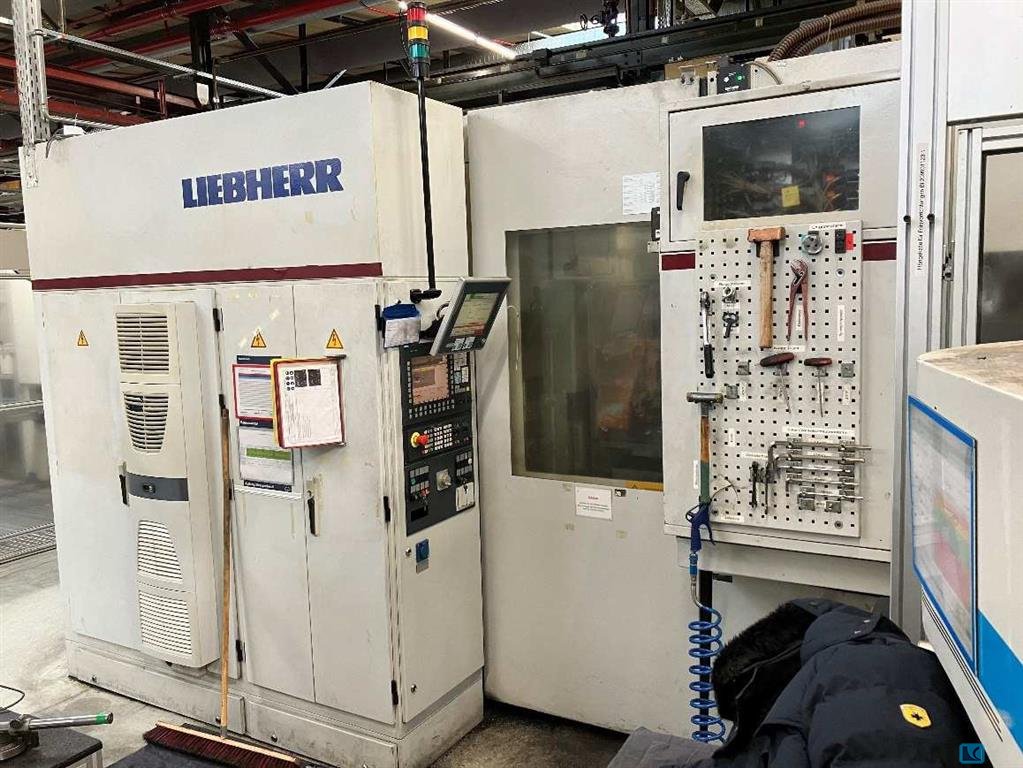

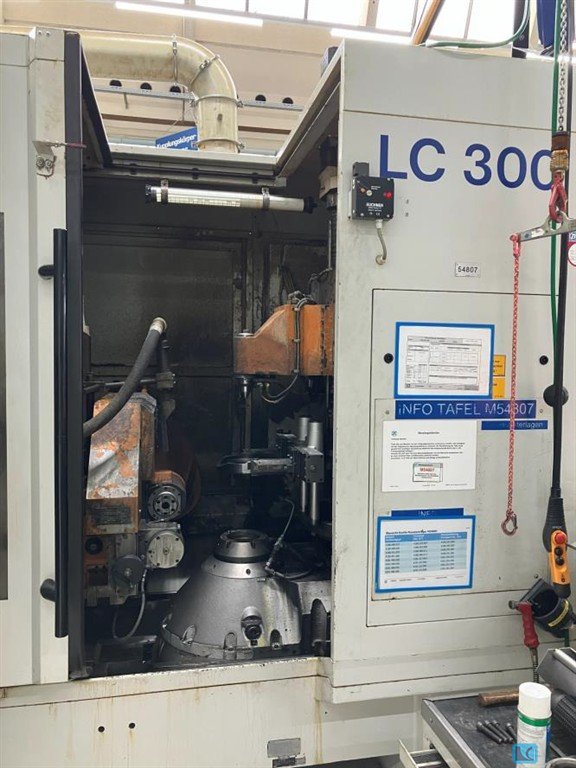

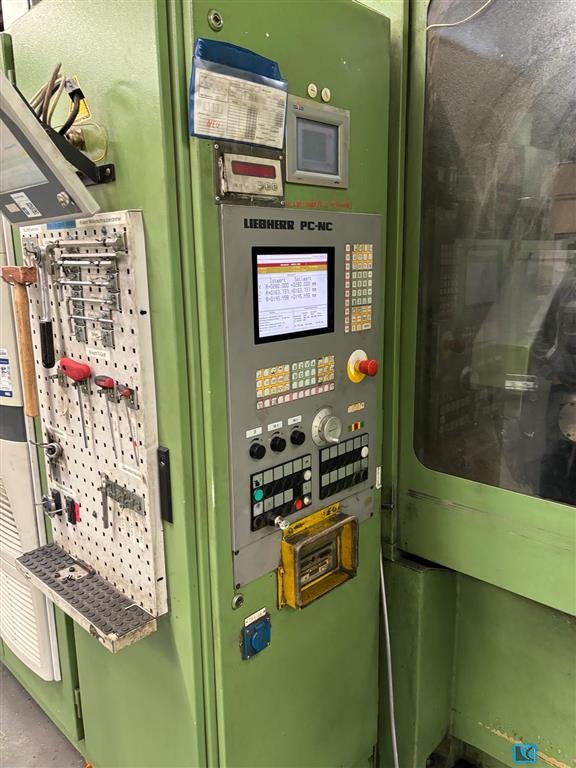

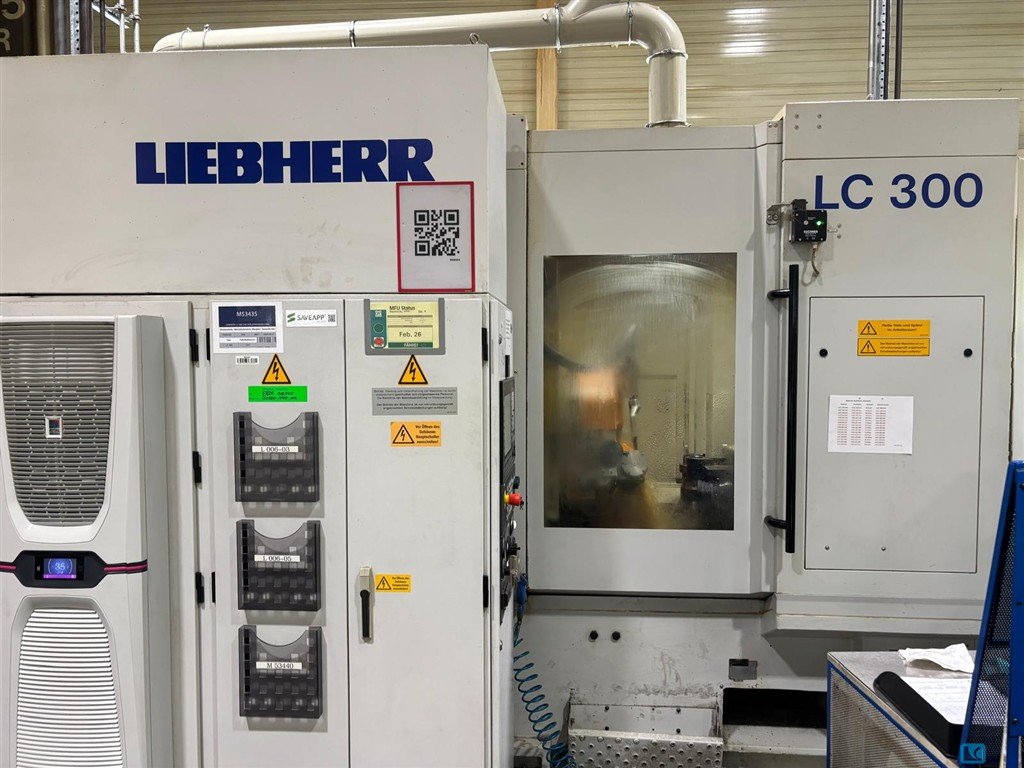

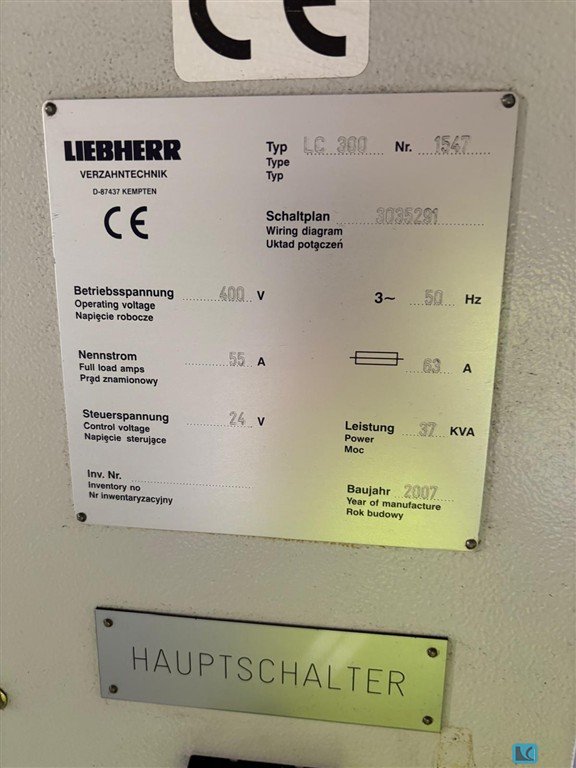

max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine including counter holder The machine used to work with emulsion
max. wheel diameter:300 mm max. module:7 weight of the machine ca.:15 t table turning speeds:100 U/min table diameter:180 mm hob turning speeds:750 U/min max. hob diameter:160 mm cutter length max.:230 mm Liebherr LC300 with loading automation Machine without counter holder Used to work with oil
swing diameter:400 mm turning height:950-1500 mm Turning length:210 mm x-travel:310 mm z-travel:350 mm spindle drive:48 kW spindle turning speed range:20-3500 U/min weight of the machine ca.:11 t dimensions of the machine ca.:4,5 x 3,5 x 2,7 m
swing diameter:400 mm turning height:950-1500 mm Turning length:210 mm x-travel:310 mm z-travel:350 mm spindle drive:48 kW spindle turning speed range:20-3500 U/min weight of the machine ca.:11 t dimensions of the machine ca.:4,5 x 3,5 x 2,7 m

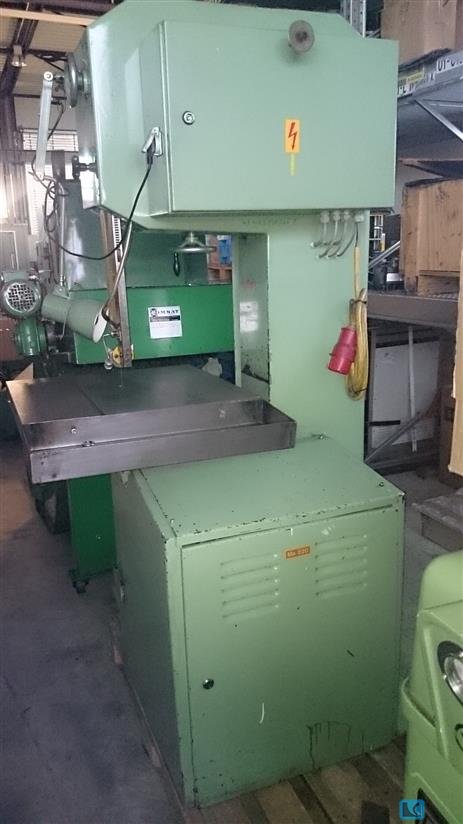

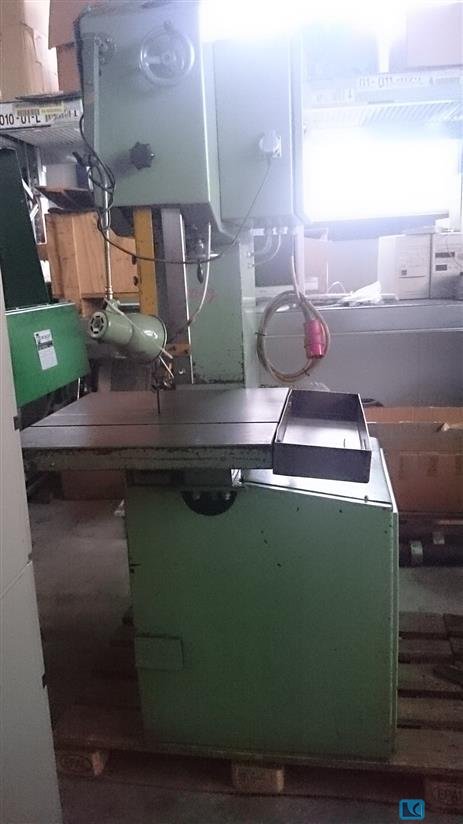

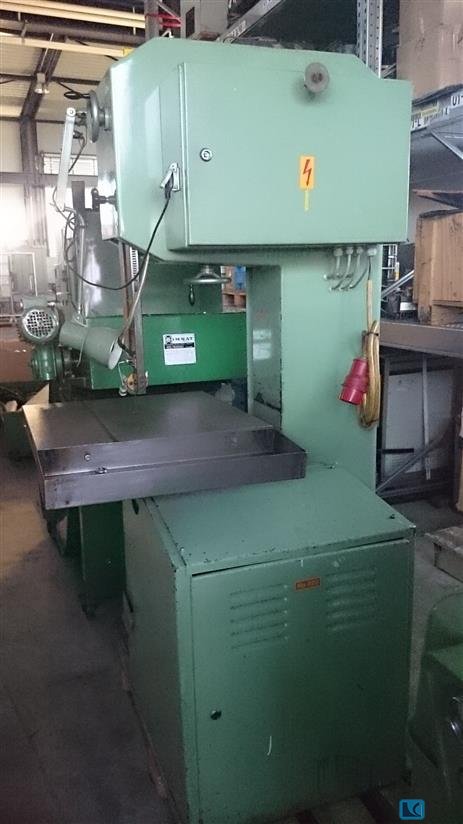

roll diameter:420 mm throat:400 mm workpiece height:325 mm table surface area:615 x 615 mm table swivelabel +/-:10/45 ° table - inclinable:+/- 20 ° cutting speed:20 - 2500 m/min total power requirement:2 kW weight of the machine ca.:0,5 t dimensions of the machine ca.:0,95 x 0,65 x 1,83 m
max. wheel diameter:130 mm max. module:3 total power requirement:15 kW weight of the machine ca.:6 t dimensions of the machine ca.:2,3 x 2,5 x 2,17 m A well-preserved CNC hobbing machine Vertical for shafts and wheels With tailstock Also suitable for hard milling (good for steering pinion) Rapid traverse radial, axial: 10.000 mm/min Rapid traverse tangential: 7.500 mm/min Max. wheel diameter 130 mm Max. module 3 mm Tangential slide travel 200 mm Radial slide travel 10 / 100 mm Axial slide travel 300 / 200 mm Milling head speed 250-3500 U/min Milling head -swivable +/- 40 ° Tool diameter 80 mm Tool length - max. 240 mm Table turning speeds 5 - 1000 U/min Milling spindle drive 15 kW Feed range 0,1 - 2000 mm/min Table diameter 132 mm Control Sinumerik 840 C Connected load 40 kVA Motor output 15 kW Weight : 6 T Dimensions 2300 mm 2500 mm 2170mm Accessories : Hydraulical workpiece clamping ...

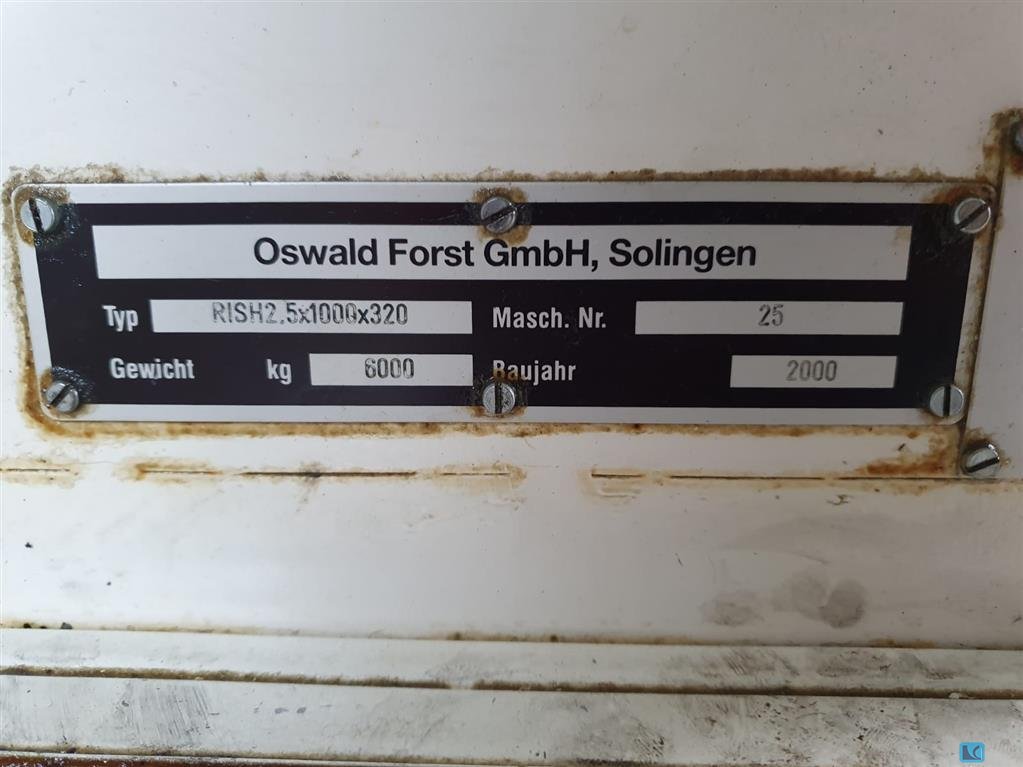

pulling force - max.:2,5 t max. ram stroke:1000 mm max. workpiece diameter:40 mm Broaching speed:60 m/min. return speed:20 m/min. total power requirement:24 kW weight of the machine ca.:6 t dimensions of the machine ca.:1,7 x 2,4 x 4,77 m clamping plate:320 mm It is a hydraulic machine.
x-travel:200 mm y-travel:100 mm z-travel:100 mm total power requirement:1,5 kW weight of the machine ca.:1,1 t dimensions of the machine ca.:0,6 x 0,6 x 1,8 m table-size:350 x 150 mm New class condition milling machine with vize and dividing head - Original year of manufacture unknown
faceplate diameter:1400 mm swing diameter:2000 mm turning height:1500 mm main drive:80 kW faceplate speeds from - to:1 - 365 U/min milling motor:37 kW ram head dimension:240 x 240 mm max. ram stroke:1250 mm total power requirement:133 kVA weight of the machine ca.:50 t dimensions of the machine ca.:11 x 5 x 6,4 m Machine was overhauled in 2008 by OEM New control CNC SIEMENS 840 D automatic tool changer 72-pcs C-axis with driven tools Angle-, straight tool holders with CAPTO holder Coolant device Chipconveyour
x-travel:1660 mm y-travel:760 mm z-travel:660 mm weight of the machine ca.:8700 t dimensions of the machine ca.:4.320 x 3.380 mm distance spindlenose - table min./max.:808 mm distance work spindle /surface of the table:155 - 815 mm Machine height:2850 mm floor space required (w/o switchgear cabinet):4.320 x 3.380 mm spindle motor:11 (10 Minuten) /7,5 (30 Minuten)/ 5,5 (Dauerbetrieb) kW tool taper:SK 40 Spindle RPM:40 - 7.000 (Standard ) / 40 - 10.000 ( Option ) 1/min surface area:2.000 x 760 mm max. table load:1.000 kg feeds X-axis:1 - 5.000 mm/min rapid traverse X-axis:24.000 m/min rapid traverse Y-axis:24.000 feeds Y-axis:1 - 5.000 mm/min feeds Z-axis:1 - 5.000 mm/min rapid traverse Z-axis:20.000 m/min
x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.
groove width:40 mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:200 mm tool taper:SK40 spindle speed::350 ? 4000 upm table clamping surface::1300 x 300 mm weight of the machine ca.:3,5 t Coolant system Dimensions: 1600 mm x 1500 mm x 1800 mm (L x W x H) Hydraulic system Partially overhauled
groove width:- mm x-travel:1300 mm throat:- mm y-travel:150 mm z-travel:150 mm spindle speed::50/6000 upr tool taper:SK 40 numbers of positions in the tool changer:8-fach weight:2.500 kg Operating hours: 2,100 h Clamping hydraulics Pendulum operation possible 8-position tool changer
x-travel:1020 mm y-travel:510 mm z-travel:510 mm Table 1,200 x 530 mm Max. table load 800 kg Spindle mount ISO 40 Spindle speeds 10,000 rpm Drive power 14.5 kW Tool changer 20-position Coolant system External cooling Chip conveyor Yes The Y-cover is leaking (see photos)

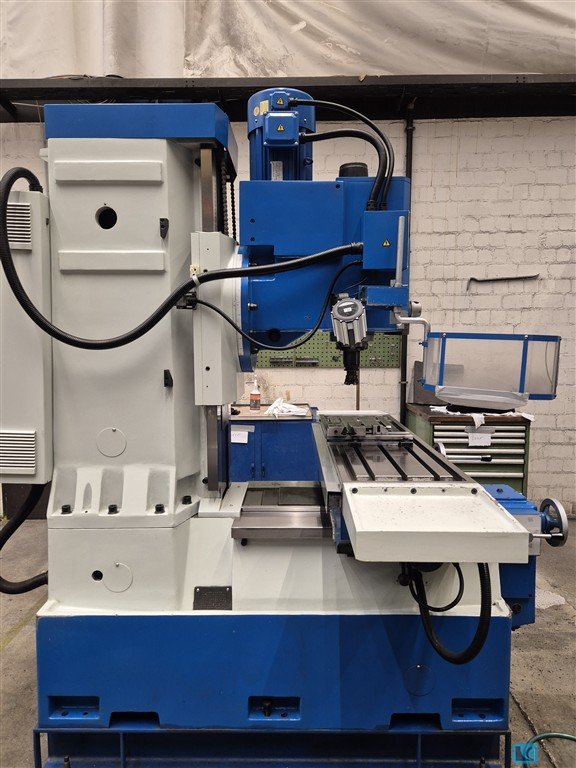

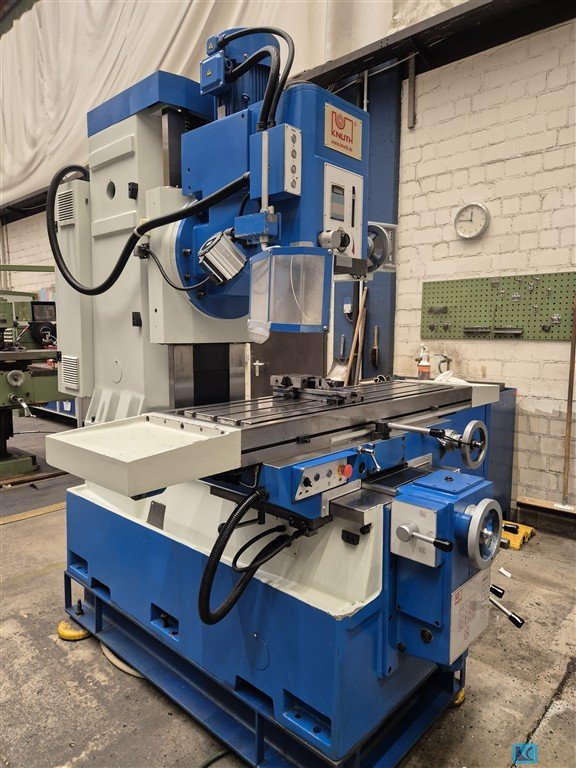

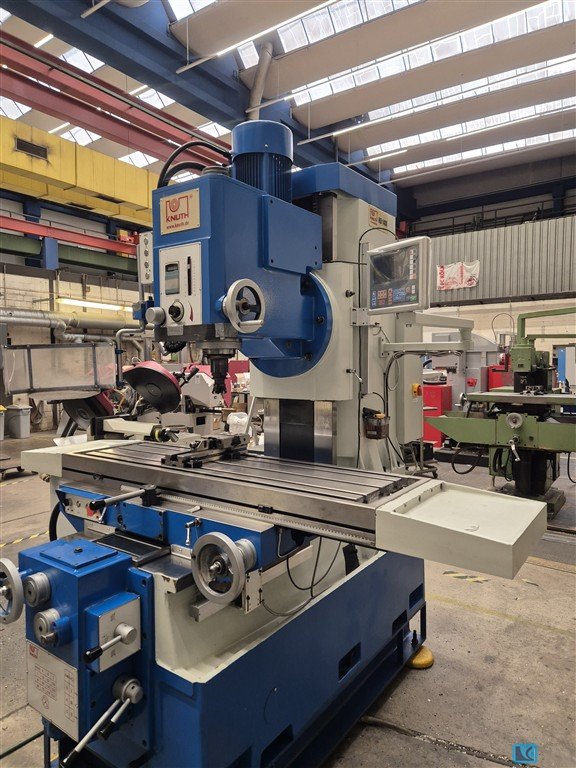

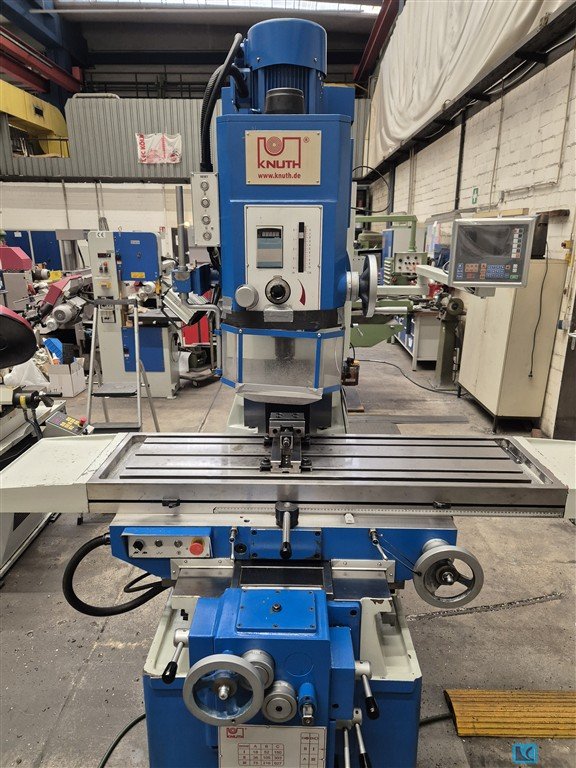

x-travel:1400 mm y-travel:400 mm z-travel:500 mm total power requirement:ca. 7,5 kW weight of the machine ca.:ca. 2,7 t dimensions of the machine ca.:ca. 2,60 × 2,30 × 2,20 m The KNUTH KB 1400 is a conventional bed-type milling machine designed for precise milling, drilling and threading operations on medium to large workpieces. The robust bed construction ensures high rigidity and machining accuracy, even for demanding machining tasks. Thanks to its robust construction, the machine is ideally suited for use in mechanical engineering, toolmaking, maintenance, and in single-part and small-batch production. Technical data ·X-axis travel: 1,400 mm ·Y-axis travel: 400 mm ·Z-axis travel: 500 mm ·Table size: 1,700 × 400 mm ·Table load capacity: approx. 800 kg ·Spindle chuck: SK 40 (DIN 69871) ·Spindle speed: 40?2,000 min?¹ ·Main drive: 7.5 kW ·Machine weight: approx. 2,700 kg ...

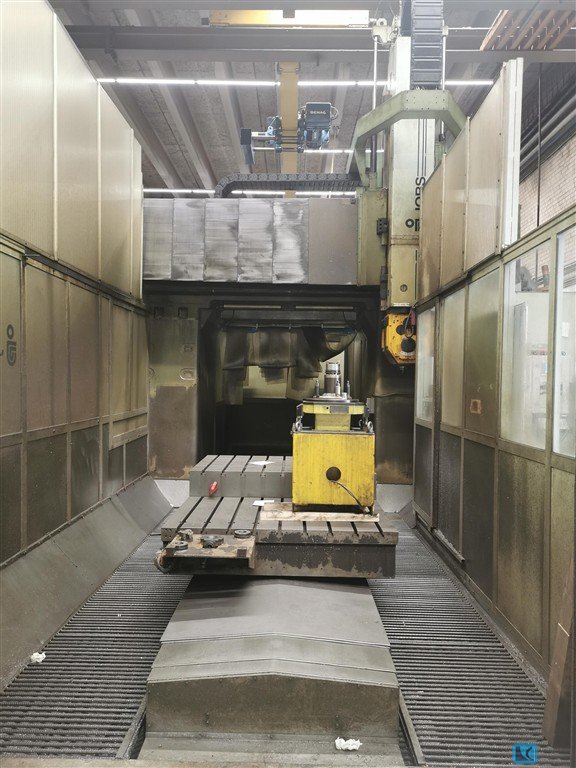

x-travel:3500 mm y-travel:2500 mm z-travel:1250 mm weight of the machine ca.:50 t JOBS JO?MACH 241 ? CNC gantry machining centre The JOBS JO?MACH 241 is a high-performance CNC gantry machining centre designed for the precise machining of large, heavy and complex workpieces. The robust design, featuring a fixed gantry and a movable worktable, ensures high rigidity and stable machining conditions. With travel ranges of 3,500 mm on the X-axis, 2,500 mm on the Y-axis and 1,250 mm on the Z-axis, the machine offers a generous working area. The clearance between the columns is approximately 2,200 mm. The worktable, measuring approximately 3,000 × 1,500 mm, is designed to accommodate workpieces weighing up to 12,000 kg. The two-axis, swivelling milling head enables the machining of complex contours and hard-to-reach surfaces in multiple spatial directions. This makes the JO?MACH 241 particularl ...
distance spindle /table:min /max 190 / 570 mm distance spindle /table:190 - 570 mm surface area:650 x 300 mm Boring power:in GG 20 40 mm bore capacity in steel:ST 60 32 mm turning speed range::50 - 5000 UpM total power requirement:2,2 kW threading:GG 20 M30 threading::ST 60 M 24 weight of the machine ca.:1400 kg table load:max. 150 kg table height:770 mm traversing speed:max X-, Y- u. W-Achse 5 m/min max. traversing speed:Z-Achse 3 m/min w-axis:380 mm workpiece height max.:495 mm tool changing time:ca. 3 sec x-travel:450 mm y-travel:300 mm z-travel:180 mm workpiece weight:1,5 kg
x-travel:630 mm y-travel:560 mm z-travel:560 mm total power requirement:10 /15 kW weight of the machine ca.:6500 kg dimensions of the machine ca.: 4,4 x 5,4 x 2,9 m Table dimensions:1000 x 610 mm Loading:400 kg rapid traverse::X 26, Y 26, Z 20 m/min speeds::20 - 12.000 min -1 tool taper:SK 40 Number of tools:20 ( 2 x 10 ) St. control:CNC MillPlus/TNC430 Documents:vorhanden

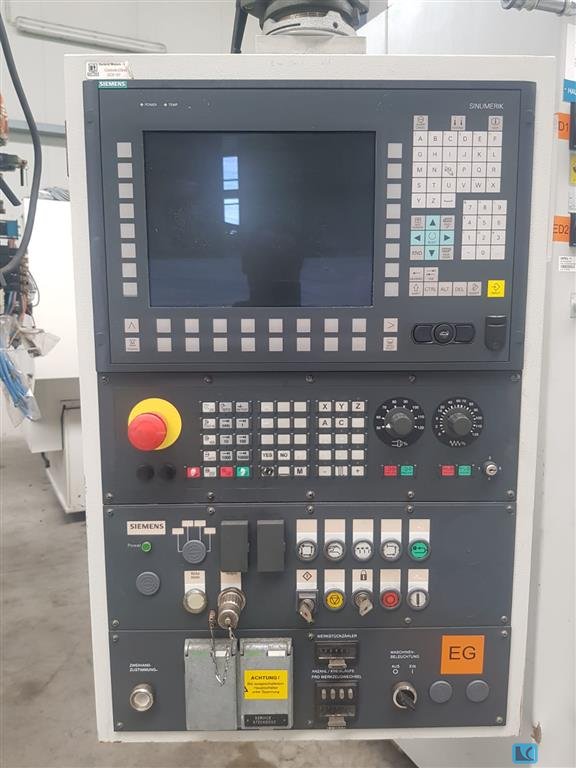

x-travel:550 mm y-travel:300 mm z-travel:425 mm CNC-control:Sinumerik table-size:950 x 350 mm max. table load:500 kg spindle taper ISO:30 spindle turning speed range:20 - 10500 U/min spindle drive motor:5,5 kW tool change unit:12 Pos. coolant:inkl. voltage:380 V tool adaptor:Steilkegel 40 groove width:32/28 mm no. of flutes:3 rapid speed:40.000 mm/min total power requirement:15 kVA weight of the machine ca.:3,3 t chip conveyor:inkl. dimensions of the machine ca.:2000x 3000 x2500 mm Documents:vorhanden - Serial Number: 186 - 78 - Control: FANUC O-M - with various tool holders - coolant equipment
x-travel:800 mm y-travel:250 mm z-travel:350 mm table-size:1130 x 250 mm no. of flutes:4 groove width:14/25 mm taper MK:4 spindle turning speed range:56 - 2800 U/min total power requirement:9,5 kW weight of the machine ca.:2009 kg dimensions of the machine ca.:1400 x 1700 x 2800 mm Documents:vorhanden
max. ram stroke:220 mm total power requirement:1,5 kW weight of the machine ca.:880 kg dimensions of the machine ca.:1.500 x 1.000 x 2.200 mm slot-milling length:220 mm toolhead swivelling: +/- 10° ° Grad table::650 x 250 mm table adjustment: vertical:360 °mm table adjustment: quer/längs: 170/400 °mm strokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step
max. ram stroke:220 mm total power requirement:1,5 kW weight of the machine ca.:880 kg dimensions of the machine ca.:1.500 x 1.000 x 2.200 mm slot-milling length:220 mm toolhead swivelling: +/- 10° ° Grad table::650 x 250 mm table adjustment: vertical:360 °mm table adjustment: quer/längs: 170/400 °mm strokes per minute:45 / 78 / 125 Hub/min feed:: 0,1 / 0,2 / 0,3 in 3 step
faceplate diameter:1800 mm swing diameter:2000 mm turning height:1170 mm z-axis:1000 mm cross rail adjustment - vertical:800 mm faceplate speeds::2,5 - 280 workpiece weight:12 t feeds:1 - 6000 mm/min max. torque on the faceplate:50000 Nm total power requirement:85 kW weight of the machine ca.:41 t dimensions of the machine ca.:5,6 x 4,8 x 4,6 m Machine retrofit and overhould in 2005 with SIEMENS 840 D powerline control - 6 jaw hydraulic power chuck - tool changer for 12 tools - chip conveyor, coolant attachment, splash housing - various tool holders
faceplate diameter:1000 mm swing diameter:1600 mm turning height:1200 mm main drive:75 kW faceplate speeds from - to:7 - 800 U/min milling motor:25 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 mm ram head dimension:240 x 240 mm weight of the machine ca.:40 to dimensions of the machine ca.:9 x 7,8 x 6,0 m Machine general overhould in 2004 and equiped with Siemens 840 D control - tool changer rack magazine - C-axis, live tooling, - Transmit function electronical Y-axis - angular milling head - complete splash housing - coolant device, chip conveyor
faceplate diameter:1400 mm swing diameter:2000 mm turning height:1270 mm main drive:80 kW faceplate speeds from - to:1 - 355 U/min max. workpiece weight:6.000 kg milling motor:37 kW milling head speed:7 - 3000 U/min milling spindle - taper:ISO 50 cross rail adjustment - vertical:800 (8 x 100 mm) mm ram head dimension:240 x 240 mm max. ram stroke:1250 mm weight of the machine ca.:50 to total power requirement:133 kVA dimensions of the machine ca.:11 x 5 x 6,4 m Machine general overhould in 2008 and equiped with CNC SIEMENS 840 D control - tool changer for 72 tools - C-axis, live tooling - angular- and straight tool holder head with CAPTO taper - Transmit function - complete splash housing - coolant device, chip conveyor - diverse accessories
x-travel:2500 mm y-travel:1000 mm z-travel:750 mm table surface area:3220 x 1000 mm Workpiece weight approx.:3000 kg spindle taper ISO:50 milling spindle turning speeds:20 - 5000 U/min feed speeds:1- 30000 mm/min rapid traverse:30 m/min total power requirement:40 kW dimensions of the machine ca.:6,9 x 4,1 x 3,7 m weight of the machine ca.:21 t with CNC HEIDENHAIN TNC 426 30-pockets autom. toolchanger RENISHAW measuring probe coolant attachment with TSC and chip conveyor diverse toolholders
turning diameter:300 mm swing diameter:350 mm turning height:275 mm x-axis:925 mm z-axis:250 mm clamping chuck diameter:200 mm Feed speed:30 m/min. total power requirement:45 kW weight of the machine ca.:7 t Machine was used just from time to time in the last years - very good condition! with CNC SIEMENS 840 D 12-station turret head with driven toolings workpiece in and out conveyor belt coolantattachment and chip conveyor diverse accessories
faceplate diameter:4000 mm swing diameter:4300 mm turning height:330 mm faceplate turning speed range:1 - 92 U/min workpiece weight:18 t feeds:1 - 4000 mm/min main drive motor:55 kW total power requirement:85 kVA weight of the machine ca.:64 t dimensions of the machine ca.:90, x 7,2 x 5,5 m with CNC SIEMENS 840 D for 4 axis 2 Vertical Supports tool Basic holder chip conveyor
faceplate diameter:4770 mm swing diameter:7000 mm turning height:1000 mm slide stroke:1000 mm workpiece weight max.:100000 kg faceplate turning speed range:2 - 20 U/min feed speeds:1 - 10000 mm/min rapid traverse:10 m/min ram head dimension:250 x 250 mm main drive:100 kW total power requirement:200 kW with CNC SIEMENS 840 D 2 Vertical Supports with toolchanger 12 pockets C-axis and driven tooling SK 50 37 Kw 3000 rpm Chip conveyor and coolant attachment
faceplate diameter:1600 mm swing diameter:1800 mm turning height:1500 mm max. ram stroke:1200 mm faceplate turning speed range -stepless-:2,5 - 250 U/min workpiece weight max.:10.000 kg ram head dimension:240 x 240 mm feed range:1 - 3000 mm/min power capacity:45 kW weight of the machine ca.:20 t modernized and overhauled in 2010 with CNC SIEMENS 840 D 12 positions automatic toolchanger telescopic covers splash guarding chip conveyor coolant attachment diverse toolholders
faceplate diameter:5000 mm swing diameter:6100 mm turning height:2400 mm ram stroke each side:1490 mm ram head dimension:340 x 340 mm max. workpiece weight:100.000 kg total power requirement:100 kW weight of the machine ca.:155 t faceplate turning speed range:0,4 - 50 U/min with 2 axes CNC SIEMENS 840 D
faceplate diameter:1400 mm swing diameter:1470 mm turning height:1325 mm ram stroke range:750 mm adjustment of cross-rail:850 mm max. workpiece weight:12000 kg faceplate turning speed range:4,5 - 224 U/min feed per revolution:0,06 - 8 mm rapid speed:1,8 m/min total power requirement:50 kW weight of the machine ca.:16 t Machine was modernized in 2008 with new electric 2-axes digital readout 5-station turret head autom. swivelling diverse toolholders
Article: Vertical turning and grinding centre Manufacturer: EMAG Type: VSC 250 DS Yob: 2008 Control: SIEMENS 840D Grinding spindle speed: 30,000 rpm Rotation spindle speed: 3,000 rpm Tool places turret: 12 Cooler for spindle and machine bed cooling Cooling lubricant - lifting station (no independent cooling lubricant supply) Chip conveyor Parts handling Air through the spindle Two clamping circuits through the spindle (air and oil) Unfortunately, the grinding spindle is defective. However, this can be overhauled in a spindle factory. Otherwise the machine is in a very good condition and fully functional. Please, contact us for getting more information and pictures on mail(at)tar-mc.com or www.tar-mc.com
