Offer 26154 Technical data: - Cutting range at 90° around 260 mm - flat 410 x 200 mm - Mitre adjustable 90 to 30 ° - Schnittb. at 45° Re + Li round 220 mm - flat 230 x 300 mm - Material support height approx. 620 mm - Saw blade dimensions 3660 x 27 x 0.9 mm - Cutting speed 17 - 106 m/min - hydr.– lowering the saw frame - Upper stroke limit of the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - Material vise - Saw blade cleaning brush - Total drive power 400 V / 1.9 kW - Space requirement approx. W 1300 x H 1800 x D 2000 mm - Weight approx. 900 kg
Offer 26131 Technical data: - Saw blade dimensions 3320 x 27.0 x 0.9 mm - Infinitely variable cutting speeds N 15 to 100 m/min - hydr. Material vise - Mitre adjustable left up to 60°, right up to 45° - Cutting range at 90° around 280 mm - Square 260 mm - flat 330 x 260 mm - Cutting range at 45° li + re around 250 mm - 45° li flat 270 x 200 mm - 60° li flat 170 x 170 mm - Drive 400 V / 2.2 kW - Coolant device - Chip clearing brush - Roller conveyor 3000 mm - Weight approx. 1300 kg - Space requirement approx. W 1800 x H 1900 x D 1950 mm

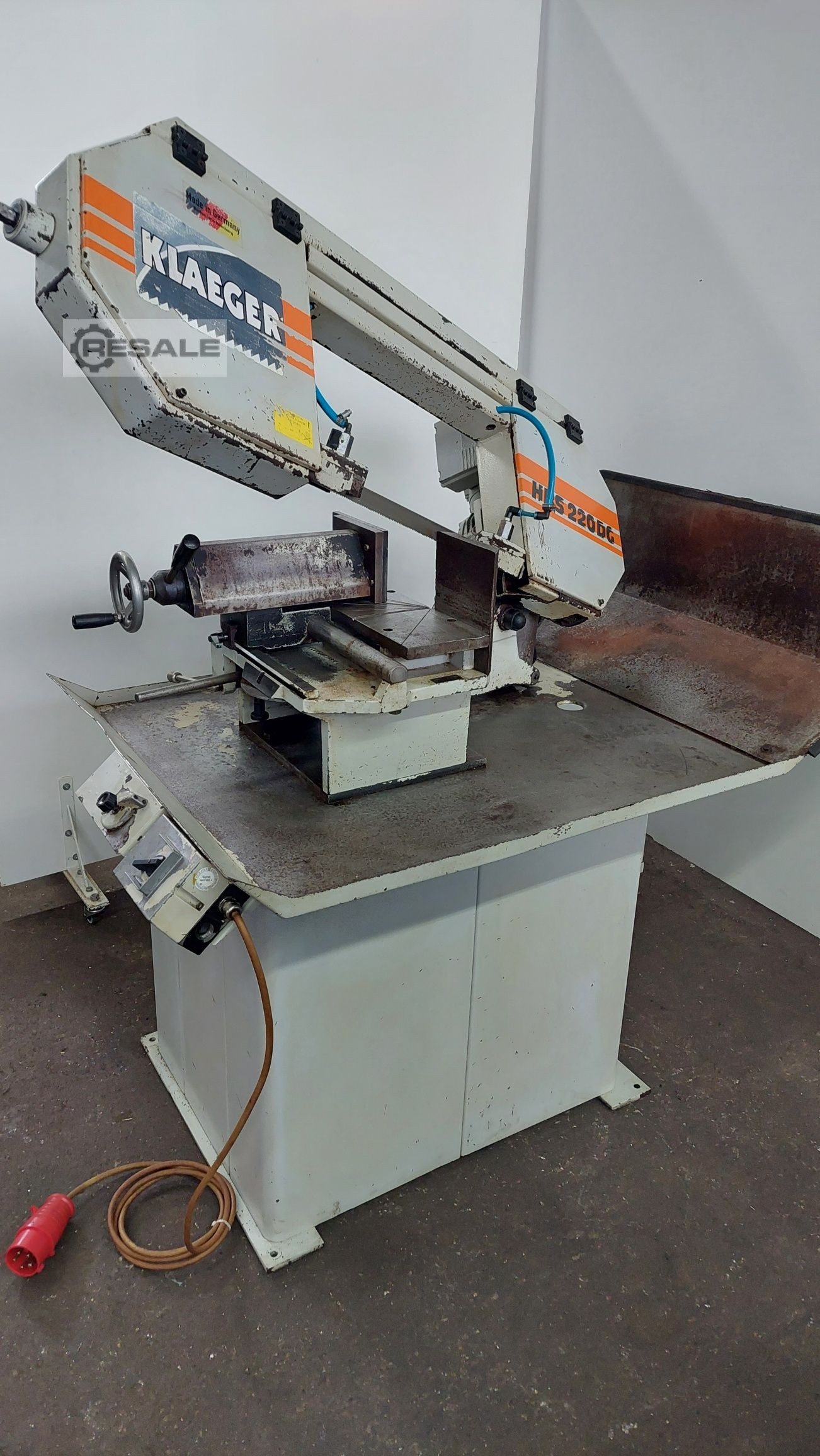

Offer 24477 Technical data: - Cutting range at 90° around 220 mm - flat 250 x 100 mm - Square 170 x 170 mm - Cutting range 45° around 150 mm - flat 150 x 150 mm - Mitre adjustment left + right - Saw blade dimensions 2890 x 27 x 0.9 mm - Cutting speeds 40 + 60 m/min - Hydr. lowering the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - Total drive power 400 V / 1.5 kW - Space requirement approx. W 1500 x H 1000 x D 650 mm - Weight approx. 250 kg
Offer 24477 Technical data: - Cutting range at 90° around 220 mm - flat 250 x 100 mm - Square 170 x 170 mm - Cutting range 45° around 150 mm - flat 150 x 150 mm - Mitre adjustment left + right - Saw blade dimensions 2890 x 27 x 0.9 mm - Cutting speeds 40 + 60 m/min - Hydr. lowering the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - Total drive power 400 V / 1.5 kW - Space requirement approx. W 1500 x H 1000 x D 650 mm - Weight approx. 250 kg
Offer 25101 Specifications: - Cutting range at 90° around 400 mm - flat W 400 x H 400 mm - Cutting area at 45° flat W 320 x H 320 mm - Cutting area at 60° flat W 210 x H 320 mm - Material support height approx. 700 mm - Saw blade dimensions 5090 x 34 x 1.1 mm - Cutting speed infinitely variable 17 - 90 m/min - hydr. Lifting – lowering the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - Total drive power 400 V / 3.5 kW - Coolant device - Roller conveyor feeder 7000 mm - Discharge – roller conveyor with stop + digital display 4000 mm - Space requirement approx. W 2000 x H 1400 x D 2800 mm - Weight approx. 1200 kg
Offer 22252 Specifications: - Cutting range at 90° round + square 330 mm - flat 600 x 320 mm - Mitre adjustable left / right 30 / 45 ° - Schnittb. at 45° Re + Li around 320 mm - flat 350 x 320 mm - Material support height approx. 920 mm - Saw blade dimensions 4440 x 34 x 1.1 mm - Cutting speed infinitely variable 10 to 100 m/min - hydr. Lifting – lowering the saw frame - Upper stroke limit of the saw frame - Cutting pressure infinitely adjustable 0 - 10 m/min - hydr. Material vise - Coolant device - Total drive power 400 V / 2.2 kW - Space requirement approx. W 1400 x H 1400 x D 2400 mm - Weight approx. 1000 kg
