milling machine deckel used for sale

Electric motor, three-phase motor, brake motor -Manufacturer: Siemens, electric motor type 1LC3113-4BB23 Z from milling machine Deckel FP4L -Power: 4.0 kW -Speed: 1435 rpm -Design: B14 -Protection class: IP 44 -Brake: multi-disc brake type EK5dB24 -Dimensions: 575/270/H225mm -Weight: 64 kg

Central lubrication, oil circulation system, single-line pump, central lubrication unit, grease lubrication pump, piston pump, lubrication pump, oil central lubrication pump -Manufacturer: Vogel, oil central lubrication pump from milling machine Deckel FP4L -Type: MFE 5/S3 -Motor: Type DM 6 60 W -Dimensions: 185/130/H250mm -Total weight: 5 kg

Glass scale, glass measuring rod, scale, digital display, measuring rod, length measuring system, length measuring device, linear scale, positioning display, digital scales, digital scale for digital display -Manufacturer: Heidenhain, glass scale from milling machine Deckel FP4L -Type: LS 803 ML 1240 mm -Quantity: 1x glass scale available -Dimensions: 1345/200/H50 mm -Weight: 1.2 kg

x-travel: 1200 mm y-travel: 600 mm z-travel: 500 mm Control: Dialog 11 turning speed range: 0 - 6.300 U/min spindle taper ISO: 40 total power requirement: 10 kW weight of the machine ca.: 8 t dimensions of the machine ca.: 4 x 3 x 2,5 m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

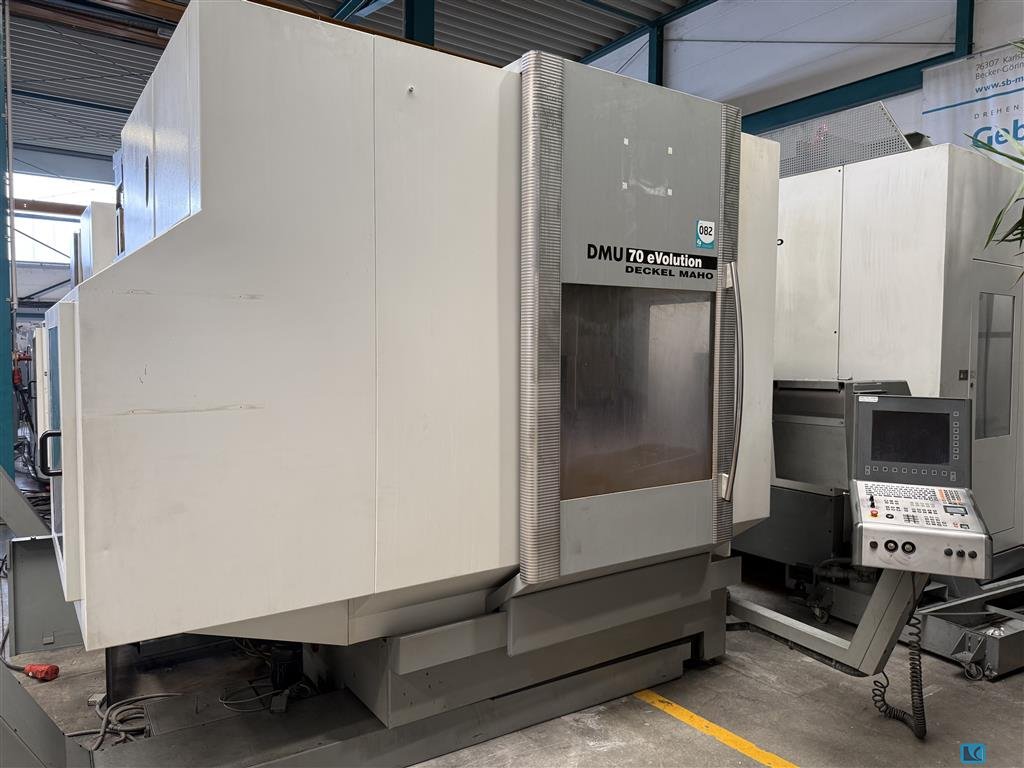

Core Technical Specifications (2001 Model)The "70" in the name typically refers to the X-axis travel (approx. 700 mm).FeatureSpecificationX-axis Travel710 mm (Standard)Y-axis Travel520 mmZ-axis Travel520 mmB-axis (Swivel)-10° to +95° (NC-controlled)C-axis (Rotary)360° (NC-controlled)Table SizeØ 700 mm x 500 mm (NC Swivel-Rotary Table)Max. Table Load350 kgSpindle Speed12,000 RPM (Standard) up to 18,000 RPMTool TaperSK 40 or HSK 63Tool Magazine30 to 64 positions

CNC vertical machining center Type: DMC 64 V Manufacturer: Deckel Maho Year: 2002 Control: Heidenhain iTNC 530 X: 640 mm Y: 600 mm Z: 500 mm Spindle speed: 12000 rpm Spindle cone: SK40 Tool magazine: 30 positions Table: 850 x 600 mm Max table load: 600 kg Replacement of the X-axis linear position sensor in 2025 Machine in good condition, fully functional, under power Find more here - / Contact us at -

x-travel: 630 mm y-travel: 560 mm z-travel: 560 mm control: iTNC 530 Heidenhain NC-Swivle milling head:: turning speed range - main spindle: max. 12.000 min/-1 power capacity - main spindel: 10 / 15 kW max. Torque: 130 / 87 Nm tool taper: HSK-A 63 swivellable: NC: +30 / -120 ° NC-Rotary table:: table surface area: 1.000 x 600 mm table diameter: Ø 600 mm T-slots: 1x 14 x H7, 8x 14 H12 max. table load: 500 kg rotatable: C: 360 ° tool magazin:: number of toolpositions: 2x12 (24) pos. tool taper: HSK-A 63 max. tool diameter: 80 mm max. tool-dia with free toolbox: 130 mm max. tool weight: 8,0 kg max. tool length: 315 mm total power requirement: 45 kVA weight of the machine ca.: 6,8 t dimensions of the machine ca.: 4,5 x 4,5 x 2,5 m Documents: Chip conveyor: Coolantsystem: turning milling head: elektr. hand wheel: Spray gun: exhaust fan: Showa CRD-1500R Operation mode 4: test prob ...

x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm Control: total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m Q U O T A T I O N We are pleased to offer you ex our stock, subject to prior sale, and error in technical data : DECKEL MAHO CNC Universal Milling Machine model DMU 50 M year 1998 Working range: Longitudinal stroke X Axis 500 mm Vertical stroke Z Axis 400 mm Cross stroke Y Axis 400 mm C-axis – table turning, manual 360 ° B-axis – table swivelling, manual + 95 / - 10 ° Table area Ø 700 x 500 mm Inclination range of table (manually) +95 / -10 ° Rotation of table (manually) 360 ° Max. Table load approx. 200 kg Maximum distance table – spindle nose 550 mm horizontal distance machine – spindle nose 210 – 610 mm Tool holder Taper ISO 40 Spindle speeds 20 – 4,500 rpm Fee ...

x-travel: 500 mm y-travel: 400 mm z-travel: 400 mm control: Heidenhain total power requirement: kW weight of the machine ca.: 3200 kg dimensions of the machine ca.: m The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BAZ Cover Maho DMC 63V

The machine is in good technical condition, testing is possible by prior arrangement.

x-travel: 800 mm y-travel: 700 mm z-travel: 600 mm turning speeds: 12000 1 U/min : control: Heidenhain total power requirement: 59 kW weight of the machine ca.: 10,6 t The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

x-travel: 630 mm y-travel: 500 mm z-travel: 500 mm total power requirement: kW weight of the machine ca.: t dimensions of the machine ca.: m CNC control Heidenhain TNC 426 24-fold automatic tool changer handwheel chip conveyor coolant through spindle device Technische Daten / technical details: X-Weg / X-travel 630 mm Y-Weg / Y-travel 500 mm Z-Weg / Z-travel 500 mm Spindelaufnahme / spindle taper BT 40 Drehzahlbereich / spindle speed 0-8000 UpM /rpm Vorschubbereich / feed range 1-30000 mm/min Eilgang / rapid feed 30 m/min Tischaufspannfläche / table clamping area 800x500 mm Werkzeugwechselmagazinplätze / number of tool places in changer 24 Antriebleistung / drive capacity 30 kW Gewicht ca. / weight 6.500 kg Technische Daten, Zubehör und Beschreibung der Maschine sind unverbindlich - Technical data, accessories and description of the machine are not binding.  ...

x-travel: 1060 mm y-travel: 710 mm z-travel: 710 mm Control: Heidenhain type: ITNC 530 spindle speed:: . spindle taper: SK 40 surface area: 1500x795 mm Table load: 550 kg feed motor: 20-15000 kW Rapid movement: 30000 mm/min round table: 800 mm diameter: 800 mm table turning speeds: 15 U/min milling-head swivable +/-: Tool changer: 32 paper filter: The tech. Data are manufacturer or operator information and therefore non- binding. We reserve the right to prior sale, Our terms and conditions of sale apply exclusively. About us More than 400 of our own machines in stock Over 15,000 m² of storage space, 70 t crane capacity More than 10,000 items and accessories for your workshop If you are interested in selling machines, production lines, or your business, please contact us. You can find further offers on our website. Tours are possible by appointment. We look forward to your visit. Yo ...

x-travel:630 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:6,5 t Number of axles:5 St. spindle turning speed range:18.000 U/min numbers of tools in magazin:24 tool taper:SK 40 Round Table B-Axis

x-travel:780 mm y-travel:560 mm z-travel:560 mm weight of the machine ca.:10 t Number of axles:5 St. spindle turning speed range:20-12.000 U/min numbers of tools in magazin:30 tool taper:SK 40 surface area:500 x 630 mm Round Table B-Axis

x-travel:635 mm y-travel:510 mm z-travel:460 mm turning speed range:20 - 10.000 U/min tool taper:SK 40 table clamping surface LxW:790 x 560 mm Machine with glass scales Full safety cabin with sliding doors + interior lighting Height-adjustable machine shoes 3 pcs.

x-travel:1250 mm y-travel:880 mm z-travel:800 mm control: Heidenhain TNC 430 tool change unit:60 Pos. Tool bore:SK 50 turning speeds:8000 1/min size of pallet:1000 x 800 mm total power requirement:56 kVA weight of the machine ca.:14,3 t dimensions of the machine ca.:5,5 x 3 x 3,1 m 5-axis machine with controlled universal milling head (B-axis), 2-palett changer incl. 2 palets, 1000 x 800 mm Production package: - internal coolant supply 40 bar with 900l coolant box (2,25 x 1.3 x 2,2m / 950kg), - chipconveyor (4,85 x 1,2 x 1,75m / 600kg), - ROTOCLEAR, - 3D touchprobe RENISHAW MP 10 - 60 pos. ATC SK 50 - el. handwheel - mech. tool-breakage control, accessories (SK 50 toolholders approx. 100.200 h "machine on", approx. 52.200 h "spindle on", last spindle change in 2020

x-travel:800 mm y-travel:800 mm z-travel:800 mm turning speeds:12.000 1/min tool taper:SK 50 control:SIEMENS 840D shopmill tool change unit:240 fach size of pallet:630 x 630mm mm spindle:52 kW / 430Nm total power requirement:87 kVA weight of the machine ca.:15 t dimensions for transport:4,6 x 2,95 x 2,7 m horizontal machining center, NC-round-table pallet-changer (2 pallets), Internal Coolant Supply 40 bar, prepared for Infrared Touch Probe Renishaw MP 10 without probe, tool-breakage control (mech.), MQL, airblast through spindle, oilmist suction, TRANSMIT funbction, accuracy package, mode 4, glass window right door, incl. FASTEMS FPC 1000 pallet pool for 14 pallets, incl. setting up station, control, and 10 pallets approx. 98.500 h main switch on apprax. 45.500 Spindle hours

x-travel:1.250 mm y-travel:710 mm z-travel:710 mm table surface area:1500 x 800 mm table load capacity:800 kg turning speeds:12000 1/min spindle drive:15 / 10 kW control:MILLPLUS iT HEIDENHAIN spindle taper:SK 40 tool change unit:60 Pos. capacity:44 kVA weight of the machine ca.:10,5 t dimensions of the machine ca.:3,5 x 2,65 x 2,65 m 5 axis simultaneously machining center, B-axis (-120° / +30°), NC-rotary-table integrated in rigid table, direct measuring system, 3D probe infrared, HEIDENHAIN TS 640, internal coolant supply 40 bar, 600l, flushgun, chipconveyor, mode 4, 3D quickset software (no hardware), Higher noise in rush on X-axis and roundtable approx. 48.500 hours "machine on" / approx. 18.000 hours "spindle on"

x-travel:800 mm y-travel:700 mm z-travel:600 mm table load capacity:800 kg control:SIEMENS 840D shopmill turning speeds:12.000 1/min tool adaptor:HSK 63 rapid traverse:50 m/min tool change unit:30 Pos. electr. connected load with add. coolant:56 kVA weight of the machine ca.:9,5 t transport measurements machine:4 x 2,5 x 2,75 m 5 Axis simultaneously machining center, Baxis (NC-head) and NC- rotary-swivelling-table dia 900/630mm, internal cooling device 40 bar, 600l prepared for 3D-touchprobe HEIDENHAIN TS 641 (without touchprobe), prepared for el. handwheel (without handwheel), mode 4, approx. 85.000 h mainswich ON , approx. 55.000 h Spindle ON (last spindle change in nJuly 2021 at approx. 50.000h)

x-travel:2600 mm y-travel:1100 mm z-travel:900 mm table surface area:3200 x 1100 mm rotary table diameter:1050 mm table load:1,2 t control:Heidenhain iTNC 530 ergoline 19" turning speeds:20 - 10.000 1/min taper ISO:SK 50 max. torque on the spindle:288 / 187 Nm tool change unit:60 Pos. rapid traverse:40 m/min spindle:44 / 32 kW weight of the machine ca.:25 t dimensions of the machine ca.:6,70 x 3,40 x 2,95 m 5-axis universal machining center, rigid table with integrated NC-rotary table left side and B-axis in milling head, direct measuring system, internal Coolant 40 bar, coolant tank 600 l, Swarf Conveyer Rotoclear airblast through spindle, 3D Touch probe HEIDENHAIN TS 649, mode 4, prepared for 3D quick set (software yes, hardware no), new milling spindle in 2022 at 25.584h approx. 60.000 h machine ON, approx. 31.000 h Programm ON in total

x-travel:750 mm y-travel:600 mm z-travel:520 mm table surface area:D 700 x 500 mm turning speeds:30000 1/min tool taper:HSK E50 control:HEIDENHAIN iTNC 530 tool change unit:60 pos. rapid traverse:50 m/min table load capacity - central/maximum:350 kg total power requirement:50 kVA weight of the machine ca.:9 t dimensions of the machine ca.:3,2 x 2,65 x 2,8 m 5-axis simultaneously HSC-machining center, NC-round-swivelling table B-axis 180°, C-axis 360°, chip conveyor, prepared for 3D touchprobe HEIDENHAIN TS 641 (without touchprobe), mode 4, spindle chiller, no internal coolant supply, approx. 124.200 hours "machine on", approx. 60.600 hours "spindle on" in total

machine ready for transport and to be assessed on viewing day. 5 additional loading meters for chip conveyor / cooling container / leveling feet and books

Tool milling machine DECKEL FP2A, S/N 2819-0563, T-slot table approx. 400x600 mm, machine vice, control DECKEL TNC 355

machine ready for transport and to be assessed on viewing day. 5 additional loading meters for chip conveyor / cooling container / leveling feet and books Auction-ID: A1-44905-11

Deckel FP2LB Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP2LB Year of manufacture: 1977 X-axis travel: 800 mm Y-axis travel: 300 mm Z-axis travel: 400 mm Approx. dimensions (L x W x H): 1750 x 1700 x 1750 mm Includes various accessories and documentation Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-21

Deckel FP3LB Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP3LB Serial number: 0554 X-axis travel: 500 mm Y-axis travel: 300 mm Z-axis travel: 400 mm T-slot table size: 300 x 1000 mm Taper: SK40 Speed range: up to 2000 rpm Engine power: 4 kW Machine weight: approx. 1100 kg Dimensions (L x W x H): 2000 x 1200 x 1800 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-18

Deckel FP33 Universal Milling Machine Type: Universal milling machine Manufacturer: Deckel Model: FP33 T-slot table size: 430 x 1000 mm Approx. dimensions (L x W x H): 2150 x 1800 x 2200 mm 5 horizontal T-slots 2 vertical T-slots Tension clamp: 90 x 90 mm x 4 T-slot width: 20 mm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-25

Deckel FP2 Milling Machine Component Type: Milling machine component Manufacturer: Deckel Model: FP2 Length: approx. 100 cm Height: approx. 31 cm Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-59

DMG MORI DMU 50 – 5-axis CNC machining center Manufacturer: DMG MORI / Deckel Maho Type: DMU 50, year of construction approx. 2013 5-axis machining center (simultaneous)CNC control: Siemens Sinumerik (ERGOline Panel) Travel: approx. X 500 mm / Y 450 mm / Z 400 mm Spindle: up to approx. 10,000 rpm, tool holder SK40 Tool magazine: approx. 30 places (chain magazine) incl. approx. 25 tool holders (used) Spindle condition good, machine accuracy good Operating hours: approx. 28,000 h Machine functional, currently energized Coolant system available Chip conveyor available Complete machining center incl. peripherals Ideal for 5-axis machining in tool and mould making as well as general machining Auction-ID: 04K-92D-1

machine Manufacturer: DECKEL MAHO Type: DMU 35 M Year of Make: 2001 Machine type: CNC universal milling center (3+2 axes) data Feed drive: AC servo motors for X, Y, Z axis Feed speed X/Y/Z: infinitely programmable up to 5,000 mm/min Rapid traverse X/Y/Z: 5 m/min Input unit X/Y/Z: 0.001 mm Work table: rotary table with swivel axis Clamping surface: 400 × 280 mm T-slot spacing / size: 50 / 12 H7 Centering bore: Ø 30 H6 Rotary table rotation range: 360° Desktop clamping: mechanical Swivel range: 105° / 15° Permissible load rotary table (centre of the table): 100 kg Dimensions Travel X/Y/Z: 350 × 240 × 340 mm Weight: approx. 1,700 kg Electrical details Voltage: 400 V Power: approx. 15 kVA Auction-ID: A7-45416-2143

ul> CNC control: Heidenhain TNC 530 5-axis (B-axis head ±90°, C-axis table 360°) Strokes: X = 1060 mm, Y = 710 mm, Z = 710 mm Spindle speed: 20 – 12,000 rpm Spindle power: 15 kW Cone: ISO40 Fast feeds: 30 m/min Table: 1500 x 795 mm Max table load: 900 kg Tool magazine: 32 positions Spindle centre coolant + refrigeration unit + mist suction Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-44765-207

Technical data Machine Type: Milling burin grinding machine Manufacturer: Friedrich Deckel Model: SO/70-12497 Manufacturer location: Munich Configuration Documentation: Original leaflet \"Milling burin grinding machine SO\" Application: Grinding of cylindrical, tapered and pointed milling cutters Setting options: Transverse movement (vernier), longitudinal movement, rotary movement (360° / 180°), horizontal and vertical swivelling Material table: Setting values (α, β, γ) for various materials such as steel, cast iron, brass, aluminum, wood and plastics Auction-ID: A1-45711-115

Stahlblech lackiert Innenliegende Rohre: 200 mm lang Ø 25 mm - Width 635 mm - Height 400 mm - Depth 420 mm - mobile - Wiht mobile cleaning basket aus Stahlblech, 395 x 620 mm - Location on stock

Machine is disassembled into dimensions of truck, mega trailer needed for transport. 13 Loading Meter Machine pick-up by appointment, loading not possible on pick-up days Auction-ID: A1-44905-108

Heidenhain TNC 426/430M control Racing and Board: X-axis (longitudinal): 1,000 mm Y-axis (Transverse): 600 mm Z-axis (Vertical): 600 mm Table surface: 1,200 x 600 mm Maximum Table Load: 800 kg Speed 10,000 rpm (belt or direct drive) Tool Mount: SK 40 / BT 40 Spindle power: approx. 9 - 13 kW (S1/S6) Torque: ~82 Nm Fast Feeds: 30 m/min (X/Y/Z) Tool magazine: 24 spaces (basket or chain configuration with exchange arm) Tool Change Time: ~1.6 - 2.5 seconds (T-to-T) Total Weight: approx. 6,500 kg Floor space approx. 3,500 x 2,400 x 2,800 mm TOOLS NOT INCLUDED Auction-ID: A7-44885-2

Sold with various tools and documentation. Technical Information Main training Maximum speed: 9,000 rpm Motor: AC Servo Motor 100% ED engine power: 4.96 kW Engine power at 40% ED: 6.94 kW Continuously programmable speed: 20 – 9,000 rpm Torque/power diagram Speed range: 20 – 9,000 rpm Axis drive AC servo motors for X, Y, Z axes Programmable feed rate: up to 10,000 mm/min Input Unit: 0.01 mm Fast (fast) speed: 12 m/min Measurement system X, Y, Z axis resolution: 0.001 mm Position Tolerance (Direct Measurement): 0.010 mm Work Area X-axis travel: 500 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Work table Round table with swivel axis Clamping surface: Ø 700 x 500 mm T-slot spacing: 63 mm T-Slot Width: 14 H7 Centering bore: Ø 30 H7 Rotation range: 360° Table lock ...

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders. Auction-ID: A1-44765-203

CNC vertical machining center for machining metal parts. Numerical control: Heidenhain TNC 426 (3D) Strokes: X 1,000 mm / Y 600 mm / Z 600 mm Table: 1,250 ×,800 mm Tool changer: 30 positions Spindle taper: SK 40 (DIN) Spindle speed: up to 15,000 rpm Spindle motor power: 18 / 15 kW IKZ / CTS: 40 bar Equipment: Chip conveyor, air blowing, closed cab Auction-ID: A1-44765-243

CNC vertical machining center for machining metal parts. Numerical control: Siemens 810D Strokes: X 630 mm / Y 500 mm / Z 500 mm Table: 800 × 500 mm Maximum table load: 500 kg Spindle cone: ISO 40 Spindle speed: 10,000 rpm Auction-ID: A1-44765-248

Auction-ID: A7-45416-2157

Deckel 2038 T-Slot Clamping Table Type: T-slot clamping table Manufacturer: Deckel Model: 2038 Table size: 710 x 430 mm T-slot width: 14 mm Number of T-slots: 5 Maximum table load: 200 kg Table rotation: 360° Swivel range (left/right): ±45° Tilt range (toward/away machine): +45° / -15° Weight: approx. 250 kg Approx. dimensions: 800 x 600 x 700 mm Machine compatibility: Deckel FP3 / FP4 tool milling machines Universal swivel, tilt and rotary table Functionality not tested This item is delivered loaded on truck. Dismantling and loading costs are specified as additional costs. Auction-ID: A1-45225-2

Heidenham Variable Speed Display: 60-5000 & 120-10000 rpm Serial: 2939 Estimated Weight: 1500 kg Approximate Dimensions: 1300x1200xh2100 mm Auction-ID: A7-44996-167

Sold with various tools and documentation. Technical Information Main training Maximum speed: 9,000 rpm Motor: AC Servo Motor 100% ED engine power: 4.96 kW Engine power at 40% ED: 6.94 kW Continuously programmable speed: 20 – 9,000 rpm Torque/power diagram Speed range: 20 – 9,000 rpm Axis drive AC servo motors for X, Y, Z axes Programmable feed rate: up to 10,000 mm/min Input Unit: 0.01 mm Fast (fast) speed: 12 m/min Measurement system X, Y, Z axis resolution: 0.001 mm Position Tolerance (Direct Measurement): 0.010 mm Work Area X-axis travel: 500 mm Y-axis travel: 400 mm Z-axis travel: 400 mm Work table Round table with swivel axis Clamping surface: Ø 700 x 500 mm T-slot spacing: 63 mm T-Slot Width: 14 H7 Centering bore: Ø 30 H7 Rotation range: 360° Table lock ...

CNC control: Heidenhain TNC 530 Machine 5 simultaneous axes Strokes: X = 730 mm, Y = 560 mm, Z = 560 mm Spindle speed: up to 12,000 rpm Cone: SK40 Feeds: 20 – 20,000 mm/min Fast feeds: 30 m/min Table: 1000 x 600 mm Max load table: 800 kg Tool changer: 24 / 30 positions Machine hours≈ 31,481 h Spindle hours≈ 25,087 h Lots sold as is, unchecked, without tools or tool holders.

CNC vertical machining center for machining metal parts. Numerical control: Heidenhain TNC 426 (3D) Strokes: X 1,000 mm / Y 600 mm / Z 600 mm Table: 1,250 ×,800 mm Tool changer: 30 positions Spindle taper: SK 40 (DIN) Spindle speed: up to 15,000 rpm Spindle motor power: 18 / 15 kW IKZ / CTS: 40 bar Equipment: Chip conveyor, air blowing, closed cab

Unaudited Auction-ID: A7-45427-219

End Milling Machine Drill Milling Machine working width mm: 3200 Left - right swivelling saws from 0° - 45°. Complete with drilling unit Suitable for machining doors and door posts.
