milling drill used for sale

spindle diameter:130 mm x-travel:2190 mm y-travel:1520 mm z-axis:1520 mm w-axis:1000 mm table surface area:2000 x 1800 mm workpiece weight:8 t spindle motor:18 kW spindle taper ISO:50 spindle turning speed range:4,5 - 900 U/min faceplate diameter:785 mm rapid traverse:5 m/min total power requirement:40 kW dimensions of the machine ca.:5,5 x 6,9 x 5,2 m weight of the machine ca.:35 t Machine was retrofitted in 2023 with HEIDENHAIN TNC 360 CNC control - inf. variable spindle spped - 4 x 90° table positioning - diverse toolholders - dDust exhauster

spindle diameter:120 mm x-travel:1250 mm y-travel:1250 mm z-travel:800 mm W-axis (spindle longitudinal):600 mm Speed of boring spindles:1- 2000 U/min. spindle taper ISO:50 table surface area:1000 x 1000 mm total power requirement:55 kW weight of the machine ca.:18 t with CNC HEIDENHAIN TNC 426 autom. toolchnager 40-pockets coolant attachment

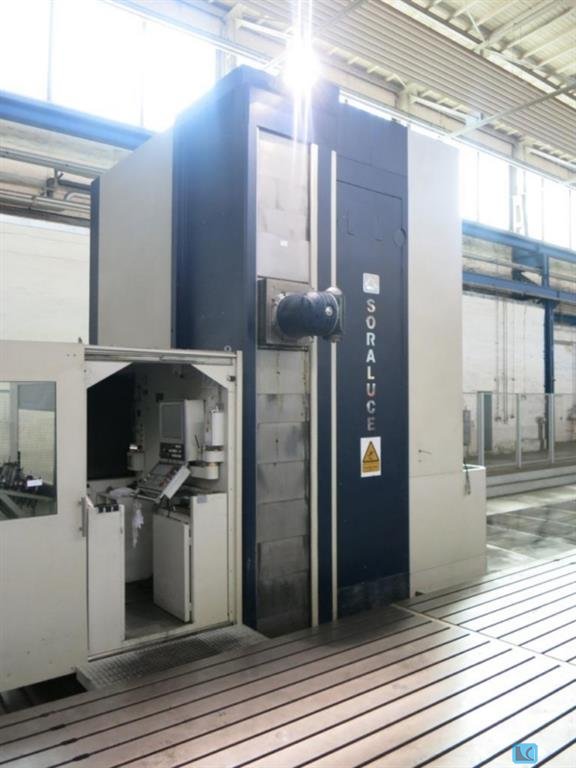

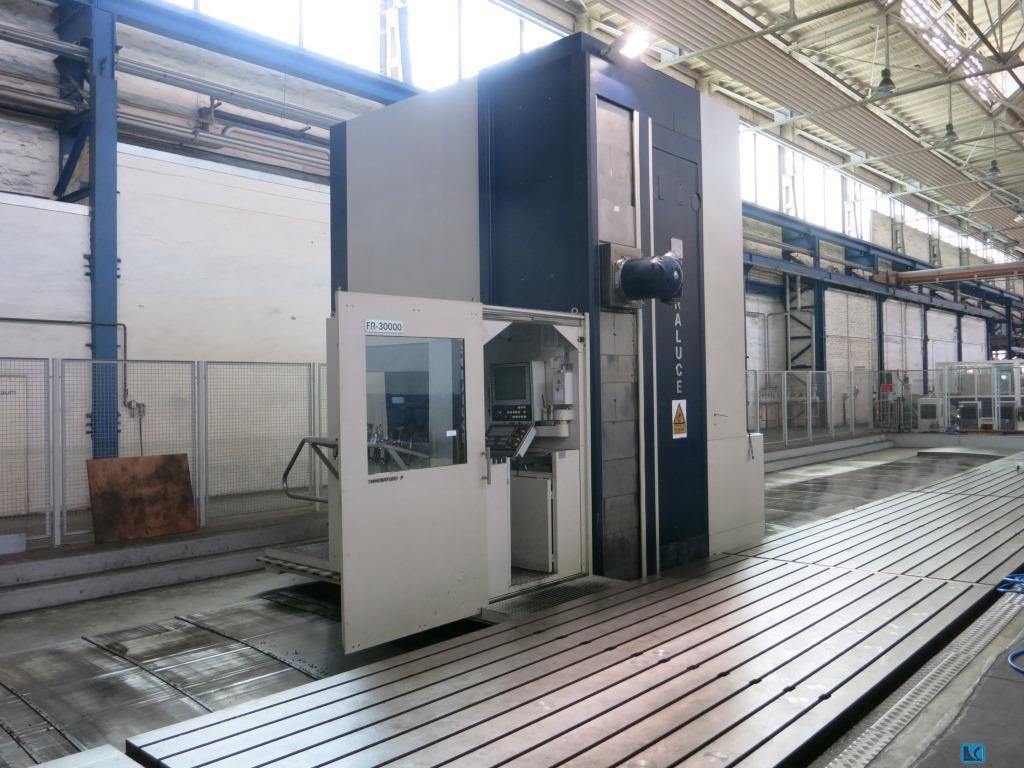

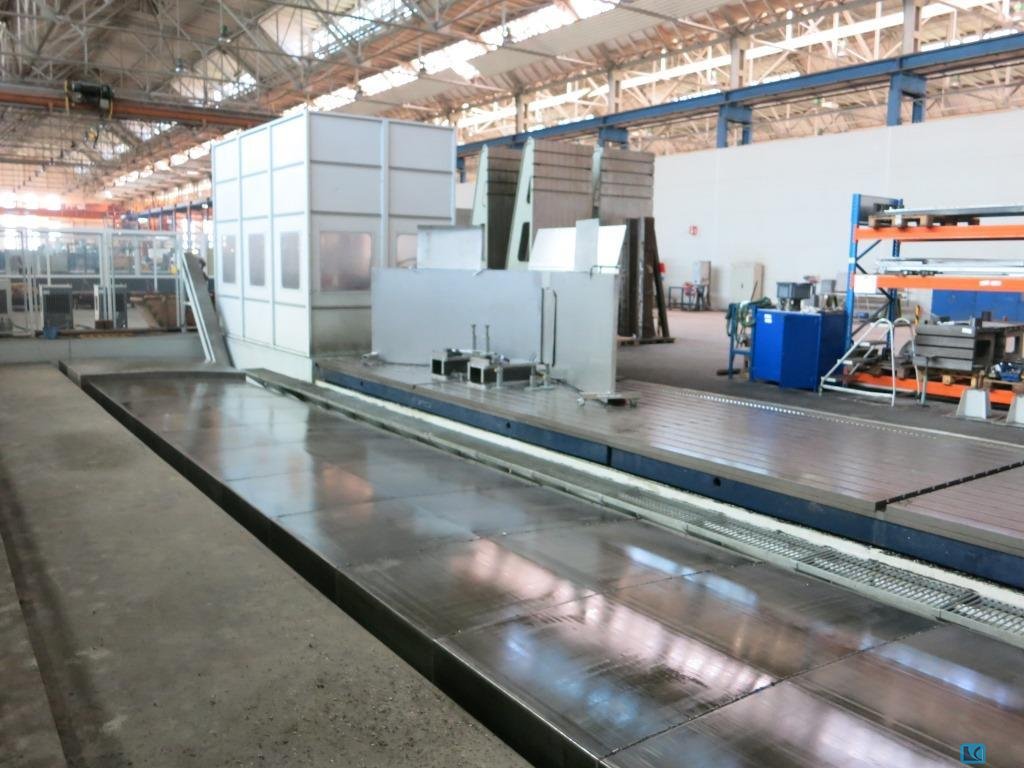

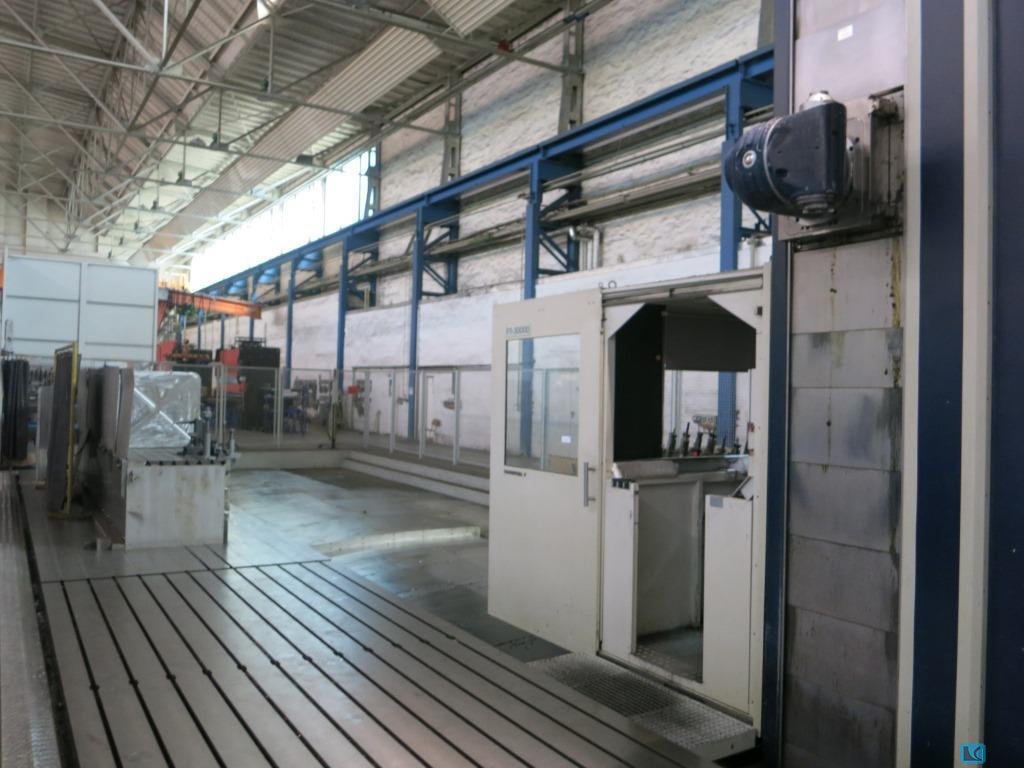

x-travel:30000 mm y-travel:3600 mm z-travel:1900 mm milling head speed:1 - 4000 U/min spindle taper ISO:50 feed speeds:1 - 10000 mm/min rapid traverse:25 m/min milling spindle motor:46 kW total power requirement:85 kW dimensions of the machine ca.:45 x 8,7 x 5,5 ü.F. m with CNC HEIDENHAIN iTNC 530 autom. milling head indexing 2,5° floor plate field 31000 x 2500 mm ( 4 floor plates 6000 x 2500 mm + 1 floor plate 7000 x 2500 mm ) 2 chip conveyors, coolant attachment

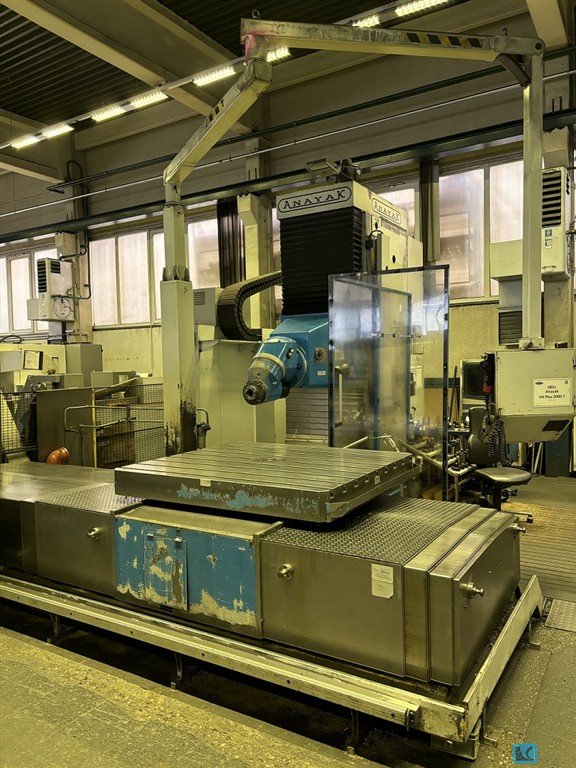

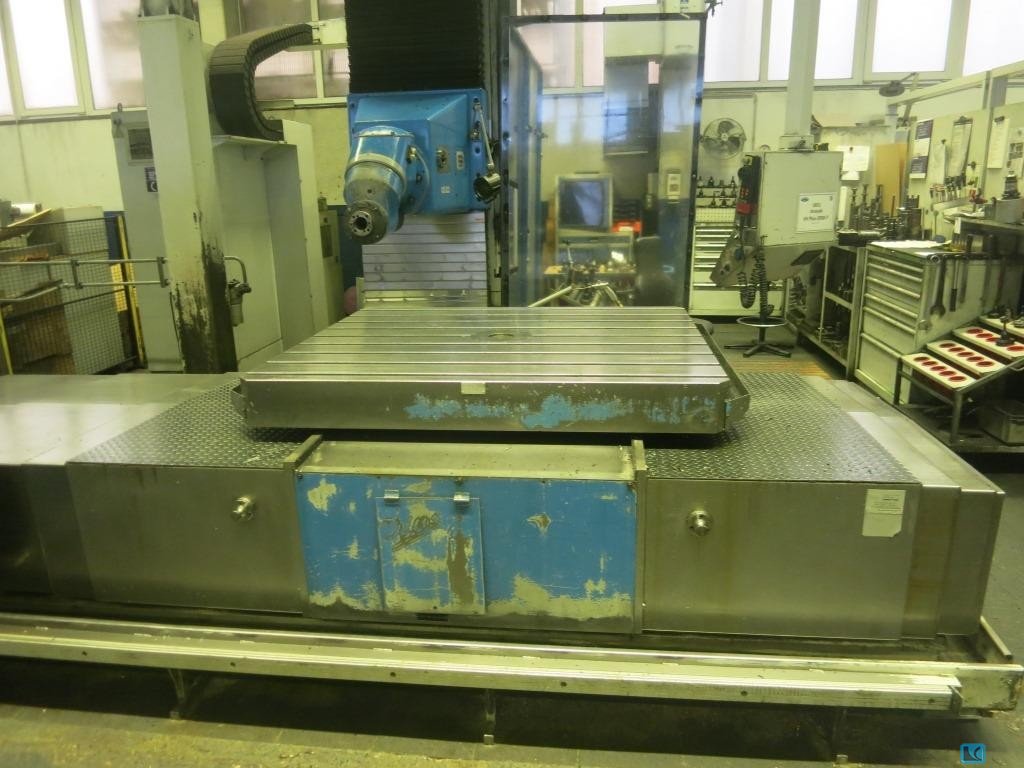

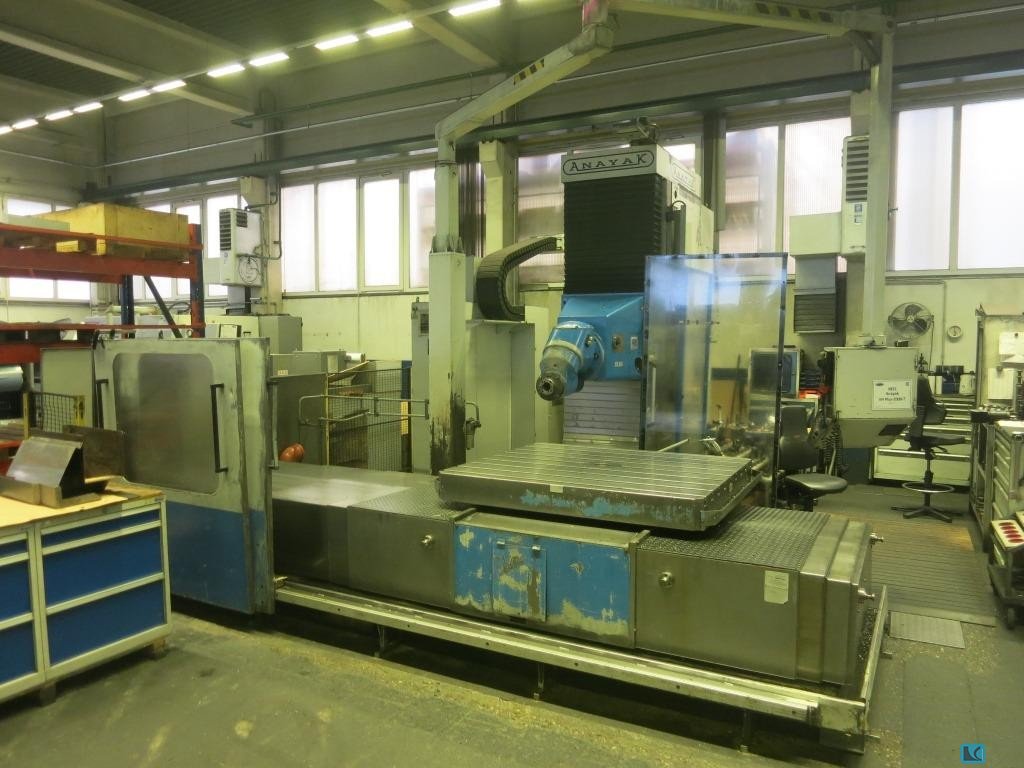

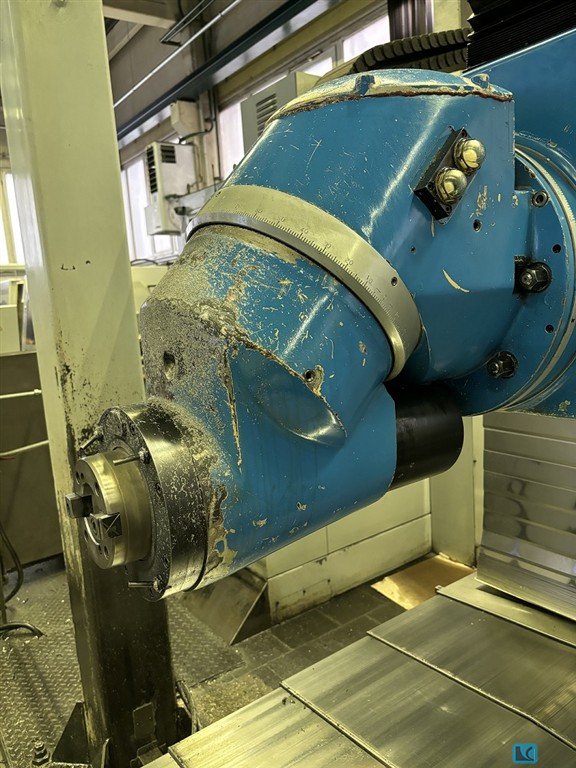

x-travel:2000 mm y-travel:1500 mm z-travel:1460 mm milling spindle motor:35/30 kW spindle taper ISO:50 spindle turning speed range:24 - 3000 U/min table surface area:1350 x 1550 mm table load:6 t feed speeds:10 - 3000 mm/min rapid speed:10 m/min total power requirement:48 kW weight of the machine ca.:24 t CNC HEIDENHAIN TNC 426 B-axis table round Horiz. and Vertikal automatic positioning Milling Head

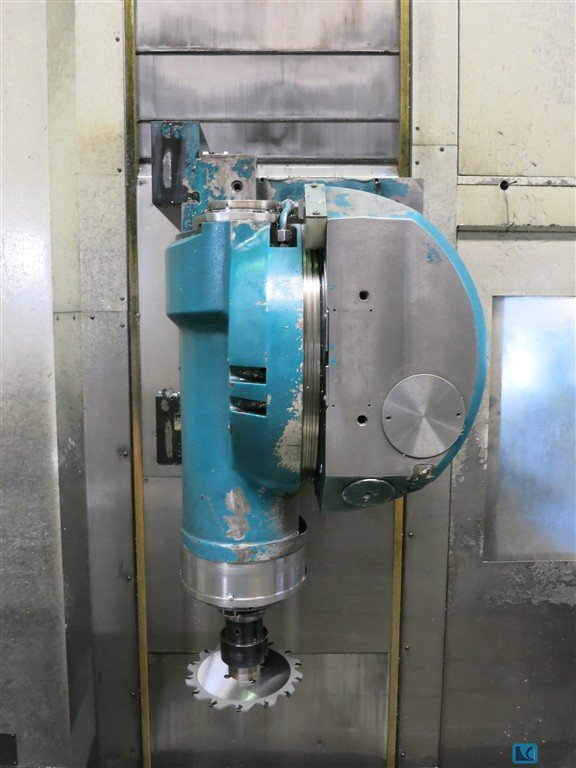

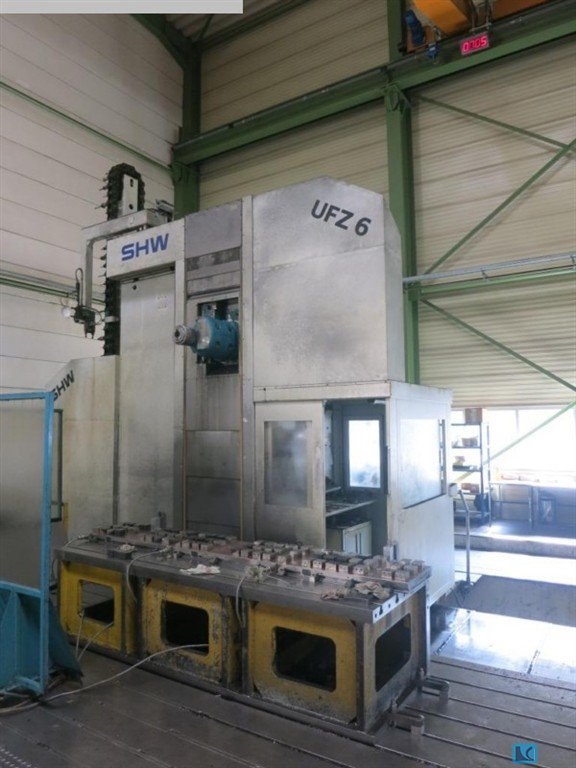

x-travel:16300 mm y-travel:2600 mm z-travel:1600 mm spindle taper ISO:50 spindle turning speed range:22 - 4000 U/min rapid traverse:24 / 36 m/min main drive:37 kW total power requirement:50 kW with CNC HEIDENHAIN TNC 430 automatic Universal Milling Head automatic toolchanger 90-pockets coolant attchament and chip conveyor

x-travel:6500/13150 mm y-travel:4000 mm z-travel:1250 mm w-axis:2250 mm table surface area:5500/12150 x 3000 mm max. workpiece weight:70.000/105.000 kg ram head dimension:480 x 510 mm milling spindle motor:63 kW max. torque on the spindle:3300 Nm tool taper:DIN 39871 AD ISO 50 milling head speed:6,3 - 4000 U/min feed speeds:1 - 24000 mm/min w-axis:1 - 6000 mm/min. distance between columns:3500 mm passage:3000 mm total power requirement:120 kW weight of the machine ca.:245 t dimensions of the machine ca.:29,0 x 7,7 x 8,1 m The machine is in mint condition and was generally overhauled in 2020! with CNC SIEMENS 840 D autom. tool magazine for 153 tool stations autom. milling head magazine for 6 heads milling heads - straight - straight extended length - milling head -angular head standard - 4000 rpm, 144 x 2,5°, ISO 50 milling head -angular small extended length -40 kW, 4000 rpm, 1800 Nm,  ...

spindle diameter:200 mm x-travel:10000 mm y-travel:4000 mm z-axis:1500 mm W-axis (spindle longitudinal):1000 mm bore spindle turning speed range:1 - 2000 U/min dimension of the ram:600 x 530 mm high speed spindle taper ISO:60/50 rapid motion - x-axis:8000 mm/min rapid motion - y-axis:8000 mm/min rapid traverse Z-axis:5 m/min total power requirement:120 kW weight of the machine ca.:135 t dimensions of the machine ca.:16,0 x 5,0 x 10,0 m with CNC Steuerung HEIDENHAIN iTNC 530 hydrostatic guideways x and Y- axis autom. toolchanger 40-pockets autom. Pickup Station for angular milling head, universal milling head and facing head rotary table 3000 x 3000 mm , max load 60 to. v-axis 2500 mm chip conveyor and coolant attachment

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Technical data Manufacturer: MAHLO Type: FU 1300 Machine number: 2257 Voltage: 220–380 V / 50 Hz Clamping surface: 1300 x 300 mm T-slots: 5 (spacing 60 mm) Travel (X/Y/Z): 950 / 275 / 500 mm Spindle holder: ISO 40 Speed range: 30–1200 rpm Weight: approx. 1750 kg Configuration Accessories: 1 HILMA machine vice, 1 RÖHM four-jaw chuck, diameter approx. 200 mm Application: General milling work in tool and mechanical engineering

Manufacturer: TOS OLOMOUC Year: 1985 Type: CNC universal milling machine Numerical control: Heidenhain TNC 155 Strokes: X 850 mm / Y 500 mm / Z 450 mm Table: 1250 × 500 mm Spindle: ISO 50 – 1,800 rpm – 16 kW Feeds: 1 to 800 mm/min – fast X/Y/Z 2 m/min Installed power: approx. 22 kW Dimensions (mm): 2400 × 2300 × 2400 Weight (kg): approx. 5000 Notes: Robust CNC tooling universal milling machine from TOS manufacture. Lots sold as is, unchecked, without tools or tool holders.
