milling drill used for sale

bore capacity in steel (diameter): 30 mm throat: 200 mm bore stroke: 70 mm : 16 mm spindle taper: MK3 spindle turning speed range: 50 - 3000 U/min : 565 mm : 220 mm table surface area: 840 x 210 mm connected load frequency: 400 V max. distance between table and spindle-nose: max. 470 mm total power requirement: 1,1 kW weight of the machine ca.: 230 Kg dimensions of the machine ca.: 0,75 x 1,05 x 1,3 m Drilling and milling machine with large table Digital display SINO 3-axis. Digital display quill stroke. 2 speed levels. Left/Right switch Pan head left/right 90° Recording MC 3 - B16. Drill chuck 3 - 16 mm. spindle protection. Machine stand. incl. tool box with various tools The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 16 mm throat: 185 mm bore stroke: 50 mm : 20 mm spindle taper: MK 2 spindle diameter: mm spindle turning speed range: 100-1500 / 200-3000 U/min : 175 mm : 280 mm table surface area: 500 x 180 mm connected load frequency: 230 V total power requirement: 0,85 kW weight of the machine ca.: 0,12 t dimensions of the machine ca.: 0,86 x 0,6 x 0,9 m Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

BALESTRINI TEAM automatic CUTTING , END MILLING and DRILLING MACHINE machine for joining parts of chairs, living rooms, furniture, etc. the TEAM machine is made up of 3 operating units: 1st unit: circular saw for cutting workpieces to length 2nd unit: spindle moulder for milling 3rd unit: drilling unit with multiple center distance head . there are 9 work programs that can be choiceed and they consist of the possible combinations of use of the 3 operating units. only 2 can be used , or 1 , or even the 3 operating units can work in different sequences . all units are operated by a hydraulic pump to obtain adjustable and smooth movements Technical data : - Cutting unit (circular saw) diam.mm.400. engine power Hp 3 - Moulding unit (spindle moulder) shaft diameter mm.30 . motor power Hp 5.5 max. tool dimensions mm.160, H=mm.120 - Boring unit . engine power Hp 3 . max. depth ...

Ref. -No.: 10361 Manufacturer: SCHIESS Year of construction: 2023 Type of control: CNC Control: Siemens, Heidenhain, Fanuc - Configurable as required Storage location: Halberstadt Country of origin: Germany financing: nach Anfrage Support sleeve diameter: 130 mm X-Travel: 3000 mm Y-Travel: 2000 mm Z-Travel: 1600 mm Spindle stroke: 800 mm B-Axis: 360 ° W-Axis: 800 mm Spindle Taper: SK50 Max. Tool Weight: 25 kg Clamping Area: 1250 x 1250 (or configurable as required) mm T - groove width: 22 mm T - slot spacing: 160 mm Swivelling: Configurable as required ° Numbers Of Tools In Magazin: 40, 60, 120, 200, 240 Spindle Speed: 2900 RPM Max. Torque: 2500 Nm Drive Capacity - Spindle Motor: 41 kW

S. No.: 238828

Type MX5116T+ V-380 Work table dimensions 1100x700 mm Sliding table 1085х250 mm Diameter of spindle 35 mm Spindle rotation speed 6000-8000-8000-10000 rpm Max. working thickness 120 mm Motor power 4 kW Dust exhaust outlets Ø90, 200x80 mm Number of wheels(pcs)-3 Wheels diameter-120 mm Wheels width-60 mm Feeding rate-3.5/5/7/10/12.5/16/25/32 m/min Motor power-750w/550w Machine frame - Cast aluminum Feeding direction:Forward/Reverse Transport dimensions 1650x700x1600mm Weight 466 kg Price 3060 Eur (EXW Jonava, Lithuania)

bore capacity in steel (diameter): 32 mm throat: 200 mm bore stroke: 70 mm : 16 mm spindle taper: MK3 spindle turning speed range: 50 - 3000 U/min : 220 mm : 425 mm table surface area: 700 x 210 mm connected load frequency: V max. distance between table and spindle-nose: 470 mm total power requirement: 1,5 kW weight of the machine ca.: 230 Kg dimensions of the machine ca.: 0,75 x 1,05 x 1,2 m Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

20-75- CNC router WOODLAND MACHINERY (new) Type SX1325A-4 Useful working area axis X-Y-Z 2850-2100-150 mm Shaft, air cooled, 6kw+4.5kw x 3 18000 rpm. Engine Hybrid servo Control system LNC system Repeat positioning accuracy 0.03mm Work table vacuum plate Vacuum pump 11kw Maximum speed 50000 mm/min Maximum working speed 25000mm/min Resolution ±0.05 mm System resolution ±0.001 mm Code G Inverter 7.5 kw Voltage 380V/50HZ Transport dimensions 3200x2100x1800mm Weight 2100 kg The price is 23100 Eur

MIKRON Cutter Mod. VCP 1000 Machinable dimensions: square = 125x125 round 152 Machine visible in operation, in excellent condition.

for sale NEW - ALDURO Drilling-Milling Machine BFM 20V2 Drilling capacity up to 20 mm Spindle Holder MK 2 Head swivels +/- 90° Stepless speed adjustment 50 - 2250 rpm Cross table 500 x 180 mm Digital X-travel 195 mm Y-travel 140 mm Motor 1.1 kW, 230 V Machine without base (base), Can be purchased separately Weight approx. 113 kg further models and inquiries to FSA Maschinen AG

Travel X/Y/Z/W: 1500mm/1250mm/1000mm/550mm, B-axis: 360°, boring spindle diameter: 110mm, spindle speed: 4000rpm, gear ranges: 2, rapid traverse: 15m/min, tool taper: SK50, table dimensions X/Y: 1000mm/1250mm, T-slot width: 22mm, height of clamping surface above floor: 1050mm, max. table load: 6000kg, control: Heidenhain TNC 426. With electronic handwheel. Weight: approx. 13500kg. An on-site inspection is possible.

Machine was regularly serviced, was in operation until recently, with documentation and accessories, an on-site inspection is possible.

Alzmetall AB 40 SV Price 9500,-€ Drilling capacity : 45mm Spindle : MK 4 Drilling capacity 45mm Spindle MK 4 Speed 65-1750 rpm Feed rate Yes 0.1 - 0.2 - 0.3 Drilling stroke 165mm Connection 50Hz 380V Motor 2.4KW Machine weight approx. 500kg

Electrical power: 7kW, operating voltage: 380V, frequency: 50Hz, control voltage: 220V, current: 35A, control: Heidenhain. An on-site inspection is possible.

A Trima CNC gantry machining center is available. Workpiece dimensions X/Y/Z: 2500mm/1100mm/80mm, spindle power: 7.5kW, speed: 24000rpm, tool positions: 10, traversing speed X/Y/Z: 55m/35m/15m/min. Machine dimensions X/Y: approx. 4400mm/2500mm, weight: approx. 3200kg, control: Siemens Sinumerik. The machine has a control defect. The reference run is aborted. Documentation available. On-site inspection is possible.

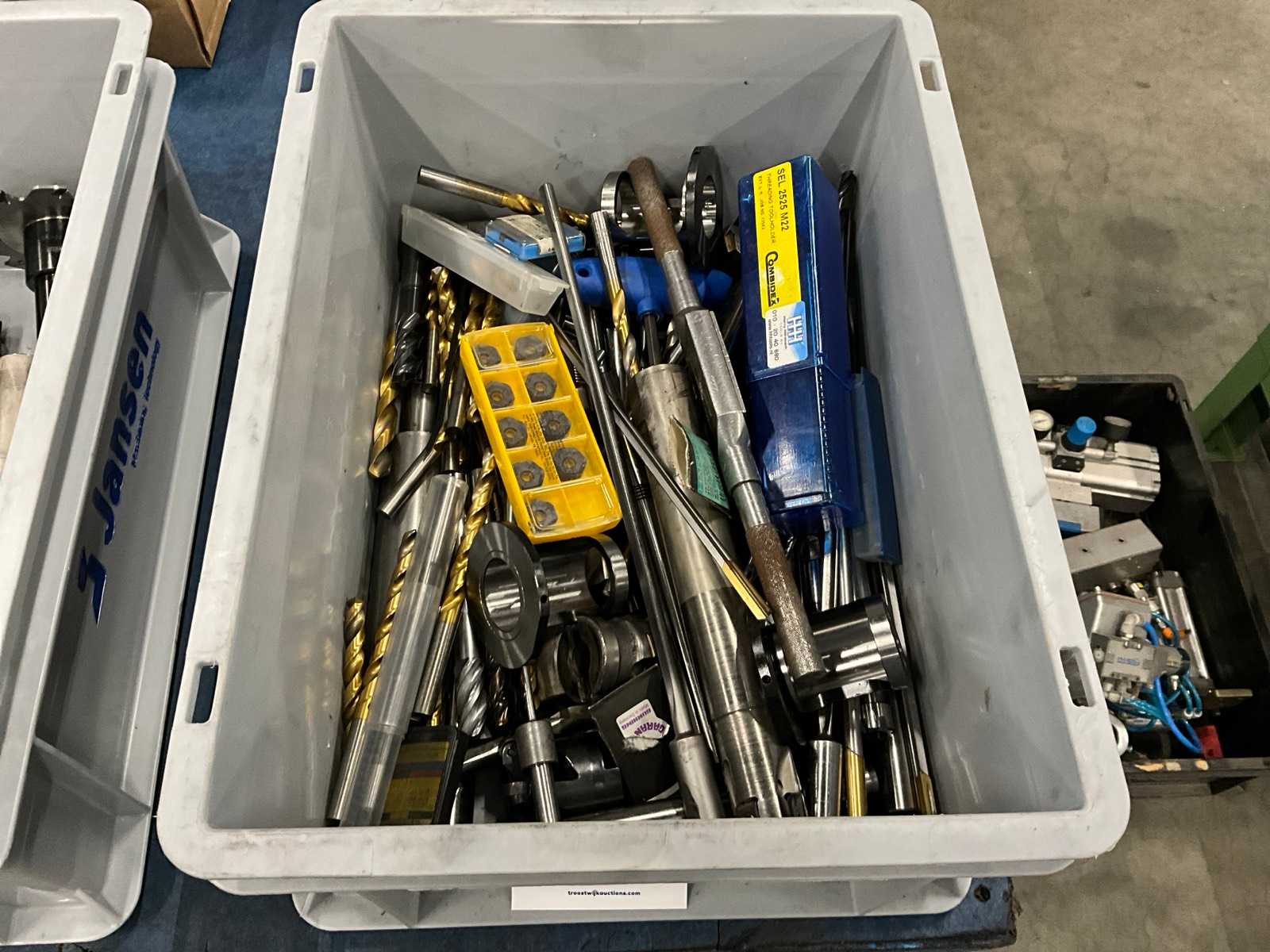

Consisting of various milling tools and drill bits Auction-ID: A7-51362-8

Offered: Universal milling machine. Equipped with: Vertical milling head, overarm, machine table, manual adjustment and clamping elements and vertical machine guideway with bellows cover. Inspection possible by arrangement.

Small Drilling/Milling Machine ISERT ELECTRONIC Travel X: 350 mm Travel Y: 300 mm Travel Z: 70 mm Rotation: 8000 / 9500 / 13500 / 20500 / 24000 RPM The machine could be used for drilling printed circuit boards or other use. The machine was controlled through a PC that is no longer present. Possibility to use it in manual Equipped with: 1 Milling Machine KRESS Voltage: 220 V mono Dimensions (L x W x H): 950 x 700 x 700 mm Weight: approx 60 KG

Motor output: - kW Dimensions (L/W/H): - mm Vertikal stroke: - mm Table dimensions: - mm Dust suction hood: - mm Diameter of the saw arbor: - mm Length of the rolling table: - mm Sawblade tiltable: - ° milling stroke vertical: - mm total power requirement: - kw Weight: - kg Spindle diameter: - mm Length of the planing table: - mm Number of heads vertical: St. Number of heads horizontal: St. Number of milling agregates: St. Number of knives: St. Number of sanding units: st. Number of spindles: St. Number of spindle head vertical: St. Number of spindles head horizontal: St. Number of milling spindles: St. 0: St. Number of tools: St. Working width: mm Year: 0 Speed of boring spindles: U/min. Required air-pressure: bar Dowel insertingunits: St. Electrical height adjustment: 0 Working height: mm Workpiece length min.: mm Air consumption: m³/h Positions adjustment of boring unit: mm Position ...

bore capacity in steel (diameter): 30 mm x-travel: 850 mm y-travel: 435 mm Control: HEIDENHAIN TNC 150 total power requirement: 16 kW weight of the machine ca.: 3500 kg dimensions of the machine ca.: m F E H L M A N N (Switzerland) CNC-Controlled High Precision Drilling and Milling Machine with HEIDENHAIN CNC-Control Model TNC 150 Model PICOMAX 100 CNC – 2 + A Year 1985 Serial No. 16 085 109 _______________________________________________________________ Table travel: Longitudinal ( X-Axis) 850 mm Cross (Y-Axis) 435 mm Milling/Boring head travel vertical ( Z-Axis) 210 mm Table size /Clamping area 500 x 1.570 resp. 390 x 1.280 mm Mounting height below spindle, approx. 140 / 690 mm Height adjustment of Milling head max. 540 mm Distance between spindle and column 450 mm Spindle tape ...

bore capacity in steel (diameter): 50 mm throat: 360 mm bore stroke: 150 mm spindle turning speed range: 120 - 3000 U/min spindle taper: SK 40 : 650 mm : 320 mm vertical adjustment: 500 mm table surface area: 1000 x 300 mm connected load frequency: 400 V diameter of hob: max. 80 mm total power requirement: 2,2 kW weight of the machine ca.: 0,85 t dimensions of the machine ca.: 1,25 x 1.5 x 2,3 m New Model Industrial Drilling and Milling Machine with Manual Transmission and High Speed Range. The prism guide in the Z-axis ensures a high degree of precision even in the most difficult milling jobs. Domestic equipments: • automatic feed in X-axis • 3-axis digital display • motorized Z-axis • Feed in quill • Left-right-run high • tapping attachment • Gear head swiveling • Coolant system The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 25 mm throat: 185 mm bore stroke: 50 mm spindle taper: MK 3 spindle turning speed range: 50 - 2500 U/min : 178 mm : 480 mm table surface area: 700 x 180 mm connected load frequency: 230 V total power requirement: 0,75 kW weight of the machine ca.: 160 t dimensions of the machine ca.: 0,75 x 0,8 x 0,9 m domestic equipments • Digital depth gauge • Adjustable guides with wedges • Large 12-speed range from 75 to 3200 rpm • Smooth running due to hardened and ground gears running in an oil bath • • Right-left rotation • Prismatic guides in all axes • Gear head can be swiveled 90 ° • Chip protection with safety circuit Machine base optional. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 290 mm bore stroke: 130 mm spindle taper: SK 40 spindle turning speed range: 70 - 3200 U/min : 520 mm : 230 mm table surface area: 730 x 210 mm connected load frequency: 400 V total power requirement: 1,1/1,5 kW weight of the machine ca.: 0,32 t dimensions of the machine ca.: 1,1 x 0,9 x 1,15 m domestic equipments • Digital depth gauge • Adjustable guides with wedges • Large 12-speed range from 75 to 3200 rpm • Smooth running due to hardened and ground gears running in an oil bath • • Right-left rotation • Prismatic guides in all axes • Gear head can be swiveled 90 ° • Chip protection with safety circuit Machine base optional. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 16 mm throat: 180 mm bore stroke: 85 mm spindle taper: MK 2 spindle diameter: 47 mm spindle turning speed range: 320 - 3300 U/min : 230 mm : 100 mm table surface area: 420 x 155 mm connected load frequency: 230 V : 900 x 600 x 300 cm total power requirement: 0,75 kW weight of the machine ca.: 8o Kg dimensions: 0,7 x 0,7 x 0,8 m Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 290 mm bore stroke: 115 mm spindle taper: SK 40 spindle turning speed range: 70 - 3200 U/min : 350 mm : 130 mm table surface area: 590 x 190 mm connected load frequency: 400 V diameter of hob: max. 80 mm feed: 0,1 - 0,18 - 0,26 mm/U total power requirement: 1,1 kW weight of the machine ca.: 0,4 t dimensions of the machine ca.: 0,7 x 0,95 x 1,75 m Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 290 mm bore stroke: 130 mm spindle taper: SK 40 spindle turning speed range: 75 - 3200 U/min : 500 mm : 230 mm table surface area: 720 x 210 mm connected load frequency: 400 V diameter of hob: max. 80 mm total power requirement: 1,1 kW weight of the machine ca.: 0,35 t dimensions of the machine ca.: 1,1 x 0,9 x 1,2 m domestic equipments • Digital display • Digital depth gauge for quill • Adjustable guides with wedges • Large 12-speed range from 75 to 3200 rpm • Smooth running due to hardened and ground gears running in an oil bath • • Right-left rotation • Prismatic guides in all axes • Gear head can be swiveled 90 ° • Chip protection with safety circuit Machine base optional. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 275 mm bore stroke: 120 mm spindle taper: MK 4 turning speed range: 75 - 3200 U/min : 190 mm : 490 mm table surface area: 700 x 210 mm connected load frequency: 400 V diameter of hob: max. 80 mm total power requirement: 1,1/1,5 kW weight of the machine ca.: 0,35 t dimensions of the machine ca.: 0,8 x 0,75 x 1,85 m Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 25 mm throat: 170 mm bore stroke: 50 mm : 16 mm spindle taper: MK 3 spindle turning speed range: 50 - 3000 U/min : 280 mm : 155 mm table surface area: 500 x 180 mm connected load frequency: 230 V max. distance between table and spindle-nose: max. 320 mm total power requirement: 0,8 kW weight of the machine ca.: 150 Kg dimensions of the machine ca.: 670 x 550 x 910 m Drilling and milling machine with - variable spindle speed - Digital depth display - Left / right switch - Cross support - swiveling spindle head - Feeds via hand crank - Tool case with content The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Quick-opening milling spindle HENNINGER type 814 / 5131 / 1:5 / 15000speed max. 15000 rpm at 70% EDratio ratio 1:5Power transmission up to approx. 2.5 kWProduct dimension 110 mm (machine spindle to clamping nutTool holder MK4 with tightening thread M16Collets type OZ16 6 / 8 / 9 / 10 / 11 / 12 / 12.5 / 13 / 14 mmWeight 6.5 kgGood condition; used

A CNC universal tool milling and drilling machine Hermle is available. Travel X/Y/Z: 700mm/550mm/500mm, quill stroke: 95mm, spindle power: 12kW, spindle speed: 4200rpm, spindle swivel: +/-75°, tool holder: SK40, clamping force: 12kN, feed rate: 10m/min, rapid traverse: 10m/min. Machine dimensions X/Y/Z: approx. 4400mm/4250mm/2300mm, weight: approx. 4500kg, control: Heidenhain TNC 425. Documentation available. An on-site inspection is possible.

bore capacity in steel (diameter): 13,0 mm x-travel: 300 mm y-travel: 130 mm turning speeds: 100 - 2500 U/min throat: 165 mm spindle taper MT: 3 MK table-size: 490 x 120 mm diameter of hob: 30,0 mm motor: 230 Volt total power requirement: 0,75 kW weight of the machine ca.: 50 kg. dimensions of the machine ca.: 520x500x740 mm Scope of delivery: - Key chuck 1 - 13 mm / B 16 - Drill chuck arbor MK 3 / B 16 - tightening spindle M 12 - Height-adjustable protective cover - operating key The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 45 mm quill stroke: 125 mm : 560 mm : 230 mm table surface area: 800 x 240 mm spindle turning speed range: 75 - 3200 U/min max. milling cutter diameter: 80 mm spindle taper: ISO 30 max. distance between table and spindle-nose: 460 mm throat: 230 mm connected load frequency: 400 V total power requirement: 1,5 kW weight of the machine ca.: 580 Kg dimensions of the machine ca.: 1,2 x 1,0 x 2,1 m Equipment: All axes with 3-digital display. Quill travel has separate digit display. Automatic feed in X-axis and quill. Motorized Z-axis. tapping device. coolant system. machine base. Collet set, SK tool holder. Further machine accessories in box. The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

bore capacity in steel (diameter): 40 mm throat: 275 mm bore stroke: 120 mm spindle taper: MK 4 turning speed range: 75 - 3200 U/min : 190 mm : 490 mm table surface area: 730 x 210 mm connected load frequency: 400 V boring feeds:: 0,1 - 0,18 - 0,26 mm/U total power requirement: 1,1/1,5 kW weight of the machine ca.: 0,35 t dimensions of the machine ca.: 0,8 x 0,75 x 1,85 m Drilling and milling machine - Cross Support - Cabinet - Swivel spindle head left / right 90 ° - Feed via hand crank The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 25366 Specifications: - Drilling capacity 25 mm - Drilling spindle holder MK 3 - Drilling spindle speeds 100 / 205 / 345 / 440 rpm - 695 / 885 / 1450 / 2900 rpm - Drilling spindle stroke 130 mm - Drilling spindle projection 260 mm - Coordinate table with 3 T-slots 580 x 240 mm - Table travel X-axis 415 mm - Y-axis 155 mm - Drive 400 V / 0.75 / 0.9 kW - Space requirement approx. W 900 x H 1800 x D 700 mm - Weight approx. 270 kg - Machine vise

A horizontal boring and milling machine Scharmann is available. Spindle sleeve diameter: 120mm, travel X/Y/W: 1600mm/1600mm/600mm, speed: 1000rpm, table dimensions X/Y/Z: approx. 1200mm/1400mm, max. table load: 6000kg, column diameter: 220mm, table rotation: 360°, rapid traverse: 380mm/min, feed: 2400mm/min. Machine dimensions X/Y/Z: approx. 4500mm/2600mm/3000mm, weight: approx. 17000kg. Dokumentation vorhanden. An on-site inspection is possible.

Offered is an OptiMill MF 4V milling machine, almost new, 100h. Year of construction 2017, travel ranges X/Y/Z: 800mm/320mm/400mm, stepless spindle speed 9-6750rpm in 8 speed ranges, with electronic speed control, quill stroke: 127mm, 3-axis digital display DPA21, right/left rotation reversing switch, drilling depth stop, cross table X/Y 1244mm/230mm T-slot 16mm, chuck guard, coolant system, manual central lubrication, universal compressed-air tool clamping system ISO 40, stepless table feeds in X/Y, weight approx. 1200kg. Viewing is possible by arrangement.

Spindle-to-table distance min./max.: 81mm/481mm, counter support spindle center distance: 195mm, spindle head swivel: 360°, milling spindle diameter: 70mm, spindle adjustment: 100mm, headstock adjustment: 300mm, table dimensions X/Y: 480mm/820mm, travel X/Y/Z: 500mm/200mm/400mm, max. workpiece length: 400mm, spindle speed: 1600rpm, feed X/Y: 500mm/min, feed Z: 250mm/min, spindle head swivel: +/-30°, machine dimensions X/Y/Z: approx. 1600mm/2550mm/1700mm, weight: approx. 2300kg. The machine was electrically tested at the end of 2025 and a defect of the emergency stop switch was discovered. Documentation available. On-site inspection is possible.

Controls: HEIDENHAIN TNC 426, connected load: 7.7kW, including Rotator 3R WorkPal, with documentation, without spare parts.

Technical data: - Drilling capacity 25 mm - Drilling spindle holder MK 3 - Drilling spindle speeds 100 / 205 / 345 / 440 rpm - 695 / 885 / 1450 / 2900 rpm - Drilling spindle stroke 130 mm - Drilling spindle projection 260 mm - Coordinate table with 3 T-slots 580 x 240 mm - Table travel X-axis 415 mm - Y-axis 155 mm - Drive 400 V / 0.75 / 0.9 kW - Space requirement approx. W 900 x H 1800 x D 700 mm - Weight approx. 270 kg - Machine vise

ARBOGA UM 3508 Drilling-Milling Machine -Operating voltage: 380 - 415 V -Connection: 1.5 kW -Speed: up to 1400 rpm -Rated current: 5.7 A -Speed: from 70 to 2590 rpm -Drilling depth: up to 170 mm -Table dimensions: 650 x 270 mm -with three grooves -Incl. three-axis digital display from the manufacturer HEIDENHAIN also an attached vice, jaw width: 85 mm and a matching dividing head Dimensions: LxWxH 1.2x1.1x1.9 meters / Weight 700Kg

: neu : ca. 12 - 14 Wochen ab Auf : Spanien : 50410 € : 952.75 € : 35 mm : MK 4 : 390 mm : 94- 2.225 (16) 50 Hz 113 U/min : M35 : 1660 mm : 1510 mm : 2600 mm : 910 kg : 180 mm : 190 - 650 mm : 1310 mm : 125 mm : 400 x 420 mm : 0,10 - 0,18 - 0,24 (3) mm/min : 750 - 1.500 U/min ERLO (MADE IN SPAIN) FOR DEMANDING WORKSHOP USE drilling and milling machine automatic feed precision electromagnetic clutches geared drive cross table fixed base and displaceable headstock control panel cooling equipment with electric motor pump hand wheel for fine tuning clamping device for tools adjustable stop drill guard OPTIONAL EQUIPMENT (PRICES ON REQUEST): Digital read out for drilling depth Tapping device Motorized longitudinal and/or transverse feed Digital read out for table axes and/or drill head height adjustment The data for this ad was created with ModulMWS - the software solution of LogoTech oH ...

FEHLMANN PICOMAX 80 CNC 2/3 is a CNC Bohr- Fräsmaschine für Präzision, hohe Genauigkeit und Zuverlässigkeit. 5 Achsen; SF32; Bohren 30 mm; Gewinde M24; Fräsen 100 cm3/min. Tisch 1230×410 mm, 7 T-Nuten 12H8, Nutzlast 250 kg. Verfahrwege X700 Y315 Z170/180 W495 mm; Spindel 50–9200 t/min; Vorschub X/Y 1–9000 Z1–4000 W1–4500 mm/min; Eilgang X/Y 9 m/min Z4 m/min. Anschluss 3×380V 50Hz, 16 kW; Gewicht ~3200 kg; Maße 2500×2500×2450 mm. Zubehör: Teilapparat 4. Achse, Reitstock, 3-Backenfutter Ø160, Spannzangenaufnahme, Satz Werkzeughalter, elektronisches Handrad. Eignet sich für enge Toleranzen in Uhren, Medizin, Luftfahrt, Automotive, Werkzeugbau. Technische Daten ohne Gewähr

FEHLMANN Picomax 55 CNC ist eine CNC Bohr-Fräsmaschine, ausgelegt für Präzision, hohe Genauigkeit und Zuverlässigkeit. Leistungsdaten: Bohrleistung Stahl 25 mm, Gewindeschneiden M16, Fräsleistung 100 cm3/min; Spindelaufnahme SF32; Verfahrwege L500×Q250×V145 mm; Tisch 885×320 mm, 5 T-Nuten 12 mm Abstand 50 mm, max. Tischbelastung 250 kg, Tischhöhe 1040 mm, Abstand Tisch/Spindel 0–620 mm. Technische Daten: Spindeldrehzahl 50–10000 t/min; Vorschübe X/Y 1–11000 mm/min, Z 1–6000 mm/min, W 1–3600 mm/min; Eilgang X/Y 11 m/min Z 6 m/min; Netz 3×400 V 50 Hz; Leistung 7 kW, Gesamtbedarf 16 kW; Maschinengewicht ~2400 kg; Abmessungen 1920×1850×2400 mm. Zubehör: Kühlmitteleinrichtung 100 l, Spritzschutzkabine, elektronisches Handrad. Erreicht enge Toleranzen; Einsatz in Uhrmacherei, Automotive, Luftfahrt, Medizintechnik und Maschinenbau. Technische Daten ohne Gewähr

TRAK TRM ist eine CNC Bohr-Fräsmaschine von hoher Präzision, Genauigkeit und Zuverlässigkeit. 3 Achsen, Werkzeugaufnahme SK40, Drehzahlen 70–4200 t/min. Tisch 1270×255 mm, 3 T-Nuten 16 mm, Abstand 64 mm, max. Belastung 600 kg. Verfahrwege X 800 mm, Y 450 mm, Z (Pinolenhub) 600 mm. Anschluss 50 Hz 3x 220 V. Ausgelegt für enge Toleranzen; geeignet für Automotive, Luft-/Raumfahrt, Medizintechnik und Maschinenbau. Technische Daten ohne Gewähr

FEHLMANN PICOMAX 54 ist eine CNC Bohr- Fräsmaschine, ausgelegt für Präzisionsbearbeitung mit hoher Genauigkeit und Zuverlässigkeit. Leistung: Bohrleistung Stahl 28 mm, Gewinde M24, Fräsleistung 100 cm3/min, Spindelhub 160 mm; Tisch 880×320 mm, Abstand Tisch–Spindel 0–610 mm; Verfahrwege X 500 mm, Y 260 mm, Z 480 mm. Technische Daten: stufenlose Drehzahlen 50–7100 t/min, Spindelleistung 8 kW, Gesamtbedarf 10 kW, Anschluss 3×400 V 50 Hz; Vorschübe X/Y 1–2000 mm/min, Z 10–1200 mm/min, W 500–2000 mm/min; Gewicht ~895 kg, Abmessungen 2200×1800×2400 mm. Zubehör: Bohrfutter-Satz, Werkzeugablage, Lampe, Werkzeughalter-Satz. Erreicht enge Toleranzen, geeignet für Uhrenindustrie, Automotive, Luftfahrt, Medizintechnik und Maschinenbau. Technische Daten ohne Gewähr

PROMAC FX 381 C ist eine Bohr-/Fräsmaschine für präzise, hochgenaue und zuverlässige Bearbeitung. Tisch 660×190 mm; Bohrleistung Stahl Ø25 mm; Pinolenhub 110 mm; Verfahrwege X360 Y160 mm. Spindelaufnahme MK3; 12 Stufen 90–2150 t/min; Spindelmotor 0,75 kW; 50Hz 3×230V; Gewicht 205 kg; Abmessungen 980×880×1060 mm. Zubehör: Bohrfutter. Eignet sich für enge Toleranzen; Branchen: Automotive, Luftfahrt, Medizintechnik, Uhrenbau, Maschinenbau. Technische Daten ohne Gewähr

bore capacity in steel (diameter): 40 mm throat: 250 mm bore stroke: 125 mm spindle taper: MK 4 spindle turning speed range: 50 - 2500 U/min : 550 mm : 230 mm table surface area: 820 x 240 mm connected load frequency: 400 V total power requirement: 0,8 kW weight of the machine ca.: 0,7 t dimensions of the machine ca.: 1,2 x 1,0 x 1,85 m Drilling and milling machine - Digital display - Clockwise/counter-clockwise rotation - 2 electric speed ranges - Drilling spindle with automatic feed and manual feed - Includes machine stand The data for this ad was created with ModulMWS - the software solution of LogoTech oHG.

Offer 26215 Technical data: - Drilling capacity 28 mm - Drilling spindle holder MK 3 - Tightening thread M 12 - Drilling spindle speeds - level 1 120 / 215 / 360 / 600 / 1080 rpm - Level 2 240 / 430 / 720 / 1200 / 2150 rpm - Drilling unit height-adjustable by hand crank - Smallest / largest distance table / boring spindle 60 / 390 mm - Drilling spindle stroke 100 mm - Spindle fine stroke adjustment by handwheel - Drilling spindle projection 260 mm - Coordinate table with 3 T-slots 600 x 240 mm - Table travel X-axis 350 mm - Y-axis 160 mm - Drive 400 V / 0.7 / 1.3 kW - Space requirement approx. W 800 x H 1800 x D 900 mm - Weight approx. 300 kg
