milling center used for sale

Universal Tool Milling Machine Manufacturer: AVIA S.A., Poland Type / Model: FNE 40 P Year of Make: 2013 Serial Number: 90567 Accessories / Scope of Delivery • Machine Vise • Tool Holders SK40 • Various Milling Tools and Clamping Devices • Documentation / Documents   Dimensions (L × W × H): approx. 195 × 220 × 220 cm Weight: approx. 1,900 kg Table / clamping surface: • Clamping surface: approx. 800 × 400 mm • T-slot table • Max. table load: approx. 400 kg Travel paths / machining range: • X-axis: approx. 620 mm • Y-axis: approx. 420 mm • Z-axis: approx. 400 mm Spindle: • Spindle holder: SK 40 (DIN 69871) • Max. spindle speed: 4,000 rpm • Speed range: approx. 50 – 4,000 rpm, infinitely variable • Max. tool diameter: 125 mm • Max. tool weight: 6 kg Feeds: • Stepless feeds in X / Y / Z • Working feed up to approx. 2,000 mm/min • Rapi ...

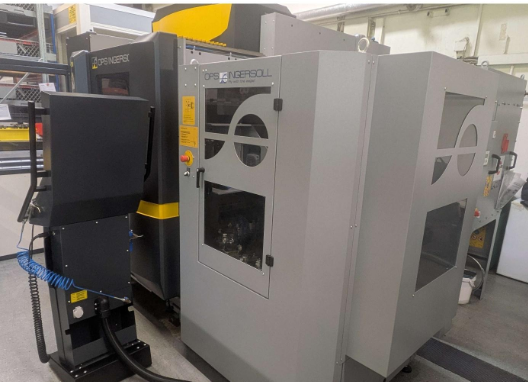

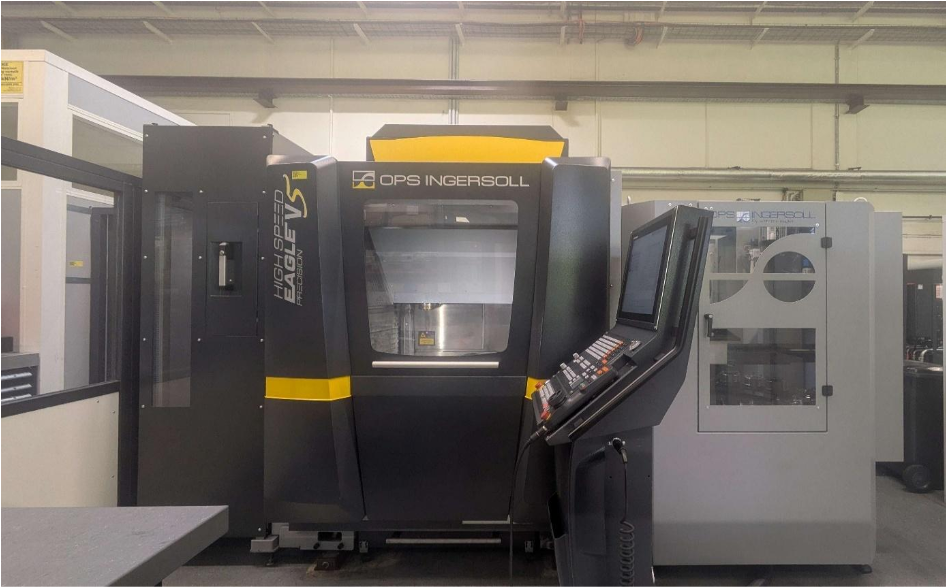

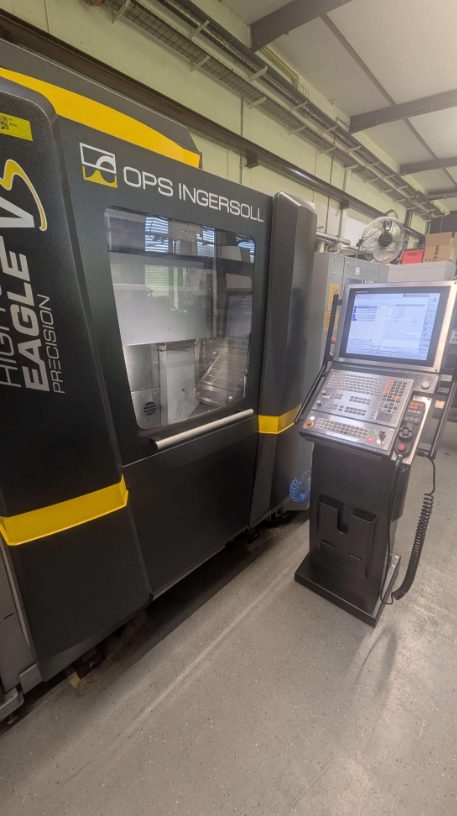

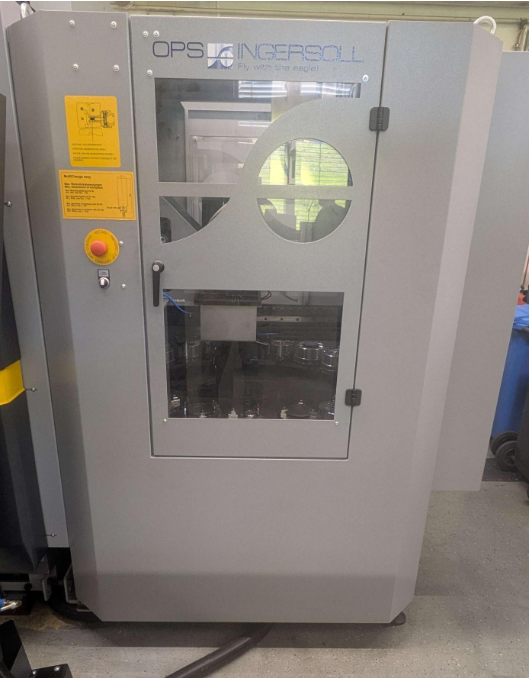

Manufacturer: OPS-Ingersol Model: EAGLE-V5 Precision-Line Year of Manufacture: 2025 Type of Machine : Milling Machine with Multi Change Automation Condition: Used.Ready for operation, connected to power Travel Distances - X axis: 550 mm - Y axis: 400 mm - Z axis: 400 mm Rotary Table - Swivel/rotary table with torque drives Spindle - Spindle type: HF spindle HSK-E40 with DDF by Fischer - Spindle speed: 1 to 42,000 rpm - Spindle power: 15 kW - Torque S6 (60%): 6.7 Nm Tool Magazine and Control - Tool magazine capacity: 100 positions - Control: Heidenhain - Weight: 8,500 kg Extra Accessories can be negotiated into the offer. - 20x Erowa ITS 148 Palette Type G with clamping studs for automation - 13x HSK E40 shrink fit chuck d3 by Haimer - 28x HSK E40 shrink fit chuck d4 by Haimer - 14x HSK E40 shrink fit chuck d5 by Haimer Find more here - / Contact us at -

Swivel spindle milling machine Brand: Panhans type: 245/200 New machine Solid 880 kg machine with smart control system - Infinitely variable speed regulation 1500 - 10,000 rpm, - 7.5 kW motor with 11 kW frequency converter - Pushbutton with electronic soft start 7 touch control, optional use, top and bottom - Cutter zero point selectable in program, 3 reference points - Simple operating menu through innovative touch control (max. 2 levels) - Operating hours counter - Warning messages in case of operating errors - Remote maintenance via Internet (VPN tunnel) - USB interface for data backup and import of tools, programs and users - Tool database for 5 tools (20 programs are possible per tool) - 2-axis positioning control for height and swivel adjustment - Electronic position and speed displays Double-sided swiveling, fixed milling spindle for the swiveling range  ...

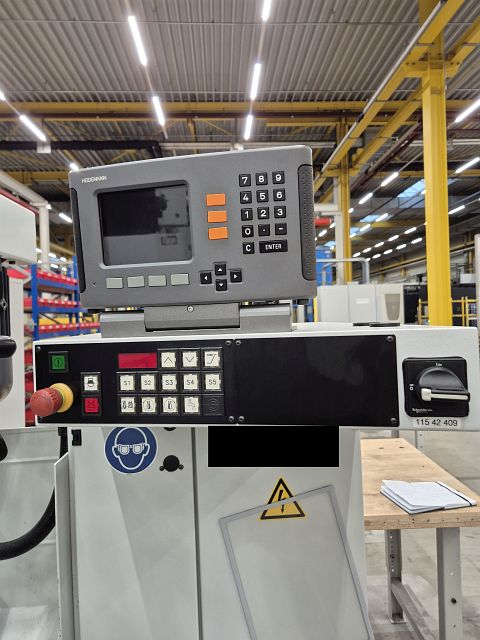

CONTROLS    HEIDENHAIN ND 780 WORKING RANGE -CUBIC-   .. among of them simultaneous CNC axes: 2   X-axis travel: 450 mm   Y-axis travel: 260 mm FLOOR PLATE   table surface (left-right): 770 mm TABLE   table surface (left-right): 770 mm   table surface (front-back): 520 mm   workpiece load (max): 200 kg SPINDLE / HEAD   spindle revolutions (min): 50 /min   spindle revolutions (max): 6300 /min   sleeve stroke: 110 mm AXIS DRIVES   traverse velocity X (max): 2000 mm/min   traverse velocity Y (max): 2000 mm/min ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz DIMENSIONS / WEIGHTS   space requirements -left/right-: 1500 mm   space requirements -front/back-: 1400 mm   total height: 2100 mm  ...

CONTROLS   CNC controls NUM 1060 M WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 2   X-axis travel: 3000 mm   Y-axis travel: 2010 mm   Z-axis travel: 2000 mm   rotating range A-axis from: 92.5 °   rotating range C-axis up to: 360 ° TABLE   table surface (left-right): 1450 mm   table surface (front-back): 1600 mm FLOOR PLATE   total weight approx.: 12000 kg SPINDLE / HEAD   spindle revolutions (max): 3000 /min   tool fixture: ISO SK 50   drive power: 37 kW AXIS DRIVES   traverse velocity X (max): 25000 mm/min   traverse velocity Y (max): 25000 mm/min   traverse velocity Z (max): 25000 mm/min ELECTRICAL SPECIFICATIONS   mains voltage: 400 V   mains frequency: 50 Hz ATTACHMENT ...

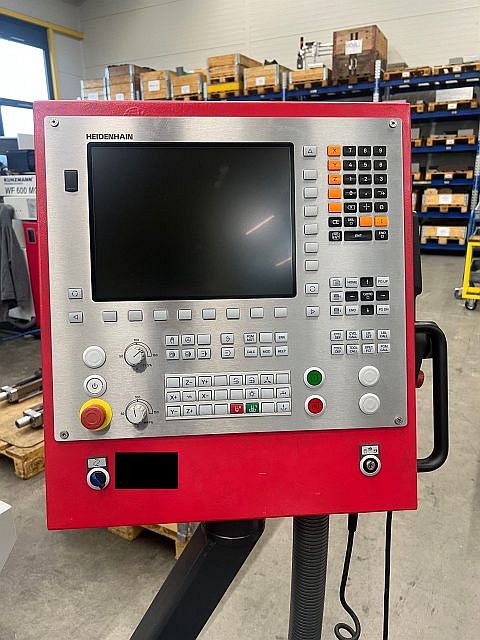

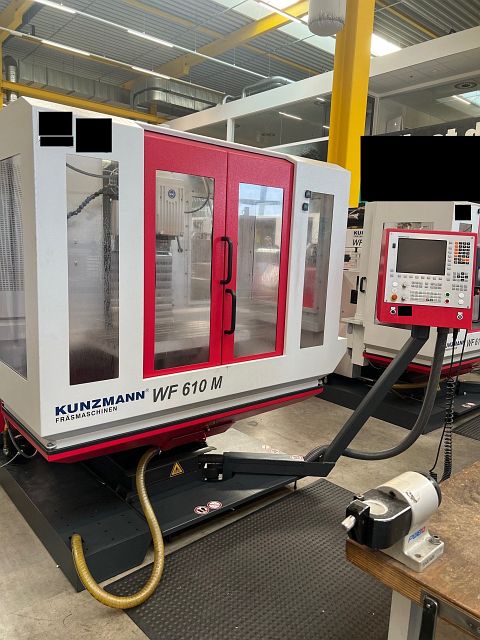

CONTROLS    HEIDENHAIN TNC 128 WORKING RANGE -CUBIC-   X-axis travel: 610 mm   Y-axis travel: 400 mm   Z-axis travel: 450 mm TABLE   table surface (left-right): 800 mm   table surface (front-back): 425 mm   workpiece load (max): 300 kg SPINDLE / HEAD   spindle revolutions (max): 4500 /min   tool fixture: ISO SK 40 AXIS DRIVES   traverse velocity X (max): 2000 mm/min   traverse velocity Y (max): 2000 mm/min   traverse velocity Z (max): 2000 mm/min   rapid traverse X: 5000 mm/min   rapid traverse Y: 5000 mm/min   rapid traverse Z: 4000 mm/min DIMENSIONS / WEIGHTS   space requirements -left/right-: 1800 mm   space requirements -front/back-: 1800 mm   total height: 2000 mm   total weight approx.: 2300 k ...

CONTROLS   conventional BASIC DESIGN   basic design: cross bed WORKING RANGE -CUBIC-   number of processing axes (excl parallel axes): 3   X-axis travel: 1120 mm   Y-axis travel: 350 mm   Z-axis travel: 400 mm   distance spindle nose - table surface (max.): 420 mm TABLE   table surface (left-right): 1600 mm   table surface (front-back): 400 mm   workpiece load (max): 1500 kg SPINDLE / HEAD   spindle type: tilting head   - mode of operation: manual   - mode of operation: manual   spindle revolutions (max): 28 /min   number of gears: 1400   tool fixture: ISO SK 40 AXIS DRIVES   feed velocity (min): 16 mm/min   feed velocity (max): 800 mm/min ELECTRICAL SPECIFICATIONS   total power consumption: 14.5 ...

Three old Hermle and Deckel milling machines are available. 1) Horizontal milling machine Hermle FW 801, tool holder: SK40, travel X/Y/Z: 430mm/150mm/420mm, speed: 2000rpm, machine dimensions X/Y/Z: approx. 2250mm/1700mm/1500mm, weight: approx. 1000kg. 2) Universal milling machine Hermle FW 710, tool holder: SK30, table dimensions X/Y: 710mm/190mm, travel X/Y/Z: 400mm/150mm/350mm, speed: 2240rpm, machine dimensions X/Y/Z: approx. 1500mm/1000mm/1800mm, weight: approx. 700kg. 3) Deckel FP 2, year of manufacture: 1987, tool holder: SK40, travel X/Y/Z: 300mm/2200mm/400mm, table dimensions X/Y: 620mm/390mm, max. table load: 250kg, speed: 3150rpm, feed: 3600mm/min, rapid traverse: 4000mm/min, machine dimensions X/Y/Z: approx. 2500mm/2100mm/1800mm, weight: approx. 1250kg, control: Heidenhain TNC 355. An on-site inspection is possible. Individual sale possible, however a package sale is preferre ...

Soraluce SLP-6000Year of manuf. : 2017 Control : Heidenhain TNC 640 Speed : 5000 rpmMovement X/Y/Z : 4500/1800/1300 mm____________Description:In General:Year of manufacture:2017Control system:Heidenhain TNC 640Travel range X/Y/Z:4,500/1,800/1,300 mmSpindle speed:5,000 rpmTool holder:SK 50Milling head (spindle):Technology:Diagonal head with gear spindleIndex:0.001°Speed:5,000 rpmTool holder:SK 50Max. power:43 kWMax. torque:1,045 NmCoolant supply:Coolant + blast airWorking table:Clamping surface:6,000 x 1,100 mmT-slots:6 x 22H12, spacing 140 mmTool magazin:Technology:Chain magazineNumber of stations:40Tool changer:Double gripper (horizontal/vertical)Max. tool diameter:125 (250) mmMax. tool length:400 mmEquipment:Position measurement systems:Direct scalesChip removal:Chip conveyorCoolant supply:Internal coolant system with filter, 20 barWorkpiece measurement:Funk M&H probeSet-up op ...

SMEC NS 2000 MYear of manuf. : 2022 Control : Siemens SINUMERIK 828D Turning diam. : 288 mmTurning length : 243 mm____________Description:Work areamax. turning diameter:288mmmax. machining length:243mmX-axis:175mmZ-axis:350mmMain spindleChuck diameter:210mmMax. bar diameter:67mmSpindle bore diameter:76mmDrive power:10.5/20 kWmax. torque:213 NMmax. speed:4,500 rpmTailstockQuill diameter:65mmQuill stroke:80mmAxial force:4,312 NCenter point adapter:MT4Tool turretNumber of tool stations:12Tool holder:BMT45Powered tools:YesMax. speed:5,000 rpm

Okuma Multus U 3000Year of manuf. : 2022 Control : Okuma OSP-P300 SA Turning diam. : 650 mmTurning length : 1000 mm____________Description:Main spindle:Technology:Motor spindleSpeed:4,200 rpmPower:22 kWTorque:427 Nmspindle bore:91 mmHollow clamping cylinder:86 mmC-axis:High precision packageChuck:SMW KNCS-N 275-86 K8Sub spindle:Technology:Motor spindleSpeed:5,000 rpmPower:22 kWTorque:420 Nmspindle bore:80 mmHollow clamping cylinder:77 mmC-axis:High precision packageChuck:SMW BHD-FC 210-52-3Tool carrier X/Y/Z/B:Technology:Milling spindleSpeed:12.000 rpmPower:22 kWTorque:120 NmTool holder:HSK 63Y-axis:250 mm (+/- 125 mm)B-axis:240°Tool magazin:Number of stations:80Equipment:Measuring systems:Direct in X/Y/Z axis (glass scales)Chip disposal:Chip conveyorCoolant supply:IKZ system, 70 barCoolant temperature control:Deltatherm E4Chip rinsing:working area, manual gunAccuracy package:C- ...

Index R 200Year of manuf. : 2009 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2009Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of ...

Mazak Integrex i-100H SYear of manuf. : 2023 Control : Mazak Mazatrol SmoothAi Turning diam. : 600 mmTurning length : 850 mm____________Description:In General:Year of manufacture:2023Control system:Mazak Mazatrol SmoothAiMax. machining diameter:600 mmMax. machining length:850 mmMain spindle:Technology:Motor spindleSpeed:6,000 rpmPower:11 kWMax. torque:184 NmBar capacity:51 mmC-axis:0.0001°Chuck:3-jaw chuckClamping cylinder:Hollow clamping cylinderSub spindle:Technology:Motor spindleSpeed:6,000 rpmPower:11 kWMax. torque:184 NmBar capacity:51 mmC-axis:0.0001°Tailstock function:YesTool carrier (X/Y/ZB):Technology:Travelling column with milling spindleX-axis:535 mmY-axis:210 mmZ-axis:900 mmB-axis:-30° / +210°Milling spindle speed:20,000 rpmPower:24 kWTool magazin:Technology:Shelf magazineNumber of stations:250Tool changer:Double gripperEquipment:Chip disposal:Chip conveyorC ...

Nakamura NTJ-100Year of manuf. : 2015 Control : Fanuc 31i-B Turning diam. : 175 mmTurning length : 678 mm____________Description:In General:Year of manufacture:2015Control system:Fanuc i 31-BTurning diameter:175 mmMax. turning length:678 mmSpindle:Technology:Motorised spindleSpeed:4,500 rpmPower:11 kWBar capacity:65 mmC-axis:0.001°Clamping cylinder:Hollow clamping cylinderChuck:Collet chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmPower:7.5 kWBar capacity:51 mmC-axis:0.001°Clamping cylinder:Semi-hollow clamping cylinderChuck:Collet chuckTool carrier I (X/Y/Z/B):Technology:Tool turretNumber of stations:12/24Tool holder:BMTTool drive:6,000 rpmX-axis:330 mmY-axis:80 mm (+/- 40 mm)Z-axis:1,040 mmB-axis:182° (+/- 91°)Tool carrier II (X/Y/Z):Technology:Tool turretNumber of stations:12/24Tool holder:BMTTool drive:6,000 rpmX-axis:127 mmY-axis:65 mm (+/- 32.5 mm)Z-a ...

Urban AP-B 4000 ProfilbearbeitungszentrumYear of manuf. : 2016 Control : Heidenhain TNC620 Movement X/Y/Z : 4100/420/300 mmTool holder : SK40 ____________Description:In general:Model:AP-B 4000 Automatic Profile Machining CenterMachining length:4,000 mmTravel ranges X/Y/Z:4,100 / 420 / 300 mmMachine cover:Pneumatically operated, opens upwardControls:Operator terminal can move along the machineControl:Heidenhain TNC 620 CNC controlAdditional control:Heidenhain HR130 handwheelTable specifications:Size 16 T-slots, mounted longitudinally to the X-axisWorking surface:4,200 x 420 mmSpindle:Motor power:14 kW S1 / 19 kW S6Motor cooling:Water with additiveSpeed range:100 to 14,000 rpmTorque:74 Nm S1 / 100 Nm S6Drilling capacity in St 60/aluminum:25 mm/30 mmThread size in St 60/aluminum:M20/M30Tool magazine:Tool holder:SK 40Tool clamping system:Spring-loaded clamping system with 9 kN clamping ...

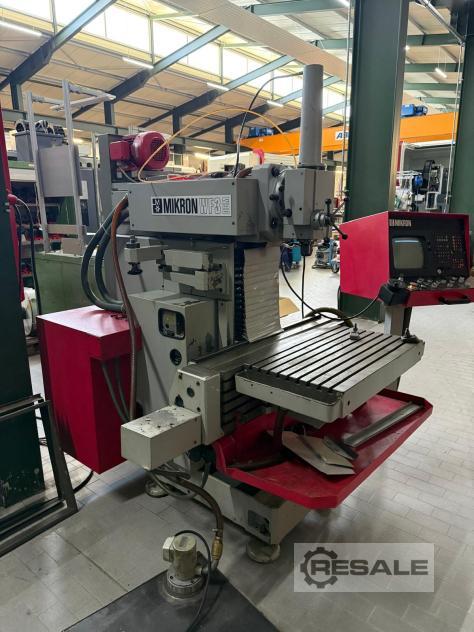

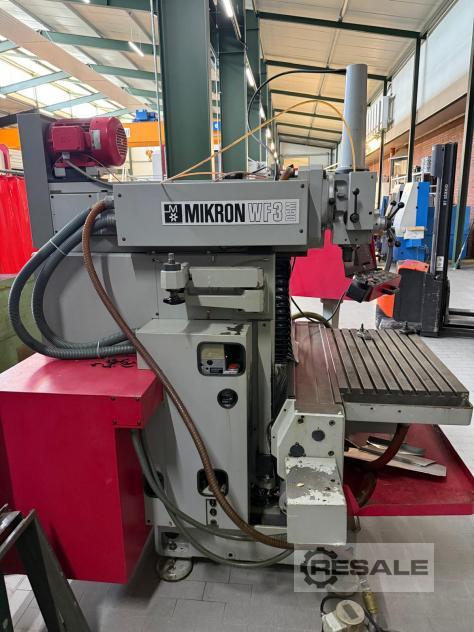

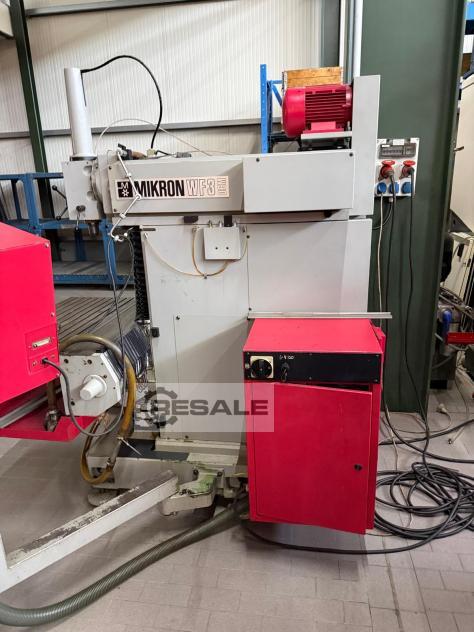

Universal milling machine MIKRON WF3DCM/155 Heidenhain TNC 155 Internal machine no. 58 Travels: X-axis: 500 mm Y-axis: 500 mm Z-axis: 350 mm Table surface: 800 x 450 mm Mount: SK 40 DIN ISO Machine weight: approx. 2.3 t

The machine is technical and geometrically in a very good state. it was till 2years in use an application and any time inbetrieb are taken. Grter draggable Durchme?er 60 mm the smallest tench-cash Durchme?er 0.5 mm Schleifscheiben-Durchme?er 356 mm Schleifdcheiben width 150 mms control disc-Durchme?er 254 mms control discs width 150 mms Drehzahl-Schleifscheibe 1,780 revo impulse achievement main engine 7 kW speed-control disc 20-250 revos weight 2,900 kg Platzbetarf 8 m²

Swing: 530mm. Swing over carriage: 320mm. Distance between centers: 2000mm. Spindle: 60mm. Equipped with chuck. Equipped with DRO Fagor. Motor power: 10cv.

New lathe. Distance between centers: 1500mm. Swing: 510mm. Swing over carriage: 320mm. Swing over gap: 760mm. Spindle hole: 80mm. CE protections and certificate. Equipped with chuck and steady rest.

Table clamping surface: 2 x 350 x 300 mm traverse path x/y/z: 700/300/250 mm spindle retainer: BT 30 ISA kl. / gr. Table/spindle distance: 450 mm spindle speeds: 6-6000 rpm number of tool stations: 10 pieces feeds: 5-10000 mm / min rapid traverse: x & y/z 25/20 m / min spindle drive: 3,1/4,1 kW Electr. Supply: 400 V kW weight: 2600 kg

Rebuilt lathe. Distance between centers: 750mm. Swing over bed: 500mm. Swing over carriage: 220mm. Spindle nose: 40,5mm. Motor power: 10cv. Equipped with universal chuck of 250mm. CE Protections in chuck and carriage and CE european certificate for second hand machines. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

Distance between centers: 4500mm. Swing: 825mm. Swing over carriage: 600mm. Swing over gap: 1250mm. Spindle: 80mm. 16 speeds (9-500rpm) Equipped with chuck of 500mm. Equipped with conical device.

Rebuilt lathe. Distance between centers: 1000mm. Swing over bed: 500mm. Swing over carriage: 220mm. Motor power: 10cv. Spindle nose: 40,5mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm. Optional: Steady rest. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

Rebuilt lathe. Distance between centers: 1500mm. Swing over bed: 500mm. Swing over carriage: 220mm. Motor power: 10cv. Spindle nose: 40,5mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm and steady rest. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 1000mm. Motor power: 12,5cv. Spindle nose: 51mm. Equipped with universal chuck of 250mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: Steady rest. Optional: CE back guard

Rebuilt lathe. Distance between centers: 1500mm. Swing over bed: 575mm. Swing over carriage: 300mm. Motor power: 12,5cv. Spindle nose: 51mm. CE protections in chuck and carriage and CE european certificate for second hand machines. Equipped with universal chuck of 250mm and steady rest. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 2000mm. Spindle nose: 51mm. Motor power: 12,5cv. Equipped with universal chuck of 250mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 575mm. Swing over carriage: 300mm. Distance between centers: 3000mm. Spindle nose: 51mm. Motor power: 12,5cv. Equipped with universal chuck of 250mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 1500mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 2000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315 and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 3000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: CE back guard. Optional: DRO Fagor or Heidenhain.

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 4000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315 and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

2 pallets, 108 wkzg., BJ 1988, interior cooling, with PS8, various clamping means - see pictures

Pallet Pool PS8

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 5000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315 and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Type SX1325AP-2128 Axis: Useful working area axis X-Y-Z 2070-2800-100 mm Pieces clearance in Z 100 mm Max. traveling speed 70 m/min Max. working speed 30 m/min Working table: Phenolic multifunction Nr. of stops standard 10 (4X-6Y) Vacuum pump 45,5 kW(50/60 Hz), air cooled Electrospindle: Standard power (S6) 9,5 kW, ISO30 Max. speed 24 000 rpm Tool changer: ATC carousel for 12 positions Lubrication: Automatic centralized lubrication Installation: Installed power 22-33 kW Compressed air cosumption 450 NL/min Extraction air consumption 3000 m3/h Extraction air speed 25 m/sec Suction hood diameter 2x150 mm Weight 3500 kg Video abcs://youtu.be/2q3wHCalvSg

Rebuilt lathe. Swing over bed: 725mm. Swing over carriage: 400mm. Distance between centers: 6000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 315mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 3000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Weight: approx.4500 KG mash. No.: 6517991 General/technical data: Vertical CNC machining center in a very good, almost new condition, first-hand with very little operating hours. Travel: X= 670 Y=450 Z=470 mm Rapid response: in X and Y = 24m/min, in Z =20m/min Spindle motor: 10 KW Spindle speed: from 50 to 4,500 rpm Spindle cone: SK 40 Control: Siemens 810 M GA 2 Dimensions clamping table: 900 x 420mm max table load: 300 kg Distance spindle head to top of the table: 630mm spindle center to stand face: 470mm Tool slots in the magazine: 24 pieces DIN ISO 40 max. tool diameter: 110mm to 125mm tool length 100mm to 280mm tool length Beuvvquh2i Dimensions of the machine approx.: 2200 x 3000 x 2950 mm (without operator, service and chip conveyor environment) Accessories/ Optional equipment: â?¢ external coolant system with 2 pumps â?¢ Chip conveyor with ...

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 4000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

CNC multi-tasking lathe NAKAMURA SUPER NTX-S Reference No.: 18038 Mfg. year 2007 S/No. V300901 FANUC 16i-TB Luckbei-dialog system supercap Maximum turning diameter -Upper turret 390 mm -Lower turret 300 mm Maximum turning length 1,100 mm Max cash working capacity 65 mm Milling spindle AC 18.5/11 kW Milling spindle maximum speed 12,000 rpm Capto C6 Servo controlled B-axis, 230° Y-axis 160 mm ATC with 40 tools Main and sub spindle AC 22/18.5 kW Main and sub spindle maximum speed 4.500 rpm 12/24-station turret, all stations for driven tools Maximum speed of driven tools 3,600 rpm 2 off. 3-jawchuck 210 mm, SCHUNK Coolant tank 250 liters High pressure pumps Swarf conveyor 1 set of toolholders for lower turret -static 9, 3-driven weight 19,000 kg CE-mark

ertikal machining center, used, from location vertical machining center, used, Model/ model: VS 500 SPEED Fabr./ make: NORTE Year built/ year: 1999 Control/ control: SIEMENS 840D x-Way /x-travel 2000 mm y-way / y-travel 500 mm z-way / z-travel 500 mm Feed: 1 - 8000 mm/min Table size / table-size 2120 x 550 mm Table load / table load 2000 kp Rapid gear X-axis / rapid traverse X-axis 40 m/min Rapid gear Z-axis/ rapid traverse Z-axis 20 m/min Tool holder / tool taper HSK 63 A Spindle speeds - infinitely variable/ spindle turning speed 0 - 15000 rpm Spindle drive/spindle motor 20 kW Spindle bearing diameter / spindle bearing diam. 70 mm Position accuracy / position accuracy: 0.020 mm Control SIEMENS 840D Tool diameter: 63 / 126 mm Tool Magazine: Chain Magazine/ toolpiece magazine: 40 pieces Total power requirementm.65 kVA Machine w ...

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 5000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 6000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

MODEL: VERSAMATIC 400 TYPE: TV-MO SERIAL NUMBER: VS4 166 YEAR OF BUILD: 1995 CNC: HEIDENHAIN

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 1500mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Rebuilt lathe. Swing over bed: 810mm. Swing over carriage: 500mm. Distance between centers: 2000mm. Spindle nose: 81mm. Motor power: 25-20cv. Equipped with universal chuck of 400mm and steady rest. CE protections in chuck and carriage and CE european certificate for second hand machines. Optional: DRO Fagor or Heidenhain. Optional: CE back guard.

Control type: CNC Sinumerik 840D-SL x-way 1135 mm y-way 1050 mm z-way 750 mm table size 1400 x 1050 mm Table load 2500 kg max. workpiece size LxWxH 1400 x 1240 x 750 mm Speed 10000 rpm feed speeds X/Y/Z Axis 40000 mm/min Expressspeeds x/y/z 40000 mm/min Tool holder HSK-A100 HSK Number of places in the tool magazine 30 places max. tool weight 20 kg max. tool length 395 mm max. tool diameter 110 mm Machine height 3294 mm Drive power - spindle motor 44 kW machine weight approx. 17.9 t Space requirements approx. 15 m2 Information: Universal milling machine in mono BLOCK design (3-axis) - available September 2019 - only 3800 spindle hours, 13400 power-on hours Equipment / Accessories: - Coolant system - High-pressure pump - Chip conveyor - Hand-held panel - BALLUFF option - Documentation

The milling center DUGARD EAGLE 660 was produced in 2005. The vertical machining center has a reconditioned spindle with a tool haul change - a rod, springs and a gripper. Technical parameters of the CNC milling machine: - CNC controller: SIEMENS SINUMERIK 810D ShopMill - workpiece probe - tool probe Worktable : - table dimensions: 810 x 510 mm - maximum table load: 500 kg - T-slot, quantity: 5 mm - T-slot, size: 18 mm - T-slot, spacing: 100 mm Processing field: - X axis travels: 660 mm - Y axis travels: 530 mm - Z axis travel: 510 mm - distance of the spindle tip to the axis of the table: 150 ~ 660 mm - distance of the spindle axis to the column: 585 mm Spindle: - spindle taper: ISO 40 - constant spindle power: 11 kW - spindle power 30 min. : 15 kW - spindle speed range: 80 ~ 8000 rpm. Rapid feeds: - X axis travel: 30 m / min. - Y axis travel: 30 m / mi ...

New lathe. Distance between centers: 800mm. Swing: 350mm. Swing over carriage: 200mm. Spindle hole: 46mm. Speeds: 18. (31,5-2500rpm). Power: 4hp. Dimensions: 2050x1000mm. Weight: 1100Kgs. Equipped with chuck and steady rest.
