mill cnc used for sale

Travel distance: X= 600, Y= 400, Z= 400 mm Table size: 900 x 480 mm Spindle speed: 40 - 4,000 1/min Dimensions LxWxH: 2500 x 2200 x 2200 mm Weight: approx. 3,000 kg

excl. tools and fencing; including light curtain security Auction-ID: A1-45793-15

including various milling holders (excl. tools); equipped with extraction on top of the machine Auction-ID: A1-45793-13

excl. tools; equipped with Heidenhain CNC control; machine works well but has little play on the X axis Auction-ID: A1-45793-12

Exclusive tools Auction-ID: A1-45793-29

Tool milling machine Maho, 700C Control : Maho 432, Year of construction 1989, Mounting SK40, Process : X-700, Y-450, Z-500, quill Machine can no longer be viewed under power. Has lost parameters! Would also sell spare parts, table, milling head, drives, control, ...

Key data: 1600 mm, 800 mm, 650 mm

CNC bed milling machine with Heidenhain control 415, good condition, hydraulic tool clamping, coolant device, central lubrication, lighting,.. Travel X1600/y800/z650/ Spindle holder SK 50 Spin elder speed 60-1800rpm Working feed rate 10-3000mm/min Rapid traverse 10m/min Table clamping surface 1800x610mm Machine weight 9500kg Table load 3000kg

CNC Bar Machining Center for Aluminum, Machine No. 6100013187, control Beckhoff C6140 renewed in 2020, infeed of extrusion profile magazine length max. approx. 6000 mm, machining units (drilling / milling: vertical top 1 piece / vertical bottom 4 pieces / horizontal front 1 piece / horizontal rear 1 piece) and (sawing 3 pieces: 45 / 90 / 45 degrees), outfeed belt max. approx. 2700 mm, chip conveyor belt (The article is in condition as existing and unchecked. The article is sold from the foundation and without content/material! For the dismantling and loading of the item, there are no pallets, other packaging material available on site and the buyer must rent a forklift, tank rollers, machine jacks, etc. at his own expense if necessary! Mediation of dismantling and loading possible. Contact: Dejan Ducic / dejan.ducic@surplex.com Auction-ID: A7-45878-14

Haas Automation, VF2, Control : Micro-Haas VF2 X-1250mm, Y-508, Z-600, Spindle : SK40 , 10 - 7500 rpm , Feed rate : 0 - 4500mm/min, rapid traverse : 15m/min Table load : 1000kg Weight : 6to, L- 370cm, W330cm, H-290cm, No shift work !

Travel X/Y/Z: 2500mm/1000mm/770mm, table dimensions X/Y: 3200mm/1000mm, spindle speed: 8000rpm, tool positions: 40, tool holder: SK40, max. workpiece weight: 3000kg, feed rate: 30m/min, coolant pressure: 20bar. Machine dimensions X/Y/Z: approx. 6500mm/4500mm/3700mm, weight: approx. 21000kg, control: Heidenhain iTNC 530, control hours: 67334h, machine hours: 56616h, operating hours: 15872h. Including internal coolant supply, 3D measuring and infrared probe, chip conveyor and linear measuring system. Documentation available. An on-site inspection is possible.

Travel X/Y/Z: 2300mm/800mm/600mm, table dimensions X/Y: 1400mm/750mm, rotary table dimensions X/Y: 800mm/630mm, spindle speed: 12000rpm, tool positions: 30, tool holder: SK40, coolant pressure: 20bar, feed rate: 30m/min, rapid traverse: 40m/min. Machine dimensions X/Y/Z: approx. 6200mm/3700mm/3600mm, weight: approx. 16000kg, control: Heidenhain iTNC 530, control hours: 63330h, machine hours: 61892h, operating hours: 28295h. Including internal coolant supply, 3D measuring probe, chip conveyor and linear measuring system. Documentation available. An on-site inspection is possible.

CNC UNIVERSAL MILLING MACHINE Inv. No. 13.165J1 Make MIKRON Model WF 31DCM Machine No. Control HEIDENHAIN TNC 155 Table dimensions 460 x 800 mm Longitudinal travel (X) 560 mm Cross travel(Y) 500 mm Vertical travel (Z) 400 mm R.P.M. 40 – 4000 Rapid traverse X-Y 4000 mm/min Rapid traverse Z 3500 mm/min Quill travel 90 mm kW total power 10 kW drive power 3.3 / 4 Machine weight 2540 kg Auction-ID: A1-45737-177

CNC MILLING MACHINE Inv. No. 13.112J1 Make HO-CHUN Type UH-1250A Mach.no. 5123 Control HEIDENHAIN TNC 360 Table 400 x 1,800 mm Longitudinal Travel (X) 1,250 mm Cross Travel (Y) 540 mm Vertical Travel (Z) 470 mm Spindle BT 50 R.P.M. 275 – 2.000 KW 7 Volts 380 Cycles 50 Auction-ID: A1-45737-173

Control SSM travels (X/Y/Z): 610 mm / 405–406 mm / 510–560 mm. Table size: Approximately 760 x 400 mm with a maximum load of approximately 345–350 kg. Spindle: SK 40 mounting, speeds up to 8,000 rpm. Auction-ID: A7-46048-1008

Hurco BMC 30 HT/M with Ultimax 3 control in compact form: Working area (X/Y/Z): 760 x 460 x 610 mm Table surface: 1,020 x 400 mm Table load: max. 500 kg (optionally up to 700 kg) Spindle speed: max. 8,000 rpm (high torque) Spindle holder: SK 40 Spindle power: 11 kW / 15 kW Tool Changer (ATC): 24 places Rapid traverse (X/Y/Z): 24 / 24 / 15 m/min Control: Ultimax 3 (Dual Screen) Machine weight: approx. 4,800 kg Space requirement: approx. 3.8 x 4.0 x 2.7 m (incl. work area) Auction-ID: A7-46048-1014

MAZAK MTV 414 CNC vertical machining center was built in 1992 in the United Kingdom by YAMAZAKI MACHINERY UK LTD. The offered machine is an excellent choice for machining workpieces with a maximum weight of 500 kg. Thanks to its reliable components and extremely rigid design, the MAZAK MTV 414 guarantees the best machining results throughout its service life. The machining process is performed inside a large work area with a work table with a length of 900 mm and a width of 410 mm, a spindle and a capacious tool magazine. The spindle, driven by a powerful motor, rotates at a maximum speed of 7000 rpm and operates in three X,Y,Z axes with feeds of 560 mm, 410 mm and 460 mm respectively. All cutting tools are stored in a 24-position tool magazine with an automatic tool changing system (ATC). All this is complemented by the intelligent MAZATROL M32B CNC controller with its intuitive interfa ...

A CNC 3-axis milling machine Emco is available. Travel X/Y/Z: 900mm/500mm/500mm, table dimensions X/Y: 1000mm/520mm, max. table load: 800kg, speed: 10000rpm, spindle power: 11kW, tool holder: SK40, rapid traverse: 24m/min. Machine dimensions X/Y/Z: approx. 2600mm/2450mm/2950mm, weight: approx. 4800kg, control: Siemens Sinumerik 828D. Documentation available. An on-site inspection is possible.

Technical Specifications Longitudinal stroke: 4000 mm Vertical travel: 1250 mm Ram stroke: 1000 mm Fast feeds: L-T-V 16 - 15 - 15 m/min Table dimensions: 5000 x 1000 mm Table height from floor level: 1100 mm Maximum spindle speed: 3000 rpm; 28 kW; ISO 50 Head: Manual Bi-rotary Random tool magazine: 20 positions Control: SELCA S3045 Range Change: 2 Speed Accessories: Remote handwheel ; Chip evacuator Notes: Head on TUH 10LT ram Item sold in unverified status Auction-ID: A1-44614-4

Automatische roterende freeskop: 90° en 45° Automatische gereedschapswisselaar met 30 posities spanentransporteur koelunit + filter maximaal werkstukgewicht 6 ton Longitudinal travel X-axe: 1700 mm Cross travel Y-axe: 1200 mm Travel Z-axe: 1000 mm Dimensions clamping space- table: 2000 x 1000 mm Max height workpiece: 934 mm Power on spindle: 22 kW Admission in millinghead (ISO): BT50 Max speedrange: 35 > 3000 rpm Control: Heidenhain Power needed (KVA): 56 kVa Length : 5300 mm Depth: 4950 mm Height: 2800 mm Weight: 18 ton

Okuma Multus U 3000Year of manuf. : 2022 Control : Okuma OSP-P300 SA Turning diam. : 650 mmTurning length : 1000 mm____________Description:Main spindle:Technology:Motor spindleSpeed:4,200 rpmPower:22 kWTorque:427 Nmspindle bore:91 mmHollow clamping cylinder:86 mmC-axis:High precision packageChuck:SMW KNCS-N 275-86 K8Sub spindle:Technology:Motor spindleSpeed:5,000 rpmPower:22 kWTorque:420 Nmspindle bore:80 mmHollow clamping cylinder:77 mmC-axis:High precision packageChuck:SMW BHD-FC 210-52-3Tool carrier X/Y/Z/B:Technology:Milling spindleSpeed:12.000 rpmPower:22 kWTorque:120 NmTool holder:HSK 63Y-axis:250 mm (+/- 125 mm)B-axis:240°Tool magazin:Number of stations:80Equipment:Measuring systems:Direct in X/Y/Z axis (glass scales)Chip disposal:Chip conveyorCoolant supply:IKZ system, 70 barCoolant temperature control:Deltatherm E4Chip rinsing:working area, manual gunAccuracy package:C- ...

Mazak Integrex i-100H SYear of manuf. : 2023 Control : Mazak Mazatrol SmoothAi Turning diam. : 600 mmTurning length : 850 mm____________Description:In General:Year of manufacture:2023Control system:Mazak Mazatrol SmoothAiMax. machining diameter:600 mmMax. machining length:850 mmMain spindle:Technology:Motor spindleSpeed:6,000 rpmPower:11 kWMax. torque:184 NmBar capacity:51 mmC-axis:0.0001°Chuck:3-jaw chuckClamping cylinder:Hollow clamping cylinderSub spindle:Technology:Motor spindleSpeed:6,000 rpmPower:11 kWMax. torque:184 NmBar capacity:51 mmC-axis:0.0001°Tailstock function:YesTool carrier (X/Y/ZB):Technology:Travelling column with milling spindleX-axis:535 mmY-axis:210 mmZ-axis:900 mmB-axis:-30° / +210°Milling spindle speed:20,000 rpmPower:24 kWTool magazin:Technology:Shelf magazineNumber of stations:250Tool changer:Double gripperEquipment:Chip disposal:Chip conveyorC ...

SMEC NS 2000 MYear of manuf. : 2022 Control : Siemens SINUMERIK 828D Turning diam. : 288 mmTurning length : 243 mm____________Description:Work areamax. turning diameter:288mmmax. machining length:243mmX-axis:175mmZ-axis:350mmMain spindleChuck diameter:210mmMax. bar diameter:67mmSpindle bore diameter:76mmDrive power:10.5/20 kWmax. torque:213 NMmax. speed:4,500 rpmTailstockQuill diameter:65mmQuill stroke:80mmAxial force:4,312 NCenter point adapter:MT4Tool turretNumber of tool stations:12Tool holder:BMT45Powered tools:YesMax. speed:5,000 rpm

Index R 200Year of manuf. : 2009 Control : Siemens C200-4D SL ____________Description:In General:Year of construction:2009Control system:Siemens 840 Dsl (C200-4D SL)Bar capacity:65 mmMilling spindles:18,000 rpmMain spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°Z-axis:390 mmBar capacity:65 mmClamping cylinder:Hollow clamping cylinderChuck:3-jaw chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmMax. power:35.5 kWTorque max.:170 NmC-axis:0.001°X-axis:600 mmZ-axis:390 mmBar capacity:65 mmChuck:3-jaw chuckTool carrier I:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40X-axis:350 mmY-axis:160 mm (+/- 80 mm)B-axis:230°Tool carrier II:Technology:Milling spindle on cross slideSpeed:18,000 rpmTool holder:HSK 40Y-axis:160 mm(+/- 80 mm)B-axis:230°Tool magazin:Technology:Chain magazineNumber of ...

Nakamura NTJ-100Year of manuf. : 2015 Control : Fanuc 31i-B Turning diam. : 175 mmTurning length : 678 mm____________Description:In General:Year of manufacture:2015Control system:Fanuc i 31-BTurning diameter:175 mmMax. turning length:678 mmSpindle:Technology:Motorised spindleSpeed:4,500 rpmPower:11 kWBar capacity:65 mmC-axis:0.001°Clamping cylinder:Hollow clamping cylinderChuck:Collet chuckSub spindle:Technology:Motorised spindleSpeed:5,000 rpmPower:7.5 kWBar capacity:51 mmC-axis:0.001°Clamping cylinder:Semi-hollow clamping cylinderChuck:Collet chuckTool carrier I (X/Y/Z/B):Technology:Tool turretNumber of stations:12/24Tool holder:BMTTool drive:6,000 rpmX-axis:330 mmY-axis:80 mm (+/- 40 mm)Z-axis:1,040 mmB-axis:182° (+/- 91°)Tool carrier II (X/Y/Z):Technology:Tool turretNumber of stations:12/24Tool holder:BMTTool drive:6,000 rpmX-axis:127 mmY-axis:65 mm (+/- 32.5 mm)Z-a ...

Urban AP-B 4000 ProfilbearbeitungszentrumYear of manuf. : 2016 Control : Heidenhain TNC620 Movement X/Y/Z : 4100/420/300 mmTool holder : SK40 ____________Description:In general:Model:AP-B 4000 Automatic Profile Machining CenterMachining length:4,000 mmTravel ranges X/Y/Z:4,100 / 420 / 300 mmMachine cover:Pneumatically operated, opens upwardControls:Operator terminal can move along the machineControl:Heidenhain TNC 620 CNC controlAdditional control:Heidenhain HR130 handwheelTable specifications:Size 16 T-slots, mounted longitudinally to the X-axisWorking surface:4,200 x 420 mmSpindle:Motor power:14 kW S1 / 19 kW S6Motor cooling:Water with additiveSpeed range:100 to 14,000 rpmTorque:74 Nm S1 / 100 Nm S6Drilling capacity in St 60/aluminum:25 mm/30 mmThread size in St 60/aluminum:M20/M30Tool magazine:Tool holder:SK 40Tool clamping system:Spring-loaded clamping system with 9 kN clamping ...

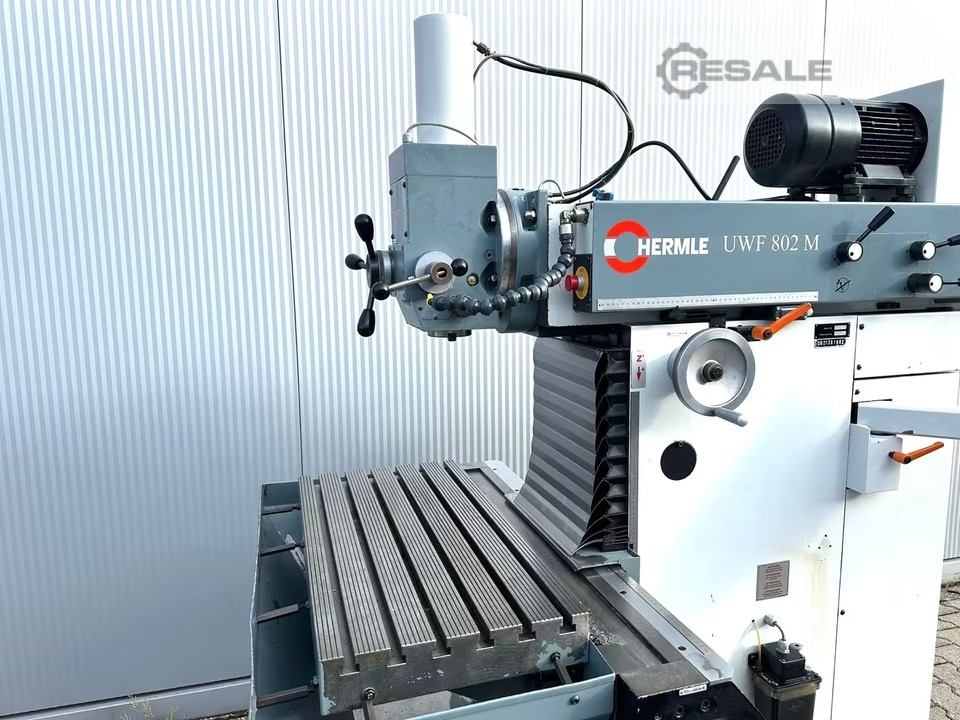

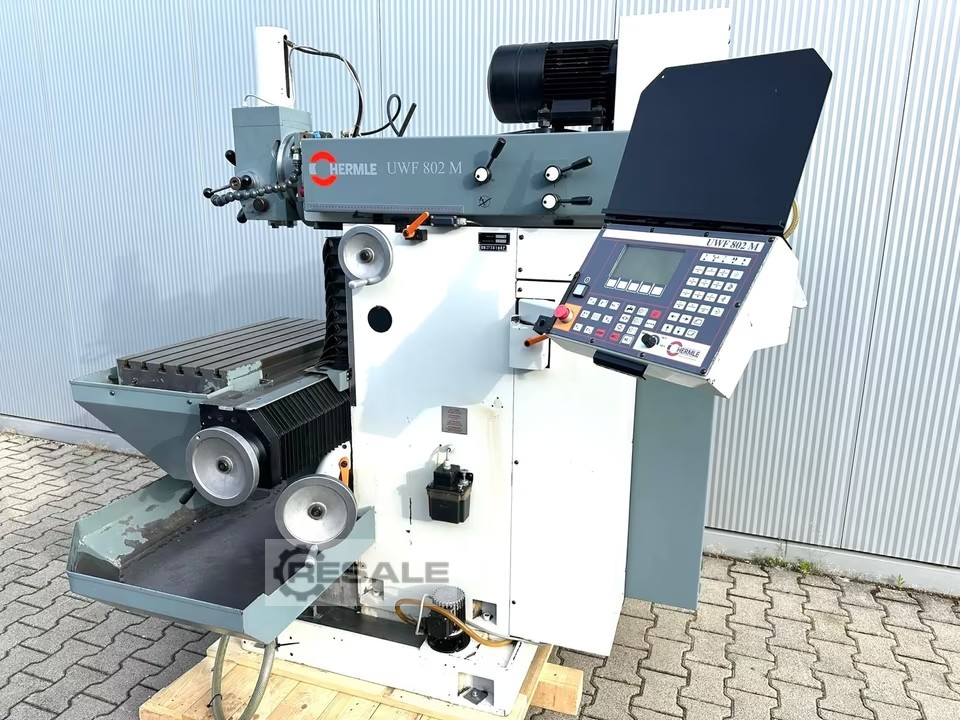

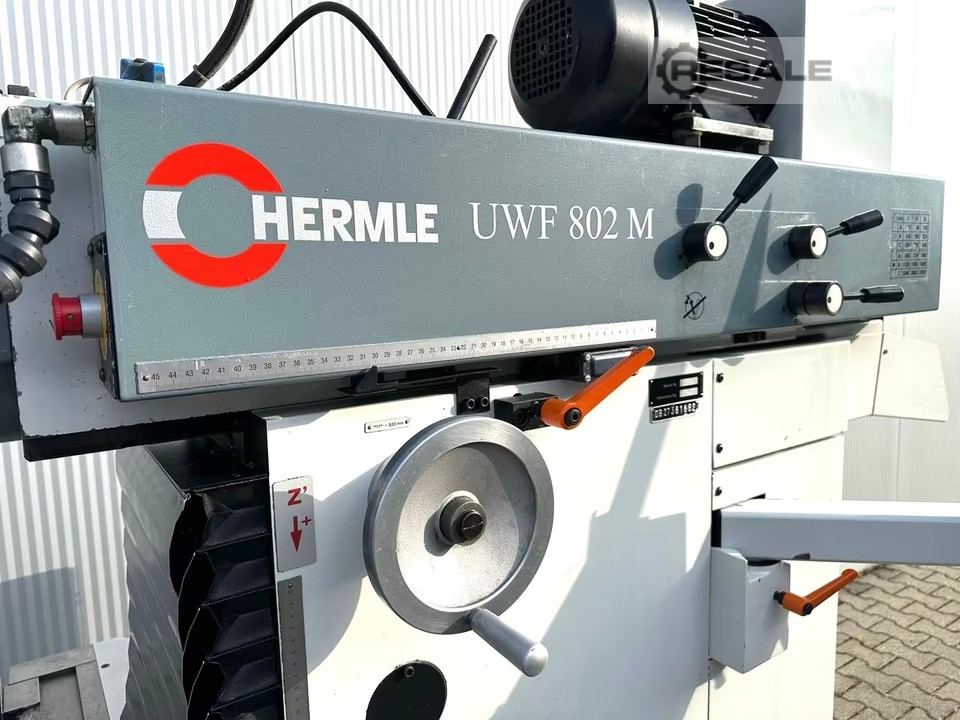

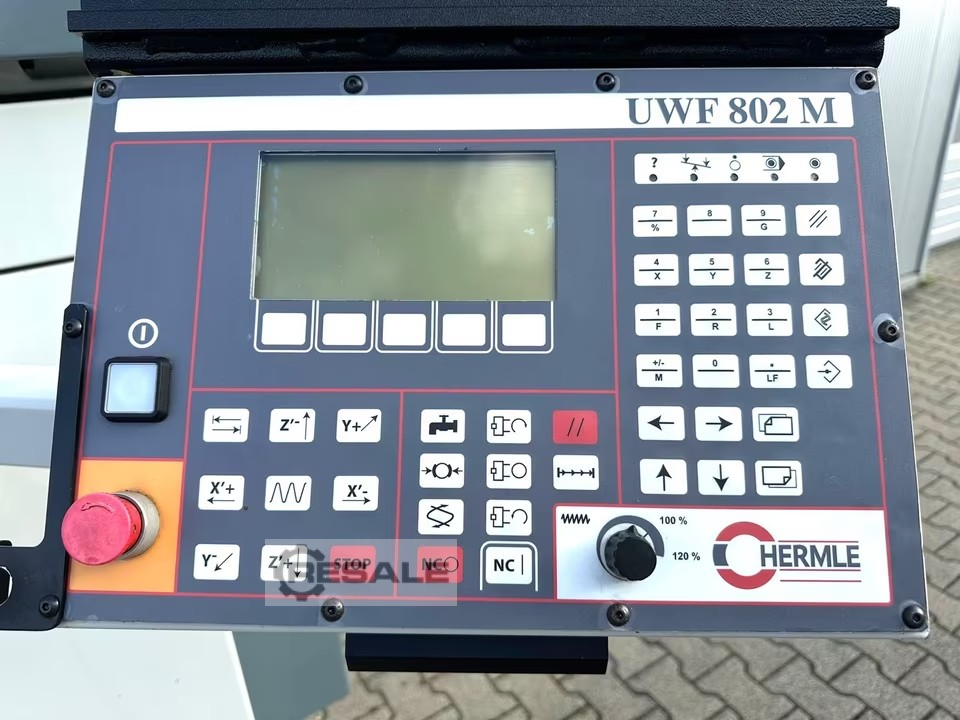

HERMLE UWF 802 M universal milling machine with HS 401 route control -HS 401- Track control -Travel X / Y / Z 500x430x400mm -Rigid angle table -Speed range 18-3550 rpm -Feed continuously variable in all three axes 0-1600 mm/min -Rapid traverses 0-1.6 m/min in all three axes -Vertical - Horizontal milling device -Tool holder ISO 40 -Hydraulic tool clamping -Central lubrication -Chip tray -Drive power 6 KW -Work light -Spindle protection -Documentation Dimensions LxWxH 1.9x1.8x1.9 meters / Weight: 1800Kg

turning diameter:120 mm turning length:100 mm control:Fanuc Spindle 1 power:7,5 kW Spindle 1 RPM:4500 1/min Spindle 2 power:7,5 kW Spindle 2 RPM:4500 1/min Distance between spindle noses:600 mm Turret No.1 stations / rotary tools:15/15 Power rotary tools turret 1:2,7 kW RPM of rotary tools turret 1:4000 1/min Turret No.2 stations / rotary tools:15/15 Power rotary tools turret 2:2,7 kW RPM of rotary tools turret 2:4000 1/min Travel x/z turret 1:250 / 300 mm Travel x/z turret 2:250 / 920 mm Bar capacity spindle 1:51 mm Bar capacity spindle 2:51 mm power chuck:165 mm Spindle bore sp. 1:62 mm Spindle bore sp. 2:62 mm dimensions of the machine ca.:3700 x 2300 x 3000 mm weight of the machine ca.:5600 kg Used CNC-2-spindle CNC turning and milling center with gantry loader - 2x 15 station turret -automatic gantry loader with turnaround station. 14 station-magazin right side Max. Parts size Ø 12 ...

turning diameter:356 mm turning length:705 mm control: CELOS M730 UM MAPPS swing dia.:742 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 ( ±50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min Rapid travel B-axis (parts transfer subspindle):734 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:15/18,5/18,5 kW Spindle 1 Torque:409/505 /599 Nm Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:4500 1/min Spindle 2 power:7,5/11 kW turret stations / rotary tool stations:20 / 20 BMT40 speed of driven tools:10000 1/min :3.7/5,5/5,5 kW torque rotary tools:14 / 24 Nm total power requirement:38 kVA weight of the machine ca.:6,3 t dimensions of the machine ca.:4 (9) x 2,1 x 2,2 m Parts catcher:Sp. 1 und Sp. 2 Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) Tool presetter:Spindle 1 & 2 High precision Turning and Millin ...

turning diameter:370 mm turning length:200 mm Spindle 1 RPM:4000 1/min control:Siemens 840 D Spindle 2 RPM:4000 1/min power capacity:L / R 18/24 kW max. torque on the spindle:630 nM C-Axis:0,001° Turret No.1 stations / rotary tools:12/12 VDI 40 Turret No.2 stations / rotary tools:12/12 VDI 40 turning speed range - milling:3000 1/min power capacity - milling spindle:8,8 kW torque rotary tools:28 Nm Bar capacity spindle 1:85 mm total power requirement:65 kVA weight of the machine ca.:13 t dimensions of the machine ca.:5,7x2,4x2,1 m Travel x1:260 mm Travel x2:260 mm Travel Y1:600 mm Travel y2:600 mm Power Chuck:2 x 250 mm manual tool eye:l & r High performance 6-axis subspindle CNC-Lathe with twin turren and rotating tools.

turning diameter:65 mm turning length:120 mm control:Index C200-4D SL z-axis main spindle travel:390 mm z-axis subspindle travel:390 mm x-axis subspindle travel:600 mm Travel Y1:± 80 mm Travel y2:± 80 mm x-axis rapids:45 m/min y-axis rapids:15 m/min z-axis rapid travel:45 m/min Spindle 1 RPM:5000 1/min Spindle 1 Power:35,5/27,5 kW Spindle 1 Torque:170 /125 Nm Spindle 2 RPM:5000 1/min Spindle 2 power:35,5/27,5 kW Spindle 2 torque:170/125 Nm c-axis:0,00014 ° bar material dia.:65 mm spindle nose:AD 140 spindle bore:85 mm Milling spindle 1 RPM:18000 1/min Milling spindle 1 power:11 kW Milling Spindle1 torque:19 Nm Milling spindle 2 RPM:18000 1/min Milling Spindle 2 power:11 kW Milling spindle 2 torque:19 Nm B-axes swivel angle:230 ° B-axes torque:440 Nm B-axes angle resolution:0,001 ° Milling spindle 1 & 2 tool magazine:80 HSK A40 Milling spindle 2 tool magazine static tools :6 x VDI 25 ...

turning diameter:640 / 400 mm turning length:1500 mm control:Siemens 840 D Powerline Travel turret No.1 (milling spindle) x/y/z:550 / 180 (±90) / 1585 mm Swivle angle milling spindle (B-axis):±120° interpol. ° Rapid traverse feeds turret 1 (milling head) x/y/z:40/24/60 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:12 / 23 kW Torque of milling spindle:100 Nm Tool magazine for milling spindle (turret 1):120 HSK-A 63 Tool change time tool/tool, milling spindle:1,6 s Spindle 1 RPM:4000 1/min Spindle 1 power:36/ 45 kW Spindle 1 Torque:730 Nm Spindle 1 max. bar diameter:90 Spindle 2 RPM:4000 1/min Spindle 2 power:36 / 45 kW Spindle 2 torque:730 Nm Spindle 2 max. bar diameter:90 c-axis:0,001 ° Travel turret 2 x:225 mm Travel Turret 2 z:1595 mm RPM of rotary tools turret 2:4000 1/min no. of tools in turret 2:12 VDI 40 high-pressure pump:20 bar total power requiremen ...

turning diameter:670 mm turning length:1540 mm control:F31iB5 Celos Fanuc 35iB5 swing diameter max. over bed cover:700 mm Travel turret No.1 (milling spindle) x/y/z:495 / ± 150 / 1562(+164) mm Rotation B-axis:-30° / +210° Rapid traverse feeds turret 1 (milling head) x/y/z:40/40/40 m/min RPM milling spindle:12000 1/min power capacity - milling spindle:20,2/18,8 kW Torque of milling spindle:120 / 44 Nm tool taper milling spindle:Coromant Capto C6 Tool magazine for milling spindle (turret 1):76 Tool change time tool/tool, milling spindle:1,25 s Spindle 1 RPM:3000 1/min Spindle 1 Power:36 / 30 / 25 kW C-axis spindle 1:0,001 ° Bar capacity spindle 1:102 mm Spindle 2 RPM:4000 1/min Spindle 2 power:26 / 22 / 15 kW C-axis spindle 2:0,001 ° Bar capacity spindle 2:80 mm dimensions of the machine ca.:7,8 x 3,6 x 2,9 m Linear scales on axis:X, Y programmable steady:KLU-A530 & SLU-X3.2 Spindle 1 ...

turning diameter:500 mm turning length:1000 mm control:Siemens 840 D spindle:42 / 28 kW spindle turning speed - stepless:31 - 4000 1/min max. torque on the spindle:345 Nm c-axis:360000 x 0,001° feeds -stepless-:0 - 10000 mm/min rapid traverse:10000 mm/min turret stations / rotary tool stations:12/12 VDI 40 RPM of rotary tools:2000 1/min diameter of quill:90 mm quill stroke:80 mm tailstock quill taper ISO:SK 30 Tailstock Travel:600 mm Power rotary tools:3,5 kW :22,5 Nm Rotary tool holders:4 ax./ 4 rad. spindle passage:66 mm total power requirement:30 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:8x 3 x 4 m

turning diameter:356 mm turning length:705 mm control:MSX 850 MAPPS II swing dia.:755 mm standard turning diameter:275 mm travel -x axis:260 mm travel -y axis:100 (+-50) mm travel -z axis:795 mm rapid travel - longitudinal/face:30 / 30 m/min rapid traverse Y-axis:10 m/min Rapid travel B-axis (parts transfer subspindle):30 m/min Spindle 1 RPM:4000 1/min Spindle 1 Power:18,5/18,5/15 kW Spindle 1 max. bar diameter:80 mm Spindle 2 RPM:6000 1/min Spindle 2 power:11 / 7,5 kW turret stations / rotary tool stations:16 / 16 VDI 30 :5.5/5,5/3,7 kW speed of driven tools:6000 1/min total power requirement:39,2 kVA weight of the machine ca.:6,2 t dimensions of the machine ca.:3,1 x 2,0 x 2,2 m Spindle 1 Chuck:Kitagawa B 210 (250 mm) Spindle 2 Chuck:Kitagawa B 206 (160 mm) High precision Turning and Milling Centre with Y-axis and sub spindle. Easy programming by MAPPS II Control.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system G300 with "spindle bore clamping capacity 90mm" in tailstock version Chip conveyor, belt filter press, hydraulic unit, as well as infeed and outfeed chain conveyor EWAP, with 33 pallets. The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:270 mm turning length:710 mm weight of the machine ca.:6,5 t max. swing diameter:590 mm with automatic loading and unloading system, chip conveyor G300 with "spindle bore clamping capacity 90mm" in tailstock version The machine has no driven tools. The information in the circuit diagram refers to the rotary drive for indexing the turret, not to driven tools.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:120 mm turning length:650 mm weight of the machine ca.:11 t dimensions of the machine ca.:5,032 x 3,048 x 2,445 m Gildemeister MF Twin 65-II lathe with loading automation. This machine is suitable as a counter spindle machine for 4-axis machining on the main and counter spindles, complete machining (turning, drilling, milling, Y-axis, B-axis) of bar and shaft parts.

turning diameter:33 mm turning length:330 mm control: 840 total power requirement:20 kW weight of the machine ca.:6 t dimensions of the machine ca.:3850,2000,2100 m 17 axes 3 revolvers with the powered tools 1 gantry with the driven tools Main and counter spindle with C axes Barfeeder Machine On-time 58,133 hours

turning diameter:220 mm turning length:- mm control:- distance between milling spindels:800 mm spindle speed max.:12.000 U/min daylight:66 mm machine weight ab.:11 t total power requirement:90 kVA Fanuc control Two turrets Two spindles Spindle bore 66 mm on both spindles Two Y-axes Parts gripper Hainbuch chuck on both spindles Tailstock function Chip conveyor Tool eye Short bar loader Tool holder package

turning diameter:760 mm turning length:1.524 mm spindle speeds::3.300/12.000 MILL/3.300 spindle diameter:78/78 mm no. of tools in magazin:80 tool taper:Capto max. tool length:400 mm max. tool diameter:125/90 mm weight of the machine ca.:13,4 t Machine with Mazak Matrix CNC control Main and counter spindles Milling unit (milling spindle) Kitagawa QJ-312 dual-action chuck Pallet pool with robot IKZ Exhaust system not included

turning diameter:275 mm turning length:900 mm spindle passage:65 mm power capacity at 100 % load:25/20 kW spindle turning speed range:1 - 5000 U/min spindle diameter in front bearing:110 mm c-axis:1 - 500 U/min. number of workpiece supports:4 tool turret:1 x-axis:290 mm y-axis:165 mm z-axis:360 mm b-axis:360 ° rapid speed:18/30 m/min number of tools:2x2 + 2x2 number of driven tools:2x2 + 2x2 mm toolpiece turning speed range:8000 / 2000 U/min power capacity:25% ED 5,8 kW tool taper:TRAUB 60 tool turret:2/3/4 x-axis:170 mm z-axis:600/950 mm y-axis:+/- 60 mm rapid speed:18/15/30 m/min number of driven tools:10 mm toolpiece turning speed range:1 - 6000 U/min power capacity:25% ED 5,8 kW tool taper:DIN 69880 40 x 63 total power requirement:95 kW weight of the machine ca.:16 t dimensions of the machine ca.:10,0 x 3,5 x 3,0 m with CNC TRAUB TX 8i, Barloader TRAUB Stamag DNH61 / 3000, Main and  ...

turning diameter:445 mm turning length:2000 mm turning diameter over bed slide:660 spindle bore:65 mm spindle speeds::16 - 3150 U/min. rapid motion - x-axis:10 mm/min rapid traverse Z-axis:15 m/min total power requirement:34 kW weight of the machine ca.:7,5 t dimensions of the machine ca.:6 x 2,5 x 2,2 m with CNC Control TX 8 D C-axis driven tooling 14 station turret head 3 jaw chuck dia. 315 mm tailstock, steady as NC-axis diverse driven toolholders diverse turning toolholders chip conveyor and coolant attachment

Control: SIEMENS 840D Max.turning length: 450 mm Max swing diametr over bed/Slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l M

Control: Heidenhain Max.turning length: 450 mm Max swing diameter over bed/slide: 500 mm/375mm Workpiece diametr: 246 mm Material passage through the spindle: 0 mm Rotation speed(max.) 6000 rpm Quick Change Toolposts:12 Taper ? VDI30 Coolant tank:175l Ma

with 2 pcs. roller conveyor Auction-ID: A7-45452-19

CNC LATHE Inv. No. 12.710C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG16AC Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant

CNC Week Homag; 6.00 m in the X-axis; incl. rich accessories such as milling cutters; saws; swivel tools; etc. Then there are some controlled vices; many material suckers / suction pads. The main spindle was renewed once. There was also a software update. Stands unused for about 6 months. Auction-ID: A7-45983-6

CNC LATHE Inv. No. 12.711C1 Make MONDIALE Model GALLIC 420 CNC Control FANUC 10TF Serial number CNCG1685B17GE Centre distance 870 mm Max. swing over Bed Ø 420 mm Max. swing over Cross Slide Ø 214 mm Spindle bore Ø 69 mm R.P.M. 45 – 2500 (inf. var.) kW 11 Volts 400 Cycles 50 Including: 6 Pos. turret Coolant Auction-ID: A1-45737-114
